2AE5I-HEMHeadphone Emitter Module

QUICK INSTALLATION GUIDE HEM DS-L460-150401-E01-21 Version 1.0 DS-L460-150401-E01-21 2 Index Features ......................................................................................................................................... 3 Location ......................................................................................................................................... 4 Fixing strategy ............................................................................................................................... 5 Harness connection ....................................................................................................................... 6 Regulatory Notices ........................................................................................................................ 7 DS-L460-150401-E01-21 3 INSTALLATION GUIDE – HEM HEM is a Headphone Emitter Module that provides in car-connectivity for OEM telematic services. Features: Identification of the device: Headphone Emitter Module Technology: Bluetooth Frequency band / range: 2,4 GHz to 2,4835 GHz Maximum chipset/conducted output power: < 14 dBm Type of antenna: Microstrip Antenna gain: -2dBi to +4dBi (typical for BT) DS-L460-150401-E01-21 4 Location DS-L460-150401-E01-21 5 Fixing strategy DS-L460-150401-E01-21 6 Harness connection WARNING! This device can ́t be used by the final user at less than 11.4 cm. If so, additional testing is required. DS-L460-150401-E01-21 7 Regulatory Notices FCC/ISED Regulatory notices Modification statement Jaguar Land Rover has not approved any changes or modifications to this device by the user. Any changes or modifications could void the user’s authority to operate the equipment. Jaguar Land Rover n’approuve aucune modification apportée à l’appareil par l’utilisateur, quelle qu’en soit la nature. Tout changement ou modification peuvent annuler le droit d’utilisation de l’appareil par l’utilisateur. Interference statement This device complies with Part 15 of the FCC Rules and Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Wireless notice This device complies with FCC/ISED radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines and RSS‐102 of the ISED radio frequency (RF) Exposure rules. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Le présent appareil est conforme à l'exposition aux radiations FCC / ISED définies pour un environnement non contrôlé et répond aux directives d'exposition de la fréquence de la FCC radiofréquence (RF) et RSS‐102 de la fréquence radio (RF) ISED règles d'exposition. L'émetteur ne doit pas être colocalisé ni fonctionner conjointement avec à autre antenne ou autre émetteur. FCC Class B digital device notice This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. CAN ICES-3 (B) / NMB-3 (B) This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de classe B est conforme à la norme canadienne ICES-003.

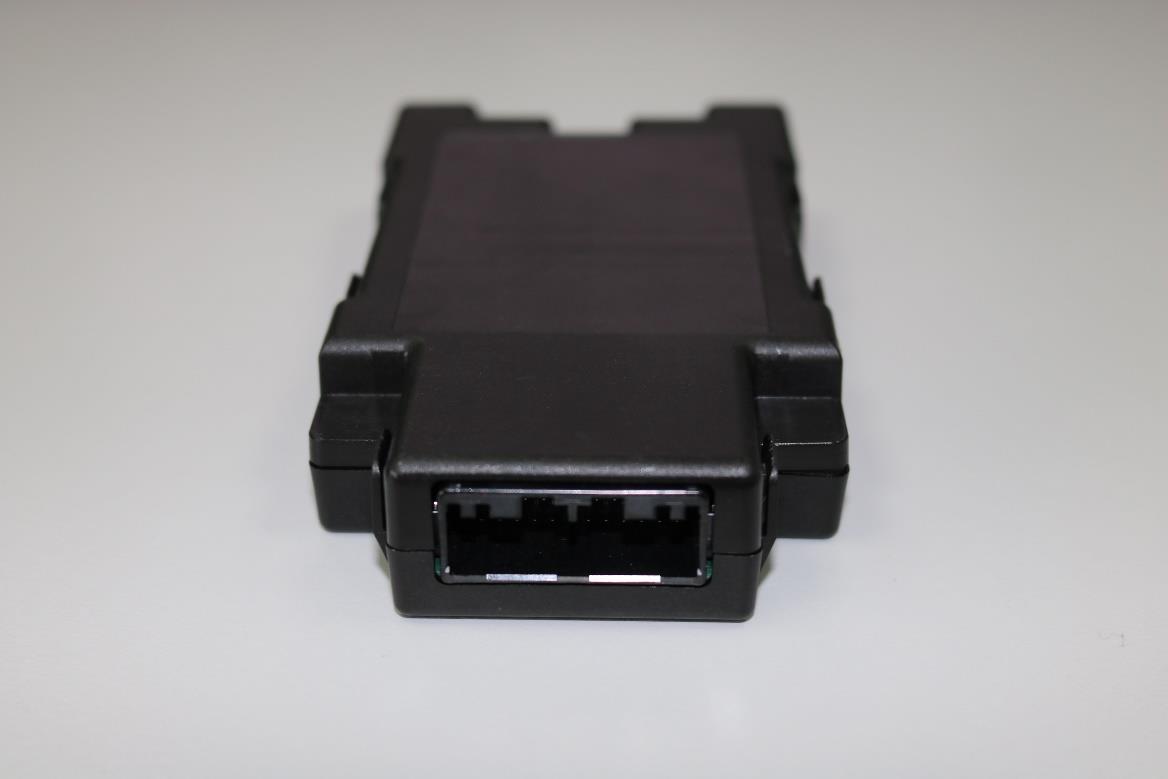

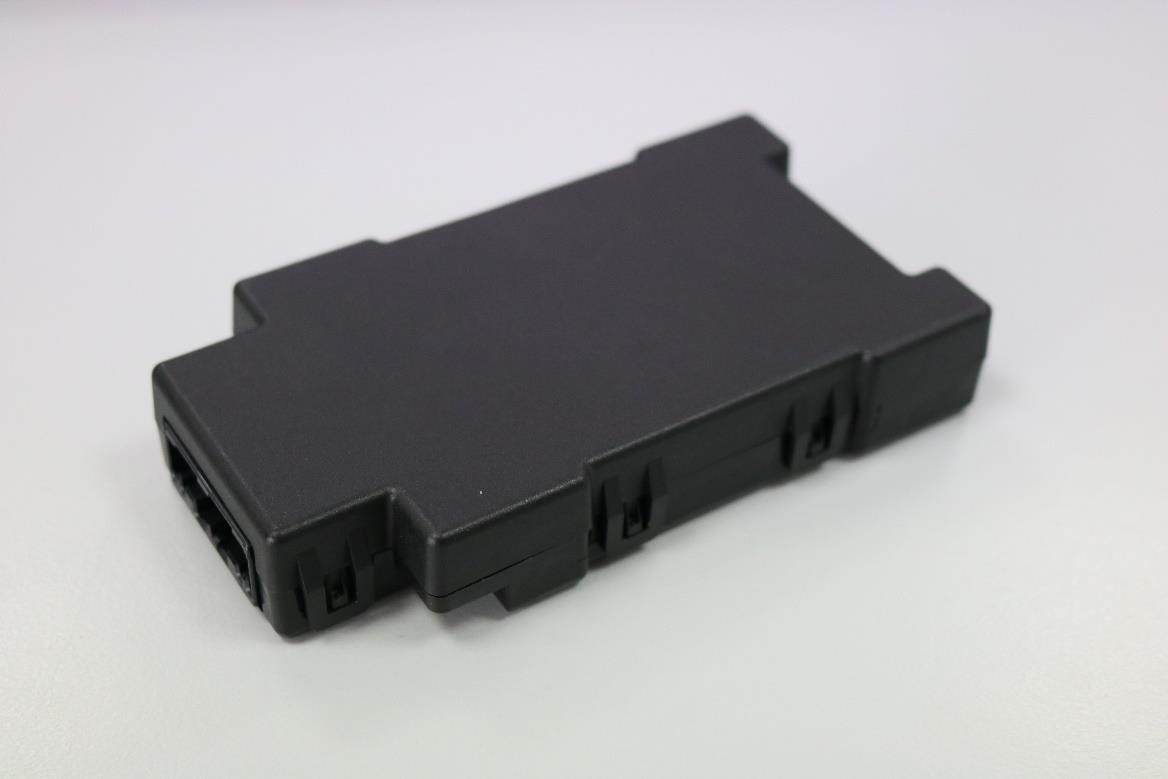

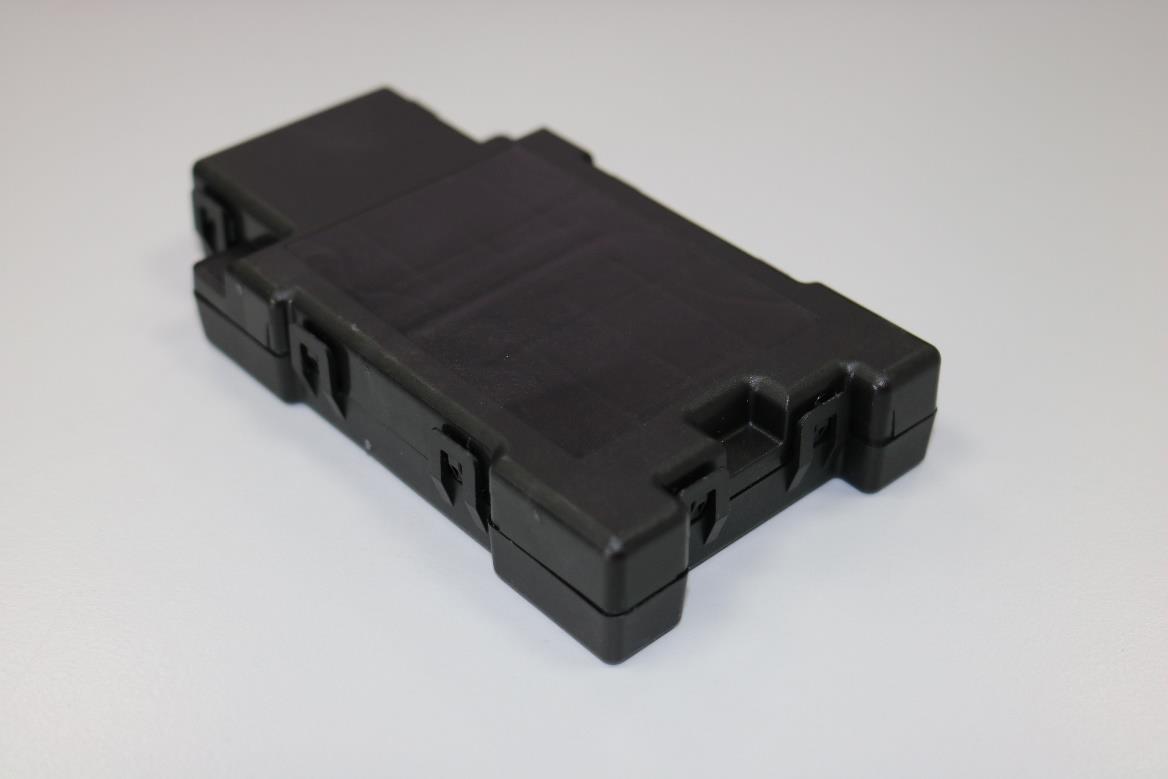

JLR ADC HEM C2 Sample Technical document and general information 01.07.2020 Florian Seliger Page 1 of 2 LEAR Corporation Engineering GmbH 2.2 HEM complete module – pictures Illustration 1: HEM complete top view (without label) Illustration 2: HEM complete bottom view JLR ADC HEM C2 Sample Technical document and general information 01.07.2020 Florian Seliger Page 2 of 2 LEAR Corporation Engineering GmbH Illustration 3: HEM complete front view (without label) Illustration 4: HEM complete back view (without label)

HEM

JLR ADC HEM C2 Sample Technical document and general information 01.07.2020 Florian Seliger Page 1 of 6 LEAR Corporation Engineering GmbH 2.1.3 HEM assembly The full assembly data can be found in the document “ HEM_C2_Assembly_Top” and “HEM_C2_Assembly_Bottom”. Illustration 1: HEM assembly Top JLR ADC HEM C2 Sample Technical document and general information 01.07.2020 Florian Seliger Page 2 of 6 LEAR Corporation Engineering GmbH Illustration 2: HEM assebly Bottom 2.1.4 HEM EMC shield For EMC reasons, the HEM received a EMC shielding aroud all SMPS components. This shield consists out of a EMC frame and a EMC cover. The EMC frame is directly soldered to the PCB while the EMC cover is then just clamped on the EMC frame. JLR ADC HEM C2 Sample Technical document and general information 01.07.2020 Florian Seliger Page 3 of 6 LEAR Corporation Engineering GmbH Illustration 3: EMC frame and cover Illustration 4: EMC frame JLR ADC HEM C2 Sample Technical document and general information 01.07.2020 Florian Seliger Page 4 of 6 LEAR Corporation Engineering GmbH Illustration 5: EMC frame with components inside Illustration 6: Components inside the EMC shielding JLR ADC HEM C2 Sample Technical document and general information 01.07.2020 Florian Seliger Page 5 of 6 LEAR Corporation Engineering GmbH 2.1.7 HEM Antenna The HEM includes four Bluetooth antennas. These antennas are microstrip-antennas which are directly on the PCB: Illustration 7: HEM antennas The antenna characteristics can be found in the document “HEM_C2_Antenna_Characteristic”. JLR ADC HEM C2 Sample Technical document and general information 01.07.2020 Florian Seliger Page 6 of 6 LEAR Corporation Engineering GmbH

DEKRA Testing and Certification, S.A.U. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España C.I.F. A29 507 456 Report No: (NIE) 65997RAN.001 2020-09-03 Test report No: NIE: 65997RAN.001 Assessment report RF EXPOSURE REPORT ACCORDING TO FCC 47 CFR Part 2.1093 ISED RSS -102 Issue 5:2015 (*) Identification of item under evaluation Headphone Emitter Module (*) Trademark Jaguar – Land Rover (*) Model and /or type reference HEM Other identification of the product Hw version: C2 Sw version: 7.2.1 FCC ID: 2AE5I-HEM IC: 2145A-HEM (*) Features Bluetooth Manufacturer Jaguar Land Rover Jaguar Land Rover, Banbury Road, Gaydon, CV35 0RR, UK. Test method requested, standard FCC 47 CFR Part 2.1093. Radiofrequency radiation exposure evaluation: portable devices. ISED RSS-102 Issue 5 (2015-03) – Radio Frequency Exposure Compliance of Radiocommunication Apparatus (All Frequency Bands) Summary IN COMPLIANCE Approved by (name / position & signature) Miguel Lacave Antennas Lab Manager Date of issue 2020-09-03 Report template No FAN24_02 (*) “Data provided by the client” DEKRA Testing and Certification, S.A.U. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España C.I.F. A29 507 456 Report No: (NIE) 65997RAN.001 Page 2 of 12 2020-09-03 Index Competences and guarantees .................................................................................................... 3 General conditions ...................................................................................................................... 3 Data provided by the client .......................................................................................................... 3 Identification of the client............................................................................................................. 3 Document history ........................................................................................................................ 3 General description of the device under evaluation ..................................................................... 4 Assessment summary ................................................................................................................. 4 Evaluation Results ...................................................................................................................... 5 Appendix A: FCC RF Exposure information ................................................................................ 7 FCC SAR test exclusion considerations for portable devices .................................................... 8 Appendix B: ISED RF Exposure information ............................................................................. 11 ISED SAR test exclusion considerations ................................................................................ 12 DEKRA Testing and Certification, S.A.U. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España C.I.F. A29 507 456 Report No: (NIE) 65997RAN.001 Page 3 of 12 2020-09-03 Competences and guarantees In order to assure the traceability to other national and international laboratories, DEKRA Testing and Certification, S.A.U. has a calibration and maintenance program for its measurement equipment. DEKRA Testing and Certification, S.A.U. guarantees the reliability of the data presented in this report, which is the result of the measurements and the tests performed to the item under test on the date and under the conditions stated on the report and, it is based on the knowledge and technical facilities available at DEKRA Testing and Certification, S.A.U. at the time of performance of the test. DEKRA Testing and Certification, S.A.U. is liable to the client for the maintenance of the confidentiality of all information related to the item under test and the results of the test. The results presented in this Assessment Report apply only to the particular item under test established in this document. IMPORTANT: No parts of this report may be reproduced or quoted out of context, in any form or by any means, except in full, without the previous written permission of DEKRA Testing and Certification, S.A.U. General conditions 1. This report is only referred to the item that has undergone the assessment. 2. This report does not constitute or imply on its own an approval of the product by the Certification Bodies or competent Authorities. 3. This document is only valid if complete; no partial reproduction can be made without previous written permission of DEKRA Testing and Certification, S.A.U. 4. This test report cannot be used partially or in full for publicity and/or promotional purposes without previous written permission of DEKRA Testing and Certification, S.A.U. and the Accreditation Bodies Data provided by the client The following data has been provided by the client: 1. Information relating to the description of the sample ("Identification of the item tested", "Trademark", "Model and/or type reference tested", “General description of the device”). 2. Maximum output power and use distance information. DEKRA Testing and Certification S.A.U. declines any responsibility with respect to the information provided by the client and that may affect the validity of results. Identification of the client Company name: Lear Corporation Engineering GmbH Address: Butzweilerhofallee 2-4, 50829 Cologne – GERMANY Contact person: David Giner E-mail: [email protected] Telephone: +49-221-70992-142 Document history Report number Date Description 65997RAN.001 2020-09-03 First release DEKRA Testing and Certification, S.A.U. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España C.I.F. A29 507 456 Report No: (NIE) 65997RAN.001 Page 4 of 12 2020-09-03 General description of the device under evaluation The device under evaluation consists of an Original Equipment Telematic Control Unit. Provides in car- connectivity for OEM tel…

Text truncated - open the document above for the full version.

DEKRA Testing and Certification. S.A.U. Parque Tecnológico de Andalucía. c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España C.I.F. A29 507 456 Report No: (NIE) 64733RRF.002 2020-07-30 Test report No: NIE: 64733RRF.002 Test Report USA FCC Part 15.247, 15.209 CANADA RSS-247, RSS-Gen Radio Frequency Devices. Operation within the bands 902 - 928 MHz. 2400 - 2483.5 MHz and 5725 - 5850 MHz. Digital Transmission Systems (DTSs), Frequency Hopping Systems (FHSs) and Licence-Exempt Local Area Network (LE-LAN) Devices. General Requirements and Information for the Certification of Radio Apparatus. (*) Identification of item tested Headphone Emitter Module (*) Trademark Jaguar – Land Rover (*) Model and /or type reference HEM Other identification of the product HW version: C2 SW version: 7.2.1 FCC ID: 2AE5I-HEM IC: 2145A-HEM (*) Features Bluetooth Applicant Jaguar Land Rover Jaguar Land Rover, Banbury Road, Gaydon, CV35 0RR, UK Test method requested. standard USA FCC Part 15.247 (10-1-19 Edition): Operation within the bands 902 - 928 MHz, 2400 -2483.5 MHz, and 5725 - 5850 MHz. USA FCC Part 15.209 (10-1-19 Edition): Radiated emission limits; general requirements. CANADA RSS-247 Issue 2 (February 2017). RSS-Gen Issue 5 (March 2019) Amendment 1. General Requirements for Compliance of Radio Apparatus. Guidance for Performing Compliance Measurements on Digital Transmission System, Frequency Hopping Spread Spectrum System, and Hybrid Systems Devices Operating Under Section 15.247 of the FCC Rules. 558074 D01 Meas Guidance v05r02 dated April 2, 2019. ANSI C63.10-2013: American National Standard for Testing Unlicensed Wireless Devices. Summary IN COMPLIANCE Approved by (name / position & signature) José Carlos Luque RF Lab. Supervisor Date of issue 2020-07-30 Report template No FDT08_22 (*) “Data provided by the client” 74841983Y JOSE CARLOS LUQUE (C:A29507456) Firmado digitalmente por 74841983Y JOSE CARLOS LUQUE (C:A29507456) Fecha: 2020.07.30 13:50:52 +02'00' DEKRA Testing and Certification. S.A.U. Parque Tecnológico de Andalucía. c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España C.I.F. A29 507 456 Report No: (NIE) 64733RRF.002 Page 2 of 74 2020-07-30 Index Competences and guarantees ...................................................................................................................... 3 General conditions ......................................................................................................................................... 3 Uncertainty ..................................................................................................................................................... 3 Data provided by the client ............................................................................................................................ 3 Usage of samples .......................................................................................................................................... 3 Test sample description ................................................................................................................................. 4 Identification of the client ............................................................................................................................... 6 Testing period and place ............................................................................................................................... 6 Document history ........................................................................................................................................... 6 Environmental conditions .............................................................................................................................. 7 Remarks and comments ................................................................................................................................ 8 Testing verdicts .............................................................................................................................................. 9 Summary ....................................................................................................................................................... 9 Appendix A: Test results. Bluetooth EDR (GFSK, Pi/4-DQPSK, 8DPSK) ..................................................10 DEKRA Testing and Certification. S.A.U. Parque Tecnológico de Andalucía. c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España C.I.F. A29 507 456 Report No: (NIE) 64733RRF.002 Page 3 of 74 2020-07-30 Competences and guarantees DEKRA Testing and Certification S.A.U. is a testing laboratory accredited by the National Accreditation Body (ENAC -Entidad Nacional de Acreditación). to perform the tests indicated in the Certificate No. 51/LE 147. DEKRA Testing and Certification is a FCC-recognized accredited testing laboratory with appropriate scope of accreditation that include testing performed in this test report. DEKRA Testing and Certification is an ISED-recognized accredited testing laboratory with appropriate scope of accreditation that include testing performed in this test report. In order to assure the traceability to other national and international laboratories. DEKRA Testing and Certification S.A.U. has a calibration and maintenance program for its measurement equipment. DEKRA Testing and Certification S.A.U. guarantees the reliability of the data presented in this report. which is the result of the measurements and the tests performed to the item under test on the date and under the conditions stated on the report and. it is based on the knowledge and technical facilities available at DEKRA Testing and Certification S.A.U. at the time of performance of the test. DEKRA Testing and Certification S.A.U. is liable to the client for the maintenance of the confidentiality of all information related to the item under test and the results of the test. The results presented in this Test Report apply only to the par…

Text truncated - open the document above for the full version.

DEKRA Testing and Certification. S.A.U. Parque Tecnológico de Andalucía. c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España C.I.F. A29 507 456 Report No: (NIE) 64733RRF.002 Page 37 of 74 2020-07-30 - High Channel: ∑ Pi/4 DQPSK – Peak Output Power - Low Channel: DEKRA Testing and Certification. S.A.U. Parque Tecnológico de Andalucía. c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España C.I.F. A29 507 456 Report No: (NIE) 64733RRF.002 Page 38 of 74 2020-07-30 - Middle Channel: - High Channel: DEKRA Testing and Certification. S.A.U. Parque Tecnológico de Andalucía. c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España C.I.F. A29 507 456 Report No: (NIE) 64733RRF.002 Page 39 of 74 2020-07-30 ∑ 8DPSK – Peak Output Power - Low Channel: - Middle Channel: DEKRA Testing and Certification. S.A.U. Parque Tecnológico de Andalucía. c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España C.I.F. A29 507 456 Report No: (NIE) 64733RRF.002 Page 40 of 74 2020-07-30 - High Channel: DEKRA Testing and Certification. S.A.U. Parque Tecnológico de Andalucía. c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España C.I.F. A29 507 456 Report No: (NIE) 64733RRF.002 Page 41 of 74 2020-07-30 FCC 15.247 (d) / RSS-247 5.5. Band-edge emissions compliance (Transmitter) SPECIFICATION: Emissions outside the frequency band in which the intentional radiator is operating shall be at least 20 dB below the highest level of the desired power. RESULTS: Radiated measurements were used to show compliance with the limits in the restricted bands 2.31-2.39 GHz and 2.4835-2.5 GHz. Measurement uncertainty (dB) <±2.57 DEKRA Testing and Certification. S.A.U. Parque Tecnológico de Andalucía. c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España C.I.F. A29 507 456 Report No: (NIE) 64733RRF.002 Page 42 of 74 2020-07-30 ∑ GFSK – Band-edge emissions compliance v HOPPING ON: ß Low Frequency Section 2402 MHz: Verdict: PASS ß High Frequency Section 2480 MHz: Verdict: PASS DEKRA Testing and Certification. S.A.U. Parque Tecnológico de Andalucía. c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España C.I.F. A29 507 456 Report No: (NIE) 64733RRF.002 Page 43 of 74 2020-07-30 v HOPPING OFF: ß Low Frequency Section 2402 MHz: Verdict: PASS ß High Frequency Section 2480 MHz: Verdict: PASS DEKRA Testing and Certification. S.A.U. Parque Tecnológico de Andalucía. c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España C.I.F. A29 507 456 Report No: (NIE) 64733RRF.002 Page 44 of 74 2020-07-30 ∑ Pi/4 DQPSK – Band-edge emissions compliance v HOPPING ON: ß Low Frequency Section 2402 MHz: Verdict: PASS ß High Frequency Section 2480 MHz: Verdict: PASS DEKRA Testing and Certification. S.A.U. Parque Tecnológico de Andalucía. c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España C.I.F. A29 507 456 Report No: (NIE) 64733RRF.002 Page 45 of 74 2020-07-30 v HOPPING OFF: ß Low Frequency Section 2402 MHz: Verdict: PASS ß High Frequency Section 2480 MHz: Verdict: PASS DEKRA Testing and Certification. S.A.U. Parque Tecnológico de Andalucía. c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España C.I.F. A29 507 456 Report No: (NIE) 64733RRF.002 Page 46 of 74 2020-07-30 ∑ 8DPSK – Band-edge emissions compliance v HOPPING ON: ß Low Frequency Section 2402 MHz: Verdict: PASS ß High Frequency Section 2480 MHz: Verdict: PASS DEKRA Testing and Certification. S.A.U. Parque Tecnológico de Andalucía. c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España C.I.F. A29 507 456 Report No: (NIE) 64733RRF.002 Page 47 of 74 2020-07-30 v HOPPING OFF: ß Low Frequency Section 2402 MHz: Verdict: PASS ß High Frequency Section 2480 MHz: Verdict: PASS DEKRA Testing and Certification. S.A.U. Parque Tecnológico de Andalucía. c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España C.I.F. A29 507 456 Report No: (NIE) 64733RRF.002 Page 48 of 74 2020-07-30 FCC 15.247 (d) / RSS-247 5.5. Emission limitations radiated. (Transmitter) SPECIFICATION: Radiated emissions which fall in the restricted bands. as defined in §15.205(a). must also comply with the radiated emission limits specified in §15.209(a) (see §15.205(c)/RSS-Gen): Frequency Range (MHz) Field strength (μV/m) Field strength (dBμV/m) Measurement distance (m) 0.009-0.490 2400/F(kHz) - 300 0.490-1.705 24000/F(kHz) - 30 1.705 - 30.0 30 - 30 30 - 88 100 40 3 88 - 216 150 43.5 3 216 - 960 200 46 3 960 - 25000 500 54 3 The emission limits shown in the above table are based on measurements employing CISPR quasi-peak detector except for the frequency bands 9-90 kHz. 110-490 kHz and above 1000 MHz. Radiated emission limits in these three bands are based on measurements employing an average detector. For average radiated emission measurements above 1000 MHz. there is also a limit corresponding to 20 dB above the indicated values in the table is specified when measuring with peak detector function. RSS-247. Attenuation below the general field strength limits specified in RSS-Gen is not required. RESULTS: The situation and orientation was varied to find the maximum radiated emission. It was also rotated 360º and the antenna height was varied from 1 to 4 meters to find the maximum radiated emission. Measurements were made in both horizontal and vertical planes of polarization. All tests were performed in a semi-anechoic chamber at a distance of 3 m for the frequency range 30 MHz-17 GHz and at distance of 1m for the frequency range 17 GHz-25 GHz. The field strength is calculated by adding correction factor to the measured level from the spectrum analyzer. This correction factor includes antenna factor. cable loss and pre-amplifiers gain. DEKRA Testing and Certification. S.A.U. Parque Tecnológico de Andalucía. c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España C.I.F. A29 507 456 Report No: (NIE) 64733RRF.002 Page 49 of 74 2020-07-30 Frequency range 30 MHz - 1 GHz: The spurious frequencies detected below 1 GHz do not depend on either the operating channel or the modulation mode selected in the EUT. No spurious…

Text truncated - open the document above for the full version.

DEKRA Testing and Certification, S.A.U. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España C.I.F. A29 507 456 Report No: (NIE) 64733RRF.003A1 2020-08-06 Test report No: NIE: 64733RRF.003A1 Partial Test Report USA FCC Part 15.247, 15.209 CANADA RSS-247, RSS-Gen Radio Frequency Devices. Operation within the bands 902 - 928 MHz, 2400 - 2483.5 MHz, and 5725 - 5850 MHz. Digital Transmission Systems (DTSs), Frequency Hopping Systems (FHSs) and Licence-Exempt Local Area Network (LE-LAN) Devices. General Requirements and Information for the Certification of Radio Apparatus. (*) Identification of item tested Headphone Emitter Module (*) Trademark Jaguar – Land Rover (*) Model and /or type reference HEM Other identification of the product HW version: C2 SW version: 7.2.1 FCC ID: 2AE5I-HEM IC: 2145A-HEM (*) Features Bluetooth Applicant Jaguar Land Rover Jaguar Land Rover, Banbury Road, Gaydon, CV35 0RR, UK Test method requested, standard USA FCC Part 15.247 (10-1-18 Edition): Operation within the bands 902 - 928 MHz, 2400 -2483.5 MHz, and 5725 - 5850 MHz. USA FCC Part 15.209 (10-1-18 Edition): Radiated emission limits; general requirements. CANADA RSS-247 Issue 2 (February 2017). CANADA RSS-Gen Issue 5 (April 2018). Guidance for Performing Compliance Measurements on Digital Transmission System, Frequency Hopping Spread Spectrum System, and Hybrid Systems Devices Operating Under Section 15.247 of the FCC Rules. 558074 D01 Meas Guidance v05r02 dated April 2, 2019. ANSI C63.10-2013: American National Standard for Testing Unlicensed Wireless Devices: - Transmitter out of band radiated emissions with simultaneous transmissions. Approved by (name / position & signature) José Carlos Luque RF Lab. Supervisor DEKRA Testing and Certification, S.A.U. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España C.I.F. A29 507 456 Report No: (NIE) 64733RRF.003A1 Page 2 of 20 2020-08-06 Date of issue 2020-08-06 Report template No FDT08_22 (*) “Data provided by the client” DEKRA Testing and Certification, S.A.U. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España C.I.F. A29 507 456 Report No: (NIE) 64733RRF.003A1 Page 3 of 20 2020-08-06 Index Competences and guarantees ...................................................................................................................... 4 General conditions ......................................................................................................................................... 4 Uncertainty ..................................................................................................................................................... 4 Data provided by the client ............................................................................................................................ 4 Usage of samples .......................................................................................................................................... 5 Test sample description ................................................................................................................................. 5 Identification of the client ............................................................................................................................... 7 Testing period and place ............................................................................................................................... 7 Document history ........................................................................................................................................... 7 Environmental conditions .............................................................................................................................. 7 Remarks and comments ................................................................................................................................ 8 Testing verdicts .............................................................................................................................................. 9 Summary ....................................................................................................................................................... 9 Appendix A: Test results. .............................................................................................................................10 DEKRA Testing and Certification, S.A.U. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España C.I.F. A29 507 456 Report No: (NIE) 64733RRF.003A1 Page 4 of 20 2020-08-06 Competences and guarantees DEKRA Testing and Certification S.A.U. is a testing laboratory accredited by the National Accreditation Body (ENAC -Entidad Nacional de Acreditación), to perform the tests indicated in the Certificate No. 51/LE 147. DEKRA Testing and Certification is a FCC-recognized accredited testing laboratory with appropriate scope of accreditation that include testing performed in this test report. DEKRA Testing and Certifi…
