2AE68-3G5-02WCDMA Mobile phone

The user manual Model:3G5 Brand: POCKETSURFER3G5 I Welcome you choose to use this phone, you can read this manual, a comprehensive understanding of the use of the phone, appreciate the perfect function and the introduction of the operation method. Declaration: this manual are only as a guide for product use, does not represent a software and hardware configuration of product, product and accessories may vary from area to area. This phone is double card double stay mobile, applicable to GSM/GPRS/EDGE network environment, some functions need the support of network operator or service provider, details please see the user manual. To ensure your safety use, please read the "safety instructions"。 Directory 1. KNOW YOUR MOBILE PHONE ············································ 1 KEY DESCRIPTION ······································································· 1  START USING THE EQUIPMENT ················································· 4  INSTALLUSIM/SIM CARD AND BATTERY ······································ 4  CHARGE BATTERY ····································································· 8 START UP AND SHUTDOWN ·································································· 9  PASSWORD ············································································ 9 PIN ··································································· 9 PIN2 ································································· 9 PUK and PUK2 ····················································· 10 2. QUICK START GUDE ······························································· 11 II  TURNED ON AND OFF THE SCREEN ············································ 11  LOCK AND UNLOCK ···································································· 11  COLUMN NOTICE ······································································ 12  APPLICATION MENU ·································································· 12 Open and switching applications ························· 12 Run ··································································· 13 3. DIAL ················································································· 13  MAKE AND RECEIVE CALLS ··························································· 13 making a call ····················································· 13 answer calls ······················································ 13  CONTACT ············································································· 14  CALL LOG ············································································ 14 All calls ·························································· 14 Received calls ·················································· 14 Dialed numbers ·················································· 14 Missed calls ····················································· 14 4. BACKUP AND RESTORE ···························································· 15 5. E-MAIL ·············································································· 15  SET UP EMAIL ACCOUNT······························································ 15  CHECK AND READ EMAIL······························································ 15 6. BROWSER ············································································ 15  VIEW THE WEB PAGE ································································· 15  OPEN WEBSITE ······································································· 15 7. GOOGLE ·············································································· 16 8. SEARCH ·············································································· 16 9. MUSIC ··············································································· 16  TO SEARCH FOR MUSIC ······························································· 16  ADD/REMOVE MUSIC ·································································· 16 10. SOUND RECORDER ·································································· 16 III 11. MESSAGING ········································································· 17  SEND AND RECEIVE MESSAGES ······················································· 17 Send SMS ··························································· 17 Cmppdeliver ······················································· 17 12. CALENDAR ··········································································· 17  VIEW CALENDAR ······································································ 18  ADD AN EVENT ······································································· 18 13. GALLERY ············································································ 18  LOOK AT PHOTOS AND VIDEO ························································· 19  DELETE THE PHOTOS AND VIDEO ····················································· 19  SLIDE SHOW ·········································································· 19  SHARE PHOTOS AND VIDEO ··························································· 19  SET AS WALLPAPER ·································································· 20 14. CAMERA ·············································································· 20  TAKE PHOTOS AND VIDEOS ··························································· 20 take photos ······················································· 20 videos ······························································ 20  LOOK AT PHOTOS AND VIDEOS ························································ 21 15. VIDEO PLAYER ····································································· 21  VIDEO VIEW ·········································································· 21 16. TODO ················································································· 21 Add, delete, and edit memo ································· 21 Add a new item ················································· 21 Delet…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (current) 4.0 5.0 Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2Rev 5.0 Datawind Inc 2015.6.26 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, Datawind Inc hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): (Product description, model name): Product description: WCDMA Mobile phone model name: 3G5, DW-PS3G5 FCC ID: 2AE68-3G5-02 Sincerely, Client’s signature : Li Chan Client’s name / title: Manager Applicant company: Datawind Inc address: 407 Blvd St-Laurent, suite 500,Montreal, Quebec, H2Y 2Y5,Canada.

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 4.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (obsolete) 2.0 3.0 Jan-31-2012 Added IC confidentiality letter form (current) 3.0 4.0 March-26-2015 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 4.0 Datawind Inc 2015.6.26 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: 2AE68-3G5-02 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description - Tune up Procedure - Part List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature : Li Chan Client’s name & title : Manager Contact information / address: 407 Blvd St-Laurent, suite 500,Montreal, Quebec, H2Y 2Y5,Canada.

Differences Description We Datawind Inc state: Product： WCDMA Mobile phone Model Name： 3G5, DW-PS3G5 Trade Name: POCKETSURFER3G5 FCC ID 2AE68-3G5-02 The electrical circuit design, layout, components used and internal wiring for above models are identical, only different in model name. Signatory Date 2015-7-23 Signature Name: Li Chan Title: manager Company: Datawind Inc. Address: 407 Blvd St-Laurent, suite 500,Montreal, Quebec, H2Y 2Y5,Canada.

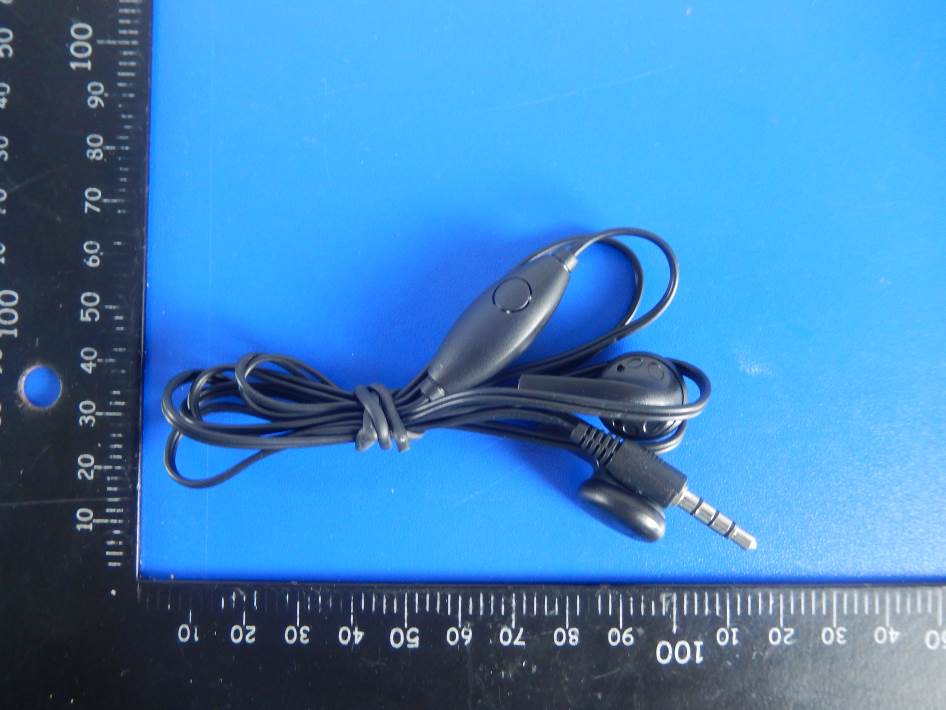

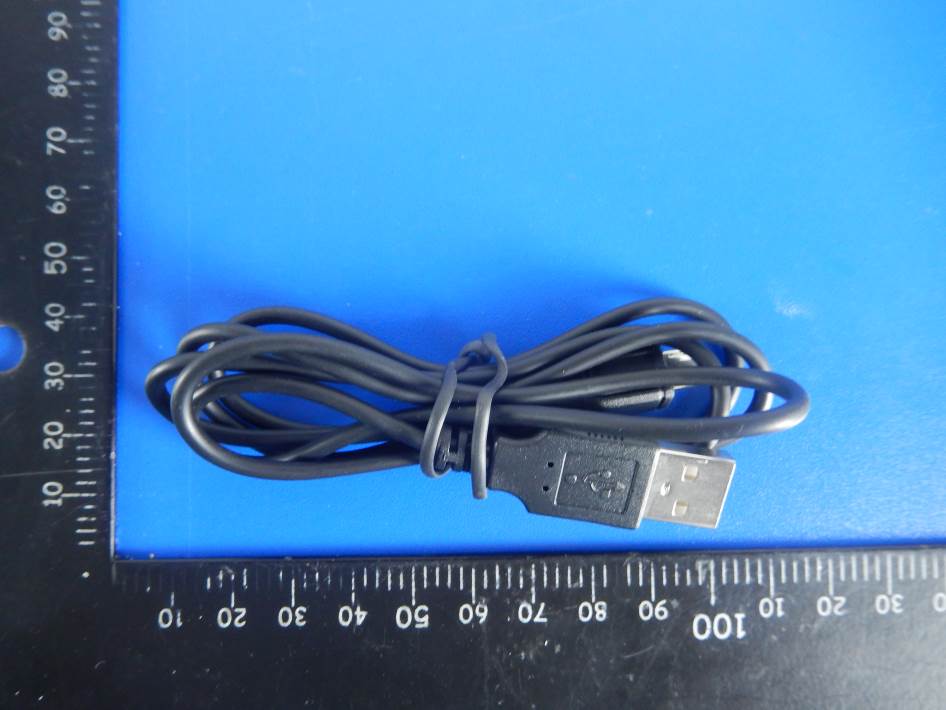

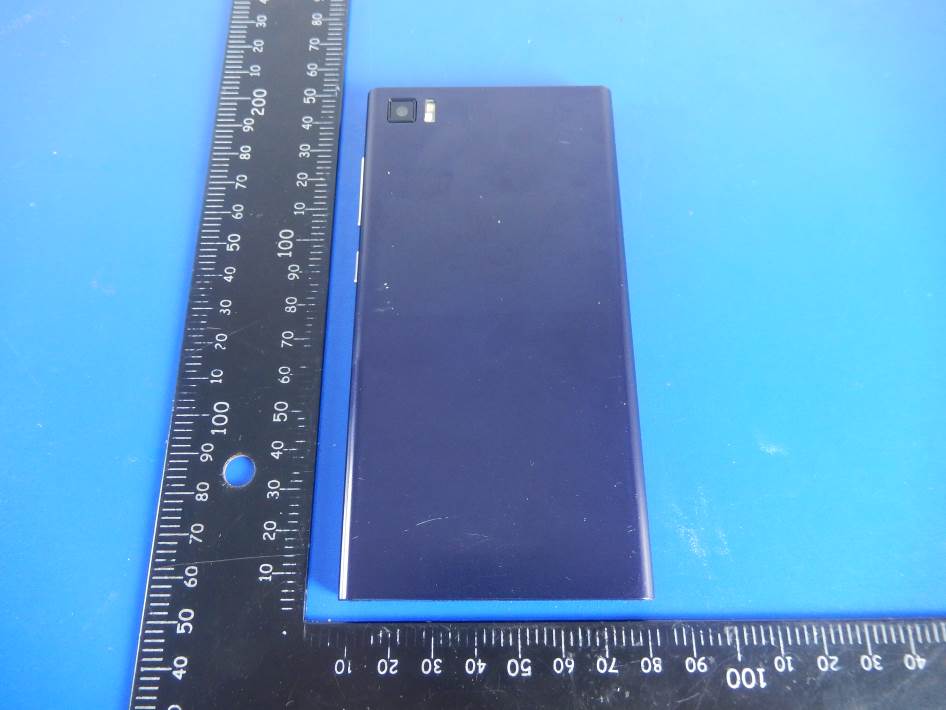

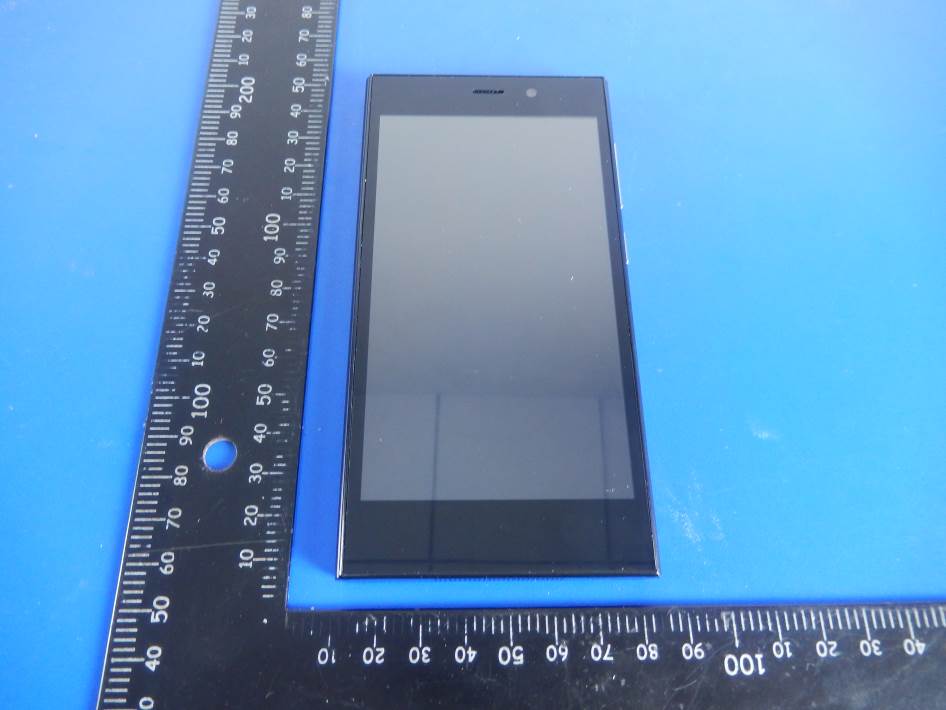

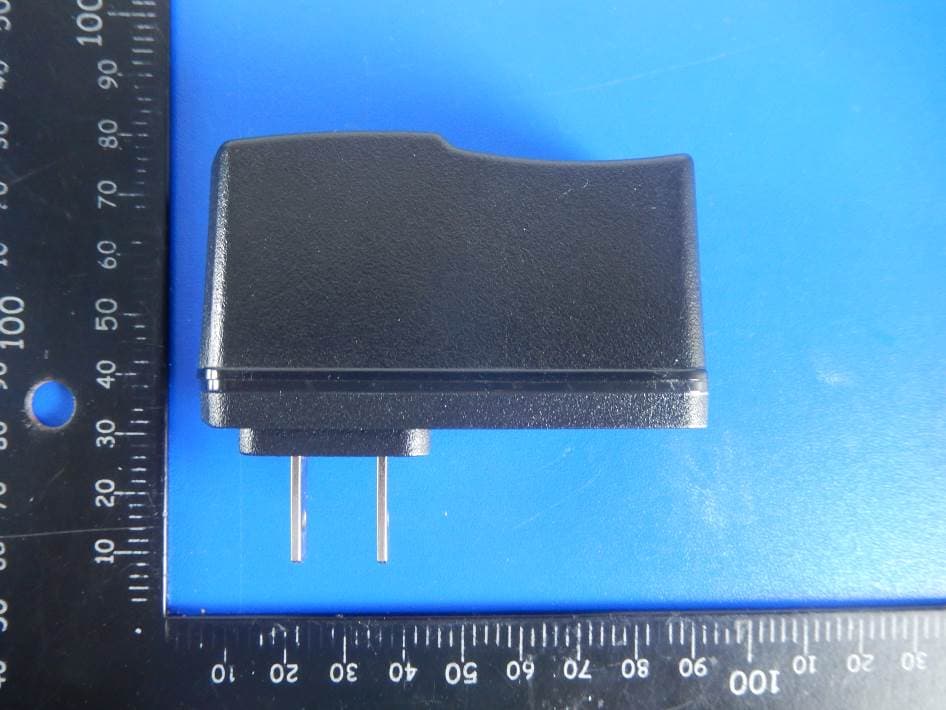

Project No: STS1506087 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Project No: STS1506087 Photo 3 Photo 4 Project No: STS1506087 Photo 5 Photo 6 Project No: STS1506087 Photo 7 Photo 8 Project No: STS1506087 Photo 9

Label WCDMA Mobile phone Model name: 3G5 FCC ID: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. label 2AE68-3G5-02

Project No: STS1506087 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 BT/WIFI/GPS ANTENNA GSM/WCDMA ANTENNA Project No: STS1506087 Photo 3 Photo 4 Project No: STS1506087 Photo 5 Photo 6 Project No: STS1506087 Photo 7 Photo 8 Project No: STS1506087 Photo 9

Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from STS, All Test Data Presented in this report is only applicable to presented Test sample. Shenzhen STS Test Services Co., Ltd. 1/F., Building B, Zhuoke Science Park, No.190,Chongqing Road, Fuyong Street, Bao’an District, Shenzhen, Guangdong,China TEL: +86-755 3688 6288 FAX: +86-755 3688 6277 E-mail:[email protected] FCC SAR TEST REPORT Report No: STS1506087H01 Issued for Datawind Inc 407 Blvd St-Laurent, suite 500,Montreal, Quebec, H2Y 2Y5 Product Name: WCDMA Mobile phone Brand Name: POCKETSURFER3G5 Model No.: 3G5 Series Model: DW-PS3G5 FCC ID: 2AE68-3G5-02 Test Standard: ANSI/IEEE Std. C95.1 FCC 47 CFR Part 2 ( 2.1093) IEEE 1528: 2013 Max. SAR (1g): Head:0.411 W/kg Body:1.377 W/kg S T L A B S Page 2 of 97 Report No.: STS1506087H01 Test Report Certification Applicant’s name ................. : Datawind Inc Address ................................. : 407 Blvd St-Laurent, suite 500, Montreal, Quebec, H2Y 2Y5 Manufacture's Name ............ : Shenzhen Langmei Technology Co.,Ltd. Address ................................. : Langmei Technology Park,No.2Industrial Park, Fenghuang No.3 Industrial Zone, Fuyong Sub-district, Bao’an District, Shenzhen City, Guangdong Province P.R.China. Product description Product name ........................ : WCDMA Mobile phone Trademark ........................... : POCKETSURFER3G5 Model and/or type reference : 3G5 Serial Model： DW-PS3G5 Standards ............................. : ANSI/IEEE Std. C95.1-1992 FCC 47 CFR Part 2 ( 2.1093) IEEE 1528: 2013 The device was tested by Shenzhen STS Test Services Co., Ltd. in accordance with the measurement methods and procedures specified in KDB 865664 The test results in this report apply only to the tested sample of the stated device/equipment. Other similar device/equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Date of Test ........................................... : Date (s) of performance of tests ............. : 19 Jun. 2015 Date of Issue .......................................... : 14 Jul. 2015 Test Result.............................................. : Pass Testing Engineer : (Allen Chen) Technical Manager : (John Zou) Authorized Signatory : (Bovey Yang) Page 3 of 97 Report No.: STS1506087H01 TABLE OF CONTENS 1. General Information 4 1.1 EUT Description 4 1.2 Test Environment 5 1.3 Test Facility 5 2. Test Standards And Limits 6 3. SAR Measurement System 7 3.1 Definition Of Specific Absorption Rate (SAR) 7 3.2 SAR System 7 3.2.1 Probe 8 3.2.2 Phantom 9 3.2.3 Device Holder 9 4. Tissue Simulating Liquids 10 4.1 Simulating Liquids Parameter Check 10 5. SAR System Validation 11 5.1 Validation System 11 5.2 Validation Result 11 6. SAR Evaluation Procedures 12 7. EUT Antenna Location Sketch 13 7.1 SAR TEST EXCLUSION CONSIDER TABLE 14 8. EUT Test Position 16 8.1 Define Two Imaginary Lines On The Handset 16 8.2 Hotspot mode exposure position condition 17 9. Uncertainty 18 9.1 Measurement Uncertainty 18 9.2 System validation Uncertainty 20 10. Conducted Power Measurement 22 11. EUT And Test Setup Photo 27 11.1 EUT Photo 27 11.2 Setup Photo 30 12. SAR Result Summary 36 12.1 Head SAR 36 12.2 Body SAR And Hotspot 37 13. Equipment List 41 Appendix A. System Validation Plots 42 Appendix B. SAR Test Plots 54 Appendix C. Probe Calibration And Dipole Calibration Report 97 Page 4 of 97 Report No.: STS1506087H01 1. General Information 1.1 EUT Description Equipment WCDMA Mobile phone Brand Name POCKETSURFER3G5 Model No. 3G5 Serial Model DW-PS3G5 FCC ID 2AE68-3G5-02 Model Difference Only different in model name Adapter Input: AC100-240V, 0.2A, 50/60 Hz Output: DC 5V, 500mA Battery Rated Voltage: 3.7V Charge Limit: 4.2V Capacity: 1600mAh Hardware Version 98056_1_10 Software Version N/A Frequency Range GSM 850: 824.2 ~ 848.8 MHz PCS1900: 1850.2 ~ 1909.8 MHz WCDMA II: 1852.4~1907.6 MHz WCDMA V: 826.4~846.6 MHz WLAN 802.11 b/g/n(HT20):2412~2462 MHz WLAN 802.11 n(HT40):2422~2452 MHz Bluetooth：2402~2480MHz Transmit Power(MAX): GSM 850: 32.51dBm GSM 1900: 28.85dBm WCDMA II: 18.33dBm WCDMA V: 18.77dBm 802.11b: 14.48Bm 802.11g: 13.68dBm 802.11 n(HT20): 13.85dBm 802.11 n(HT40): 12.40dBm Bluetooth: 0.20dBm Max. Reported SAR(1g): Head: GSM 850: 0.245 W/kg GSM 1900: 0.181 W/kg WCDMA II: 0.411 W/kg WCDMA V: 0.225 W/kg WIFI: 0.159 W/kg Body: GSM 850: 0.588 W/kg GSM 1900: 0.696 W/kg WCDMA II: 1.377 W/kg WCDMA V: 0.522 W/kg WIFI: 0.153 W/kg Operating Mode: GSM: GSM Voice, GPRS, EGPRS Class 12; WCDMA: RMC, HSDPA, HSUPA Release 6; WLAN: 802.11 b/g/n; Bluetooth: V3.0 + EDR (GFSK +π/4DQPSK+8DPSK) Antenna Specification: GSM/WCDMA: PIFA Antenna BT/WIFI: PIFA Antenna SIM Card Support dual-SIM, dual standby, the multiple SIM card with two lines cannot transmitting at the same time Hotspot Mode: Support DTM Mode: Not Support Page 5 of 97 Report No.: STS1506087H01 1.2 Test Environment Ambient conditions in the SAR laboratory: Items Required Actual Temperature (°C) 18-25 22~23 Humidity (%RH) 30-70 55~65 1.3 Test Facility Shenzhen STS Test Services Co., Ltd. Add. : 1/F, Building B, Zhuoke Science Park,No.190, Chongqing Road, Fuyong, Baoan District, Shenzhen, Guangdong, China CNAS Registration No.: L7649 FCC Registration No.: 842334;IC Registration No.: 12108A-1 Page 6 of 97 Report No.: STS1506087H01 2. Test Standards And Limits No. Identity Document Title 1 47 CFR Part 2 Frequency Allocations and Radio Treaty Matters; General Rules and Regulations 2 ANSI/IEEE Std. C95.1-1992 IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz 3 IEEE Std. 1528-2013 Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques 4 FCC KDB 447498 D01 v05r02 Mobile and Portable Device RF Exposure Procedures and Equipment…

Text truncated - open the document above for the full version.

Ref : ACR.262.1.14.SATU.A SHENZHEN STS TEST SERVICES CO., LTD. 1/F., BUILDING B, ZHUOKE SCIENCE PARK, No.190, CHONGQING ROAD,FUYONG STREET, BAO’ AN DISTRICT, SHENZHEN,GUANGDONG,CHINA SATIMO COMOSAR DOSIMETRIC E-FIELD PROBE SERIAL NO.: SN 17/14 EP221 Calibrated at SATIMO US 2105 Barrett Park Dr. - Kennesaw, GA 30144 09/01/2014 Summary: This document presents the method and results from an accredited COMOSAR Dosimetric E-Field Probe calibration performed in SATIMO USA using the CALISAR / CALIBAIR test bench, for use with a SATIMO COMOSAR system only. All calibration results are traceable to national metrology institutions. COMOSAR E-Field Probe Calibration Report COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.262.1.14.SATU.A Page: 2/9 This document shall not be reproduced, except in full or in part, without the written approval of SATIMO. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of SATIMO. Name Function Date Signature Prepared by : Jérôme LUC Product Manager 9/19/2014 Checked by : Jérôme LUC Product Manager 9/19/2014 Approved by : Kim RUTKOWSKI Quality Manager 9/19/2014 Customer Name Distribution : Shenzhen STS Test Services Co., Ltd. Issue Date Modifications A 9/19/2014 Initial release COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.262.1.14.SATU.A Page: 3/9 This document shall not be reproduced, except in full or in part, without the written approval of SATIMO. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of SATIMO. TABLE OF CONTENTS 1 Device Under Test ..................................................................................................... 4 2 Product Description ................................................................................................... 4 2.1 General Information _______________________________________________________ 4 3 Measurement Method ................................................................................................ 4 3.1 Linearity ________________________________________________________________ 4 3.2 Sensitivity _______________________________________________________________ 5 3.3 Lower Detection Limit _____________________________________________________ 5 3.4 Isotropy _________________________________________________________________ 5 3.5 Boundary Effect __________________________________________________________ 5 4 Measurement Uncertainty .......................................................................................... 5 5 Calibration Measurement Results .............................................................................. 6 5.1 Sensitivity in air __________________________________________________________ 6 5.2 Linearity ________________________________________________________________ 7 5.3 Sensitivity in liquid ________________________________________________________ 7 5.4 Isotropy _________________________________________________________________ 8 6 List of Equipment ...................................................................................................... 9 COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.262.1.14.SATU.A Page: 4/9 This document shall not be reproduced, except in full or in part, without the written approval of SATIMO. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of SATIMO. 1 DEVICE UNDER TEST Device Under Test Device Type COMOSAR DOSIMETRIC E FIELD PROBE Manufacturer Satimo Model SSE5 Serial Number SN 17/14 EP221 Product Condition (new / used) New Frequency Range of Probe 0.4 GHz- 6 GHz Resistance of Three Dipoles at Connector Dipole 1: R1=0.179 M Dipole 2: R2=0.167 M Dipole 3: R3=0.178 M A yearly calibration interval is recommended. 2 PRODUCT DESCRIPTION 2.1 GENERAL INFORMATION Satimo’s COMOSAR E field Probes are built in accordance to the IEEE 1528, OET 65 Bulletin C and CEI/IEC 62209 standards. Figure 1 – Satimo COMOSAR Dosimetric E field Dipole Probe Length 330 mm Length of Individual Dipoles 4.5 mm Maximum external diameter 8 mm Probe Tip External Diameter 5 mm Distance between dipoles / probe extremity 2.7 mm 3 MEASUREMENT METHOD The IEEE 1528, OET 65 Bulletin C, CENELEC EN50361 and CEI/IEC 62209 standards provide recommended practices for the probe calibrations, including the performance characteristics of interest and methods by which to assess their affect. All calibrations / measurements performed meet the fore mentioned standards. 3.1 LINEARITY The evaluation of the linearity was done in free space using the waveguide, performing a power sweep to cover the SAR range 0.01W/kg to 100W/kg. COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.262.1.14.SATU.A Page: 5/9 This document shall not be reproduced, except in full or in part, without the written approval of SATIMO. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of SATIMO. 3.2 SENSITIVITY The sensitivity factors of the three dipoles were determined using a two step calibration method (air and tissue simulating liquid) using waveguides as outlined in the standards. 3.3 LOWER DETECTION LIMIT The lower detection limit was assessed using the same measurement set up as used for the linearity measurement. The required lower detection limit is 10 mW/kg. 3.4 ISOTROPY The axial isotropy was evaluated by exposing the probe to a reference wave from a standard dipole with the dipole mounted under the flat phantom in the test configuration suggested for system validations and checks. The probe was rotated along its main axis from 0 - 360 degrees in 15 degree steps. The hemispherical isotropy is determined by inserting the probe in a thin plastic box filled with…

Text truncated - open the document above for the full version.

Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from STS, All Test Data Presented in this report is only applicable to presented Test sample. Shenzhen STS Test Services Co., Ltd. 1/F., Building B, Zhuoke Science Park, No.190,Chongqing Road, Fuyong Street, Bao’an District, Shenzhen, Guangdong,China TEL: +86-755 3688 6288 FAX: +86-755 3688 6277 E-mail:[email protected] RADIO TEST REPORT Report No: STS1506087F01 Issued for Datawind Inc 407 Blvd St-Laurent, suite 500, Montreal, Quebec, H2Y 2Y5 Product Name: WCDMA Mobile phone Brand Name: POCKETSURFER3G5 Model No.: 3G5 Series Model: DW-PS3G5 FCC ID: 2AE68-3G5-02 Test Standard: FCC Part 22H and 24E S T L A B S 2 of 113 Report No.: STS1506087F01 Testing Engineer : (Jin Ming) Technical Manager : (Vita Li) Authorized Signatory : (Bovey Yang) TEST RESULT CERTIFICATION Applicant’s name ................. : Datawind Inc Address ................................. : 407 Blvd St-Laurent, suite 500, Montreal, Quebec, H2Y 2Y5 Manufacture's Name............ : Shenzhen Langmei Technology Co.,Ltd. Address ................................. : Langmei Technology Park,No.2Industrial Park, Fenghuang No.3 In- dustrial Zone, Fuyong Sub-district, Bao’an District, Shenzhen City, Guangdong Province P.R.China. Product name ........................ : WCDMA Mobile phone Band name .......................... : POCKETSURFER3G5 Model and/or type reference .. : 3G5 Standards ............................. : FCC Part 22H and 24E Test procedure ............................ : TIA 603 C This device described above has been tested by STS and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of STS, this document may be altered or revised by STS, personal only, and shall be noted in the revision of the document. Date of Test ........................................... : Date of performance of tests .................. : 17 June. 2015 ~25 June. 2015 Date of Issue.......................................... : 26 June. 2015 Test Result ............................................. : Pass 3 of 113 Report No.: STS1506087F01 TABLE OF CONTENTS Page 1. SUMMARY OF TEST RESULTS 6 1.1 TEST FACILITY 6 1.2 MEASUREMENT UNCERTAINTY 6 2. GENERAL INFORMATION 7 2.1 PRODUCT DESCRIPTION 7 2.2 RELATED SUBMITTAL(S) / GRANT (S) 8 2.3 SPECIAL ACCESSORIES 8 2.4 EUT CONFIGURATION 8 2.5 EUT EXERCISE 8 2.6 CONFIGURATION OF EUT SYSTEM 8 2.7 MEASUREMENT INSTRUMENTS 9 3. DESCRIPTION OF TEST MODES 10 4. OUTPUT POWER 11 4.1 CONDUCTED OUTPUT POWER 11 4.2 PEAK-TO-AVERAGE RADIO (PAR) OF TRANSMITTER 16 4.3 RADIATED OUTPUT POWER 21 5. SPURIOUS EMISSION 25 5.1 SPURIOUS EMISSION 25 5.2 RADIATED SPURIOUS EMISSION 27 6. FREQUENCY STABILITY 33 6.1 MEASUREMENT METHOD 33 6.2 PROVISIONS APPLICABLE 34 6.3 MEASUREMENT RESULT 35 7. OCCUPIED BANDWIDTH 40 7.1 MEASUREMENT METHOD 40 7.2 PROVISIONS APPLICABLE 40 7.3 MEASUREMENT RESULT 40 8. EMISSION BANDWIDTH 43 8.1 MEASUREMENT METHOD 43 8.2 PROVISIONS APPLICABLE 43 8.3 MEASUREMENT RESULT 43 9. BAND EDGE 46 9.1 MEASUREMENT METHOD 46 4 of 113 Report No.: STS1506087F01 9.2 PROVISIONS APPLICABLE 46 9.3 MEASUREMENT RESULT 46 APPENDIX I 47 TEST PLOTS FOR CONDUCTED SPURIOUS EMISSION 47 APPENDIX II 77 TEST PLOTS FOR OCCUPIED BANDWIDTH (99%) 77 EMISSION BANDWIDTH (-26DBC) 77 APPENDIX III 101 TEST PLOTS FOR BAND EDGES 101 APPENDIX IV 113 PHOTOS OF TEST SETUP 113 5 of 113 Report No.: STS1506087F01 Revision History Rev. Issue Date Report NO. Effect Page Contents 00 26 June. 2015 STS1506087F01 ALL Initial Issue 6 of 113 Report No.: STS1506087F01 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: The radiated emission testing was performed according to the procedures of ansi C63.10: 2009; TIA 603 C and fcc cfr 47 rules of 2.1046, 2.1047, 2.1049, 2.1051, 2.1053, 2.1055, 2.1057 Item Number Item Description FCC Rules 1 Output Power Conducted output power 22.913(a) / 24.232 (b) Radiated output power 2 Spurious Emission Conducted spurious emission 2.1051 / 22.917 / 24.238 Radiated spurious emission 3 Frequency Stability 2.1055 /24.235 4 Occupied Bandwidth 2.1049 (h)(i) 5 Emission Bandwidth 22.917(b) / 24.238 (b) 6 Band Edge 22.917(b) / 24.238 (b) NOTE: (1)” N/A” denotes test is not applicable in this Test Report 1.1 TEST FACILITY Shenzhen STS Test Services Co., Ltd. Add. : 1/F., Building B, Zhuoke Science Park, No.190,Chongqing Road, Fuyong Street, Bao’an District, Shenzhen, Guangdong,China CNAS Registration No.: L7649; FCC Registration No.: 842334; IC Registration No.: 12108A-1 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission (9KHz-150KHz) ±2.88dB 2 Conducted Emission (150KHz-30MHz) ±2.67dB 3 RF power,conducted ±0.70dB 4 Spurious emissions,conducted ±1.19dB 5 All emissions,radiated(<1G) 30MHz-200MHz ±2.83dB 6 All emissions,radiated(<1G) 200MHz-1000MHz ±2.94dB 7 All emissions,radiated(>1G) ±3.03dB 8 Temperature ±0.5°C 9 Humidity ±2% 7 of 113 Report No.: STS1506087F01 2. GENERAL INFORMATION 2.1 PRODUCT DESCRIPTION A major technical description of EUT is described as following: Product Designation: WCDMA Mobile phone Hardware version: 98056_1_10 Software version: -- FCC ID: 2AE68-3G5-02 Frequency Bands: GSM 850 PCS 1900 (U.S. Bands) GSM 900 DCS 1800 (Non-U.S. Bands) U.S. Bands: UMTS FDD Band II UMTS FDD Band V Non-U.S. Bands: UMTS FDD Band I UMTS FDD Band VIII Max RF Output Power: GSM850:32.89dBm,GSM1900:29.24dBm WCDMA Band V:22.33dBm,WCDMA Band II:21.78dBm Type of Emission: GSM(850):244KGXW: GSM(1900):254KGXW GPRS(850):262KGXW; GPRS(1900):251KGXW EDGE(850):251KG7W: EDGE(1900):245KG7W…

Text truncated - open the document above for the full version.

PCESetup photo PCEradiation L PCEradiation H
