FRS TACTICAL WALKIE TALKIES User旨Manual Thank y。u for purchasing y。urNe斤FRSTactical Walkie Talkies. You can use these walkie talkies to easily talk to your friends at dis国ncesup t。1000feet away. In additi。n, y。ur walkie talkies glow in the dark, helping you see them even in low lighting. F。r best results, read this instructi。n manual first before using E噩噩 INSERTING BATTERIES Each walkie talkie requires four AAA batteries fm p。，wer.To。 msert。r replace batteries, use a screwdriser to remase the screw on the battery compartment door. Note that the ba忧erycompartment os located 。n the rear of each walkie talkie. Once the batte叩compartmentis。p凹 ， insert batteries with the c。rrectp。larity（＋ 「 ） as displayed in the ba忧erycompartment When batteries have been inserted, case the battery compartment, and 。nee agaon use a screwdriver to screw the batte叩compartmentda。r in place USING Y。URWALKIE TALKIES Once batteries are inserted you can follow the steps below to use y。ur walkie talkies 1. Slide the ON/OFF Switch。n each walkie talkie to the ON position. The indicat。r l国htwill illuminate 2. Hold 。ne walkie talkie c ose to your m。uth. 3. Press the PUSH TO TALK button, and speak clear y to transmit a message to the other walkie talkie 4. Release the PUSH TO TALK button when you are finished国lkiegs。that y。u can hear any incoming messages f am the others alkie talkie. 5. When you are finished using yaur w副kietalkies, make sure the ON／。FF Switch is in the OFF pasitiα 6. Put v。ur walkie talkies in sun lioht 。r b时臼htlioht olow in the dark effect will be better SETTING THE TIME The LCD Screen四ndisplay the current date and time. To set the date and time, follow the steps below. 1. Press the left d。ck setup button repeatedly to toggle between the settings (month/date/hour/minute) 3. Press the right clock setup button repeatedly to adjust the (m。nth/date/hour/minute)se创ngto y。ur liking. 4. When complete, the time 、叽II display on the LCD Screen. Ta p the right clock setup butt。n at any time t。displaythe date FCC Statement Changes or modifications not expressly approved by the pa即responsible for complian四 could soid the user's authority to operate the equipment This eq山pment has been tested aed found to comply with the limits for a Class B di gital desi胆 ， pursuant to Part 15 。f the FCC Rules. These limits are designed to proside reas。nable protection against harmful inter把rence in a residential installati。n This equipment generates, uses and can radiate radio frequency energy and, if not i nstalled aed used in acc。rdaece woth the instruct ons, may cause hannful interterence t o radio communications H。weve飞there os no guarantee that onterterence will nol occur on a pa rticular installation If this equipment does cause harmful interterence to radio 。r telesision recept，。n, which 臼 n be determined by turning the equipment 。何and 。n, the user is enc。uraged to t叩to correct the interterence by one 。r mare of t he f。”。 wo ng measures Reorient or relocate the receising antenna - Increase the separation between the equipment and receiser. c。neectthe equipment into an。utletoe a αrcuitdi仔erentfrom that to which the receiser is 。。nnected Cons川tthe dealer or an experienced radio叮Vtechniαae for help Safety lnformati。n This equipment c。mplieswith FCC radiati。n exp。surelimits set f。rth for an unc。ntrolledensironment. y。ur wireless hand held p。rtabletransceiser c。ntains a low p。wer transmitter.When the talk boltom is pushed, it sends 。utradi。 frequency (RF) signals. The desices is auth。rizedto operate at a duty not t。 exceed 50%. F。r b。dy-w。rn。perati。n, this radi。has been tested and meets the FCC RF exp。sureguidelines when used with manufacturer access。ries supplied or designated for this product. Use 。f。theraccess。ries may not ensure c。mpliance with FCC RF exp。sureguidelines. Use 。nlythe supplied antenna. Unauth。rized antennas, modificati。ns ， 。r attachments c。uld damage the transmitter and may vi。late FCC regulati。ns. H。Id the transmitter approximately 2 inches (25mm) from v 。urface and speak in a n。rmalv。ice, with the antenna p。intedup and awa γ Sakar。ne Year Warranty This warraety covers the。rgonal consumer purchaser only and is not transferable This warranty covers products that fail to function properly UNDER NORMAL USAGE, due to defects in mater旧l。r workmanship. y。ur product will be repaired。r repla四dat no charge f町pa巾。r labor for a period of one year. What Is Not Cosered by Warranty Damages 。r malfunctions nat resulting from defects in material町 w。rkmanshopand damages or malfunctions from other than n。rmaluse, inc uding but limited to, repair by unauth。rizedpa叫es,tampering, m。d，们回U。n。r accident To obtain WarrantνSe同iceand Troublesh。。ting information Call 1-877-397-8200 sisit 。ur website at www.sakar.c。m 醋蹦榻 匾而冒商iT1ri11目...mir百....，；程］ .. ._ BATTERY WARNING: Do not m以odand newbatteri田 口。not mix a kaline,standard (ca rtJon-zinc) or rechargeabe（时c闸e国dmium)batte叶AS. Ba忧而esaenoltobein因此时withthewrcngpolar i ty. 臼hau吼叫 batteri目are to be removed from the toy. The supply terminals are not to be shn仲circuited. 阴Ir.；�姐『町＇＂＇旷d电泪白em1世•＇＂＂＇＇W部，，，，.Coo恒dk商刘FC'jcii,g '£' Iii邸创＂ ＇ ＂世炮”阳阳�川.，，严 ，＂＇＂＂＂＂＇＇旷阳U 阳inforrn画Uoo PACKAGING CONTENTS: Licensed By 2 WALKIE TALKIES, 」画面 USER MANUAL咽’圃，．． ' :i'7回飞ψ，， 岛 Keep Mon‘， h『Fu『u陌Rele『哩E咱，e!!!"" NERF Isa钟。dema,kof Hosb,o ond is used w画hpe,missi。”－ rt:> 2020 Hasbro All耻ghtsReser,ed Licensed by h阳． 。2020Sakar International 195 Carter Drive Edison, NJ 08817

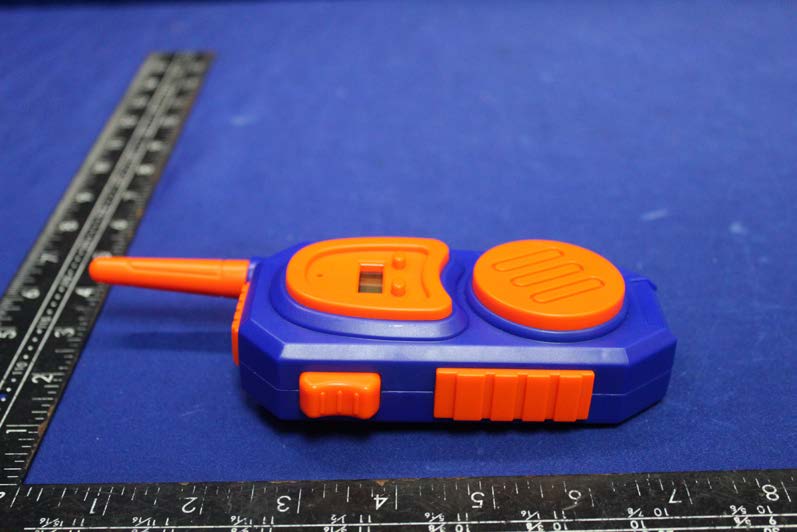

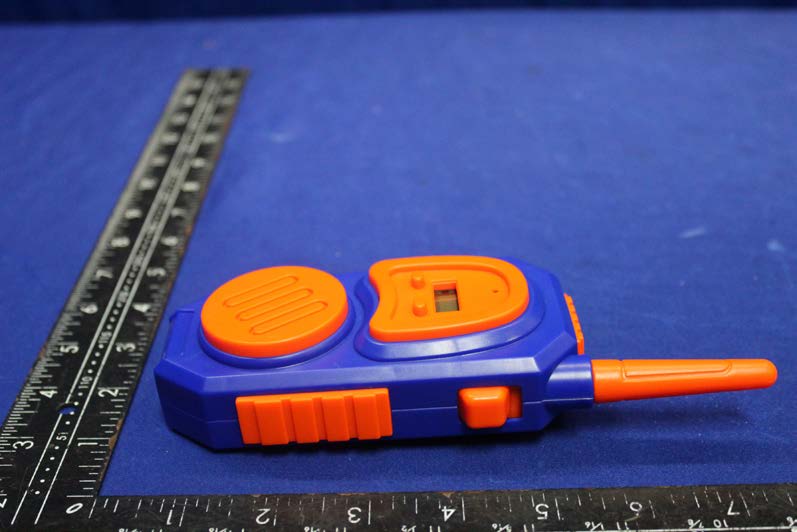

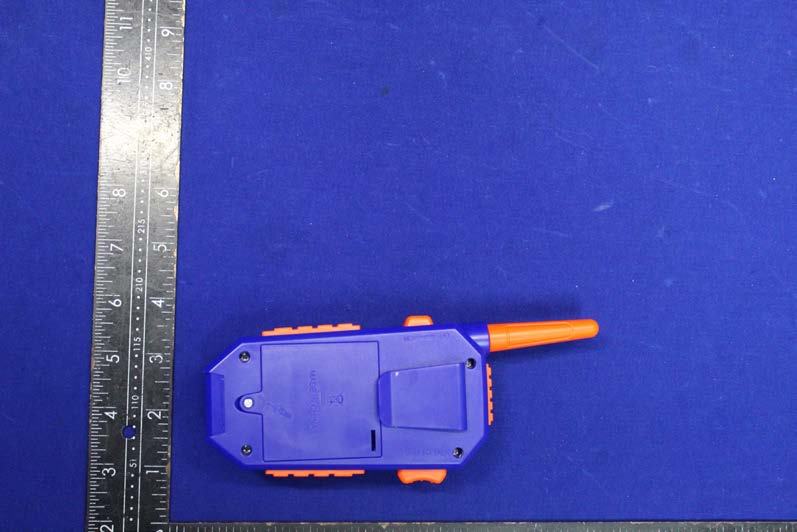

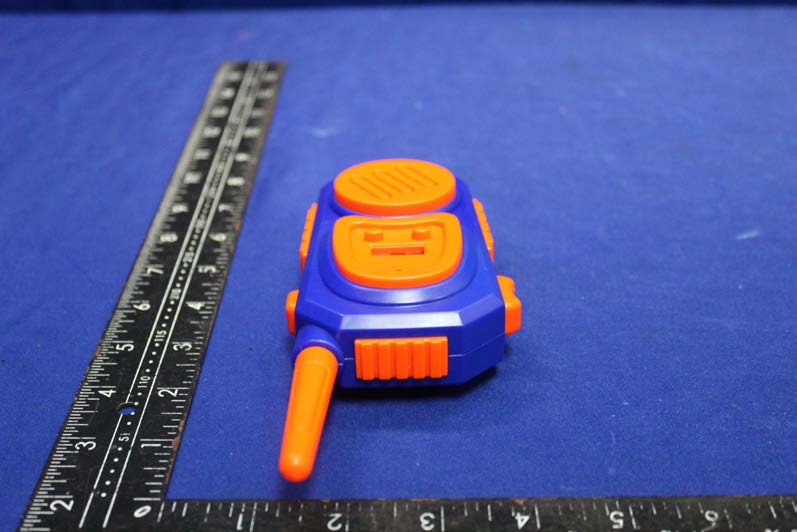

TRF NO. FCC Page 1 of 3 Report No.: ES200429049W Ver.1.0 EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 TRF NO. FCC Page 2 of 3 Report No.: ES200429049W Ver.1.0 EUT View 3 EUT View 4 TRF NO. FCC Page 3 of 3 Report No.: ES200429049W Ver.1.0 EUT View 5 EUT View 6 ----------------The end----------------

Label and label location

TRF NO. FCC Page 1 of 4 Report No.: ES200429049W Ver.1.0 EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View 1 EUT Housing and Board View 2 TRF NO. FCC Page 2 of 4 Report No.: ES200429049W Ver.1.0 EUT Housing and Board View 3 Solder Board-Component View 1 TRF NO. FCC Page 3 of 4 Report No.: ES200429049W Ver.1.0 Solder Board-Component View 2 Solder Board-Component View 3 TRF NO. FCC Page 4 of 4 Report No.: ES200429049W Ver.1.0 Solder Board-Component View 4 Antenna ----------------The end---------------- ANT

FCC ID: 2AE6BWT3-01056A Portable device According to §15.247(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB447498 D01 General RF Exposure Guidance V06 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] * [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz； Power and distance are rounded to the nearest mW and mm before calculation； The result is rounded to one decimal place for comparison； The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. We use 5mm as separation distance to calculate. Maximum measured transmitter power: Channel Freq. (MHz) Max Transmit Power (dBm) Max tune-up power (dBm) Result calculation 1-g SAR TX-FRS 462.5625 11.63 12 2.15 3.0 Conclusion: For the max result : 2.15≤ 3.0 for 1-g SAR extremity SAR, No SAR is required.

Report No.ES200429049W Page 1 of 31 Ver.1.0 TEST REPORT Product Name ： Walkie Talkies Model Number ： WT3-01056A FCC ID ： 2AE6BWT3-01056A Prepared for : Chenghai Xianxin Plastic Toys Factory Address : ZhenXing Road,PuMei,Chenghai District,Shantou City, Guangdong,China Prepared by : EMTEK (SHENZHEN) CO., LTD. Address : Bldg 69, Majialong Industry Zone, Nanshan District, Shenzhen, Guangdong, China Tel: (0755) 26954280 Fax: (0755) 26954282 Report Number : ES200429049W Date(s) of Tests : May 8, 2020 to May 25, 2020 Date of issue : May 27, 2020 $二维码$ Report No.ES200429049W Page 2 of 31 Ver.1.0 TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION ...................................................................................................................... 3 2 EUT TECHNICAL DESCRIPTION .................................................................................................................... 4 3 SUMMARY OF TEST RESULT ........................................................................................................................... 5 4 TEST METHODOLOGY ...................................................................................................................................... 6 4.1 GENERAL DESCRIPTION OF APPLIED STANDARDS ............................................................................ 6 4.2 MEASUREMENT EQUIPMENT USED ....................................................................................................... 6 4.3 DESCRIPTION OF TEST MODES ................................................................................................................ 8 4.4 ENVIROMENTAL CONDITIONS ................................................................................................................ 8 4.5 MODULATION TYPE ................................................................................................................................... 9 5 FACILITIES AND ACCREDITATIONS ........................................................................................................... 10 5.1 FACILITIES.................................................................................................................................................. 10 5.2 LABORATORY ACCREDITATIONS AND LISTINGS .............................................................................. 10 6 TEST SYSTEM UNCERTAINTY ...................................................................................................................... 11 7 SETUP OF EQUIPMENT UNDER TEST ......................................................................................................... 12 7.1 RADIO FREQUENCY TEST ....................................................................................................................... 12 7.2 RADIO FREQUENCY TEST ....................................................................................................................... 12 7.3 CONDUCTED EMISSION TEST SETUP ................................................................................................... 14 7.4 BLOCK DIAGRAM CONFIGURATION OF TEST SYSTEM .................................................................... 15 7.5 SUPPORT EQUIPMENT.............................................................................................................................. 15 8 TEST REQUIREMENTS .................................................................................................................................... 16 8.1 CARRIER OUTPUT POWER ...................................................................................................................... 16 8.2 99% OCCUPIED BANDWIDTH &26DB BANDWIDTH ........................................................................... 18 8.3 EMISSION MASK ....................................................................................................................................... 20 8.4 MODULATION LIMIT ................................................................................................................................ 22 8.5 AUDIO FREQUENCY RESPONSE ............................................................................................................ 25 8.6 FREQUENCY STABILITY .......................................................................................................................... 28 8.7 RADIATED SPURIOUS EMISSION ........................................................................................................... 29 Report No.ES200429049W Page 3 of 31 Ver.1.0 1 TEST RESULT CERTIFICATION Applicant : Chenghai Xianxin Plastic Toys Factory Address : ZhenXing Road,PuMei,Chenghai District,Shantou City,Guangdong,China Manufacturer : SHANTOU CHENGHAI GUANGYI XIANXIN PLASTIC TOYS FACTORY Address : BUMEI INDUSTRIAL AREA, GUANGYI, CHENGHAI, SHANTOU, GUANGDONG EUT : Walkie Talkies Model Name : WT3-01056A Trademark : N/A Measurement Procedure Used: APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 2 , Subpart J FCC 47 CFR Part 95, Subpart B PASS The above equipment was tested by EMTEK (SHENZHEN) CO., LTD. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.10 (2013) and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 2 and Part 95 B The test results of this report relate only to the tested sample identified in this report. Date of Te s t : May 8, 2020 to May 25, 2020 Prepared by : Sewen Guo /Editor Reviewer : Joe Xia/Supervisor Approved & Authorized Signer : Lisa Wang/Manager Report No.ES200429049W Page 4 of 31 Ver.1.0 2 EUT TECHNICAL DESCRIPTION Note: 1) For more details, please refer to the User’s manual of the EUT. 2) According to FCC Part 2.202 requirements, the Necessary Bandwidth is calculated as follows: For FM Voice Modulation Channel Spacing = 12.5 KHz, D = 2.5 KHz max, K = 1, M = 3 KHz…
