2AE6H-CSM-NFCNFC Reader

NFC READER INSTALLATION GUIDE The NFC reader is used with the CSMIII box to have a proximity interface to book/checkout the car and to manage the lock/unlock. SPECIFICATIONS This box contains the following items: 1 NFC Reader 1 Installation guide 2 stickers Operating Voltage Consumption in sleep mode Peak current Dimensions Weight 12Vcc <3mA <200mA 65x55x11mm 51g CONTENT OF THE BOX 1. Remove cover from the A- 2. Glue the sticker on the windscreen (possible precutting may be necessary) 3. Glue the NFC reader on sticker centered on the LED opening 4. Hide the cable behind and close again the A-pillar cover Double site Rubber gluing strips INSTALLATION STEPS • Install the NFC reader on the windscreen • Plug the external cable on the CSM connector 1. If the car is available, the top led blinks green slowly. 2. Place the tag close to the NFC reader to book the car (around 2cm) during 1 second. The top led starts to blink red/green fast. The door are unlocked and the bottom is green to inform you can start the car. 3. If the car is booked, the NFC reader led blinks in orange. 4. To open the car, place again the tag close to the NFC reader during 1 second. The door are now opened. The top led turns off and the bottom led is green to inform you can start the car. 5. To close the door, place the tag close to the NFC reader. The top led starts to blink in orange and the bottom led turns off. 6. To checkout, place the tag close to the NFC reader during 5 seconds. The top led blinks red and green then 6 times fast green and starts to blink green slowly. The car is now closed. INSTRUCTIONS Top LED Bottom LED • Before gluing the sticker, make sure the cable is long enough to be connected to the CSM box • Never remove the cover of the NFC reader IMPORTANT REMARKS This marking shown on the product or its literate indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly. Caution! This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. and (2) This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications (including the antenna) made to this device that are not expressly approved by the manufacturer may void the user’s authority to operate the equipment.

Amoteh Corp. 5BL-1LOT, 380, Namdongseo-ro, Namdong-gu,Incheon, Korea Date: July, 16. 2015 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 To whom it may concern: I, the undersigned, hereby authorize KT Kang of KES Co., Ltd. and hereafter referred to as KES Co., Ltd., to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by KT Kang of KES Co., Ltd. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing KES Co., Ltd. as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; Amoteh Corp. 5BL-1LOT, 380, Namdongseo-ro, Namdong-gu,Incheon, Korea h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Assistant Manager / ByungChan Joo REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us. 3. Authorized signature must be in agreement with grantee code contact in FCC database.

Date: July 16, 2015 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: 2AE6H-CSM-NFC Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Part List CONF APPENDIX_CSM-NFC reader_Part List.PDF Schematics Diagram(s) CONF APPENDIX_ CSM-NFC reader_Schemetics.PDF Block diagram CONF APPENDIX_ CSM-NFC reader_Block diagram.PDF Operation description CONF APPENDIX_ CSM-NFC reader_Operation description.PDF The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ByungChan Joo / Assistant Manager

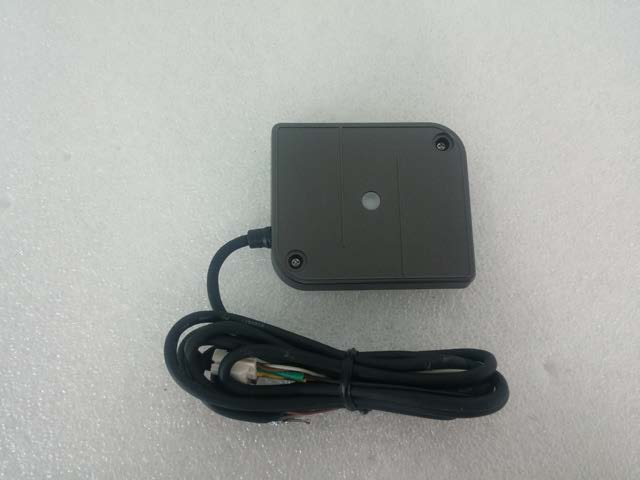

www.kes.co.kr Model No.: CSM-NFC reader Page 1 of 4 EUT External p hotographs Top Bot www.kes.co.kr Model No.: CSM-NFC reader Page 2 of 4 Edge1 Edge2 www.kes.co.kr Model No.: CSM-NFC reader Page 3 of 4 Edge3 Edge4 www.kes.co.kr Model No.: CSM-NFC reader Page 4 of 4 Side1 Side2

Label and Location Model No.: CSM-NFC reader Page 1 of 1 Amotech Corp. Model: CSM-NFC reader FCC ID: 2AE6H-CSM-NFC Input voltage : 12 V dc This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. MADE IN KOREA

www.kes.co.kr Model No.: CSM-NFC reader Page 1 of 1 EUT Internal photographs Main board (Top) Main board (Bot)

KES Co., Ltd. C-3701, Simin-daero 365-40l, Dongan-gu, Anyang-si, Gyeonggi-do, 431-716, Korea Tel : + 8 2-31-425-6200 / Fax: +82-31 -424-0450 www.kes.co.kr Test report No.: KES-RF-15T0052-R1 Page (2 ) of (16) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The test results in the report only apply to the tested sample. KES-P-5101-09 Rev. 1 KES A4 Revision history Revision Date of issue Test report No. Description - 2015.07.16 KES-RF-15T0052 Initial R1 2015.07.25 KES-RF-15T0052-R1 Added emission mask KES Co., Ltd. C-3701, Simin-daero 365-40l, Dongan-gu, Anyang-si, Gyeonggi-do, 431-716, Korea Tel : + 8 2-31-425-6200 / Fax: +82-31 -424-0450 www.kes.co.kr Test report No.: KES-RF-15T0052-R1 Page (3 ) of (16) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The test results in the report only apply to the tested sample. KES-P-5101-09 Rev. 1 KES A4 TABLE OF CONTENTS 1. General information ................................................................................................................................................... 4 1.1. EUT description ........................................................................................................................................ 4 1.2. Test frequency .................................................................................................................................................... 4 1.3. Information about derivative model .......................................................................................................... 4 1.4. Device modifications ................................................................................................................................. 4 2. Summary of tests ........................................................................................................................................................ 5 3. Test results .................................................................................................................................................................. 6 3.1. Radiated spurious emissions ...................................................................................................................... 6 3.2 20 ㏈ bandwidth .................................................................................................................................... 12 3.3. Frequency tolerance ................................................................................................................................ 13 Appendix A. Measurement equipment ............................................................................................................................. 15 Appendix B. Test setup photo ........................................................................................................................................... 16 KES Co., Ltd. C-3701, Simin-daero 365-40l, Dongan-gu, Anyang-si, Gyeonggi-do, 431-716, Korea Tel : + 8 2-31-425-6200 / Fax: +82-31 -424-0450 www.kes.co.kr Test report No.: KES-RF-15T0052-R1 Page (4 ) of (16) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The test results in the report only apply to the tested sample. KES-P-5101-09 Rev. 1 KES A4 1. General information Applicant: Amotech Corp. Applicant address: 5BL-1LOT, 380, Namdongseo-ro, Namdong-gu, Incheon, Korea Test site: KES Co., Ltd. Test site address: C-3701, Simin-daero 365-40, Dongan-gu, Anyang-si, Gyeonggi-do,431-716, Korea 473-29, Gayeo-ro, Yeoju-si, Gyeonggi-do, Korea FCC/IC rule part(s): 15.225 Model: CSM-NFC reader FCC ID: 2AE6H-CSM-NFC Test device serial No.: Production Pre-production Engineering 1.1. EUT description Equipment under test NFC-Reader Frequency range 13.563 ㎒ Modulation technique ASK Number of channels 1 Antenna specification Antenna type: PCB 1.2. Test frequency/Channel operation Ch. Frequency (㎒) 01 13.563 1.3. Information about derivative model N/A 1.4. Device modifications N/A KES Co., Ltd. C-3701, Simin-daero 365-40l, Dongan-gu, Anyang-si, Gyeonggi-do, 431-716, Korea Tel : + 8 2-31-425-6200 / Fax: +82-31 -424-0450 www.kes.co.kr Test report No.: KES-RF-15T0052-R1 Page (5 ) of (16) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The test results in the report only apply to the tested sample. KES-P-5101-09 Rev. 1 KES A4 2. Summary of tests Reference Parameter Status 15.225(a) The field strength of fundamental Pass 15.225(b)(c) The field strength of spurious emission(In-band) Pass 15.225(d) 15.209 The field strength of spurious emission(Out-band) Pass 15.225(e) The frequency tolerance Pass 15.215(c) 20 ㏈ bandwidth Pass Test procedures; The measurement procedures described in the American National Standard for Methods of Measurement of Radio-Noise Emission from Low-Voltage Electrical and Electronic Equipment in the Range of 9 ㎑ to 40 ㎓ (ANSI C63.10-2009) KES Co., Ltd. C-3701, Simin-daero 365-40l, Dongan-gu, Anyang-si, Gyeonggi-do, 431-716, Korea Tel : + 8 2-31-425-6200 / Fax: +82-31 -424-0450 www.kes.co.kr Test report No.: KES-RF-15T0052-R1 Page (6 ) of (16) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The test results in the report only apply to the tested sample. KES-P-5101-09 Rev. 1 KES A4 3. Test results 3.1. Radiated spurious emissions Test setup The diagram below shows the test setup that is utilized to make the measurements for emission from 9 ㎑ to 30 ㎒ Emissions. The diagram below shows the test setup that is utilized to make the measurements for emission from 30 ㎒ to 1 ㎓ emissions. KES Co., Ltd. C-3701, Simin-daero 365-40l, Dongan-gu, Anyang-si, Gyeonggi-do, 431-716, Korea Tel : + 8 2-31-425-6200 / Fax: +82-31 -424-0450 www.kes.co.kr Test report No.: KES-RF-15T0052-R1 Page (7 ) of (16) This report shall not be reproduced except in full, without the written approval of…

Text truncated - open the document above for the full version.

KES Co., Ltd. C-3701, Simin-daero 365-40l, Dongan-gu, Anyang-si, Gyeonggi-do, 431-716, Korea Tel : + 8 2-31-425-6200 / Fax: +82-31 -424-0450 www.kes.co.kr Test report No.: KES-RF-15T0052-R1 Page (16 ) of (16) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The test results in the report only apply to the tested sample. KES-P-5101-09 Rev. 1 KES A4 Appendix B. Test setup photo
