2AE6K-B24RRO-4P01POE Multi-Reader

POE Multi-Reader User Manual Equipment: Serial port cable, PC & POE Multi-Reader 1. Connect Reader with the PC via serial port cable. 2. Click “PORT SET” 3. Com Setting will show up 4. Select corresponding port with the PC then click “Save Setting” 5. Click “PORT OPEN” 6. Data from tags will be received by reader now and the details information will be shown on the left hand side.

FCC INFORMATION (additional) Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

Bisa Technologies (Hong Kong) Ltd. Unit 1102, 11/F., Trans Asia Centre, 18 Kin Hong Street, Kwai Chung, N.T., Hong Kong FCC Authorization Letter Number: CF304 Version: V03 Date: 01-08-2011 We, (the approval holder) Company name Bisa Technologies (Hong Kong) Ltd. Address Unit 1102, 11/F., Trans Asia Centre, 18 Kin Hong Street, Kwai Chung, N.T., City Hong Kong Country China declare that the following representative (agent): Name (person) KAIT CHEN Company name WST Certification & Testing (HK) Limited Address 12/F., San Toi Building,137-139 Connaught Road Central, City Hong Kong, Country China is hereby authorized to apply the following equipment for certification on our behalf: Product Description POE Multi-Reader Type or Model(s)B24RRO-4P01 Tradename or Brand(s) / We also authorize Teleconformity (Mr. M. Koop, Manager Certification, Address: Rietven 31, 7534NH Enschede, the Netherlands) to apply and sign this application for certification, registration or filing on our behalf (as representative agent or certifier). Attestation: City and Country:Date:Name: (this must be a person) Function:Signature: (or official company stamp) Hong Kong,ChinaJune 23,2015Peter lamProject Manager

Bisa Technologies (Hong Kong) Ltd. Unit 1102, 11/F., Trans Asia Centre, 18 Kin Hong Street, Kwai Chung, N.T., Hong Kong FCC Confidentiality Request Number: CF303 Version: V05 Date: 21-05-2012 (Permanent or also called long term confidentiality is the normal method to keep certain docuements confidential, and may apply to schematics, block diagrams, operational description and bill of materials.) To: Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Pursuant to 47 CFR Section 0.459(a) & (b), we, (the applicant / grantee) Company nameBisa Technologies (Hong Kong) Ltd. AddressUnit 1102, 11/F., Trans Asia Centre, 18 Kin Hong Street, Kwai Chung, N.T. CityHong Kong CountryChina request for this certification filing under: Grantee CodeProduct Number FCC ID:2AE60K-B24RRO-4P01 to maintain permanent confidentiality for the following documents submitted within this application: (please cross what is applicable, or add other documents, provide the file name and description) ExhibitFile NameDescription xOperational Descriptionexplaining the functioning of the block diagram xBlock Diagramsshowing the systematic building blocks of the EUT xSchematics Diagramsshowing components, their values and interconnection Bill of MaterialsList of components used on the PCB’s of the EUT Above materials crossed contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. We understand that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. The documents indicated as confidential above, are not publicly available elsewhere. Attestation: City and Country:Date:Name: (this must be a person) Function:Signature: (or official company stamp) Enschede, The Netherlands 2015-06-24M. Koop (authorized) Manager

FCC Sub j Dea Our The The uni n “De The If y o Your Sign Clie n Clien Cont ID: 2AE6K-B24RRO-4P01 ject: Attestati r Sirs, products wi t transmitter i device is als o ntentiona l ra d eclaration of Te st lab: Co m ou have any q rs sincerely, ator y nt ’ s si gnatu r e : nt’s name / title act information Date: 2015‐06‐19 ion Letter “D th the above s authorized o defined as “ diators, whe r e Conformity” mpliance Cert uestions, ple e : / address: D eclaration of FCC ID are d e under the “C “PC Periphery e we hereby procedure. tification Serv ease feel free DOC ATTESTAT Conformity” efined as com Certification” y” acc to §15 declare, tha t vices Inc. to contact m TION LETTER mposite devic procedure. .101 Equipm e t we apply an me at the addr e. ent authoriza d follow the ress shown b ation of below. Bisa Technologies (Hong Kong) Ltd. Peter lam/Manager Bisa Technologies (Hong Kong) Ltd. Unit 1102, 11/F., Trans Asia Centre, 18 Kin Hong Street, Kwai Chung, N.T., Hong Kong Address:No.81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338)Taiwan, R.O.C Test Report Number:150427011-E Date of issue:2015-05-15

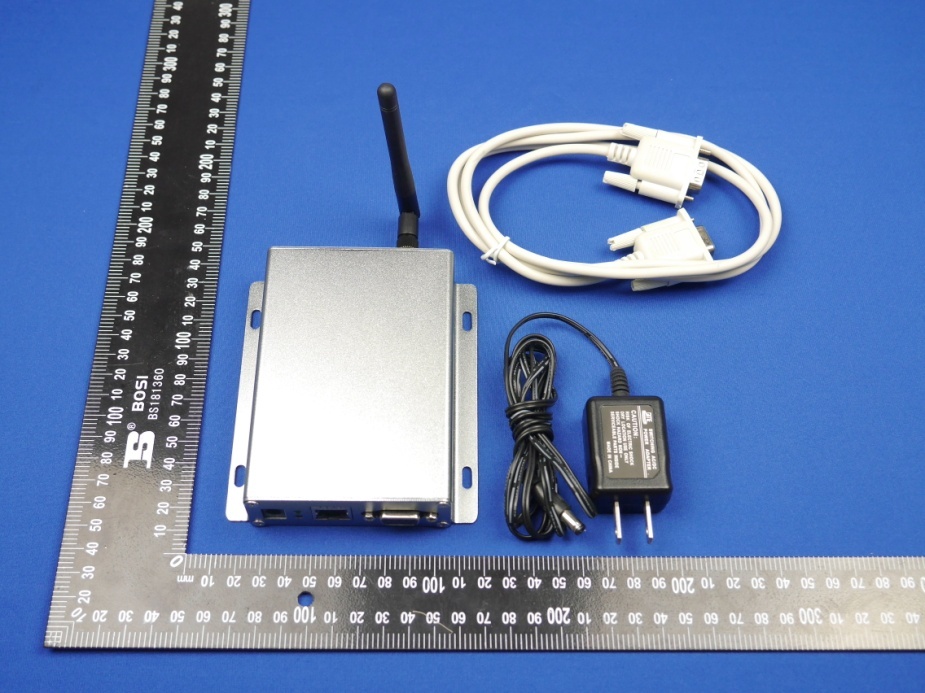

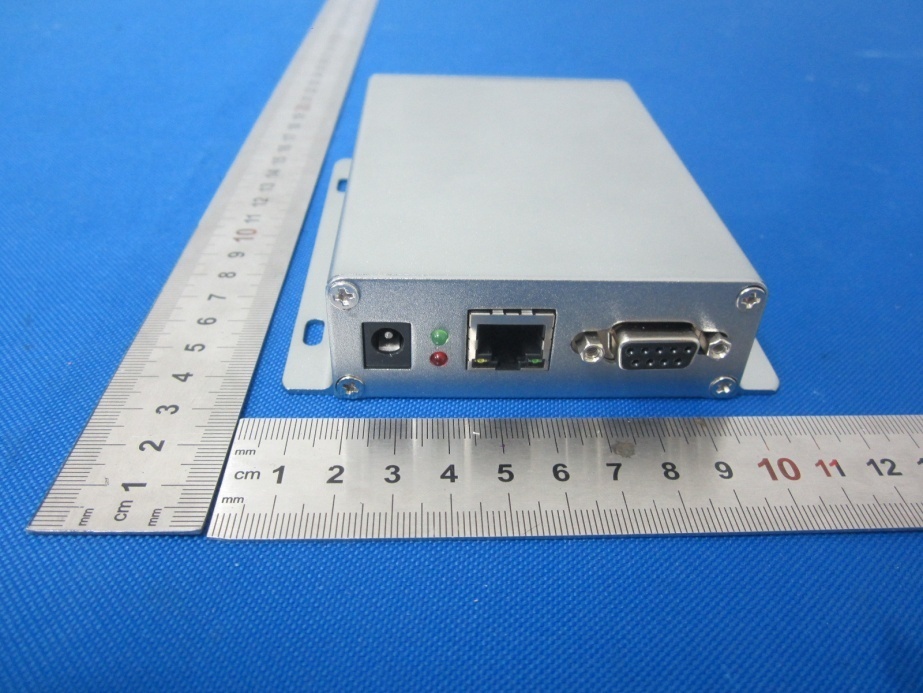

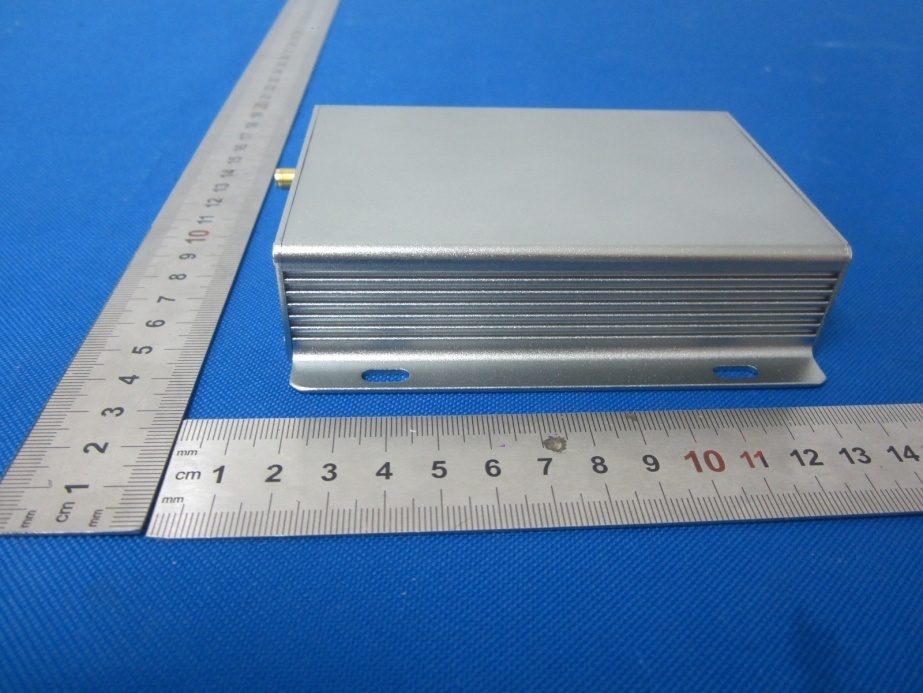

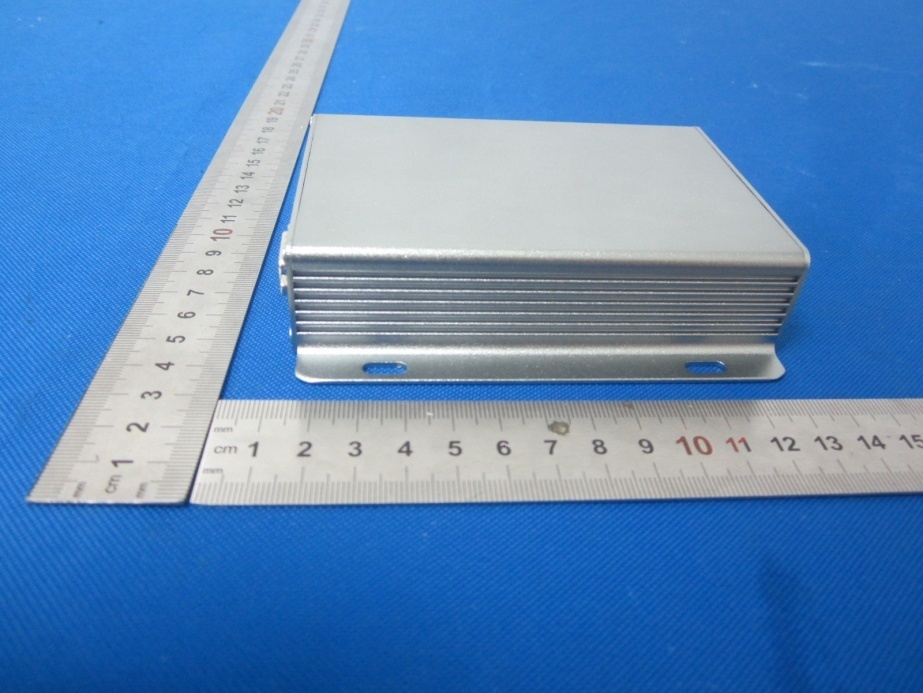

External photos

Internal photos

Page 1 of 22 Report No.: WST150623006 FCC TEST REPORT Test report On Behalf of Bisa Technologies (Hong Kong) Ltd. For POE Multi-Reader Model No.: B24RRO-4P01 FCC ID: 2AE6K-B24RRO-4P01 Prepared for : Bisa Technologies (Hong Kong) Ltd. Unit 1102, 11/F., Trans Asia Centre, 18 Kin Hong Street, Kwai Chung, N.T., Hong Kong Prepared By : WST Certification & Testing (HK) Limited 12/F., San Toi Building,137-139 Connaught Road Central,Hong Kong Date of Test: June 15, 2015 ~ June 23, 2015 Date of Report: June 23, 2015 Report Number: WST150623006 Page 2 of 22 Report No.: WST150623006 TEST RESULT CERTIFICATION Applicant’s name ................. : Bisa Technologies (Hong Kong) Ltd. Address ................................. : Unit 1102, 11/F., Trans Asia Centre, 18 Kin Hong Street, Kwai Chung, N.T., Hong Kong Manufacture's Name ............ : Bisa Technologies (Hong Kong) Ltd. Address ................................. : Unit 1102, 11/F., Trans Asia Centre, 18 Kin Hong Street, Kwai Chung, N.T., Hong Kong Product description Trade Mark: N/A Product name ........................... : POE Multi-Reader Model and/or type reference : B24RRO-4P01 Standards ............................. : FCC Rules and Regulations Part 15 Subpart C Section 15.249 ANSI C63.4: 2009 This publication may be reproduced in whole or in part for non-commercial purposes as long as the WST Certification & Testing (HK) Limited is acknowledged as copyright owner and source of the material. WST Certification & Testing (HK) Limited takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test ............................................ : Date (s) of performance of tests ............. : June 15, 2015 ~ June 23, 2015 Date of Issue ........................................... : June 23, 2015 Test Result ............................................... : Pass Testing Engineer : (Eric Xie) Technical Manager : (Dora Qin) Authorized Signatory : (Kait Chen) Page 3 of 22 Report No.: WST150623006 Table of Contents Page 1. . TEST SUMMARY 4 2. . GENERAL INFORMATION 5 2.1. GENERAL DESCRIPTION OF EUT 5 Operation of EUT during testing 7 2.2. DESCRIPTION OF TEST SETUP 7 2.3. MEASUREMENT INSTRUMENTS LIST 8 3. . CONDUCTED EMISSIONS TEST 10 3.1 Conducted Power Line Emission Limit 10 3.2 Test Setup 10 3.3 Test Procedure 10 3.4 Test Result 11 4 RADIATED EMISSION TEST 12 4.1 Radiation Limit 12 4.2 Test Setup 12 4.3 Test Procedure 13 4.4 Test Result 13 5 BAND EDGE 18 5.1 Limits 18 5.2 Test Procedure 18 5.3 Test Result 18 6 OCCUPIED BANDWIDTH MEASUREMENT 19 6.1 Test Setup 19 6.2 Test Procedure 19 6.3 Measurement Equipment Used 19 6.4 Test Result 19 7 ANTENNA REQUIREMENT 20 8 PHOTOGRAPH OF TEST 21 Page 4 of 22 Report No.: WST150623006 1.. TEST SUMMARY 1.1. TEST PROCEDURES AND RESULTS DESCRIPTION OF TEST RESULT CONDUCTED EMISSIONS TEST COMPLIANT RADIATED EMISSION TEST COMPLIANT BAND EDGE COMPLIANT OCCUPIED BANDWIDTH MEASUREMENT COMPLIANT ANTENNA REQUIREMENT COMPLIANT 1.2. TEST FACILITY Test Firm : Shenzhen WST Testing Technology Co., Ltd. Certificated by FCC, Registration No.: 939433 Address : 1F,No.9 Building,TGK Science & Technology Park,Yangtian Rd., NO.72 Bao'an Dist., Shenzhen,Guangdong,China. 518101 Tel : (86)755-33916437 Fax : (86)755-27822175 1.3. MEASUREMENT UNCERTAINTY Measurement Uncertainty Conducted Emission Expanded Uncertainty =2.23dB, k=2 Radiated emission expanded uncertainty(9kHz-30MHz) = 3.08dB, k=2 Radiated emission expanded uncertainty(30MHz-1000MHz)= 4.42dB, k=2 Radiated emission expanded uncertainty(Above 1GHz) = 4.06dB, k=2 Page 5 of 22 Report No.: WST150623006 2.. GENERAL INFORMATION 2.1. GENERAL DESCRIPTION OF EUT Equipment POE Multi-Reader Model Name B24RRO-4P01 Serial No N/A FCC ID 2AE6K-B24RRO-4P01 Model Difference N/A Antenna Type External Antenna Antenna Gain 2dBi Operation frequency 2405-2463MHz Number of Channels 59CH Modulation Type GFSK Power Source DC 7.5V/0.8A Power Rating Input:AC100-240V,50/60Hz,0.2A,output:DC7.5V,0.8A Adapter Model GFP051U-7508 Page 6 of 22 Report No.: WST150623006 2.1.1. Carrier Frequency of Channels Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) 01 2405 31 2435 02 2406 32 2436 03 2407 33 2437 04 2408 34 2438 05 2409 35 2439 06 2410 36 2440 07 2411 37 2441 08 2412 38 2442 09 2413 39 2443 10 2414 40 2444 11 2415 41 2445 12 2416 42 2446 13 2417 43 2447 14 2418 44 2448 15 2419 45 2449 16 2420 46 2450 17 2421 47 2451 18 2422 48 2452 19 2423 49 2453 20 2424 50 2454 21 2425 51 2455 22 2426 52 2456 23 2427 53 2457 24 2428 54 2458 25 2429 55 2459 26 2430 56 2460 27 2431 57 2461 28 2432 58 2462 29 2433 59 2463 30 2434 Page 7 of 22 Report No.: WST150623006 Operation of EUT during testing Operating Mode The mode is used: Transmitting mode Low Channel: 2405MHz Middle Channel: 2434MHz High Channel: 2463MHz 2.2. DESCRIPTION OF TEST SETUP PC EUT Page 8 of 22 Report No.: WST150623006 2.3. MEASUREMENT INSTRUMENTS LIST Item Equipment Manufacturer Model No.Serial No.Last Cal. Cal. Interval 1. EMI Receiver Rohde & Schwarz ESCI 100627 May 19, 2015 1 Year 2. LISN SchwarzBeck NSLK 81268126377May 19, 2015 1 Year 3. RF Switching UnitCompliance Direction RSU-M2 38303 May 19, 2015 1 Year 4. EMI Test Software ES-K1 Rohde & SchwarzN/A N/A N/A N/A 5. EMI Test Receiver Rohde & Schwarz ESCI 100627 May 19, 2015 1 Year 6. Trilog Broadband Antenna Schwarzbeck VULB9163VULB 9163-289 May 17, 2015 1 Year 7. Pre-amplifier Compliance Direction PAP-0203 22008 May 19, 2015 1 Year 8. EMI Test Software EZ-EMC SHURPLE N/A N/A N/A N/A 9. EMI Receiver Rohde & Schwarz ESCI 100627 May 19, 2015 1 Year 10. LISN SchwarzBeck NSLK 81268126377May 19, 2015 1 Year 11. RF Switching UnitCompliance Direction RSU-M2 38303 May 19, 2015 1 Year 12. EMI Test Software ES-K1 Rohde & SchwarzN/A N/A N/A N/A 13. EMI Receiver Rohde & Schwarz ESCI 100627 May 19, 2015 1 Year 14. EMI Receiver Rohde & Schwarz ESCI 100627 May 19, 2015 1 Ye…
