2AE78-622108Infrared Motion wireless alarm chime

includes a wireless detector &receiver Instructions @ffl@©lil. j OUTDOOR LED indicater = senso r 0 0 D 1 - battery case •Requires 9 volt heavy duty battery • Infrared motion detection reaches maximum 400 ft. Obstacles in front m ay narrow the coverage. • Swicth inside unit to ON to operate. lil.rn©rnMlil. j INDOOR LCD indicator 0 speaker_ , • Requires 2xAA batteries • HI/LO switch for adjusting volume HI/LO switch mounting clip battery case •Mounting bracket on back •When signals r eceived;LCD indicator will flash & a built-in speaker will create a beeping sound. Follow the steps for usage ... 1.Place 9V batteries in the main unit & 2 -AA batteries the receiver units paying close attention to the polarity.. 2.In main unit, switch button to ON. 3. 4. M o unt the detector properly in location you wish the motion detection to occur. AD JUSTthe Volume to either HI or LO position on the receiver. 5.The r emote detective system should now be operating. 7.Place the receiver in an easy to reach place. 8.When the detector senses motion, the receiver will make an audible sound & the LED light will flash. 9 .Wait for 30 seconds after switching on det ector & receiver to activate. 10.Please install both units 3 f eet above ground level for optimal performance. Useful tips ... The detector should be placed in an area protected from wind and moisture. Also, position the detector in a clear path to the receiver, so that you get optimal performance. Care & Maintenance Important: The detector & receiver should be positioned in sheltered places to avoid contact with water and direct sunlight. If the LED indicator does not go on, the battery power is either low or dead. At that time you should change the.batteries. Clean the detector regularly with a damp cloth to avoid blockage of sensor by dirt or any small particles. This unit is not waterproof, during heavy s torms & snowfalls, it is recommended that the unit be moved indoors or in a safe place out of the elements. When the unit is not in use, take out all b atteries, clean both units and store the units in dry, cool place. This device is not a toy and should keep out of reach from children. Infrared Motion wireless alarm chime Instructions Model Number: 622-108 Manufacturer: HEFEI LONG RIVER ELECTRICAL CO., LTD. FCC Warning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (current) 4.0 5.0 Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 5.0 HEFEI LONG RIVER ELECTRICAL CO., LTD. Add: RM4-602, LONGXING GARDEN, NO.418 MENGCHENG ROAD, HEFEI, China Tel: 0086-551-62169282 Fax: 0086-551-62169285 2015-07-07 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA FCC ID: 2AE78-622108 Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, HEFEI LONG RIVER ELECTRICAL CO., LTD., hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): (Product description, model name): Infrared Motion wireless alarm chime / 622-108 Sincerely, Client’s name / title: Mike Zhen / Manager Address: RM4-602, LONGXING GARDEN, NO.418 MENGCHENG ROAD, HEFEI, China Tel: 0086-551-62169282 Fax: 0086-551-62169285 E-mail: [email protected]

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 4.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (obsolete) 2.0 3.0 Jan-31-2012 Added IC confidentiality letter form (current) 3.0 4.0 March-26-2015 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 4.0 HEFEI LONG RIVER ELECTRICAL CO., LTD. 2015-07-07 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: 2AE78-622108 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s name / title: Mike Zhen / Manager Address: RM4-602, LONGXING GARDEN, NO.418 MENGCHENG ROAD, HEFEI, China Tel: 0086-551-62169282 Fax: 0086-551-62169285 E-mail: [email protected]

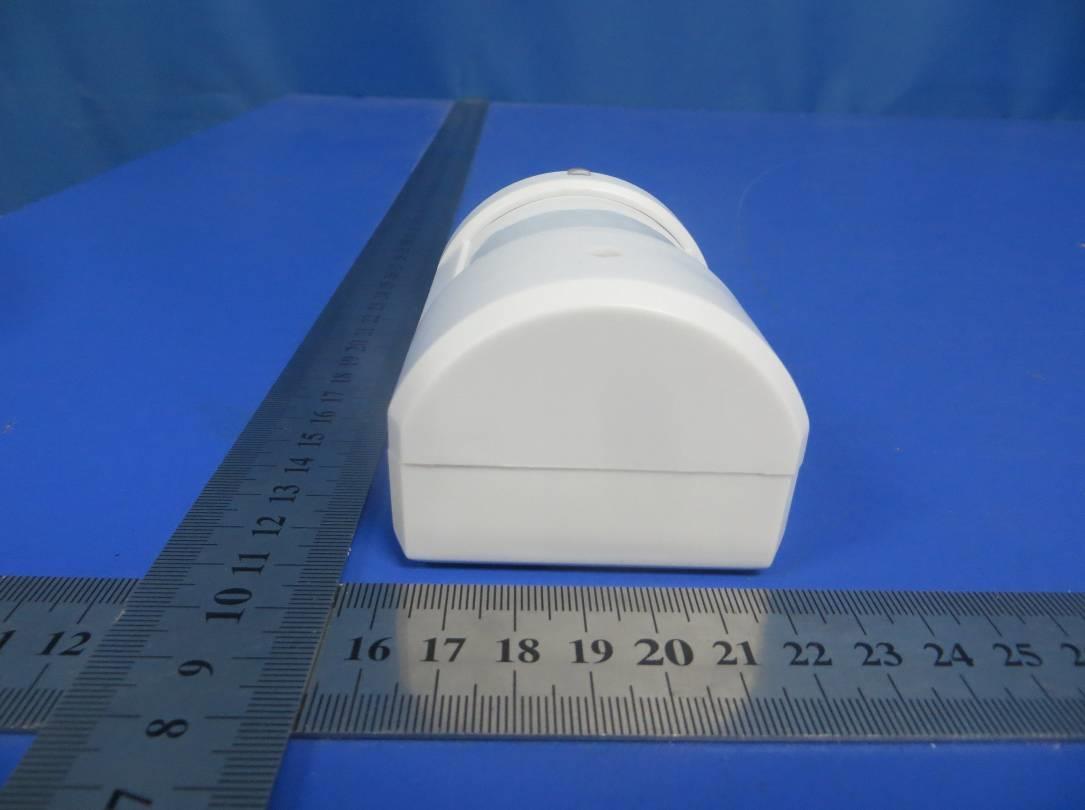

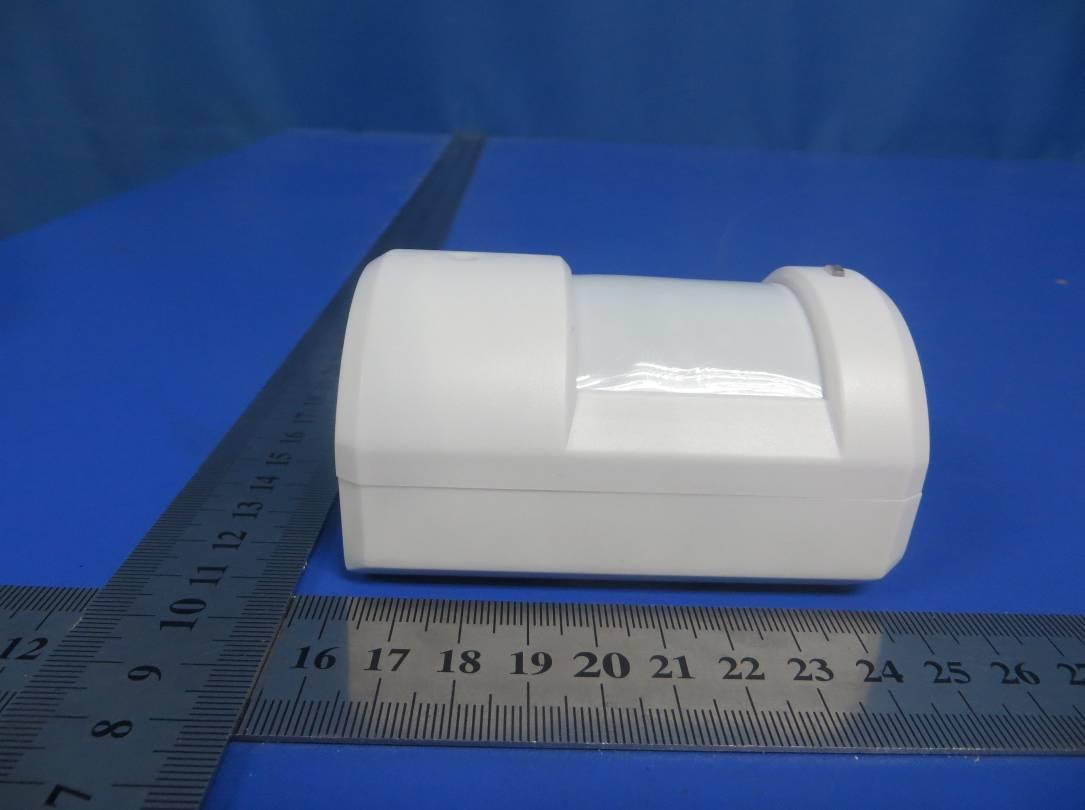

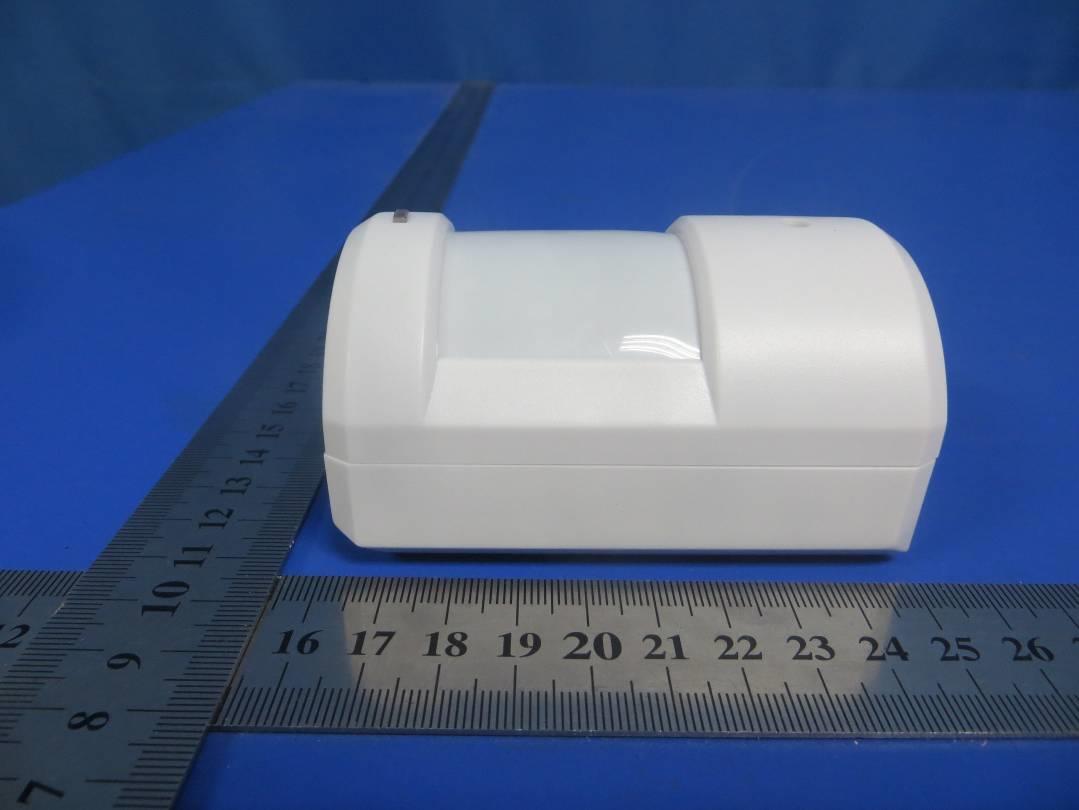

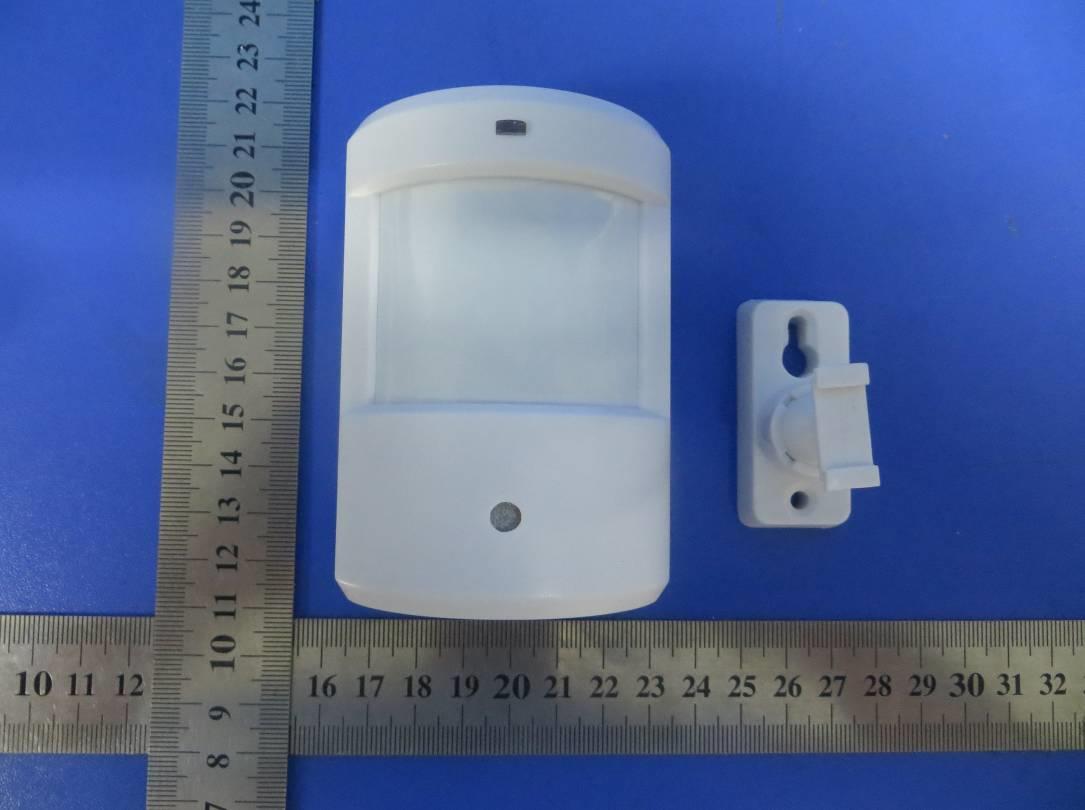

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AE78-622108 Report No.: LCS1506301705E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 3 1. EXTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AE78-622108 Report No.: LCS1506301705E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 3 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AE78-622108 Report No.: LCS1506301705E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 3 Fig.5 Fig.6

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AE78-622108 Report No.: LCS1506301705E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 1 LABEL AND LOCATION Size: L3.0cm*W1.5cm Material: Tagboard Glue: adhesive sticker Font color: White Label color: Black Label Location HEFEI LONG RIVER ELECTRICAL CO., LTD. Infrared Motion wireless alarm chime Model No.: 622-108 FCC ID: 2AE78-622108

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AE78-622108 Report No.: LCS1506301705E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 2 1. INTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AE78-622108 Report No.: LCS1506301705E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 2 Fig.3 Antenna

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AE78-622108 Report No.: LCS1506301705E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 23 FCC TEST REPORT For HEFEI LONG RIVER ELECTRICAL CO., LTD. Infrared Motion wireless alarm chime Test Model No.: 622-108 Prepared for : HEFEI LONG RIVER ELECTRICAL CO., LTD. Address : RM4-602, LONGXING GARDEN, NO.418 MENGCHENG ROAD, HEFEI, China Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 1/F., Xingyuan Industrial Park, Tongda Road, Bao’an Avenue, Bao’an District, Shenzhen, Guangdong, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : June 30, 2015 Number of tested samples : 1 Serial number : 1020100903 Date of Test : June 30, 2015 – July 07, 2015 Date of Report : July 07, 2015 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AE78-622108 Report No.: LCS1506301705E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 23 FCC TEST REPORT FCC CFR 47 PART 15C(15.231): 2014 Report Reference No. .............. : LCS1506301705E Date of Issue ................................ : July 07, 2015 Testing Laboratory Name ......... : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ........................................ : 1/F., Xingyuan Industrial Park, Tongda Road, Bao’an Avenue, Bao’an District, Shenzhen, Guangdong, China Testing Location/ Procedure ........ : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ....................... : HEFEI LONG RIVER ELECTRICAL CO., LTD. Address ........................................ : RM4-602, LONGXING GARDEN, NO.418 MENGCHENG ROAD, HEFEI, China Test Specification Standard ....................................... : FCC CFR 47 PART 15 Subpart C: 2014; ANSI C63.10: 2013 Test Report Form No. ................ : LCSEMC-1.0 TRF Originator ............................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF .................................. : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. ............... : Infrared Motion wireless alarm chime Trade Mark .................................. : N/A Test Model ................................... : 622-108 Ratings ......................................... : DC 9V by volt heavy duty battery Result ......................................... : Positive Compiled by: Supervised by: Approved by: Leo Lee/ File administrators Glin Lu/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AE78-622108 Report No.: LCS1506301705E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 23 FCC/IC TEST REPORT Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS1506301705E July 07, 2015 Date of issue Test Mode............................... : 622-108 EUT......................................... : Infrared Motion wireless alarm chime Applicant............................... : HEFEI LONG RIVER ELECTRICAL CO., LTD. Address.................................. : RM4-602, LONGXING GARDEN, NO.418 MENGCHENG ROAD, HEFEI, China Telephone............................... : / Fax.......................................... : / Manufacturer........................ : HEFEI LONG RIVER ELECTRICAL CO., LTD. Address................................... : RM4-602, LONGXING GARDEN, NO.418 MENGCHENG ROAD, HEFEI, China Telephone............................... : / Fax.......................................... : / Factory................................... : HEFEI LONG RIVER ELECTRICAL CO., LTD. Address................................... : RM4-602, LONGXING GARDEN, NO.418 MENGCHENG ROAD, HEFEI, China Telephone............................... : / Fax.......................................... : / SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AE78-622108 Report No.: LCS1506301705E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 23 TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................. 5 1.1. DESCRIPTION OF DEVICE (EUT) .......................................................................................................................... 5 1.2. OBJECTIVE ........................................................................................................................................................... 5 1.3. ENVIRONMENTAL CONDITIONS ........................................................................................................................... 5 1.4. HOST SYSTEM CONFIGURATION LIST AND DETAILS ............................................................................................ 6 1.5. EXTERNAL I/O PORT ........................................................................................................................................... 6 1.6. DESCRIPTION OF TEST FACILITY ......................................…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AE78-622108 Report No.: LCS1506301705E _______________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 1 1. TEST SETUP PHOTOGRAPHS 1.1 Photo Of Radiated Emission Measurement (Y Position) Fig.1 Fig.2
