2AE8NREC-TXController with remote

Rayconn electronics CO.,Ltd. User Manual Name: Controller with remote Model：REC-RF100 Summarization Magic color controller suitable for SPI signal direct drive LED applications; With 256 * 256 * 256 level gray, length setting function and power off memory function, built-in a variety of patterns to choose, and can through the RF remote control to adjust all kinds of dynamic lighting change effect. Can be applied to light box advertising, the stage, home decoration, etc. But this controller belong to upgrade edition, can support ten different IC strip, support the strip line sequence switch function, at the same time support the maximum pixel points is 2048. Technical parameters ● working temperature: 20-60°C ● supply voltage: DC5V ● external dimension: L94 ΧW59ΧH25 mm ● packing size: L145 ΧW95ΧH50 mm ● net weight: 126.3g ● gross weight: 166.8g ● rated power: 2.2W ● support the maximum pixel point: 2048 ● output: one groups SPI signal ●frequency 433MHz Rayconn electronics CO.,Ltd. External Dimension Interface Specification Power input interface: Adopt conventional DC power socket as power input interface, input voltage is 5V. Load output interface: V+ connect strip positive, V- connect strip negative, DATA connect strip data port, CLK connect clock port. Direction for use 1. There are eight buttons on controller panel, and every button function as follows: ON/OFF button, it can open or close load output ; Play/pause button, can play or pause led effect, convenient observation led static effect, dynamic model (8- 83) are effective; Rayconn electronics CO.,Ltd. Adding button, at load close state, can adjust strip IC type,pixel point number,RGB line sequence; Reducing button, at load close state, can adjust strip IC type, pixel point number,RGB line sequence; Mode choosing button, mode add 1; at load close state, can switch IC type, pixel point number, RGB line sequence. Mode choosing button, mode minus 1; at load close state, can switch IC type, pixel point number, RGB line sequence. Speed-down button, dynamic model (8- 83) are effective, there are 100 steps in all. Speed up button, dynamic model (8- 83) are effective. 2. There are six buttons on remote controller panel, and every button function as follows: ON/OFF: you can turn on or off load output at any time; pause: mode button, you can choose playing or pausing mode, and observe the static effect of LED in pausing mode. S+: change speed increase button; S-: Change speed slow down button, a total of 100 steps; M+: Program choosing button, Upward choice, a total of 83 program; M-: Program choosing button, down choice. 3. Operating instructions: Connect the load wire at first, following by the power wire, press key, close the controller, at this time, the screen shows"-POWER OFF-", press key, screen up rank shows"Pixel Number:", down rank value means the controller current support pixel point, press key can adjust point number; Press key again, screen up rank shows"IC Type:", down rank information means the current support IC type, through key can choose the corresponding type. Press key again, screen up rank shows"Led Sequence:", down rank information means strip RGB line sequence, because in the market, a lot of strips specification are different, some the sequence is RGB, some is RBG,GRB and so on, so this controller provide the RGB line sequence modify. Through key can choose the corresponding RGB line sequence. Rayconn electronics CO.,Ltd. 4.Standard color changes as follows: Modes Program instruction Modes Program instruction 1 Static red 43 B/Y/C flow change forward direction 2 Static green 44 G/B color draw curtain 3 Static blue 45 B/Y color lower curtain 4 Static yellow 46 Seven color wave forward direction 5 Static purple 47 Seven color wave backward direction 6 Static Cyan 48 Blue color trail backward direction 7 Static white 49 Red color trail forward direction 8 Red horse race lamp to right 50 Red color trail backward direction 9 Red horse race lamp to left 51 Green color trail forward direction 10 Green horse race lamp to right 52 Green color trail backward direction 11 Green horse race lamp to left 53 Blue color trail forward direction 12 blue horse race lamp to right 54 Yellow color trail forward direction 13 Blue horse race lamp to left 55 Cyan color trail forward direction 14 Red horse lower curtain 56 Purple color trail forward direction 15 Green horse draw curtain 57 White color trail forward direction 16 Three mix color brush forward direction 58 White color trail backward direction 17 Three mix color horse race to brush 59 Seven color trail backward direction 18 Three base color horse race to brush lower curtain 60 Seven color trail forward direction 19 Three mix color horse race to brush draw curtain 61 C/R/C gradual change forward direction 20 Seven color race to brush color forward direction 62 P/R/P gradual change forward direction 21 Seven color race to brush color backward direction 63 P/R/P gradual change backward direction 22 Seven color horse race to brush draw curtain 64 Y/G/Y gradual change forward direction 23 Seven color horse race to brush lower curtain 65 Y/G/Y gradual change backward direction 24 Three base color brush forward direction 66 C/G/C gradual change forward direction 25 Three base color brush backward direction 67 C/G/C gradual change backward direction 26 Three mix color brush forward direction 68 P/B/P gradual change forward direction 27 Three mix color brush backward direction 69 P/B/P gradual change backward direction 28 Seven color brush backward direction 70 C/B/C gradual change forward direction 29 Seven color brush forward direction 71 C/B/C gradual change backward direction 30 Three base color brush draw curtain 72 W/R/W gradual change forward direction 31 Three base color brush lower curtain 73 W/R/W gradual change backward direction 32 Seven color brush draw curtain 74 G/R/G gradual change forward direction 33 Seven color brush lower curtain 75 G/R/G gradual change backward direc…

Text truncated - open the document above for the full version.

Rayconn electronics Co.,LTD. 10B,Boxing Building,NO.52, First Qingshuihe Road,Luohu District,Shenzhen,Guangdong,China Confidentiality Request Letter Page 1 of 1 Rev 2.0 July 21, 2015 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Permanent Confidentiality Request Confidentiality Request regarding application for certification of FCC ID:2AE8NREC-TX We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Operational Description - Schematic The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, _____________________________ Client’s name / title: Eric Yu/ MANAGER Contact information / address: 10B,Boxing Building,NO.52, First Qingshuihe Road,Luohu District,Shenzhen,Guangdong,China Contact Email: [email protected] ContactPhone: 0086-755-22914026 ContactFax: 0086-755-23503199

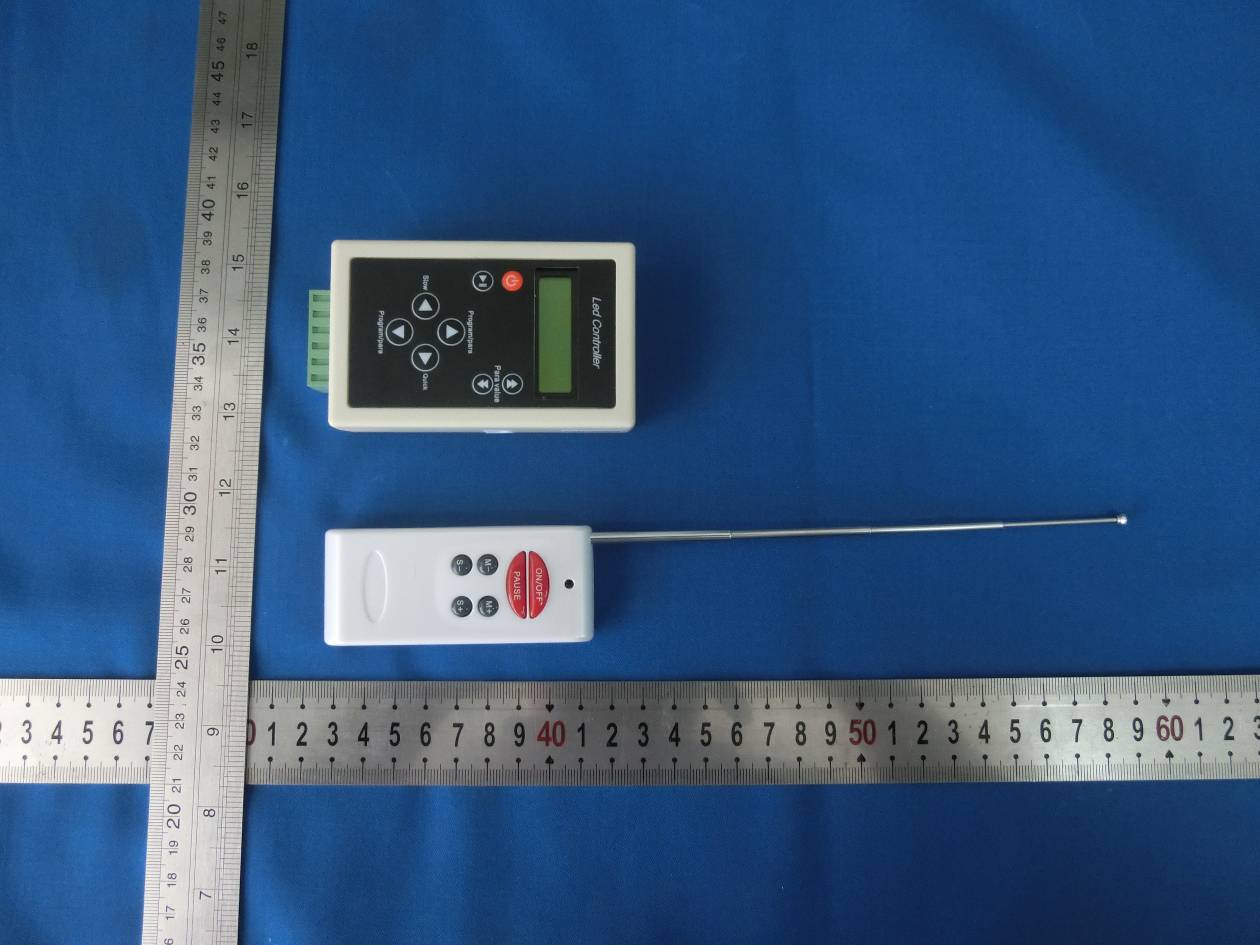

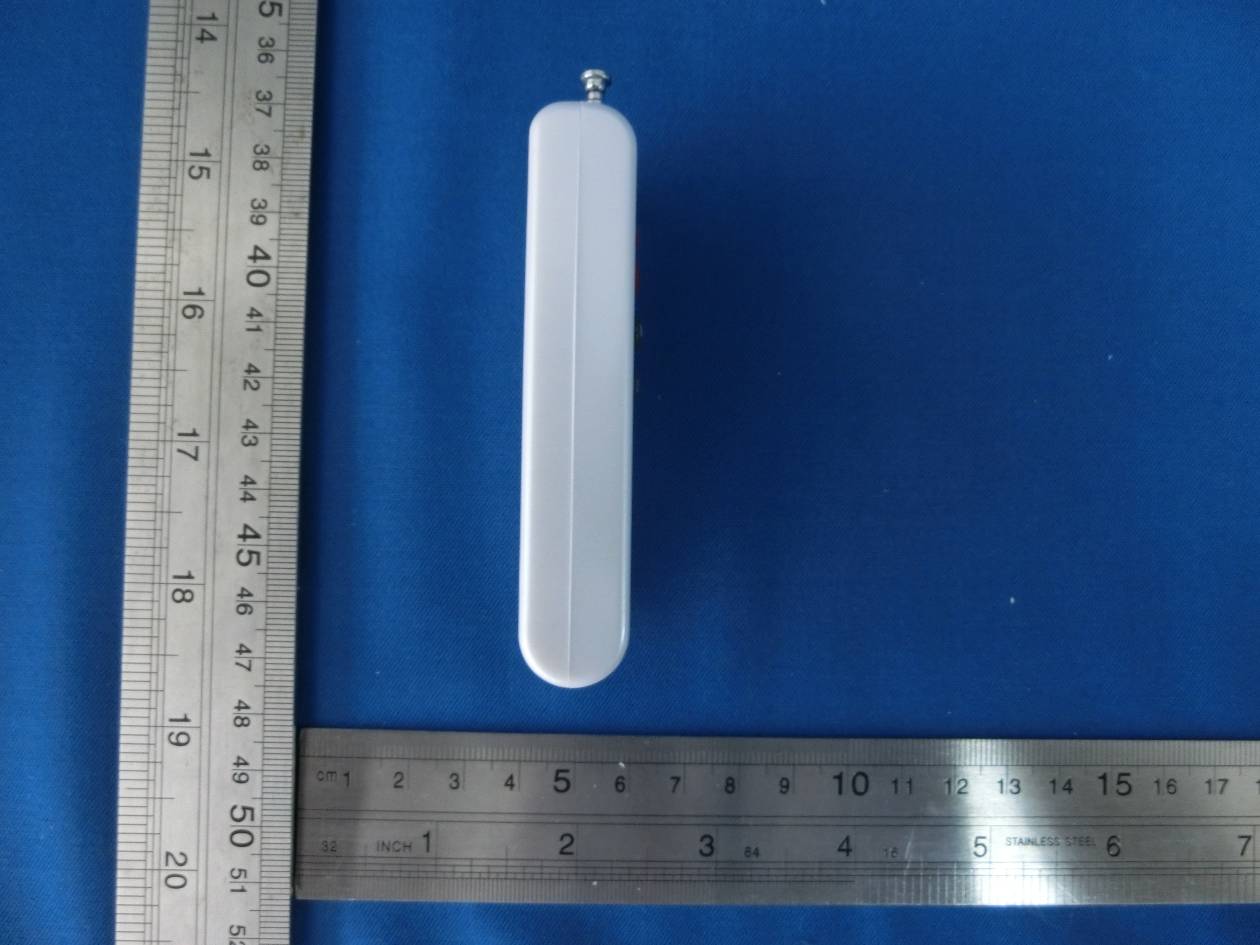

External Photo

FCC Certification Label FCC ID:2AE8NREC-TX Label Location on EUT label size:high 1cm, Wide:2 cm EUT View/ FCC ID Label Location

Internal Photo Antenna

FCC PART 15.231 EMI MEASUREMENT AND TEST REPORT For Rayconn electronics Co.,LTD. 10B,Boxing Building,NO.52, First Qingshuihe Road,Luohu District,Shenzhen,Guangdong,China FCC ID:2AE8NREC-TX July 21, 2015 This Report Concerns: Original Report Equipment Type: Remote Controller Test Engineer: Lisa Chen Report No.: BSL151227-1 Receive EUT Date/Test Date: July 11, 2015/ July 11 - July 21, 2015 Reviewed By: Mike moo Prepared By: BSL Testing Co.,LTD. NO. 24, ZH Park, Nantou, Shenzhen, 518000 China Tel: 86- 755-26508703 Fax: 86- 755-26508703 FCC ID:2AE8NREC-TX Page 2/21 TABLE OF CONTENTS 1. GENERAL INFORMATION ....................................................................................................3 1.1. Report information ............................................................................................................3 1.2. Measurement Uncertainty .................................................................................................3 2. PRODUCT DESCRIPTION ......................................................................................................4 2.1. EUT Description ...............................................................................................................4 2.2. Block Diagram of EUT Configuration..............................................................................5 2.3. Support Equipment List ....................................................................................................5 2.4. Test Conditions .................................................................................................................5 3. TEST RESULTS SUMMARY ...................................................................................................6 Modifications ................................................................................................................................6 4. TEST EQUIPMENT USED .......................................................................................................7 5. ANTENNA REQUIREMENT ...................................................................................................8 5.1. Standard Applicable..........................................................................................................8 5.2. Antenna Connected Construction .....................................................................................8 5.3. Result ................................................................................................................................8 6. CONDUCTED POWER LINE TEST .......................................................................................9 6.1. Test Equipment .................................................................................................................9 6.2. Test Procedure ..................................................................................................................9 6.3. Test Setup..........................................................................................................................9 6.4. Conducted Power line Emission Limits............................................................................9 6.5. Conducted Power Line Test Result.................................................................................10 7. RADIATED EMISSION TEST ...............................................................................................11 7.1. Test Equipment ...............................................................................................................11 7.2. Test Procedure ................................................................................................................11 7.3. Radiated Test Setup ........................................................................................................11 7.4. Radiated Emission Limit.................................................................................................13 7.5. Radiated Emission Test Result .......................................................................................14 8. 20DB OCCUPIED BANDWIDTH ..........................................................................................18 8.1. Test Equipment ...............................................................................................................18 8.2. Test Procedure ................................................................................................................18 8.3. FCC 15.231(c) 20dB Bandwidth Limit...........................................................................18 8.4. Test Result ......................................................................................................................19 9. DEACTIVATION TESTING...................................................................................................20 9.1. Test Equipment ...............................................................................................................20 9.2. Test Procedure ................................................................................................................20 9.3. Deactivation Testing Requirement .................................................................................20 9.4. Test Result ......................................................................................................................21 FCC ID:2AE8NREC-TX Page 3/21 1. GENERAL INFORMATION 1.1. Report information 1.1.1.This report is not a certificate of quality; it only applies to the sample of the specific product/equipment given at the time of its testing. The results are not used to indicate or imply that they are application to the similar items. In addition, such results must not be used to indicate or imply that BSL approves recommends or endorses the manufacture, supplier or use of such product/equipment, or that BSL in any way guarantees the later performance of the product/equipment. 1.1.2.The sample/s mentioned in this report is/are su…

Text truncated - open the document above for the full version.

Radiated emissions test
