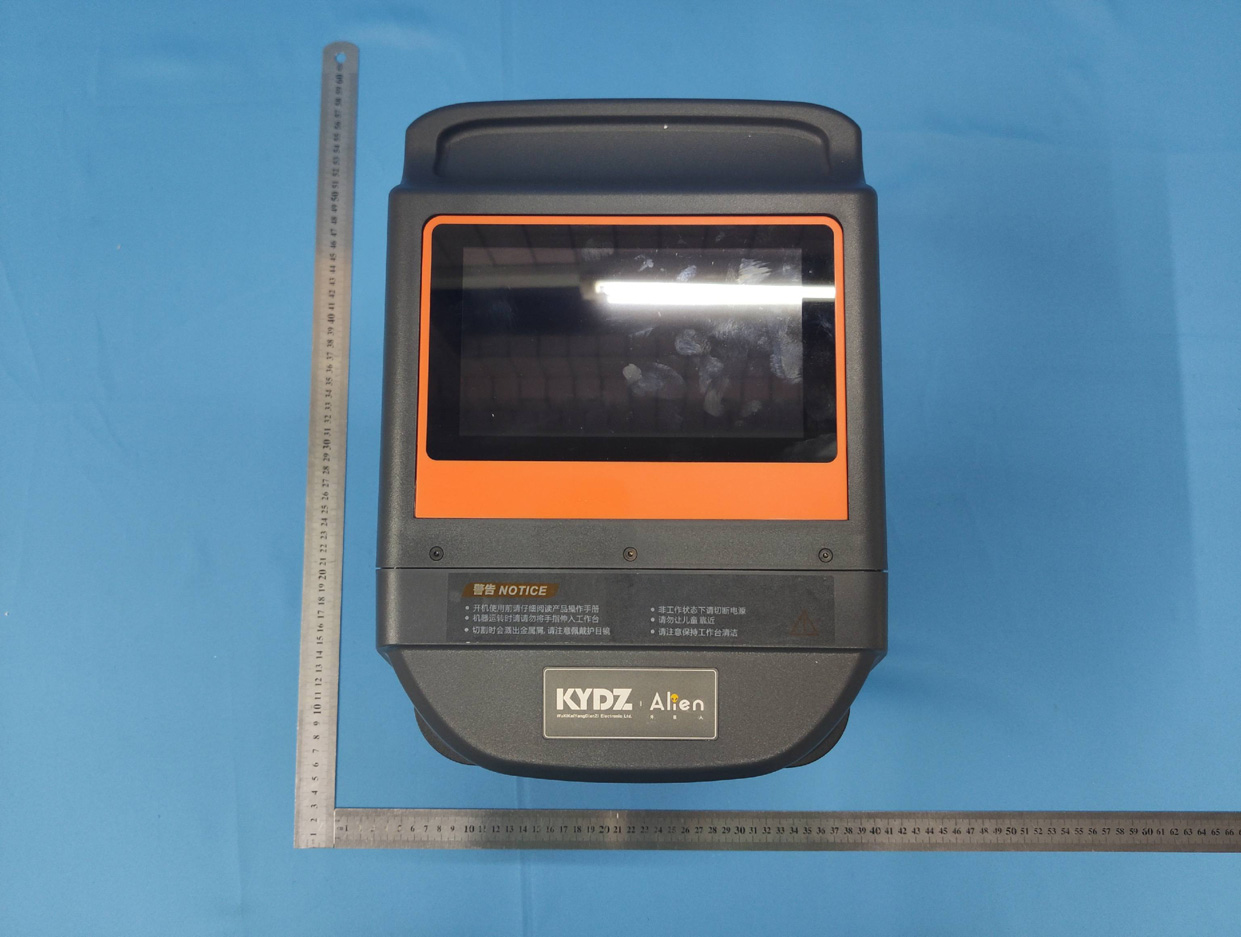

2AE9Z-KYDZ306Automotive Key Cutting Machine

Fixture installation steps: 1.Loosen the dovetail groove locking screw with the hexagon wrench; 2. The fixture is pushed into the dovetail groove track from the right side to the positioning position; 3.Lock the dovetail groove locking screw. Installation steps of milling cutter: 1.Lift up the protective cover, let the protective cover stay on the top and leak out the screw hole position; 2.Install the milling cutter into the mounting hole, and align the flat position of the milling cutter with the screw hole position; 3.Tighten the set screw of milling cutter with hexagon wrench; 4.If you want to remove the milling cutter, loosen the fastening screw and take out the milling cutter downward; The installation and disassembly steps of the probe are the same as those of the milling cutter. Equipment Specifications Fixture installationMilling cutter installation Adapter voltage Maximum power consumption Package size Machine size LED screen resolution Lithium battery capacity Spindle speed Working temperature Humidity Net weight Gross weight 150W 490320430 mm 251421318 mm 1024600 55.5Wh 12000rpm -5~+40°C 10~90% 17KG 20KG Input:100-240VAC Output:26VDC Dovetail groove locking screw Flat position Screw hole Protective cover Milling cutterprobe Portable key cutting machine Quick installation guide Wuxi Keyoung Electronic Technology Co., Ltd 7-inch capacitive touch screen Protection cover Led light Emergency stop button Tightening handle Identification window Crumb tray Milling cutter Probe Fixture matters needing attention Emergency stop buttonIntelligent tooth shape recognition Cutting collecting box Instructions for use of cutting collection box: 1.When the cutting waste needs to be treated, it can be directly pulled out of the lower cutting collection box and the waste can be poured out; 2.When storing, directly aim at the mouth and push forward. The distance between user and products should be no less than 20cm. Instructions for use of emergency stop button: 1.When an emergency occurs or the key processing is finished, the power supply can be cut off by directly pressing the knob vertical- ly; 2.According to the direction of the arrow, turn the knob clockwise about 45 degrees to turn on the power supply of the device. Instructions for intelligent tooth shape recognition: 1.Insert the key into the fixing hole; 2.On the screen, check whether the key embryo is deviated great- ly; if it is skewed, the key position can be adjusted left and right; 3.After reading the key sequence, pull out the key directly. Please read the product operation manual carefully before use; Wear safety goggles in accordance with ANSI standard when working; Do not put your hand into the working area when the machine is running; Keep children away from the machine; When not in use for a long time, please cut off the power supply; Ensure that there is no chip residue during packaging and transportation; Do not use air jet gun and other tools to clean the chips; Manufacturer:Wuxi Keyoung Electronic Technology Co., Ltd QQ:3004280989 WEB:www.kydz-wx.com Address:5-302,5-301 Huaqing Creative Park,Huishan Economic Development Zone, Wuxi, Jiangsu This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Please keep the worktable clean; This machine has built-in lithium battery pack. Please do not disassemble it without permission. Keep the machine away from high temperature and fire source The machine should be placed in the area of light proof, rain proof and waterproof. The following items are included in the package. If it is lost, please contact your dealer. Inventory 2.5mm Cutter 1.5mm Cutter 2.0mm Cutter Probe 2.5mm hexagon wrench The power adapter lithium battery Brush Clamp K1 Clamp K2 Check block Host Product inspection / list Quick installation guide 2 1 1 2 2 1 1 1 1 1 1 1 1 1 1 Cutting tools1.5637L Cutting tools2.0637L Cutting tools1.0640L Connecting tools Built-in battery Machine cleaning tools Key fixture for vertical milling FO21/SX9Clamp Calibration accuracy Key machine body Key machine assembly, etc NameNumberExplain Cutting tools2.5637L Replace probe / milling cutter / locking fixture External milling key fixture / leveling fixture Clamp K3 (Optional accessories) Factory inspection certificate / packing statistics 2.5645L This certificate indicates that the product has passed strict inspection and reached the company's quality standard, and is qualified and approved for delivery. This product provides customers with one year's warranty service from the date of purchase. When warranty is needed, please show valid Three Guarantees certificate and valid invoice. Product certificate Warranty card Product name: Portable key cutting machine Product model: KYDZ-306 Inspection date: Customer name : Phone number : Contact address : Product model : Product number : Purchase date : …

Text truncated - open the document above for the full version.

Label location

SAR evaluation MPE Calculation Method E (V/m) = (30*P*G) 0.5 /d Power Density: Pd (W/m2) = E 2 /377 E = Electric Field (V/m) P = Peak RF output Power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = (30*P*G) / (377*d 2 ) From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Calculated Result and Limit(WORSE CASE IS AS BELOW) Directional AntennaGain (Numeric) Peak Output Power (mW) Power Density (S)(mW/cm2) Limit of Power Density (S) (mW/cm2) Test Result 0.782 （-1.07dBi） 63.533 （18.03dBm） 0.01 1 Compiles

Global United Technology Services Co., Ltd. Report No.: GTS202004000233F01 Authorized Signature: Robinson Lo Laboratory Manager This results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Page 1 of 48 TEST REPORT Applicant: WUXI KYDZ CO.,LTD Address of Applicant: 3F, 5 Bldg, Huaqing Creative Park, Huishan Economic Development Zone, Wuxi, Jian 214000, China Manufacturer/Factory: WUXI KYDZ CO.,LTD Address of Manufacturer/Factory: 3F, 5 Bldg, Huaqing Creative Park, Huishan Economic Development Zone, Wuxi, Jian 214000, China Equipment Under Test (EUT) Product Name: Automotive Key Cutting Machine Model No.: KYDZ-306 Trade Mark: KYDZ FCC ID: 2AE9Z-KYDZ306 Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 Date of sample receipt: April 30, 2020 Date of Test: May 06, 2020-July 27, 2020 Date of report issued: July 27, 2020 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. Report No.: GTS202004000233F01 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 2 of 48 2 Version Version No. Date Description 00 July 27, 2020 Original Prepared By: Date: July 27, 2020 Project Engineer Check By: Date: July 27, 2020 Reviewer Report No.: GTS202004000233F01 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 3 of 48 3 Contents Page 1 COVER PAGE ........................................................................................................................................... 1 2 VERSION .................................................................................................................................................. 2 3 CONTENTS .............................................................................................................................................. 3 4 TEST SUMMARY ..................................................................................................................................... 4 4.1 MEASUREMENT UNCERTAINTY ............................................................................................................ 4 5 GENERAL INFORMATION ...................................................................................................................... 5 5.1 GENERAL DESCRIPTION OF EUT ......................................................................................................... 5 5.2 TEST MODE ........................................................................................................................................ 7 5.3 DESCRIPTION OF SUPPORT UNITS ....................................................................................................... 7 5.4 DEVIATION FROM STANDARDS ............................................................................................................. 7 5.5 ABNORMALITIES FROM STANDARD CONDITIONS ................................................................................... 7 5.6 TEST FACILITY .................................................................................................................................... 7 5.7 TEST LOCATION ................................................................................................................................. 7 5.8 ADDITIONAL INSTRUCTIONS ................................................................................................................. 7 6 TEST INSTRUMENTS LIST ..................................................................................................................... 8 7 TEST RESULTS AND MEASUREMENT DATA .................................................................................... 10 7.1 ANTENNA REQUIREMENT ................................................................................................................... 10 7.2 CONDUCTED EMISSIONS ................................................................................................................... 11 7.3 CONDUCTED PEAK OUTPUT POWER .................................................................................................. 14 7.4 CHANNEL BANDWIDTH ...................................................................................................................... 15 7.5 POWER SPECTRAL DENSITY ............................................................................................................. 18 7.6 BAND EDGES .................................................................................................................................... 21 7.6.1 Conducted Emission Method ..................................................................................................... 21 7.6.2 Radiated Emission Method ........................................................................................................ 24 7.7 SPURIOUS EMISSION ......................................................................................................................... 29 7.7.1 Conducted Emission Method ..................................................................................................... 29 7.7.2 Radiated Emission Method ........................................................................................................ 32 8 TEST SETUP PHOTO ............................................................................................................................ 48 9 EUT CONSTRUCTIONAL DETAILS ............…
