2AEAW-TEX20Wireless Keyboard

401 Wilshire Blvd. Ninth Floor Santa Monica, CA 90401 TextBlade™ User’s Manual For detailed operating instructions, see explanatory videos at www.waytools.com. FCC – United States FCC ID: 2AEAW-TEX20 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: * Reorient or relocate the receiving antenna. * Increase the separation between the equipment and receiver. * Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. * Consult the dealer or an experienced radio/TV technician for help. Modifications to this product could void your right to use or operate it under FCC rules. To maintain compliance with FCC regulations, any shielded interface cables or accessories provided with this product, and any other additionally provided components or accessories required for use of the product, must be used as specified by the manufacturer to ensure compliance with FCC regulations. This product has no cables provided or required by the manufacturer. 401 Wilshire Blvd. Ninth Floor Santa Monica, CA 90401 Canada (IC) Statements This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.

401 Wilshire Blvd. Ninth Floor Santa Monica, CA 90401 March 17, 2015 CETCB 114 Olinda Drive Brea, CA 92823 Gentlemen: This is a letter of authorization to accept Compatible Electronics, Inc., specifically including the employees of Compatible Electronics, as an Agent for WayTools LLC 401 Wilshire Blvd 9 th Floor Santa Monica, CA 90401 for a period of one year, to sign applications before the Commission on our behalf, to make representations to you on our behalf, and to receive and exchange data between our company and the Commission in connection with certification of the following WayTools LLC product: Bluetooth Keyboard under FCC Docket Number 20780 and General Docket Number 80-284 pursuant to Part l5 of FCC Rules and Regulations. Please also accept this letter as an attestation that neither WayTools LLC nor any of its officers, directors, or persons holding 5% or more of the outstanding stock or shares, voting or non-voting, have been denied federal benefits under section 5301 of the Anti-Drug-Abuse act of 1988,21 U.S.C. 853(a). In addition, WayTools LLC will notify the Federal Communications Commission if, at any time, the situation changes causing WayTools LLC to be denied federal benefits. If you have any further questions or need additional information, please feel free to give me a call at 310-883-1800. Sincerely, J. Douglas Logan Software Engineer

WAYTO()LS MARCH 17,2015 CoMPATI BLE ELECTRONICS TCB 1 14 OLINDA DRIVE BREA, CALIFORNIA 92823 SUBJECT: TCB APPLICATION sUBMITTAL GENTLEMEN: WE, WAYTooLS LLC, WOULD LIKE TO DECLARE THAT THE APPLICATION BEING SUBMITTED FOR THE DEVICE WITH FCC ID: 2AEAW-TEXZO, HAS NOT BEEN SUBMITTED TO ANOTHER TCB OR FCC FOR CERTIFICATION. IF YoU HAVE ANY QUESTIoNS, PLEASE DO NOT HESITATE To CoNTACT US AT 31 O- aa3- 1 aoo. SINCERELY, WAYTO()LS*oot wrLsHrRE BLVD. NrNrH FLooR sANrA MoNicn, cA so4ol . Doueles LoGAN SoFTWARE ENGINEER

WAYTOOLS" MARCH 17,2015 CoMPATI BLE ELECTRON ICS TCB 1 14 OLINDA DRIVE BREA, CALIFORNIA 92823 SUBJECT: REQUEST FOR WITHHOLDING FROM PUBLIC DISCLOSURE THE SCHEMATICS, BLOCK DIAGRAMS, AND OPERATIONAL DESCRIPTION PURSUANT TO AN APPLICATION FOR CERTI FICATION GENTLEMEN: WE, WAYTooLS LLC, wouLD LIKE To REQUESTTHATALL ScHEMATICS, BLocK DIAGRAMS, AND OPERATIONAL DESCRIPTIONS SUBMITTED WITH THE APPLICATION FoR CERTI FIcATIoN BE WITHHELD FROM PUBLIC DISCLoSURE AS PER SECTIoN O.459 oF FCC RULEs. THIS REQUEST IS MADE UNDER THE PROVISIONS OF SECTIoN O.457 (D) oF THE CoMMtssroN's RuLES, AND SEcrroN 552 (B) (4) oF THE FREEDoM oF INFoRMATIoN AcT. THESE SECTIoNS AUTHORIZE THE WITHHoLDING FRoM PUBLIc tNspEcTloN, THosE MATERTALS WHICH WOULD BE PRIVTLEGED AS A MATTER OF LAW IF RETAINED BY THE PERSON SUBMITTING THEM, AND MATERIALS WHICH WOULD NOT CUSTOMARILY BE RELEASED TO THE PUBLIC BY THAT PERSON, IF YoU HAVE ANY QUESTIoNS, PLEASE DO NOT HESITATE To coNTAcT Us AT 31O- aa3- 1 aoo SINCERELY, W J. DOUGLAS LOGAN SoFTWARE ENGINEER WNVTO()LS 4()1 WILSHIRE BLVD. NINTH FLOOR SANTA MONICA, CA 9O4O1

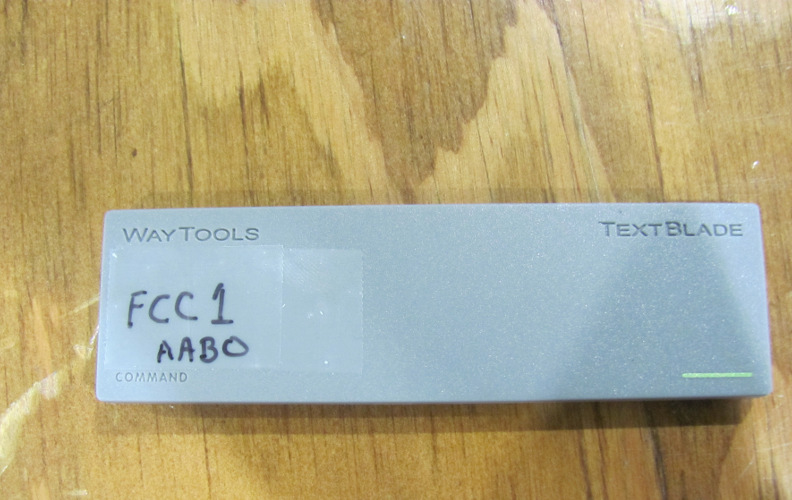

71.80 23.62 Text: “WAYTOOLS TECHNOLOGY CALIFORNIA ENGINEERING MALAYSIA ASSEMBLY MODEL TEX20” Myriad Pro - 0.071 in Text: “WORLD WIDE PATENTS WAYTOOLS.COM/LEGAL/PATENTS FCC ID: 2AEAW-TEX20 IC: XXXX-XXXXX” Myriad Pro - 0.071 in Symbols: “Recycling”, “CE” and “CE alert Mark” WORLDWIDE PATENTS WAYTOOLS.COM/LEGAL/PATENTS FCC ID: 2AEAW-TEX20 IC: XXXX-TEX20WAYTOOLS TECHNOLOGY CALIFORNIA ENGINEERING MALAYSIA ASSEMBLY MODEL TEX20 NOTES: 1. FCC ID is printed on bottom of the Device 2. All dimensions are in mm unless otherwise specified

SAR Exclusion Justification This device FCC ID:is excluded from SAR testing by the following justification The maximum power that the transmitter is capable of is1.00mW Using the following formula from section 4.3.1 of KDB 447498at test separation distances ≤ 50 mm [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] * [√f(GHz)] Duty Cycle 100.00% Value1-g (mW)10-g (mW) 0.31(355)-212 "Value" is7.5, the SAR test exclusion threshold 1-g power limit10-g power limit 95238 “source-based” time-averaging based on an inherent property or duty-cycle of a device is allowed. An example of this is the determination of exposure from a device that uses digital technology such as a time-division multiple-access (TDMA) scheme for transmission < 50mm power limits for above caclulation using specified frequency 2AEAW-TEX20 Max Peak Power (dBm)Min Separation distance (mm)Frequency (Ghz) When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. 2.4850 SAREXJUST-B-0-43REV A01/21/2014

Report Number: B50311D1 FCC Part 15 Subpart B and FCC Section 15.249 Test Report TextBlade Model: TEX20 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 1 of 18 FCC PART 15, SUBPART B and C TEST REPORT for TEXTBLADE MODEL: TEX20 Prepared for WAYTOOLS, LLC. 401 WILSHIRE BOULEVARD, 9 TH FLOOR SANTA MONICA, CA 90401 Prepared by:_____________________ KENNETH LEE Approved by:____________________ JAMES ROSS COMPATIBLE ELECTRONICS INC. 114 OLINDA DRIVE BREA, CALIFORNIA 92823 (714) 579-0500 DATE: MARCH 25, 2015 REPORT APPENDICES TOTAL BODY A B C D E PAGES 18 2 2 2 22 34 80 This report shall not be reproduced except in full, without the written approval of Compatible Electronics. Report Number: B50311D1 FCC Part 15 Subpart B and FCC Section 15.249 Test Report TextBlade Model: TEX20 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 2 of 18 TABLE OF CONTENTS Section / Title PAGE GENERAL REPORT SUMMARY 4 SUMMARY OF TEST RESULTS 5 1. PURPOSE 6 2. ADMINISTRATIVE DATA 7 2.1 Location of Testing 7 2.2 Traceability Statement 7 2.3 Cognizant Personnel 7 2.4 Date Test Sample was Received 7 2.5 Disposition of the Test Sample 7 2.6 Abbreviations and Acronyms 7 3. APPLICABLE DOCUMENTS 8 4. Description of Test Configuration 9 4.1 Description of Test Configuration - Emissions 9 4.1.1 Cable Construction and Termination 9 5. LISTS OF EUT, ACCESSORIES AND TEST EQUIPMENT 10 5.1 EUT and Accessory List 10 6. TEST SITE DESCRIPTION 12 6.1 Test Facility Description 12 6.2 EUT Mounting, Bonding and Grounding 12 7. Test Procedures 13 7.1 RF Emissions 13 7.1.1 Radiated Emissions (Spurious and Harmonics) Test – Lab B 13 7.1.2 Radiated Emissions (Spurious and Harmonics) Test – Lab D 15 7.1.3 Conducted Emissions Test 16 7.1.4 RF Emissions Test Results 17 8. CONCLUSIONS 18 Report Number: B50311D1 FCC Part 15 Subpart B and FCC Section 15.249 Test Report TextBlade Model: TEX20 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 3 of 18 LIST OF APPENDICES APPENDIX TITLE A Laboratory Accreditations and Recognitions B Modifications to the EUT C Additional Models Covered Under This Report D Diagrams and Charts  Test Setup Diagrams  Antenna and Effective Gain Factors E Data Sheets LIST OF FIGURES FIGURE TITLE 1 Plot Map And Layout of Radiated Site 2 Layout of the Semi-Anechoic Test Chamber 3 Conducted Emissions Test Setup LIST OF TABLES TABLE TITLE 1.0 Radiated Emission Results 2.0 Conducted Emission Results Report Number: B50311D1 FCC Part 15 Subpart B and FCC Section 15.249 Test Report TextBlade Model: TEX20 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 4 of 18 GENERAL REPORT SUMMARY This electromagnetic emission test report is generated by Compatible Electronics Inc., which is an independent testing and consulting firm. The test report is based on testing performed by Compatible Electronics personnel according to the measurement procedures described in the test specifications given below and in the "Test Procedures" section of this report. The measurement data and conclusions appearing herein relate only to the sample tested and this report may not be reproduced without the written permission of Compatible Electronics, unless done so in full. This report must not be used to claim product certification, approval or endorsement by NVLAP, NIST or any agency of the federal government. Device Tested: TextBlade Model: TEX20 S/N: N/A Product Description: See Expository Statement. Modifications: The EUT was not modified during the testing. Customer: WayTools, LLC. 401 Wilshire Boulevard, 9 th Floor Santa Monica California, 90401 Test Dates: March 11 and 25, 2015 Test Specifications : Emissions requirements CFR Title 47, Part 15, Subpart B; and Subpart C, sections 15.205, 15.209, and 15.249 Test Procedure: ANSI C63.4 Test Deviations: The test procedure was not deviated from during the testing. Report Number: B50311D1 FCC Part 15 Subpart B and FCC Section 15.249 Test Report TextBlade Model: TEX20 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 5 of 18 SUMMARY OF TEST RESULTS TEST DESCRIPTION RESULTS 1 Spurious Radiated RF Emissions, 10 kHz – 25,000 MHz (Transmitter and Digital portion) Complies with the Class B limits of CFR Title 47, Part 15 Subpart B; and the limits of CFR Title 47, Part 15, Subpart C, section 15.205, 15.209 and 15.249 2 Conducted RF Emissions, 150 kHz to 30 MHz Complies with the Class B limits of CFR Title 47, Part 15 Subpart B Report Number: B50311D1 FCC Part 15 Subpart B and FCC Section 15.249 Test Report TextBlade Model: TEX20 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 6 of 18 1. PURPOSE This document is a qualification test report ba…
