2AEB3K2BBlueTooth Remote Controller

蓝牙自拍器 首先打开手机或平板电脑蓝牙，按自拍器自拍按钮2秒，红蓝灯同 时亮一下，然后灭掉，等红蓝灯闪烁，搜索蓝牙信号。 打开手机或平板电脑蓝牙设备，搜索“IBO-01”时进行配对和连 接（无需任何密码），若配对不成功，则进入休眠状态，再按一 下自拍按钮唤醒。 进入手机或平板电脑照相机页面，按下自拍按钮进行拍照。 全面兼容安卓系统4.2.2及更高版本，IOS系统6.0及更高版本。 注：安卓4.2.2以下版本需安装Camera360。 产品构造 操作说明 配对 关机 电池拆卸步骤 兼容设备 包装内容 自拍器*1 纽扣电池*1个 魔术贴*1 说明书*1本 售后服务 提供一年保修服务 产品使用说明书 IBO-01 使用方使。可拍任何角度，远距离拍摄，无需扭转手腕，手臂不会 颤抖，无任何自拍限制。 简单快速爆发。独特的自拍按钮设计，使得用户连续拍照和捕捉每 一个想要记录的瞬间变得轻而易举。 兼容性强。支持iPhone, iPad, Samsung和其他品牌的手机等数码设备。 连接方便。只要打开就可以使用。 产品特点 感谢您购买本产品，使用前请仔细阅读本说明书，以获得正确的使用 及保管方式，希望您有一个愉快的使用体验。 产品规格 产品名称 产品型号 蓝牙版本 频率 工作电流 使用时间 电池容量 产品尺寸 裸机重量 自拍器 IBO-01 蓝牙3.0 2.4GHz-2.4835GHz 5mA 30小时 200mAh 38X38X10mm 12.4g 自拍按钮 拆硅胶套 硅胶套魔术贴 长按自拍按钮5秒，红蓝灯快闪3次，关机。 1 1 向下滑动电池盖 2 向上滑动电池盖 4 安装完成 5 安装电池 3 2 3 CR23032l C H A O C H U A N G CR23032l C H A O C H U A N G Bluetooth Self Timer Shutter Firstly press the self timer button for 2 seconds,the red &blue lights on at the same time ,and then off. After the red&blue light flash ,then search for Bluetooth signal. Turn on the Bluetooth device of mobile phone or tablet PC. Search for“IBO-01”then pair and connect(no need any password).If pair failed,then go into sleep.Push the self timer button to wake. Enter the mobile phone or tablet camera interface and press the self timer button to take pictures. Compatible with Android4.2.2&iOS6.0 above Note:Andriod4.2.2 below need to install camera360 Structure Instructions Pair Shut down Battery Remove Steps Compatible Device Package Contents Self timer shutter*1 Button battery*1 Magic tape*1 User manual*1 User Manual IBO-01 Easy to use.Any angle,long distance,no hand twist,no hand shaking,no any limitation for selfile. Easy fast burst.With the shutter button design,it is very easy for users to take continuous photos and capture any moment you want. Easy compatible.Support iPhone,iPad,Samsung and other digital devices. Easy link.No need for any extra application,just turn-on and play. Features Specification Selftimer Remove silicone tape Slide the battery cover up Slide the battery cover down Silicone CaseMagic tape Long press the button for 5 seconds,after the blue&red lights flash 3 times then shut down. 1 1 2 4 Finish 5 Insert battery 3 2 3 CR23032l C H A O C H U A N G CR23032l C H A O C H U A N G Product Name Model NO Bluetooth Version Transmit Frequency Working Current Working Hour Battery Capacity Dimension Weight Bluetooth Self Timer Shutter IBO-01 Bluetooth 3.0 2.4GHZ-2.4835GHZ 5mA 30hours 200mAh 38*38*10mm 12.4g Thanks for purchasing our product. Before getting start, please read the user manual carefully so as to ensure proper operation and optimized performance of this product. Hope you have an enjoyable experience. Providing one-year warranty Aftersales Service

Page 1 of 1 Type Designation: NS-SSTK2B External Photos Report Number: 17047873 001

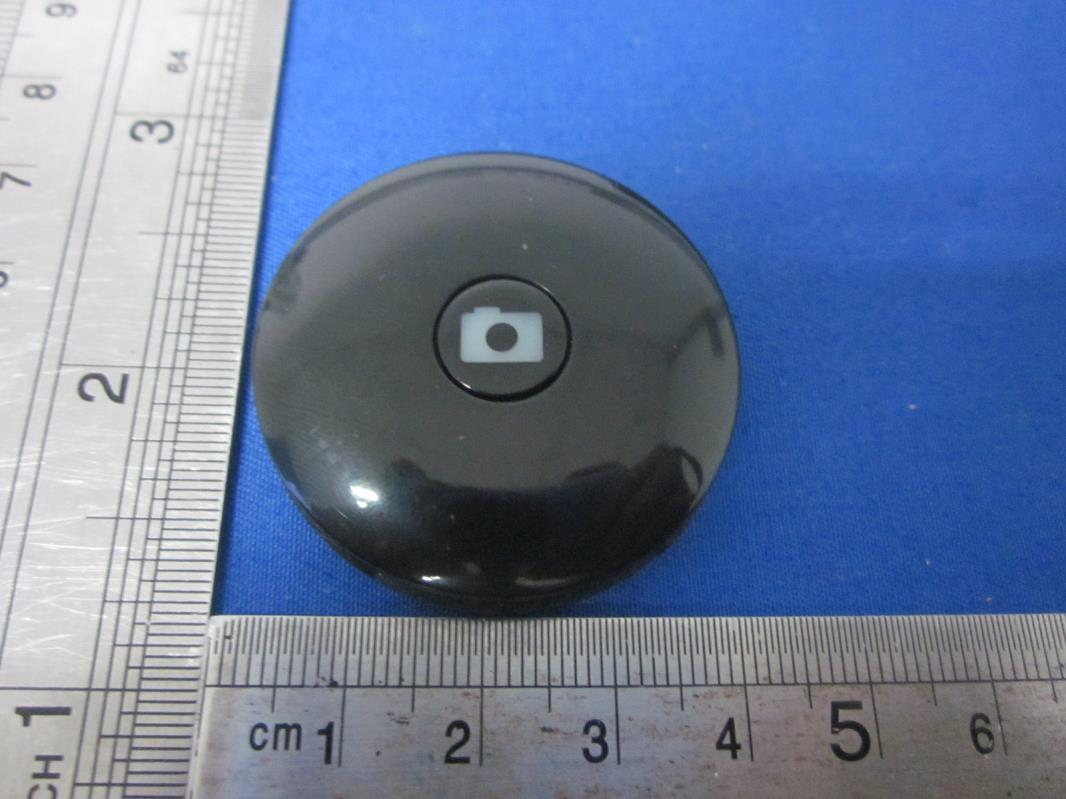

Label location

Page 1 of 2 Type Designation: NS-SSTK2B Internal Photos Report Number: 17047873 001 Page 2 of 2 Type Designation: NS-SSTK2B Internal Photos Report Number: 17047873 001

Produkte Products RF Exposure Compliance Seite 1 von 1 Page 1 of 1 Product: BlueTooth Remote Controller FCC ID: 2AEB3K2B Radio Frequency Exposure Compliance RESULT: Pass Test standard : FCC KDB Publication 447498 D01 General RF Exposure Guidance v05r02 The user distance to the EUT is 5mm, since maximum peak output power of the transmitter is 5.23 mW (102.42 dBuV/m at 3 m) < 10mW, hence the EUT is exclueded from SAR evaluation according to FCC KDB publication 447498 D01 General RF Exposure Guidance v05r02.

Produkte Products Prüfbericht - Nr.: Test Report No. 17047873 001 Seite 129 von 133 Page 129 of 133 6. Safety Human exposure 6.1 Radio Frequency Exposure Compliance 6.1.1 Electromagnetic Fields RESULT: Pass Test standard : RSS-102 Issue 5 FCC KDB Publication 447498 v05r02 The maximum radiated power of the transmitter is 5.9mW (7.771dBm/103dBμV/m) only, which less than 7mW. Hence the EUT is exempted from routine evaluation limits (SAR Evaluation) according to clause 2.5.1 of RSS-102 Issue 5. Since maximum radiated power of the transmitter is 5.9mW<19mW, and the distance from EUT to human is 10mm, hence the EUT is exclueded from SAR evaluation according to FCC KDB publication 447498 D01 General RF Exposure Guidance v05r02.

Produkte Products Prüfbericht - Nr.: Test Report No. 17047873 001 Seite 2 von 133 Page 2 of 133 TEST SUMMARY 5.1.1 ANTENNA REQUIREMENT RESULT: Pass 5.1.2 20DB BANDWIDTH AND 99% BANDWIDTH RESULT: Pass 5.1.3 SPURIOUS EMISSION, FIELD STRENGTH OF FUNDAMENTAL & HARMONICS RESULT: Pass 6.1.1 ELECTROMAGNETIC FIELDS RESULT: Pass Produkte Products Prüfbericht - Nr.: Test Report No. 17047873 001 Seite 3 von 133 Page 3 of 133 Contents 1. GENERAL REMARKS ......................................................................................................... 4 1.1 COMPLEMENTARY MATERIALS .......................................................................................... 4 2. TEST SITES ...................................................................................................................... 4 2.1 TEST FACILITIES ............................................................................................................... 4 2.2 LIST OF TEST AND MEASUREMENT INSTRUMENTS ............................................................... 5 2.3 TRACEABILITY .................................................................................................................. 5 2.4 CALIBRATION ................................................................................................................... 5 2.5 MEASUREMENT UNCERTAINTY........................................................................................... 6 2.6 LOCATION OF ORIGINAL DATA ........................................................................................... 6 2.7 STATUS OF FACILITY USED FOR TESTING ........................................................................... 6 3. GENERAL PRODUCT INFORMATION .................................................................................... 7 3.1 PRODUCT FUNCTION AND INTENDED USE ........................................................................... 7 3.2 RATINGS AND SYSTEM DETAILS ........................................................................................ 7 3.3 INDEPENDENT OPERATION MODES .................................................................................... 7 3.4 NOISE GENERATING AND NOISE SUPPRESSING PARTS ....................................................... 7 3.5 SUBMITTED DOCUMENTS .................................................................................................. 8 4. TEST SET-UP AN D OPERATION MODES .............................................................................. 9 4.1 PRINCIPLE OF CONFIGURATION SELECTION ........................................................................ 9 4.2 TEST OPERATION AND TEST SOFTWARE ............................................................................ 9 4.3 SPECIAL ACCESSORIES AND AUXILIARY EQUIPMENT .......................................................... 9 4.4 COUNTERMEASURES TO ACHIEVE EMC COMPLIANCE ......................................................... 9 4.5 TEST SETUP DIAGRAM .................................................................................................... 10 5. TEST RESULTS ............................................................................................................... 11 5.1 TRANSMITTER REQUIREMENT & TEST SUITES .................................................................. 11 5.1.1 Antenna Requirement ................................................................................................................ 11 5.1.2 20dB Bandwidth and 99% Bandwidth ........................................................................................ 12 5.1.3 Spurious Emission, Field strength of fundamental & harmonics ............................................... 13 6. SAFETY HUMAN EXPOSURE ........................................................................................... 129 6.1 RADIO FREQUENCY EXPOSURE COMPLIANCE ................................................................. 129 6.1.1 Electromagnetic Fields ............................................................................................................. 129 7. PHOTOGRAPHS OF THE TEST SET-UP ............................................................................ 130 8. LIST OF TABLES ........................................................................................................... 133 9. LIST OF PHOTOGRAPHS ................................................................................................ 133 Produkte Products Prüfbericht - Nr.: Test Report No. 17047873 001 Seite 4 von 133 Page 4 of 133 1. General Remarks 1.1 Complementary Materials None. 2. Test Sites 2.1 Test Facilities Keyway Testing Technology Co., Ltd. (FCC Registration No.: 370994) (Test site Industry Canada No.: 9868A) Buliding 1, Baishun Industrial Zone, Zhangmutou Town, Dongguan, Guangdong, China The tests at the test site have been conducted under the supervision of a TÜV engineer. Produkte Products Prüfbericht - Nr.: Test Report No. 17047873 001 Seite 5 von 133 Page 5 of 133 2.2 List of Test and Measurement Instruments Table 1: List of Test and Measurement Equipment Kind of Equipment Manufacturer Type S/N Calibrated until EMI Test Receiver Rohde&Schwarz ESCI 101156 Apr. 26,15 Bilog Antenna (30MHz - 1GHz) ETS-LINDGREEN 3142D 135452 Apr. 26,15 Loop antenna (9kHz - 30MHz) teseq HLA6120 22032 Apr. 29,15 3m Semi-anechoic Chamber ETS-LINDGREEN 966 KW01 Apr. 26,15 Signal Amplifier SONOMA 310 187016 Apr. 26,15 Signal Amplifier Agilent 8449B 3008A00251 Apr. 26,15 RF Cable IMRO IMRO-400 966 Cable 1# Apr. 26,15 Antenna Connect Keyway KW032 032 Apr. 26,15 MULTI-DEVICE Controller ETS-LINDGREEN 2090 126913 N/A Horn Antenna (1GHz - 18GHz) DAZE ZN30701 11003 Apr. 26,15 Horn Antenna (18GHz - 26.5GHz) SCHWARZBECK BBHA9170 9170-068 Apr. 26,15 Spectrum Analyzer Agilent 8593E 3911A04271 Apr. 26,15 Spectrum Analyzer Agilent E4408B MY44211125 Apr. 29,15 Signal Amplifier DAZE ZN3380C 11001 Apr. 26,15 2.3 Traceability All measurement equipment calibrations are trace…
