2AEBFS5160Q4GSmart Phone

Dual SIM Cards Smart Phone User Guide Dear Customer, Thank you for choosing S5160Q 4G smart phone. This is a smart phone. In addition to common call functions, it also provides you with a variety of practical functions including Bluetooth, English input, Contacts, ringing or image alert for incoming calls, camera, MP3 player, Video player, memory card (T -Flash card), recorder, calculator, Schedule power on/off, MMS (Multimedia Message Service). Wit h this manual, you can acquire a full understanding of the usage of this phone. Contents 1. Appearance 2. Insertion and Removal of SIM card 3. Insertion and Remove of the Memory Card 4. Installation and Removal of the Battery 5. Battery Charging 6. Dialing 7-9 .Guide to Menu Operations 10 .Safety Precautions. 11. Cleaning and Maintenance. 12. Trouble shooting Appearance 1 Insertion and Removal of SIM card Turn off the phone; remove the battery and unplug other external power sources. Insert the SIM card into the SIM slot. When you need to remove the SIM card, please fi rst turn off the phone, remove the battery, then remove the SIM card. 2 Insertion and Remove of the Memory Card Place the Memory Card into the Memory Card Slot. When you need to insert or remove the memory card, it is suggest that first turn off the phone. When you turn on the phone, insert the memory card can lead to memory card don’t recognize. Warning: when the mobile phone is sending or access messages, please do not remove the memory card. Otherwise it may result in data loss or damage the mobile phone and memory card. 3 Installation,and Removal of the battery If the mobile phone is switched on, please turn off your mobile phone. When removing the battery follow the following steps: ①Push the battery cover and remove. ②Remove the battery from the mobile phone.  When installing the battery follow the following steps: ① Push the battery to inset mobile-phone. ② Cover with the battery cover. Warning: You must turn off your mobile phone before removing the battery.  Do not place the battery in fire; follow local laws and ordinan ces in disposing used battery.  Check the model number of the charger before using it to charge the mobile.  Only use approved battery, charger and accessories applicable to the specific mobile model. Using other typ es of batter y, charger and accessories may violate the certification or warranty terms of the equipment and may result in danger.”  Return waste and used batteries to the supplier or specified recovery site.  Hearing protection, long time in the environment of high volume may damage people's hearing. Setting the minimum volume required of the call and music is suggested to use. 4 Battery Charging  Plug the charger into the electrical outlet.  Plug the charger connector into the charge interface of the phone.  The mobile phone and charger will become warm during charging and this is normal.  When charging is complete, unplug the charge connector from the electrical outlet and the mobile phone. Warning: do not to take off the charger before removing the battery. Otherwise it will damage the mobile phone.  Charging must be perfo rmed in a w ell-ventilated area with a temperature between -10C and +55C.  If the mobile phone automatically shuts down, or indicates that the Battery is low you should immediately charge the battery.  Do not use damaged charger or battery.  Prevent battery from cont acting metal objects, otherwise the pole "+" and "-" of the battery may be connected and cause temporary or permanent damage to the battery. 5 Dialing 5.1 Making Domestic Calls Use the number keys to input number, then press the dial key to dial the call via SIM card 1/2. You can input domestic calls in this order: Area code phone number dial key 5.2 Making International calls For making international calls you should long press the 0 key, until the international phone prefix “+” appears on the screen. This will allow you to make an international call in any country regardless of what the international call prefix is. You can input international calls in this order: + Country code area code telephone number dial key After entering the prefix, enter the country code and full number you wish to call. 5.3 Emergency Calls If you are lo cated within a network area (you can find this out by referr ing to the network strength indicator located on the upper left-hand corner of your mobile phone screen), even if you do n ot have a SIM card, you will be able to transmit emergency calls. 5.4 Key board values Power key: hold down for power of f or power on, press fo r close or switch on background light. Volume keys (up/down key): adjust sound volume in stand by interface. Home key: in function interface, shof t press the key to retur n to st andby interface; long press the key to display Recent. Menu key: in st andby i nterface, pr ess the key can displa y the men u of Add, Wallpapers, Search, Notifications, Settings, Animation: And in dif ferent function interface, press the key can display dif ferent menus. Back key: in function interface, press the key to return to the menu. 7-8 Guide to Menu Operations All function options about the mobile phone are listed as below with brief descriptions. 7.1 Application software The mobile phone provides you with a lot of application software, While at the same time, customer can installed unlimited application software. Note: need to insert the memory card, and keep the memory card has enough space. 7.2 Phone Be used to dial the number. 7.3 Contacts It displays the contacts. Long press one contact, it displays the options in follows: View contact, Edit contact, Delete contact, Add to speed dial, Share contact 7.4 Messages You can compose new message. Press the Menu key, you can choose Compose, Search, Settings to set. In the menu of Settings, you can set it as follows: Delete old messages, Text message limit, Multimedia message limit, Delivery reports, Manage SIM card messages, Edit quick te xt, SMS Ser vice …

Text truncated - open the document above for the full version.

Date : 28/05/2015 Page : 1/1 1, rue Galilée 56270 Ploemeur - France. Std. +33 (0)2 97 89 89 00 Fax. +33 (0)2 97 89 89 01 S.A.S. au capital de EUR 150 000 RCS LORIENT B 527 848 782 SIRET : 52784878200019 - APE : 4651Z - TVA : FR 1852784878 elco : 1, rue Galilée, 56270 Ploemeur - France. Tél. +33 (0)2 97 89 89 00 - Fax. +33 (0)2 97 89 89 01 Ploemeur, le 28 mai 2015 Objet : Attestation Letter Dear Sir or Madam: We, elco, hereby declare that our product: Smart Phone, FCC ID: 2AEBFS5160Q4G was tested by BACL. The main RF chip of this product is WTR1605L, which can support 2G (Four Bands), 3G (WCDMA850/1900/1700) and 4G (FDD LTE Band 3/4/7). Due to marketing purpose, we have already shielded some functions, and this device now only be tested by 2G (850/1900), 3G (WCDMA850/WCDMA1900) and 4G (FDD LTE Band 4/7). Please contact me if there should be needed for any additional clarification or information. Sincerely, Bachir EL KHODARY Président FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046

Elco 1 Rue Galilée 56270 Ploemeur France Tel: 0033-297898900 FCC Authorization 3/27/2015 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We, elco, the undersigned, hereby authorize Bay Area Compliance Laboratories Corporation to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratory Corporation on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signature: Bachir EL KHODARY President

Elco 1 Rue Galilée 56270 Ploemeur France Tel: 0033-297898900 QA-FR -170-B FCC Confidential Authorization 3/27/2015 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Confidentiality Request regarding application for certification of FCC ID: 2AEBFS5160Q4G Pursua nt to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below:  Block Diagram--- (Long term)  Circuit Description--- (Long term)  Detailed Circu it Schematics of EUT--- (Long term) Tune up Procedure/Parts List--- (Long term) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the grant for this application. Sincerely Yours, Signature: Bachir EL KHODARY President

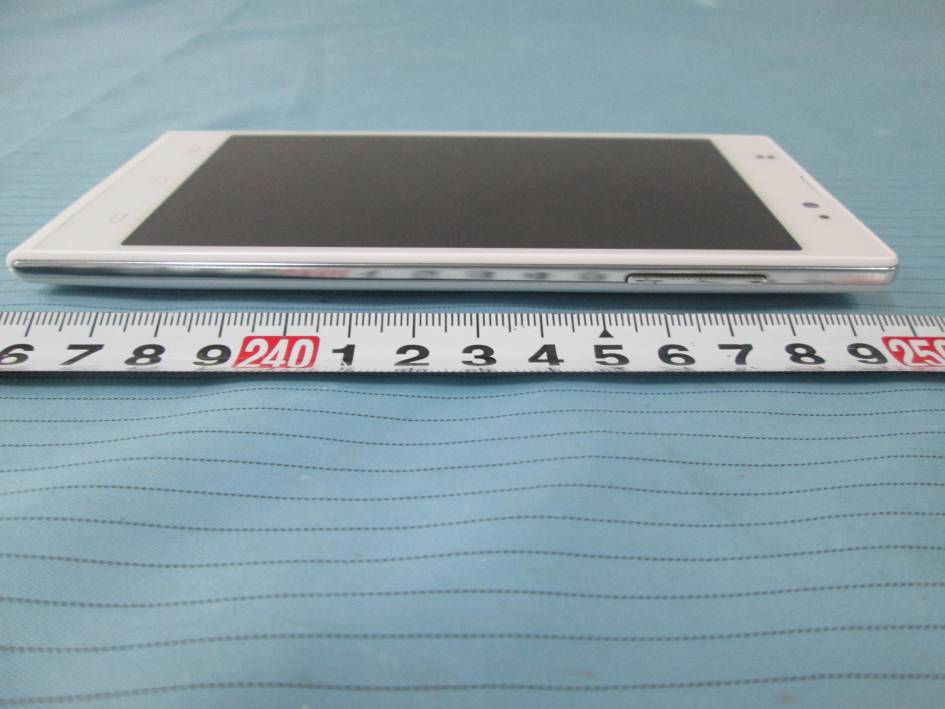

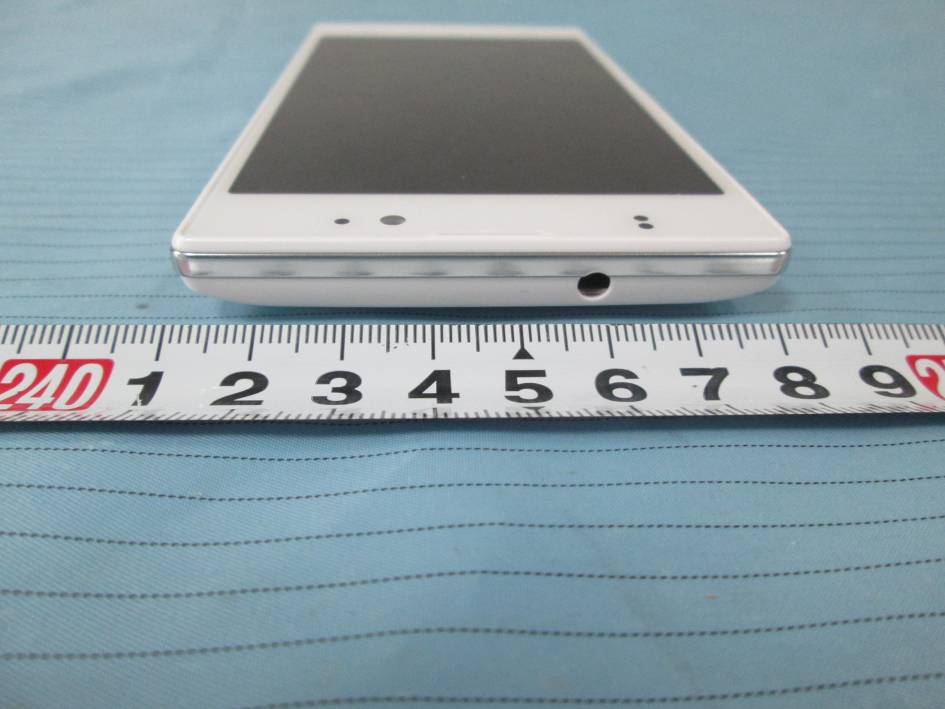

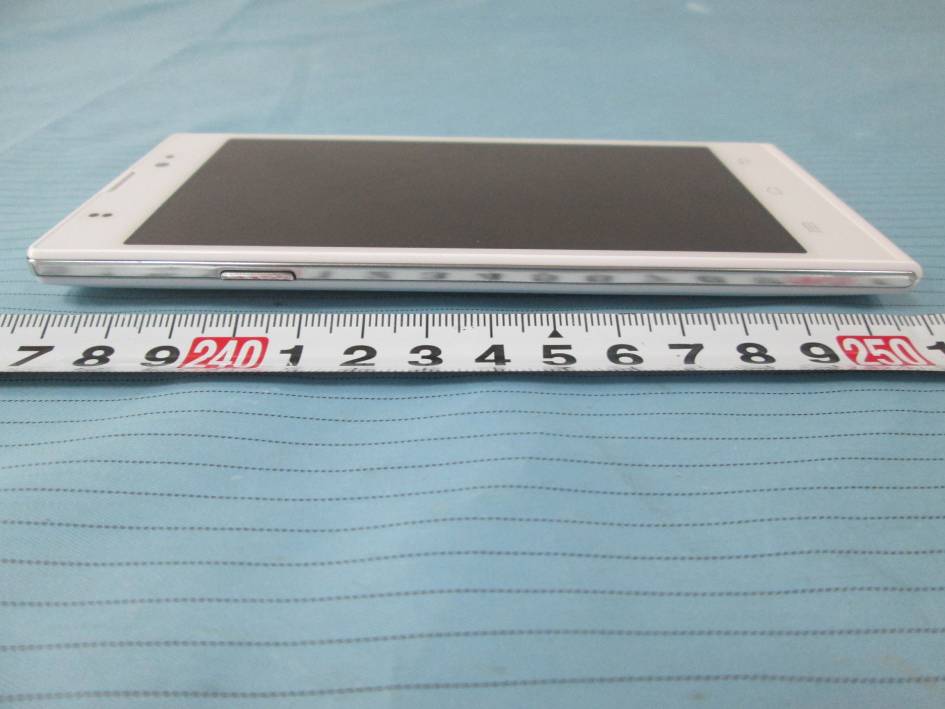

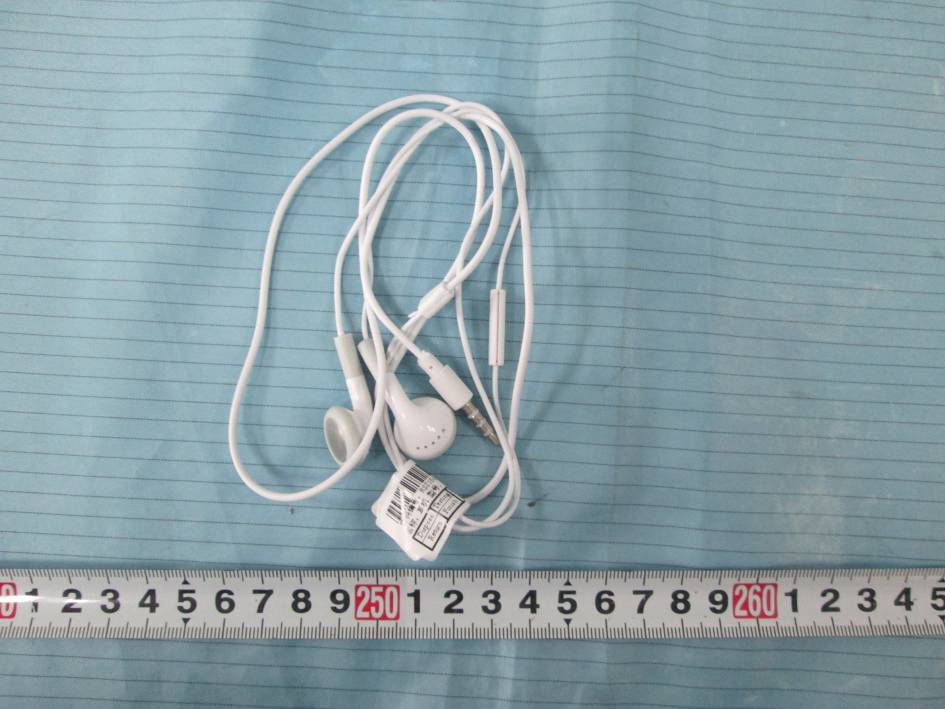

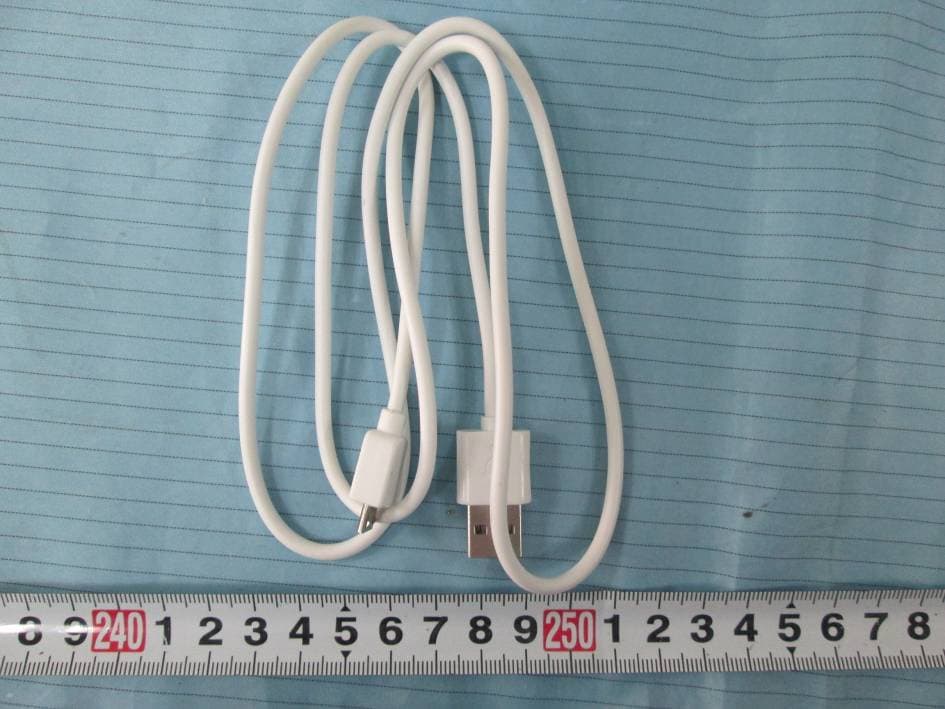

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT – Front View EUT – Rear View EUT – Top View EUT – Bottom View EUT – Left Side View EUT – Right Side View EUT – USB Cable View EUT – Earphone View EUT – Adapter View EUT – Adapter Label View

EXHIBIT A - FCC ID LABEL AND LOCATION FCC ID Label FCC ID Label Location Information The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT –Cover off View 1 EUT –Cover off View 2 EUT –Cover off View 3 EUT – Antenna View GPS/BT/ WIFI Antenna Main Antenna Antenna EUT – Main Board 1Top View EUT – Main Board 1 Top Shielding off View EUT – Main Board 1 Bottom View EUT – Main Board 1 Bottom Shielding off View EUT – Main Board 2 Top View EUT – Main Board 2 Bottom View EUT –Battery Front View EUT –Battery Rear View

Note: This test report is prepared for the customer shown above and for the equipment described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. SAR EVALUATION REPORT For elco 1 Rue Galilée 56270 Ploemeur France FCC ID: 2AEBFS5160Q4G Report Type: Original Report Product Type: Smart Phone Test Engineer: Wilson Chen Report Number: RSZ150304004-20 Report Date: 2015-03-17 Reviewed By: Bell Hu SAR En gineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No: RSZ150304004-20 SAR Evaluation Report 2 of 136 Attestation of Test Results EUT Information Company Name elco EUT Description Smart Phone FCC ID 2AEBFS5160Q4G Model Number S5160Q 4G Test Date 2015-03-09 Frequency Max. SAR Level(s) Reported Limit(W/Kg) GSM 850 0.501 W/kg 1g Head SAR 0.831 W/kg 1g Body SAR 1. 6 PCS 1900 0.330 W/kg 1g Head SAR 0.959 W/kg 1g Body SAR WCDMA850 0.126 W/kg 1g Head SAR 0.249 W/kg 1g Body SAR WCDMA1900 0.218 W/kg 1g Head SAR 0.630 W/kg 1g Body SAR LTE Band 4 0.241 W/kg 1g Head SAR 0.605 W/kg 1g Body SAR LTE Band 7 0.334 W/kg 1g Head SAR 0.566 W/kg 1g Body SAR Simultaneous 0.883 W/kg 1g Head SAR 1.150 W/kg 1g Body SAR Applicable Standards ANSI / IEEE C95.1 : 2005 IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fileds,3 kHz to 300 GHz. ANSI / IEEE C95.3 : 2002 IEEE Recommended Practice for Measurements and Computations of Radio Frequency Electromagnetic Fields With Respect to Human Exposure to SuchFields,100 kHz—300 GHz. IEEE1528:2013 IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques KDB procedures KDB 447498 D01 General RF Exposure Guidance v05r02. KDB 648474 D04 Handset SAR v01r02. KDB 865664 D01 SAR measurement 100 MHz to 6 GHz v01r03 KDB 865664 D02 RF Exposure Reporting v01r01 KDB 941225 D01 3G SAR Procedures v03 KDB 941225 D05 SAR for LTE Devices v02r03 KDB 941225 D06 Hotspot Mode v02 Note: This wireless device has been shown to be capable of compliance for localized specific absorption rate (SAR) for General Population/Uncontrolled Exposure limits specified in ANSI/IEEE Standards and has been tested in accordance with the measurement procedures specified in IEEE 1528-2013 and RF exposure KDB procedures. The results and statements contained in this report pertain only to the device(s) evaluated. Bay Area Compliance Laboratories Corp. (Shenzhen) Report No: RSZ150304004-20 SAR Evaluation Report 3 of 136 TABLE OF CONTENTS DOCUMENT REVISION HISTORY ......................................................................................................................... 5 EUT DESCRIPTION .................................................................................................................................................... 6 TECHNICAL SPECIFICATION ......................................................................................................................................... 6 REFERENCE, STANDARDS, AND GUILDELINES ............................................................................................... 7 SAR LIMITS ................................................................................................................................................................. 8 FACILITIES .................................................................................................................................................................. 9 DESCRIPTION OF TEST SYSTEM ........................................................................................................................ 10 EQUIPMENT LIST AND CALIBRATION ............................................................................................................. 17 EQUIPMENTS LIST & CALIBRATION INFORMATION .................................................................................................... 17 SAR MEASUREMENT SYSTEM VERIFICATION .............................................................................................. 18 LIQUID VERIFICATION ............................................................................................................................................... 18 SYSTEM ACCURACY VERIFICATION ........................................................................................................................... 24 SAR SYSTEM VALIDATION DATA ..................................................................................................................... 25 EUT TEST STRATEGY AND METHODOLOGY ................................................................................................. 41 TEST POSITIONS FOR DEVICE OPERATING NEXT TO A PERSON’S EAR........................................................................ 41 CHEEK/TOUCH POSITION ........................................................................................................................................... 42 EAR/TILT POSITION ................................................................................................................................................... 42 TEST POSITIONS FOR BODY-WORN AND OTHER CONFIGURATIONS .............................................................................. 43 SAR EVALUATION PROCEDURE ................................................................................................................................. 44 TEST METHODOLOGY ................................................................................................................................................. 44 CONDUCTED OUTPUT POWER MEASUREMENT ......................................................…

Text truncated - open the document above for the full version.

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. FCC PART 22H, PART 24E TEST REPORT For elco 1 Rue Galilée 56270 Ploemeur France FCC ID: 2AEBFS5160Q4G Report Type: Original Report Product Type: Smart Phone Test Engineer: Mike Hu Re port Number: RSZ150304004-00D Re port Date: 2015-03-19 Reviewed B y: Jimmy Xiao RF En gineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ150304004-00D FCC Part 22H/24E Page 2 of 51 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 4 TEST METHODOLOGY .................................................................................................................................................. 4 TEST FACILITY ............................................................................................................................................................. 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 6 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 6 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 6 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 6 SUMMARY OF TEST RESULTS ............................................................................................................................... 7 FCC §1.1307 & §2.1093 - RF EXPOSURE .................................................................................................................. 8 APPLICABLE STANDARD .............................................................................................................................................. 8 TEST RESULT ............................................................................................................................................................... 8 FCC §2.1047 - MODULATION CHARACTERISTIC .............................................................................................. 9 FCC § 2.1046, § 22.913 (A) & § 24.232 (C) - RF OUTPUT POWER ...................................................................... 10 APPLICABLE STANDARD ............................................................................................................................................ 10 TEST PROCEDURE ...................................................................................................................................................... 10 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 10 TEST DATA ................................................................................................................................................................ 11 FCC §2.1049, §22.917, §22.905 & §24.238 - BANDWIDTH .................................................................................... 18 APPLICABLE STANDARD ............................................................................................................................................ 18 TEST PROCEDURE ...................................................................................................................................................... 18 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 18 TEST DATA ................................................................................................................................................................ 18 FCC §2.1051, §22.917(A) & §24.238(A) - SPURIOUS EMISSIONS AT ANTENNA TERMINALS .................. 26 APPLICABLE STANDARD ............................................................................................................................................ 26 TEST PROCEDURE ...................................................................................................................................................... 26 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 26 TEST DATA ................................................................................................................................................................ 26 FCC §2.1053, §22.917 & §24.238 - SPURIOUS RADIATED EMISSIONS ........................................................... 31 APPLICABLE STANDARD .................................................................................................…

Text truncated - open the document above for the full version.

Note: This test report is prepared for the customer shown above and for the equipment described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. FCC PART 27 MEASUREMENT AND TEST REPORT For elco 1 Rue Galilée 56270 Ploemeur France FCC ID:2AEBFS5160Q4G Report Type: Original Report Product Type: Smart Phone Test Engineer: Mike Hu Report Number: RSZ150304004-00E Report Date: 2015-03-25 Reviewed By: Jimmy Xiao RF En gineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ150304004-00E FCC Part 27 Page 2 of 143 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 4 TEST METHODOLOGY .................................................................................................................................................. 4 TEST FACILITY ............................................................................................................................................................. 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 JUSTIFICATION ............................................................................................................................................................. 6 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 6 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 6 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 6 SUMMARY OF TEST RESULTS ............................................................................................................................... 7 FCC §1.1307(B) & §27.52 & §2.1093 - RF EXPOSURE INFORMATION.............................................................. 8 APPLICABLE STANDARD .............................................................................................................................................. 8 TEST RESULT ............................................................................................................................................................... 8 FCC §2.1047 - MODULATION CHARACTERISTIC .............................................................................................. 9 FCC § 2.1046 & § 27.50 - RF OUTPUT POWER ..................................................................................................... 10 APPLICABLE STANDARDS........................................................................................................................................... 10 TEST PROCEDURE ...................................................................................................................................................... 10 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 10 TEST DATA ................................................................................................................................................................ 10 FCC §2.1049 & §27.53 - OCCUPIED BANDWIDTH .............................................................................................. 24 APPLICABLE STANDARDS........................................................................................................................................... 24 TEST PROCEDURE ...................................................................................................................................................... 24 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 24 TEST DATA ................................................................................................................................................................ 24 FCC §2.1051 & §27.53- SPURIOUS EMISSIONS AT ANTENNA TERMINALS ............................................... 87 APPLICABLE STANDARDS........................................................................................................................................... 87 TEST PROCEDURE ...................................................................................................................................................... 87 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 87 TEST DATA ................................................................................................................................................................ 87 FCC §2.1053 & §27.53 - SPURIOUS RADIATED EMISSIONS ............................................................................ 98 APPLICABLE STANDARDS...............................................................................…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Radiated Emissions Test View (Below 1 GHz) Radiated Emissions Test View (Above 1 GHz)
