2AEBK-WPU2015RWireless temperature and humidity probe

YourEnvironmentisOurFocus ZOGLAB ZOGLAB Microsystem Co.,Ltd 1 WPU WPUWPU WPUUser UserUser User’ ’’ ’s ss sManual ManualManual Manual Ver：1.1 Date：2015.01.21 YourEnvironmentisOurFocus ZOGLAB ZOGLAB Microsystem Co.,Ltd 2 1PRODUCT OVERVIEW 1.1 General Description WPU is a device with high precision sensor. It measures field temperature and humidity, and also transfers data to Data Centre for processing and display. Data Centre is able to manage several WPUs, display real-time data, and create graphs to show temperature and humidityfluctuation. 1.2 Device Features ◆High precision sensor ◆Universal 2.4G Hz Wi-Fi communication technology ◆Charge acceptance and long battery life ◆Highlight OLED ◆Breath-lamp-like LED ◆Streamlined and dainty design YourEnvironmentisOurFocus ZOGLAB ZOGLAB Microsystem Co.,Ltd 3 1.3 Device Parameters Operating Temperature:-20°C~+60°C（Discharge） 0~+40°C（Charge） Operating Humidity：0~95%RH（Non-condensing） Charging Voltage：4.8~5.5VDC Charging Current：<1.25A @ 5VDC Charging Time(Std.)：~4.0 hours Operating Current：Average：~20mA，Peak：~200mA Charging & Communication Interface： miniUSB，9600bps 8 N 1 Battery：3.6V Lithium Ion Battery，Nominal Capacity(Minimum)：2500mAh Operating Time(Typical)：>48 hours(with a sample rate of 2s) Standby Time(Typical)：3 months Wireless Standard：802.11 b/g/n Frequency Range：2.412GHz~2.484GHz Transmit Power：802.11b：﹢16±2dBm（@11Mbps） 802.11g：﹢14±2dBm（@54Mbps） 802.11n：﹢13±2dBm（@HT20,MCS7） Receiver Sensitivity：802.11b：-93dBm（@11Mbps,CCK） 802.11g：-85dBm（@54Mbps,OFDM） 802.11n：-82dBm（@HT20,MCS7） Probe Type：HC2-HS Probe Quantity：10/Sets T Measuring Range：-50~100°C T Accuracy：±0.3°C H Measuring Range：0~100%RH H Accuracy：±0.5%RH Logging Interval：2 seconds~24 hours Memory Size：250,000/1,000,000 Start Mode：Software Start/Remote Start Software：EVS/Customized Networking Features：Unlimited expansion via AP Test Report: Available Software:Self-defined inspection rules based on JQ211 standards. Refresh interval can be user-defined. Original data can be saved, edited or modified. Support data transmission supplement. Wireless Adaptor:High performance AP Install Accessory:Available Portable Transfer Case:Available Industrial Tablet PC:Available YourEnvironmentisOurFocus ZOGLAB ZOGLAB Microsystem Co.,Ltd 4 1.4 Safety Precautions This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: This product has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designedto provide reasonable protection against harmful interference in a residential installation. This product generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference toradio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician forhelp. This equipment should be installed and operated with a minimum distance 20cm between the radiator and your body. YourEnvironmentisOurFocus ZOGLAB ZOGLAB Microsystem Co.,Ltd 5 1.5 Block Diagram Power Part Circuit: The Module powered by single 3.3V source and most components which include MC101/Flash use single 3.3V supply. The main chipset MT5931SA has internal switching circuit as following to generate 1.6V supply, which as input to MT5931SA internal LDO. The MT5931SA LDO output 1.2V provides the YourEnvironmentisOurFocus ZOGLAB ZOGLAB Microsystem Co.,Ltd 6 supply for MT5931SA digital and RF core circuit. RF Part Circuit: The Wi-Fi module support 802.11b/g/n single band 2412-2472MHz and RF part circuit as follows The module provides outside I-PEX connector for external antenna interface. The RF parameters as following table, YourEnvironmentisOurFocus ZOGLAB ZOGLAB Microsystem Co.,Ltd 7 Memory Part Circuit: The Wi-Fi module provides 2MB QSPI flash program memory, which support FreeRTOS OS and Wi-Fi driver loaded from QSPI flash to MCU SRAM after system bootup. The memory part circuit as follows: ClockPartCircuit: The Wi-Fi Module use single 26MHz crystal as system clock, which also provide RF and Digital part clock. The crystal parameter requirement as follows: Frequency: 26MHz Frequency Offset: +/-7ppm VIH/VIL: VCC-0.3V/0.3V Duty Cycle: 45%~55% YourEnvironmentisOurFocus ZOGLAB ZOGLAB Microsystem Co.,Ltd 8 OPERATION GUIDELINE Turn On/Off When WPU is off, press and hold “*” key for 3 seconds to turn it on. In this status, WPU shows temperature value, humidity value, and battery capacity. When WPU is on, press and hold “*” key for 3 seconds to turn it off.In this status, WPU will not display or will display the charging icon only if it’s connecting to charger or PC. Display switch In working mode, press “*” key to switch display the below itemsin cycle: 1.Temperatureandhumidityvalue,batterypower 2.ThepresetinfoofIP,subnetmaskandgateway 3.SSIDoftheaccesspoint,passwordandsignalstrength 4.TheIPandportofserver Caution: Charging icon automatically display when WPU is connected to USB interface. Charge WPU will be charged through its USB interface connecting to anycha…

Text truncated - open the document above for the full version.

We (ZOGLAB MICROSYSTEM CO., LTD. ) hereby declare the device cannot use channel 12 and channel 13 for Wi-Fi mode and end user cannot to configure it with any means Thanks,

ZOGLAB MICROSYSTEM CO., LTD. Authority to Act as Agent Date: 2015-1-28 American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: _Eddy Zong from SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd _______ is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: _____(Typically 8 – 12 months)_____ By: _____ James Zog (Signature 1 ) (Print name) Title: __CEO On behalf of: _ZOGLAB MICROSYSTEM CO., LTD (Company Name) 1 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

ZOGLAB MICROSYSTEM CO., LTD. Request for Confidentiality Date: 2015-1-28 _ Subject: Confidentiality Request for: _FCC ID: 2AEBK-WPU2015R ________ Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* 1 Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* User’s Manual *Note: ______(Insert Explanation as Necessary)______ ZOGLAB MICROSYSTEM CO., LTD._____ has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ___(specify number of days not to exceed 180 ) 2 ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: The applicant understands that until such time that IC distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. Sincerely, By: _ ______ James Zog ______________ (Signature/Title 3 ) (Print name) 1 - The asterisked items (*) require further justification before permanent confidentiality will be allowed. These also currently require review by the FCC under their Permit-But-Ask policy before the grant is issued and can delay completion of an application. Further justification should be added to the note above. One such example for a potted device would be: “The EUT is FULLY potted using a non-removable epoxy based material. Removal of potting material causes irreparable damage to internal circuitry. See photographs exhibits that outline the device before and after potting.” 2 - Please refer to http://acbcert.com/documents/misc-docs/Memo-Short-Term-Vs-Standard-Confidentiality.pdf for complete details. 3 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

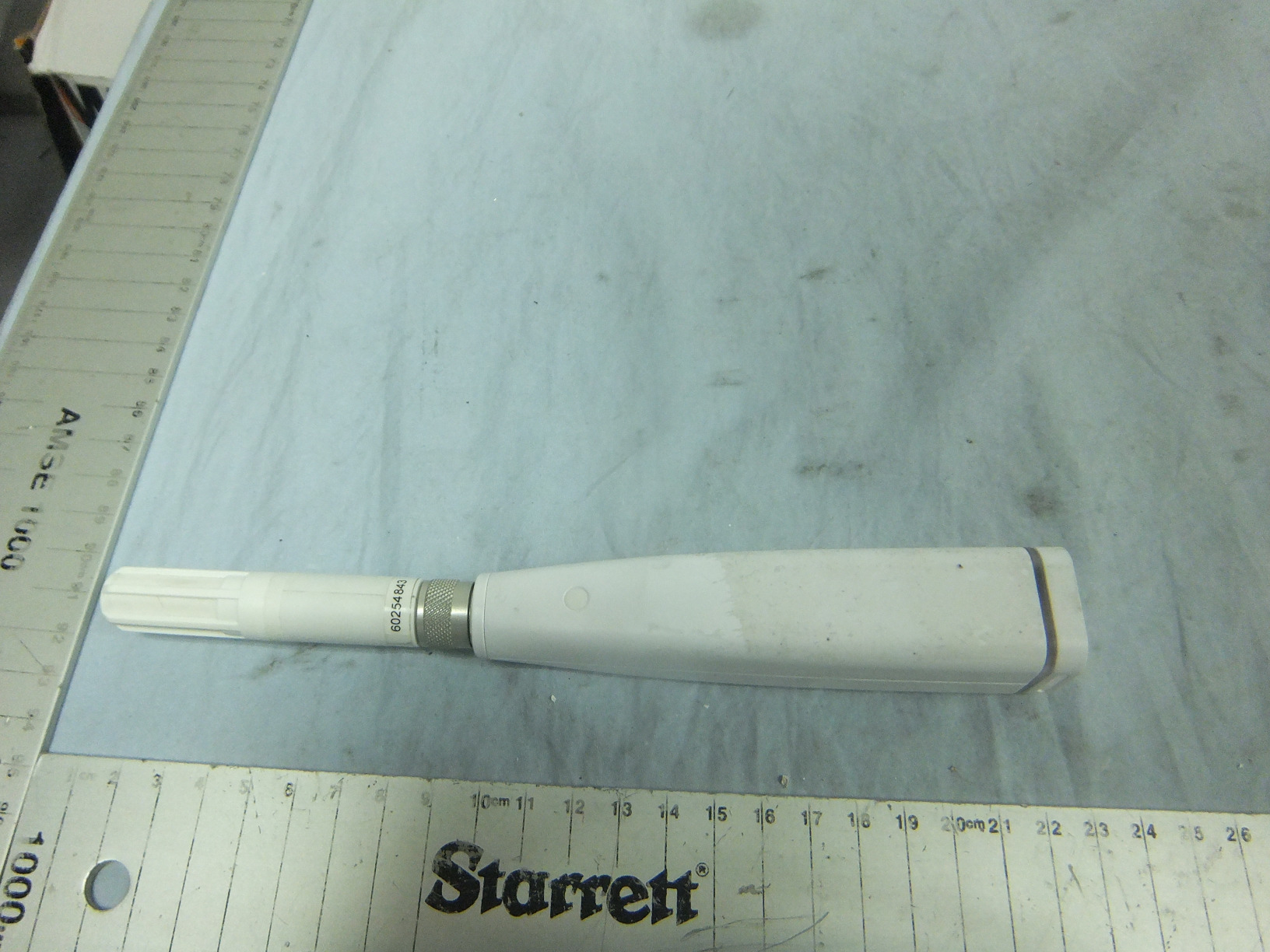

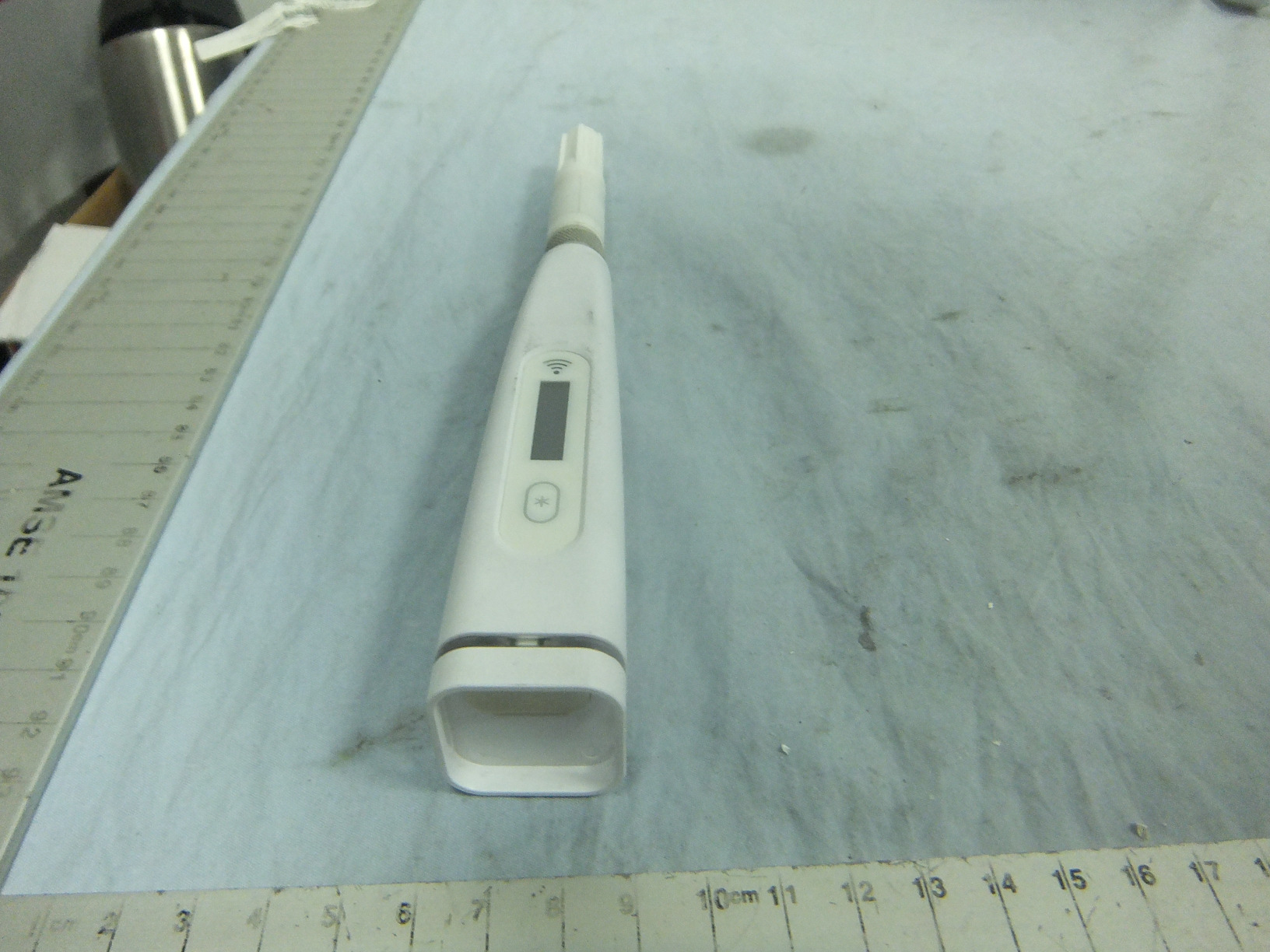

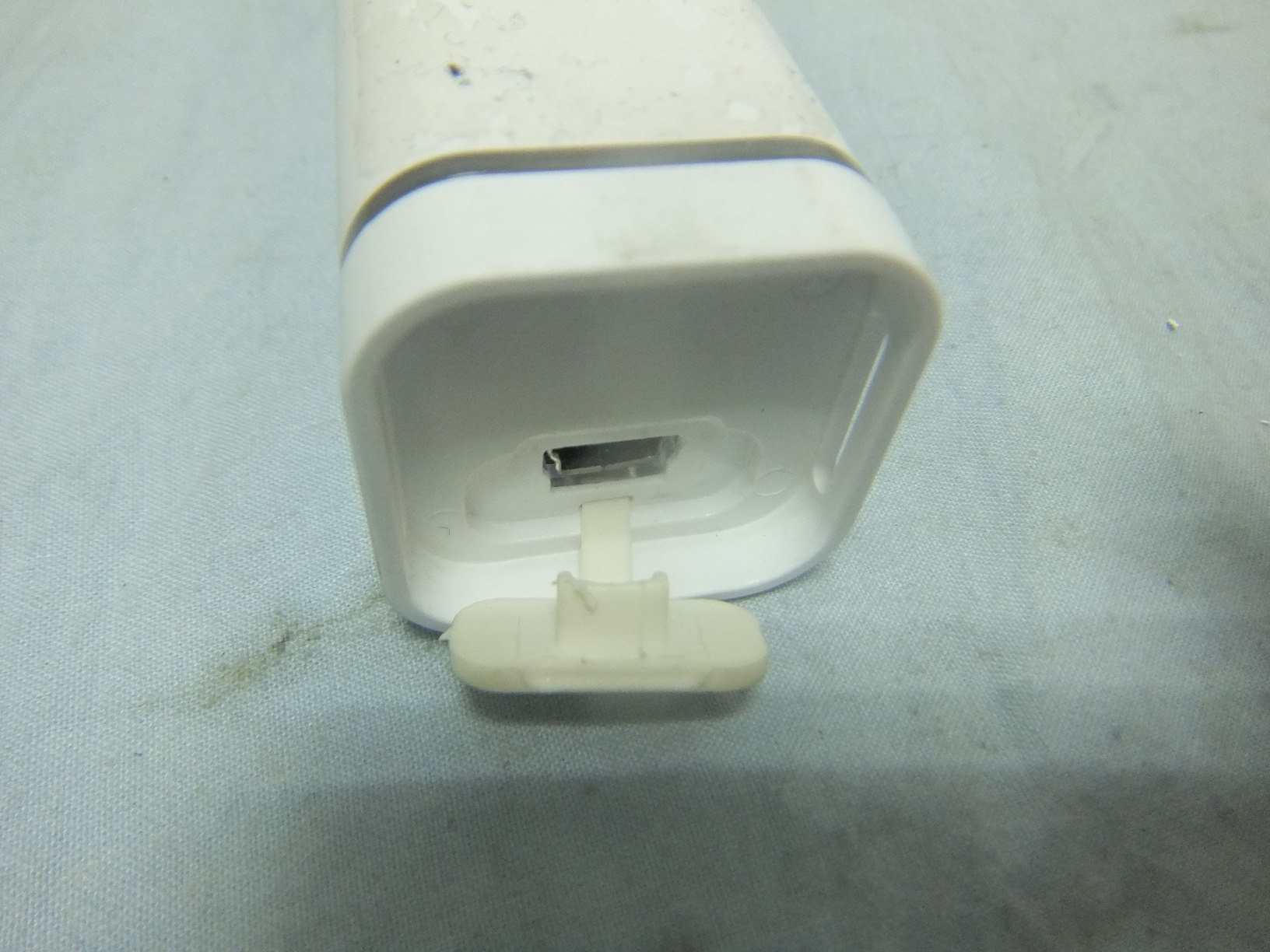

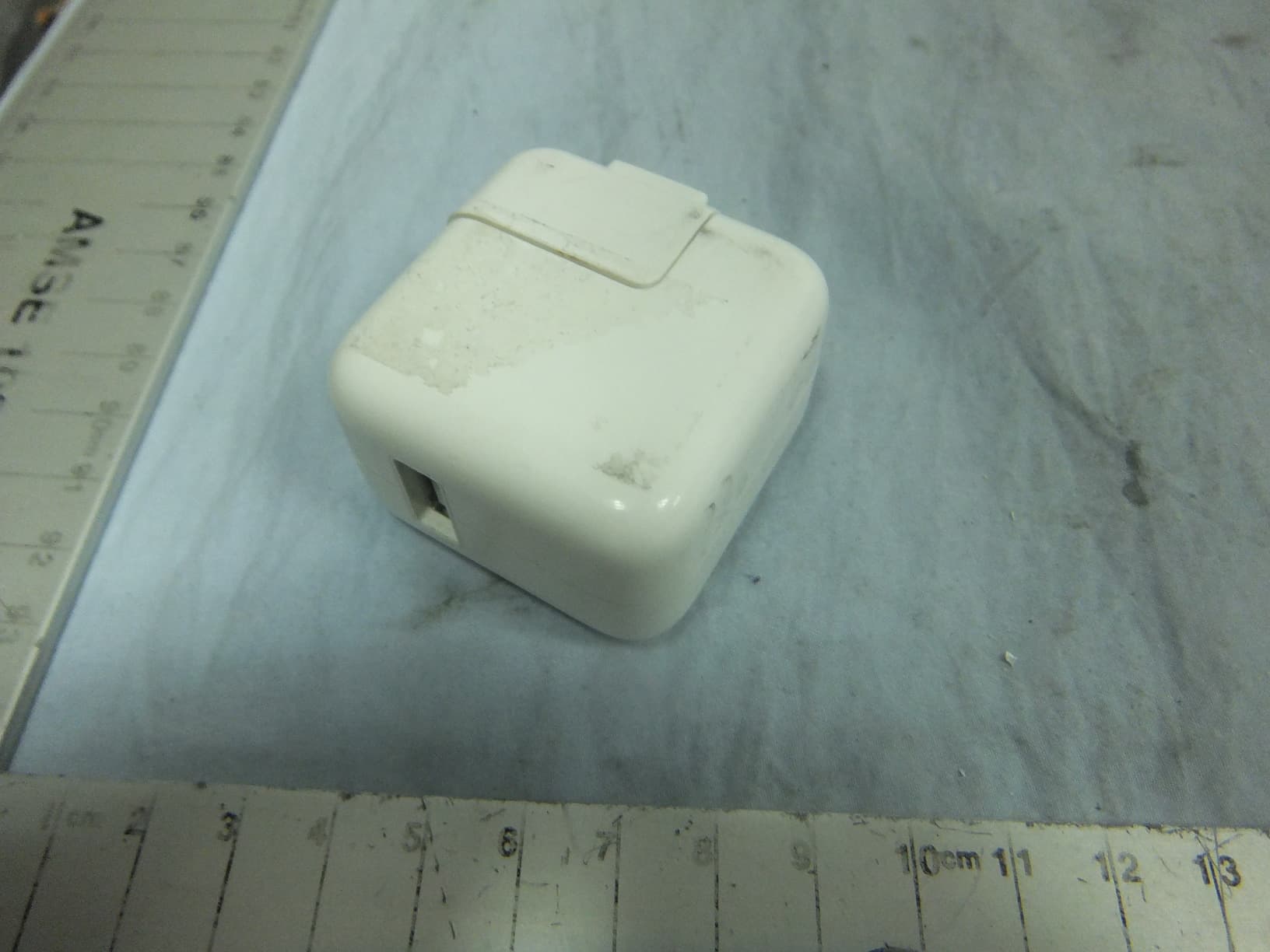

SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 1 of 6 Page 1 of 6 WPU _External Photos-FCC Application No.: SHEM1412003276RF Applicant: ZOGLAB MICROSYSTEM CO., LTD. Address of Applicant: F1-2, SOUTH BLK, BUILDING A, NO61 BAIJIAYUAN RD, WEST LAKE DISTRICT, HANGZHOU CHINA. Equipment Under Test (EUT): Product Name: wireless temperature and humidity probe Model No.: WPU FCC ID: 2AEBK-WPU2015R SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 2 of 6 Page 2 of 6 1 Contents Page 1 CONTENTS.......................................................................................................... 2 2 EXTERNAL PHOTOS ........................................................................................ 3 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 3 of 6 Page 3 of 6 2 External Photos SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 4 of 6 Page 4 of 6 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 5 of 6 Page 5 of 6 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 6 of 6 Page 6 of 6 End

SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 1 of 9 Page 1 of 9 WPU _Internal Photos-FCC Application No.: SHEM1412003276RF Applicant: ZOGLAB MICROSYSTEM CO., LTD. Address of Applicant: F1-2, SOUTH BLK, BUILDING A, NO61 BAIJIAYUAN RD, WEST LAKE DISTRICT, HANGZHOU CHINA. Equipment Under Test (EUT): Product Name: wireless temperature and humidity probe Model No.: WPU FCC ID: 2AEBK-WPU2015R SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 2 of 9 Page 2 of 9 1 Contents Page 1 CONTENTS.......................................................................................................... 2 2 INTERNAL PHOTOS ......................................................................................... 3 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 3 of 9 Page 3 of 9 2 Internal Photos SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 4 of 9 Page 4 of 9 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 5 of 9 Page 5 of 9 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 6 of 9 Page 6 of 9 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 7 of 9 Page 7 of 9 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 8 of 9 Page 8 of 9 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 9 of 9 Page 9 of 9 E EE En nn nd dd d

SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. 588 West Jindu Road,Songjiang District,Shanghai,China Telephone: +86 (0) 21 6191 5666 Fax: +86 (0) 21 6191 5678 [email protected] Report No.: SHEM141200327603 Page: 1 of 8 Tony Wu E&E Section Manager SGS-CSTC (Shanghai) Co., Ltd. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only 1 Cover Page FCC MPE REPORT Application No.: SHEM1412003276RF Applicant: ZOGLAB MICROSYSTEM CO., LTD. FCC ID: 2AEBK-WPU2015R Equipment Under Test (EUT): NOTE: The following sample(s) submitted was/were identified on behalf of the client as Product Name: wireless temperature and humidity probe Model No.(EUT): WPU Standards: FCC Rules 47 CFR §2.1091 KDB447498 D01 General RF Exposure Guidance Date of Receipt: November 18, 2014 Date of Test: January 07, 2015 to January 13, 2015 Date of Issue: February 04, 2015 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHEM141200327603 Page: 2 of 8 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e- document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to thesample(s) tested and such sample(s) are retained for 90 days only 2 Version Revision Record Version Chapter Date Modifier Remark 00 / February 04, 2015 / Original Authorized for issue by: Engineer Eddy Zong Print Name Clerk Susie Liu Print Name Reviewer Keny Xu Print Name SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHEM141200327603 Page: 3 of 8 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e- document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to thesample(s) tested and such sample(s) are retained for 90 days only 3 Contents Page 1 COVER PAGE ............................................................................................................................ 1 2 VERSION ..................................................................................................................................... 2 3 CONTENTS .................................................................................................................…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. 588 West Jindu Road,Songjiang District,Shanghai,China Telephone: +86 (0) 21 6191 5666 Fax: +86 (0) 21 6191 5678 [email protected] Report No.: SHEM141200327602 Page: 1 of 75 Tony Wu E&E Section Manager SGS-CSTC (Shanghai) Co., Ltd. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only 1 Cover Page RF TEST REPORT Application No.: SHEM1412003276RF Applicant: ZOGLAB MICROSYSTEM CO., LTD. FCC ID: 2AEBK-WPU2015R Equipment Under Test (EUT): NOTE: The following sample(s) submitted was/were identified on behalf of the client as Product Name: wireless temperature and humidity probe Model No.(EUT): WPU Standards: FCC PART 15 Subpart C: 2014 Date of Receipt: November 18, 2014 Date of Test: January 07, 2015 to January 13, 2015 Date of Issue: February 04, 2015 Test Result: Pass* *In the configuration tested, the EUT detailed in this report complied with the standards specified above. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHEM141200327602 Page: 2 of 75 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e- document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to thesample(s) tested and such sample(s) are retained for 90 days only 2 Version Revision Record Version Chapter Date Modifier Remark 00 / February 04, 2015 / Original Authorized for issue by: Engineer Eddy Zong Print Name Clerk Susie Liu Print Name Reviewer Keny Xu Print Name This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e- document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to thesample(s) tested and such sample(s) are retained for 90 days only SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHEM141200327602 Page: 3 of 75 3 Test Summary Test Item FCC Requirement Test method Result Antenna Requirement FCC Part 15, Subpart C Section 15.203/15.247 (c) --- PASS AC Power Line Conducted Emission FCC Part 15, Subpart C Section 15.207 ANSI C63.10 (2013) Section 6.2 PASS Minimum 6dB Bandwidth FCC Part 15, Subpart C Section 15.247 (a)(2) ANSI C63.10 (2013) Section 11.8.1 PASS Conducted Peak Output Power FCC Part 15, Subpart C Section 15.247 (b)(3) ANSI C63.10 (201…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 1 of 4 Page 1 of 4 WPU _Test Setup Photos-FCC Application No.: SHEM1412003276RF Applicant: ZOGLAB MICROSYSTEM CO., LTD. Address of Applicant: F1-2, SOUTH BLK, BUILDING A, NO61 BAIJIAYUAN RD, WEST LAKE DISTRICT, HANGZHOU CHINA. Equipment Under Test (EUT): Product Name: wireless temperature and humidity probe Model No.: WPU FCC ID: 2AEBK-WPU2015R SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 2 of 4 Page 2 of 4 1 Contents Page 1 CONTENTS............................................................................................................... 2 2 EQUIPMENT UNDER TEST PICTURES ............................................................ 3 2.1 Radiated Emission Test Setup .......................................................................... 3 2.2 Conducted Emission Test Setup ....................................................................... 4 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 3 of 4 Page 3 of 4 2 EQUIPMENT UNDER TEST PICTURES 2.1 Radiated Emission Test Setup 30MHz to 1GHz Above 1GHz SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 4 of 4 Page 4 of 4 2.2 Conducted Emission Test Setup End
