2AEBY-DG011Wireless Controller for SWitch

DG011 Manual Switch Bluetooth Gamepad Product Features: 1. Material:New ABS material 2. Buttons:Home Button/Capture Button/-Button/+Button/A Button/B Button/X Button/Y Button//ZL Button/L Button / ZR Button/ R Button/D-pad control / L3 Button /R3 Button 3. Connect Method:Connect Via Bluetooth 4. Vibration:With double motors inside, support vibration on switch console. 5. Sensor: With six axis inside to make games feel in reality How to Connect: Press “Y”+”Home” Buttons simultaneously 1s to step into Bluetooth searching mode. The four LEDS flashing and will be keep light when it connected. PS: Reconnect Mode:Press Home button for 1s to wake up the controller to reconnect. If can`t reconnect in 10s will keep sleep mode. Console paring interface 1.How to set into the console pairing interface: A B C 2.3D joystick adjustment: A. Press Home button to Main interface and then choose the system settings B. Press A button step into the below interface and choose calibrate control sticks C. Press A step into below interface （ from right joystick to Left joystick) D. Then press 3D (L3/R3) step into below interface E. And then press X button step in to calibrate interface,and do actions based on the remind Android Mode: Press A and HOME button, LED2 and LED3 flashes. When LED2 and LED3 keep lighting, the gamepad connected. PC Mode: Connect gamepad into PC via charging cable. The gamepad will default into Xinput, LED1 and LED4 keep lighting. Keep pressing “+” and “-” for 3s to switch modes between Xinput and Dinput. When it is Dinput, LED2 and LED3 keeps lighting. Turbo/Clear Function: 1. Turn on Turbo function Pressing (first time) button+ABXYL1L2R1R2 to set TURBO function 2. Turn into Auto function Pressing (Second time) button+ABXYL1L2R1R2 to set TURBO function 3.Turn off Turbo function Pressing (Third time) button+ button which setted in Turbo function to clear turbo function Sleep Mode: 1. The console screen power off, the controller goes to sleep mode. 2. When connected, the controller without any action in 5minutes then step into sleep mode. Reconnect Mode: Based on the console not in sleep mode, if the controller under sleep mode, press Home button for 1s to wake up the controller, And it will searched and reconnect for the already connected console. If couldn`t reconnect in 10s the controller will step to sleep mode. PS: No other function buttons can wake up the controller. Charging: ※When power off the controller,the LED1-4 flashes slow,when charging full, will no LED flashes. ※When the controller is connected, under charging, the current connected LED indicator flashes slow, and when charging full, the LED indicator will keep light. ※When the controller low power,the LED indicators flashes fast to remind. FCC Caution： This device complies with part 15 of the FCC Rules. Operation is subject to the fo llowing two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. A ny Changes or modifications not expressly approved by the party responsible for co mpliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device , pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protec tion against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruct ions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to ra dio or television reception, which can be de termined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the fo llowing measures: - Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without .

ShenZhen Targetever Technology Co., Ltd. Date: 2020-12-03 To: Federal Communications Commission FCC ID: 2AEBY-DG011 To Whom It May Concern: This letter is to ascertain that ShenZhen Targetever Technology Co., Ltd. MODEL No.: DG011, 5147901, 3002901 Has been the units used for conducting FCC compliance testing, the SDoC part will be tested by Shenzhen BCTC Testing Co., Ltd. If you have any question or concerns, pls. contact us. Sincerely, Client’s signature ： Client’s name / title ： Yunli deng (Manager) Contact information / address: ShenZhen Targetever Technology Co., Ltd.

(ShenZhen Targetever Technology Co., Ltd.) Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: 2AEBY-DG011 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagram, Schematics, Operational Description Block Diagram Schematics Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ( Yunli deng) Rev 11/20/07

ShenZhen Targetever Technology Co., Ltd. Model Difference 2020-11-23 EUT NAME: Wireless Controller for SWitch FCC ID: 2AEBY-DG011 MODEL : DG011, 5147901, 3002901 All the model are the same circuit and RF module, only for model name and color. Regards Sincerely Client’s signature Client’s name / title : Yunli deng/ Manager Contact information / address: Floor 11-12, Building 8, LianHua Industrial Park, LongYuan Road, LongHua New District, ShenZhen, China

(ShenZhen Targetever Technology Co., Ltd.) Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: 2020/11/18 SUBJECT: FCC Application for FCC ID: 2AEBY-DG011 To Whom It May Concern: We, the undersigned, hereby authorize Alan Mei at Shenzhen BCTC Testing Co., Ltd. on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Alan Mei of Shenzhen BCTC Testing Co., Ltd. on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti- Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Regards, ( Yunli deng)

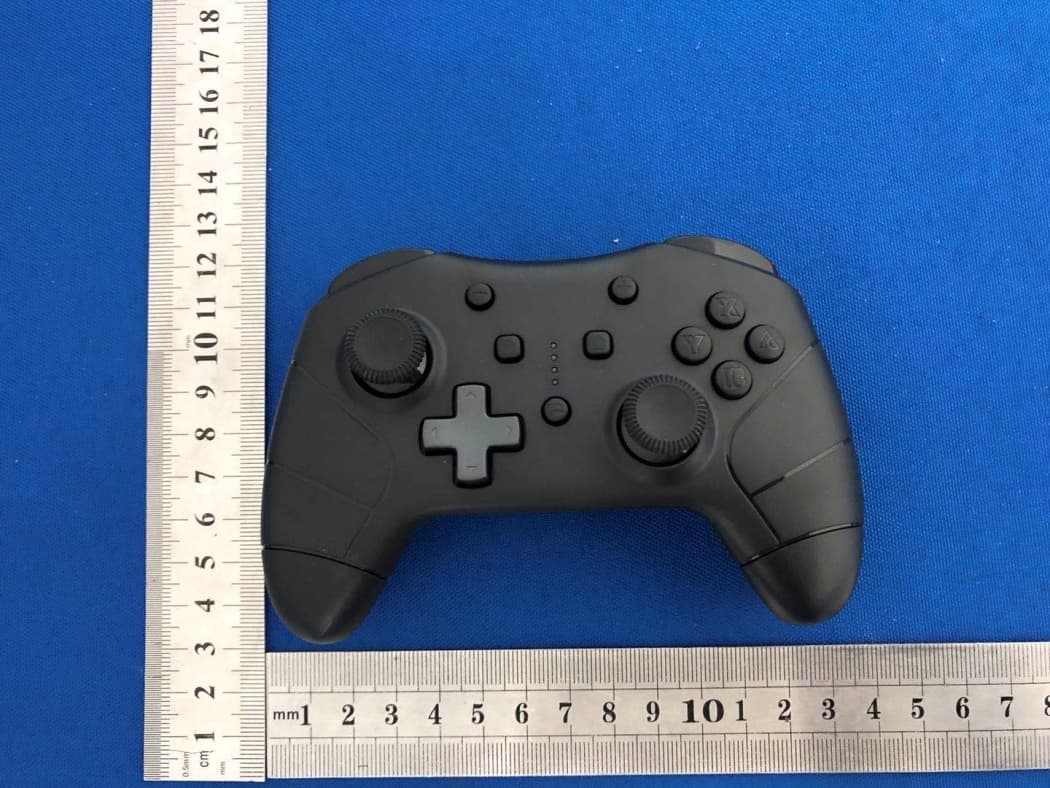

External Photos

Size:40*20mm Wireless Controller for SWitch FCC ID: 2AEBY-DG011 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Label location

Internal Photos Antenna

RF EXPOSURE EVALUATION METHOD FCC ID: 2AEBY-DG011 SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. BT-EDR Modulation Test Channel Output Power (dBm) Limit (dBm) GFSK Low 1.64 21 GFSK Middle 2.71 21 GFSK High 2.87 21 Pi/4 DQPSK Low 2.46 21 Pi/4 DQPSK Middle 3.36 21 Pi/4 DQPSK High 3.76 21 8DPSK Low 2.67 21 8DPSK Middle 3.40 21 8DPSK High 3.84 21 max possible output power (PK,conducted)：4±1dBm 0dBi logarithmic terms convert to numeric result is nearly 1. 5dBm=3.16mW 2402MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]=3.16/5*√2.402 =0. 98≤3.0 Threshold at which no SAR required is 10mw and ≤ 3.0 for 1-g SAR, Separation distance is 5mm. 2441MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 3.16/5*√2.441 =0. 99≤3.0 Threshold at which no SAR required is 10mw and ≤ 3.0 for 1-g SAR, Separation distance is 5mm. 2480MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]=3.16/5*√2.48=1.00≤3.0 Threshold at which no SAR required is 10mw and ≤ 3.0 for 1-g SAR, Separation distance is 5mm. Conclusion: No SAR is required.

Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2008000618E FCC Part 15C Test Report FCC ID:2AEBY-DG011 Product Name: Wireless Controller for SWitch Trademark: N/A Model Name : DG011 5147901, 3002901 Prepared For : ShenZhen Targetever Technology Co., Ltd. Address : Floor 11-12, Building 8, LianHua Industrial Park, LongYuan Road, LongHua New District, ShenZhen, China Prepared By : Shenzhen BCTC Testing Co., Ltd. Address : BCTC Building & 1-2F, East of B Building, Pengzhou Industrial, Fuyuan 1st Road, Qiaotou Community, Fuyong Street, Bao’an District, Shenzhen, China Test Date: Aug. 10, 2020 to Aug. 18, 2020 Date of Report : Aug. 18, 2020 Report No.: BCTC2008000618E Te s t Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-0 07 Ver.：A.0 Page 1 of 69 Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2008000618E TEST RESULT CERTIFICATION Applicant’s name ............. : ShenZhen Targetever Technology Co., Ltd. Address .............................. : Floor 11-12, Building 8, LianHua Industrial Park, LongYuan Road, LongHua New District, ShenZhen, China Manufacture's Name ........ : ShenZhen Targetever Technology Co., Ltd. Address .............................. : Floor 11-12, Building 8, LianHua Industrial Park, LongYuan Road, LongHua New District, ShenZhen, China Product description Product name..................... : Wireless Controller for SWitch Trademark ......................... : N/A Model and/or type reference DG011 5147901, 3002901 Standards ......................... : FCC Part15.247 ANSI C63.10:2013 558074 D01 15.247 Meas Guidance v05r02 This device described above has been tested by BCTC, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of BCTC, this document may be altered or revised by BCTC, personal only, and shall be noted in the revision of the document. Tested by: Approved by: Willem Wang/Project Handler Zero Zhou/Reviewer Te s t Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-0 07 Ver.：A.0 Page 2 of 69 Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2008000618E Table of Contents Test Report Declaration Page 1. TEST SUMMARY ...................................................... 5 2. TEST FACILITY ....................................................... 6 3. MEASUREMENT UNCERTAINTY........................................ 6 4. GENERAL INFORMATION .............................................. 7 4.1 GENERAL DESCRIPTION OF EUT ....................................... 7 4.2 Test Setup Configuration ................................................ 8 4.3 Support Equipment ..................................................... 8 4.4 Channel List ........................................................... 9 4.5 Test Mode ............................................................ 10 5. TEST FACILITY AND TEST INSTRUMENT USED ........................ 11 5.1 Test Facility ........................................................... 11 5.2 Test Instrument Used .................................................. 11 6. CONDUCTED EMISSIONS ............................................. 13 6.1 Block Diagram Of Test Setup ........................................... 13 6.2 Limit ................................................................. 13 6.3 Test procedure ........................................................ 13 6.4 Test Result ........................................................... 15 7. RADIATED EMISSIONS ............................................... 17 7.1 Block Diagram Of Test Setup ........................................... 17 7.2 Limit ................................................................. 18 7.3 Test procedure ........................................................ 18 7.4 Test Result ........................................................... 20 7.5 RADIATED BAND EMISSION MEASUREMENT AND RESTRICTED BANDS OF OPERATION ........................................................... 24 8. CONDUCTED EMISSION .............................................. 27 8.1 Block Diagram Of Test Setup ........................................... 27 8.2 Limit ................................................................. 27 8.3 Test procedure ........................................................ 27 8.4 Test Result ........................................................... 28 9. 20 DB BANDWIDTH .................................................. 37 9.1 Block Diagram Of Test Setup ........................................... 37 9.2 Limit ................................................................. 37 9.3 Test procedure ........................................................ 37 9.4 Test Result ........................................................... 38 10. MAXIMUM PEAK OUTPUT POWER .................................... 44 10.1 Block Diagram Of Test Setup .......................................... 44 10.2 Limit ................................................................ 44 10.3 Test procedure ....................................................... 44 10.4 Test Result .......................................................... 45 11. HOPPING CHANNEL SEPARATION .................................... 50 11.1 Block Diagram Of Test Setup .......................................... 50 Te s t Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-0 07 Ver.：A.0 Page 3 of 69 Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2008000618E 11.2 Limit ................................................................ 50 11.3 Test procedure ....................................................... 50 11.4 Test Result .......................................................... 51 12. NUMBER OF HOPPING FREQUENCY .................................. 56 12.1 Block Diagram Of Test Setup .......................................... 56 12.2 Limit ..........…

Text truncated - open the document above for the full version.

Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2008000618E 16. EUT TEST SETUP PHOTOGRAPHS Conducted Measurement Photos Radiated Measurement Photos Te s t Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-0 07 Ver.：A.0 Page 68 of 69 Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2008000618E ※※※※※ END OF REPORT ※※※※※ Te s t Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-0 07 Ver.：A.0 Page 69 of 69
