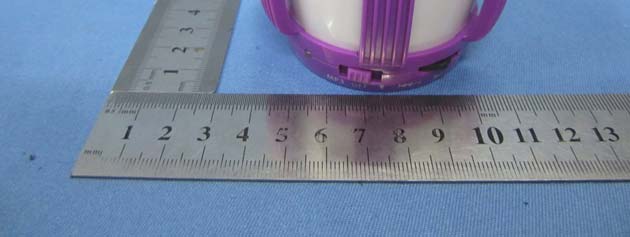

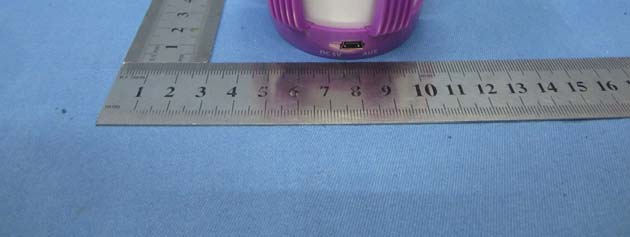

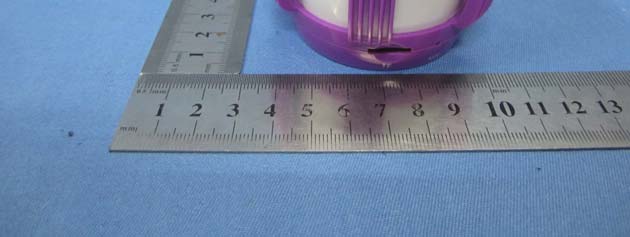

2AEC2J1Bluetooth Speaker(Mini Wireless Speaker)

User Manual IMPORTANT Safety Important Safety Instructions ● Heed all warnings. ● Do not use this apparatus near water. ● Do not block any ventilation openings, Install in accordance with the manufacturers instructions. ● Do not install near any heat sources such as radiators,heat registers, stoves, or other devices (including amplifiers) that produce heat. ● Only use attachments/accessories specified by the manufacturer. ● Refer all servicing to qualified service personnel. Servicing is required when the device has been damaged in any way. Such as power‐supply cord or plug is damaged, liquid has been spilled or objects have fallen into the device, the device has been exposed to rain or moisture, does not operate normally, or has been dropped. ● Devices shall not be exposed to dripping or splashing. ● Do not place any sources of danger on the device (e. g . Liquid filled objects, lighted candles). Warning Never remove the casing of this apparatus. Never place this apparatus on other electrical equipment. You r Bluetooth Speaker Power supply 1. The speaker can operate on built‐in rechargeable battery. 2. To recharge the built‐in battery. 3. Connect micro USB socket with PC through supplied USB cable. 4. The power indicator (red) turns on. 5. The power indicator (red) turns off when it”s fully charged. Play Play from a Bluetooth device Note: The effective operation range between the speaker and your Bluetooth device is approximately 10 meters (30 feet). Bluetooth Mode: 1. Turn on speaker, the indicator light is flashing (when power on, the blue light is on, when waiting pairing, the blue light is flashing fast , after paired, the blue light is flashing slowly. 2. Turn on Bluetooth function of device (i . e .Phone, computer or Tablet PC.....). 3. Search and select Bluetooth speaker, i .e.”f*‐‐****”to pair. You will hear “paired “ from Bluetooth speaker, for some devices , you need to input password “0000”to pair. 4. Playing music and it is outputted from Bluetooth speaker. 5. Turn off the speaker if you don’t use it. Line In Mode 1. Push” ” button for 5 seconds to enter Bluetooth, line In mode. 2. When entering line in mode, please connect USB cable to computer and DC 5V jack of Bluetooth speaker, then the music playing by computer will output through Bluetooth speaker. When somebody call in: Push the “ ” button to answer the phone. Push the “” button again to hang up. If you don’t want to answer the phone, just push “ ” button for 3 seconds to hang up. Double push” ”buttons can call the last call in number. Tip You can speak to the MIC to get the best speakerphone performance. TF CARD 1. Insert TF card, Bluetooth speaker will switch to TF card mode by default. 2. Bluetooth speaker will play the musics of TF card automatically, support formats include: WMA/MP3/WAV. 3. Push ” ” button to control the sound volume. 4. Push “ ” button to choose song to play. Q&A: Please don’t try to repair the product by yourself. No Power: Please recharge the Bluetooth speaker. No Sound: Please adjust the sound volume of your Bluetooth device. Please make sure you Bluetooth device is in the effective range. Please check the selected audio source is correct. Speaker NO sound: Please reboot the Bluetooth speaker. (Please note the insert direction of TF CARD). Note: Some models of f** don’t have TF CARD and FM functions ,Please check the introduction on the gift box. Specification: Note: product specification can be changed without notify. Rated Audio output power 3W RMS DC power input USB 5V ‐500MA Built‐in Li‐ion battery 3.7V 500MAH Battery working time 3‐4 Hours Bluetooth specification V2.1+EDR FM Radio FM87.5‐108MHZ Frequency response 120HZ‐20KHZ Signal to noise ratio>80db Range 10 meters(No obstacle) This user manual is applied to all Bluetooth speaker products of F*. FCC Warning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ‐‐ Reorient or relocate the receiving antenna. ‐‐ Increase the separation between the equipment and receiver. ‐‐ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ‐‐ Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Shenzhen Waron Technology Co., Ltd Bldg1.Mianshang Youth Business Park,Hangcheng Rd,Gushu,Xixiang,Banan,Shenzhen,China 2015-03-11 Equipment Authorization Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AEC2J1 Product Name: Bluetooth Speaker(Mini Wireless Speaeker) Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential:  Schematics  Block diagram  Operational Description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 03/11/2015 By: Michael Fang Signature Printed Title: G.manager On behalf of : Shenzhen Waron Technology Co;Ltd Telephone: 86-13922234545

Label location

FCC ID: 2AEC2J1 According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances  50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[f(GHz)]  3.0 for 1-g SAR and  7.5 for 10-g extremity SAR, where --f(GHz) is the RF channel transmit frequency in GHz --Power and distance are rounded to the nearest mW and mm before calculation --The result is rounded to one decimal place for comparison eirp = pt x gt = (EXd) 2 /30 where: pt = transmitter output power in watts, gt = numeric gain of the transmitting antenna (unitless), E = electric field strength in V/m, --- 10 ((dBuV/m)/20) /10 6 d = measurement distance in meters (m) ---3m So pt = (EXd) 2 /30 x gt Field strength = 95.33dBuV/m @3m Ant gain =0dBi, so Ant numeric gain= 1 So pt={ [10 (96.85) /10 6 x 3] 2 /30x1.26 }x1000 mW = 1.024mW So (1.024 mW /5mm)x 2.48 = 0.318<3 Then SAR evaluation is not required (95.33) = 0.32<3

Global United Technology Services Co., Ltd. Report No.: GTSE14120226701 Authorized Signature: Robinson Lo Laboratory Manager This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product and does not permit the use of the GTS product certification mark. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of GTS or testing done by GTS in connection with, distribution or use of the product described in this report must be approved by GTS in writing. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. FCC REPORT Applicant: Shenzhen Waron Technology Co., Ltd Address of Applicant: Bldg1, Mianshang Youth Business Park, Hangcheng Rd,Gushu, Xixiang, Baoan, Shenzhen, China. Equipment Under Test (EUT) Product Name: Bluetooth Speaker(Mini Wireless Speaker) Model No.: J1, J2, J4, J5, J6, J9, J30, J40, F1Q, F2, F9, F10A, F10B, F3, F5, F6, F8, F40 Trade Mark: Waron, Fanar FCC ID: 2AEC2J1 Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.249:2013 Date of sample receipt: December 25, 2014 Date of Test: March 08-11, 2015 Date of report issued: March 11, 2015 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. Report No.: GTSE14120226701 Global United Technology Services Co., Ltd. Project No.: GTSE141202267RF Room 301-309, 3th Floor, Block A, Huafeng Jinyuan Business Building, No. 300 Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, China Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 2 of 29 2 Version Version No. Date Description 00 March 11, 2015 Original Prepared By: Date: March 11, 2015 Project Engineer Check By: Date: March 11, 2015 Reviewer Report No.: GTSE14120226701 Global United Technology Services Co., Ltd. Project No.: GTSE141202267RF Room 301-309, 3th Floor, Block A, Huafeng Jinyuan Business Building, No. 300 Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, China Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 3 of 29 3 Contents Page 1 COVER PAGE ............................................................................................................................................ 1 2 VERSION .................................................................................................................................................. 2 3CONTENTS .............................................................................................................................................. 3 4TEST SUMMARY ..................................................................................................................................... 4 5GENERAL INFORMATION ...................................................................................................................... 5 5.1CLIENT INFORMATION ......................................................................................................................... 5 5.2GENERAL DESCRIPTION OF EUT ......................................................................................................... 5 5.3TEST MODE ........................................................................................................................................ 7 5.4DESCRIPTION OF SUPPORT UNITS ....................................................................................................... 7 5.5TEST FACILITY .................................................................................................................................... 7 5.6TEST LOCATION ................................................................................................................................. 7 5.7OTHER INFORMATION REQUESTED BY THE CUSTOMER ......................................................................... 7 6TEST INSTRUMENTS LIST ..................................................................................................................... 8 7TEST RESULTS AND MEASUREMENT DATA ...................................................................................... 9 7.1ANTENNA REQUIREMENT ..................................................................................................................... 9 7.2CONDUCTED EMISSIONS ................................................................................................................... 10 7.3RADIATED EMISSION METHOD ........................................................................................................... 13 7.3.1Field Strength of The Fundamental Signal ................................................................................ 15 7.3.2Spurious emissions .................................................................................................................... 16 7.3.3Bandedge emissions.................................................................................................................. 20 7.420DB OCCUPY BANDWIDTH .............................................................................................................. 21 8TEST SETUP PHOTO ............................................................................................................................…
