RF Wireless Remote Receiver &Transmitter Model (S4C-DC12 & CWB-4) Feature: Wireless control, easy to install Relay output, can control Lights, Motors, Fans, electrically operated Doors/Locks/Windows/Blinds/Cars or Other Appliances with AC110~240V or DC0~28V. You can turn on/off the receiver with transmitter (remote control) from any place within a reliable distance; the wireless RF signal can pass through walls, floors and doors. With characteristics of reverse power protection and over current protection Use microcontroller model of EM78P156, an 8-bit microprocessor designed and developed with low-power and high-speed CMOS technology. Reliable control: The transmitter (Encoding) and the receiver (Decoding) use an 8-bit code. One/several transmitters can control one/several receivers simultaneously. If you use two or more receivers in the same place, you can set them with different codes. Receiver: Model No.: S4C-DC12 Power Supply (Operating Voltage): DC12V±1V Working Frequency: 315MHz Channel: 4 CH Control Modes: Toggle, Momentary, Latched, Momentary + Toggle Output: Relay output (Normally open and normally closed) Working Voltage Range of Relay: AC110~240V or DC0~28V Maximum Working Current of Relay: 5A / each channel Static Current: ≤6mA PCB Size: 68mm x 48mm x 20mm Case Size: 75mm x 55mm x 30mm Work with Fixed code transmitters or Learning code transmitters. The receiver can pair different model transmitters, includes model CWB-4(50M), C-4(100M), CV-4 (500M), CP-4 (500M) and CB-4 (1000M) etc... If you want to have a further working range, you can install an external antenna to the receiver, such as magnetic mount antenna (model 0020909), which working range is three times as much as it used to be. Or telescopic antenna (model 0020908), which working range is twice as much as it used to be. Transmitter: Model No.: 0021095 (CWB-4) Waterproof Shell Color: Black Channel/Button: 4 Button Symbol: A, B, C, D Operating Voltage: 6V (2 x CR2016 -3V button cell batteries,, can be used for 12 months) Operating Current: 5mA Operating Frequency: 315Mhz Encoding Chip: LX2260 Encoding Type: Fixed code by soldering, up to 6561 codes Transmitting Distance: 50m / 150ft (theoretically) The distance of 50m is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be exposed to some interference by other signals. Therefore, the actual distance may or may not reach 50m. Modulation Mode: ASK Operating Temperature: -20 ° C to +70 ° C Unit Size: 56mm x 32mm x 12mm Weight: 20g Uses: garage doors, motorcycles, car alarm products, home security products, wireless remote control products, industrial control products. How to set up the 8-bits code of the transmitter: 1. Open the transmitter shell, then you will see the circuit board. There are two rows pads and one row of chip feet on the back side. 2. The upper row of pads is “H” side, and the lower row of pads is “L” side. 3. If solder the middle row of chip feet to the “L” side, it is code 1. If solder the middle row of chip feet to the “H” side, it is code 2. Don’t solder to any side, it is code 0. 4. The 8-bits code order is from right to left (from D1 to D8). 5. Here is an example, the 8-bits code in the picture is 00001020, solder as the following way: 6. Code 0: don’t solder any side, like D1, D2, D3, D4, D6, D8. 7. Code 1: solder to the “L” side, like D5. 8. Code 2: solder to the “H” side, like D7. How to pair the transmitter to the receiver: 1) Press the button of receiver; signal LED on the receiver keeps shining. The receiver enters into status of LEARNING. 2) Press any one button on remote control. If signal LED flashes quickly 15 times and turns off, it means learning is successful. 3) When receiver is in the status of LEARNING, press again the button of receiver, signal LED turns off, learning process will be discontinued. 4) The receiver can learn several remote controls with different codes. Delete all transmitters: We have learned remote control to the receiver. If you don’t want the receiver to work with the remote control, you can delete all codes of remote controls, which are stored in the receiver. Operation: Press and hold the button of receiver until signal LED flashes slowly; release the button, LED keeps slow flash. That means all stored codes have been deleted successfully. Usage (with the transmitter like CWB-4) : Setting different control modes (We have set the receiver as Toggle mode before delivery. If you want to use other modes, do as following): Setting control mode Latched: Disconnect Jumper-1 and Jumper-2. Control mode Latched (Channel 1~4): Press -> On, other relays Off; Press other button -> Off. Such as: Press button A: Turn on relay 1 (connect B and C, disconnect A and B) Turn off other relays (disconnect B and C, connect A and B) Press button B: Turn on relay 2 (connect B and C, disconnect A and B) Turn off other relays (disconnect B and C, connect A and B) Setting control mode Momentary: Only connect Jumper-1. Control mode Momentary (Channel 1~4): Press and hold -> On; Release -> Off. Such as: Press and hold button A: Turn on relay 1 (connect B and C, disconnect A and B) Release button A: Turn off relay 1 (disconnect B and C, connect A and B) Press and hold button B: Turn on relay 2 (connect B and C, disconnect A and B) Release button B: Turn off relay 2 (disconnect B and C, connect A and B) Setting control mode Toggle: Only connect Jumper-2. Control mode Toggle (Channel 1~4): Press -> On; Press again -> Off. Such as: Press button A: Turn on relay 1 (connect B and C, disconnect A and B) Press button A again: Turn off relay 1 (disconnect B and C, connect A and B) Press button B: Turn on relay 2 (connect B and C, disconnect A and B) Press button B again: Turn off relay 2 (disconnect B and C, connect A and B) Setting control mode Momentary + Toggle: Connect Jumper-1 and Jumper-2. Control mode Moment…

Text truncated - open the document above for the full version.

Project No.: 1503C009 Page 2 of 5

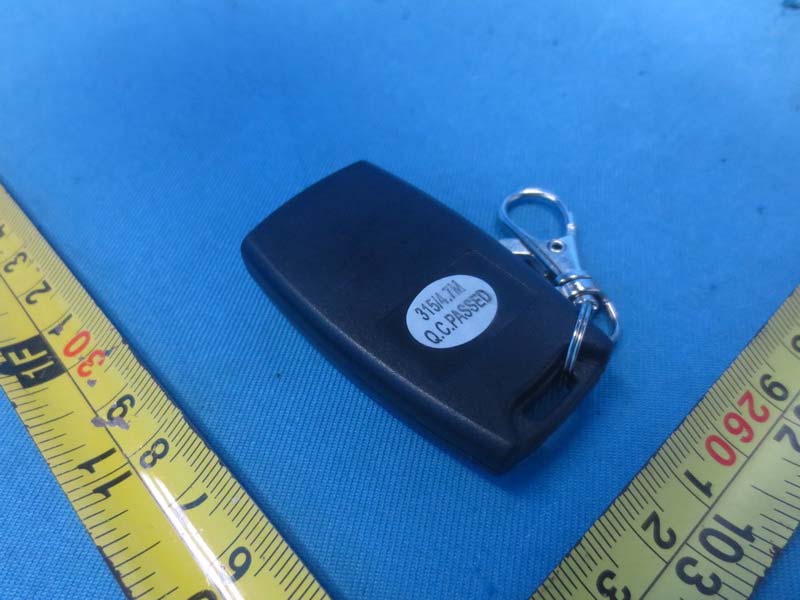

FCC ID: 2AECT-CARYMART-CWB4 Name: RF Transmitter Model: CWB-4 Operating Voltage: DC 6V label size:2.4 x2.4 CM Paste label

Project No.: 1503C009 Page 3 of 5 Project No.: 1503C009 Page 4 of 5 Project No.: 1503C009 Page 5 of 5

Report No.: BTL-FCCP-1-1503C009 Page 1 of 43 FCC Radio Test Report FCC ID: 2AECT-CARYMART-CWB4 This report concerns (check one): Original Grant Class II Change Project No. : 1503C009 Equipment : RF Transmitter Model Name : CWB-4 Applicant : Shenzhen Guiyuan Industry Development Co.,Ltd. Address : 12B, Building 7, No.4, JinXiuJiangNan, MeiLong Road, LongHua, ShenZhen, GuangDong, China Date of Receipt : Mar. 02, 2015 Date of Test : Mar. 02, 2015 ~ Apr. 21, 2015 Issued Date : Apr. 21, 2015 Tested by : BTL Inc. Testing Engineer : (David Mao) Technical Manager : (Leo Hung) Authorized Signatory : (Steven Lu) BTL INC. No.3,Jinshagang 1st Road, Shixia,Dalang Town, Dongguan, Guangdong, China. TEL: +86-769-8318-3000FAX: +86-769-8319-6000 Report No.: BTL-FCCP-1-1503C009 Page 2 of 43 Declaration BTL repres ents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C., or National Institute of Standards and Technology (NIST) of U.S.A. BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. BTL’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and BTL-self, extracts from the test report shall not be reproduced except in full with BTL’s authorized written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO Guide17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited un less the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Report No.: BTL-FCCP-1-1503C009 Page 3 of 43 Table of Contents Page 1 . CERTIFICATION 6 2 . SUMMARY OF TEST RESULTS 7 2.1 TEST FACILITY 8 2.2 MEASUREMENT UNCERTAINTY 8 3 . GENERAL INFORMATION 9 3.1 GENERAL DESCRIPTION OF EUT 9 3.2 DESCRIPTION OF TEST MODES 10 3.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 11 3.4 DESCRIPTION OF SUPPORT UNITS 11 4 . EMC EMISSION TEST 12 4.1 CONDUCTED EMISSION MEASUREMENT 12 4.1.1 POWER LINE CONDUCTED EMISSIONLIMITS 12 4.1.2 TESTP ROCEDURE 12 4.1.3 DEVIATION FROM TEST STANDARD 12 4.1.4 TESTSETUP 13 4.1.5 EUT OPERATING CONDITIONS 13 4.1.6 EUT TEST CONDITIONS 13 4.1.7 TEST RESULTS 13 4.2 RADIATED EMISSION MEASUREMENT 14 4.2.1 FIELD STRENGTH OF FUNDAMENTAL EMISSIONS MEASUREMENT LIMIT 14 4.2.2 MEASURING INSTRUMENTS AND SETTING (FIELD STRENGTH OF FUNDAMENTAL 14 EMISSIONS) 14 4.2.3 RADIATED EMISSIONS MEASUREMENT 15 4.2.4 DWELL TIME OF PERIODIC OPERATION MEASUREMENT 16 4.2.5 TEST PROCEDURE 18 4.2.6 DEVIATIONFROMTESTSTANDARD 18 4.2.7 TESTSETUP 18 4.2.8 EUT OPERATING CONDITIONS 19 4.2.9 EUT TEST CONDITIONS 19 4.2.10 TEST RESULTS (9KHz to 30MHz) 20 4.2.11 TEST RESULTS (30MHz to 1000MHz) 20 4.2.12 TEST RESULTS(Above 1000 MHz) 20 5 . 20dB SPECTRUM BANDWIDTH MEASUREMENT 21 5.1 LIMIT 21 5.2 MEASURING INSTRUMENTS AND SETTING 21 5.3 TEST PROCEDURES 21 5.4 TEST SETUP LAYOUT 21 Report No.: BTL-FCCP-1-1503C009 Page 4 of 43 Table of Contents Page 5.5 TEST DEVIATION 21 5.6 EUT OPERATION DURING TEST 22 5.7 EUT TEST CONDITIONS 22 5.8 TESTRESULTS 22 6 . TIMING TESTING 23 6.1 LIMIT 23 6.2 MEASURING INSTRUMENTS AND SETTING 23 6.3 TEST PROCEDURES 23 6.4 TEST SETUP LAYOUT 23 6.5 TEST DEVIATION 23 6.6 EUT OPERATION DURING TEST 23 6.7 EUT OPERATION DURING TEST 24 6.8 TEST RESULTS 24 7. MEASUREMENT INSTRUMENTS LIST AND SETTING 25 8. EUT TEST PHOTO 26 ATTACHMENT A - CONDUCTED EMISSION 29 ATTACHMENT B - RADIATED EMISSION (9KHZ to30MHZ) 30 ATTACHMENT C - RADIATED EMISSION(30MHZ to 1000MHZ) 32 ATTACHMENT D - RADIATED EMISSION (ABOVE 1000MHZ) 37 ATTACHMENT E - 20dB SPECTRUMBANDWIDTH 40 ATTACHMENT F - TIMING TESTING 42 Report No.: BTL-FCCP-1-1503C009 Page 5 of 43 REPORT ISSUED HISTORY Issued No. Description Issued Date BTL-FCCP-1-1503C009 Original Issue. Apr. 21, 2015 Report No.: BTL-FCCP-1-1503C009 Page 6 of 43 1. CERTIFICATION Equipment : RF Transmitter Trade Name : N/A Model Name : CWB-4 Applicant : Shenzhen Guiyuan Industry Development Co.,Ltd. Manufacturer : Shenzhen Guiyuan Industry Development Co.,Ltd. Address : 12B, Building 7, No.4, JinXiuJiangNan, MeiLong Road, LongHua, ShenZhen, GuangDong, China Factory : Shenzhen Guiyuan Industry Development Co.,Ltd. Address : 12B, Building 7, No.4, JinXiuJiangNan, MeiLong Road, LongHua, ShenZhen, GuangDong, China Date of Test : Mar. 02, 2015 ~ Apr. 21, 2015 Test Sample : ENGINEERING SAMPLE Standard(s) : FCC Part15, Subpart C(15.231)/ ANSI C63.4-2009 The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. BTL-FCCP-1-1503C009) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of TAF according to the ISO-17025 quality assessment standard and technical standard(s). Report No.: BTL-FCCP-1-1503C009 Page 7 of 43 2. SUMMARY OF TEST RESULTS Test procedures according to the technical standard(s): FCC Part15, Subpart C (15.231) Standard(s) Section Test Item Judgment Remark 15.207 Conducted Emission N/A NOTE(1) 15.209 & 15.231a(1) Radiated Spurious Emission PASS 15.231(c) 20dB Occupied Bandwidth Measurement PASS NOTE: (1)” N/A” denotes test is not applicable in this test report. (2) EUT is used new battery. Report No.: BTL-FCCP-1-1503C009 P…

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-1-1503C009 Page 26 of 43 8. EUT TEST PHOTO Radiated Measurement Photos 9KHz to 30MHz Report No.: BTL-FCCP-1-1503C009 Page 27 of 43 Radiated Measurement Photos 30MHz to 1000MHz Report No.: BTL-FCCP-1-1503C009 Page 28 of 43 Radiated Measurement Photos Above 1000MHz
