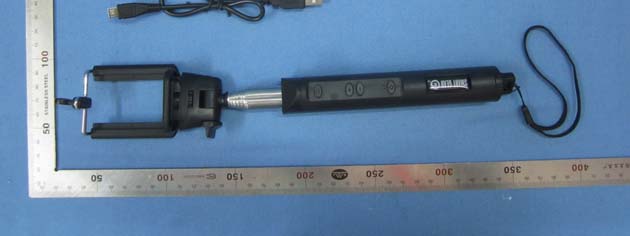

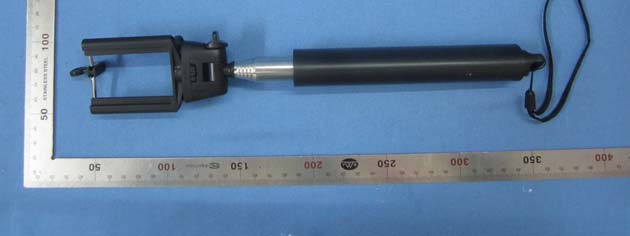

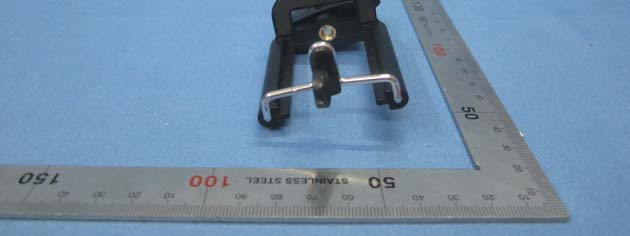

2AED2NW-BS07Wireless SELF CAMERA MONOPOD

English SELF CAMERA MONOPOD SPECIFICATION： 1.Bluetooth V3.0, low power consumption, highspeed without delay; 2.Compatible with IOS and Android dual system; 3 automatic default system, no need to switch Android or IOS system; 4.Do not need to install the APP; 5.Distance:10m; 6.Working frequency: 2.402-2.480GHz, work mode: GFSK; 7.Working current: 1mA (primary dormancy 0.5mA) 8.Working voltage: 3 V to 4.2 V 9.Working temperature: - 10-55 degrees; SELF CAMERA MONOPOD 1. CELLPHONE HOLDER 2. STELL MONOPOD 3. CAMERA KEY 4. FOCUS ENARGE KEY 5. FOCUS NARROW KEY1 6. POWER KEY 7. 1/4 SCREW8. Micro USB Charging9. Power LED My selftimer Use methed： 5 3 2 1.Open:short press the power switch, 8 9 LED lights up, after 1second, the green LED lights down; 2.Paired / online: 2.1 Press the Camera key for 2 seconds, the green LED is flashing , the device is pairing mode; 6 4 2.2 Open mobile phone search Bluetooth device, 7 the bluetooth device is self timer-03; 2.3 Click the self timer-03 link of Bluetooth devices;Wait for 8 seconds, when the green LED is constant Cellphone Fixed Mount Flexible Pipe Remote Joystick Illustration 1 Use method 1: 1. Screw up flexible pipe with cellphone fixed mount. 2. Insert the flexible pipe to remote joystick and fixture. 3. Put the cellphone connecting the fiexed mount. Illustration 2 Remote Joystick Remote Joystick Sleeping mode: 1.When the device is not used for 5 minutes, the device is sleeping mode, the bluetooth is discon-necting. 2. Short press the camera key, the device cance the dormant, and connecting the phone automaticlly. 3. When the cellphone bluetooth and the device is disconnecting, connection again, short press the camera key, the device is connecting automaticlly. 10.Work humidity: 10% to 70%; 11.Battery: 100mA Lithium batteries； IN THE BOX 1. SELF CAMERA MONOPOD*12.USER Manual*1 3. Micro-USB Charging Cable 4.Cellphone Holder lighting, they are paring successful; 3.Photos: light press the photo keys, photo is complete. 4:4 Focal length setting: long press "+" button to enlarge the focal length, long press "-" key to narrow the focus; 5.Power off: press 3 seconds power key; 6.Charging: The MIRCO USB interface is at the bottom of the selftimer, when you charge it, and the red LED is lighting. Illustration 1 Use method 2: Method Two 1.Screw up the cellphone fiexed mount with tripod 2. Put the cellphone connecting the fiexed mount. Illustration 2 Not include the tripod Note: my selftimer support the iOS5.0 above and the android2.3.6above. Because the android is open source system,so a little phoner/tablet models may not support remote cameras. FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the int erference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. Cha nges or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Thi s device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Model: NW-BS07 FCC ID: 2AED2NW-BS07

Label Location

FCC ID: 2AED2NW-BS07 According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where --f(GHz) is the RF channel transmit frequency in GHz --Power and distance are rounded to the nearest mW and mm before calculation --The result is rounded to one decimal place for comparison eirp = pt x gt = (EXd) 2 /30 where: pt = transmitter output power in watts, gt = numeric gain of the transmitting antenna (unitless), E = electric field strength in V/m, --- 10 ((dBuV/m)/20) /10 6 d = measurement distance in meters (m) ---3m So pt = (EXd) 2 /30 x gt Field strength = 93.60dBuV/m @3m Ant gain =0dBi, so Ant numeric gain= 1.0 So pt={ [10 (93.60) /10 6 x 3] 2 /30x1.0 }x1000 mW = 0.687mW So (0.687 mW /5mm)x √2.402 = 0.213<3 Then SAR evaluation is not required

Global United Technology Services Co., Ltd. Report No.: GTSE15030023801 FCC REPORT Applicant: CHINA ELECTRONIC TECHNOLOGY CO., LTD Address of Applicant: 5F,NO.11, PINGDONG 4TH RD,NANPING HI TECH INDUSTRIAL ZONE, ZHUHAI, GUANGDONG, CHINA Equipment Under Test (EUT) Product Name:Wireless SELF CAMERA MONOPOD Model No.:NW-BS07 FCC ID: 2AED2NW-BS07 Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.249:2013 Date of sample receipt: March 11, 2015 Date of Test: March 11-19, 2015 Date of report issued: March 20, 2015 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. Authorized Signature: Robinson Lo Laboratory Manager This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product and does not permit the use of the GTS product certification mark. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of GTS or testing done by GTS in connection with, distribution or use of the product described in this report must be approved by GTS in writing. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. Authorized Signatu Report No.: GTSE15030023801 2Version Version No.DateDescription 00March 20, 2015Original Prepared By: Date: March 20, 2015 Project Engineer Check By:Date: March 20, 2015 Reviewer Global United Technology Services Co., Ltd.Project No.: GTSE150300238RF Room 301-309, 3th Floor, Block A, Huafeng Jinyuan Business Building, No. 300 Laodong Industrial Zone,Xixiang Road, Baoan District, Shenzhen 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960Page 2 of 30 Report No.: GTSE15030023801 3Contents Page 1 COVER PAGE............................................................................................................................................ 1 2 VERSION .................................................................................................................................................. 2 3 CONTENTS .............................................................................................................................................. 3 4 TEST SUMMARY ..................................................................................................................................... 4 5 GENERAL INFORMATION ...................................................................................................................... 5 5.1 CLIENT INFORMATION......................................................................................................................... 5 5.2 GENERAL DESCRIPTION OF EUT ......................................................................................................... 5 5.3 TEST MODE........................................................................................................................................ 7 5.4 DESCRIPTION OF SUPPORT UNITS....................................................................................................... 7 5.5 TEST FACILITY.................................................................................................................................... 7 5.6 TEST LOCATION................................................................................................................................. 7 5.7 OTHER INFORMATION REQUESTED BY THE CUSTOMER......................................................................... 7 6 TEST INSTRUMENTS LIST ..................................................................................................................... 8 7 TEST RESULTS AND MEASUREMENT DATA...................................................................................... 9 7.1 ANTENNA REQUIREMENT..................................................................................................................... 9 7.2 CONDUCTED EMISSIONS................................................................................................................... 10 7.3 RADIATED EMISSION METHOD........................................................................................................... 13 7.3.1 Field Strength of The Fundamental Signal ................................................................................ 15 7.3.2 Spurious emissions.................................................................................................................... 16 7.3.3 Bandedge emissions.................................................................................................................. 20 7.4 20DBOCCUPY BANDWIDTH.............................................................................................................. 21 8 TEST SETUP PHOTO ............................................................................................................................ 23 9 EUT CONSTRUCTIONAL DETAILS .....................................................................................................25 Global United Technology Services Co., Ltd.Project No.: GTSE150300238RF Room 301-309, 3th Floor, Block A, Huafeng Jinyuan Business Building, No. 300 Laodong Industrial Zone,Xixiang Road, Baoan District, Shenzhen 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960Page 3 of 30 Repor…

Text truncated - open the document above for the full version.

Radiated Emission Conducted Emissions
