2AED7-544147RFID Bracelet

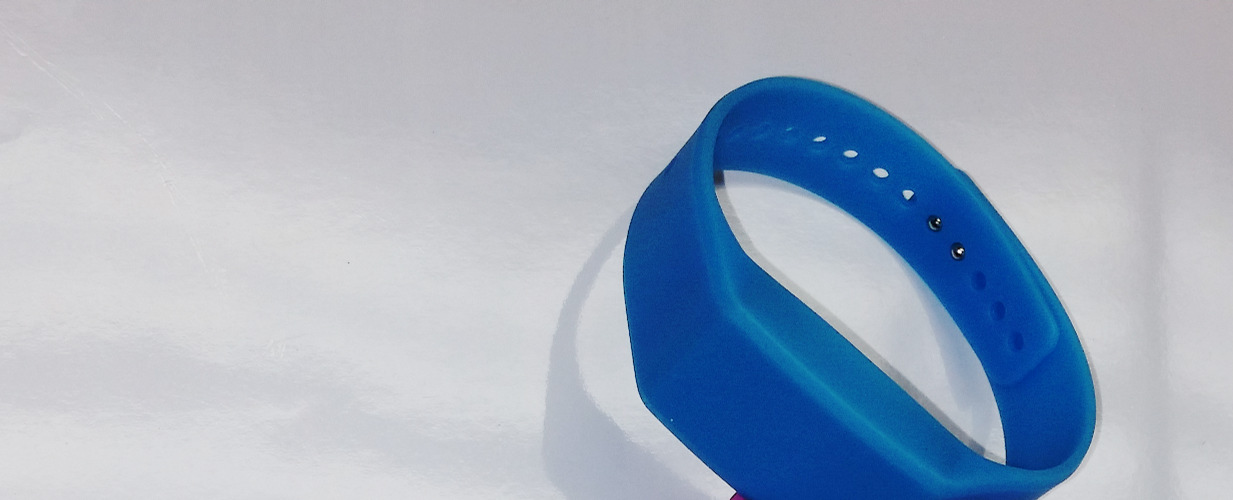

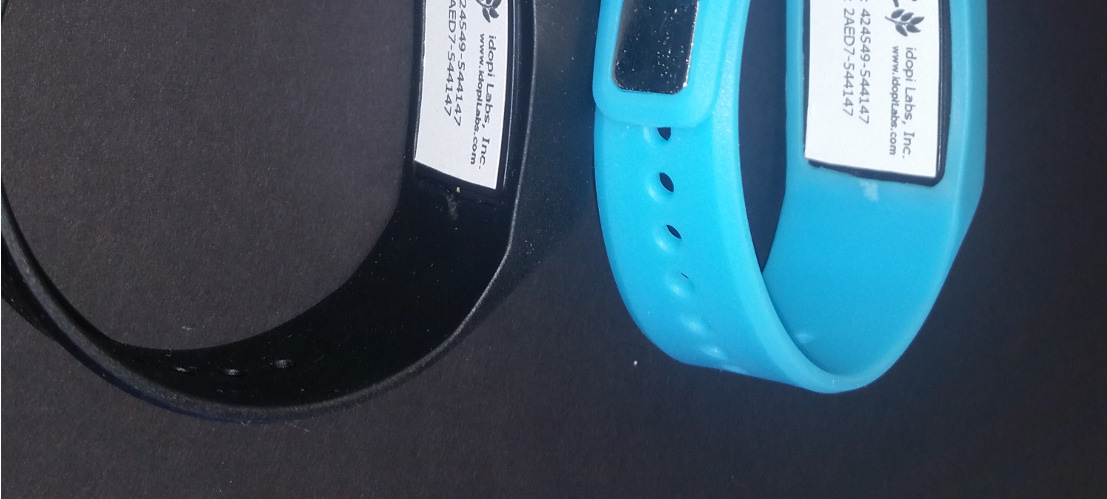

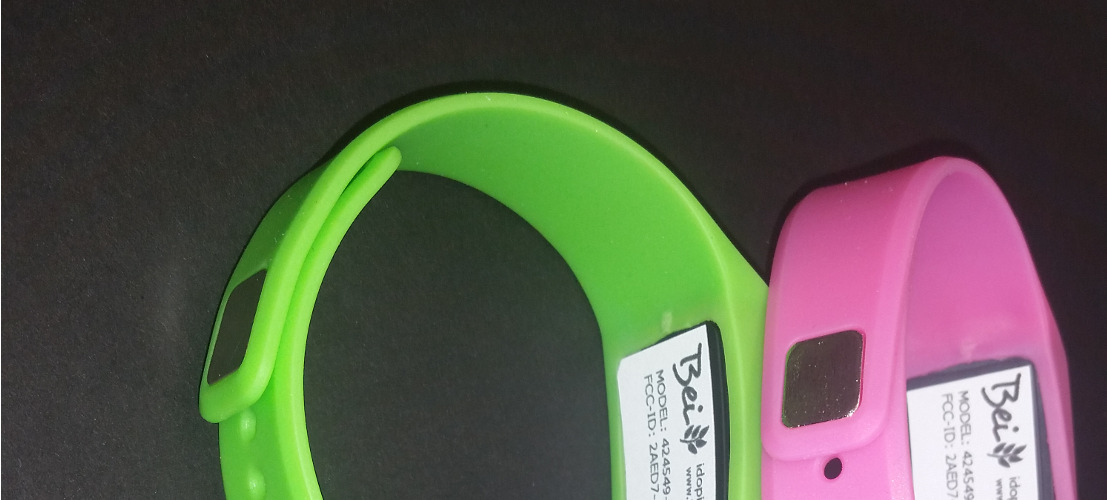

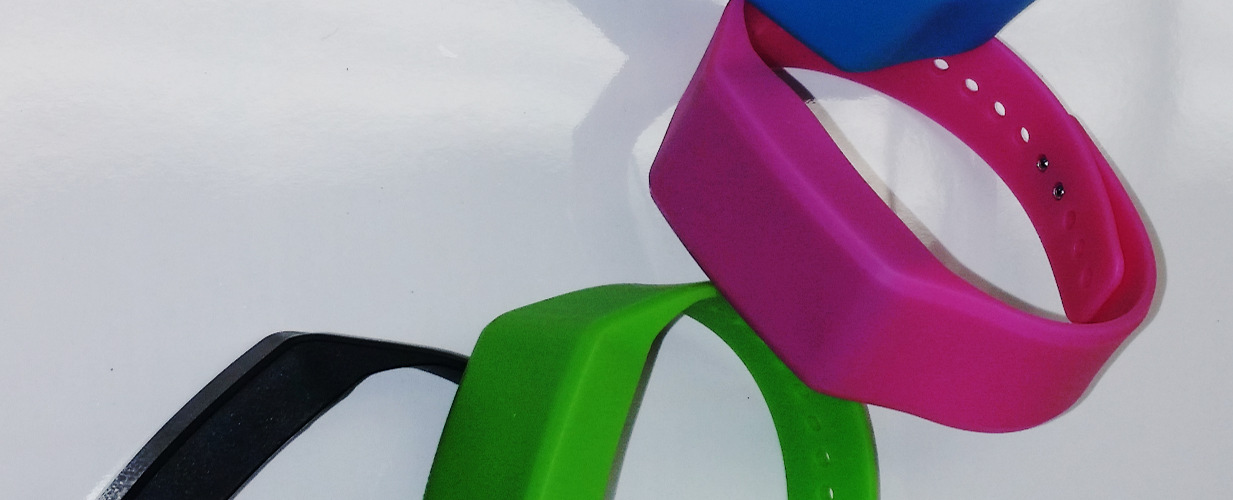

Band The Bei Band is water resistant up to 30 meters and can be worn at all times. Put on your Bei Band so the wide middle is centered on the outside of your wrist. Align both ends of the Bei Band so they are directly overlapping each other with the clasp over the two holes that best fit your wrist. Squeeze both the clasp and the Bei Band between your thumb and forefinger until you feel it lightly snap. You’ll know your Bei Band is securely fastened if both prongs of the clasp are fully inserted. ______________________________________________________________________ Note: Changes or modifications not expressly approved by idopi Labs will void the user’s authority to operate this device. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.including interference that may cause undesired operation.

RF EXPOSURE COMPLIANCE The calculated output power of the EUT is as follows: P = (E*D)^2 / (30*G) P= watts E=Volts/meter D=Distance in meters G=Antenna gain (numeric) Measured output FS = 93.6 dBuV/m @ 3 meters or 47,863 uV/m or 0.04786 Volts / meter P = (0.04786 * 3) ^2 / 30 * 1 P = 0.0206 / 30 P = 0.000687 watts For this wrist worn device, the distance between the transmitter and the tissue is effectively (1.5) mm. The following calculation is from FCC KDB447498 (4.3.1.1): Frequency = 2.44 GHz Power = 0.687 milliwatts Distance = 1.5 millimeters ((power in mW / distance in mm) * Square root of frequency in GHz) ≤ 3 (0.687 / 1.5) * SQRT 2.44 ≤ 3 (0.458) * 1.562 = (0.7153) 38 R0,20 6,24 1,5 2,15 R110 7,76 1 40 22,50 1 20,50 1,25 0,75 9,25 UNLESS OTHERWISE SPECIFIED: 1. DIMENSIONS ARE IN MM 2. TOLERANCES 0.00 TO 3.00 ±0.08 3.00 TO 6.00 ±0.10 6.00 TO 18.00 ±0.13 18.00 TO 30.00 ±0.15 30.00 TO 50.00 ±0.18 50.00 TO 80.00 ±0.23 80.00 TO 117.50 ±0.28 117.50 TO 180.00 ±0.33 180.00 TO 250.00 ±0.36 250.00 TO 315.00 ±0.38 3. SEE 3D CAD FILE FOR COMPLETE SHAPE DETAILS. C D E B F A 2314 C F E A B D 2143 DRAWN CHK'D APPV'D MFG Q.A UNLESS OTHERWISE SPECIFIED: DIMENSIONS ARE IN MILLIMETERS SURFACE FINISH: TOLERANCES: LINEAR: ANGULAR: FINISH: DEBURR AND BREAK SHARP EDGES NAME SIGNATURE DATE MATERIAL: DO NOT SCALE DRAWING REVISION TITLE: DWG NO. SCALE:2:1SHEET 1 OF 1 A4 ABS WEIGHT: 2.61 WB_ver1-Housing_ Housing 4

Test Report Number 14F489B Product Safe ty Engine e ring, Inc 12955 Be llamy Brothe rs Blvd. Dade City, FL 33525 Te l (352) 588-2209 Fax (352) 588-2544 Page 2 of 12 D I R E C T O R Y - EMISSIONS Page(s) A)Documentation Test report1 - 10 Directory2 Test Regulations3 General Remarks10 Test-setups (Photos)11 - 12 B) Test data Conducted emissions10/150 kHz - 30 MHz5, 9 Radiated emissions10 kHz - 30 MHz5, 9 Radiated emissions30 MHz - 1000 MHz6, 9 Disturbance power30 MHz - 300 MHz6, 9 Equivalent Radiated emissions1 GHz - 18 GHz7, 9 Antenna Disturbance Voltage30 MHz - 1,000 MHz7,9 C) Appendix A Test Data Sheets A2 - A4 D) Appendix B System Under Test DescriptionB1 - B1 E) Appendix C Bandedge Plots C1 - C2 Test Report Number 14F489B Product Safe ty Engine e ring, Inc 12955 Be llamy Brothe rs Blvd. Dade City, FL 33525 Te l (352) 588-2209 Fax (352) 588-2544 Page 3 of 12 EMISSIONS TEST REGULATIONS : The emissions tests were performed according to following regulations: 9 - EN 61000-6-3:2007 9 - EN 61000-6-4:2007 9 - EN 60601-1-2:2007 9 - EN 55011 : 2009/A1:2010 9 - Group 1 9 - Group 2 9 - Class A9 - Class B 9 - EN 55013 : 2001 /A1:2003 /A2:2006 9 - EN 55014 -1: 2006/A2:2011 9 - Household appliances and similar 9 - Portable tools 9 - Semiconductor devices 9 - EN 55022:2010/AC:2011 9 - Class A9 - Class B 9 - CISPR 22:2008 9 - Class A9 - Class B 9 -AS/NZS CISPR 22:2009 9 - Class A9 - Class B 9 - ICES-003 9 - Class A9 - Class B 9 - CNS 13438 9 - Class A9 - Class B 9 - VCCI V-3/2013.4 9 - Class A9 - Class B # - FCC Part 15.249 (per ANSI C63.4) 9 - Class A9 - Class B # - Certification 9 - Verification 9 - Declaration of Conformity 9 - FCC Part 18 Test Report Number 14F489B Product Safe ty Engine e ring, Inc 12955 Be llamy Brothe rs Blvd. Dade City, FL 33525 Te l (352) 588-2209 Fax (352) 588-2544 Page 4 of 12 Environmental conditions during testing: LAB OATS Temperature: * _________ : ________ Relative Humidity: ** _________ : ________ * The ambient temperature during the testing was within the range of (50 o - 104 o F) unless indicted above. ** The humidity levels during the testing was within the range of (10% - 90%) relative humidity unless indicated above. Power supply system: Volts Hz SINGLE phase *Internal 3.0 VDC battery Sign Explanations: 9 - not applicable # - applicable Test Report Number 14F489B Product Safe ty Engine e ring, Inc 12955 Be llamy Brothe rs Blvd. Dade City, FL 33525 Te l (352) 588-2209 Fax (352) 588-2544 Page 5 of 12 Emissions Test Conditions: CONDUCTED EMISSIONS (Interference Voltage) The CONDUCTED EMISSIONS (INTERFERENCE VOLTAGE) measurements were performed at the following test location: # - Test not applicable 9 - Darby Test Site (Open Area Test Site) 9 - Darby Laboratory Test equipment used : Model NumberManufacturerDescriptionSerial Number 9 -8028-50Solar50 S LISN829012, 829022 9 -8012Solar50 S LISN924840 9 -EMC-30Electro-MetricsEMI Receiver191 9 -8566BHewlett-PackardSpectrum Analyzer2421A00526 9 -85650AHewlett-PackardQuasi-Peak Adapter2043A00209 9 -85662AHewlett Packard Analyzer Display2403A07352 9 -8028-50Solar50 S LISN903725, 903726 9 -FCC-TLISN-T4-02Fisher Custom Com.Telecom ISN20454 9 - 9 - FCC-TLISN-T8-02 LI-125 Fisher Custom Com. Com-Power Telecom ISN 50 S LISN 20452 191080/191081 Emissions Test Conditions: RADIATED EMISSIONS (Magnetic Field) The RADIATED EMISSIONS (MAGNETIC FIELD) measurements were performed at the following test location: # - Darby Test Site (Open Area Test Site) 9 - 9 - at a test distance of : # - 3 meters 9 - 30 meters 9 - Test not applicable Test equipment used : Model NumberManufacturerDescriptionSerial Number 9 -3148EMCOLog Periodic Antenna00044783 9 -BIA-25Electro-MetricsBiconical Antenna4283 # - 8566BHewlett-PackardSpectrum Analyzer2532A02418 # - 85662AHewlett-PackardAnalyzer Display2403A07352 # - 85650AHewlett-PackardQuasi-Peak Adapter2043A00358 # - ALR-30MElectro-MetricsLoop Antenna824 # - 8447DHewlett PackardPreamplifier2944A06901 9 - 9 - EMC-30 ALA-130/A Electro-Metrics Antenna Research EMI Receiver Loop Antenna 191 106 Test Report Number 14F489B Product Safe ty Engine e ring, Inc 12955 Be llamy Brothe rs Blvd. Dade City, FL 33525 Te l (352) 588-2209 Fax (352) 588-2544 Page 6 of 12 Emissions Test Conditions: RADIATED EMISSIONS (Electric Field) The RADIATED EMISSIONS (ELECTRIC FIELD) measurements, in the frequency range of 30 MHz-1000 MHz, were tested in a horizontal and vertical polarization at the following test location : 9 99 9 - Test not applicable # - Darby Site (Open Area Test Site) 9 - Darby Lab 9 - at a test distance of : # - 3 meters 9 - 10 meters 9 - 30 meters Test equipment used : Model NumberManufacturerDescriptionSerial Number 9 -HLP 3003CEMC AutomationHybrid Periodic Antenna017501 # - 8447DHewlett-PackardPreamplifier (26dB)2944A06901 # - 8566BHewlett-PackardSpectrum Analyzer2532A02418 # - 85662AHewlett-PackardAnalyzer Display2403A07352 # - 85650AHewlett-PackardQuasi-Peak Adapter2043A00358 9 -BIA 25 Electro-Metrics Biconical Antenna4283 9 -EMC-30Electro-MetricsEMI Receiver191 9 - 9 - 9 - 9 - # - 8566B 85650A 85662A LPA30 3104C Hewlett Packard Hewlett Packard Hewlett Packard Electro-Metrics Emco Spectrum Analyzer Quasi-Peak Adapter Analyzer Display Log Periodic Biconical Antenna 2532A02418 2043A00209 2403A06604 2280 00075927 # - 3148 ETS Lindgren Log Periodic Antenna 75741 Emissions Test Conditions): DISTURBANCE POWER The DISTURBANCE POWER measurements were performed by using the absorbing clamp on the mains and interface cables in the frequency range 30 MHz - 300 MHz at the following test location : # - Test not applicable 9 - Darby Lab 9 - Test equipment used : Model NumberManufacturerDescriptionSerial Number 9 -MDS-21Rhode&SchwarzAbsorbing Clamp8608447020 9 -8566BHewlett-PackardSpectrum Analyzer2532A02418 9 -85662AHewlett-PackardAnalyzer Display2403A07352 9 -85650AHewlett-PackardQuasi-Peak Adapter2043A00209 9 -8447DHewlett-PackardAmplifier (26 dB)2944A06901 9 - EMC-30 Electro-Metrics EMI Receiver 191 Test Report Number 14F4…
