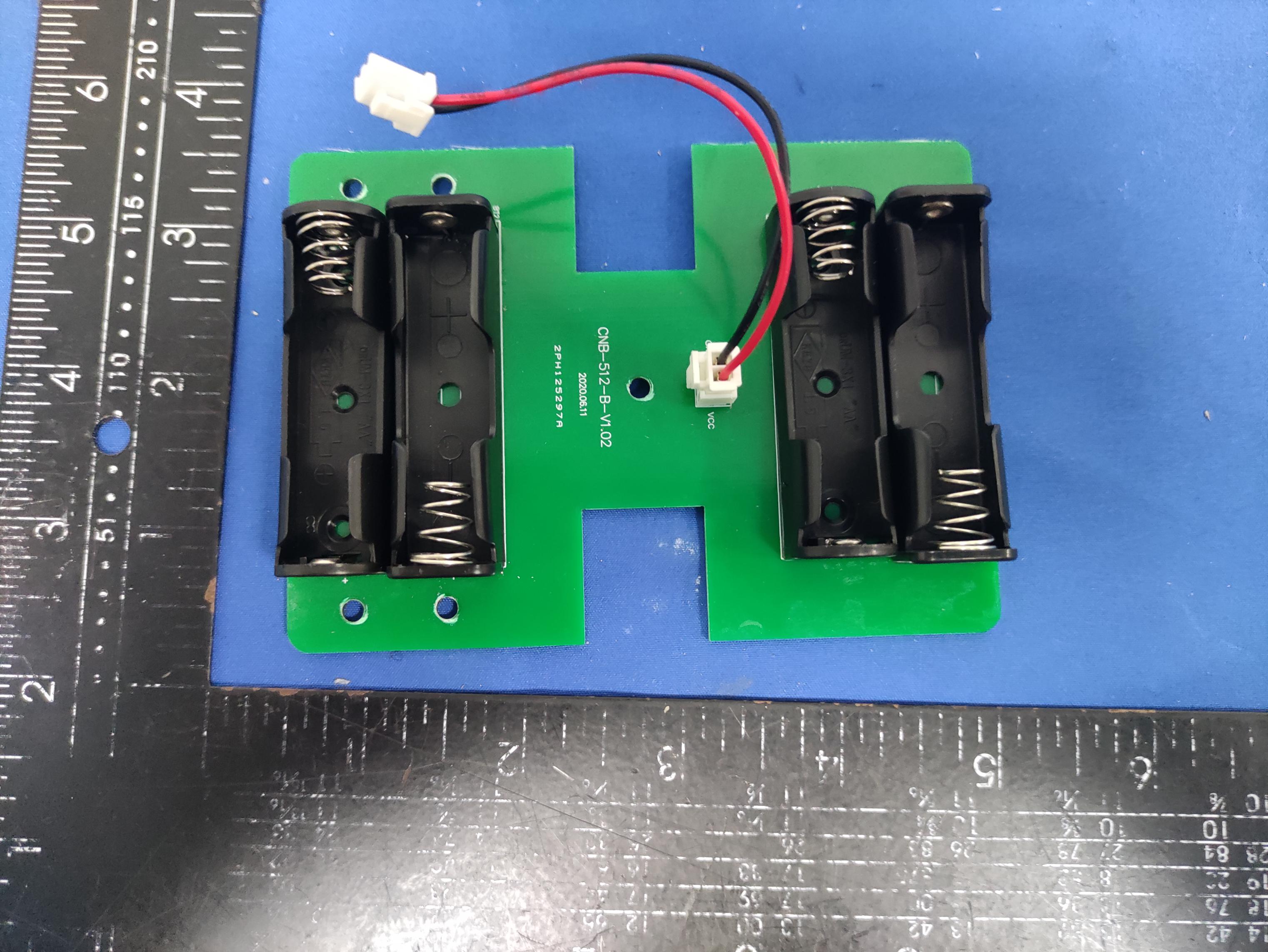

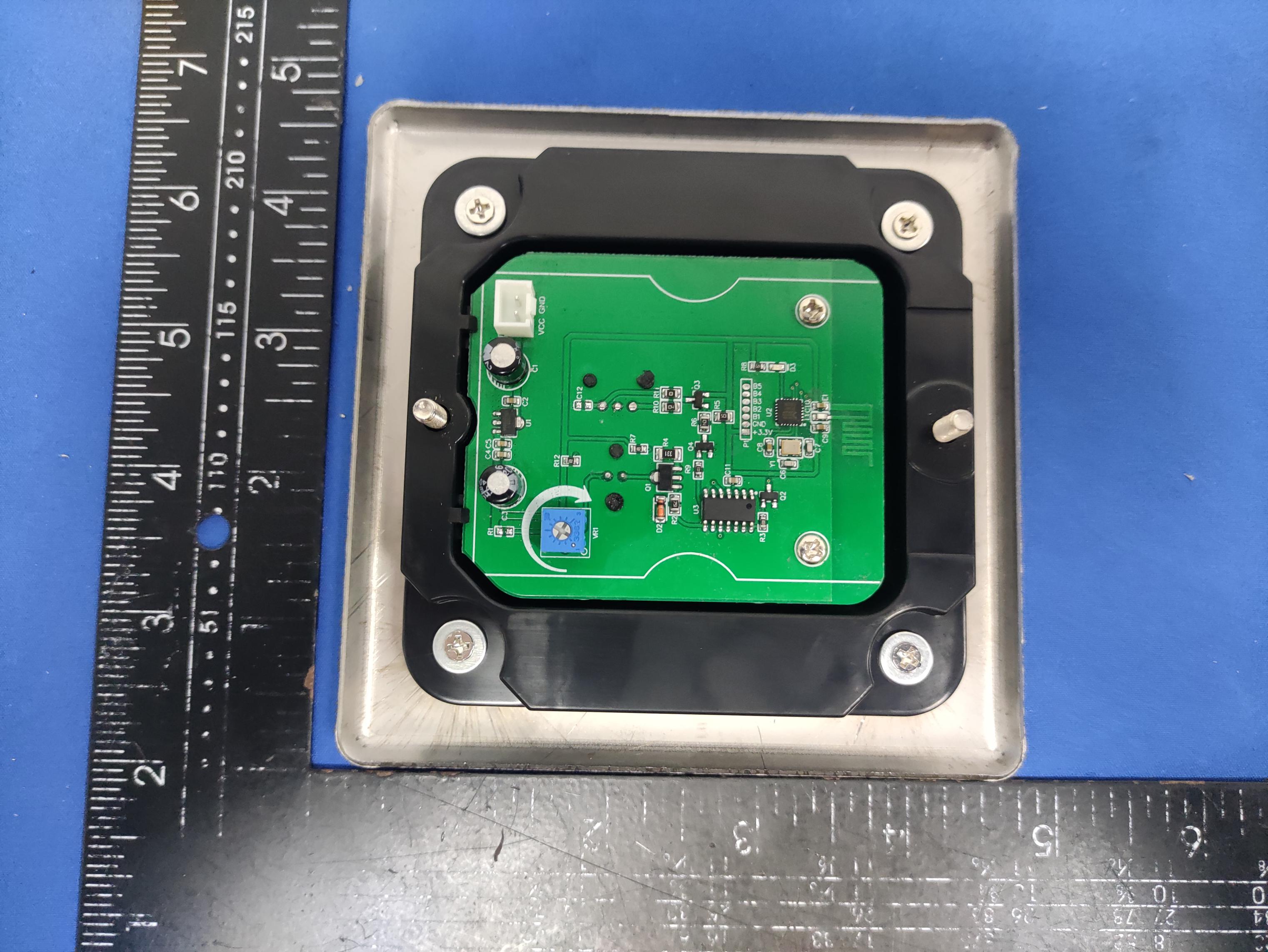

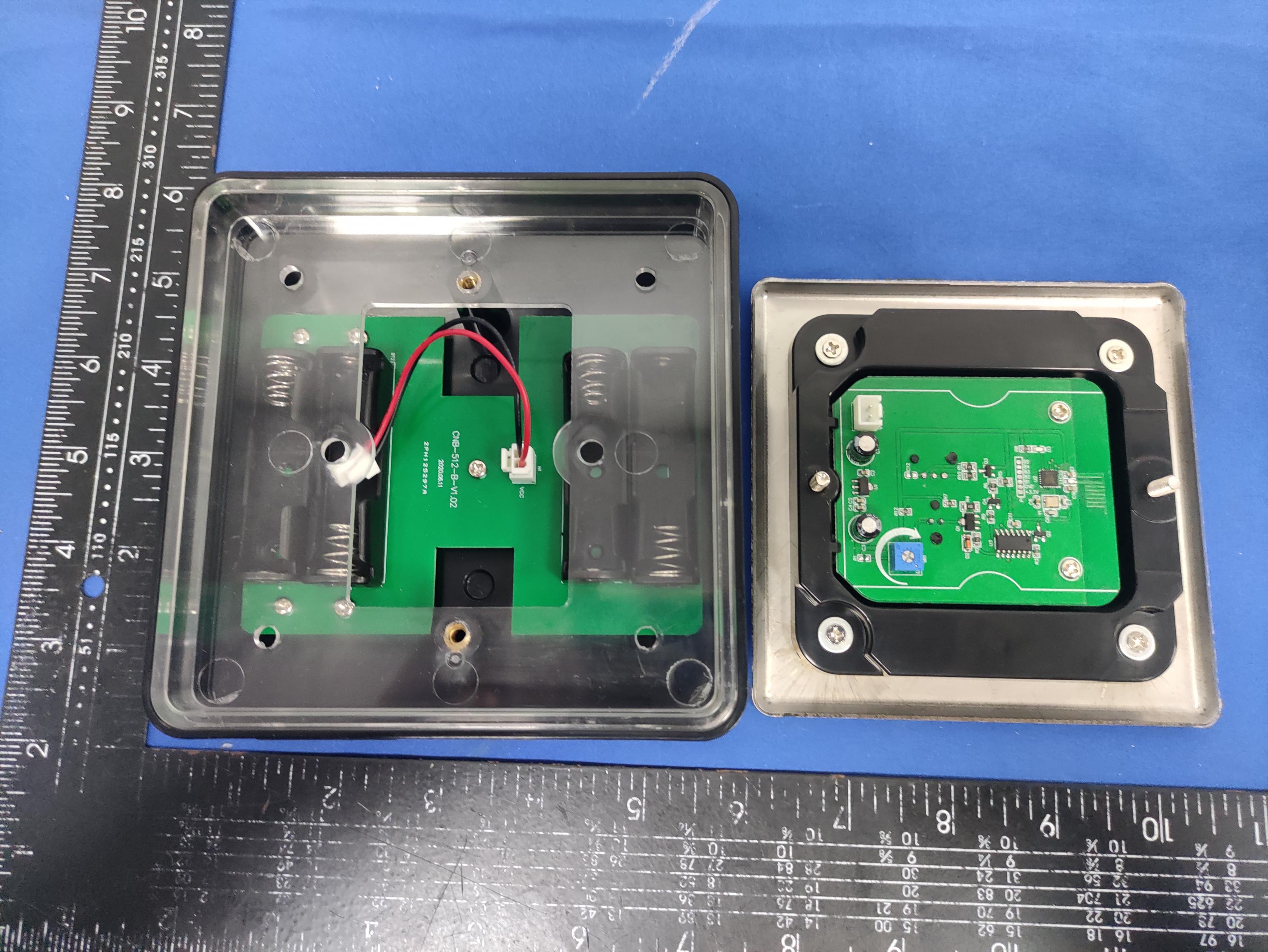

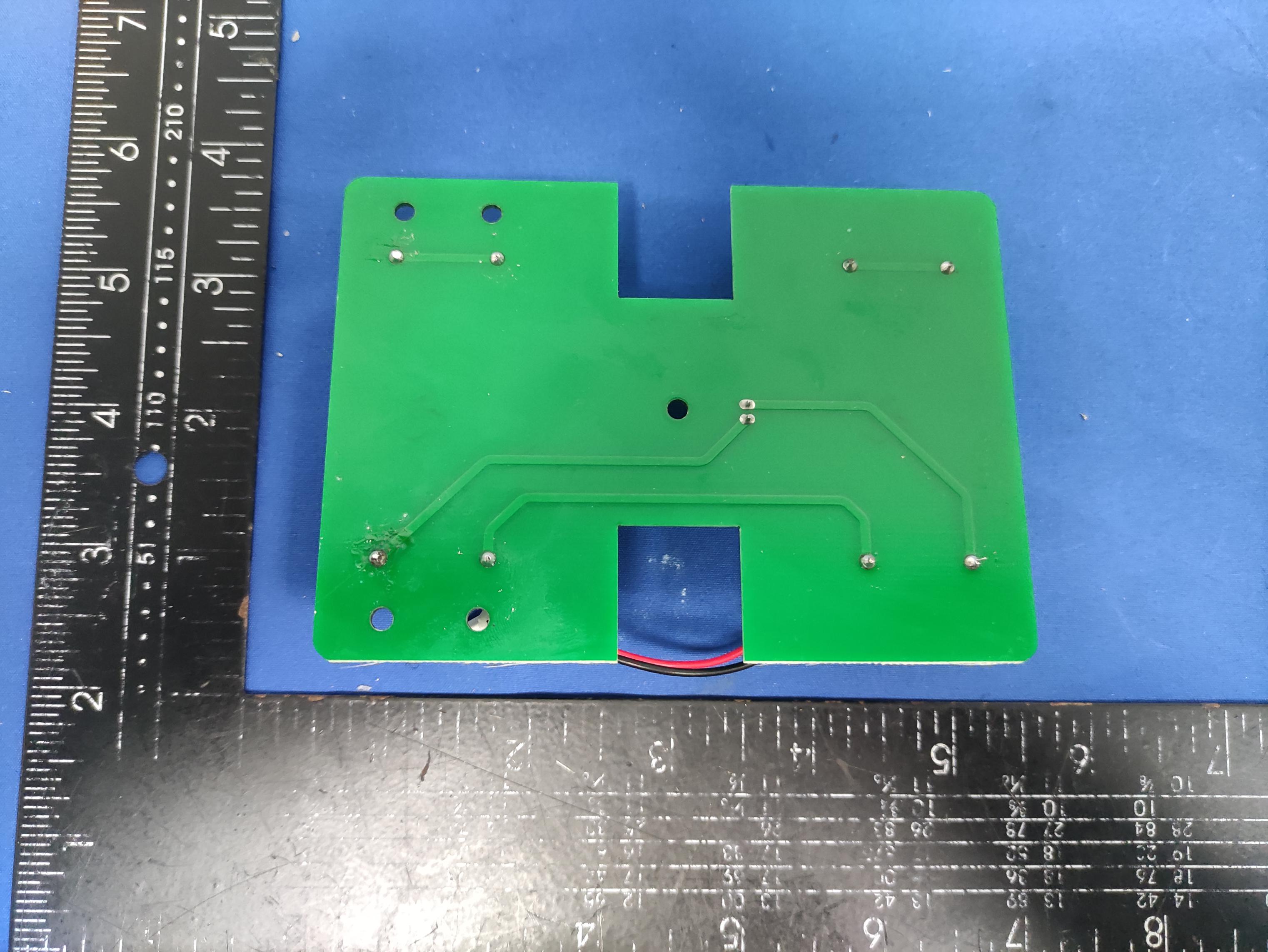

2AED9-RB506Wireless Battery Powered Touchless Switch

INSTALLATION RCI 912-WBT Series WIRELESS BATTERY POWERED TOUCHLESS SWITCH © 2021 dormakaba Canada Inc www.dormakaba.us • Phone: 1.800.265.6630 • Fax: 1.800.482.9795 • E-mail: [email protected] R01-21GR-1 OVERVIEW SPECIFICATION 912-WBT, 912-WBT-HC 912N-WBT, 912N-WBT-HC912GL-WBT, 912GL-WBT-HC Power Input6 VDC (4 AA batteries)3 VDC (2 AA batteries)3 VDC (2 AAA batteries) Static Current ≤ 80uA≤ 80uA ≤ 80uA Battery Life500 actuations/day ~ 450 Days200 actuations/day ~ 250 days200 actuations/day ~ 220 Days Emmission Current10mA10mA10mA Infrared Modulation Frequency 38KHz38KHz38KHz Infrared Scanning Interval 100ms100ms100ms Response time≤ 130ms≤ 130ms≤ 130ms Transmitter Range>30M (100') in clear line of sight>30M (100') in clear line of sight>30M (100') in clear line of sight Working Temperature*-42 ̊C ~ 45 ̊C (-43 ̊F ~ 113 ̊F)-42 ̊C ~ 45 ̊C (-43 ̊F ~ 113 ̊F)-42 ̊C ~ 45 ̊C (-43 ̊F ~ 113 ̊F) Working Humidity10 ~ 90% RH10 ~ 90% RH10 ~ 90% RH Size129mm L x 129mm W x 46mm H (5.0"w L x 5.0" W x 1.8" H) 121mm L x 51mm W x 46mm H (4.8" L x 2.0" W x 1.8" H) 86mm L x 86mm W x 15mm H (3.4" L x 3.4" W x 0.6" H) CertificationsFCC, ISED FCC, ISEDFCC, ISED * Intended for indoor use only SENSING DISTANCE ADJUSTMENT 30cm 3cm The clockwise direction will increase sensing distance. The counterclockwise direction will decrease sensing distance. • Infrared motion detection technology • Non-contact activation with hands or reflective objects is clean and hygenic • The detection distance is adjustable from 1-12" (3-30cm) • High sensitivity infrared, quick response • 2.4GHz wireless transmission adopts wireless transmitter/receiver • Low power consumption sensor provides long battery life • Receiver 3 Amp @ 30 VDC output can be used with automatic door and access control • After receiving the signal, the door opening signal is output for 1.5 seconds • Receiver voltage input 12~30 VDC © 2021 dormakaba Canada Inc www.dormakaba.us • Phone: 1.800.265.6630 • Fax: 1.800.482.9795 • E-mail: [email protected] SPECIFICATION RECEIVER model 912-R Power Input12 ~ 30 VDC Static Current 30 mA Activated Current74 mA @ 12 VDC Contact Rating3A @ 30 VDC SPDT Size110mm L x 30mm W x 15mm H (4.3" L x 1.2" W x 0.6" H) RECEIVER I/O DIAGRAM PAIRING & RESET REGULATORY STATEMENTS FCC statement: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. ISED statement: This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélec- trique subi, même si le brouillage est susceptible d'encompromettre le fonctionnement. Transmitter/Receiver Pairing: 1. Press Learn Button for 1 second. LED will change from green to red, indicating learn mode. 2. Activate Transmitter Button Red, Blue. LED will flash alternately, indicating units are paired. 3. Select momentary or latching for activation action. Note: Follow steps 1 & 2 for additional units. Reset receiver: 1. Press and hold Learn Button for 5 seconds. Will delete memory. Note: As this device uses wireless transmit- ter and receiver technology, location of these devices is critical to optimal operation. Locating the receiver in close proximity to other electrical devices and connections may cause erratic behavior. Should this happen, relocate the receiver. Orange = NC relay output Yellow = COM relay output Blue = NO relay output Red to Posi tive Power Green to Negative Power } } 12 - 30 VDC SPDT 3A Relay M = Momentary L = Latching Learn Butto n Blue LED Activa ted Red LED Power 912-R M-MOMENTARY L-LATCHING

Page 1 of 1 Declaration on model difference We, dormakaba Canada Inc.the undersigned hereby confirm that these models are identical, and all models have the same RF module and Antenna, except for enclosure, power input rating and model No. for trading purpose. Product nameWireless Battery Powered Touchless Switch Model No. 912-WBT, 912N-WBT, 912-WBT-HC, 912N-WBT-HC, 912GL-WBT, 912GL-WBT-HC Trade name FCC ID2AED9-RB506 INPUT Confirmed by: Client’s signature: Client’s name / title: Gwen Rothernel /Coordiator Regulartory Affairs Engineering Date:2020-12-18 DC 6V (4 AA batteries) for 912-WBT, 912-WBT-HC DC 3V (2 AA batteries) for 912N-WBT, 912N-WBT-HC DC 3V (2 AAA batteries) for 912GL-WBT, 912GL-WBT-HC
