2AEDNA09SNAPPY Mouse-Wireless

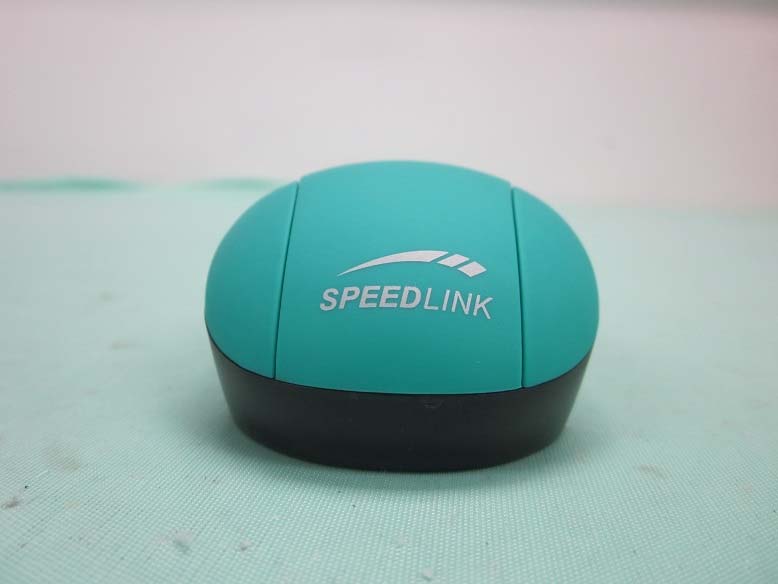

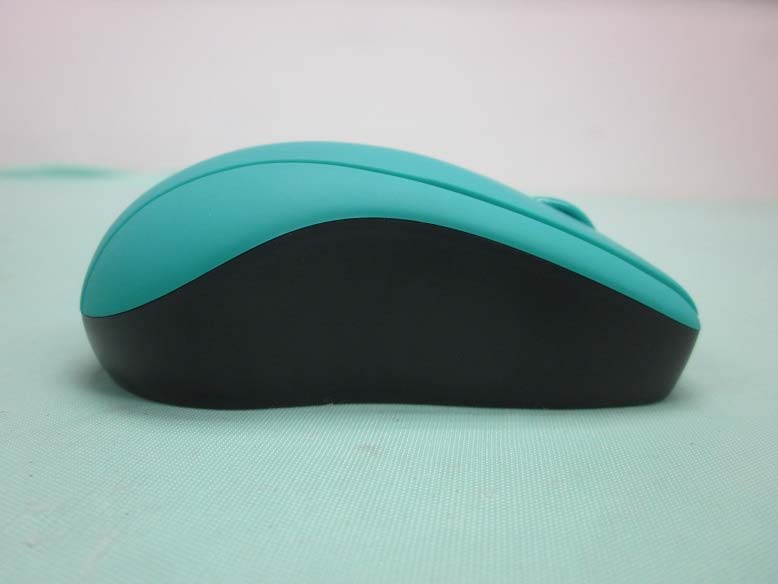

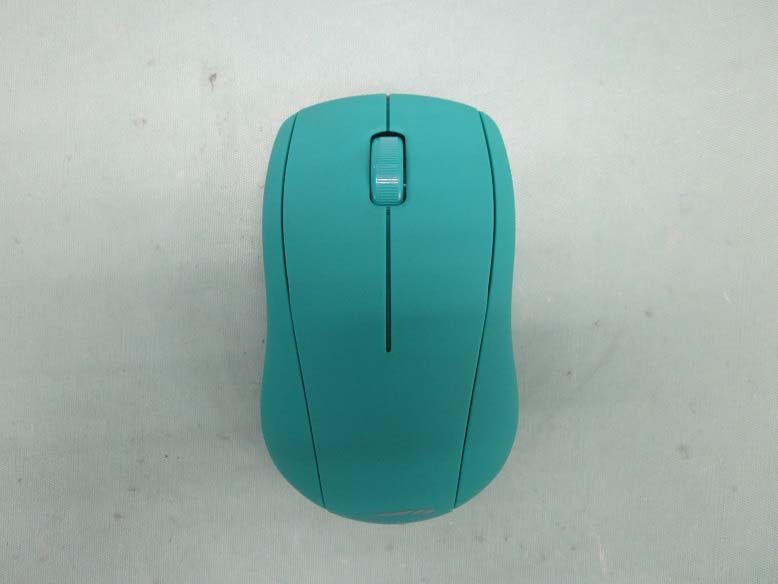

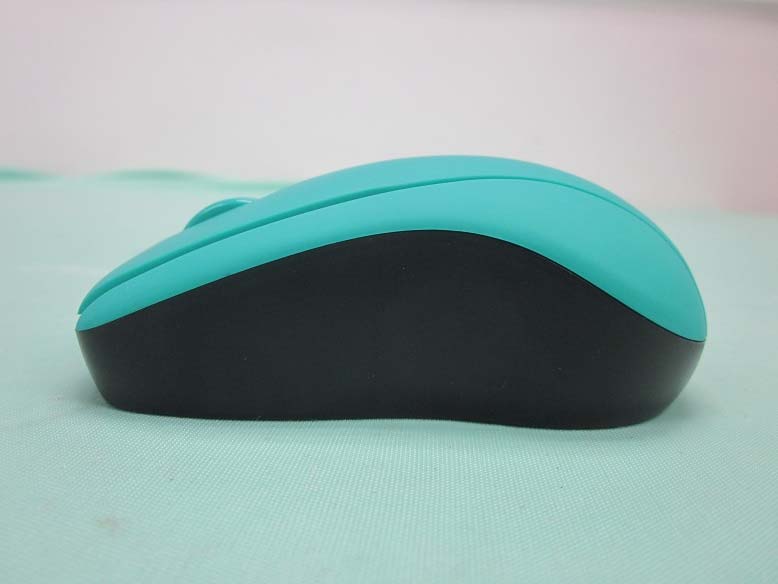

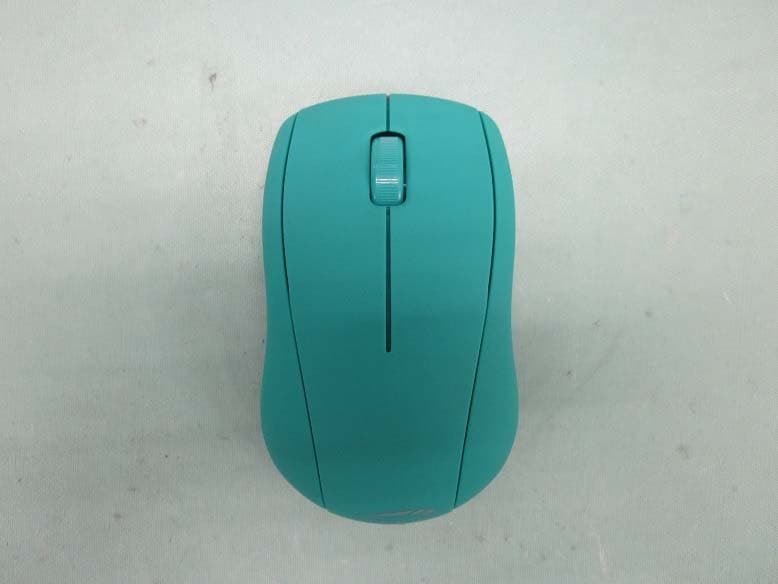

1 External Photo FCC ID: 2AEDNA09 Front View of The Product Rear View of The Product 2 Top View of The Product Bottom View of The Product 3 Left View of The Product Right View of The Product

1 Label location

1 Internal Photo FCC ID: 2AEDNA09 Inside View of The Product Inner Circuit Top View 2 Inner Circuit Bottom View Inner Circuit Top View 3 Inner Circuit Bottom View

STC Test Report The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 E-mail: [email protected] Homepage: www.stc-group.org This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage Date: 2015-10-13 Page 1 of 21 No.: MH191871 Applicant: Winspeed Co., Ltd. 14F-1, No.2, Jian-Ba Rd., Chung-Ho District, New Taipei City, Taiwan Manufacturer: Winspeed Co., Ltd. 14F-1, No.2, Jian-Ba Rd., Chung-Ho District, New Taipei City, Taiwan Description of Sample(s): Submitted sample(s) said to be Product: SNAPPY Mouse-Wireless Brand Name: SPEEDLINK Model Number: SL-630003-TE FCC ID: 2AEDNA09 Date Sample(s) Received: 2015-09-24 Date Tested: 2015-09-26 to 2015-10-12 Investigation Requested: Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2014 and ANSI C63.10: 2013 for FCC Certification. Conclusion(s): The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remark(s): For additional model(s) details, please page 3. Dr. LEE Kam Chuen Authorized Signatory ElectroMagnetic Compatibility Department For and on behalf of The Hong Kong Standards and Testing Centre Ltd. STC Test Report The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 E-mail: [email protected] Homepage: www.stc-group.org This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage Date: 2015-10-13 Page 2 of 21 No.: MH191871 CONTENT: Cover Page 1 of 21 Content Page 2 of 21 1.0 General Details 1.1 Equipment Under Test [EUT] Page 3 of 21 1.2 Description of EUT Operation Page 3 of 21 1.3 Date of Order Page 3 of 21 1.4 Submitted Sample Page 3 of 21 1.5 Test Duration Page 3 of 21 1.6 Country of Origin Page 3 of 21 2.0 Technical Details 2.1 Investigations Requested Page 4 of 21 2.2 Test Standards and Results Summary Page 4 of 21 3.0 Test Results 3.1 Emission Page 5-12 of 21 3.2 Bandwidth Measurement Page 13-16 of 21 Appendix A List of Measurement Equipment Page 17 of 21 Appendix B Photographs Page 18-21 of 21 STC Test Report The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 E-mail: [email protected] Homepage: www.stc-group.org This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage Date: 2015-10-13 Page 3 of 21 No.: MH191871 1.0 General Details 1.1 Equipment Under Test [EUT] Description of Sample(s) Product: SNAPPY Mouse-Wireless Manufacturer: Winspeed Co., Ltd. 14F-1, No.2, Jian-Ba Rd., Chung-Ho District, New Taipei City, Taiwan Brand Name: SPEEDLINK Model Number: SL-630003-TE Additional Model Number: SL-630003-RD, SL-630003-BE Rating: 1.5Vd.c. (AA*1 battery) 1.2 Description of EUT Operation The Equipment Under Test (EUT) is a SNAPPY Mouse-Wireless of Winspeed Co., Ltd.. The transceiver operating in the 2.4GHz ISM frequency band. The RF signal is modulated by IC, the type of modulation used is FSK. 1.3 Date of Order 2015-09-24 1.4 Submitted Sample(s): 1 Sample 1.5 Test Duration 2015-09-26 to 2015-10-12 1.6 Country of Origin China STC Test Report The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 E-mail: [email protected] Homepage: www.stc-group.org This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage Date: 2015-10-13 Page 4 of 21 No.: MH191871 2.0 Technical Details 2.1 Investigations Requested Perform Electromagnetic Interference measurements in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2014 Regulations and ANSI C63.10: 2013 for FCC Certification. The device was realized by test software. 2.2 Test Standards and Results Summary Tables EMISSION Results Summary Test Condition Test Requirement Test Method Class / Test Result Severity Pass Fail N/A Field Strength of Fundamental & Harmonics Emissions FCC 47CFR 15.249ANSI C63.10: 2013 N/A Radiated Emissions FCC 47CFR 15.209ANSI C63.10: 2013 N/A Note: N/A - Not Applicable STC Test Report The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 E-mail: [email protected] Homepage: www.stc-group.org This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage Date: 2015-10-13 Page 5 of 21 No.: MH191871 3.0 Test Results 3.1 Emission 3.1.1 Radiated Emissions Test Requirement: FCC 47CFR 15.249 & FCC 47CFR 15.209 Test Method: ANSI C63.10: 2013 Test Date: 2015-10-12 Mode of Operation: TX mode Test Method: For emission measurements at or below 1 GHz, the sample was placed 0.8m above the ground plane of semi-anechoic Chamber*. For emission measurements above 1 GHz, the sample was placed 1.5m above the ground plane of semi-anechoic Chamber*. Measurements in both horizontal and vertical polarities were performed. During the test, each emission was maximized by: having the EUT continuously working, investigated all ope…

Text truncated - open the document above for the full version.

1 Test Photo FCC ID: 2AEDNA09 Measurement of Radiated Emission Test Set Up Measurement of Radiated Emission Test Set Up 2 Measurement of Radiated Emission Test Set Up
