2AEDS110LTEWIFI

Citrix Systems

Networking device

Click to zoom

Application Details

Equipment Class: PCB - PCS Licensed Transmitter
Date of Grant: Jun 08, 2020
Application Purpose: Original Equipment
Date of Application: Jun 08, 2020
Equipment Note: Networking device
Frequency Range: 2506.00000000 - 2680.00000000
Company: Citrix Systems
Country: United States

Documents & Files

Select a file to view

Users Manual

Attestation Statements

Cover Letter(s)

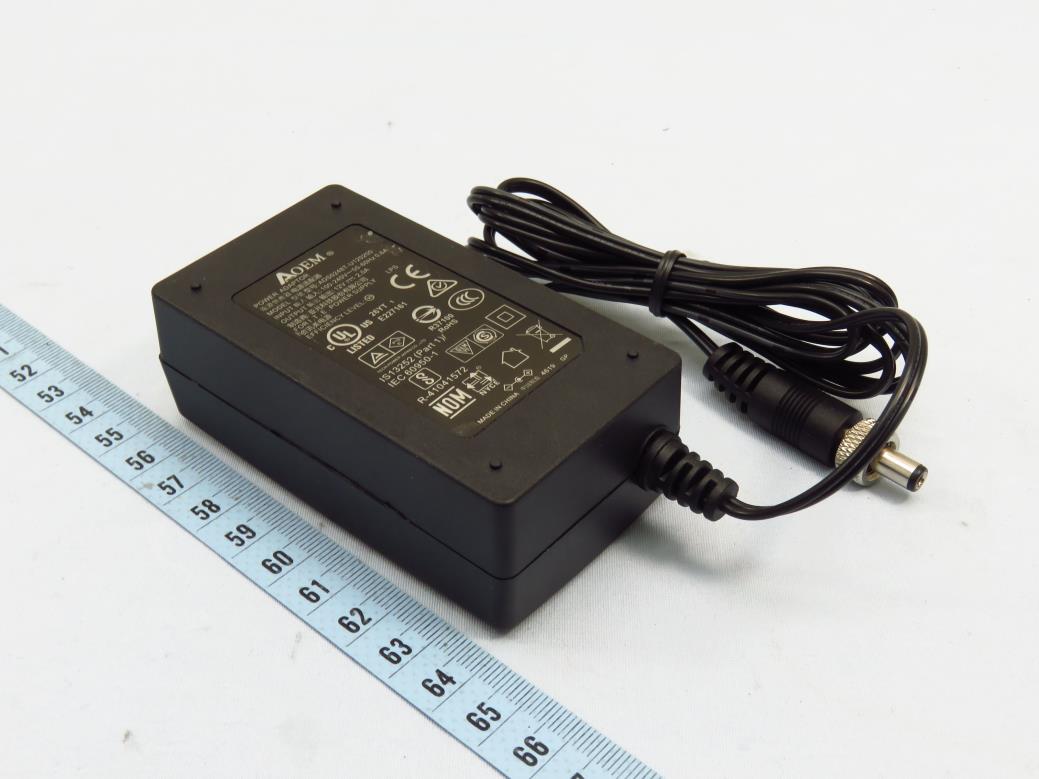

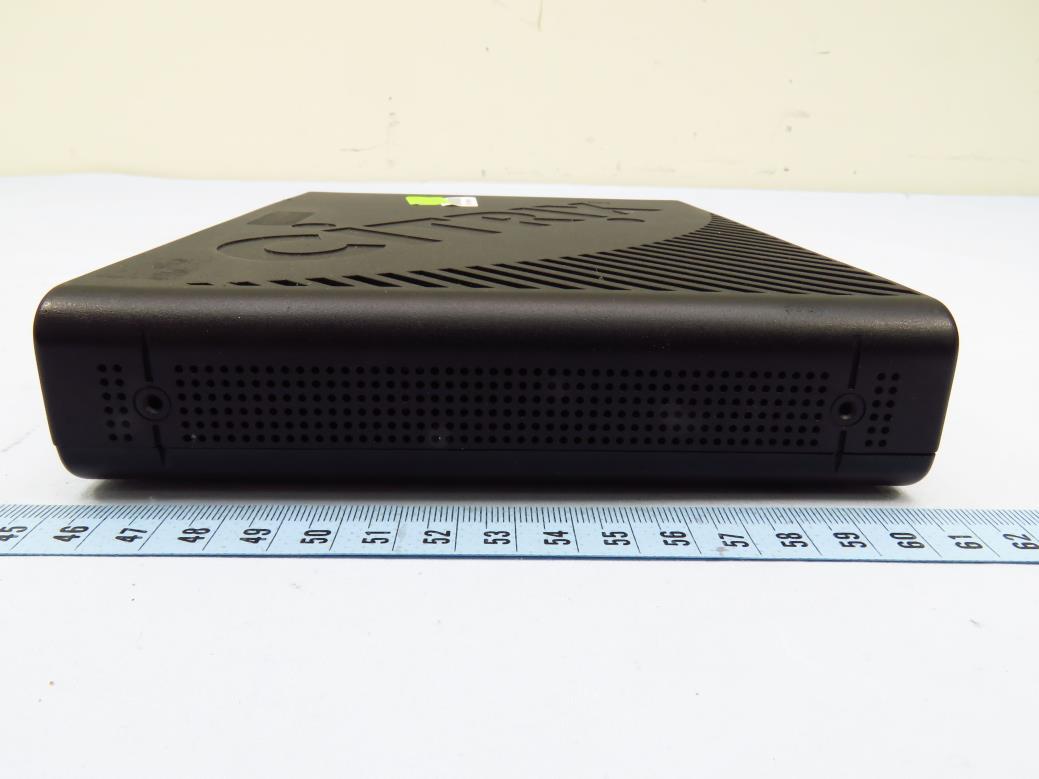

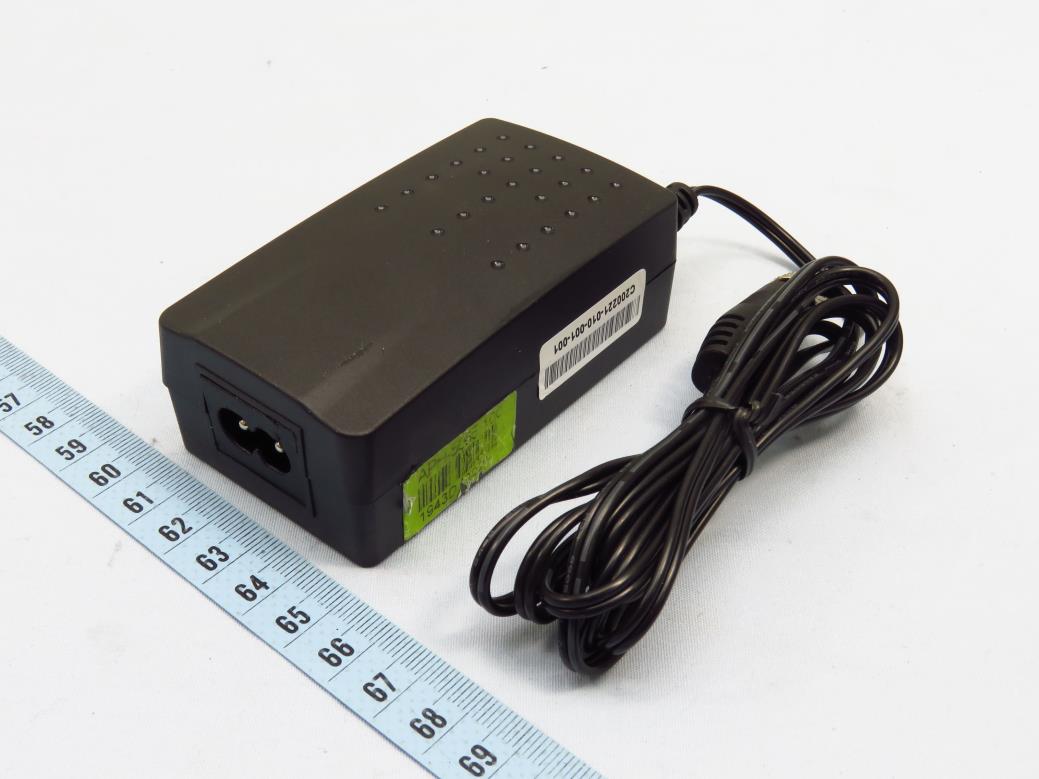

External Photos

ID Label/Location Info

Internal Photos

RF Exposure Info

Test Report

Test Setup Photos

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
41	27	2.51 GHz - 2.68 GHz	342.00 mW	17M9W7D	0.1 ppm

Confidentiality

Long Term

Grant Notes

Power listed is ERP/EIRP. End-users and responsible parties must be provided with operating and installation instructions to ensure RF exposure compliance. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter, except the collocation as described in this filing or in accordance with FCC multi-transmitter product guidelines. This device supports: LTE of 1.4, 3, 5, 10, 15, and 20MHz bandwidth modes for LTE Band 2, 4 and 25; and LTE of 1.4 , 3, 5 and 10MHz bandwidth modes for LTE Band 5,12 and 26 (814-824MHz),LTE of 5, 10, 15 and 20MHz bandwidth modes for LTE Band 7, 38 and 41; LTE of 5 and 10 MHz bandwidth modes for LTE Band 13; LTE of 1.4, 3, 5,10 and 15MHz bandwidth mode for LTE Band 26(824-849MHz). The maximum antenna gain is 4.5dBi for WCDMA Band 2/4 & LTE Band 2/4/25; 1.5dBi for WCDMA Band 5 LTE Band 5/26; 4dBi for LTE Band 7/38/41; 2.6dBi for LTE Band 12/13.
