2AEFF-M001TeckNet M001 Gaming Mouse Wireless

TeckNet M001 Gaming Mouse Wireless M001 Manual Welcome Thank you for purchasing this product. To ensure optimum performance and safety, please read these instructions carefully before operating the product. It is strongly recommended you keep the manual for future reference. System Requirements To use this mouse, your computer must meet the following hardware requirements and run one of the operating systems listed below. Hardware • PC with a Pentium processor or equivalent AMD processors • USB 2.0 Operation System • Windows 2000, 2003, XP, Vista, Win7, Win8, Win8.1 Note: The scroll wheel only works under the operating systems listed above. If you use the mouse under a different operating system, the mouse may either not work or lose its enhanced features. Supplied with the Product 1 × Cordless Mouse 1 × USB Nano Receiver 1 × User Manual 1 × Warranty Card 5-Button Mouse The mouse is featured with five buttons and one scroll wheel as shown in the picture below. 1. Left Click Button 2. Right Click Button 3. Scroll Wheel 4. DPI Switch Button 5. Froward Button 6. Back Button 7. Low Battery Indicator 6-Month Battery Life The mouse consumes very little power and enables a long battery life of up to 6 months without changing the battery. However please note that the actual battery life may vary based on user and computing conditions. Installing the Batteries The RF 2.4GHZ optical mouse uses single AA batteries (Battery not included). 1. Open the battery cover. 2. Install the batteries into the compartment, ensuring they correspond with the polarity marking. Please make sure that the white pull-tab is under the batteries when loading. 3. Replace the battery cover. 4. Switch on the mouse by adjusting the power switch underneath the mouse. The red LED of the power indicator（the scroll wheel LED) will flash. Note: 1) Make sure that the polarity of the batteries is correct. The positive (+) and negative (-) ends of each battery must match the positive (+) and negative (-) markings in the battery housing. 2) Open the battery compartment cover, simply pull up the white tab, the batteries will move out of the compartment for reloading the new batteries, ensuring they correspond with the polarity marking. Connecting the Receiver Take out USB Nano receiver and plug it into a free USB port in your computer. The Plug & Play function of your system will detect that a new device has been connected and install it automatically USB Nano Receiver The receiver can be removed and stored next to the battery compartment while not in use. Intelligent Power Saving (IPS)` The mouse is equipped with Intelligent Power Saving (IPS) function. • When the USB Nano receiver is disconnected or the PC is switched off, the mouse will be switched off automatically for the purpose of power-saving. • When your mouse is not used for 3 seconds, it will automatically drop to the first level of IPS. To wake the mouse, click any button. • When your mouse is not operated for 10 seconds, it will automatically drop to the second level of IPS. To wake the mouse, click any button. • When your mouse is not operated for 8 minutes, it will automatically drop to the third level of IPS, e.g. sleep model. To wake the mouse, click any button. DPI Switch The mouse supports 1600 DPI, 1200 DPI and 800 DPI. To switch to either setting, press the DPI button. • The default setting is 1200 DPI. • Click the DPI button on the top of the mouse once to switch from 1600 DPI to 800 DPI, the scroll wheel LED will flash once times. • Click the DPI button on the top of the mouse once again to switch from 800 DPI to 1200 DPI, the scroll wheel LED will flash twice. • Click the DPI button on the top of the mouse once again to switch from 1200 DPI to 1600 DPI, the scroll wheel LED will flash three times. Low Battery Power Indication The mouse is equipped with low power capacity indicator. When the battery power gets low during the period of use, the Low Power Capacity Indicator (under the Scroll Wheel) will flash. Please replace the battery. Note: we recommend you use AA alkaline dry cell battery which will supply longer battery life Reconnection There is a wireless signal connection code for this mouse. High temperatures, electro-magnetic fields or vibration may influence the code signal and occasionally the mouse may need to be reconnected. Both the mouse and Nano Receiver have a built-in code and one mouse can be connected to one receiver, or several mice to one Nano Receiver. The mouse and Nano Receiver may need to be reconnected if subjected to high temperature, electro magnetic fields or strong vibrations. 1. Unplug the Nano receiver from USB port, and plug it back in. 2. Move the mouse to within 50cm of the Nano Receiver or re-install the battery or press any key to reconnect; the above process must be completed in 15 seconds. 3. The mouse will be ready for use after reconnection. Attention 1. To maximize battery life, it is recommended you use the mouse on a white or light coloured surface. 2. If not used, the mouse will drop into auto-sleeping mode within 3 seconds, press any key or scroll wheel to activate the mouse. 3. Never use the mouse on a glass or mirrored surface, as these surfaces will cause the mouse to fail temporarily. 4. The mouse might not work smoothly on some special surfaces, such as smooth, dark or black, reflecting and 3D mouse pads surfaces. 5. Please avoid using the mouse on a metal surface. Metals, such as iron, aluminium or copper, shield the radio frequency transmission and may slow down the mouse presenter’s response time or cause the mouse to fail temporarily. 6. If your PC has a metal case that contains aluminium or magnesium, use the mouse to the side. The display panel may interfere with the radio frequency signal if you use the mouse directly in front of the PC. 7. Please remove the batteries if you are not going to use it for a while (several weeks or months). Note on handling batteries  Keep batteries out of the reach of chil…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (current) 4.0 5.0 Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 5.0 SHENZHEN UNICHAIN TECHNOLOGY CO.,LTD. 2015-09-15 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, ____ SHENZHEN UNICHAIN TECHNOLOGY CO.,LTD._ _hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): Product： TeckNet M001 Gaming Mouse Wireless Trade Name： TECKNET Model Name： M001 Serial Model： N/A FCC ID： 2AEFF-M001 Sincerely, Signature Client’s name / title : Fanny Su / Senior Test Engineer Contact information / address : 5/F, Block17, Lishan Industrial Park, Nanshan District, Shenzhen,China.

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 4.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (obsolete) 2.0 3.0 Jan-31-2012 Added IC confidentiality letter form (current) 3.0 4.0 March-26-2015 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 4.0 SHENZHEN UNICHAIN TECHNOLOGY CO.,LTD. 2015-09-15 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: 2AEFF-M001 We hereby request confidential treatment of information accompanying this application as outlined below: - . Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Signature Client’s name / title : Fanny Su / Senior Test Engineer Contact information / address : 5/F, Block17, Lishan Industrial Park, Nanshan District, Shenzhen,China.

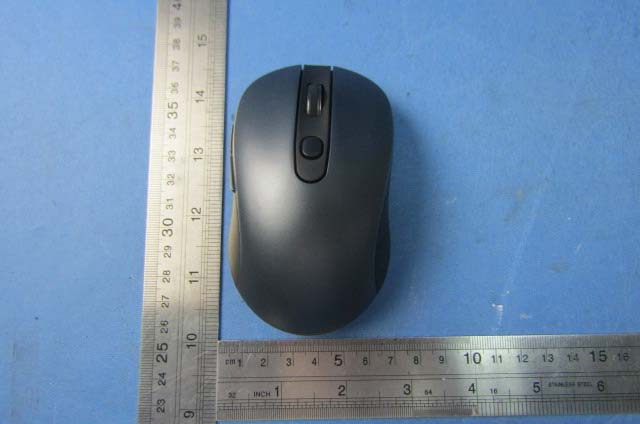

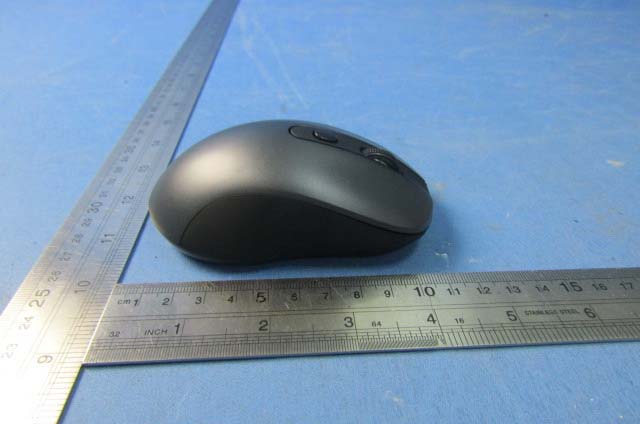

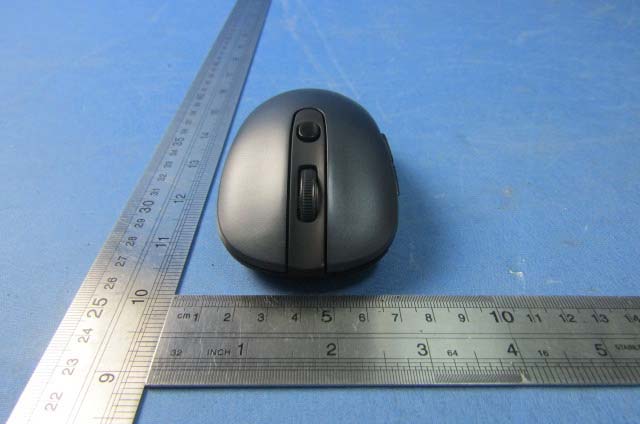

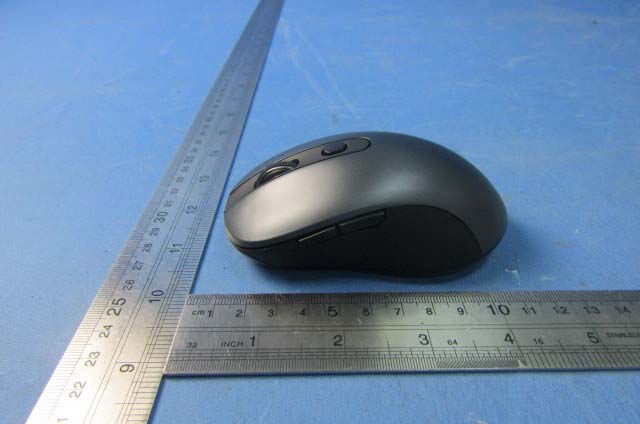

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6

FCC ID LABELING AND LOCATION FCC ID Label TeckNet M001 Gaming Mouse Wireless Model NO.: M001 FCC ID: 2AEFF-M001 FCC ID Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 2.4G ANT

FCC RADIO TEST REPORT FCC ID:2AEFF-M001 Product： TeckNet M001 Gaming Mouse Wireless Trade Name： TECKNET Model Name： M001 Serial Model： N/A Report No.： NTEK-2015NT0724364F2 Prepared for SHENZHEN UNICHAIN TECHNOLOGY CO.,LTD. 5/F, Block17, Lishan Industrial Park, Nanshan District, Shenzhen,China. Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community,Xixiang Street Bao’an District, Shenzhen P.R. China Tel.: +86-0755-61156588 Fax.: +86-0755-61156599 Website:www.ntek.org.cn Page 2 of 36 Report No.: NTEK-2015NT0724364F2 ` TEST RESULT CERTIFICATION Applicant’s name ................. : SHENZHEN UNICHAIN TECHNOLOGY CO.,LTD. Address ................................. : 5/F, Block17, Lishan Industrial Park, Nanshan District, Shenzhen,China. Manufacture's Name ............ : Eastern Times Technology Co.LTD. Address ................................. : Building D,Nan An Industrial Area, Youganpu Village,Fenggang Town, Dongguan City,Guangdong, China Product description Product name ........................... : TeckNet M001 Gaming Mouse Wireless Model and/or type reference : M001 Serial Model： N/A Rating(s) ................................ : DC 1.5V Standards ............................. : FCC Part15.249 01 Oct. 2014 Test procedure ..............................ANSI C63.10-2013 This device described above has been tested by NTEK, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of NTEK, this document may be altered or revised by NTEK, personnel only, and shall be noted in the revision of the document. Date of Test ............................................ : Date (s) of performance of tests ............. : 24 Jul. 2015 ~02 Sep. 2015 Date of Issue ........................................... : 02 Sep. 2015 Test Result ............................................... : Pass Testing Engineer : (Eileen Liu) Technical Manager : (Brown Lu) Authorized Signatory : (Sam Chen) Page 3 of 36 Report No.: NTEK-2015NT0724364F2 ` Table of Contents Page 1 . SUMMARY OF TEST RESULTS 4 1.1 TEST FACILITY 5 1.2 MEASUREMENT UNCERTAINTY 5 2 . GENERAL INFORMATION 6 2.1 GENERAL DESCRIPTION OF EUT 6 2.2 DESCRIPTION OF TEST MODES 8 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 9 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 10 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 11 3 . ANTENNA REQUIREMENT 12 3.1 STANDARD REQUIREMENT 12 3.2 EUT ANTENNA 12 3.3 CONDUCTED EMISSION MEASUREMENT 13 3.3.1 POWER LINE CONDUCTED EMISSION LIMITS 13 3.3.2 TEST PROCEDURE 14 3.3.3 DEVIATION FROM TEST STANDARD 14 3.3.4 TEST SETUP 14 3.2.5 TEST RESULT 15 3.4 RADIATED EMISSION MEASUREMENT 16 3.4.1 RADIATED EMISSION LIMITS 16 3.4.2 TEST PROCEDURE 17 3.4.3 DEVIATION FROM TEST STANDARD 17 3.4.4 TEST SETUP 18 3.4.5 TEST RESULTS (BLOW 30MHZ) 20 3.4.6 TEST RESULTS (BETWEEN 30 – 1000 MHZ) 21 3.4.7 TEST RESULTS (ABOVE 1000 MHZ) 23 3.4.8 TEST RESULTS (RESTRICTED BANDS REQUIREMENTS) 29 4 . BANDWIDTH TEST 33 4.1 TEST PROCEDURE 33 4.2 DEVIATION FROM STANDARD 33 4.3 TEST SETUP 33 4.4 TEST RESULTS 34 5 . EUT TEST PHOTO 36 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Page 4 of 36 Report No.: NTEK-2015NT0724364F2 ` 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15, Subpart C (15.249) Standard Section Test Item Judgment Remark 15.207 Conducted Emission N/A 15.203 Antenna Requirement Pass 15.249 Radiated Spurious Emission Pass 15.205 Band Edge Emission Pass 15.249 Occupied Bandwidth Pass Page 5 of 36 Report No.: NTEK-2015NT0724364F2 ` 1.1 TEST FACILITY NTEK Testing Technology Co., Ltd Add. : 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen P.R. China. FCC FRN Registration No.:238937; IC Registration No.:9270A-1 CNAS Registration No.:L5516 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±1.38dB 2 RF power,conducted ±0.16dB 3 Spurious emissions,conducted ±0.21dB 4 All emissions,radiated(<1G) ±4.68dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% Page 6 of 36 Report No.: NTEK-2015NT0724364F2 ` 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment TeckNet M001 Gaming Mouse Wireless Trade Name TECKNET Model Name M001 Serial Model N/A Model Difference N/A Product Description The EUT is a TeckNet M001 Gaming Mouse Wireless Operation Frequency: 2408-2474MHz Modulation Type: FSK Antenna Designation: PCB Antenna Antenna Gain(Peak) 1.0 dBi Based on the application, features, or specification exhibited in User's Manual, the EUT is considered as an ITE/Computing Device. More details of EUT technical specification, please refer to the User's Manual. Channel List Please refer to the Note 2. Adapter N/A Battery DC 1.5V Note: 1. For a more detailed features description, please refer to the manufacturer’s specifications or the User's Manual. Page 7 of 36 Report No.: NTEK-2015NT0724364F2 ` 2. Channel Frequency (MHz) Channel Frequency (MHz) 01 2408 18 2442 02 2410 19 2444 03 2412 20 2446 04 2414 21 2448 05 2416 22 2450 06 2418 23 2452 07 2420 24 2454 08 2422 25 2456 09 2424 26 2458 10 2426 27 2460 11 2428 28 2462 12 2430 29 2464 13 2432 30 2466 14 2434 31 2468 15 2436 32 2470 16 2438 33 2472 17 2440 34 2474 3. Table for Filed Antenna Ant . Brand Model Name Antenna Type Connector Gain (dBi) NOTE 1 N/A N/A PCB Antenna N/A 1.0 Antenna Page 8 of 36 Report No.: NTEK-2015NT0724364F2 ` 2.2 DESCRIPTION OF TEST MODES To investigate the maximum EMI emission characteristics generates from EUT, the test system was pre-scanning tested base on the consideration of following EUT …
