2AEFGBOODY88879339Radio Control Toy Transmitter (2.4GHz)

www.tuv.com Test Report No.: 14039196 001 Appendix 4 page 7 of 14 1.6 User Manual www.tuv.com Test Report No.: 14039196 001 Appendix 4 page 8 of 14 www.tuv.com Test Report No.: 14039196 001 Appendix 4 page 9 of 14 www.tuv.com Test Report No.: 14039196 001 Appendix 4 page 10 of 14 www.tuv.com Test Report No.: 14039196 001 Appendix 4 page 11 of 14 www.tuv.com Test Report No.: 14039196 001 Appendix 4 page 12 of 14 www.tuv.com Test Report No.: 14039196 001 Appendix 4 page 13 of 14 www.tuv.com Test Report No.: 14039196 001 Appendix 4 page 14 of 14

Page 1 / 1 shan tou boody electronic co .,ltd ADD: Zhushuyuan Industrial Area, Zhuhua Road, Shangdai, Chenghai District, Shantou City, Guangdong Province, China To Whom It May Concern: Please be advised that Applicant Name: shan tou boody electronic co .,ltd Address: Zhushuyuan Industrial Area, Zhuhua Road, Shangdai City: Chenghai District, Shantou City Country: Guangdong Province, China authorizes, Joey Leung, Project Engineer at TÜV Rheinland Hong Kong Ltd. to act on our behalf, until otherwise notified, for applications submitted to a Telecommunication Certification Body (TCB) recognized by the FCC. We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C.862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you for your attention to this matter. Signature: Name: Huai Yu Wu Title: Manager

Page 1 / 1 shan tou boody electronic co .,ltd ADD: Zhushuyuan Industrial Area, Zhuhua Road, Shangdai, Chenghai District, Shantou City, Guangdong Province, China Applicant Name: shan tou boody electronic co .,ltd Address: Zhushuyuan Industrial Area, Zhuhua Road, Shangdai City: Chenghai District, Shantou City Country: Guangdong Province, China Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to 47 CFR Section 0.457 and 0.459, the applicant hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application for FCC ID: 2AEFGBOODY88879339 Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Signature: Name: Huai Yu Wu Title: Manager Date: 2015-4-1

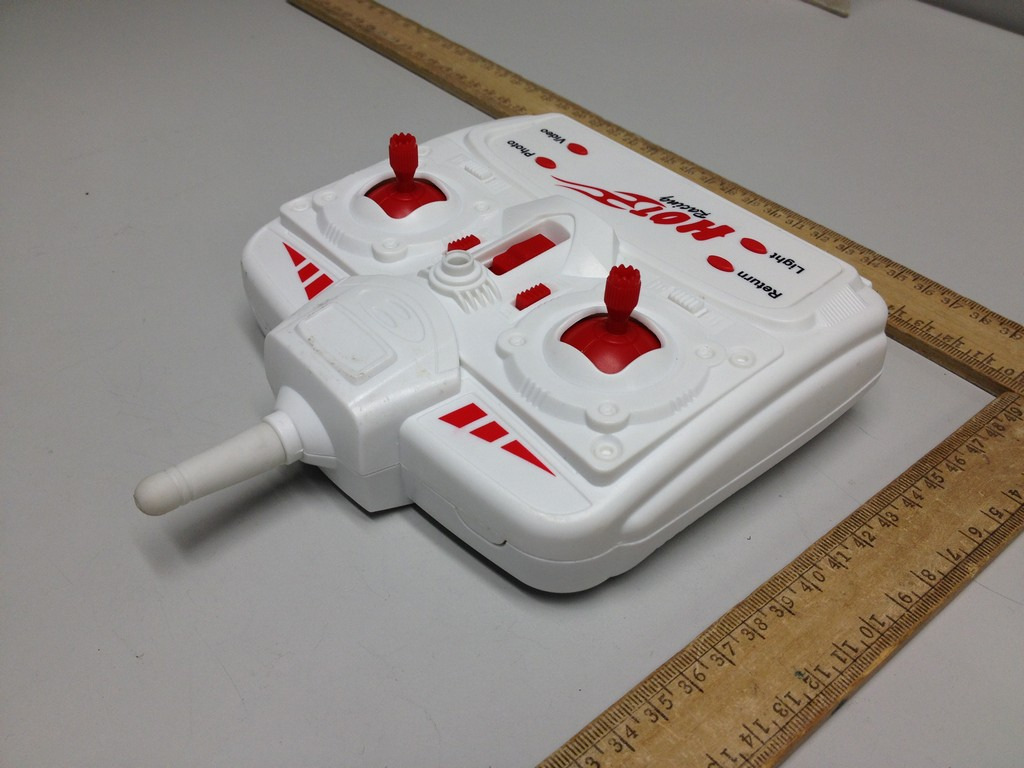

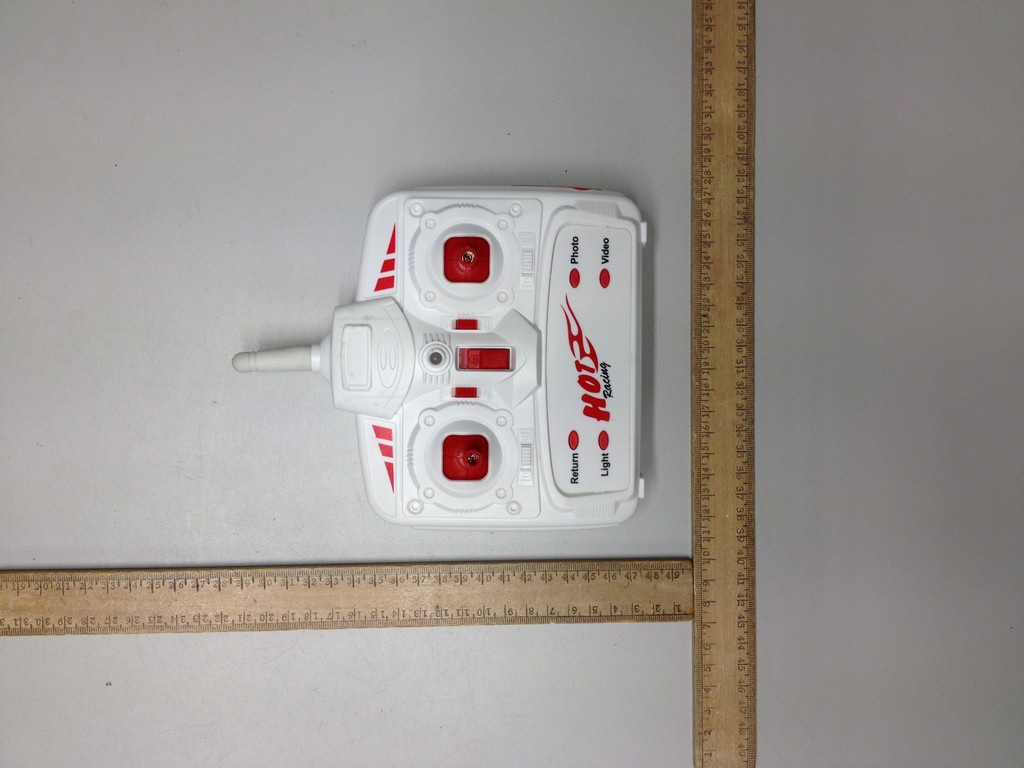

www.tuv.com Test Report No.: 14039196 001 Appendix 3 page 2 of 7 External View External View www.tuv.com Test Report No.: 14039196 001 Appendix 3 page 3 of 7 External View External View

www.tuv.com Test Report No.: 14039196 001 Appendix 4 page 2 of 14 1.1 FCCID Label Artwork

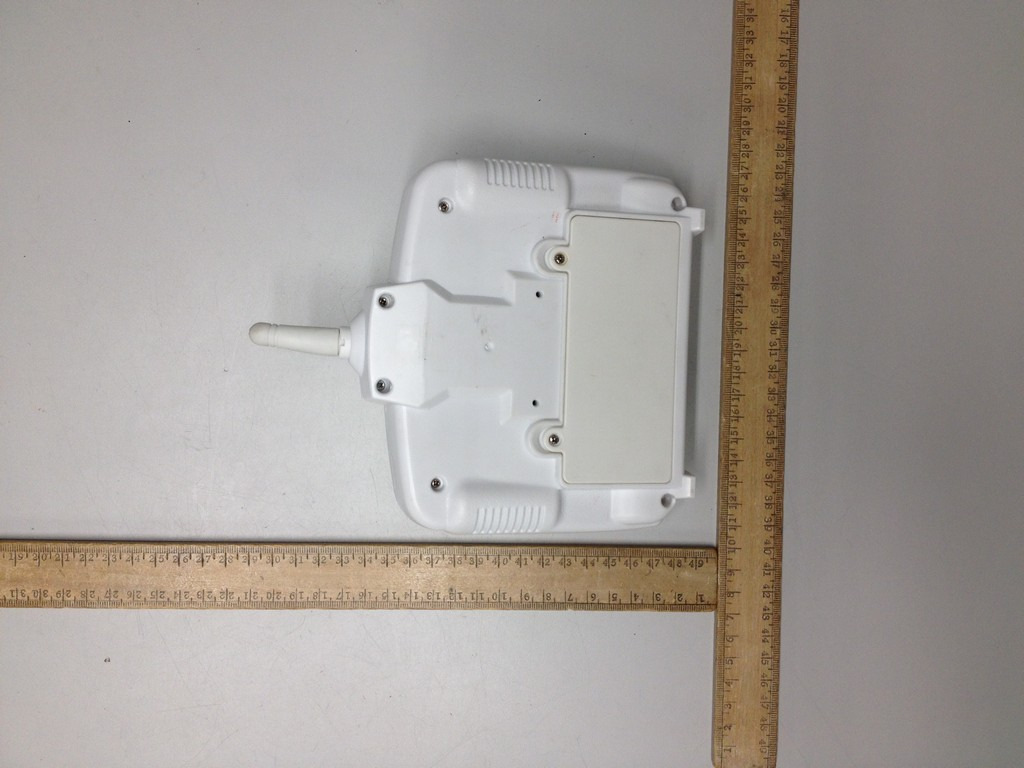

www.tuv.com Test Report No.: 14039196 001 Appendix 3 page 4 of 7 External View Internal View www.tuv.com Test Report No.: 14039196 001 Appendix 3 page 5 of 7 Internal View Internal View www.tuv.com Test Report No.: 14039196 001 Appendix 3 page 6 of 7 Internal View Internal View www.tuv.com Test Report No.: 14039196 001 Appendix 3 page 7 of 7 Internal View

www.tuv.com Test Report No.: 14039196 001 Date: 24.04.2015 page 2 of 10 Table of Content Page Cover Page ..................................................................................................................... 1 Table of Content ............................................................................................................ 2 Product information....................................................................................................... 3 Manufacturers declarations ....................................................................................................................... 3 Product function and intended use ........................................................................................................... 3 Submitted documents ................................................................................................................................. 3 Special accessories and auxiliary equipment .......................................................................................... 3 Independent Operation Modes .................................................................................................................. 4 Related Submittal(s) Grants ....................................................................................................................... 4 List of Test and Measurement Instruments ................................................................. 5 Results FCC Part 15 – Subpart C ................................................................................. 6 Subclause 15.207 – Disturbance Voltage on AC Mains ......................................................... N/A ........... 6 Subclause 15.205 – Restricted bands – Spurious Emissions – Band edge .................... Pass ........... 6 Subclause 15.215 (c) – 20 dB Bandwidth ............................................................................. Pass ........... 7 Subclause 15.249 (a) – Field Strength of Fundamental and Harmonics ........................... Pass ........... 7 Subclause 15.249 (d) – Emissions radiated outside of the specified frequency bands . Pass ........... 9 Appendix 1 – Test Results 7 pages Appendix 2 – Test Setup Photos 3 pages Appendix 3 – Photo documentation 7 pages Appendix 4 – Product documentation 14 pages Appendix 5 – RF Exposure Information 2 pages www.tuv.com Test Report No.: 14039196 001 Date: 24.04.2015 page 3 of 10 Product information Manufacturers declarations Transmitter Operating frequency range 2402 - 2475 MHz Type of modulation GFSK Number of channels 6 Type of antenna Wire Antenna Power level fix Connection to public utility power line No Nominal voltage 9.0 V Product function and intended use The equipment under test (EUT) is a radio control toy transmitter operating at 2.4GHz. It is powered by batteries only. FCCID: 2AEFGBOODY88879339 Models Product description FX-1, FX-2, FX-3, FX-4, FX-5, FX-6, FX-7, FX-8, FX-9, FX-10, FX-11, FX-12, FX-13, FX-14, FX-15, FX-16, FX-17, FX-18, FX-19, FX-20, FX-21, FX-22, FX-23, FX-24, FX-25, FX-26, FX-27, FX-28, FX-29, FX-30, FX-31, FX-32, FX-33, FX-34, FX-35, FX-36, FX-37, FX-38, FX-39, FX-40, FX-41, FX-42, FX-43, FX-44, FX-45, D1, D2, D3, D4, D5, D6, D7, D8, D9, D10, D11, D12, D13, D14, D15, D16, D17, D18, D19, D20, D21, D22, D23, D24, D25, D26, D27, D28, D29, D30, D31, D32, D33, D34, D35, D36, D37, D38, D39, D40, D41, D42, D43, D44, D45 Radio Controlled Toy Submitted documents Circuit Diagram Block Diagram Bill of material User manual Rating Label Special accessories and auxiliary equipment The product has been tested together with the following additional accessory: Nil www.tuv.com Test Report No.: 14039196 001 Date: 24.04.2015 page 4 of 10 Independent Operation Modes The basic operation modes are: - Transmitting control signal for the RC toy quadcopter. For further information refer to User Manual Related Submittal(s) Grants This is a single application for certification of the transmitter. www.tuv.com Test Report No.: 14039196 001 Date: 24.04.2015 page 5 of 10 List of Test and Measurement Instruments Global United Technology Services Co., Ltd. (Registration number: 600491) Equipment Manufacturer Type S/N Cal. interval Last cal. 3m Semi- Anechoic Chamber ZhongYu Electron 9.0(L)*6.0(W)* 6.0(H) --- 1 year 05 Apr 2015 Control Room ZhongYu Electron 6.2(L)*2.5(W)* 2.4(H) --- 1 year N/A ESU EMI Test Receiver R&S ESU26 --- 1 year 27 Jun 2014 Loop Antenna Zhinan ZN30900A --- 1 year 27 Jun 2014 Bi-log Hybrid Antenna SCHWARZBECK VULB9163 --- 1 year 08 Mar 2015 Double-ridged horn antenna SCHWARZBECK 9120D --- 1 year 08 Mar 2015 RF Amplifier HP 8347A --- 1 year 27 Jun 2014 RF Amplifier HP 8349B --- 1 year 27 Jun 2014 EMI Test Software AUDIX E3 --- 1 year N/A Coaxial cable GTS N/A --- 1 year 27 Jun 2014 Coaxial Cable GTS N/A --- 1 year 27 Jun 2014 Thermo meter N/A N/A --- 1 year 27 Jun 2014 Spectrum Analyzer Rohde & Schwarz FSP30 100007 1 year 12 Jan 2015 www.tuv.com Test Report No.: 14039196 001 Date: 24.04.2015 page 6 of 10 Results FCC Part 15 – Subpart C Subclause 15.207 – Disturbance Voltage on AC Mains N/A There is no AC power input or output ports on the EUT. Subclause 15.205 – Restricted bands – Spurious Emissions – Band edge Pass Test Specification : ANSI C63.4 – 2009 Mode of operation : Tx mode Port of testing : Enclosure Detector : Peak RBW/VBW : 100 kHz / 300 kHz for f < 1 GHz 1 MHz / 3 MHz for f > 1 GHz Supply voltage : 9.0VDC, 6 x 1.5V AA size new battery Temperature : 23ºC Humidity : 50% Requirement: Radiated emissions which fall in the restricted bands, as defined in 15.205 (a), must also comply with the radiated emission limits specified in 15.209(a). Results: For test protocols refer to Appendix 1, page 4-7. Tx frequency 2402MHz Vertical Polarization Freq Level Limit/ Detector MHz dBuV/m dBuV/m No peak found --- 74.0 / P No peak found --- 54.0 / A Tx frequency 2402MHz Horizontal Polarization Freq Level Limit/ Detector MHz dBuV/m dBuV/m No peak found --…

Text truncated - open the document above for the full version.

www.tuv.com Test Report No.: 14039196 001 Appendix 1 page 1 of 7 Appendix 1 Test Results www.tuv.com Test Report No.: 14039196 001 Appendix 1 page 2 of 7 20dB Bandwidth Tx frequency: 2402MHz Att 20 dB 2.40233 GHz 2.40233 GHz 2.40233 GHz 2.40233 GHz 2.40233 GHz 2.40233 GHz 2.40233 GHz 2.40233 GHz 2.40233 GHz 2.40233 GHz * 2.40233 GHz A 2.40233 GHz * 2.40233 GHz RBW 100 kHz 2.40233 GHzVBW 300 kHz 2.40233 GHz SWT 2.5 ms 2.40233 GHz Ref 0 dBm 2.40233 GHz Center 2.402 GHz 2.40233 GHz Span 5 MHz 2.40233 GHz 500 kHz/ 2.40233 GHz 1 PK 2.40233 GHz MAXH 2.40233 GHz -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 0 2.40233 GHz 1 Marker 1 [T1 ] -11.48 dB m 2.402330000 GHz 2 Delta 2 [T1 ] -20.01 dB -912.000000000 kHz 3 Delta 3 [T1 ] -20.39 dB 880.000000000 kHz MARKER 1 2.40233 GHz Comment: test print Date: 30.MAR.2015 10:31:09 Tx frequency: 2433MHz Att 20 dB 2.4331 GHz 2.4331 GHz 2.4331 GHz 2.4331 GHz 2.4331 GHz 2.4331 GHz 2.4331 GHz 2.4331 GHz 2.4331 GHz 2.4331 GHz * 2.4331 GHz A 2.4331 GHz Ref 0 dBm 2.4331 GHz 1 PK 2.4331 GHz MAXH 2.4331 GHz Center 2.433 GHz 2.4331 GHz Span 5 MHz 2.4331 GHz 500 kHz/ 2.4331 GHz * 2.4331 GHz RBW 100 kHz 2.4331 GHzVBW 300 kHz 2.4331 GHz SWT 2.5 ms 2.4331 GHz -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 0 2.4331 GHz 1 Marker 1 [T1 ] -12.01 dBm 2.433100000 GHz 2 Delta 2 [T1 ] -19.82 dB -660.000000000 kHz 3 Delta 3 [T1 ] -21.82 dB 1.020000000 MHz MARKER 1 2.4331 GHz Comment: test print Date: 30.MAR.2015 10:36:11 www.tuv.com Test Report No.: 14039196 001 Appendix 1 page 3 of 7 Tx frequency: 2475MHz Att 20 dB 2.4756 GHz 2.4756 GHz 2.4756 GHz 2.4756 GHz 2.4756 GHz 2.4756 GHz 2.4756 GHz 2.4756 GHz 2.4756 GHz 2.4756 GHz * 2.4756 GHz A 2.4756 GHz Ref 0 dBm 2.4756 GHz Center 2.475 GHz 2.4756 GHz Span 5 MHz 2.4756 GHz 500 kHz/ 2.4756 GHz * 2.4756 GHz RBW 100 kHz 2.4756 GHzVBW 300 kHz 2.4756 GHz SWT 2.5 ms 2.4756 GHz 1 PK 2.4756 GHz MAXH 2.4756 GHz -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 0 2.4756 GHz 1 Marker 1 [T1 ] -11.69 dBm 2.475600000 GHz 2 Delta 2 [T1 ] -20.53 dB -920.000000000 kHz 3 Delta 3 [T1 ] -20.20 dB 830.000000000 kHz MARKER 1 2.4756 GHz Comment: test print Date: 30.MAR.2015 10:44:21 www.tuv.com Test Report No.: 14039196 001 Appendix 1 page 4 of 7 Band Edge Compliance Tx frequency: 2402MHz (radiated measurement) Vertical polarization www.tuv.com Test Report No.: 14039196 001 Appendix 1 page 5 of 7 Horizontal polarization www.tuv.com Test Report No.: 14039196 001 Appendix 1 page 6 of 7 Tx frequency: 2475MHz (radiated measurement) Vertical polarization www.tuv.com Test Report No.: 14039196 001 Appendix 1 page 7 of 7 Horizontal polarization

www.tuv.com Test Report No.: 14039196 001 Appendix 5 page 1 of 2 Appendix 5 RF Exposure Information www.tuv.com Test Report No.: 14039196 001 Appendix 5 page 2 of 2 Maximum transmitter power: Frequency (MHz) Maximum peak output power (dBuV/m) Output power (mW) 2.402 64.25 0.0008 2.433 65.32 0.0010 2.475 67.87 0.0018 According to KDB 447498 D01: The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [ √f(GHz)] ≤3.0 for 1-g SAR and ≤7.5 for 10-g extremity SAR,24 where • f(GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation25 • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below Result: (0.0008/5)* √2.402 = 0.000 <3.0 (0.0010/5)*√2.433 = 0.000 <3.0 (0.0018/5)*√2.475 = 0.001 <3.0 Conclusion: No SAR is required.

www.tuv.com Test Report No.: 14039196 001 Appendix 2 page 2 of 3 Setup for radiated emission Setup for radiated emission www.tuv.com Test Report No.: 14039196 001 Appendix 2 page 3 of 3 Setup for radiated emission
