2AEGAA008Air Mouse

Product: Air Mouse Model: A008 Date: 2013-07-11 Version: V2.0 1. General Description This product is a remote controller with the multi-function of Air Mous , Multimedia Android Control and Motion Sense Support. 2. Features a). Elegant ID design ; b). Standard android system keys, support standard android devices; c). With Anti-shake algorithm to make sure the mouse cursor stable and smooth; d). High precision 6 axis sensors, the air mouse can be used freely from different angles e). With the game driver, the air mouse can be used to play android motion sensor games. (With the game driver, the air mouse can play motion sensor games from certain companies. The product price does not include the price of driver. Also the driver does not support game controllers from other companies.) 3. Keys Layout 4. Specification Acceleration Sensor 3 axis gyroscope Gyro-sensor 3axis g-sensor Communication 2.4 Ghz, Working Distance 5-10m Frequency 2.402-2.480Ghz Working Current 20mA Battery 2 AAA Batteries Indicator 1 LED indicator No. Function Code 1 Power Press it for 2 second, Windows Shutdown 2 Volume - Multimedia Volume - 3 Volume + Multimedia Volume + 4 Up Keyboard Up 5 Down Keyboard Down 6 Left Keyboard Left 7 Right Keyboard Right 8 Mouse_L Mouse Left Click Enter(when mouse mode is off) 9 Mouse_R, Back(Android System) Mouse Right Click 10 Menu Left Windows Key 11 Home Multimedia Home 12 Mouse Turn on/off the mouse, Default is On 13 Page Up Keyboard Page UP 14 Page down Keyboard Page Down 15 Mute Keyboard Mute Product Size 138.92*41.77*27.93mm Receiver Size 18.58*14.59*6.7mm Weight 65g 5. Pairing Warning: This operation may disconnect the original paired connection, please operate with cautions. 1). Press the “OK” (No. 8 Key) and “Back” (No. 9 Key) for 3 seconds, when the indicator begins blinking quickly, leave your hand from the keys. 2). Plug in the USB dongle receiver, keep the distance between the remote control and the pc within 1m. 3). When the indicator turns on, pairing succeeds. 6. Hibernation The remote controller will turn into hibernation mode when it stays still for 20 seconds. Press any key to wake up the remote controller. 7. Factory Reset This remote control has the function of automatic sensor alignment. Only operate this step when the mouse cursor behaves abnormally. 1). Press the “OK” key (No. 8 key) and “Mute” key (No. 15 key) for 3 seconds, the indicator begins blinking quickly. 2). Leave your hands from the keys and keep the remote control absolutely still. 3). When the indicator keeps turning on, pairing succeeds. Notice: Keep the remote control still. If the remote controller moves, the data may be incorrect, and it needs to be readjusted. 8. Notice 1. Battery: Keep the battery with enough power. When the voltage is low, the stability of mouse cursor will be affected. 2. Working Distance: The actual working distance of this remote controller will be affected by electromagnetic field. Please make sure the receiver has not been covered by metal items. 3. Pairing: The pairing has been finished before the remote control leaves the factory. This function can only be used by distributors. 4. Mouse Sensitivity Adjustment: Please change new battery first. If the mouse cursor is still unstable, then you can use this function. 5. Indicator: There is an indicator at the top of the remote controller. a) When the indicator turns on for a time, it means that the remote controller is well connected and operates well. b) When the indicator blinks, it means that the remote controller is not connected well. Please check whether the receiver is correctly connected to the pc and whether the receiver is covered by some other items . 9. FCC Warning This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Generated by CamScanner

Generated by CamScanner

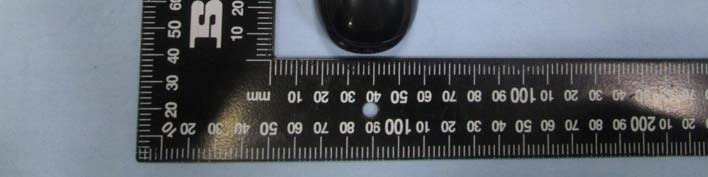

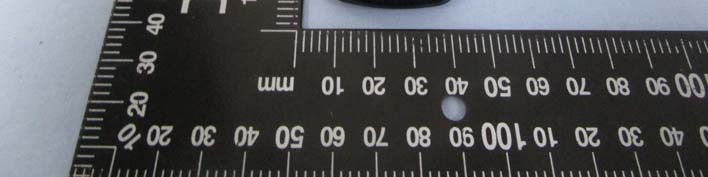

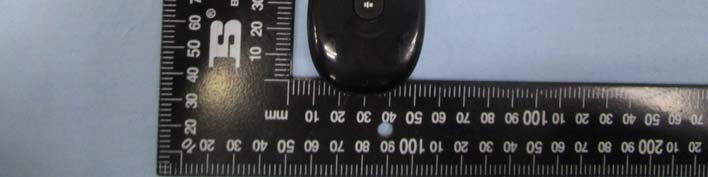

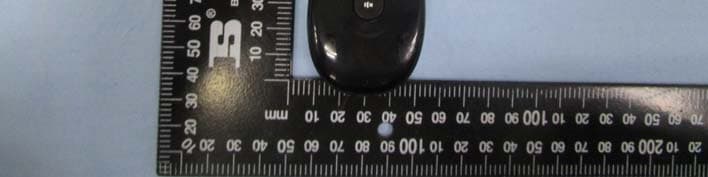

All-Link Technology(Shenzhen) Co., Ltd. Model: A008 REPORT NO.: STR15038175I FCC PART 15.247 EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 All-Link Technology(Shenzhen) Co., Ltd. Model: A008 REPORT NO.: STR15038175I FCC PART 15.247 EUT View 3 EUT View 4

All-Link Technology(Shenzhen) Co., Ltd. Model: A008 REPORT NO.: STR15038175I FCC PART 15.247 EXHIBIT 1 - PRODUCT LABELING Proposed FCC ID Label Format FCC ID: 2AEGAA008 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Specifications: Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

All-Link Technology(Shenzhen) Co., Ltd. Model: A008 REPORT NO.: STR15038175I FCC PART 15.247 EXHIBIT 1 - PRODUCT LABELING Proposed FCC ID Label Format FCC ID: 2AEGAA008 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Specifications: Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

All-Link Technology(Shenzhen) Co., Ltd. Model: A008 REPORT NO.: STR15038175I FCC PART 15.247 EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View 1 Solder Board-Component View 1 RF Antenna All-Link Technology(Shenzhen) Co., Ltd. Model: A008 REPORT NO.: STR15038175I FCC PART 15.247 Solder Board-Component View 2

All-Link Technology(Shenzhen) Co., Ltd. Model: A008 REPORT NO.: STR15038175I PAGE 1 OF 24 FCC PART 15.249 FCC Part 15C Measurement and Test Report For All-Link Technology(Shenzhen) Co., Ltd. Room 211-212, Huichao Building Yintian Industrial Park, Xixiang, Baoan District, Shenzhen, China FCC ID: 2AEGAA008 FCC Rule(s): FCC Part 15.249 Product Description: Air Mouse Tested Model: A008 Report No.: STR15038175I Tested Date: 2015-03-19 to 2015-03-26 Issued Date: 2015-03-26 Tested By: Jason Su/ Engineer Reviewed By: Lahm Peng / EMC Manager Approved & Authorized By: Jandy so / PSQ Manager Prepared By: Shenzhen SEM.Test Technology Co., Ltd. 1/F, Building A, Hongwei Industrial Park, Liuxian 2nd Road, Bao'an District, Shenzhen, P.R.C.（518101） Tel.: +86-755-33663308 Fax.: +86-755-33663309 Website: www.semtest.com.cn Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen SEM.Test Technology Co., Ltd. All-Link Technology(Shenzhen) Co., Ltd. Model: A008 REPORT NO.: STR15038175I PAGE 2 OF 24 FCC PART 15.249 TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... 3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ............................................................................... 3 1.2 TEST STANDARDS ................................................................................................................................................... 4 1.3 TEST METHODOLOGY ............................................................................................................................................. 4 1.4 TEST FACILITY ....................................................................................................................................................... 4 1.5 EUT SETUP AND TEST MODE ................................................................................................................................. 5 2. SUMMARY OF TEST RESULTS ........................................................................................................................... 6 3. ANTENNA REQUIREMENTS ................................................................................................................................ 7 3.1 STANDARD APPLICABLE ......................................................................................................................................... 7 3.2 TEST RESULT.......................................................................................................................................................... 7 4. RADIATED EMISSIONS ......................................................................................................................................... 8 4.1 MEASUREMENT UNCERTAINTY .............................................................................................................................. 8 4.2 STANDARD APPLICABLE ......................................................................................................................................... 8 4.3 TEST EQUIPMENT LIST AND DETAILS ..................................................................................................................... 8 4.4 TEST PROCEDURE ................................................................................................................................................... 9 4.5 CORRECTED AMPLITUDE & MARGIN CALCULATION ............................................................................................ 10 4.6 ENVIRONMENTAL CONDITIONS ............................................................................................................................ 10 4.7 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 10 5. OUT OF BAND EMISSIONS ................................................................................................................................. 19 5.1 STANDARD APPLICABLE ....................................................................................................................................... 19 5.2 TEST EQUIPMENT LIST AND DETAILS ................................................................................................................... 19 5.3 TEST PROCEDURE ................................................................................................................................................. 19 5.4 ENVIRONMENTAL CONDITIONS ............................................................................................................................ 19 5.5 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 19 6. EMISSION BANDWIDTH ..................................................................................................................................... 22 6.1 STANDARD APPLICABLE ....................................................................................................................................... 22 6.2 TEST EQUIPMENT LIST AND DETAILS ................................................................................................................... 22 6.3 TEST PROCEDURE ................................................................................................................................................. 22 6.4 ENVIRONMENTAL CONDITIONS ............................................................................................................................ 22 6.5 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 22 All-Link Technology(Shenzhen) Co., Ltd. Model: A008 REPORT NO.: STR15038175I PAGE 3 OF 24 FCC PART 15.24…

Text truncated - open the document above for the full version.

All-Link Technology(Shenzhen) Co., Ltd. Model: A008 REPORT NO.: STR15038175I FCC PART 15.247 EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Radiation Emission Test Setup (Below 30MHz) Radiation Emission Test Setup (30MHz to 1GHz) All-Link Technology(Shenzhen) Co., Ltd. Model: A008 REPORT NO.: STR15038175I FCC PART 15.247 Radiation Emission Test Setup (Above 1GHz)
