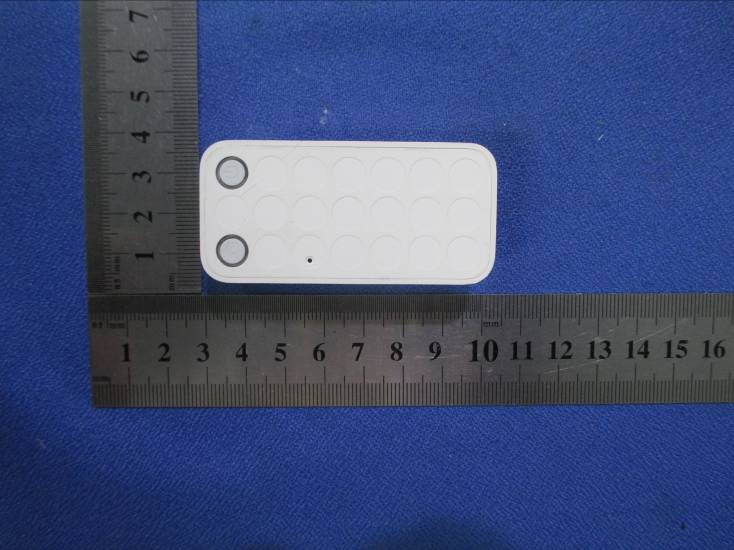

2AEGQ-JTL-10Bluetooth Speaker

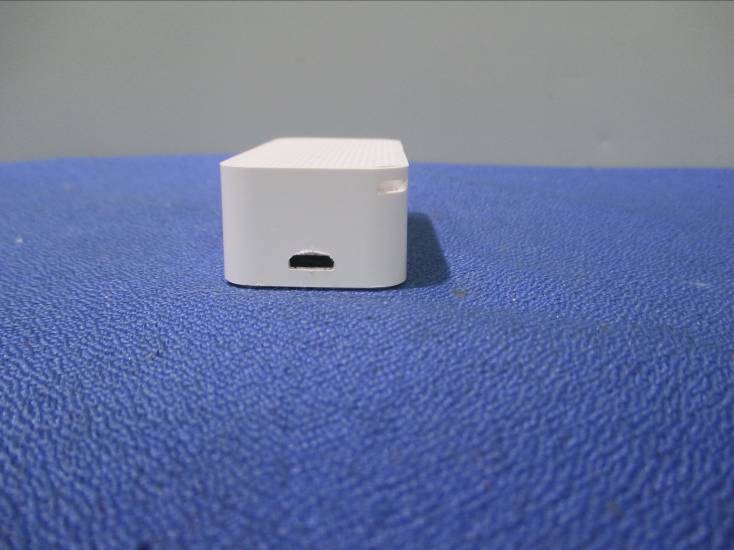

Charging To charge the speaker, connect the USB cable directly to a PC or laptop or to a mains USB charger.The LED indicator on the speaker will turn red when charging.The LED indicator will turn off once the battery is fully charged. The speakers can be used while being charged( speaker is on, connect with 3.5mm line-in cable),the LED indicator will flicker blue and red. Full charging time for a flat battery is 3~4 hours. BLUETOOTH connecting Make sure the 3.5mm line-in cable is not connected. Connect the speaker ,Turn the Main speaker ON. You will hear a special tone to indicate Bluetooth functionality,the LED indicator will flicker blue. On your phone or laptop search for a new Bluetooth device called “ BT Speaker”. If you are asked for a password enter ‘0000’. WIRED connecting Connect the line-in cable to your audio source on one end and to the speaker using the USB port on the other end. Turn the main speaker ON.Start playing music. When the line-in cable is connected,the Bluetooth module is disabled and audio is then routed to the speaker through wires . ● Bluetooth Protocol ： 4.0 +EDR(support A2DP) ● Transmission Distance ： Up to 10 meters(open space) ● Line Input ： Φ3.5mm ● Battery Voltage ： 3.7V ● Charging Voltage 5V ● Power Input Mini USB (5V/500mA) Federal Communications Commission (FCC) Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ●Reorient or relocate the receiving antenna. ●Increase the separation between the equipment and receiver. ●Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ●Consult the dealer or an experienced radio/TV technician for help. Warning: Changes or modifications made to this device not expressly approved by SUNstone Digital Limited may void the FCC authorization to operate this device. Note: The manufacturer is not responsible for any radio or tv interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment.

SUNstone Digital Limited 3/F, F Bldg., No.1 Industry Park, Guanlong Village, Xili, Shenzhen, China TEL: +86-755-86116591 FAX: +86-755-86114801 DATE 04-10-2015 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AEGQ-JTL-10 Product Name: Bluetooth Speaker Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...) • Schematics • Block diagram • Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 04-10-2015 By: Zhu Taoyun Signature Printed Title: Manager On behalf of : SUNstone Digital Limited Telephone: +86-755-86116591

SUNstone Digital Limited 3/F, F Bldg., No.1 Industry Park, Guanlong Village, Xili, Shenzhen, China TEL: +86-755-86116591 FAX: +86-755-86114801 USB Port Statement FCC ID: 2AEGQ-JTL-10 Date: Apr. 10, 2015 To whom it may concern: We, the undersigned, state that the device's (Model: JTL-10) USB port only used for charge, no any data transfer to PC. Sincerely, Zhu Taoyun/Manager

FCC ID Label Information 1. Label location: 2. FCC ID Label: Model: JTL-10 FCC ID: 2AEGQ-JTL-10 FCCID Label Location

RF Exposure evaluation According to KDB 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison eirp = pt x gt = (EXd) 2 /30 where: pt = transmitter output power in watts, gt = numeric gain of the transmitting antenna (unitless), E = electric field strength in V/m, --- 10 ((dBuV/m)/20) /10 6 d = measurement distance in meters (m)---3m So pt = (EXd) 2 /30 x gt Ant gain 2dBi; so Ant numeric gain=1.58 Field strength = 86.17 dBuV/m @3m So Pt={ [10 ( 86.17 /20) /10 6 x3] 2 /30x1.58 }x1000 mW = 0.08 mW So ( 0.08 mW/5mm)x √2.48 GHz = 0.025 < 3 Then SAR evaluation is not required

- Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 Fax: +86-755-26636041 FCC PART 15 SUBPART C TEST REPORT Report Reference No......................: CTL1503190658-WF01 Compiled by ( position+printed name+signature)..: File administrators Happy Guo Name of the organization performing the tests ( position+printed name+signature)..: Test Engineer Nice Nong Approved by ( position+printed name+signature)..: Manager Tracy Qi Date of issue.....................................: Apr. 02, 2015 Test Firm..........................................: Shenzhen CTL Testing Technology Co., Ltd. Address.............................................: Floor 1-A, Baisha Technology Park, No. 3011, Shahexi Road, Nanshan, Shenzhen 518055 China. Applicant’s name............................: SUNstone Digital Limited Address.............................................: 3/F, F Bldg., No.1 Industry Park, Guanlong Village, Xili, Shenzhen, China Test specification: Standard ...........................................: FCC Part 15.249: Operation within the bands 920-928 MHz, 2400- 2483.5 MHz, 5725-5850 MHz and 24.0 - 24.25 GHz. TRF Originator ..................................: Shenzhen CTL Testing Technology Co., Ltd. Master TRF.......................................: Dated 2011-01 Shenzhen CTL Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTL Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTL Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................... : Bluetooth Speaker Trade Mark .......................................: N/A Models/Type reference.....................: JTL-10 Modulation .......................................: FHSS Work Frequency...........................: 2402 MHz~2480 MHz Antenna Type..............................: internal FCC ID .............................................: 2AEGQ-JTL-10 Result................................................: Positive V1.0 Page 2 of 47 Report No.: CTL1503190658-WF01 T E S T R E P O R T Test Report No. :CTL1503190658-WF01 Apr. 02, 2015 ______________________________________________________________________________________________ Date of issue Equipment under Test : Bluetooth Speaker Model /Type : JTL-10 Applicant : SUNstone Digital Limited Address : 3/F, F Bldg., No.1 Industry Park, Guanlong Village, Xili, Shenzhen, China Manufacturer SUNstone Digital Limited Address 3/F, F Bldg., No.1 Industry Park, Guanlong Village, Xili, Shenzhen, China Test Result according to the standards on page 4: Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. V1.0 Page 3 of 47 Report No.: CTL1503190658-WF01 Contents 1.TEST STANDARDS .................................................................. 4 2.SUMMARY............................................................................. 5 2.1.General Remarks 5 2.2.Equipment Under Test 5 2.3.Short description of the Equipment under Test (EUT) 5 2.4.EUT operation mode 6 2.5.EUT configuration 6 2.6.Related Submittal(s) / Grant (s) 6 2.7.Modifications 6 3. TEST ENVIRONMENT............................................................... 7 3.1.Address of the test laboratory 7 3.2.Test Facility 7 3.3.Environmental conditions 7 3.4.Configuration of Tested System 7 3.5.Statement of the measurement uncertainty 8 3.6.Equipments Used during the Test 9 4. TEST CONDITIONS AND RESULTS ............................................ 10 4.1.Conducted Emissions Test 10 4.2.Fundamental Emissions 13 4.3.Transmitter Radiated Unwanted Emissions 14 4.4.Band Edge Measurement 30 4.5.Occupied Bandwidth Measurement 39 5. ANTENNA REQUIREMENT ....................................................... 41 6.TEST SETUP PHOTOS OF THE EUT .......................................... 42 7.EXTERNAL AND INTERNAL PHOTOS OF THE EUT ....................... 44 V1.0 Page 4 of 47 Report No.: CTL1503190658-WF01 1. TEST STANDARDS The tests were performed according to following standards: FCC Rules Part 15.249: Operation within the bands 902 - 928 MHz, 2400 - 2483.5 MHz, 5725 - 5875 MHz, and 24.0 - 24.25 GHz. ANSI C63.4-2009 V1.0 Page 5 of 47 Report No.: CTL1503190658-WF01 2. SUMMARY 2.1. General Remarks Date of receipt of test sample : Mar. 19, 2015 Testing commenced on : Mar. 19, 2015 Testing concluded on : Apr. 02, 2015 2.2.Equipment Under Test Power supply system utilised Power supply voltage : o 120V / 60 Hz o 115V / 60Hz o 12 V DC o 24 V DC ƽ Other (specified in blank below) DC 3.7V from battery 2.3. Short description of the Equipment under Test (EUT) The EUT is a Bluetooth Speaker work at 2402~2480 MHz support Bluetooth 3.0+EDR. Channel List: Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) 00 2402 27 2429 54 2456 01 2403 28 2430 55 2457 02 2404 29 2431 56 2458 03 2405 30 2432 57 2459 04 2406 31 2433 58 2460 05 2407 32 2434 59 2461 06 2408 33 2435 60 2462 07 2409 34 2436 61 2463 08 2410 35 2437 62 2464 09 2411 36 2438 63 2465 10 2412 37 2439 64 2466 11 2413 38 2440 65 2467 12 2414 39 2441 66 2468 13 2415 40 2442 67 2469 14 2416 41 2443 68 2470 15 2417 42 2444 69 2471 16 2418 43 2445 70 2472 17 2419 44 2446 71 2473 18 2420 45 2447 72 2474 19 2421 46 2448 73 2475 20 2422 47 2449 74 2476 21 2423 48 2450 75 2477 22 2424 49 2451 76 2478 23 2425 50 2452 77 2479 24 2426 51 2453 78 2480 25 2427 52 2454 26 2428 53 2455 Modulation: 1Mbps(GFSK), 2Mbps(Pi/4 DQPSK), 3Mbps(8DPSK) For more details, refer to the user’s manual of the EUT. Serial number: Prototype V1.0 Page 6 of 47 Report No.: CTL1503190658-WF01 2.4. EUT operation mode Test Mode(TM) Description Remark TM1 Bottom Channel Transmi…

Text truncated - open the document above for the full version.

- Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 Fax: +86-755-26636041 FCC PART 15 SUBPART C TEST REPORT Report Reference No......................: CTL1503190658-WF02 Compiled by ( position+printed name+signature)..: File administrators Happy Guo Name of the organization performing the tests ( position+printed name+signature)..: Test Engineer Nice Nong Approved by ( position+printed name+signature)..: Manager Tracy Qi Date of issue.....................................: Apr. 02, 2015 Test Firm..........................................: Shenzhen CTL Testing Technology Co., Ltd. Address.............................................: Floor 1-A, Baisha Technology Park, No. 3011, Shahexi Road, Nanshan, Shenzhen 518055 China. Applicant’s name............................: SUNstone Digital Limited Address.............................................: 3/F, F Bldg., No.1 Industry Park, Guanlong Village, Xili, Shenzhen, China Test specification: Standard ...........................................: FCC Part 15.249: Operation within the bands 920-928 MHz, 2400- 2483.5 MHz, 5725-5850 MHz and 24.0 - 24.25 GHz. TRF Originator ..................................: Shenzhen CTL Testing Technology Co., Ltd. Master TRF.......................................: Dated 2011-01 Shenzhen CTL Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTL Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTL Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................... : Bluetooth Speaker Trade Mark .......................................: N/A Models/Type reference.....................: JTL-10 Modulation .......................................: GFSK Work Frequency...........................: 2402 MHz~2480 MHz Antenna Type..............................: internal FCC ID .............................................: 2AEGQ-JTL-10 Result................................................: Positive V1.0 Page 2 of 47 Report No.: CTL1503190658-WF02 T E S T R E P O R T Test Report No. :CTL1503190658-WF02 Apr. 02, 2015 ______________________________________________________________________________________________ Date of issue Equipment under Test : Bluetooth Speaker Model /Type : JTL-10 Applicant : SUNstone Digital Limited Address : 3/F, F Bldg., No.1 Industry Park, Guanlong Village, Xili, Shenzhen, China Manufacturer SUNstone Digital Limited Address 3/F, F Bldg., No.1 Industry Park, Guanlong Village, Xili, Shenzhen, China Test Result according to the standards on page 4: Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. V1.0 Page 3 of 47 Report No.: CTL1503190658-WF02 Contents 1.TEST STANDARDS .................................................................. 4 2.SUMMARY............................................................................. 5 2.1.General Remarks 5 2.2.Equipment Under Test 5 2.3.Short description of the Equipment under Test (EUT) 5 2.4.EUT operation mode 6 2.5.EUT configuration 6 2.6.Related Submittal(s) / Grant (s) 6 2.7.Modifications 6 3. TEST ENVIRONMENT............................................................... 7 3.1.Address of the test laboratory 7 3.2.Test Facility 7 3.3.Environmental conditions 7 3.4.Configuration of Tested System 7 3.5.Statement of the measurement uncertainty 8 3.6.Equipments Used during the Test 9 4. TEST CONDITIONS AND RESULTS ............................................ 10 4.1.Conducted Emissions Test 10 4.2.Fundamental Emissions 13 4.3.Transmitter Radiated Unwanted Emissions 14 4.4.Band Edge Measurement 30 4.5.Occupied Bandwidth Measurement 39 5. ANTENNA REQUIREMENT ....................................................... 41 6.TEST SETUP PHOTOS OF THE EUT .......................................... 42 7.EXTERNAL AND INTERNAL PHOTOS OF THE EUT ....................... 44 V1.0 Page 4 of 47 Report No.: CTL1503190658-WF02 1. TEST STANDARDS The tests were performed according to following standards: FCC Rules Part 15.249: Operation within the bands 902 - 928 MHz, 2400 - 2483.5 MHz, 5725 - 5875 MHz, and 24.0 - 24.25 GHz. ANSI C63.4-2009 V1.0 Page 5 of 47 Report No.: CTL1503190658-WF02 2. SUMMARY 2.1. General Remarks Date of receipt of test sample : Mar. 19, 2015 Testing commenced on : Mar. 19, 2015 Testing concluded on : Apr. 02, 2015 2.2.Equipment Under Test Power supply system utilised Power supply voltage : o 120V / 60 Hz o 115V / 60Hz o 12 V DC o 24 V DC ƽ Other (specified in blank below) DC 3.7V from battery 2.3. Short description of the Equipment under Test (EUT) The EUT is a Bluetooth Speaker work at 2402~2480 MHz support Bluetooth 4.0LE. Channel List: Channel Frequency (MHz) Channel Frequency (MHz) 00 2402 20 2442 01 2404 21 2444 02 2406 22 2446 03 2408 23 2448 04 2410 24 2450 05 2412 25 2452 06 2414 26 2454 07 2416 27 2456 08 2418 28 2458 09 2420 29 2460 10 2422 30 2462 11 2424 31 2464 12 2426 32 2466 13 2428 33 2468 14 2430 34 2470 15 2432 35 2472 16 2434 36 2474 17 2436 37 2476 18 2438 38 2478 19 2440 39 2480 Modulation: GFSK For more details, refer to the user’s manual of the EUT. Serial number: Prototype V1.0 Page 6 of 47 Report No.: CTL1503190658-WF02 2.4. EUT operation mode Test Mode(TM) Description Remark TM1 Bottom Channel Transmitting / TM2 Middle Channel Transmitting / TM3 Top Channel Transmitting / TM4 Charging and keeping TX USB power by PC The field strength of radiation emission was measured in the following position: EUT stand-up position (Y axis), lie-down position (X, Z axis). The following data show only with the worst case setup. The worst case of Y axis was reported. Based on client reques…

Text truncated - open the document above for the full version.
