2AEHTHIEETS25Wireless Transmitter

Item Introduce: TS25 is a mini size 5.8GHz 22channels wireless transmitter for rc toys like heliquadcopter. TS25 gets very light weight 6.9g only , consumer may install ts25 to rc plane camera to get fpv video by another 5.8GHz wireless receiver. Transmission distance of ts25 is about 100 m distance in open area. Consumer should note to avoid other 5.8GHz transmitter at the same time, or interference will happen. Item Application: rc quadcopter, rc helicopter, rc toys Item Name: 5.8G 22CH FPV transmitter Item Number: TS25 Features 1) 11.1-22.V super wide voltage range. 2) 22 CH, compatible with 5.8G receivers. 3) 100m transmitting distance in open area. 4) Detachable moisture-proof ABS shell, more simple installation. Specification Antenna connection：RP-SMA Jack in transmitter unit，RP-SMA Plus in antenna Antenna gain:2dBi Working current: 100mA/12V Working temperature: -10°C~- 85°C Net weight:7g Size: 28*21*8.2mm(with shell) 2dBi antenna 1 pcs; Frequency and channel frequency table Cording Diagram Modulation：FM Wa r n in g： Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

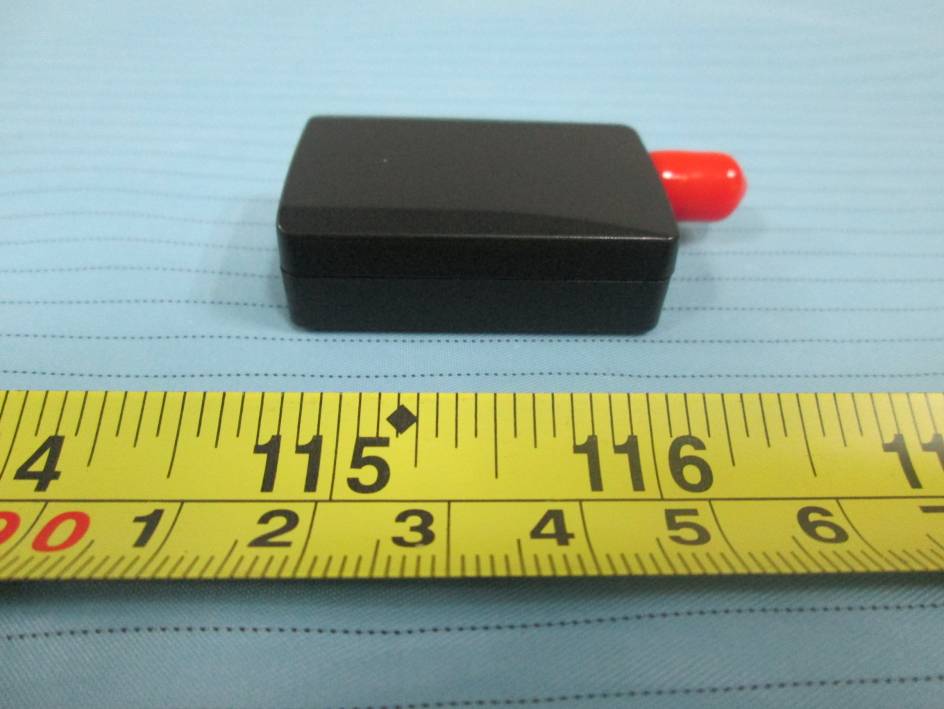

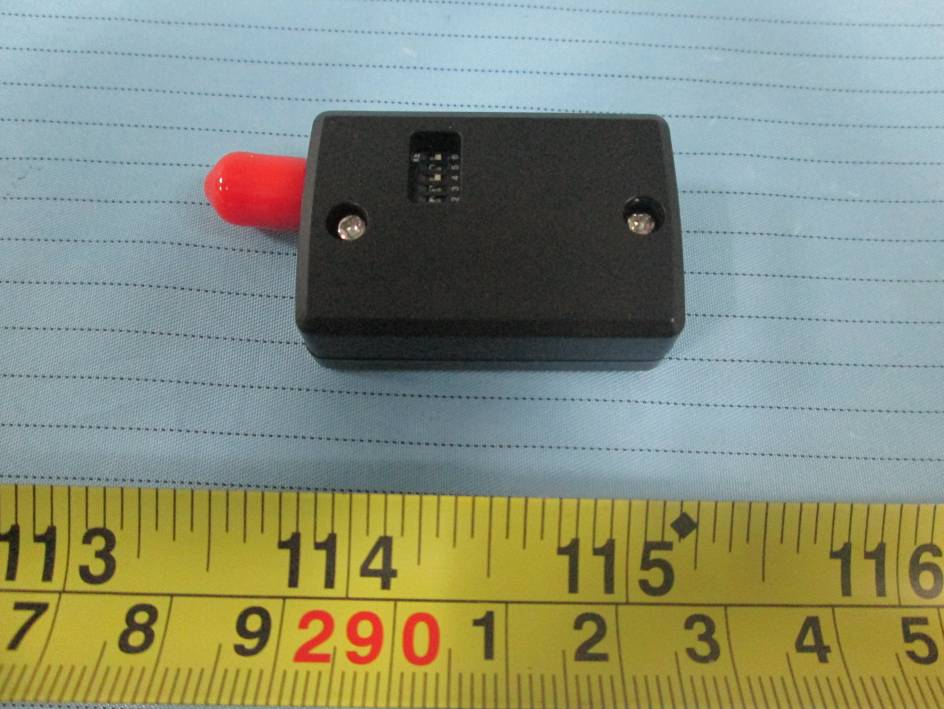

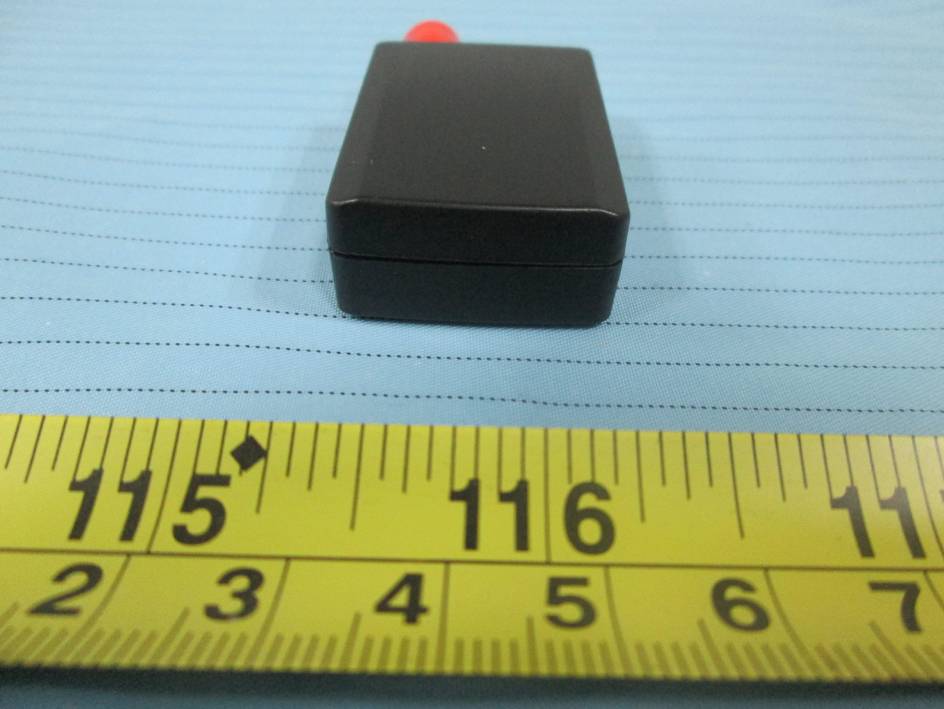

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT – Front View EUT – Rear View EUT – Left View EUT – Right View EUT – Top View EUT – Bottom View EUT – Antenna View

EXHIBIT A - FCC ID LABEL AND LOCATION FCC ID Label FCC ID Label Location Information The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT –Cover off View 1 EUT –Cover off View 2 EUT – Main Board Top View EUT – Main Board Bottom View Antenna port EUT – Main Board Bottom Shielding off View

Note: This test report is prepared for the customer shown above and for the equipment described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. FCC PART 15.249 TEST REPORT For Dongguan Hiee Electronic CO., LTD 2f/YongchangBuilding, Baotang Road, QiaotouTown, Dongguan City FCC ID: 2AEHTHIEETS25 Report Type: Original Report Product Type: wireless transmitter Test Engineer: Jay Li Report Number: RSZ150304006-00 Report Date: 2015-03-31 Reviewed By: Jimmy Xiao RF En gineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ150304006-00 FCC Part 15.249 Page 2 of 21 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 3 OBJECTIVE ................................................................................................................................................................... 3 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 3 TEST METHODOLOGY .................................................................................................................................................. 3 TEST FACILITY ............................................................................................................................................................. 3 SYSTEM TEST CONFIGURATION .......................................................................................................................... 4 JUSTIFICATION ............................................................................................................................................................. 4 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 4 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 4 SUPPORT CABLE DESCRIPTIONS ................................................................................................................................... 4 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 5 SUMMARY OF TEST RESULTS ............................................................................................................................... 6 FCC§15.203 - ANTENNA REQUIREMENT .............................................................................................................. 7 APPLICABLE STANDARD .............................................................................................................................................. 7 ANTENNA CONNECTOR CONSTRUCTION ...................................................................................................................... 7 FCC §15.207 (A) – AC LINE CONDUCTED EMISSIONS ...................................................................................... 8 APPLICABLE STANDARD .............................................................................................................................................. 8 MEASUREMENT UNCERTAINTY .................................................................................................................................... 8 EUT SETUP .................................................................................................................................................................. 8 EMI TEST RECEIVER SETUP ......................................................................................................................................... 9 TEST PROCEDURE ........................................................................................................................................................ 9 TEST EQUIPMENT LIST AND DETAILS ........................................................................................................................... 9 CORRECTED FACTOR & MARGIN CALCULATION ......................................................................................................... 9 TEST RESULTS SUMMARY .......................................................................................................................................... 10 TEST DATA ................................................................................................................................................................ 10 FCC§15.205, §15.209 & §15.249 - RADIATED EMISSIONS ................................................................................. 13 APPLICABLE STANDARD ............................................................................................................................................ 13 MEASUREMENT UNCERTAINTY .................................................................................................................................. 13 TEST EQUIPMENT SETUP ............................................................................................................................................ 13 EUT SETUP ................................................................................................................................................................ 14 TEST PROCEDURE ......................................................................................................................…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emissions - Front View Conducted Emissions - Side View Radiated Emissions - Front View (Below 1 GHz) Radiated Emissions - Rear View (Below 1 GHz) Radiated Emissions - Front View (Aboev 1 GHz) Radiated Emissions - Rear View (Above 1 GHz)
