2AEHWWLP-HLaser Presenter

- 1 - User’s Manual Be sure to carefully read this user’s manual before using the wireless presenter and keep it for future reference. - 2 - WARNING! RISK OF INJURY! Laser beam can cause permanent damage to eyes. Do not look into the laser beam or shine the laser beam into your eyes, other peoples’ eyes, or pet’s eyes. Keep this device away from Children. This is a working tool, not a toy. It should only be used by adults. Information in this document is subject to change without notice. No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical, for any purpose, without prior permission of the seller. The seller provides this document without warranty, or condition of any kind. The seller may make improvements or changes in the product described in this document at any time. FCC Certification Requirements Caution: Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. - 3 - This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television - 4 - reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. - 5 - Introduction I. Product description It is a great tool for presentations! With it, you can interact with your audiences and still maintain control of your laptop or PC. You don't need to stand beside your computer or blackboard. With it you have complete control! You can effortlessly deliver your best PowerPoint presentations with the wireless presenter, highlight important details with the laser pointer and manage the presentation within a 50 meters range. II. Features 1) Support PowerPoint, Keynote and Prezi The functions of page down and page up buttons can switch among Page Down/Up, Left/Right Arrow and Up/Down Arrow, by press the page down and page up buttons at the same time. 2) 50 meters wireless range With 50 meters wireless range, you can stroll around every corner of the conference room or present from the back of the classroom. 3) Support hyperlinks - 6 - It combines the functions of a laser pointer, page up, page down, play slides, black screen for PowerPoint presentation. Through Tab and Enter button, the wireless presenter supports hyper link in the PowerPoint. 4) P+R button to provide great button-pressing experience. 5) Low power reminding function The led will flash slowly when the power is low. 6) Storable receiver The USB receiver can be stored into the wireless presenter for easy carrying. 7) On/off power switch The wireless presenter is equipped with an on/off power switch. 8) 2.4G RF frequency, which is an ISM free frequency and can be used world-wide. 9) Plug-and-play simplicity The mini USB receiver supports plug and play technology. No driver is required. Just plug the receiver into the USB port of a laptop and it starts to work within a few seconds. The transmitter and receiver in the factory have - 7 - matched the frequency. 10) Class 3R laser, which is safe for kids and pets. III. Who should have this device All the people who present with PowerPoint and a projector, such as teachers, trainers, businessmen, will need this device. IV. Operation system Windows 7, Windows 8, Mac OS, Linux, Android V. Package contents 1) Wireless presenter 2) User Manual 3) USB receiver(The transmitter and receiver in the factory have matched the frequency.) - 8 - VI. Specifications Transmitter Technology: Radio Frequency Frequency: 2.4GHz Control Distance: 50m Laser: Class 3R Laser Distance: >200m Wavelength: 650nm, red Battery: 3.7V DC Micro-USB Charging Voltage: 5V DC Sleep Current <10uA Dimension: 138*18*13mm Weight: 16g USB Receiver Operation System: Windows 7/8, Mac OS, Linux, Android USB Version: USB 2.0 Working Voltage: 5V DC Dimension: 24.68*13.8*5.14mm Weight: 2.1g - 9 - Getting Started VII. Function map - 10 - Installation 1) Take out the mini USB receiver from the wireless presenter - 11 - Take out the mini USB receiver from the wireless presenter. Push the power switch to on position; you can press any button to check whether the power is on or not. If the LED is flashing when the button is pressed, it means the wireless presenter is turned on. - 12 - 2) Install the USB receiver Please plug the receiver into the laptop’s USB port. The system will automatically detect the device. Follow the steps to search the driver of the USB device and complete the setup. 3) Operate the wireless presenter When a button is pressed, the blue LED on the wireless presenter will flash. When the USB r…

Text truncated - open the document above for the full version.

LightVision Technologies, Corp. 6F-5, No.40-2, Sec. 1, Minsheng N. Rd.,Gueishan Township,Taoyuan County 33391,Taiwan Confidentiality Request Letter Page 1 of 1 Rev 2.0 October 22, 2015 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Permanent Confidentiality Request Confidentiality Request regarding application for certification of FCC ID:2AEHWWLP-H We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Operational Description - Schematic The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature: Client’s name / title: Candy Lu / Manager Contact information / address: 6F-5, No.40-2, Sec. 1, Minsheng N. Rd.,Gueishan Township,Taoyuan County 33391,Taiwan TEL: 03-355-5931 FAX: 03-355-5934 E-mail:[email protected]

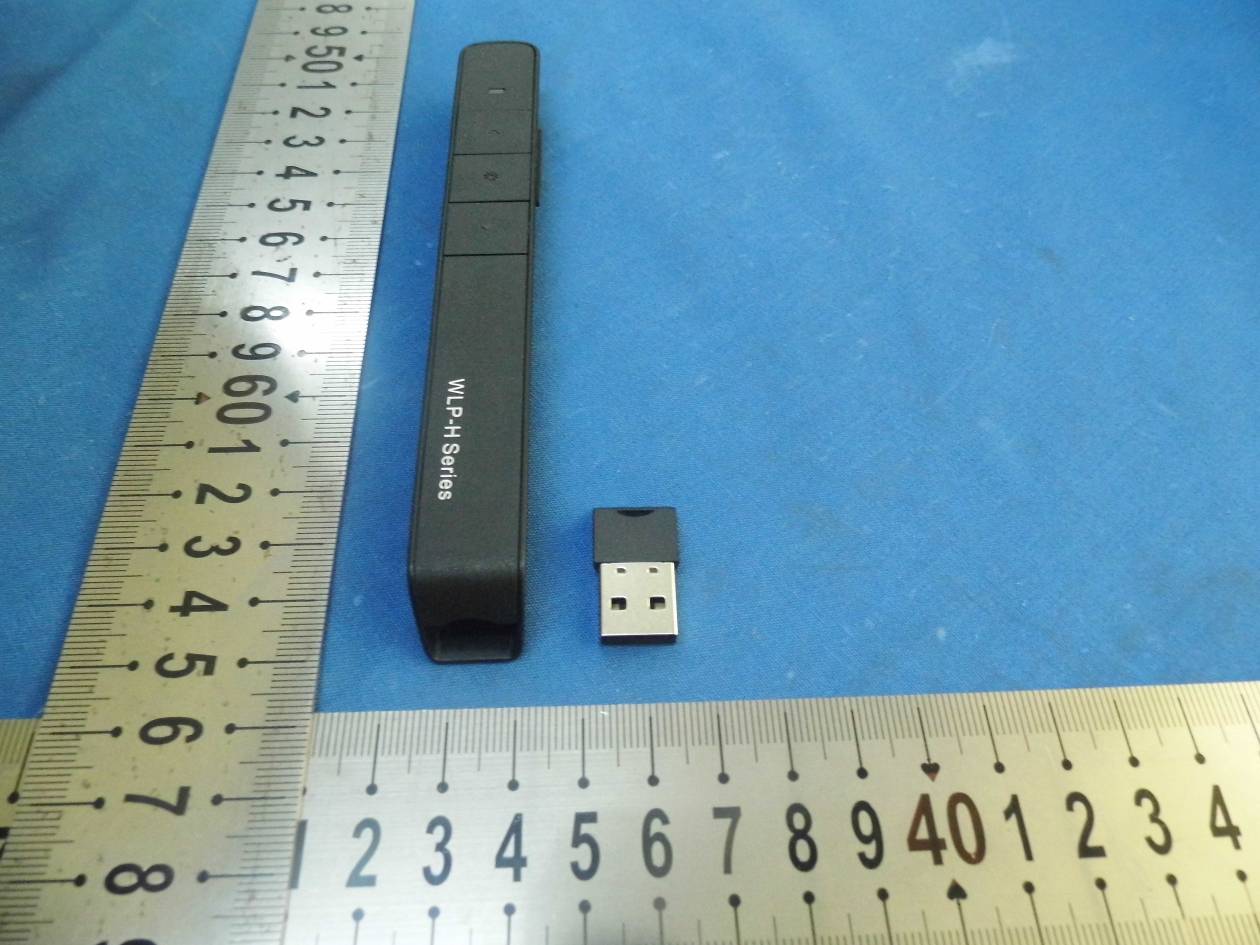

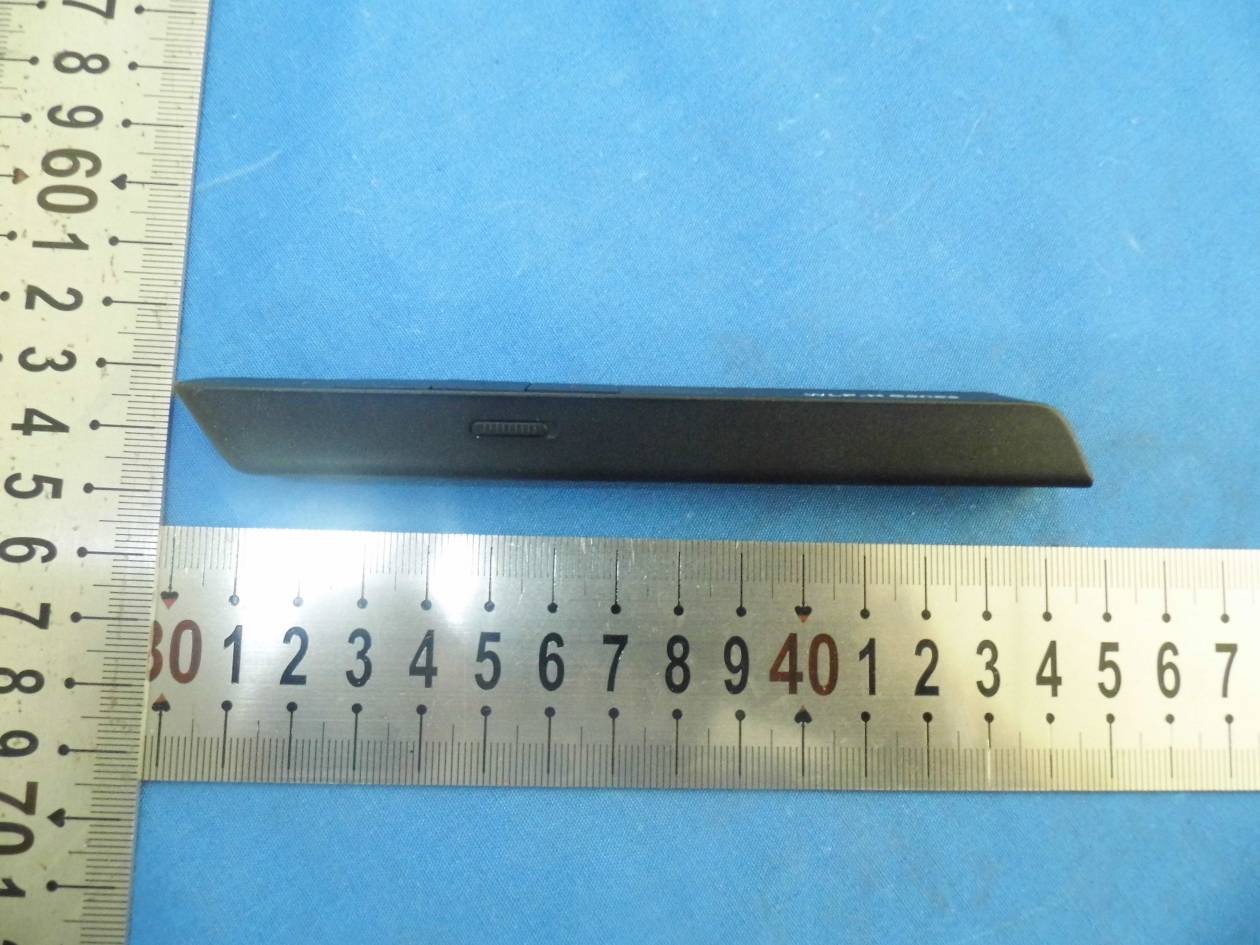

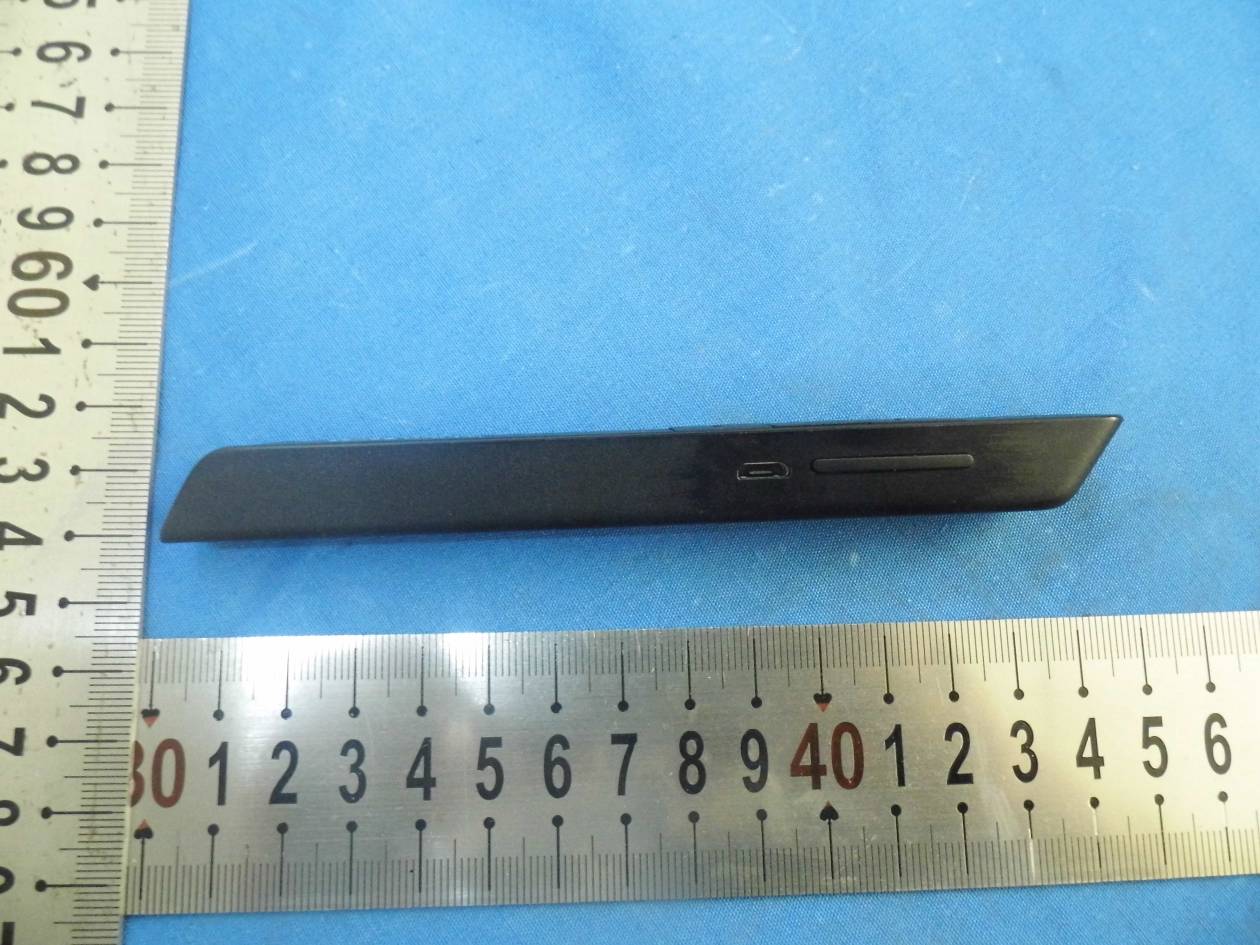

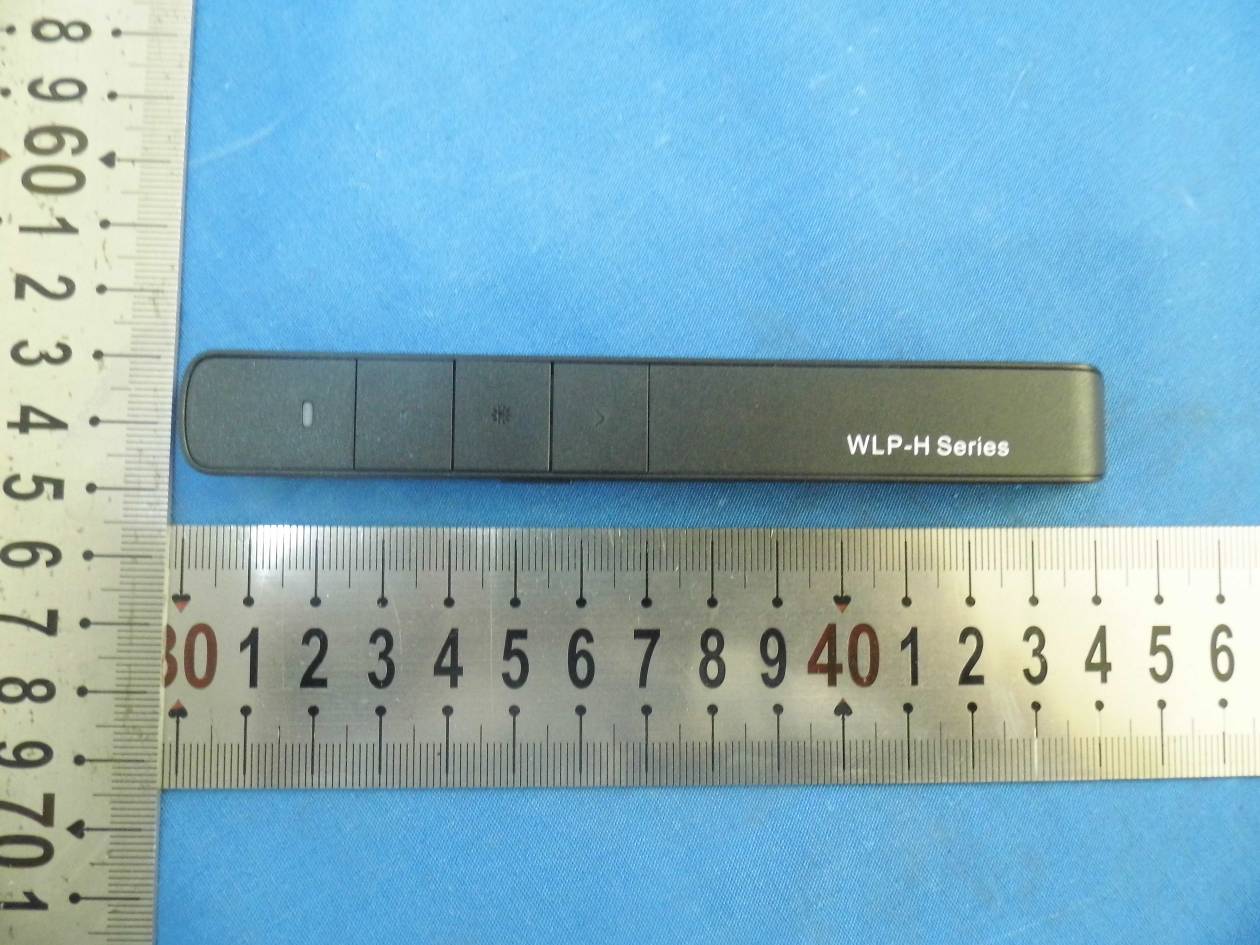

External Photo

FCC Certification Label FCC ID:2AEHWWLP-H Label Location on EUT label size:high 0.5cm, Wide:2cm EUT View/ FCC ID Label Location

Internal Photo Antenna

FCC PART 15.249 EMI MEASUREMENT AND TEST REPORT For LightVision Technologies, Corp. 6F-5, No.40-2, Sec. 1, Minsheng N. Rd.,Gueishan Township,Taoyuan County 33391,Taiwan FCC ID:2AEHWWLP-H Trade: N/A This Report Concerns: Original Report Equipment Type: Laser Presenter Test Engineer: Lisa Chen Report No.: BSL20151022-1 Receive EUT Date/Test Date: October 12, 2015/ October 12 - October 22, 2015 Reviewed By: Mike moo Prepared By: BSL Testing Co.,LTD. NO. 24, ZH Park, Nantou, Shenzhen, 518000 China Tel: 86- 755-26508703 Fax: 86- 755-26508703 FCC ID:2AEHWWLP-H Page 2/25 TABLE OF CONTENTS 1. GENERAL INFORMATION ....................................................................................................3 1.1. Report information ............................................................................................................3 1.2. Measurement Uncertainty .................................................................................................3 2. PRODUCT DESCRIPTION ......................................................................................................4 2.1. EUT Description ...............................................................................................................4 2.2. Block Diagram of EUT Configuration..............................................................................5 2.3. Support Equipment List ....................................................................................................5 2.4. Test Conditions .................................................................................................................5 3. TEST RESULTS SUMMARY ...................................................................................................6 Modifications ................................................................................................................................6 4. TEST EQUIPMENT USED .......................................................................................................7 5. ANTENNA REQUIREMENT ...................................................................................................8 5.1. Standard Applicable..........................................................................................................8 5.2. Antenna Connected Construction .....................................................................................8 5.3. Result ................................................................................................................................8 6. CONDUCTED POWER LINE TEST .......................................................................................9 6.1. Test Equipment .................................................................................................................9 6.2. Test Procedure ..................................................................................................................9 6.3. Test Setup..........................................................................................................................9 6.4. Conducted Power line Emission Limits............................................................................9 6.5. Conducted Power Line Test Result.................................................................................10 7. RADIATED EMISSION TEST ...............................................................................................12 7.1. Test Equipment ...............................................................................................................12 7.2. Test Procedure ................................................................................................................12 7.3. Radiated Test Setup ........................................................................................................12 7.4. Radiated Emission Limit.................................................................................................14 7.5. Radiated Emission Test Result .......................................................................................15 8. BAND EDGE .............................................................................................................................20 8.1. Test Equipment ...............................................................................................................20 8.2. Test Procedure ................................................................................................................20 8.3. Band Edge FCC 15.249(d) Limit ....................................................................................20 8.4. Band Edge Test Result ....................................................................................................21 9. 20-DB BANDWIDTH ...............................................................................................................22 9.1. Test Equipment ...............................................................................................................22 9.2. Test Procedure ................................................................................................................22 9.3. Limit................................................................................................................................22 9.4. Test Result /Plots ............................................................................................................22 FCC ID:2AEHWWLP-H Page 3/25 1. GENERAL INFORMATION 1.1. Report information 1.1.1.This report is not a certificate of quality; it only applies to the sample of the specific product/equipment given at the time of its testing. The results are not used to indicate or imply that they are application to the similar items. In addition, such results must not be used to indicate or imply that BSL approves recommends or endorses the manufacture, supplier or use of such product/equipment, or that BSL in any way guarantees the later performance of the product/equipment. 1.1.2.The…

Text truncated - open the document above for the full version.

Conducted emissions test Radiated emissions test
