2AEIKHETD26LTD-LTE Digital Repeater

Helios ® Digital TD-LTE ICS Pico Repeaters TD-LTE 2300MHz / TD-LTE 2500MHz / TD-LTE 2600MHz User Manual Fujian Helios Technologies Co., Ltd. www.heliostelecom.com 2 Contents Copyright ............................................................................................................................................................................................................ 3 Disclaimer .............................................................................................................................................................................................................. 3 Warning ............................................................................................................................................................................................................................ 4 1 Overview ................................................................................................................................................................................................................ 5 2 Illuminating ........................................................................................................................................................................................................... 5 3 Product Overview ............................................................................................................................................................................................... 6 4 Main Features ....................................................................................................................................................................................................... 6 5 Application Diagram .......................................................................................................................................................................................... 7 6 Technical Specification ..................................................................................................................................................................................... 7 7 Typical Applications .......................................................................................................................................................................................... 9 8 Optional Accessories ......................................................................................................................................................................................... 9 9 Installation ............................................................................................................................................................................................................. 9 10 Commissioning ........................................................................................................................................................................................ 10 11 Local Control ............................................................................................................................................................................................. 10 11.1 Hardware Connection ........................................................................................................................................................................... 10 11.2 System Requirements ........................................................................................................................................................................... 10 11.3 Software Installation .............................................................................................................................................................................. 11 11.4 Log on .......................................................................................................................................................................................................... 11 11.5 Basic Info .................................................................................................................................................................................................... 13 11.6 Alarm Info .................................................................................................................................................................................................. 14 11.7 Timeslot Set ............................................................................................................................................................................................... 14 11.8 Advance ...................................................................................................................................................................................................... 15 11.9 Hardware ................................................................................................................................................................................................... 17 11.10 Setup Wizard.......................................................................................................................................................................................... 18 3 Copyright © Copyright Helios Telecom. All rights reserved. The copyright of this document is owned by Fujian Helios Technologies Co., Ltd. without the prior written permission obtained from Fujian Helios Technologies Co., Ltd., this document shall not be reproduced and excerpted in any form or by any means, stored in a retrieval system, modified, distributed and translated into other languages, applied for a commercial purpose in whole or in part. Disclaimer This document and the information contained herein is provided on an “AS IS” basis. Helios® may make improvement or changes in this document, at any time and without notice and as it sees fit. Fujian Helios Technologies Co., Ltd. 4/F, …

Text truncated - open the document above for the full version.

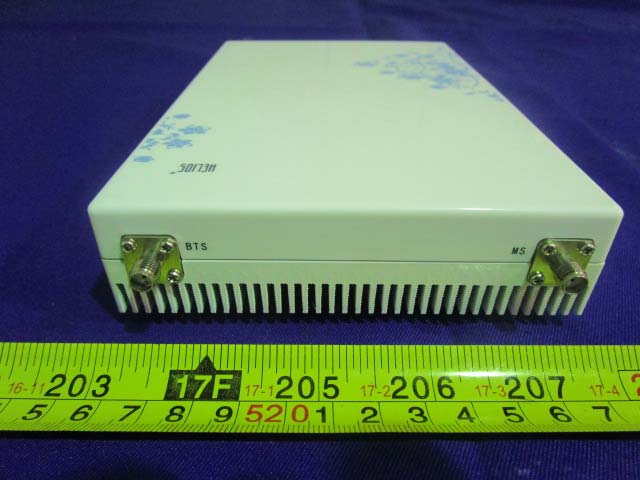

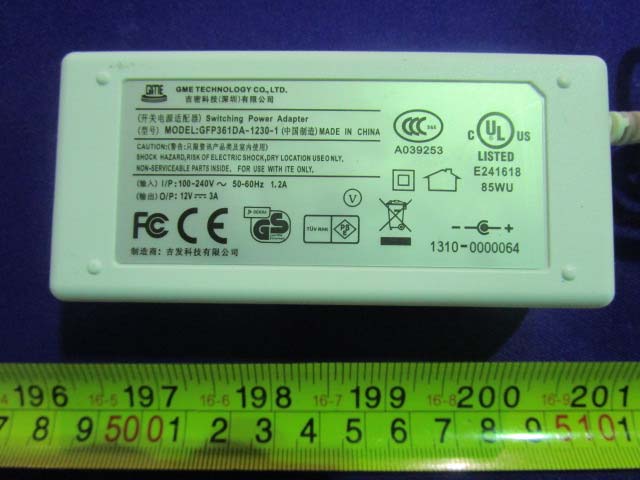

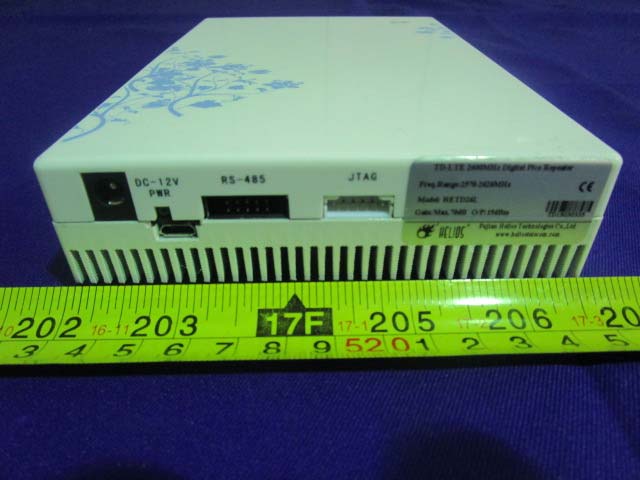

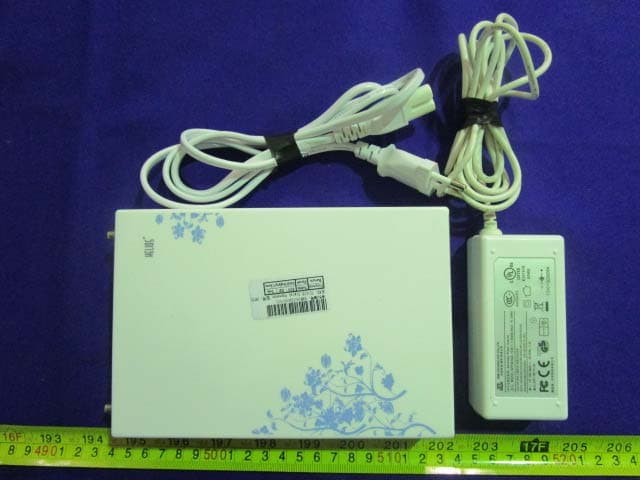

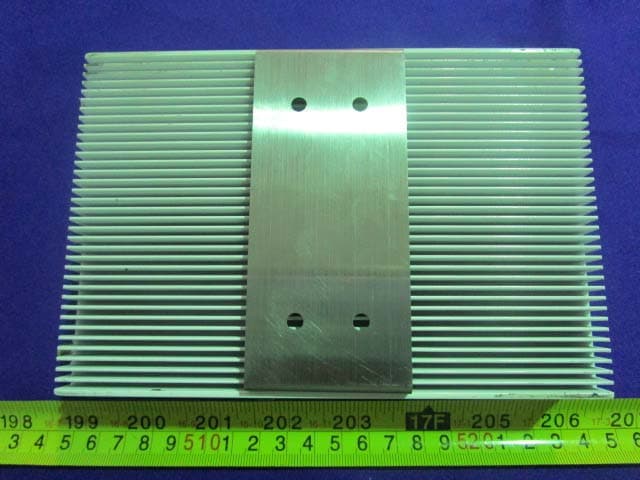

EXHIBIT A - EUT EXTERNAL PHOTOGRAPHS EUT –Top View EUT –Adapter Label View EUT –Top View EUT –Bottom View EUT –Side View EUT –Side View EUT –Side View EUT –Side View

EXHIBIT A - FCC ID LABELING AND LOCATION FCC ID Label Idustrial Booster Warning Label UTStarcom Telecom Co.,Ltd. FCC ID: O6Y-F1000G Report # ID Label and Label Location_not ok.docPage 2 of 65 FCC PART 15.247 Report Proposed FCC ID Label Location Idustrial Booster Warning Label The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925) FCC Label

CommentDesignatorFootprintQuantity 47P C1, C16, C23, C43, C53, C64, C74, C91, C95, C201, C205, C207, C208, C209, C210, C211, C212, C424, C594 60319 2.2UF C2, C19, C26, C48, C51, C56, C58, C61, C78, C102, C104, C110, C113, C144, C156, C160, C199, C203, C215, C274, C277, C279, C281, C282, C283, C286, C288, C309, C316, C344, C361, C363, C400, C407, C444, C453, C461, C486, C487, C489, C490, C499, C511, C520, C521, C522, C524, C525, C555, C557, C558, C562, C565, C567, C580, C583, C608, C609 60358 4.7P C3, C15, C33, C38, C193, C194 6036 102P C4, C52, C69, C99, C184, C223 6036 104P C5, C22, C31, C35, C49, C59, C62, C65, C66, C73, C80, C97, C98, C103, C106, C108, C109, C117, C134, C154, C165, C166, C180, C187, C192, C198, C230, C235, C246, C250, C271, C272, C276, C291, C296, C300, C304, C307, C310, C319, C327, C347, C348, C349, C350, C366, C401, C402, C403, C408, C409, C412, C418, C419, C421, C428, C440, C445, C448, C449, C452, C467, C468, C472, C475, C484, C485, C492, C498, C501, C502, C504, C506, C509, C512, C513, C528, C530, C531, C533, C547, C549, C554, C556, C563, C564, C568, C569, C579, C585, C586, C591, C593, C596, C605, C618, C619, C620, C621, C622, C623, C625, C629, C635, C638, C642, C648, C650 603108 103P C6, C7, C9, C10, C12, C27, C40, C163, C164, C174, C177, C195, C196, C197, C216, C217, C293, C301, C359, C420, C464, C561, C584, L30 60324 20P C8, C13, C24, C41, C55, C57, C63, C67, C70, C71, C75, C76, C79, C81, C87, C88, C89, C111, C138, C157, C167, C179, C185, C186, C206, C236, C237, C238, C240, C251, C252, C253, C254, C256, C257, C259, C260, C278, C355, C357, C367, C368, C369, C383, C387, C388, C389, C391, C392, C393 60350 3.9NHC146031 330PC17, C28, C32, C37, C3996035 10U16V C18, C44, C60, C68, C83, C96, C112, C261, C308, C311, C318, C321, C343, C351, C352, C360, C364, C365 TC10U16V18 220U10V C20, C29, C46, C105, C200, C290, C298, C345 TC220U10V8 10UF C21, C30, C36, C50, C77, C84, C182, C285, C287, C292, C294, C299, C302, C305, C306, C312, C315, C324, C346, C377, C379, C457, C458, C469, C470 80525 100P C34, C107, C145, C172, C188, C202, C226, C227, C228, C265, C266, C267, C354, C441, C493, C496, C503, C507, C508, C544, C545, C546, C548, C624, C630, C639, C640 60327 0.2PC54, C85, C245, C2646034 10UF C90, C168, C220, C334, C358, C413, C427, C430, C433, C442, C459, C482, C517, C519, C527, C529, C550, C571, C575, C587, C600, C607, C637, C641 80524 105P C92, C204, C225, C233, C248, C263, C273, C275, C410, C422, C491, C514, C631, C636, C649 60315 2.7NHC93, C169, C2586033 1P C100, C335, C356, C371, C373, C386, C390 6037 0.5PC101, C243, C3856033 0R C119, C120, C121, C247, R28, R29, R31, R33, R145 6039 220U16VC161TC220U10V1 10PC170, C2446032 2.2nFC1736031 68PC175, C176, C1786033 22UFC2628051 472PC2686031 100U16VC289EC220U16V1 C4532X7R1H475KTC295, C303EC220U16V2 3.3NFC3146031 22PC3416031 22U50VC342EC220U16V1 1.2PC370, C3726032 33nFC3946031 4.7nFC5956031 REDD1, D8, D150805-DIODE3 GREEND2LED1 GREEN D3, D7, D10, D11, D12, D13, D14, D16 0805-DIODE8 MBRS540T3D4, D18DO-214AB2 1SMA12AT3D9SMB-RC1 GTCS26-900M-R05D17CTCX26-900M-R051 CMF44C2595S50AF1SAW&DFL1 820NHL1, L188052 22NH L2, L7, L8, L15, L16, L17, L21, L23, L24, L27, L28, L31, L51, L59, R15 60315 1UH L3, L4, L5, L9, L14, L25, L32, L36, L44, L49, L50, L63, L89, L106 121014 220NH L6, L10, L12, L19, L20, L42 6036 10NHL11, L22, L526033 1UHL266031 22NHL29, L61, R81, R1118054 68NHL338051 1K L34, L35, L43, L53, L54, L55, L56, L57, R7, R9, R23, R25, R37, R48, R60, R66, R96, R115, R128, R131, R132, R171, R176 60323 RLF12560T-220ML37, L47RLF125602 1UH L39, L60, L98, L100, L101 8055 47NHL586031 270NHL626031 SLF7055T-220ML64, L105, L10770553 100NHL90, L946032 330NHL91, L93, L96, L976034 BSS138Q1, Q3, Q5, Q7SOT-234 IRLML6302Q2, Q4, Q6, Q8SOT-234 1RR1, R11, R46, R788054 10K R4, R65, R75, R154, R157, R159, R169, R179 6038 4K7R5, R1026032 6K8R6, R14, R266033 100R R8, R17, R19, R27, R39, R43, R68, R71, R93, R100, R101, R112, R114 40213 10R R10, R16, R62, R63, R113, R116 6036 12RR12, R796032 100R R13, R21, R22, R41, R91, R117, R118, R119, R120, R122, R161, R162, R181 60313 49R9R20, R55, R736033 1.5KR246031 2KR30, R58, R89, R996034 976RR346031 1RR44, R806032 18RR456031 33RR49, R56, R61, R92, R976035 3KR576031 47KR646031 75RR696031 8.06KR706031 1MR726031 3K9R746031 4.7K R82, R95, R98, R103, R109, R110, R121, R123 0402-A8 330R R85, R86, R104, R105, R107, R108 6036 6K2R876031 100KR88, R1296032 7K5R90, R1306032 15KR946031 5R6R1066031 0RR124, R125, R1278053 93.1RR1446031 25RR1486031 36RR1636031 240R R182, R183, R184, R185, R187, R188 6036 33RRP2, RP20, RP21, RP38YC1264 1KRP6, RP22YC1262 33R RP7, RP8, RP9, RP10, RP11, RP12, RP13, RP14, RP15, RP16 YC12410 SBT-A4-8AT1, T2SM-222 20279TP1, TP4, TP5, TP6202794 NDF9202U1, U31, U39SAW3 SBB2089U2, U14SOT-89A2 TLV1117IDCYU3, U5SOT-2232 HMC472LP4U4, U9LP4E2 TPS7A8001DRBU6PVSON81 MASW-008543U7, U8, U17, U24MS8G4 HMC478U10SOT-89A1 TQP3M9037U11, U40QFN50P200X200X85-8N2 HMC479U12, U21SOT-89A2 HMC915LP4U13, U32LP4E2 STM32F103RBT6U15LQFP64_M1 FM25L04U16SOJ-81 C2023J5003AHFU18C2023J5003AHF1 SP3485ENU19SO-8A1 DAC5688IRGCU20QFN-64N1 CMM6004U22SOT-89A1 TQP7M9103U23, U37SOT-89A2 micro USBU25USB_SD_11 ADS58C28IRGCRU27QFN-64N1 TPS5430U28SO-8B1 TPS5450U29SO-8B1 TPS73025DBVRU30SOT-23(5)1 sn74lvc8t245U33LCC241 LM61CIM3U34SOT-231 DS28E01-100-D6+1U35TSOC1 SGA-3486U36SOT-861 CDCE62005RGZU38QFN48N1 TPS54618U41PQFN_16N1 USBLC6-2U43USBLC6-21 HD30-DKE3A-30M72U47TCXO_7050 & 32251 EPCS16SI8NU61SOIC8_N1 HMC832U62BWPLL1 EP4CE55F23I7UU1FBGA4841 SMA-KFD-37-1J2, J4SMA-KHD9B2 IDC10,2.0,RJ3IDC10-F-2.00-R1 IDC12,2.0,RJ5IDC12-2.0 - R1 Wafer06J6Wafer061 DC470J14SW-PS1

1 2 3 Hardwar Con lapt o does System R „ „ „ „ Software Click re Connect nect RS48 op via RS4 sn't have R Requireme Operating CPU: Int processor Memory: with mini m RS232 po default ba e Installati on TDDM Laptop tion 85 Port of 485 cable RS232 port ents g System: W tel, Pentiu r with minim At least 1 mum requir ort: At least aud rate 96 ion MATE_Setu RS48 Co n USB­RS2 Convert TD-LTE P and RS48 t, a USB-R Windows X um, Penti mum spee GB RAM rements fo t 1 serial C 600bps. up_V4.3.ex 5­RS232 nverter 232 ter Pico Repe 85-RS232 RS232 conv XP/2007/20 um Pro, d of 1GHz and 2 GB or operating COM port o xe as follow ater with R converter verter can 008 Pentium . is sugge s g system s r USB-RS2 wing: TD­LT RS232 por r. If the lap be used. II or hig sted to sa software. 232 conve LTE Repeater RS485 Cable rt of ptop gher tisfy rter, Click Next to install the software. Click Finish to finish the installation. 4 Log on Click shortcut TDDMATE on the desktop as following: Default User Name: admin Default Password: admin, click Enter to log on Administrator: has the right to set and query information. The administrator username and password are available to set from Tool / Management sub-menu. After successful logon, it will enter into the main windows of TDDMATE LCT Software V2.0, and shows the default page of “Basic Info”. The main window includes six sub windows, such as “Basic Info”, “Setup Wizard”, Alarm Info”, “Timeslot Set”, “Advance” and “Hardware”. Please refer to “Figure 2”. Click “ ” button on the top right corner of the main window to log out. Figure 2 Main Window 5 How to set the Output Power Threshold for each timeslot Open “Timeslot Set” Page as below picture: Then you will see below “Timeslot Set” page as below, the last row in the table just is for Output Power Threshold as marked by red circle. You can directly fill corresponding value for max output power as you want, and click “Set O/P Power Threshold” button to save setting. Please note that the valid value range is 0 to 15dBm. 6 How to set frequency for working carrier Open “Advance” Page as below picture: Then you will see below “Advance” page as below: There are default 5 carriers setting in above carrier list, generally the repeater will automatically scan on-air signals and locked one strongest carrier for amplify. You can also revise the above frequency value in carrier list to define the center frequency of each carrier (each carrier is 20MHz channel bandwidth). The valid frequency value is 2570-2620MHz. If you do not want auto scan feature and just only lock expected carrier, you can set frequency value of rest 4 carriers as 0 and just leave the expected carrier in the carrier list, and click “Carrier Setting” button to save setting.

Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RXM150324050-00 FCC Part 27 Page 9 of 64 FCC §1.1307(b) & §27.52 & §2.1091 - MAXIMUM PERMISSIBLE EXPOSURE (MPE) Applicable Standard According to subpart §1.1310, systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Maximum Permissible Exposure (MPE) (§1.1310, §2.1091) (B) Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f²) 30 30–300 27.5 0.073 0.2 30 300–1500 / / f/1500 30 1500–100,000 / / 1.0 30 f = frequency in MHz; * = Plane-wave equivalent power density; According to §1.1310 and §2.1091 RF exposure is calculated. Calculated Formulary: Predication of MPE limit at a given distance S = PG/4πR² = power density (in appropriate units, e.g. mW/cm 2 ); P = power input to the antenna (in appropriate units, e.g., mW); G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, is normally numeric gain; R = distance to the center of radiation of the antenna (appropriate units, e.g., cm); Calculated Data: Mode Frequency Band Antenna Gain Conducted Power Evaluation Distance (cm) Power Density (mW/cm 2 ) MPE Limit (mW/cm 2 ) (dBi) (numeric)(dBm)(mW) Uplink 2580- 2610MHz 11.00 12.59 17.0050.12 20.00 0.13 1.0 Downlink 2580- 2610MHz 7.00 5.01 17.00 50.12 20.00 0.05 1.0 Result: The device meet FCC MPE at 20 cm distance

1 1 2 2 3 3 4 4 5 5 6 6 DD CC BB AA Title NumberRevisionSize A4 Date:3/6/2015Sheet of File:D:\\..\v5_ADC.SchDocDrawn By: C18 10U16V C19 2.2UF C29 220U10V C30 10UF C31 104P C22 104P C472 104P C556 104P C20 220U10V L31UH R89 2K R14 6K8 C69 102P L49 1UH C319 104P C441 100P AD18V C321 10U16V C68 10U16V C36 10UF C324 10UF AVCC18_AD DVCC18_AD L63 1uH FV33DR33_AD C21 10UF TD_PICO_v2.1 v2.1 Timbo.Ye ADJ/G ND 1 INPUT 3 OUTPUT 2 OUTPUT 4 U3 TLV1117IDCY 电源R1, R2位置互易 C557 2.2UF C531 104P AD_RESET C555 2.2UF C554 104P AD_RESET1 AD_SCLK1 AD_SDATA1 C163 103P C164 103P AD_CLK_P AD_CLK_N ADC_CML ADCLK_N ADCLK_P ADCHB_P ADCHB_N C496 100P DVCC18_AD AVCC18_AD C5112.2UF C530104P C156 2.2UF AVCC18_ADAD_SDATA AD_SCLK AD_SENAD_SEN11 2 3 45 6 7 8 RP16 33R DRVdd 1 CHB2_M 2 CHB2_P 3 CHB4_M 4 CHB4_P 5 CHB6_M 6 CHB6_P 7 CHB8_M 8 CHB8_P 9 CHB10_M 10 CHB10_P 11 RESET 12 SCLK 13 SDATA 14 SEN 15 AVdd 16 AGND 17 AGND 18 INB_P 19 INB_M 20 AGND 21 AVdd 22 CM 23 AGND 24 CLK P 25 CLK M 26 AGND 27 AGND 28 INA_P 29 INA_M 30 AGND 31 AGND 32 AVdd 33 AVdd 34 CTRL1 35 CTRL2 36 CTRL3 37 NC 38 NC 39 NC 40 NC 41 CHA0_M 42 CHA0_P 43 CHA2_M 44 CHA2_P 45 CHA4_M 46 CHA4_P 47 DRVdd 48 DRGND 65 DRGND 49 CHA6_M 50 CHA6_P 51 CHA8_M 52 CHA8_P 53 CHA10_M 54 CHA10_P 55 CLK OUTM 56 CLK OUTP 57 NC 58 NC 59 NC 60 NC 61 CHB0_M 62 CHB0_P 63 SDOUT 64 U27 ADS58C28IRGCR DVCC18_AD R43100RADCB2_P ADCB2_N ADCB4_P ADCB4_N R71100R R100100R R112100R R114100R ADCB6_P ADCB6_N ADCB8_P ADCB8_N ADCB10_P ADCB10_N AVCC18_AD AVCC18_AD DVCC18_AD R68100R R93100R R101100RADCA0_N ADCA0_P ADCA2_N ADCA2_P ADCA4_N ADCA4_P ADCHA_P ADCHA_N AVCC18_AD LVDS, 8mA R115 1K AVCC18_AD R27100RADCB0_P ADCB0_N ADCKO_P ADCKO_N R17100R R39100RADCA6_N ADCA6_P R19100RADCA8_N ADCA8_P R8100RADCA10_N ADCA10_P For simpl e Paral l el conf i gr at i on: RESET=1, ENABLE P CONFI G SCLK=0, Low Speed Mode Di sabl e 300mAmax@1 . 8 v AVCC18_AD Down Li nk I nput : UP Li nk I nput : ADC_CML R161 100R R162 100R C512 104P C166 104P 43 51 2 T2 SBT-A4-8A C165 104P C452104P L38 R62 10R R63 10R L62 270NH ADCHA_P ADCHA_N ADC_IF C318 10U16V L41 PIC1801 PIC1802 COC18 PIC1901 PIC1902 COC19 PIC2001 PIC2002 COC20 PIC2101 PIC2102 COC21 PIC2201 PIC2202 COC22 PIC2901 PIC2902 COC29 PIC3001 PIC3002 COC30 PIC3101 PIC3102 COC31 PIC3601 PIC3602 COC36 PIC6801 PIC6802 COC68 PIC6901 PIC6902 COC69 PIC15601 PIC15602 COC156 PIC16301PIC16302 COC163 PIC16401PIC16402 COC164 PIC16501PIC16502 COC165 PIC16601PIC16602 COC166 PIC31801 PIC31802 COC318 PIC31901 PIC31902 COC319 PIC32101 PIC32102 COC321 PIC32401 PIC32402 COC324 PIC44101 PIC44102 COC441 PIC45201PIC45202 COC452 PIC47201 PIC47202 COC472 PIC49601 PIC49602 COC496 PIC51101PIC51102 COC511 PIC51201 PIC51202 COC512 PIC53001PIC53002 COC530 PIC53101 PIC53102 COC531 PIC55401 PIC55402 COC554 PIC55501 PIC55502 COC555 PIC55601 PIC55602 COC556 PIC55701 PIC55702 COC557 PIL301PIL302 COL3 PIL3801 PIL3802 COL38 PIL4101 PIL4102 COL41 PIL4901PIL4902 COL49 PIL6201PIL6202 COL62 PIL6301PIL6302 COL63 PIR801PIR802 COR8 PIR1401 PIR1402 COR14 PIR1701PIR1702 COR17 PIR1901PIR1902 COR19 PIR2701PIR2702 COR27 PIR3901PIR3902 COR39 PIR4301PIR4302 COR43 PIR6201PIR6202 COR62 PIR6301PIR6302 COR63 PIR6801PIR6802 COR68 PIR7101PIR7102 COR71 PIR8901 PIR8902 COR89 PIR9301PIR9302 COR93 PIR10001PIR10002 COR100 PIR10101PIR10102 COR101 PIR11201PIR11202 COR112 PIR11401PIR11402 COR114 PIR11501 PIR11502 COR115 PIR16101PIR16102 COR161 PIR16201 PIR16202 COR162 PIRP1601 PIRP1602 PIRP1603 PIRP1604PIRP1605 PIRP1606 PIRP1607 PIRP1608 CORP16 PIT201 PIT202 PIT203PIT204 PIT205 COT2 PIU301PIU302PIU303PIU304 COU3 PIU2701 PIU2702 PIU2703 PIU2704 PIU2705 PIU2706 PIU2707 PIU2708 PIU2709 PIU27010 PIU27011 PIU27012 PIU27013 PIU27014 PIU27015 PIU27016 PIU27017PIU27018PIU27019PIU27020PIU27021PIU27022PIU27023PIU27024PIU27025PIU27026PIU27027PIU27028PIU27029PIU27030PIU27031PIU27032 PIU27033 PIU27034 PIU27035 PIU27036 PIU27037 PIU27038 PIU27039 PIU27040 PIU27041 PIU27042 PIU27043 PIU27044 PIU27045 PIU27046 PIU27047 PIU27048 PIU27049PIU27050PIU27051PIU27052PIU27053PIU27054PIU27055PIU27056PIU27057PIU27058PIU27059PIU27060PIU27061PIU27062PIU27063PIU27064 PIU27065 COU27 1 1 2 2 3 3 4 4 DD CC BB AA Title NumberRevisionSize A4 Date:3/6/2015Sheet of File:D:\\..\v5_CLK.SchDocDrawn By: AD_CLK_P AD_CLK_N R83 R84 FPGACLK_P FPGACLK_N R184 240R R185 240R DACCLK_P DACCLK_N NC/VC 1 GND 2 VO 3 VCC 4 U47 HD30-DKE3A-30M72 C275 105PC274 2.2UF L60 1UH C273 105P C261 10U16V R188 240R R187 240R R9733R R9233R U4A U4B PLLREF1 PLLREF2 R183 240R R182 240R REF_OSC CLK_3.3V R992K12 D11GREEN C276 104P R1065R6 C262 22UF C246104P CLK_REFIN PLL_LOCK VCC_IN_SEC 1 SEC REF– 2 SEC REF+ 3 REG_CAP1 4 VCC1_PLL 5 U4P 6 U4N 7 VCC_OUT 8 U3P 9 U3N 10 VCC_OUT 11 Power_Down 12 AUX OUT 13 SYNC 14 VCC_AUXOUT 15 U2P 16 U2N 17 VCC_OUT 18 U1P 19 U1N 20 VCC_OUT 21 SPI_MISO 22 SPI_MOSI 23 SPI_CLK 24 SPI_LE 25 VCC_OUT 26 U0P 27 U0N 28 VCC_OUT 29 TESTOUTA 30 REF_SEL 31 VCC_OUT 32 TEST_MODE 33 VCC_VCO 34 VCC_VCO 35 GND_VCO 36 PLL_LOCK 37 REG_CAP2 38 VCC2_PLL 39 EXT_LFP 40 EXT_LFN 41 VCC2_PLL 42 AUX IN 43 VCC_AUXIN 44 PRI REF+ 45 PRI REF– 46 VCC_IN_PRI 47 VBB 48 EPAD 49 U38 CDCE62005RGZ CLK_REFIN C248 105P EXT_LFP EXT_LFN CLK_3.3V VCC1_PLL VCC2_PLL VCC2_PLL L98 1UH L101 1UH C631 105P C625 104P C649 105P C638 104P VCC1_PLL VCC2_PLL CLK_3.3V CLK_3.3V CLK_3.3V CLK_3.3V CLK_3.3V REG_CAP1 REG_CAP2 CLK_MISO1 CLK_MOSI1 CLK_CLK1 CLK_LE1 CLK_3.3V CLK_3.3V CLK_3.3V CLK_3.3V VCC_VCO L100 1UH C636 105P C635 104P VCC_VCO CLK_3.3V CLK_3.3V CLK_3.3V CLK_3.3V C247 0R R96 1K C637 10UF C641 10UF REG_CAP2REG_CAP1 ADC:122.88MHz;LVDS DAC122.88MHz;LVPECL FPGA:122.88MHz;LVPECL LO REF:,LVCMOS,61.44MHz CLK_3.3V CLK_3.3V C216103P C217103P DigPico v1.0_CLK Timbo.Ye v1.0 L44 1UH C642 104P C621 104P C650 104P C630 100P C623 104P C640 100P C620 104P C618 104P C648 104P C629 104P C200 220U10V CLK_3.3V C619 104P C639 100P C622 104P C624 100P FV33 PLLREF C242 02 1 3 TP6 20279 L89 1UH C334 10UF C358 10UF DNC C73 104P R76 NC R77 NC PIC7301PIC7302 COC73 PIC20001 PIC20002 COC200 PIC21601PIC21602 COC216 PIC21701PIC21702 COC217 PIC24201PIC…

Text truncated - open the document above for the full version.

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (Dongguan). This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. FCC PART 27 MEASUREMENT AND TEST REPORT For Fujian Helios Technologies Co., Ltd. Helios BLDG, No. 12 Xiangyue RD, Torch Hi-Tech Industrial Zone, Xiangan DIST, Xiamen, China FCC ID: 2AEIKHETD26L Report Type: Original Report Product Type: TD-LTE Digtal Repeater Test Engineer: Dean Liu Report Number: RXM150324050-00 Report Date: 2015-08-31 Reviewed B y: Sula Huang RF Leade r Test Laboratory: Bay Area Compliance Laboratories Corp. (Dongguan) No.69 Pulongcun, Puxinhu Industrial Zone, Tangxia, Dongguan, Guangdong, China Tel: +86-769-86858888 Fax: +86-769-86858891 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RXM150324050-00 FCC Part 27 Page 2 of 64 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 4 TEST METHODOLOGY .................................................................................................................................................. 5 TEST FACILITY ............................................................................................................................................................. 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 JUSTIFICATION ............................................................................................................................................................. 6 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 6 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 6 EXTERNAL CABLE ........................................................................................................................................................ 6 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 7 SUMMARY OF TEST RESULTS ............................................................................................................................... 8 FCC §1.1307(B) & §27.52 & §2.1091 - MAXIMUM PERMISSIBLE EXPOSURE (MPE) ................................... 9 APPLICABLE STANDARD .............................................................................................................................................. 9 FCC § 2.1046 & § 27.50 - RF OUTPUT POWER ..................................................................................................... 10 APPLICABLE STANDARD ............................................................................................................................................ 10 TEST PROCEDURE ...................................................................................................................................................... 10 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 11 TEST DATA ................................................................................................................................................................ 11 FCC §2.1049 & §27.53 - OCCUPIED BANDWIDTH .............................................................................................. 13 APPLICABLE STANDARDS........................................................................................................................................... 13 TEST PROCEDURE ...................................................................................................................................................... 13 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 14 TEST DATA ................................................................................................................................................................ 14 FCC §2.1051 & §27.53- SPURIOUS EMISSIONS AT ANTENNA TERMINALS ............................................... 31 APPLICABLE STANDARDS........................................................................................................................................... 31 TEST PROCEDURE ...................................................................................................................................................... 31 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 31 TEST DATA ................................................................................................................................................................ 31 FCC §2.1053 & §27.53 - SPURIOUS RADIATED EMISSIONS ............................................................................ 44 APPLICABLE STANDARDS............…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Radiated Emission Below 1GHz View Radiated Emission Above 1GHz View
