2AEISIW-20XSmart Band

Smart Bracelet Instructions Content Bracelet packing .................................. 1 Bracelet charging ................................ 1-2 Bracelet components .......................... 2-3 Display implication................................ 3 Bracelet function .................................. 4 Data reset ............................................. 4 Notes .................................................... 5 Bracelet parameter .............................. 5 Bracelet charging If no data appears when pressing the button for long, please use charger to connect the bracelet with PC, and bracelet will show charging status. The bracelet is fully charged for charging 1-2hours. Button 1 2 Activate the bracelet and BT connect 1.Activate: press the button for 10s to activate the bracelet for the first time. 2.BT connect: vibrator will vibrate after activation via double-press the button. The system interface shows up ( ) BT icon which indicates that the bracelet can match and connect with the phone; if the bracelet fail to connect with APP in 1 minute, the BT icon will disappear indicating that the bracelet can't be matched; double-press the button can disconnect if bracelet and APP are under connection. Search: the bracelet and phone are under connnection status. Under searching interface, pressing the button for three times, the phone will alert. The bracelet will vibrate and flash the backlight through APP searching the bracelet. Function Click the button to light on the LED screen, the bracelet go into the last time screen off interface. The interface turns to screen off automantically with no operations for 6s;after the screen is on ,click the button to shift in the following interfaces: 1.System main interface: mainly show the clock, date, day of the system, BT status and the power. ； 3 4 Bracelet packing Display implication Charger Instructions Charger When charging, the electrode pin of the bracelet is inserted into the charging port of the inner core .The bracelet is charging after electrode positioned. The bracelet is fully charged for 1-2hours , as follows: Bracelet components OLED dispaly Charging port Metal button Inner core Charger Synchronize Call receive Message Match Disconnect Search Anti-lost Update Screen off System interface Step Distance Calorie Length of time Alarm Charge Bracelet contains button,OLED display, charging port, metal button and plastic band. 1.OLED display：show exercise data, time, and alarm and .,etc. 2.Button：use to shift the mode of bracelet and check exercise data. 3.Charging port: adopt matched charger to get charged. 4.Metal button：use independent metal button to adjust wearing size. Data reset At 00:00 of the system everyday, the real time data of the bracelet such as pedometer, distance, calorie, length of time in exercise will be reset automatically, so there is no need to reset by hand. Hardware updating, the bracelet can be upgraded on line . 2.Step interface: mainly show the exercise step of the User and target step approaching status. 3.Distance interface: mainly show the exercise distance of the User . 4.Calorie interface: mainly show the consumed calorie of the User in exercise. 5.Length of time in exercise: mainly show the total length of time of the User in exercise . Display implication logo IW-20X N OTE : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. The device meets RF Exposure requirements without any restriction.

Guangdong Spark Technology Co., Ltd Room 515,Building 1,No.6, South Industrial Road, Songshan Lake National Hitech Industrial DEV. Zone,Dongguan,Guangdong,China TEL: 86-769-32005601 FAX: 86-769-32005602 Date (26/05/2015) TUV SUD BABT TCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL Confidentiality Request FCC ID: 2AEISIW-20X Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, Guangdong Spark Technology Co., Ltd hereby requests permanent confidential treatment of information accompanying this application as outlined below: 1.Schematics 2.Bill of Materials/Parts List 3.Block Diagrams 4.Theory of Operation The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely, Company Officer: Ling Yang Telephone Number: 86-769-32005601 Email: [email protected]

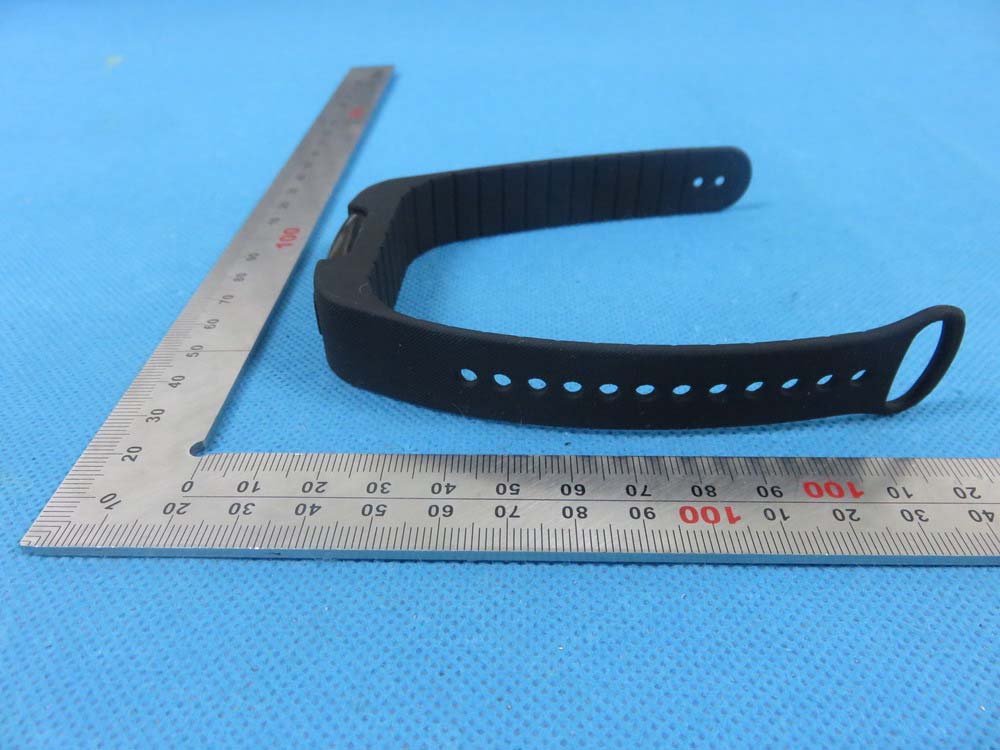

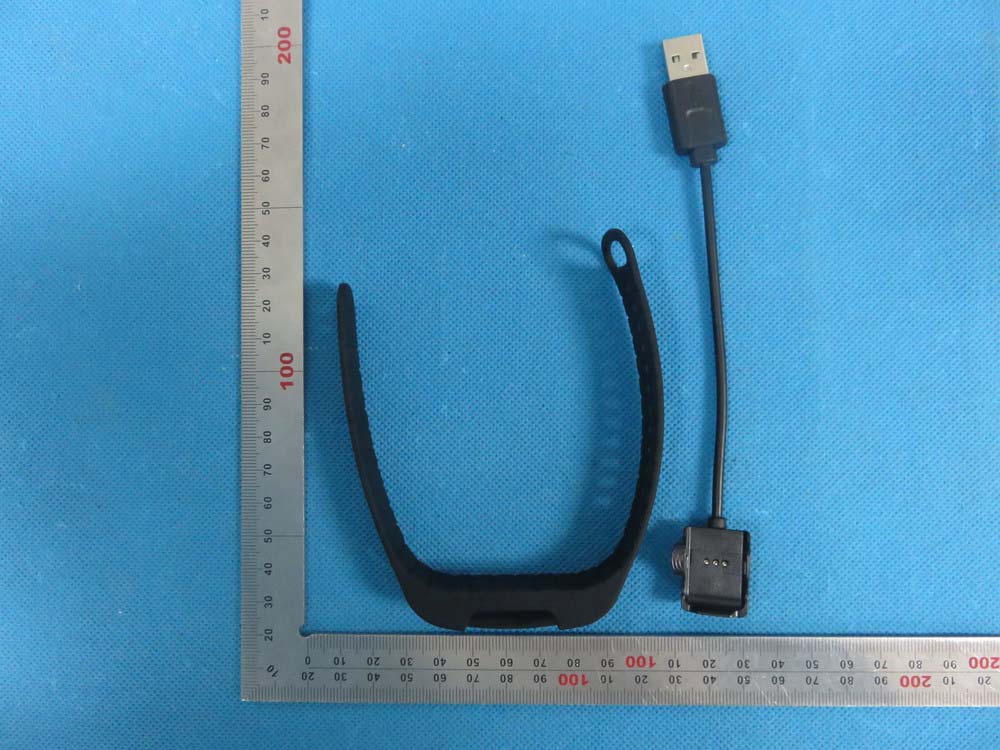

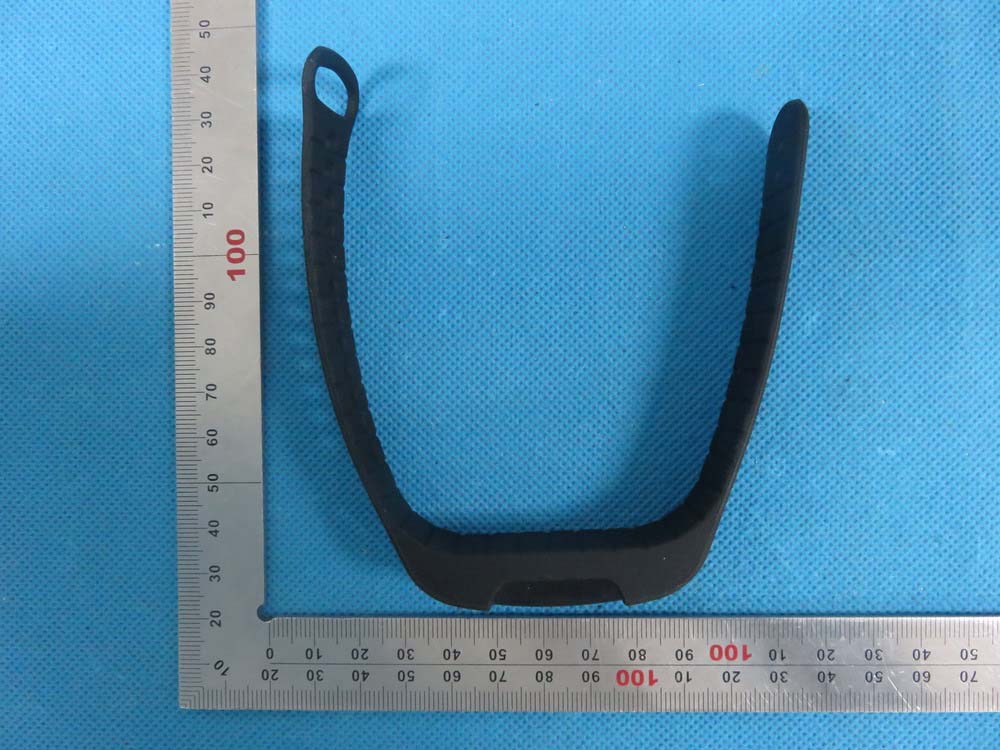

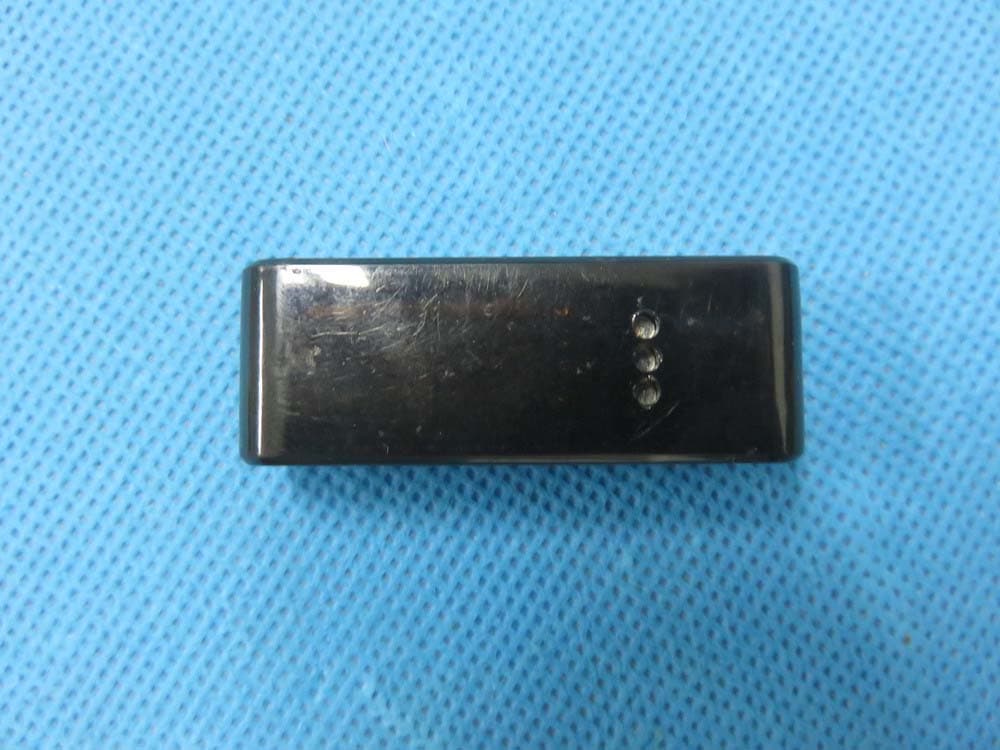

External Photos TOTAL VIEW OF EUT TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT PORT VIEW OF EUT

FCC ID Label Location Smart Band Model:IW‐20X FCC ID: 2AEISIW‐20X

Internal Photos OPEN VIEW OF EUT INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 INTERNAL VIEW OF EUT-3 Antenna

RF Exposure evaluation Product Description: Smart band Model Number: IW-20X FCC ID: 2AEISIW-20X According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation According to the follow transmitter output power（P t ）formula： P t =（E x d） 2 /（30 x g t ） P t =transmitter output power in watts g t =numeric gain of the transmitting antenna (unitess) E=electric field strength in V/m d=measurement distance in meters (m) According to the above test data, Emax=90.55dBuv/m=0.034V/m,d=3m,g t =0.3 P t =（E x d） 2 /（30 x g t ）=(0.034x3) 2 /(30x0.3)=0.0012W=1.2mW The result is rounded to one decimal place for comparison Worse case is as below: [2402MHz -1.2mW output power] (1.2mW /5mm) .[√2.402(GHz)]= 0.37<3.0 for 1-g SAR Then SAR evaluation is not required NOTE: The transmitter output power formula you can refer to Part15F (K). For the maximum power, you can refer FCC test report.

Page 1 of 46 FCC Test Report Report No.: AGC04215150301FE03 FCC ID : 2AEISIW‐20X APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Smart band BRAND NAME : N/A MODEL NAME : IW‐20X CLIENT : Guangdong Spark Technology Co., Ltd DATE OF ISSUE : Apr.03,2015 STANDARD(S) TEST PROCEDURE(S) : FCC Part 15 Rules REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC04215150301FE03 Page 2 of 46 Report Revise Record Report Version Revise Time Issued Date Valid VersionNotes V1.0 / Apr.03,2015 Valid Original Report Report No.: AGC04215150301FE03 Page 3 of 46 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ...................................................................................... 4 2. GENERAL INFORMATION .................................................................................................. 5 2.1. PRODUCT DESCRIPTION ........................................................................................................... 5 2.2. TABLE OF CARRIER FREQUENCYS .......................................................................................... 5 3. MEASUREMENT UNCERTAINTY........................................................................................ 6 4. DESCRIPTION OF TEST MODES ........................................................................................ 6 5. SYSTEM TEST CONFIGURATION ...................................................................................... 6 5.1. CONFIGURATION OF EUT SYSTEM .......................................................................................... 6 5.2. EQUIPMENT USED IN EUT SYSTEM ......................................................................................... 7 5.3. SUMMARY OF TEST RESULTS .................................................................................................. 7 6. TEST FACILITY .................................................................................................................... 8 7 ALL TEST EQUIPMENT LIST ............................................................................................... 8 8. RADIATED EMISSION ......................................................................................................... 9 8.1TEST LIMIT ..................................................................................................................................... 9 8.2. MEASUREMENT PROCEDURE ................................................................................................ 10 8.3. TEST SETUP .............................................................................................................................. 12 8.4. TEST RESULT(Worst modulation:GFSK) ................................................................................... 14 9. BAND EDGE EMISSION .................................................................................................... 27 9.1. MEASUREMENT PROCEDURE ................................................................................................ 27 9.2 TEST SETUP ............................................................................................................................... 27 9.3 RADIATED TEST RESULT(Worst modulation:GFSK) ................................................................. 28 10. 20DB BANDWIDTH .......................................................................................................... 32 10.1. MEASUREMENT PROCEDURE .............................................................................................. 32 10.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ..................................................... 32 10.3. LIMITS AND MEASUREMENT RESULTS ................................................................................ 32 11. FCC LINE CONDUCTED EMISSION TEST ..................................................................... 35 11.1. LIMITS OF LINE CONDUCTED EMISSION TEST ................................................................... 35 11.2. BLOCK DIAGRAM OF LINE CONDUCTED EMISSION TEST ................................................. 35 11.3. PRELIMINARY PROCEDURE OF LINE CONDUCTED EMISSION TEST .............................. 36 11.4. FINAL PROCEDURE OF LINE CONDUCTED EMISSION TEST ............................................. 36 11.5. TEST RESULT OF LINE CONDUCTED EMISSION TEST ....................................................... 37 APPENDIX A: PHOTOGRAPHS OF TEST SETUP ............................................................... 39 APPENDIX B: PHOTOGRAPHS OF EUT .............................................................................. 41 Report No.: AGC04215150301FE03 Page 4 of 46 1. VERIFICATION OF CONFORMITY Applicant Guangdong Spark Technology Co., Ltd Address Room 515, Building 1, No.6, South Industrial Road, Songshan Lake National Hitech Industrial Development Zone, Dongguan, Guangdong, China Manufacturer Guangdong Spark Technology Co., Ltd Address Room 515, Building 1, No.6, South Industrial Road, Songshan Lake National Hitech Industrial Development Zone, Dongguan, Guangdong, China Product Designation Smart band Brand Name N/A Test Model IW-20X Date of test Mar.29,2015 to Apr.01,2015 Deviation None Condition of Test Sample Normal Report Template AGCRT-US-BR/RF We hereby certify that: The above equipment was tested by Shenzhen STS Test Services Co., Ltd. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2009) and the energy emitted by the sample EUT tested as described in this report is in compliance with radiated emission limits of FCC Rules Part 15.249. Prepared By Water Zuo Apr.03,2015 Checked By Forrest Lei Apr.03,2015 Authorized By Solger Zhang Apr.03,2015 Report No.: AGC04215150301FE03 P…

Text truncated - open the document above for the full version.

APPENDIX IV PHOTOGRAPHS OF TEST SETUP FCC LINE CONDUCTED EMISSION TEST SETUP FCC RADIATED EMISSION TEST SETUP
