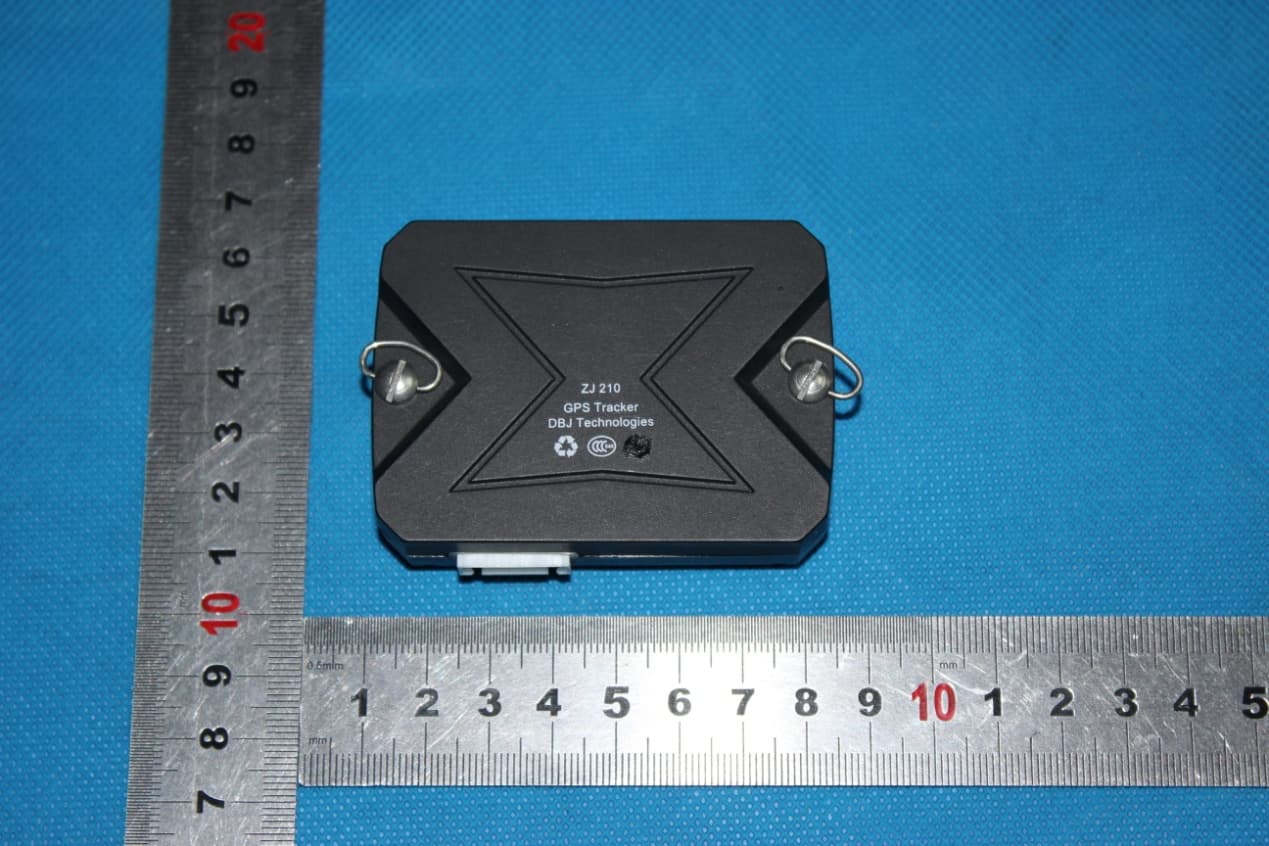

2AEIXZJ210GPS Tracker

ZJ21O Product Description Part 1. Quick Start Guide Get more help at http://www.cloudhawkgps.com/help 1. Access website (http://www.mycloudhawk.com) or open CloudHawk mobile app (download them from “Google Play” or “App Store”). 2. Click “Setup New Account”, type in your email address and click “Register”. 3. Check your email and follow the link to complete the registration. Step 1: User Registration Step 2: Device Activation 1. Add new device on web site a. Sign in to website (www.mycloudhawk.com) with the registered account; b. Click the “+” button below your tracker list; c. Type in the Activation Code and the tracker's Serial Number (S/N) and click “Add”. The 2 activation code can be found on the package label or in the User Manual. The tracker SN can be found on the label at the bottom of the device. 2. Enable the device a. Open the device, plug in your SIM card and turn on the device. b.The indicator will light steady yellow then go to rapidly flash yellow. When it goes to steady yellow again for 10 seconds, the device is ready to use. 3 Put micro SIM card inside as this waySlide the switch on to turn on device as the picture Congratulations! Your CloudHawk tracking device is ready to use! Step 3: Customize settings After signed into your account, you can customize your settings to meet your specific needs, such as setup your tracker's name, geo-fences, notifications or share the tracker to your family/friends. 4 Part 2. User Manual Get more help at www.cloudhawkgps.com/help Reset button and LED indicator Dimensions Technologies Battery Voltage supply SIM card type 73*54*21mm GSM quad band /GPRS, GPS, A-GPS Lithium-ion battery 220mAh 12-60V DC Micro SIM card * In good GPS signal conditions ** 95% CEP, i.e., accuracy of 95% of the fixes are within the listed limit 1. ZJ 210 Overview 6 Interface connector Tracker information: 7 1.VCC,12-60V DC positive inpute 2.GND,12-60V DC negative inpute 3.No used 4.No used 5.ACC,after motor’s swith 6.Postive wire of buzzer 5V DC out * Connect the device to motor as the picture above. LED color pattern None Steady Yellow Green double flash Yellow fast flash Yellow for 10 seconds Yellow double flash Red double flash Red slow flash Yellow slow flash Green slow flash Steady Green Red fast flash Green fast flash Green for 10 seconds Red for 10 seconds Condition Normal operation Initializing Upgrading firmware Connecting to server Connected to server Service not available SIM-card error Charging, low battery capacity Charging, normal battery capacity Charging, battery near full capacity Charging, full battery Sending emergency message Searching GPS signal during status check GPS signal normal during status check GPS signal low during status check 3. LED Indicator Status Table 8 4.
FAQ Please place the device under an open sky condition during initial boot-up, and wait 5 minutes for it to acquire an initial position. This only needs to be done once. If the device is indoor or in an underground parking, please take it to an area which has an unobstructed view of the sky. If it locates beneath the metal shield, please remove the shield or change the install position. GPS positioning failure when first use GPS positioning failure The power might be low, please try charging through VCC and GND (check the connection mode in page x). Please check the connection between the battery and the device, and ensure there is no damage on VCC or GND. If the indicator is off, please reboot the device manually by long pressing the reset button. Fail to boot-up Charging fails Tracker off-line 9 FCC WARNING This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE 1: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ‐ Reorient or relocate the receiving antenna. ‐ Increase the separation between the equipment and receiver. ‐Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ‐ Consult the dealer or an experienced radio/TV technician for help. NOTE 2: Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.
