  1. Home/
  2. InterWorks Unlimited Inc./
  3. 2AEJ7001

2AEJ7001Bluetooth Adaptor

InterWorks Unlimited Inc.
Bluetooth Adaptor - FCC ID 2AEJ7001 - InterWorks Unlimited Inc.
Click to zoom

Application Details

Equipment Class
DXX - Part 15 Low Power Communication Device Transmitter
Date of Grant
Apr 27, 2015
Application Purpose
Original Equipment
Date of Application
Apr 27, 2015
Equipment Note
Bluetooth Adaptor
Frequency Range
2402.00000000 - 2480.00000000
Company
InterWorks Unlimited Inc.
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Attestation Statements

↗

Cover Letter(s)

↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

Parts List/Tune Up Info

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

FCC Statement: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: Modifications to this product will void the user’s authority to operate this equipment.

Attestation Statements

InterWorks Unlimited Inc. 2418 Peck Road, City of Industry, California 90601, United States TEL: +1-562-6928400 FAX: +1-562-6928433 April 21, 2015 TUV SUD BABT TCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL Subject: Explanation of differences between product types FCC ID : 2AEJ7001 Model Number: BT-BOX-01,BT-BOX-02,BT-BOX-03,BT-BOX-04, BT-BOX-05,BT-BOX-06,BT-BOX-07,BT-BOX-08,BT-BOX-09,BT-BOX-10 To Whom It May Concern: We, InterWorks Unlimited Inc., hereby declare that the model : BT-BOX-02,BT- BOX-03,BT-BOX-04,BT-BOX-05,BT-BOX-06,BT-BOX-07,BT-BOX-08,BT-BOX- 09,BT-BOX-10 are identical with the model : BT-BOX-01, except the model name. Except for the different above, no other modification is performed. Sincerely, InterWorks Unlimited Inc. Signature: Company Officer: Thomas Cheng/Manager Telephone Number: +1-562-6928400 Email: [email protected]

Cover Letter(s)

InterWorks Unlimited Inc. 2418 Peck Road, City of Industry, California 90601, United States TEL: +1-562-6928400 FAX: +1-562-6928433 Date (21/04/2015) TUV SUD BABT TCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL Confidentiality Request FCC ID: 2AEJ7001 Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, InterWorks Unlimited Inc. hereby requests permanent confidential treatment of information accompanying this application as outlined below: 1.Schematics 2.Bill of Materials/Parts List 3.Block Diagrams 4.Theory of Operation The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely, Company Officer: Thomas cheng/Manager Telephone Number: 1-562-6928400 Email: [email protected]

External Photos

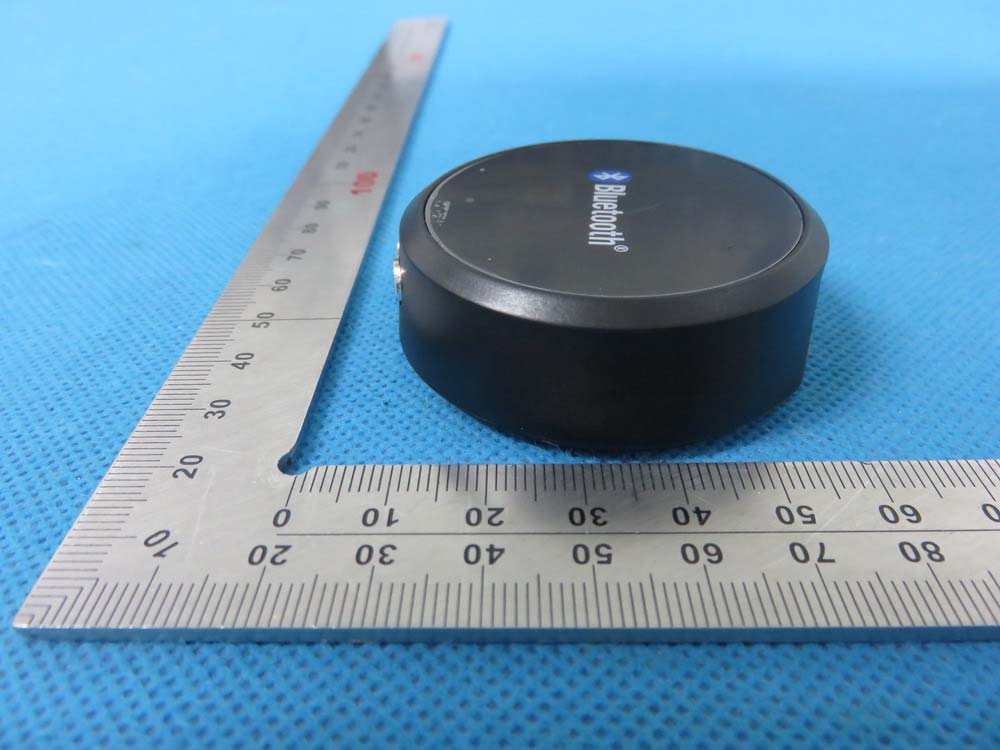

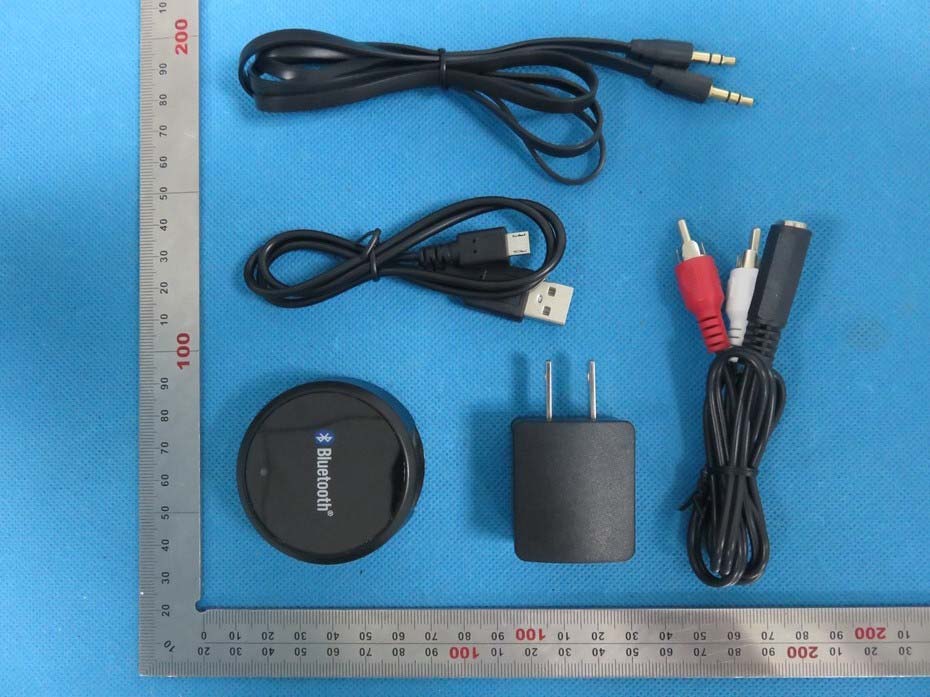

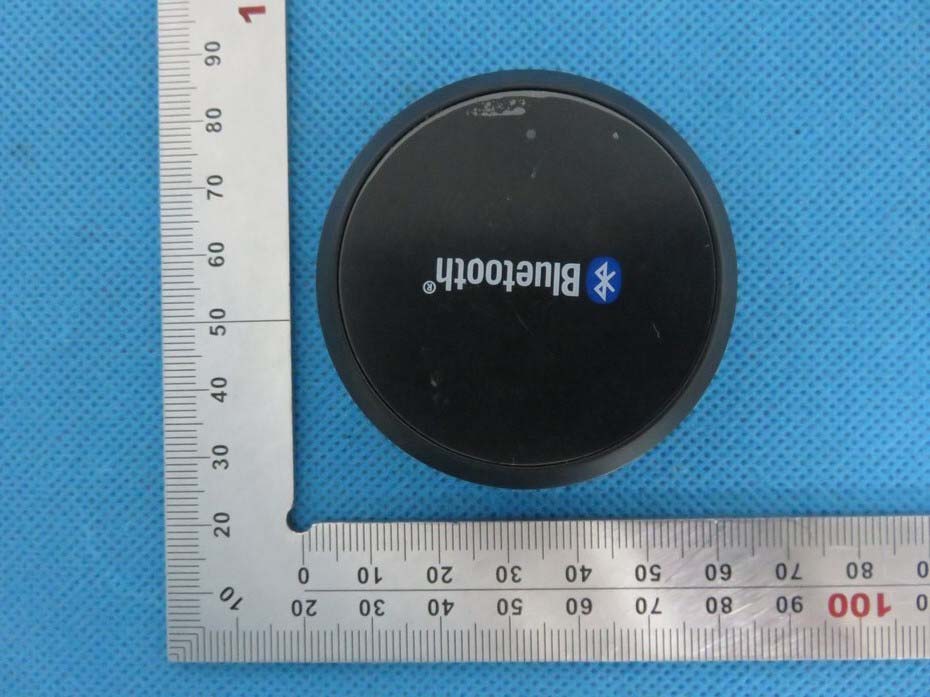

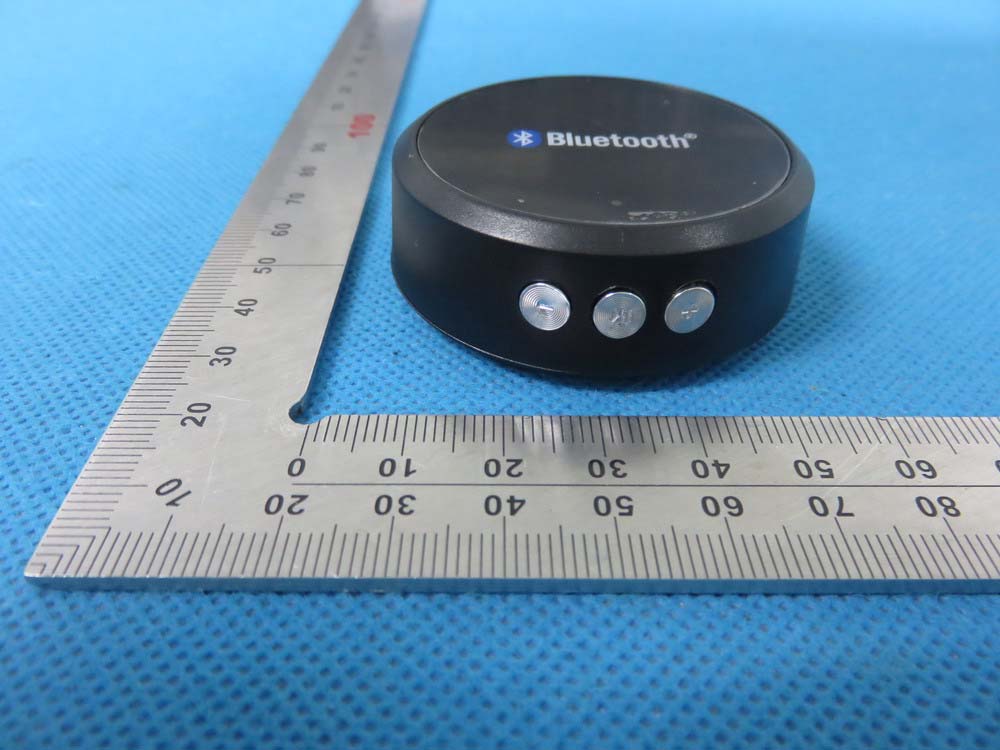

External Photos TOTAL VIEW OF EUT TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT

ID Label/Location Info

FCC ID Label Location FCC ID: 2AEJ7001

Internal Photos

Internal Photos OPEN VIEW OF EUT INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 INTERNAL VIEW OF EUT-3 Antenna

Parts List/Tune Up Info

Name Specification QTY.Location PCBPCB ASTRO Bluetooth adapter V1.01 ModuleRDA5851S1 U1 RESRES|0402|330R|J|1/16W1 R4 RESRES|0402|1K|J|1/16W5 R1 R3 R5 R6 R7 RESRES|0402|100K|J|1/16W1 R2 RESRES|0805|4.7R|J|1/8W1 R8 CAPCAP|0603|33pF|J|50V|NP02 C2 C3 CAPCAP|0805|10uF|K|10V|X5R2 C1 C6 CAPCAP|0805|22uF|K|10V|X5R2 C4 C5 DiodeIN4001|40V/1A|DO-214AC1 D2 SwitchSW|TC|1P1T|12V/50mA|TC-36053 S1 S2 S3 AUX3.5mm|PJ320D-4P1 J1 USB |USB_MicroB_F|8.10*5.63*2.95|SMD|1 USB1 LEDLED|3mm|Blue1 LED1 Module parts List BT Chip RDA5851S 1 U4 CHIP CRYSTAL, 26MHZ(LP=8.5pF) +/-20PPM 3225 1 X300 CHIP RESISTOR 1/16W 0Ω +/-5% 0402 2 R38 C310 CHIP RESISTOR 1/16W 10KΩ +/-5% 0402 3 R39 R4 R5 CHIP RESISTOR 1/16W 20KΩ +/-5% 0402 1 R36 CHIP RESISTOR 1/16W 100KΩ +/-5% 0402 1 R37 CHIP CERAMIC 3pF/16V +/-0.25P (COG) 0402 2 C29 C20 CHIP CERAMIC 22pF/16V +/-0.25P (COG) 0402 2 C1 C26 CHIP CERAMIC 223/16V +/-0.25P (COG) 0402 1 C28 CHIP CERAMIC CAP 0.1uF/16V (X7R) 0402 2 C3 C23 CHIP CERAMIC CAP 1uF/16V (X7R) 0402 6 C27 C328 C336 C337 C329 C313 CHIP CERAMIC CAP 10uF/6.3V (X7R) 0603 3 C2 C319 C320 CHIP RF-INDUCTOR 100nH +/-5% 0402 2 L304 L3 CHIP INDUCTOR 4.7uH +/-5% 0603 2 L305 L306 Parts List

RF Exposure Info

RF Exposure evaluation Product Description: Bluetooth Adapter Model Number: BT-BOX-01 FCC ID: 2AEJ7001 According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation According to the follow transmitter output power(P t )formula: P t =(E x d) 2 /(30 x g t ) P t =transmitter output power in watts g t =numeric gain of the transmitting antenna (unitess) E=electric field strength in V/m d=measurement distance in meters (m) According to the above test data,Emax=98.80dBuv/m=0.087V/m,d=3m,g t =1 P t =(E x d) 2 /(30 x g t )=(0.087x3) 2 /(30x1)=0.0023W=2.3mW The result is rounded to one decimal place for comparison Worse case is as below: [2480MHz -2.3mW output power] (2.3mW /50mm) .[√2.480(GHz)]= 0.07<3.0 for 1-g SAR Then SAR evaluation is not required NOTE: The transmitter output power formula you can refer to Part15F (K). For the maximum power, you can refer FCC test report.

Test Report

Page 1 of 43 FCC Test Report Report No.: AGC03867150301FE03 FCC ID : 2AEJ7001 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Bluetooth Adapter BRAND NAME : BlackWeb MODEL NAME : See page 4 CLIENT : InterWorks Unlimited Inc. DATE OF ISSUE : Apr.09,2015 STANDARD(S) TEST PROCEDURE(S) : FCC Part 15 Rules REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC03867150301FE03 Page 2 of 43 Report Revise Record Report Version Revise Time Issued Date Valid VersionNotes V1.0 / Apr.09,2015 Valid Original Report Report No.: AGC03867150301FE03 Page 3 of 43 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ...................................................................................... 4 2. GENERAL INFORMATION .................................................................................................. 5 2.1. PRODUCT DESCRIPTION ........................................................................................................... 5 2.2. TABLE OF CARRIER FREQUENCYS .......................................................................................... 5 3. MEASUREMENT UNCERTAINTY........................................................................................ 6 4. DESCRIPTION OF TEST MODES ........................................................................................ 6 5. SYSTEM TEST CONFIGURATION ...................................................................................... 7 5.1. CONFIGURATION OF EUT SYSTEM .......................................................................................... 7 5.2. EQUIPMENT USED IN EUT SYSTEM ......................................................................................... 7 5.3. SUMMARY OF TEST RESULTS .................................................................................................. 7 6. TEST FACILITY .................................................................................................................... 8 7 ALL TEST EQUIPMENT LIST ............................................................................................... 8 8. RADIATED EMISSION ......................................................................................................... 9 8.1TEST LIMIT ..................................................................................................................................... 9 8.2. MEASUREMENT PROCEDURE ................................................................................................ 10 8.3. TEST SETUP .............................................................................................................................. 12 8.4. TEST RESULT(Worst modulation:GFSK) ................................................................................... 14 9. BAND EDGE EMISSION .................................................................................................... 27 9.1. MEASUREMENT PROCEDURE ................................................................................................ 27 9.2 TEST SETUP ............................................................................................................................... 27 9.3 RADIATED TEST RESULT(Worst modulation:GFSK) ................................................................. 28 10. FCC LINE CONDUCTED EMISSION TEST ..................................................................... 32 10.1. LIMITS OF LINE CONDUCTED EMISSION TEST ................................................................... 32 10.2. BLOCK DIAGRAM OF LINE CONDUCTED EMISSION TEST ................................................ 32 10.3. PRELIMINARY PROCEDURE OF LINE CONDUCTED EMISSION TEST .............................. 33 10.4. FINAL PROCEDURE OF LINE CONDUCTED EMISSION TEST ............................................ 33 10.5. TEST RESULT OF LINE CONDUCTED EMISSION TEST ...................................................... 34 APPENDIX A: PHOTOGRAPHS OF TEST SETUP ............................................................... 36 APPENDIX B: PHOTOGRAPHS OF EUT .............................................................................. 38 Report No.: AGC03867150301FE03 Page 4 of 43 1. VERIFICATION OF CONFORMITY Applicant InterWorks Unlimited Inc. Address 2418 Peck Road, City of Industry, CA 90601, USA Manufacturer iMuse Technology Limited Address 2/F, Block 1, Wanfeng 98 IndustryArea, Shajing, Shenzhen, China Product Designation Bluetooth Adapter Brand Name BlackWeb Test Model BT-BOX-01 Series Model B T-BOX-02,BT-BOX-03,BT-BOX-04,BT-BOX-05,BT-BOX-06,BT-BOX-07, B T-BOX-08,BT-BOX-09,BT-BOX-10 Different Description All the same except for the model name Date of test Apr.07,2015 to Apr.08,2015 Deviation None Condition of Test Sample Normal Report Template AGCRT-US-BR/RF We hereby certify that: The above equipment was tested by Shenzhen STS Test Services Co., Ltd. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2009) and the energy emitted by the sample EUT tested as described in this report is in compliance with radiated emission limits of FCC Rules Part 15.249. Prepared By Water Zuo Apr.09,2015 Checked By Forrest Lei Apr.09,2015 Authorized By Solger Zhang Apr.09,2015 Report No.: AGC03867150301FE03 Page 5 of 43 2. GENERAL INFORMATION 2.1. PRODUCT DESCRIPTION A major technical description of EUT is described as following Operation Frequency 2.402 GHz to 2.480GHz RF Output Power 3.6dBm(Max) Bluetooth Version V2.1+EDR Modulation GFSK, π /4-DQPSK, 8DPSK Number of channels 79 Hardware Version V1.0 Software Version V2.1 Antenna Designation PCB Antenna (Met 15.203 Antenna requirement) Antenna Gain 0dBi Power Supply DC5V Note: The USB port only used for charging and can’t be used to …

Text truncated - open the document above for the full version.

Test Setup Photos

APPENDIX IV PHOTOGRAPHS OF TEST SETUP FCC LINE CONDUCTED EMISSION TEST SETUP FCC RADIATED EMISSION TEST SETUP

Contact Information

Applicant

Thomas cheng
[email protected]+1-562-6928400Fax: +1-562-6928433

Test Firm

Shenzhen STS Test Services Co., Ltd.Bovey Yang
[email protected](86)-0755-36886288Fax: (86)-0755-36886277

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.40 GHz - 2.48 GHz-
Confidentiality
Long Term
