1 U8 USER GUIDE 2 3 Thank you for choose this Blue Tooth smart watch for sport & health. You will understand the use of the watch, and enjoy its perfect functionality and simple method of operation. This watch is designed to pair with smart phones. It can sync phonebook with smart phone and supply many useful functions, so you can use your smart phone easily when working or relaxing. Functions as below: Bluetooth phone function, Bluetooth message push(short message, WeChat, QQ, etc, should install APK on your Android smart mobile), Bluetooth Music Player, step counter, Calories, long-distance capture, sleep monitor, anti-theft, etc. The APK “BT Notification” is suggested to be installed and run on your smart phone, then the watch will automatically synchronize time and date with the smart phone(Support Android versions only, Apple does not support now). And the watch can receive notifications from your smart phone, Including short message，QQ, WeChat. Use the "BT Notification" need to turn on the Bluetooth notification service in "Accessibility settings" of the smart phone. Then in the options of "Bluetooth notification ", you should choose applications which you want to push. "BT Notification" application can be downloaded through this way: log on Google play first, then scan the two-dimensional code below, or download from this link: 4 https://play.google.com/store/apps/det ails?id=com.oinom.btnotification&hl =zh-CN We reserve the rights to make some modifications or advance notices about the product in this manual. 1 Wearing and Operation Please wear this Bluetooth Smart watch in the correct direction，When wearing the watch, ON/OFF key should be at right, and 3 touch keys should be at bellow. l Power key，Long press for ON/OFF and short press for EXIT from menu to clock. And short press at clock display to light on or off the display; l Left touch key, menu/confirm key. Enter the menu from clock, or “confirm” in menu operation. l Middle touch key, dial enter/page up key. Enter dial interface from clock, or page up in menu operation, or volume up/down in music and telephone. l Right touch key，return/hang up key. No use in clock, and return in menu operation. Otherwise, slide on the touch panel can do: l Slide left or right: menu page up/down; l Tap on the screen: Enter the menu; l Slide downward: Exit the menu； 2 Bluetooth Connect，Disconnect or Reconnect 5 Connect way1: Watch initiate a Bluetooth connection pairing information. Connect way2: Smart phone initiate a Bluetooth connection pairing information. After connected, the watch will send a request to your device for reading your phonebook and call history (Involving personal privacy, some smart phones do not open this feature), please agree it, otherwise the function of synchronizing the phone book and call history will not work normally. When the distance between the watch and the smart phone is farther than 10M(nothing obstruct such as a wall, etc), they will disconnect automatically. If near enough again in 5mins, connected automatically. Otherwise, manual reconnection is necessary. The Bluetooth Smart watch will ring when connect or disconnect. 3 Functions l Blue tooth search devices, connect/disconnect. l Dial dial number in dial interface or choose number from call history. * Don’t cover the hole of MIC or Speaker when calling. l Short message sync short messages from smart phone. l Phone book sync phone numbers from smart phone. l Call history sync call history from smart phone, include 6 “missed calls”, “dialed calls”, “received calls”, “all calls”, each 30 items. l BT Notification can read QQ, WeChat messages. l BT music play music on smart phone by BT. The audio player on should be run at first for some smart phones. Tap middle touch key or logos “+” or ”-”of volume will enter the volume control interface, and this interface will auto-return after no operation, manual return is no need. l Tools calendar, alarm, calculator, stop watch. l Long-distance capture control smart phone to take photos by Bluetooth. Smart phone should enter camera mode at first, and display is not off. Some smart phones are not support. l Step Counter(Pedometer) Step Counter is designed specifically for those concerned about the health. Throw your chest and rise your head, and arms should swing when walk, a more accurate record will be get. The window on up-left displays step number, up-right displays distance, and the rectangle “key” for tapping is “ON/OFF”. Below it is calories counter and time counter. There is “options” of step counter on the up-right corner，parameters and records can be set or checked by tapping in. The step counter runs background as the default. The first several steps of the user will not show immediately on the windows to avoid false account. Display will start after 7 steps are stable. But those first several steps will also be countered. The step number displayed auto-return to “0” each day. Stop and restart the counter, step number increase. Clear to “0” by “reset” Through the Options menu selection. l Altimeter current altitude elevation. l Barometer current pressure of the atmosphere and temperature. l Sleep monitor record time of deep sleep and light sleep to know your quality of sleep. l Anti-theft watch will alarm when it is taken away certain distance from smart phone. l Power save mode l Setting clock, tone mode, volume, language, display, check the battery level, and Bluetooth settings or restore the factory settings. 4 The watch can be charged by a standard USB interface plug through computer or charger. 8 FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cau…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (current) 4.0 5.0 Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 5.0 Gofuture Technology Co., Ltd. 2015/4/20 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, Gofuture Technology Co., Ltd. hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): Product description: Smart Watch model name: W1, W2, W3, W4, W5, W6, W7, W8, W9, W10~W20. FCC ID: 2AEK8W1 Sincerely, Client’s signature Client’s name / title : Helen Zhu / Manager Contact information / address: 5F,C2 building,Jia'an Industrial Park,District72,Baoan District,Shenzhen,China

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 4.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526- 1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (obsolete) 2.0 3.0 Jan-31-2012 Added IC confidentiality letter form (current) 3.0 4.0 March-26-2015 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 4.0 Gofuture Technology Co., Ltd. 2015/4/20 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: 2AEK8W1 We hereby request confidential treatment of information accompanying this application as outlined below: - e.g. Block Diagram - e.g. Schematics - e.g. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature Client’s name / title : Helen Zhu / Manager Contact information / address: 5F,C2 building,Jia'an Industrial Park,District72,Baoan District,Shenzhen,China

Gofuture Technology Co., Ltd. Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: SUBJECT: FCC Application for (FCC ID: 2AEK8W1) To Whom It May Concern: We, the undersigned, hereby attest to the fact that we will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite device. We understand that devices subject to the DoC procedure are required to be tested to show compliance with the FCC technical regulations by a recognized accredited testing laboratory. The testing laboratory must be accredited by a Commission approved accreditation body or designated under the terms of a government-to-government Mutual Recognition Agreement (MRA). A listing of those accredited testing laboratories that have been recognized by the Commission is published on the FCC Webpage: https://apps.fcc.gov/oetcf/eas/reports/TestFirmSearch.cfm Select the "accredited" option to search for FCC recognized accredited test firms. Test facilities located in countries, where the U.S. does not have an operational Telcom MRA are not recognized by the FCC to test for the DoC procedure. Regards, Signatory Signature Client’s name / title : Helen Zhu / Manager Contact information / address: 5F,C2 building,Jia'an Industrial Park,District72,Baoan District,Shenzhen,China

Gofuture Technology Co., Ltd. Model Difference FCC ID: 2AEK8W1 Model : W1, W2, W3, W4, W5, W6, W7, W8, W9, W10~W20. All the models are the same circuit and RF module, except the mode names. Regards Sincerely Client’s signature Client’s name / title : Helen Zhu / Manager Contact information / address: 5F,C2 building,Jia'an Industrial Park,District72,Baoan District,Shenzhen,China

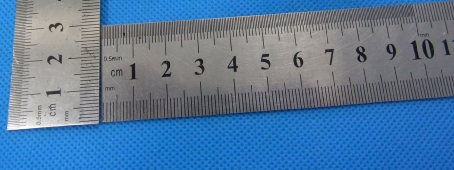

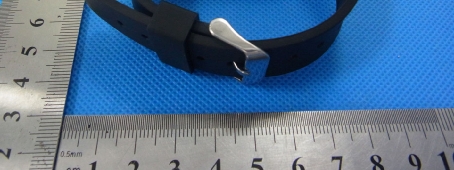

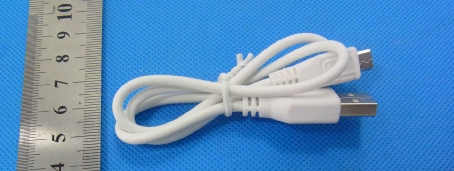

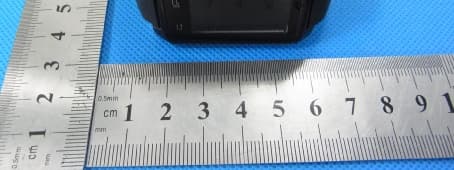

Shenzhen BCTC Technology Co., Ltd. FCC Report Tel: 400-788-9558 0755-33019988 Web:Http//www.bctc-lab.com Page1 of 10 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Shenzhen BCTC Technology Co., Ltd. FCC Report Tel: 400-788-9558 0755-33019988 Web:Http//www.bctc-lab.com Page2 of 10 Photo 3 Photo 4 Shenzhen BCTC Technology Co., Ltd. FCC Report Tel: 400-788-9558 0755-33019988 Web:Http//www.bctc-lab.com Page3 of 10 Photo 5 Photo 6

Model: W1 FCC ID: 2AEK8W1 Gofuture Technology Co., Ltd.

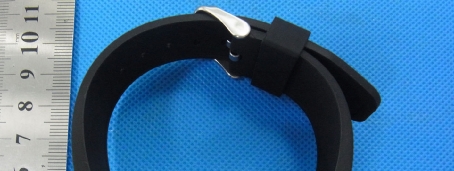

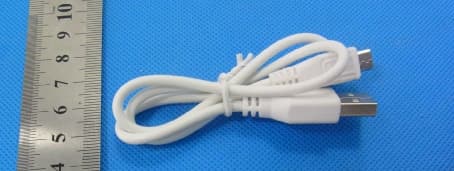

Shenzhen BCTC Technology Co., Ltd. FCC Report Tel: 400-788-9558 0755-33019988 Web:Http//www.bctc-lab.com Page4 of 10 Photo 7 Photo 8 Shenzhen BCTC Technology Co., Ltd. FCC Report Tel: 400-788-9558 0755-33019988 Web:Http//www.bctc-lab.com Page5 of 10 Photo 9 Photo 10 Shenzhen BCTC Technology Co., Ltd. FCC Report Tel: 400-788-9558 0755-33019988 Web:Http//www.bctc-lab.com Page6 of 10 Photo 12 Photo 11 Shenzhen BCTC Technology Co., Ltd. FCC Report Tel: 400-788-9558 0755-33019988 Web:Http//www.bctc-lab.com Page7 of 10 Photo 13 Photo 14 Shenzhen BCTC Technology Co., Ltd. FCC Report Tel: 400-788-9558 0755-33019988 Web:Http//www.bctc-lab.com Page8 of 10 Photo 15 Photo 16 Shenzhen BCTC Technology Co., Ltd. FCC Report Tel: 400-788-9558 0755-33019988 Web:Http//www.bctc-lab.com Page9 of 10 Photo 17 Photo 18 BT ANT Shenzhen BCTC Technology Co., Ltd. FCC Report Tel: 400-788-9558 0755-33019988 Web:Http//www.bctc-lab.com Page10 of 10 Photo 19

FCC ID: 2AEK8W1 RF EXPOSURE EVALUATION METHOD SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. FCC ID: 2AEK8W1 BT/1Mbps: max possible output power (PK,conducted)：1±1dbm BT/2Mbps: max possible output power (PK,conducted)：1±1dbm BT/3Mbps: max possible output power (PK,conducted)：1±1dbm 2402MHz: Remark: The best case gain of the antenna is 2dBi. 1dBi logarithmic terms convert to numeric result is nearly 1.258 2dbm=1.584mW [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 1.584/5*√2.402=0.491≤3.0 Threshold at which no SAR required is 10mw and ≤ 3.0 for 1-g SAR, Separation distance is 5mm. 2441MHz: Remark: The best case gain of the antenna is 2dBi. 1dBi logarithmic terms convert to numeric result is nearly 1.258 2dbm=1.584mW [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 1.584/5*√2.441=0.495≤3.0 Threshold at which no SAR required is 10mw and ≤ 3.0 for 1-g SAR, Separation distance is 5mm. 2480MHz: Remark: The best case gain of the antenna is 2dBi. 1dBi logarithmic terms convert to numeric result is nearly 1.258 2dbm=1.584mW [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 1.584/5*√2.480=0.499≤3.0 Threshold at which no SAR required is 10mw and ≤ 3.0 for 1-g SAR, Separation distance is 5mm.. Conclusion: No SAR is required.

Shenzhen BCTC Technology Co., Ltd. Report No.: BCTC-15020027 FCC Part 15C Test Report FCC ID: 2AEK8W1 Product Name: Smart Watch Trademark: N/A Model Name : W1 W2, W3, W4, W5, W6, W7, W8, W9, W10~W20. Prepared For : Gofuture Technology Co., Ltd. Address : 5F,C2 building,Jia’an Industrial Park,District72,Baoan District,Shenzhen,China Prepared By : Shenzhen BCTC Technology Co., Ltd. Address : No.101,Yousong Road,Longhua New District, Shenzhen,China Test Date: Apr. 16 - Apr. 24, 2015 Date of Report : Apr. 24, 2015 Report No.: BCTC-15020027 Shenzhen BCTC Technology Co., Ltd. Report No.: BCTC-15020027 FCC Report Tel: 400-788-9558 0755-33019988 Web:Http//www.bctc-lab.com Page 2 of 68 VERIFICATION OF COMPLIANCE Applicant’s name ................. : Gofuture Technology Co., Ltd. Address ................................. : 5F,C2 building,Jia’an Industrial Park,District72,Baoan District,Shenzhen,China Manufacture's Name ............ : Gofuture Technology Co., Ltd. Address ................................. : 5F,C2 building,Jia’an Industrial Park,District72,Baoan District,Shenzhen,China Product description Product name ............................ : Smart Watch Trademark: N/A Model Name: W1 Test procedure FCC Part15.247 Standards ANSI C63.10-2013 This device described above has been tested by BCTC, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of BCTC, this document may be altered or revised by BCTC, personal only, and shall be noted in the revision of the document. Test Result.............................................. : Pass Testing Engineer : (Eric Yang) Technical Manager : (Sophia Lee) Authorized Signatory : (Carson. Zhang) Shenzhen BCTC Technology Co., Ltd. Report No.: BCTC-15020027 FCC Report Tel: 400-788-9558 0755-33019988 Web:Http//www.bctc-lab.com Page 3 of 68 Table of Contents Page 1 . SUMMARY OF TEST RESULTS 6 1.1 TEST FACILITY 7 1.2 MEASUREMENT UNCERTAINTY 7 2 . GENERAL INFORMATION 8 2.1 GENERAL DESCRIPTION OF EUT 8 2.2 DESCRIPTION OF TEST MODES 10 2.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 10 2.4 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 11 2.5 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 12 2.6 EQUIPMENTS LIST FOR ALL TEST ITEMS 13 3 . EMC EMISSION TEST 14 3.1 CONDUCTED EMISSION MEASUREMENT 14 3.1.1 POWER LINE CONDUCTED EMISSION LIMITS 14 3.1.2 TEST PROCEDURE 15 3.1.3 DEVIATION FROM TEST STANDARD 15 3.1.4 TEST SETUP 15 3.1.5 EUT OPERATING CONDITIONS 15 3.1.6 TEST RESULTS 16 3.2 RADIATED EMISSION MEASUREMENT 18 3.2.1 RADIATED EMISSION LIMITS 18 3.2.2 TEST PROCEDURE 20 3.2.3 DEVIATION FROM TEST STANDARD 20 3.2.4 TEST SETUP 21 3.2.5 EUT OPERATING CONDITIONS 22 3.2.6 TEST RESULTS 23 4 . NUMBER OF HOPPING CHANNEL 28 4.1 APPLIED PROCEDURES / LIMIT 28 4.1.1 TEST PROCEDURE 28 4.1.2 DEVIATION FROM STANDARD 28 4.1.3 TEST SETUP 28 4.1.4 EUT OPERATION CONDITIONS 28 Shenzhen BCTC Technology Co., Ltd. Report No.: BCTC-15020027 FCC Report Tel: 400-788-9558 0755-33019988 Web:Http//www.bctc-lab.com Page 4 of 68 Table of Contents Page 4.1.5 TEST RESULTS 29 5 . AVERAGE TIME OF OCCUPANCY 30 5.1 APPLIED PROCEDURES / LIMIT 30 5.1.1 TEST PROCEDURE 30 5.1.2 DEVIATION FROM STANDARD 30 5.1.3 TEST SETUP 31 5.1.4 EUT OPERATION CONDITIONS 31 5.1.5 TEST RESULTS 32 6 . HOPPING CHANNEL SEPARATION MEASUREMENT 38 6.1 APPLIED PROCEDURES / LIMIT 38 6.1.1 TEST PROCEDURE 38 6.1.2 DEVIATION FROM STANDARD 38 6.1.3 TEST SETUP 38 6.1.4 EUT OPERATION CONDITIONS 38 6.1.5 TEST RESULTS 39 7 . BANDWIDTH TEST 45 7.1 APPLIED PROCEDURES / LIMIT 45 7.1.1 TEST PROCEDURE 45 7.1.2 DEVIATION FROM STANDARD 45 7.1.3 TEST SETUP 45 7.1.4 EUT OPERATION CONDITIONS 45 7.1.5 TEST RESULTS 46 8 . PEAK OUTPUT POWER TEST 52 8.1 APPLIED PROCEDURES / LIMIT 52 8.1.1 TEST PROCEDURE 52 8.1.2 DEVIATION FROM STANDARD 52 8.1.3 TEST SETUP 52 8.1.4 EUT OPERATION CONDITIONS 52 8.1.5 TEST RESULTS 53 9 . 100 KHZ BANDWIDTH OF FREQUENCY BAND EDGE 60 9.1 DEVIATION FROM STANDARD 60 9.2 TEST SETUP 61 Shenzhen BCTC Technology Co., Ltd. Report No.: BCTC-15020027 FCC Report Tel: 400-788-9558 0755-33019988 Web:Http//www.bctc-lab.com Page 5 of 68 Table of Contents Page 9.3 EUT OPERATION CONDITIONS 61 9.4 TEST RESULTS 62 10 . ANTENNA REQUIREMENT 66 10.1 STANDARD REQUIREMENT 66 10.2 EUT ANTENNA 66 11 . EUT TEST PHOTO 67 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Shenzhen BCTC Technology Co., Ltd. Report No.: BCTC-15020027 FCC Report Tel: 400-788-9558 0755-33019988 Web:Http//www.bctc-lab.com Page 6 of 68 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247(a)(1) Hopping Channel Separation PASS 15.247(b)(1) Peak Output Power PASS 15.247(c) Radiated Spurious Emission PASS 15.247(a)(iii) Number of Hopping Frequency PASS 15.247(a)(iii) Dwell Time PASS 15.247(a)(1) Bandwidth PASS 15.205 Band Edge Emission PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Shenzhen BCTC Technology Co., Ltd. Report No.: BCTC-15020027 FCC Report Tel: 400-788-9558 0755-33019988 Web:Http//www.bctc-lab.com Page 7 of 68 1.1 TEST FACILITY Shenzhen BCTC Technology Co., Ltd. Add.:No.101,Yousong Road,Longhua New District, Shenzhen,China FCC Registration No.:187086 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±1.38dB 2 RF power,conducted ±0.16dB 3 Spurious emissions,conducted ±0.21dB 4 All emissions,radiated(<1G) ±4.68dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% Shenzhen BCTC Technology Co., Ltd. Report No.: BCTC-1502002…
