2AEL9FREEDOMBluetooth Headset

BLUETOOTH HEADSET User Manual Model:Freedom Brand:Range FCC ID:2AEL9FREEDOM 2 Get started To know more about your Bluetooth headset Features 1, Bluetooth 4.0 2, 3.5mm music line-in function 3, aptx® audio technology 4, Support connecting with 2 phones devices 5, iOS show the headset battery power status How to use 1,General Function Operation LED Status Power on Blue LED flashes 2 times Power off Red LED flashes 2 times Pairing Red LED & Blue LED flashes alternately Standby Blue LED flashes 3 times in 5 seconds Incoming call Blue LED flashes continuous Low battery Red LED flashes 2 times every 2 seconds Charging Red LED keep lighting during charging Blue LED flashes once charging finished 3 2, Basic Buttons Operation Power on: Press multifunction button for 2 seconds. Blue LED flashes 2 times. Headset turn on. Power off: Press multifunction button for 3 seconds. Red LED turn off after flashes 2 times. Headset turn off. Volume adjust: Each press on 'Volume up' or ' Volume down' buttons, one level voice volume changes. When volume reaches to Max or Minimum,"Tick" reminding voice occurs. Play/Pause: Short press multifunction button, music pause. Press it again, music continues. Previous: in standby status, Long press 2 seconds 'volume down' button, music turns to previous one. Next:: in standby status ,Long press 2 seconds 'Volume up’, music turns to next one. Answer Call: Short press multifunction button to answer the phone call. End call: Short press multifunction button, phone call ended. Reject call: Press 'Volume up' button for 2 seconds to reject a call. Transfer call: During the phone call conversation, press' Volume up 'button for 2 seconds, call switches to mobile phone. Press 'Volume up' button for 2 seconds again, call switches to headset. Last number redial: in standby status, continuously press headset multifunction button twice to redial the last number. Call Mute function: Press 'Volume down' button for 2 seconds, call mute. Press 'Volume down' button for 2 seconds again, call mute cancel. Battery Capacity status: When headset connects to iOS devices, iOS devices show the headset battery power status on the upper right corner. Charging: new headset has enough power for pairing and dialing out for several times. When in low battery, please charging via USB cable for 2 hours. Red LED keep lighting during charging, blue LED keep lighting charging finished. 3.5mm music line-in function：Connect Audio line in cable to 3.5 audio jack for wired music. Phone call function cannot be used in this mode The headset is on or off status 1, connect the 3.5 audio wire to the headset and audio player. 2, you can adjust volume bottom of the audio player or the mobile phone to reach right volume to listen music. 4 3, Pairing (One headset support connecting 2 phone devices ) Pairing with one phone or other device Make sure the headset is power off. Press and hold the multifunctional button for 5 seconds to enter into the pairing mode. Red LED & Blue LED flashes alternately, Activate your phone or device Bluetooth function and search for headset. From the list of found devices on your mobile phone , select the headset “F5” to connect it. Follow the instruction to enter “0000” as PIN if the mobile phone reminder to need. Headset or device can be used to play your phone music or dial phone call etc. Pairing with two phones or other devices at the same time This headset can support 2 devices multi-connection. It can pair with two mobile phones simultaneously, taking the call from any of them. After completing pairing with the first phone, turns off the headset, then re-do the paring procedure with another phone. Once finished the pairing, restart the headset, it will automatically connect to the Phone or device of Last connected , and short press the two key of “volume +” and “volume -” simultaneously ,can enable the multipoint Connect function, from the list of found devices on another mobile phone, select the headset “F5” to connect it. 4, Sound quality with Aptx code Featuring the apt-X codec, the headsets can connect wirelessly to any apt-X enabled devices, vastly improves the quality of Bluetooth streaming, delivering CD-quality sound. 5 Kit Contents 1, 1 X Stereo Bluetooth headset 2, 1 X Charging Micro USB Cable 3, 1 X User Manual 4, 1 X 3.5mm audio wire Warning 1, You must choose a qualified charger from a regular manufacturer to charge the headset. 2, you must charge the headset if it has not been used for more than 12 months. Specification Bluetooth version: 4.0 Talk time: 14h Stand-by time: 540h Music play time: 14h Wireless range: 10m Bluetooth profiles: A2DP/ AVRCP/ HSP /HFP Impedance: 32Ω Sound pressure level: 103±3dB Frequency Response: 20Hz---20 KHz Signal-To-Noise: ≥85dB Weight: Dimension: N OTE : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmfu…

Text truncated - open the document above for the full version.

Bem Wireless LLC 1725 kilkenny court,woodstock Illinois 60098 United States TEL: 1-815 3370541 FAX: 1-815 3370541 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 5/21/2015 To whom it may concern: We, the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2AEL9FREEDOM including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Signature Bem Wireless LLC Contact person: Gayle Tyriver Title: Manager

Bem Wireless LLC 1725 kilkenny court,woodstock Illinois 60098 United States TEL: 1‐815 3370541 FAX: 1‐815 3370541 May 14, 2015 Federal Communication Commission Authorization and Evaluation Division FCC ID: 2AEL9FREEDOM Re: Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the applicant hereby requests confidential treatment of information applied this application as outlined below: 1: Block Diagram 2: Circuit Diagram 3: Parts List 4.Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rules 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Bem Wireless LLC Contact person: Gayle Tyriver Title: Manager

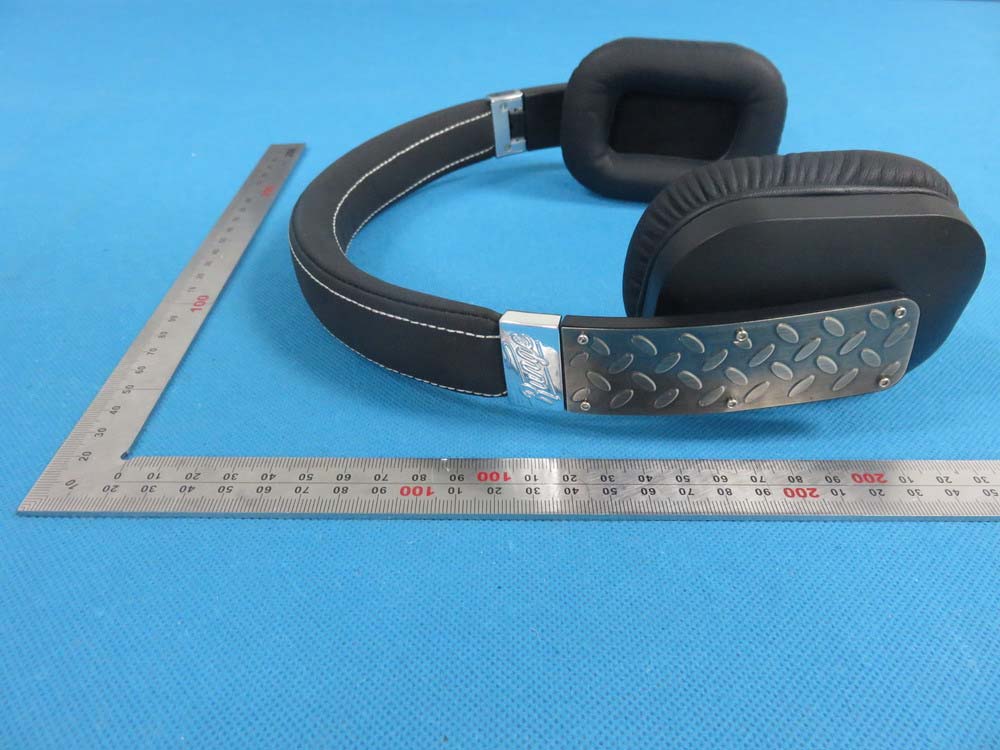

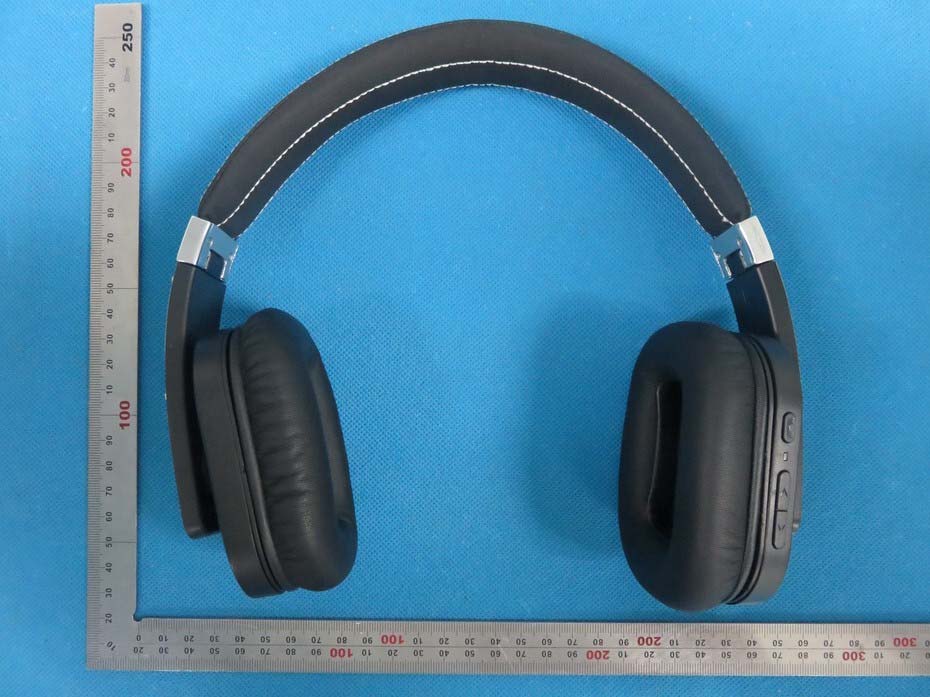

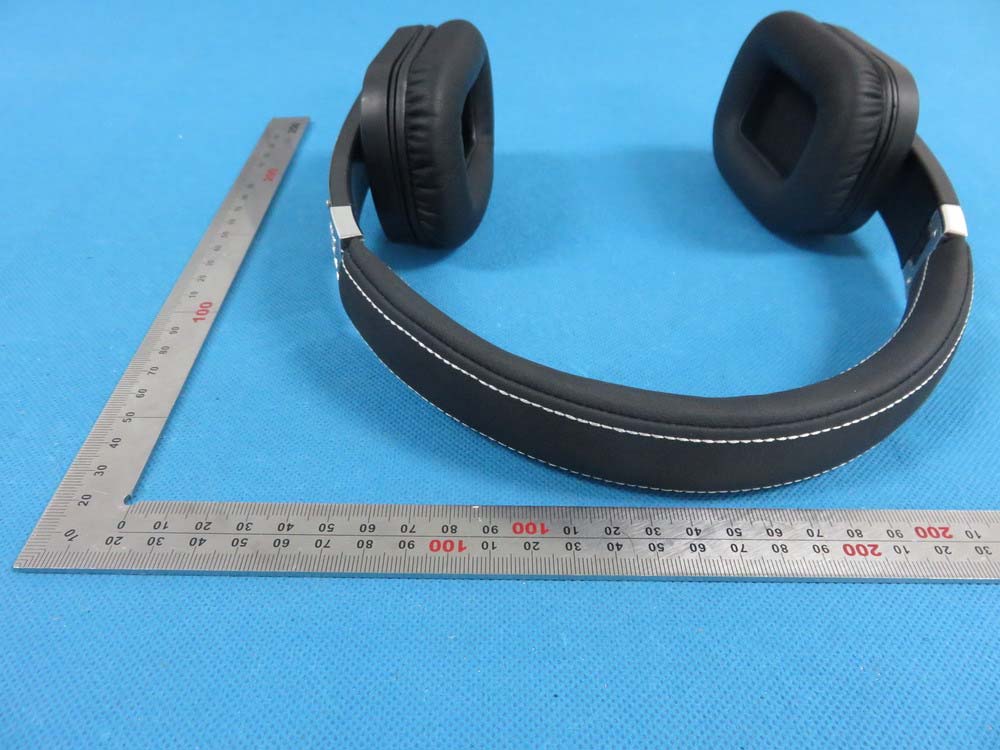

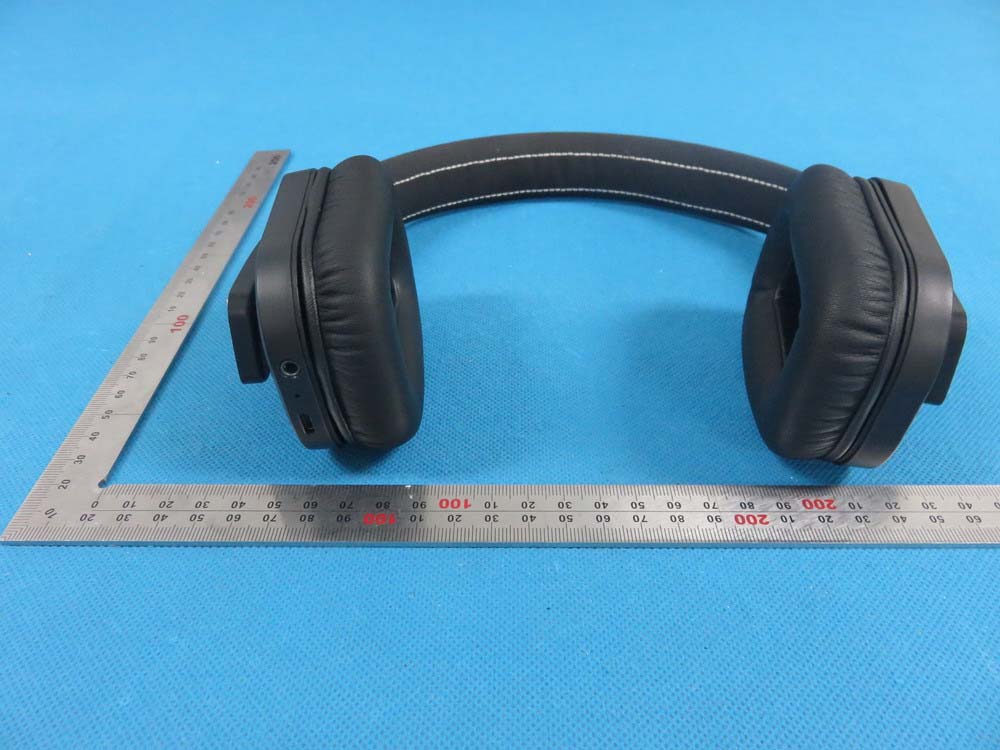

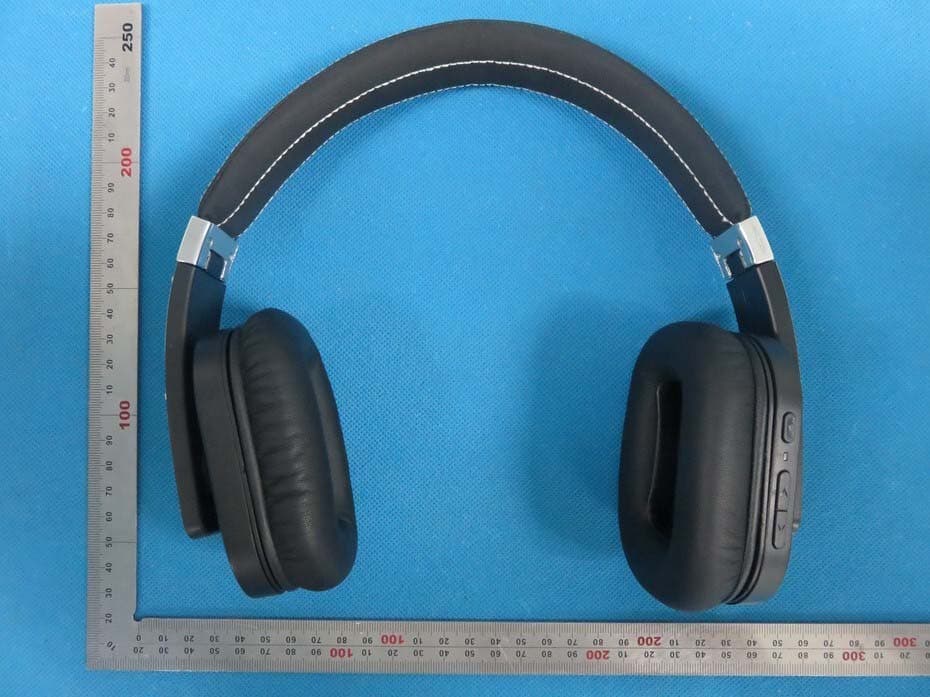

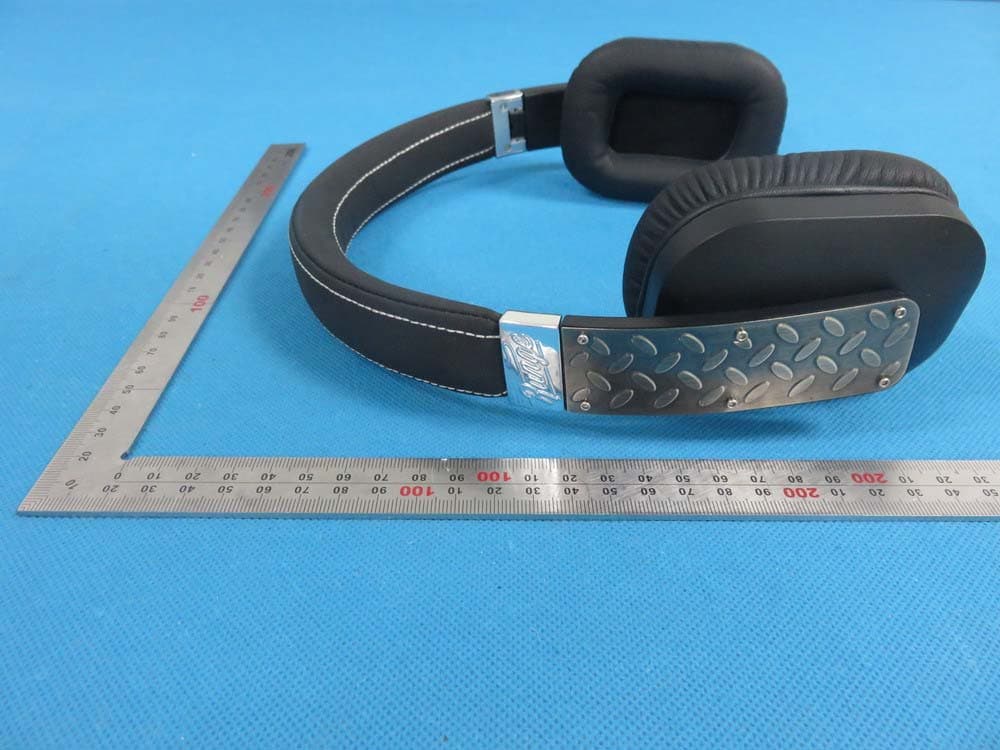

External Photos TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT VIEW OF EUT (PORT)

FCC ID Label Location FCC ID: 2AEL9FREEDOM

Internal Photos OPEN VIEW OF EUT INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 Antenna INTERNAL VIEW OF EUT-3 INTERNAL VIEW OF EUT-4 INTERNAL VIEW OF EUT-5 INTERNAL VIEW OF EUT-6 INTERNAL VIEW OF EUT-7

Bem Wireless LLC 1725 kilkenny court,woodstock Illinois 60098 United States TEL: 1-815 3370541 FAX: 1-815 3370541 Declaration concerning Antenna Specification It is hereby declared that the product Model No.: Freedom FCC ID: 2AEL9FREEDOM fulfills the requirement in FCC test relating to the antenna type. The device specified above confirms to the FCC recommendations for internal antenna type described below: Model No. of antenna: N/A Type of antenna: PCB Antenna Gain of the antenna: 0 dBi Frequency range: 2402-2480 MHz The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company name: Bem Wireless LLC Address: 1725 kilkenny court,woodstock City: Illinois ZIP / Postal code: 60098 Country: United States Place: Shenzhen Date: May 15,2015 Signature:

RF Exposure evaluation Product Description: Bluetooth Headset Model Number: Freedom FCC ID: 2AEL9FREEDOM According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation According to the follow transmitter output power（P t ）formula： P t =（E x d） 2 /（30 x g t ） P t =transmitter output power in watts g t =numeric gain of the transmitting antenna (unitess) E=electric field strength in V/m d=measurement distance in meters (m) According to the above test data, Emax=96.38dBuv/m=0.066V/m,d=3m,g t =1.58 P t =（E x d） 2 /（30 x g t ）=(0.066x3) 2 /(30x1.58)=0.000827W=0.83mW The result is rounded to one decimal place for comparison Worse case is as below: [2480MHz_ 0.83mW output power] (0.83mW /5mm) .[√2.480(GHz)]= 0.26<3.0 for 1-g SAR Then SAR evaluation is not required NOTE: For the maximum power, you can refer FCC test report.

Page 1 of 75 FCC Test Report Report No.: AGC02062150401FE03 FCC ID : 2AEL9FREEDOM APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Bluetooth Headset BRAND NAME : Range MODEL NAME : Freedom CLIENT : Bem Wireless LLC DATE OF ISSUE : Apr.24,2015 STANDARD(S) TEST PROCEDURE(S) : FCC Part 15 Rules REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC02062150401FE03 Page 2 of 75 Report Revise Record Report Version Revise Time Issued Date Valid VersionNotes V1.0 / Apr.24,2015 Valid Original Report Report No.: AGC02062150401FE03 Page 3 of 75 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ...................................................................................... 4 2. GENERAL INFORMATION .................................................................................................. 5 2.1. PRODUCT DESCRIPTION ........................................................................................................... 5 2.2. TABLE OF CARRIER FREQUENCYS .......................................................................................... 5 3. MEASUREMENT UNCERTAINTY........................................................................................ 7 4. DESCRIPTION OF TEST MODES ........................................................................................ 7 5. SYSTEM TEST CONFIGURATION ...................................................................................... 8 5.1. CONFIGURATION OF EUT SYSTEM .......................................................................................... 8 5.2. EQUIPMENT USED IN EUT SYSTEM ......................................................................................... 8 5.3. SUMMARY OF TEST RESULTS .................................................................................................. 8 6. TEST FACILITY .................................................................................................................... 9 7 ALL TEST EQUIPMENT LIST ............................................................................................... 9 8. RADIATED EMISSION ....................................................................................................... 10 8.1TEST LIMIT ................................................................................................................................... 10 8.2. MEASUREMENT PROCEDURE ................................................................................................ 11 8.3. TEST SETUP .............................................................................................................................. 13 8.4. TEST RESULT(Worst modulation:GFSK) ................................................................................... 15 9. BAND EDGE EMISSION .................................................................................................... 41 9.1. MEASUREMENT PROCEDURE ................................................................................................ 41 9.2 TEST SETUP ............................................................................................................................... 41 9.3 RADIATED TEST RESULT(Worst modulation:GFSK) ................................................................. 42 10. BANDWIDTH .................................................................................................................... 50 10.1. MEASUREMENT PROCEDURE .............................................................................................. 50 10.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ..................................................... 50 10.3. LIMITS AND MEASUREMENT RESULTS ................................................................................ 50 11. FCC LINE CONDUCTED EMISSION TEST ..................................................................... 60 11.1. LIMITS OF LINE CONDUCTED EMISSION TEST ................................................................... 60 11.2. BLOCK DIAGRAM OF LINE CONDUCTED EMISSION TEST ................................................. 60 11.3. PRELIMINARY PROCEDURE OF LINE CONDUCTED EMISSION TEST .............................. 61 11.4. FINAL PROCEDURE OF LINE CONDUCTED EMISSION TEST ............................................. 61 11.5. TEST RESULT OF LINE CONDUCTED EMISSION TEST ....................................................... 62 APPENDIX A: PHOTOGRAPHS OF TEST SETUP ............................................................... 66 APPENDIX B: PHOTOGRAPHS OF EUT .............................................................................. 68 Report No.: AGC02062150401FE03 Page 4 of 75 1. VERIFICATION OF CONFORMITY Applicant Bem Wireless LLC Address 1725 kilkenny court,woodstock,il 60098 USA Manufacturer ASKA Electronics Co., Ltd. Address 3F, Building 19#, Road Dalingbian, Shahu Community, Tangxia Town, Dongguan Product Designation Bluetooth Headset Brand Name Range Test Model Freedom Date of test Apr.23,2015 to Apr.24,2015 Deviation None Condition of Test Sample Normal Report Template AGCRT-US-BR/RF We hereby certify that: The above equipment was tested by Compliance Certification Service(Shenzhen) Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2009) and the energy emitted by the sample EUT tested as described in this report is in compliance with radiated emission limits of FCC Rules Part 15.249. Prepared By Water Zuo Apr.24,2015 Checked By Forrest Lei Apr.24,2015 Authorized By Solger Zhang Apr.24,2015 Report No.: AGC02062150401FE03 Page 5 of 75 2. GENERAL INFORMATION 2.1. PRODUCT DESCRIPTION A major technical description of EUT is described as following Operation Frequency 2.402 GHz to 2.480GHz RF …

Text truncated - open the document above for the full version.

APPENDIX IV PHOTOGRAPHS OF TEST SETUP FCC LINE CONDUCTED EMISSION TEST SETUP FCC RADIATED EMISSION TEST SETUP
