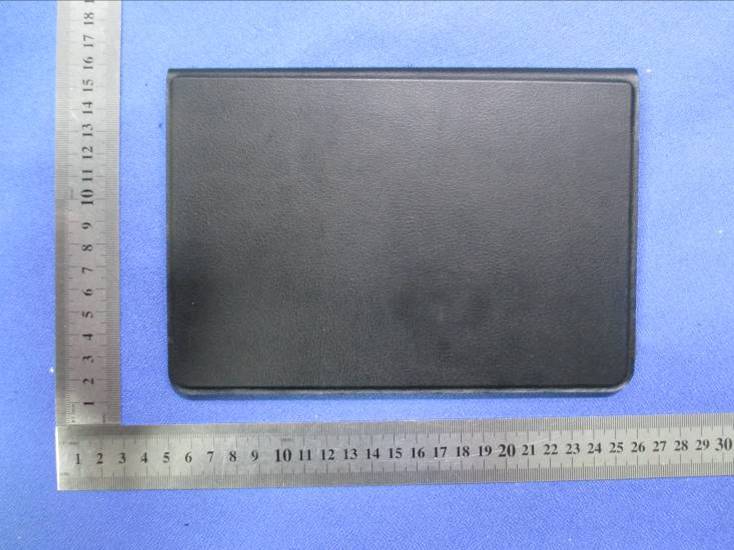

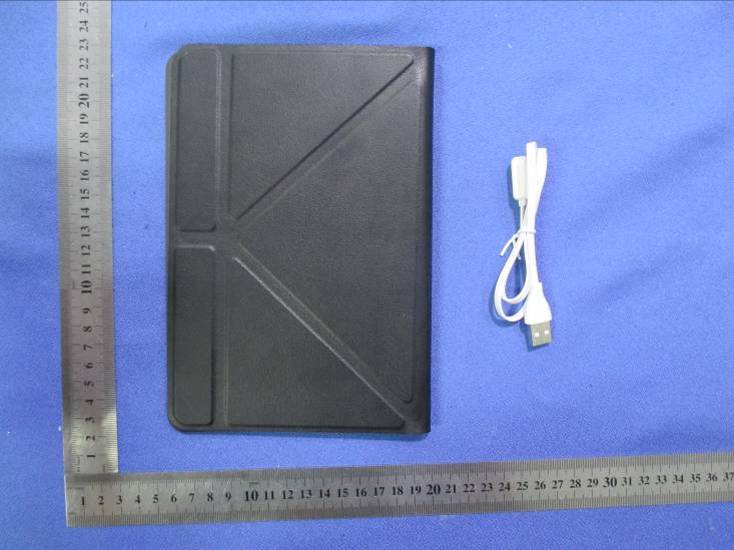

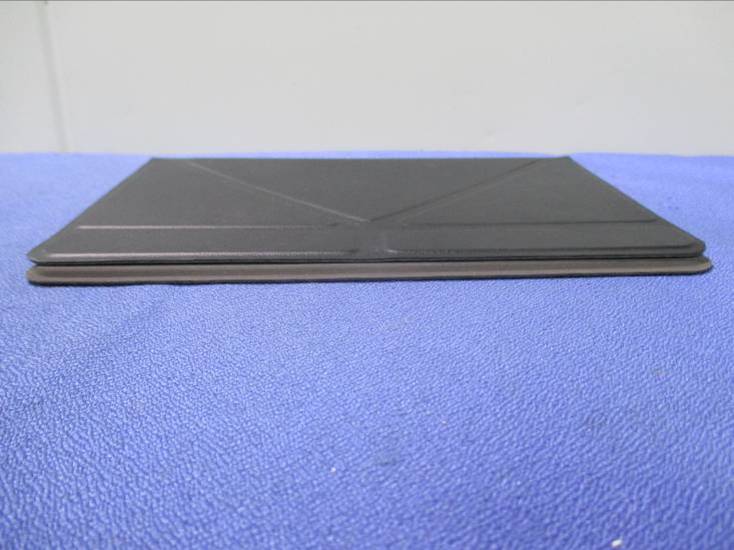

2AELOKST-193TPFUltrathin Bluetooth Keyboard

User Manual Part 1 Connecting to tablet PC 1. Bluetooth keyboard steps A. Press the OFF/ON key, then the Bluetooth indicator light turns blue and flashes B. Press the CONNECT key, the Bluetooth indicator light still is blue and flashes 2. iPad steps A. Turn on iPad and open Settings – General – Bluetooth B. Open Bluetooth and search Bluetooth keyboard Bluetooth name and click it C. Enter the correct PIN code and press Enter key, connect successfully 3. The Bluetooth indicator light is always blue after connecting successfully Part 2 Charging and photos 1. Stick circle side of charging cable to circle side of keyboard correctly, then charging indicator light turns on and keeps red 2. Once keyboard finishes charging, the red charging indicator light will be auto-off. Part 3 Special keys usage 1. KST-193TP Blue characters need to be used in combination with the Fn key Apple System After the keyboard and tablet PC connection is successful, then press “Fn + Q” this combination Android After the keyboard and tablet PC connection is successful, then press “Fn + W” this combination Windows After the keyboard and tablet PC connection is successful, then press “Fn + E” this combination Part 5 Specifications 1. Executive standard: Bluetooth 3.0 2. Contact resistance: ≦500 OHM 3. Working distance: ≦10 Meters 4. Transmitting power: Class 2 5. Working voltage: 3.7V 6. Working current: ﹤2.0MA 7. Standby current: ﹤1.2MA 8. Charging current: ﹥100MA 9. Theoretical power working time: 7 days 10. Uninterrupted power working time: 62.5 hours 11. Charging time: 2.5 hours 12. Li-ion battery capacity: 200mAH 13. Li-ion battery life: 3 years 14. Li-ion battery specifications: 20*54*2.5mm 15. Key strength: 100G Part 6 Packing 1. Bluetooth keyboard case 2. User Manual 3. Advertisement page 4. USB charging cable 5. PVC recycle bag Federal Communications Commission (FCC) Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ●Reorient or relocate the receiving antenna. ●Increase the separation between the equipment and receiver. ●Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ●Consult the dealer or an experienced radio/TV technician for help. Warning: Changes or modifications made to this device not expressly approved by Shenzhen Keyston Technology Co., Ltd may void the FCC authorization to operate this device. Note: The manufacturer is not responsible for any radio or tv interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment.

Shenzhen Keyston Technology Co., Ltd 2/F, Building D West, No. 21 Nanling Road, Xinqiao Village, Shajing Town, Bao’an District, Shenzhen City, China TEL: +86-755-27429826 FAX: +86-755-27429816 DATE 04-22-2015 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AELOKST-193TPF Product Name: Ultrathin Bluetooth Keyboard Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...) • Schematics • Block diagram • Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 04-22-2015 By: Wang Xuefang Signature Printed Title: Manager On behalf of : Shenzhen Keyston Technology Co., Ltd Telephone: +86-755-27429826

Shenzhen Keyston Technology Co., Ltd 2/F, Building D West, No. 21 Nanling Road, Xinqiao Village, Shajing Town, Bao’an District, Shenzhen City, China TEL: +86-755-27429826 FAX: +86-755-27429816 Series Models Description FCC ID: 2AELOKST-193TPF Date: Apr. 22, 2015 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: To whom concern: The device (Product Name: Ultrathin Bluetooth Keyboard) Models Name: KST-193, KST-193TP, KST-193TPF, KST-228, KST-228TP, KST-228TPF, KST-2281TP, KST-228-2TP, KST-111, KST-112, KST-121, KST-122, KST-131, KST-132, KST-133, KST-134, KST-135, KST-136, KST-137, KST-161, KST-231, KST-241, KST-331, KST-332, KST-411, KST-412, KST-413, KST-414, KST-415, KST-416, KST-431, KST-432, KST-433, KST-434, 44681, 44683 have same electrical, PCB and BOM, only the model’s name and colour are different for marketing requirements. Sincerely, Wang Xuefang/Manager 44681, 44683 are electrically identical, only the model’s name and colour are different for marketing requirements.

Shenzhen Keyston Technology Co., Ltd 2/F, Building D West, No. 21 Nanling Road, Xinqiao Village, Shajing Town, Bao’an District, Shenzhen City, China TEL: +86-755-27429826 FAX: +86-755-27429816 USB Port Statement FCC ID: 2AELOKST-193TPF Date: Apr. 22, 2015 To whom it may concern: We, the undersigned, state that the device's (Model: KST-193, KST-193TP, KST-193TPF, KST-228, KST-228TP, KST-228TPF, KST-2281TP, KST-228-2TP, KST-111, KST-112, KST-121, KST-122, KST-131, KST-132, KST-133, KST-134, KST-135, KST-136, KST-137, KST-161, KST-231, KST-241, KST-331, KST-332, KST-411, KST-412, KST-413, KST-414, KST-415, KST-416, KST-431, KST-432, KST-433, KST-434, 44681, 44683) USB port only used for charge, no any data transfer to PC. Sincerely, Wang Xuefang/Manager

FCC ID Label Information 1. Label location: 2. FCC ID Label: Shenzhen Keyston Technology Co., Ltd Ultrathin Bluetooth Keyboard Model: KST-193TPF FCC ID: 2AELOKST-193TPF This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCCID Label Location

RF Exposure evaluation According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison eirp = pt x gt = (EXd) 2 /30 where: pt = transmitter output power in watts, gt = numeric gain of the transmitting antenna (unitless), E = electric field strength in V/m, --- 10 ((dBuV/m)/20) /10 6 d = measurement distance in meters (m)---3m So pt = (EXd) 2 /30 x gt Field strength = 92.39dBuV/m @3m Ant gain 0dBi; so Ant numeric gain=1 So pt={ [10 (92.39/20) /10 6 x3] 2 /30x1}x1000mW = 0.52mW So (0.52mW/5mm)x √2.480GHz = 0.164<3 Then SAR evaluation is not required

- Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 Fax: +86-755-26636041 FCC PART 15 SUBPART C TEST REPORT Report Reference No......................: CTL1503060561-WF Compiled by ( position+printed name+signature)..: File administrators Happy Guo Name of the organization performing the tests ( position+printed name+signature)..: Test Engineer Nice Nong Approved by ( position+printed name+signature)..: Manager Tracy Qi Date of issue.....................................: Apr. 02, 2015 Test Firm..........................................: Shenzhen CTL Testing Technology Co., Ltd. Address.............................................: Floor 1-A, Baisha Technology Park, No. 3011, Shahexi Road, Nanshan, Shenzhen 518055 China. Applicant’s name............................: Shenzhen Keyston Technology Co., Ltd Address.............................................: 2/F, Building D West, No. 21 Nanling Road, Xinqiao Village, Shajing Town, Bao’an District, Shenzhen City, China Test specification: Standard ...........................................: FCC Part 15.249: Operation within the bands 920-928 MHz, 2400- 2483.5 MHz, 5725-5850 MHz and 24.0 - 24.25 GHz. TRF Originator ..................................: Shenzhen CTL Testing Technology Co., Ltd. Master TRF.......................................: Dated 2011-01 Shenzhen CTL Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTL Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTL Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................... : Ultrathin Bluetooth Keyboard Trade Mark .......................................: Keyston Models/Type reference.....................: KST-193, KST-193TP, KST-193TPF, KST-228, KST-228TP, KST-228TPF, KST-2281TP, KST-228-2TP, KST-111, KST-112, KST-121, KST-122, KST-131, KST-132, KST-133, KST-134, KST-135, KST-136, KST-137, KST-161, KST-231, KST-241, KST-331, KST-332, KST-411, KST-412, KST-413, KST-414, KST-415, KST-416, KST-431, KST-432, KST-433, KST-434, 44681, 44683 Modulation .......................................: FHSS Work Frequency...........................: 2402 MHz~2480 MHz Antenna Type..............................: internal FCC ID .............................................: 2AELOKST-193TPF Result................................................: Positive V1.0 Page 2 of 48 Report No.: CTL1503060561-WF T E S T R E P O R T Test Report No. :CTL1503060561-WF Apr. 02, 2015 ______________________________________________________________________________________________ Date of issue Equipment under Test : Ultrathin Bluetooth Keyboard Model /Type : KST-193TPF Listed Models : KST-193, KST-193TP, KST-228, KST-228TP, KST-228TPF, KST-2281TP,KST-228-2TP, KST-111, KST-112, KST-121, KST-122, KST-131, KST-132, KST-133,KST-134, KST-135, KST-136, KST-137, KST-161, KST-231, KST-241, KST-331,KST-332, KST-411, KST-412, KST-413, KST-414, KST-415, KST-416, KST-431, KST-432, KST-433, KST-434, 44681, 44683 Difference Description Only the color and model's name is different Applicant : Shenzhen Keyston Technology Co.,Ltd Address : 2/F, Building D West, No. 21 Nanling Road, Xinqiao Village, Shajing Town, Bao’an District, Shenzhen City, China Manufacturer Shenzhen Keyston Technology Co.,Ltd Address 2/F, Building D West, No. 21 Nanling Road, Xinqiao Village, Shajing Town, Bao’an District, Shenzhen City, China Test Result according to the standards on page 4: Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. V1.0 Page 3 of 48 Report No.: CTL1503060561-WF Contents 1.TEST STANDARDS .................................................................. 4 2.SUMMARY............................................................................. 5 2.1.General Remarks 5 2.2.Equipment Under Test 5 2.3.Short description of the Equipment under Test (EUT) 5 2.4.EUT operation mode 6 2.5.EUT configuration 6 2.6.Related Submittal(s) / Grant (s) 6 2.7.Modifications 6 3. TEST ENVIRONMENT............................................................... 7 3.1.Address of the test laboratory 7 3.2.Test Facility 7 3.3.Environmental conditions 7 3.4.Configuration of Tested System 7 3.5.Statement of the measurement uncertainty 8 3.6.Equipments Used during the Test 9 4. TEST CONDITIONS AND RESULTS ............................................ 10 4.1.Conducted Emissions Test 10 4.2.Fundamental Emissions 13 4.3.Transmitter Radiated Unwanted Emissions 14 4.4.Band Edge Measurement 30 4.5.Occupied Bandwidth Measurement 39 5. ANTENNA REQUIREMENT ....................................................... 41 6.TEST SETUP PHOTOS OF THE EUT .......................................... 42 7.EXTERNAL AND INTERNAL PHOTOS OF THE EUT ....................... 44 V1.0 Page 4 of 48 Report No.: CTL1503060561-WF 1. TEST STANDARDS The tests were performed according to following standards: FCC Rules Part 15.249: Operation within the bands 902 - 928 MHz, 2400 - 2483.5 MHz, 5725 - 5875 MHz, and 24.0 - 24.25 GHz. ANSI C63.4-2009 V1.0 Page 5 of 48 Report No.: CTL1503060561-WF 2. SUMMARY 2.1. General Remarks Date of receipt of test sample : Mar. 26, 2015 Testing commenced on : Mar. 26, 2015 Testing concluded on : Apr. 03, 2015 2.2. Equipment Under Test Power supply system utilised Power supply voltage : o 120V / 60 Hz o 115V / 60Hz o 12 V DC o 24 V DC ƽ Other (specified in blank below) DC 3.7V from battery 2.3. Short description of the Equipment under Test (EUT) The EUT is a Ultrathin Bluetooth Keyboard work at 2402~2480 MHz support Bluetooth 3.0. Channel List: Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequenc…
