2AENE-ES061222Wireless Remote Control

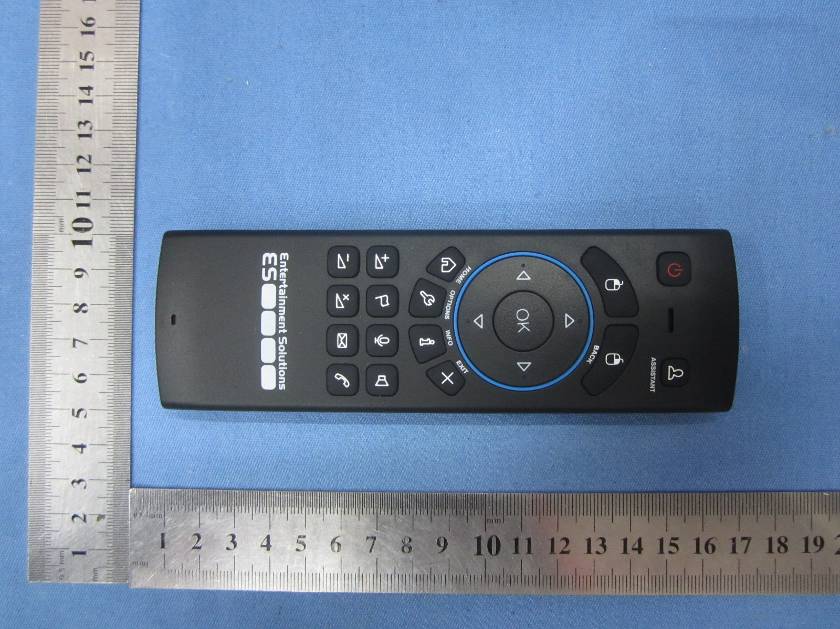

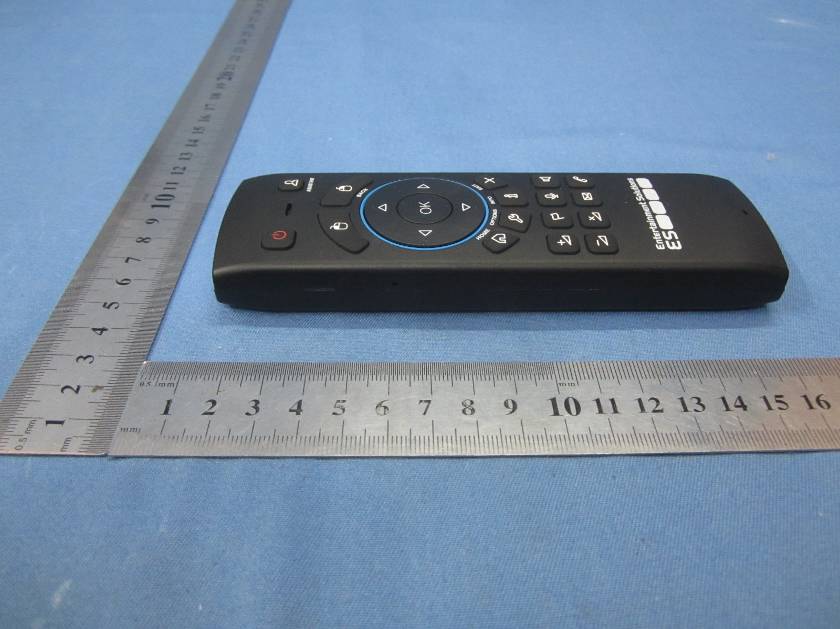

RF05L Quick Start Guide Packaging list Total Remote V2 x 1 USB Reciver x 1 USB Cable x 1 Quick Start Guide x 1 Product overview Buttons Indicator Button-press Be flickering Matching process Be flickering Success to match Be flickering for 2 seconds Fail to match Be flickering for 30 seconds Low battery Be flickering Standby mode Go out Match with the USB adapter Step1. Connect the USB adapter . Step2. Near to USB adapter within 20Cm, press and hold VoL+ button and VoL - button until the orange indicator begin flickering.The orange indicator will go out in 2s after the match process finished. Working mode of the Air mouse Mouse: Mouse, buttons, keyboard are available in mouse mode. Game: Press Game button turn on or off game mode, mouse is not available in game mode. Keyboard QWERTY keyboard is available in the back of the Airmouse. Press and hold Fn button to use the corresponding characters in blue color on the keyboard. IR Learnig 1.Press and hold Info button for until the orange indicator keep flickering. 2.Put the TV remote control straight head to the Airmouse，2 to 3cm away. 3.Press the button which to learn on the airmouse, orange indicator will stop flickering.Then press the button on your TV remote control. The orange indicator will be flickering while button learning finished. 4.Repeat step3 to learn other buttons. 5.Press info button once to exit learning mode. Power、VoL-、VoL+、Mute、Game buttons on this airmouse are allowed to learn. Empty the button learning Press Speaker and Phone button at the same time for 5seconds to empty the learned buttons. Sleep and Wake up Air-mouse will enter into standby mode automatically while there is no any operation within 1minitue. Press any button to wake up. FCC STATEMENT： This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

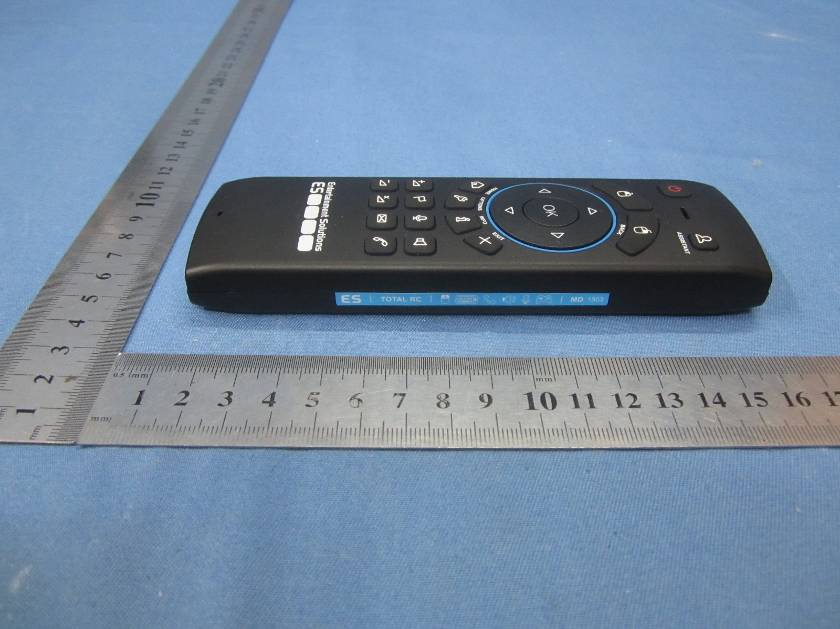

Label location

FCC ID: 2AENE-ES061222 According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where --f(GHz) is the RF channel transmit frequency in GHz --Power and distance are rounded to the nearest mW and mm before calculation --The result is rounded to one decimal place for comparison eirp = pt x gt = (EXd) 2 /30 where: pt = transmitter output power in watts, gt = numeric gain of the transmitting antenna (unitless), E = electric field strength in V/m, --- 10 ((dBuV/m)/20) /10 6 d = measurement distance in meters (m) --- 3m So pt = (EXd) 2 /30 x gt Field strength = 94.68dBuV/m @3m Ant gain =0dBi, so Ant numeric gain= 1 So pt={ [10 (94.68) /10 6 x 3] 2 /30x1.0 }x1000 mW = 0.881mW So (0.881 mW /5mm)x √2.405 = 0.273<3 Then SAR evaluation is not required

Global United Technology Services Co., Ltd. Report No.: GTSE15040049901 Authorized Signature: Robinson Lo Laboratory Manager This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product and does not permit the use of the GTS product certification mark. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of GTS or testing done by GTS in connection with, distribution or use of the product described in this report must be approved by GTS in writing. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. FCC REPORT Applicant: ENTERTAINMENT SOLUTIONS S.L.U. Address of Applicant: P.E. MIRAFLORES NAVE 3 - CTRA CASTELLON KM 5.25 (50720) ZARAGOZA Equipment Under Test (EUT) Product Name: Wireless Remote Control Model No.: REMOTE CONTROL TOTAL Trade Mark: ENTERTAINMENT SOLUTIONS FCC ID: 2AENE-ES061222 Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.249:2014 Date of sample receipt: May 05, 2015 Date of Test: May 06-07, 2015 Date of report issued: May 08, 2015 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. Report No.: GTSE15040049901 Global United Technology Services Co., Ltd. Project No.: GTSE150400499RF Room 301-309, 3th Floor, Block A, Huafeng Jinyuan Business Building, No. 300 Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, China Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 2 of 36 2 Version Version No. Date Description 00 May 08, 2015 Original Prepared By: Date: May 08, 2015 Project Engineer Check By: Date: May 08, 2015 Reviewer Report No.: GTSE15040049901 Global United Technology Services Co., Ltd. Project No.: GTSE150400499RF Room 301-309, 3th Floor, Block A, Huafeng Jinyuan Business Building, No. 300 Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, China Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 3 of 36 3 Contents Page 1 COVER PAGE ............................................................................................................................................ 1 2 VERSION .................................................................................................................................................. 2 3 CONTENTS .............................................................................................................................................. 3 4 TEST SUMMARY ..................................................................................................................................... 4 5 GENERAL INFORMATION ...................................................................................................................... 5 5.1 CLIENT INFORMATION ......................................................................................................................... 5 5.2 GENERAL DESCRIPTION OF EUT ......................................................................................................... 5 5.3 TEST MODE ........................................................................................................................................ 7 5.4 DESCRIPTION OF SUPPORT UNITS ....................................................................................................... 7 5.5 TEST FACILITY .................................................................................................................................... 7 5.6 TEST LOCATION ................................................................................................................................. 7 5.7 OTHER INFORMATION REQUESTED BY THE CUSTOMER ......................................................................... 7 6 TEST INSTRUMENTS LIST ..................................................................................................................... 8 7 TEST RESULTS AND MEASUREMENT DATA ...................................................................................... 9 7.1 ANTENNA REQUIREMENT ..................................................................................................................... 9 7.2 CONDUCTED EMISSIONS ................................................................................................................... 10 7.3 RADIATED EMISSION METHOD ........................................................................................................... 13 7.3.1 Field Strength of The Fundamental Signal ................................................................................ 15 7.3.2 Spurious emissions .................................................................................................................... 16 7.3.3 Bandedge emissions.................................................................................................................. 20 7.4 20DB OCCUPY BANDWIDTH .............................................................................................................. 21 8 TEST SETUP PHOTO ............................................................................................................................ 23 9 EUT CONSTRUCTIONAL DETAILS ..........................................................................................…

Text truncated - open the document above for the full version.

Radiated Emission Conducted Emission
