Z CAM E2 Mark II series Professional Cinema Camera User Manual V 1.0 For the purpose of simplifying the explanation, this manual collectively refers to both the standard version of the Z CAM E2-Mark II and the Z CAM E2-Mark II PixelLink version as the "Z CAM E2 Mark II". This series includes 8 models: the standard versions E2-M4 Mark II, E2-S6 Mark II, E2-F6 Mark II, and E2-F8 Mark II; and the PixelLink versions E2-M4s Mark II, E2-S6s Mark II, E2-F6s Mark II, and E2-F8s Mark II. Only the E2-M4(s) Mark II is equipped with an MFT Active Lock mount, while all other models come with an EF mount. Register Trademarks COPYRIGHT© 2025 Shenzhen ImagineVision Technology Limited. All trademarks, trade names, logos, icons, images, written material, code, and product names used in association with the accompanying products are the copyrights, trademarks, or other intellectual property owned and controlled exclusively by Shenzhen ImagineVision Technology Limited. • The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries. • Other names of companies and products contained in this manual may be trademarks or registered trademarks of their respective owners. FEDERAL COMMUNICATIONS COMMISSION (FCC) Statements This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communi- cations. However, there is no guarantee that interference will not occur in a particular installa- tion. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures: · Reorient or relocate the receiving antenna. · Increase the separation between the equipment and receiver. · Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected. · Consult the dealer or an experienced radio/TV technician for help. <Caution> • If the device is changed or modified without permission from ImagineVision, the user may void his or her authority to operate the equipment. • Regulations of the FCC and FAA prohibit airborne operation of radio-frequency wireless devices because their signals could interfere with critical aircraft instruments. Preface Please read this document carefully in order to understand the Z CAM E2 Mark II series (hereinafter referred to as Camera) and use it reasonably. Refer to the ocial website (www.z-cam.com) for the latest version of this document and updated product information. Please contact Shenzhen ImagineVision Technology Limited (hereinafter referred to as ImagineVision) or its authorized distributor/resellers, in case of any product queries about installation or operation. Safety Guideline Please read and follow this Safety Guideline and all the terms associated to this Product carefully, to know your legal rights, responsibilities, and safety instructions, otherwise, it may result in product damages, safety accidents and personal injuries. By using this Product, you hereby signify that you have read, understood, acknowledged and accepted this Safety Guideline and all the terms and conditions associated with this Product, and assume responsibility for any behaviors or consequences. You undertake to use this Product on normal and reasonable purpose, and agree to this Guide-line and all the terms and conditions associated with this Product, as added, reduced, amended, modified made by ImagineVision from time to time. ImagineVision provides no expressed or implied guarantee in relation to this Product, assumes no loss or legal responsibility raised from misuse of this Product contrary to this Safety Guideline and the terms associated to this Product, accepts no indirect, consequent, punitive, occasional, special, criminal-punitive loss or legal responsibility. Under any circumstances, the total liability of ImagineVision shall NOT exceed the price paid by you to ImagineVision for the product. Warning ! 1. This device is for use only by personnel who have received professional guidance; children are strictly prohibited from using it. 2. Do not use the camera or its accessories near water, and do not expose the camera to humid environments. This device is not waterproof. Contact with water may cause permanent damage to the device, or even electric shock, which could result in serious injury to the user. Without proper protection, do not use the camera in rainy weather or other high-humidity environments. If the camera or its accessories are accidentally exposed to a humid environment, cut o the power immediately. 3. Do not point the camera directly at intense light sources such as sunlight or lasers. This may cause permanent damage to the camera's optical path or sensor, and such damage is not covered under the manufacturer's warranty. 4. Do not subject the camera to excessive vibration or impact, and be careful to prevent the camera from being dropped. Severe impact may damage the camera's internal mechanism, while excessive vibration may aect the mechanical calibration accuracy of the optical components. 5. Electromagnetic Interference Notice: Devices that use radio waves or other communication waves may interfere wi…
Text truncated - open the document above for the full version.
R & D, production and sales of professional wireless terminal antenna 承 认 书 SPECIFICATION FOR APPROVAL 客户名称Customer Name: 视觉 产品型号Product Model: 客户料号Customer P/N : E05024A58A1 特高料号 TG P/N: W.02.00241002 产品规格SPECIFFCATIONS: 2.4G/5.8G 外置天线 SMA母针 制作日期Production date: 2025-08-01 封样版本Sample Version: V1.0 地址:深圳市龙华区大浪街道浪花路4号梵思诺数字产业园 1栋708 特高(TG) 编制(FICTION) 结构(SE) 研发(R&D) 夏逸 何亮 唐师荣 客户(Customer) 采 购(PUR) 品质(QC) 研发(R&D) Address: Unit 708, Building 1, Fanson Digital Industrial Park, No. 4 Langhua Road, Dalang Subdistrict, Longhua District, Shenzhen R & D, production and sales of professional wireless terminal antenna Number Effective date Change record V1.0 2025.08.01 Initial release R & D, production and sales of professional wireless terminal antenna 一、基本参数 A. Electrical Characteristics Frequency 2400MHz-2500MHz 5150MHz-5850MHz VSWR < 2.5 Avg Efficiency >60% Impedance 50 ± 25 Ohm Polarization Linear Peak Gain 2400MHz-2500MHz:2.75dBi 5150MHz-5850MHz:4.96dBi B. Material & Mechanical Characteristics Material of Radiator 2.4G+5.8G双铜管胶棒天线 Black Cable Type RG1.13 Black Connector Type SMA Male 母针(内孔) 黑色上下固 黑色杆套 Dimension 108mm*7.8mm C. Environmental Operation Temperature - 20 ̊C ~ + 60 ̊C Storage Temperature - 20 ̊C ~ + 60 ̊C R & D, production and sales of professional wireless terminal antenna 二、电性规格 Those specifications were specially defined for model. 三、VSWR 1 测量方法 1. A 50Ωcoaxial cable is connected to the antenna. Then this cable is connected to a network analyzer to measure the VSWR 2. Coaxial cable length is 41.5CM 3. Keeping this jig away from metal at least 20cm 2 测量频率点和驻波比 R & D, production and sales of professional wireless terminal antenna 四、 暗室简介 Introduction: Microwave darkroom and no reflection chamber, absorbing short wave darkroom dark room. Microwave darkroom by electromagnetic shielding room, filtering and isolation, grounding device, the ventilation duct, indoor distribution system, monitoring system, ceiling wave material part. It is based on the wave absorbing material as the lining of the shield room, it can absorb the most of the electromagnetic energy into the six wall is a better simulation of the free space conditions. The main working principle of microwave anechoic chamber is according to the electromagnetic wave in the medium from the low magnetic guide magnetic direction of propagation rules, absorbing materials to guide the electromagnetic wave using high permeability, through resonance, a substantial absorption of electromagnetic wave radiation energy, by coupling the electromagnetic energy into heat energy. main performance : Frequency range:400MHz ~ 6GHz ceiling reflected wave loss materials: 400MHz ~ 6GHz is equal to or more than 15dB (microwave absorbing material by composite wave absorbing materials, namely tapered containing carbon sponge suction wave material paste in ferrite) R & D, production and sales of professional wireless terminal antenna 五、天线性能 无源场型图-2400MHZ-2500MHZ R & D, production and sales of professional wireless terminal antenna 无源效率增益-2400MHZ-2500MHZ R & D, production and sales of professional wireless terminal antenna 无源场型图-5150MHZ-5850MHZ R & D, production and sales of professional wireless terminal antenna 无源效率增益-5150MHZ-5850MHZ R & D, production and sales of professional wireless terminal antenna 六、天线图片 A ntenna photo R & D, production and sales of professional wireless terminal antenna 七、天线图纸尺寸 R & D, production and sales of professional wireless terminal antenna 八、ROHS Antenna W.02.00241002 meets RoHS requirements. 九、 产品包装说明 A. packing should meet the moistureproof, vibration, pressure and mildew proof, etc. B. the smallest packing unit logo must have the manufacturer trademarks, product model, name, code and quantity. C. in the attached packing list, certificate of approval, and the factory inspection report. ***************************END****************************

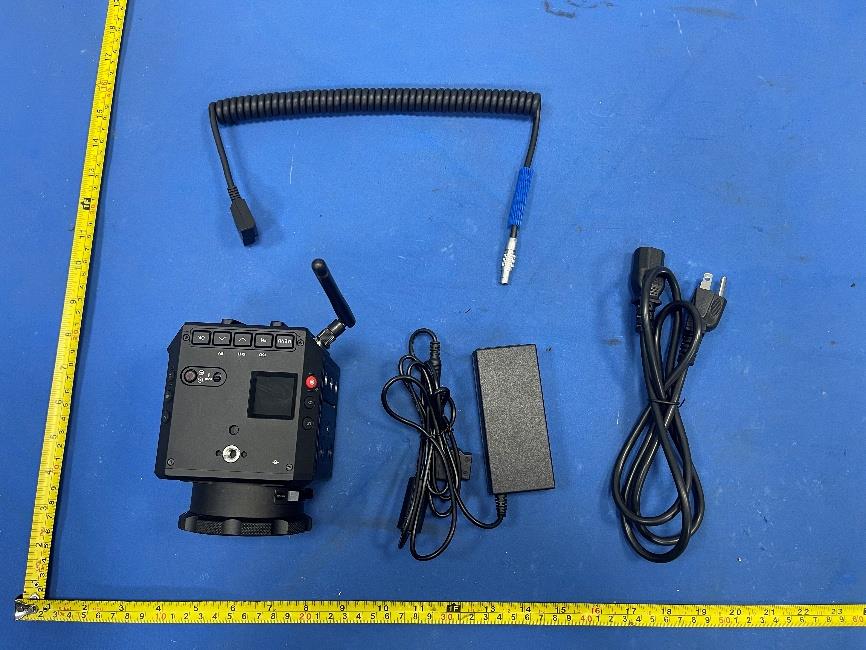

FCC ID: 2AENNE2M2 Test Setup Photos of the EUT FCC ID: 2AENNE2M2
92 11AC20SISO_Ant1_5785_30~5650 11AC20SISO_Ant1_5785_5925~40000 11AC20SISO_Ant1_5825_30~5650 93 11AC20SISO_Ant1_5825_5925~40000 11AC40SISO_Ant1_5190_30~5140 94 11AC40SISO_Ant1_5190_5360~40000 11AC40SISO_Ant1_5230_30~5140 11AC40SISO_Ant1_5230_5360~40000 95 11AC40SISO_Ant1_5755_30~5650 11AC40SISO_Ant1_5755_5925~40000 96 11AC40SISO_Ant1_5795_30~5650 11AC40SISO_Ant1_5795_5925~40000 11AC80SISO_Ant1_5210_30~5140 97 11AC80SISO_Ant1_5210_5360~40000 11AC80SISO_Ant1_5775_30~5650 98 11AC80SISO_Ant1_5775_5925~40000 99 Appendix G: Emissions in Restricted Bands Test Result TestMode ChName Freq(MHz) Detector Freq [MHz] Result [dBm] Gain [dB] DC Factor [dB] EIRP [dBm] Limit [dBm] Verdict 11A Low 5180 AV 4500.000 -62.26 3.45 1.33 -57.48 ≤-41.20 PASS AV 5149.600 -54.48 3.45 1.33 -49.7 ≤-41.20 PASS AV 5150.000 -54.82 3.45 1.33 -50.04 ≤-41.20 PASS Peak 4500.000 -55.09 3.45 0.00 -51.64 ≤-27.00 PASS Peak 5142.600 -43.9 3.45 0.00 -40.45 ≤-27.00 PASS Peak 5150.000 -44.06 3.45 0.00 -40.61 ≤-27.00 PASS High 5240 AV 5350.000 -58.23 3.45 1.33 -53.45 ≤-41.20 PASS AV 5351.280 -57.83 3.45 1.33 -53.05 ≤-41.20 PASS AV 5460.000 -59.95 3.45 1.33 -55.17 ≤-41.20 PASS Peak 5350.000 -49.7 3.45 0.00 -46.25 ≤-27.00 PASS Peak 5351.520 -47.66 3.45 0.00 -44.21 ≤-27.00 PASS Peak 5460.000 -51.4 3.45 0.00 -47.95 ≤-27.00 PASS Low 5745 Peak 5650.000 -50.697 4.96 0.00 -45.737 ≤-27.00 PASS Peak 5700.000 -50.97 4.96 0.00 -46.01 ≤10.00 PASS Peak 5720.000 -42.74 4.96 0.00 -37.78 ≤15.60 PASS Peak 5725.000 -36.73 4.96 0.00 -31.77 ≤27.00 PASS High 5825 Peak 5850.000 -43.998 4.96 0.00 -39.038 ≤27.00 PASS Peak 5855.000 -46.44 4.96 0.00 -41.48 ≤15.60 PASS Peak 5875.000 -47.01 4.96 0.00 -42.05 ≤10.00 PASS Peak 5925.000 -50.29 4.96 0.00 -45.33 ≤-27.00 PASS 11N20SISO Low 5180 AV 4500.000 -62.49 3.45 1.12 -57.92 ≤-41.20 PASS AV 5148.900 -54.41 3.45 1.12 -49.84 ≤-41.20 PASS AV 5150.000 -54.87 3.45 1.12 -50.3 ≤-41.20 PASS Peak 4500.000 -53.41 3.45 0.00 -49.96 ≤-27.00 PASS Peak 5145.400 -43.25 3.45 0.00 -39.8 ≤-27.00 PASS Peak 5150.000 -46.08 3.45 0.00 -42.63 ≤-27.00 PASS High 5240 AV 5350.000 -58.45 3.45 1.06 -53.94 ≤-41.20 PASS AV 5355.840 -57.76 3.45 1.06 -53.25 ≤-41.20 PASS AV 5460.000 -59.82 3.45 1.06 -55.31 ≤-41.20 PASS Peak 5350.000 -49.86 3.45 0.00 -46.41 ≤-27.00 PASS Peak 5370.720 -47.75 3.45 0.00 -44.3 ≤-27.00 PASS Peak 5460.000 -51.29 3.45 0.00 -47.84 ≤-27.00 PASS Low 5745 Peak 5650.000 -50.578 4.96 0.00 -45.618 ≤-27.00 PASS Peak 5700.000 -50.85 4.96 0.00 -45.89 ≤10.00 PASS Peak 5720.000 -43.24 4.96 0.00 -38.28 ≤15.60 PASS 100 Peak 5725.000 -34.32 4.96 0.00 -29.36 ≤27.00 PASS High 5825 Peak 5850.000 -38.891 4.96 0.00 -33.931 ≤27.00 PASS Peak 5855.000 -43.41 4.96 0.00 -38.45 ≤15.60 PASS Peak 5875.000 -47.83 4.96 0.00 -42.87 ≤10.00 PASS Peak 5925.000 -49.41 4.96 0.00 -44.45 ≤-27.00 PASS 11N40SISO Low 5190 AV 4500.000 -63.06 3.45 1.06 -58.55 ≤-41.20 PASS AV 5148.900 -51.88 3.45 1.06 -47.37 ≤-41.20 PASS AV 5150.000 -51.65 3.45 1.06 -47.14 ≤-41.20 PASS Peak 4500.000 -54.33 3.45 0.00 -50.88 ≤-27.00 PASS Peak 5148.200 -41.88 3.45 0.00 -38.43 ≤-27.00 PASS Peak 5150.000 -40.35 3.45 0.00 -36.9 ≤-27.00 PASS High 5230 AV 5350.000 -57.9 3.45 1.06 -53.39 ≤-41.20 PASS AV 5356.520 -57.46 3.45 1.06 -52.95 ≤-41.20 PASS AV 5460.000 -59.8 3.45 1.06 -55.29 ≤-41.20 PASS Peak 5350.000 -48.61 3.45 0.00 -45.16 ≤-27.00 PASS Peak 5356.520 -47.29 3.45 0.00 -43.84 ≤-27.00 PASS Peak 5460.000 -51.62 3.45 0.00 -48.17 ≤-27.00 PASS Low 5755 Peak 5650.000 -51.966 4.96 0.00 -47.006 ≤-27.00 PASS Peak 5700.000 -45.74 4.96 0.00 -40.78 ≤10.00 PASS Peak 5720.000 -37.74 4.96 0.00 -32.78 ≤15.60 PASS Peak 5725.000 -38.76 4.96 0.00 -33.8 ≤27.00 PASS High 5795 Peak 5850.000 -45.544 4.96 0.00 -40.584 ≤27.00 PASS Peak 5855.000 -45.99 4.96 0.00 -41.03 ≤15.60 PASS Peak 5875.000 -48.93 4.96 0.00 -43.97 ≤10.00 PASS Peak 5925.000 -49.79 4.96 0.00 -44.83 ≤-27.00 PASS 11AC20SISO Low 5180 AV 4500.000 -62.27 3.45 0.76 -58.06 ≤-41.20 PASS AV 5142.600 -54.73 3.45 0.76 -50.52 ≤-41.20 PASS AV 5150.000 -55.14 3.45 0.76 -50.93 ≤-41.20 PASS Peak 4500.000 -54.72 3.45 0.00 -51.27 ≤-27.00 PASS Peak 5144.700 -44.31 3.45 0.00 -40.86 ≤-27.00 PASS Peak 5150.000 -45.53 3.45 0.00 -42.08 ≤-27.00 PASS High 5240 AV 5350.000 -57.84 3.45 0.76 -53.63 ≤-41.20 PASS AV 5355.600 -57.74 3.45 0.76 -53.53 ≤-41.20 PASS AV 5460.000 -60.23 3.45 0.76 -56.02 ≤-41.20 PASS Peak 5350.000 -47.61 3.45 0.00 -44.16 ≤-27.00 PASS Peak 5350.080 -47.61 3.45 0.00 -44.16 ≤-27.00 PASS Peak 5460.000 -51.39 3.45 0.00 -47.94 ≤-27.00 PASS Low 5745 Peak 5650.000 -51.544 4.96 0.00 -46.584 ≤-27.00 PASS Peak 5700.000 -50.56 4.96 0.00 -45.6 ≤10.00 PASS Peak 5720.000 -44.34 4.96 0.00 -39.38 ≤15.60 PASS Peak 5725.000 -39.44 4.96 0.00 -34.48 ≤27.00 PASS High 5825 Peak 5850.000 -37.417 4.96 0.00 -32.457 ≤27.00 PASS Peak 5855.000 -45.96 4.96 0.00 -41 ≤15.60 PASS 101 Peak 5875.000 -50.63 4.96 0.00 -45.67 ≤10.00 PASS Peak 5925.000 -49.65 4.96 0.00 -44.69 ≤-27.00 PASS 11AC40SISO Low 5190 AV 4500.000 -62.44 3.45 0.87 -58.12 ≤-41.20 PASS AV 5149.600 -52.85 3.45 0.87 -48.53 ≤-41.20 PASS AV 5150.000 -51.95 3.45 0.87 -47.63 ≤-41.20 PASS Peak 4500.000 -53.97 3.45 0.00 -50.52 ≤-27.00 PASS Peak 5145.400 -42.65 3.45 0.00 -39.2 ≤-27.00 PASS Peak 5150.000 -43.19 3.45 0.00 -39.74 ≤-27.00 PASS High 5230 AV 5350.000 -57.56 3.45 1.12 -52.99 ≤-41.20 PASS AV 5351.320 -57.37 3.45 1.12 -52.8 ≤-41.20 PASS AV 5460.000 -59.75 3.45 1.12 -55.18 ≤-41.20 PASS Peak 5350.000 -48.69 3.45 0.00 -45.24 ≤-27.00 PASS Peak 5361.200 -46.3 3.45 0.00 -42.85 ≤-27.00 PASS Peak 5460.000 -51.18 3.45 0.00 -47.73 ≤-27.00 PASS Low 5755 Peak 5650.000 -50.996 4.96 0.00 -46.036 ≤-27.00 PASS Peak 5700.000 -47.89 4.96 0.00 -42.93 ≤10.00 PASS Peak 5720.000 -38.43 4.96 0.00 -33.47 ≤15.60 PASS Peak 5725.000 -39.26 4.96 0.00 -34.3 ≤27.00 PASS High 5795 Peak 5850.000 -40.727 4.96 0.00 -35.767 ≤27.00 PASS Peak 5855.000 -44.66 4.96 0.00 -39.7 ≤15.60 PASS Peak 5875.000 -48.09 4.96 0.00 -43.13 ≤10.00 PASS Peak 5925.000 -49.84 4.96 0.00 -44.88 ≤-27.00 PASS 11AC80SISO Low 5210 AV 4500.000 -62.63 3.45 1.18 -58 ≤-41.20 PASS…
Text truncated - open the document above for the full version.
65 11N20SISO_Ant1_High_5240 11N40SISO_Ant1_Low_5190 66 11N40SISO_Ant1_High_5230 11AC20SISO_Ant1_Low_5180 11AC20SISO_Ant1_High_5240 67 11AC40SISO_Ant1_Low_5190 11AC40SISO_Ant1_High_5230 68 11AC80SISO_Ant1_Low_5210 11AC80SISO_Ant1_High_5210 69 Test Graphs B4 11A_Ant1_Low_5745 11A_Ant1_High_5825 11N20SISO_Ant1_Low_5745 70 11N20SISO_Ant1_High_5825 11N40SISO_Ant1_Low_5755 71 11N40SISO_Ant1_High_5795 11AC20SISO_Ant1_Low_5745 11AC20SISO_Ant1_High_5825 72 11AC40SISO_Ant1_Low_5755 11AC40SISO_Ant1_High_5795 73 11AC80SISO_Ant1_Low_5775 11AC80SISO_Ant1_High_5775 74 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Freq(MHz) FreqRange [MHz] Max. Fre [MHz] Max. Level [dBm] Limit [dBm] Verdict 11A Ant1 5180 30~5140 5127.23 -45.56 ≤-27 PASS 5360~40000 5363.61 -45.93 ≤-27 PASS 5220 30~5140 5109 -51.11 ≤-27 PASS 5360~40000 5360.72 -50.5 ≤-27 PASS 5240 30~5140 5124.84 -51.99 ≤-27 PASS 5360~40000 5364.33 -48.67 ≤-27 PASS 5745 30~5650 5575.25 -53.23 ≤-27 PASS 5925~40000 11490.91 -39.2 ≤-27 PASS 5785 30~5650 5641.01 -54.36 ≤-27 PASS 5925~40000 11566.08 -42.41 ≤-27 PASS 5825 30~5650 5646.44 -51.14 ≤-27 PASS 5925~40000 11645.46 -46.39 ≤-27 PASS 11N20SISO Ant1 5180 30~5140 5135.91 -43.28 ≤-27 PASS 5360~40000 6475.18 -45.92 ≤-27 PASS 5220 30~5140 5121.09 -51.83 ≤-27 PASS 5360~40000 5362.16 -47.64 ≤-27 PASS 5240 30~5140 5131.31 -51.74 ≤-27 PASS 5360~40000 5368.66 -48.07 ≤-27 PASS 5745 30~5650 5643.26 -51.78 ≤-27 PASS 5925~40000 11489.5 -38.13 ≤-27 PASS 5785 30~5650 5639.7 -53.44 ≤-27 PASS 5925~40000 11566.78 -40.71 ≤-27 PASS 5825 30~5650 5641.94 -49.23 ≤-27 PASS 5925~40000 5985.42 -44.04 ≤-27 PASS 11N40SISO Ant1 5190 30~5140 5138.13 -41.38 ≤-27 PASS 5360~40000 5370.82 -45.42 ≤-27 PASS 5230 30~5140 5138.98 -49.71 ≤-27 PASS 5360~40000 5362.16 -47.83 ≤-27 PASS 5755 30~5650 5636.32 -51.43 ≤-27 PASS 5925~40000 11517.6 -41.31 ≤-27 PASS 5795 30~5650 5597.92 -54.25 ≤-27 PASS 5925~40000 11587.15 -43.15 ≤-27 PASS 11AC20SISO Ant1 5180 30~5140 5131.48 -44.75 ≤-27 PASS 5360~40000 5376.59 -46.48 ≤-27 PASS 5220 30~5140 5134.55 -51.5 ≤-27 PASS 5360~40000 5406.89 -49.42 ≤-27 PASS 75 5240 30~5140 5139.32 -52.03 ≤-27 PASS 5360~40000 5365.77 -49.64 ≤-27 PASS 5745 30~5650 5638.57 -51.82 ≤-27 PASS 5925~40000 11478.26 -39.68 ≤-27 PASS 5785 30~5650 5637.26 -48.97 ≤-27 PASS 5925~40000 11562.56 -42.03 ≤-27 PASS 5825 30~5650 5632.58 -53.67 ≤-27 PASS 5925~40000 11655.29 -47.43 ≤-27 PASS 11AC40SISO Ant1 5190 30~5140 5138.13 -42.97 ≤-27 PASS 5360~40000 5362.16 -45.98 ≤-27 PASS 5230 30~5140 5132.34 -49.68 ≤-27 PASS 5360~40000 5362.16 -48.7 ≤-27 PASS 5755 30~5650 5649.25 -50.72 ≤-27 PASS 5925~40000 11517.6 -43.1 ≤-27 PASS 5795 30~5650 5627.52 -53.12 ≤-27 PASS 5925~40000 11567.48 -46.36 ≤-27 PASS 11AC80SISO Ant1 5210 30~5140 5137.96 -37.01 ≤-27 PASS 5360~40000 5364.33 -43.5 ≤-27 PASS 5775 30~5650 5641.01 -47.71 ≤-27 PASS 5925~40000 11526.74 -45.49 ≤-27 PASS 76 Test Graphs 11A_Ant1_5180_30~5140 11A_Ant1_5180_5360~40000 11A_Ant1_5220_30~5140 77 11A_Ant1_5220_5360~40000 11A_Ant1_5240_30~5140 78 11A_Ant1_5240_5360~40000 11A_Ant1_5745_30~5650 11A_Ant1_5745_5925~40000 79 11A_Ant1_5785_30~5650 11A_Ant1_5785_5925~40000 80 11A_Ant1_5825_30~5650 11A_Ant1_5825_5925~40000 11N20SISO_Ant1_5180_30~5140 81 11N20SISO_Ant1_5180_5360~40000 11N20SISO_Ant1_5220_30~5140 82 11N20SISO_Ant1_5220_5360~40000 11N20SISO_Ant1_5240_30~5140 11N20SISO_Ant1_5240_5360~40000 83 11N20SISO_Ant1_5745_30~5650 11N20SISO_Ant1_5745_5925~40000 84 11N20SISO_Ant1_5785_30~5650 11N20SISO_Ant1_5785_5925~40000 11N20SISO_Ant1_5825_30~5650 85 11N20SISO_Ant1_5825_5925~40000 11N40SISO_Ant1_5190_30~5140 86 11N40SISO_Ant1_5190_5360~40000 11N40SISO_Ant1_5230_30~5140 11N40SISO_Ant1_5230_5360~40000 87 11N40SISO_Ant1_5755_30~5650 11N40SISO_Ant1_5755_5925~40000 88 11N40SISO_Ant1_5795_30~5650 11N40SISO_Ant1_5795_5925~40000 11AC20SISO_Ant1_5180_30~5140 89 11AC20SISO_Ant1_5180_5360~40000 11AC20SISO_Ant1_5220_30~5140 90 11AC20SISO_Ant1_5220_5360~40000 11AC20SISO_Ant1_5240_30~5140 11AC20SISO_Ant1_5240_5360~40000 91 11AC20SISO_Ant1_5745_30~5650 11AC20SISO_Ant1_5745_5925~40000
33 11AC20SISO_Ant1_5825 11AC40SISO_Ant1_5755 11AC40SISO_Ant1_5795 34 11AC80SISO_Ant1_5775 35 Appendix B: Duty Cycle Test Result TestMode Antenna Freq(MHz) Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] DC Factor [dB] Limit Verdict 11A Ant1 5180 0.14 0.19 73.68 1.33 --- --- 5220 0.15 0.20 75.00 1.25 --- --- 5240 0.14 0.19 73.68 1.33 --- --- 5745 0.15 0.19 78.95 1.03 --- --- 5785 0.15 0.20 75.00 1.25 --- --- 5825 0.15 0.20 75.00 1.25 --- --- 11N20SISO Ant1 5180 0.17 0.22 77.27 1.12 --- --- 5220 0.18 0.22 81.82 0.87 --- --- 5240 0.18 0.23 78.26 1.06 --- --- 5745 0.18 0.22 81.82 0.87 --- --- 5785 0.17 0.22 77.27 1.12 --- --- 5825 0.18 0.23 78.26 1.06 --- --- 11N40SISO Ant1 5190 0.18 0.23 78.26 1.06 --- --- 5230 0.18 0.23 78.26 1.06 --- --- 5755 0.18 0.23 78.26 1.06 --- --- 5795 0.18 0.23 78.26 1.06 --- --- 11AC20SISO Ant1 5180 0.26 0.31 83.87 0.76 --- --- 5220 0.26 0.31 83.87 0.76 --- --- 5240 0.26 0.31 83.87 0.76 --- --- 5745 0.26 0.30 86.67 0.62 --- --- 5785 0.26 0.31 83.87 0.76 --- --- 5825 0.26 0.30 86.67 0.62 --- --- 11AC40SISO Ant1 5190 0.18 0.22 81.82 0.87 --- --- 5230 0.17 0.22 77.27 1.12 --- --- 5755 0.17 0.22 77.27 1.12 --- --- 5795 0.18 0.22 81.82 0.87 --- --- 11AC80SISO Ant1 5210 0.16 0.21 76.19 1.18 --- --- 5775 0.17 0.21 80.95 0.92 --- --- 36 Test Graphs 11A_Ant1_5180 11A_Ant1_5220 11A_Ant1_5240 37 11A_Ant1_5745 11A_Ant1_5785 38 11A_Ant1_5825 11N20SISO_Ant1_5180 11N20SISO_Ant1_5220 39 11N20SISO_Ant1_5240 11N20SISO_Ant1_5745 40 11N20SISO_Ant1_5785 11N20SISO_Ant1_5825 11N40SISO_Ant1_5190 41 11N40SISO_Ant1_5230 11N40SISO_Ant1_5755 42 11N40SISO_Ant1_5795 11AC20SISO_Ant1_5180 11AC20SISO_Ant1_5220 43 11AC20SISO_Ant1_5240 11AC20SISO_Ant1_5745 44 11AC20SISO_Ant1_5785 11AC20SISO_Ant1_5825 11AC40SISO_Ant1_5190 45 11AC40SISO_Ant1_5230 11AC40SISO_Ant1_5755 46 11AC40SISO_Ant1_5795 11AC80SISO_Ant1_5210 11AC80SISO_Ant1_5775 47 48 Appendix C: Maximum conducted output power Test Result Test Mode Antenna Freq(MHz) Channel Power [dBm] Duty Cycle [%] DC Factor [dBm] Result [dBm] Limit [dBm] Verdict 11A Ant1 5180 13.96 73.68 1.33 15.29 ≤23.98 PASS 5220 13.91 75.00 1.25 15.16 ≤23.98 PASS 5240 13.89 73.68 1.33 15.22 ≤23.98 PASS 5745 13.57 78.95 1.03 14.60 ≤30.00 PASS 5785 13.75 75.00 1.25 15.00 ≤30.00 PASS 5825 13.85 75.00 1.25 15.10 ≤30.00 PASS 11N20SISO Ant1 5180 13.93 77.27 1.12 15.05 ≤23.98 PASS 5220 14.02 81.82 0.87 14.89 ≤23.98 PASS 5240 13.81 78.26 1.06 14.87 ≤23.98 PASS 5745 13.56 81.82 0.87 14.43 ≤30.00 PASS 5785 13.66 77.27 1.12 14.78 ≤30.00 PASS 5825 13.85 78.26 1.06 14.91 ≤30.00 PASS 11N40SISO Ant1 5190 13.95 78.26 1.06 15.01 ≤23.98 PASS 5230 13.89 78.26 1.06 14.95 ≤23.98 PASS 5755 13.55 78.26 1.06 14.61 ≤30.00 PASS 5795 13.89 78.26 1.06 14.95 ≤30.00 PASS 11AC20SISO Ant1 5180 13.88 83.87 0.76 14.64 ≤23.98 PASS 5220 14.06 83.87 0.76 14.82 ≤23.98 PASS 5240 13.89 83.87 0.76 14.65 ≤23.98 PASS 5745 13.51 86.67 0.62 14.13 ≤30.00 PASS 5785 13.77 83.87 0.76 14.53 ≤30.00 PASS 5825 13.87 86.67 0.62 14.49 ≤30.00 PASS 11AC40SISO Ant1 5190 13.52 81.82 0.87 14.39 ≤23.98 PASS 5230 13.41 77.27 1.12 14.53 ≤23.98 PASS 5755 13.07 77.27 1.12 14.19 ≤30.00 PASS 5795 13.35 81.82 0.87 14.22 ≤30.00 PASS 11AC80SISO Ant1 5210 13.63 76.19 1.18 14.81 ≤23.98 PASS 5775 13.43 80.95 0.92 14.35 ≤30.00 PASS 49 Appendix D: Maximum power spectral density Test Result Note:1.The Result and Limit Unit is dBm/500 kHz in the band 5.725−5.85 GHz. P.S.D(dBm/500KHz)= P.S.D(dBm/300KHz)+10 log (500 kHz/300KHz). 2. RBW factor= 10 log (500 KHz /300 KHz) = 2.22 dB. TestMode Antenna Freq(MHz) RawData [dBm/MHz] DC Factor [dBm] RBW Factor [dBm] Result [dBm/MHz] Limit [dBm/MHz] Verdict 11A Ant1 5180 3.55 1.33 0.00 4.88 ≤11.00 PASS 5220 3.85 1.25 0.00 5.10 ≤11.00 PASS 5240 3.62 1.33 0.00 4.95 ≤11.00 PASS 5745 -1.55 1.03 2.22 1.70 ≤30.00 PASS 5785 -2.1 1.25 2.22 1.37 ≤30.00 PASS 5825 -1.8 1.25 2.22 1.67 ≤30.00 PASS 11N20SISO Ant1 5180 3.74 1.12 0.00 4.86 ≤11.00 PASS 5220 4.01 0.87 0.00 4.88 ≤11.00 PASS 5240 3.46 1.06 0.00 4.52 ≤11.00 PASS 5745 -2.24 0.87 2.22 0.85 ≤30.00 PASS 5785 -1.73 1.12 2.22 1.61 ≤30.00 PASS 5825 -2.29 1.06 2.22 0.99 ≤30.00 PASS 11N40SISO Ant1 5190 0.33 1.06 0.00 1.39 ≤11.00 PASS 5230 0.21 1.06 0.00 1.27 ≤11.00 PASS 5755 -5.13 1.06 2.22 -1.85 ≤30.00 PASS 5795 -4.73 1.06 2.22 -1.45 ≤30.00 PASS 11AC20SISO Ant1 5180 3.54 0.76 0.00 4.30 ≤11.00 PASS 5220 3.69 0.76 0.00 4.45 ≤11.00 PASS 5240 3.3 0.76 0.00 4.06 ≤11.00 PASS 5745 -2.61 0.62 2.22 0.23 ≤30.00 PASS 5785 -2.56 0.76 2.22 0.42 ≤30.00 PASS 5825 -2.28 0.62 2.22 0.56 ≤30.00 PASS 11AC40SISO Ant1 5190 0.1 0.87 0.00 0.97 ≤11.00 PASS 5230 -0.33 1.12 0.00 0.79 ≤11.00 PASS 5755 -5.36 1.12 2.22 -2.02 ≤30.00 PASS 5795 -5.41 0.87 2.22 -2.32 ≤30.00 PASS 11AC80SISO Ant1 5210 -2.92 1.18 0.00 -1.74 ≤11.00 PASS 5775 -7.89 0.92 2.22 -4.75 ≤30.00 PASS 50 Test Graphs 11A_Ant1_5180 11A_Ant1_5220 11A_Ant1_5240 51 11A_Ant1_5745 11A_Ant1_5785 52 11A_Ant1_5825 11N20SISO_Ant1_5180 11N20SISO_Ant1_5220 53 11N20SISO_Ant1_5240 11N20SISO_Ant1_5745 54 11N20SISO_Ant1_5785 11N20SISO_Ant1_5825 11N40SISO_Ant1_5190 55 11N40SISO_Ant1_5230 11N40SISO_Ant1_5755 56 11N40SISO_Ant1_5795 11AC20SISO_Ant1_5180 11AC20SISO_Ant1_5220 57 11AC20SISO_Ant1_5240 11AC20SISO_Ant1_5745 58 11AC20SISO_Ant1_5785 11AC20SISO_Ant1_5825 11AC40SISO_Ant1_5190 59 11AC40SISO_Ant1_5230 11AC40SISO_Ant1_5755 60 11AC40SISO_Ant1_5795 11AC80SISO_Ant1_5210 11AC80SISO_Ant1_5775 61 62 Appendix E: Band edge measurements Test Result B1 TestMode Antenna ChName Freq(MHz) Result[dBm] Limit[dBm] Verdict 11A Ant1 Low 5180 -43.09 ≤-27 PASS High 5240 -47.19 ≤-27 PASS 11N20SISO Ant1 Low 5180 -43.1 ≤-27 PASS High 5240 -47.53 ≤-27 PASS 11N40SISO Ant1 Low 5190 -39.32 ≤-27 PASS High 5230 -46.62 ≤-27 PASS 11AC20SISO Ant1 Low 5180 -44.16 ≤-27 PASS High 5240 -47.44 ≤-27 PASS 11AC40SISO Ant1 Low 5190 -41.85 ≤-27 PASS High 5230 -47.7 ≤-27 PASS 11AC80SISO Ant1 Low 5210 -37.31 ≤-27 PASS High 5210 -42.42 ≤-27 PASS Test Result B4 TestMode Antenna ChName Freq(MHz) FreqRange [MHz] Result [dBm] Limit [dBm] Verdict 11A Ant1 Low 5745 5645~5650 -48.51 ≤-2…
Text truncated - open the document above for the full version.
1 FCC Appendix RF Test Data for 5GWIFI FCC ID : 2AENNE2M2 Company : Shenzhen ImagineVision Technology Limited EUT : Z CAM E2 Series Camera Model Number : E1905 Report No. : CTA26033000601 Reviewed By : Eric Wang 2 Appendix A1: Emission Bandwidth Test Result TestMode Antenna Freq(MHz) 26db EBW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11A Ant1 5180 23.360 5168.520 5191.880 --- --- 5220 23.640 5208.240 5231.880 --- --- 5240 23.680 5228.440 5252.120 --- --- 5745 24.320 5732.920 5757.240 --- --- 5785 22.920 5773.720 5796.640 --- --- 5825 24.480 5812.760 5837.240 --- --- 11N20SISO Ant1 5180 23.640 5168.280 5191.920 --- --- 5220 23.720 5208.000 5231.720 --- --- 5240 23.920 5228.400 5252.320 --- --- 5745 24.400 5732.960 5757.360 --- --- 5785 24.920 5772.680 5797.600 --- --- 5825 25.200 5812.640 5837.840 --- --- 11N40SISO Ant1 5190 43.520 5168.240 5211.760 --- --- 5230 42.960 5208.880 5251.840 --- --- 5755 44.800 5733.320 5778.120 --- --- 5795 44.800 5773.240 5818.040 --- --- 11AC20SISO Ant1 5180 23.080 5168.880 5191.960 --- --- 5220 23.160 5208.640 5231.800 --- --- 5240 23.280 5228.920 5252.200 --- --- 5745 23.800 5733.000 5756.800 --- --- 5785 22.880 5773.720 5796.600 --- --- 5825 23.800 5813.240 5837.040 --- --- 11AC40SISO Ant1 5190 42.560 5168.800 5211.360 --- --- 5230 42.160 5209.280 5251.440 --- --- 5755 44.000 5733.240 5777.240 --- --- 5795 44.160 5773.560 5817.720 --- --- 11AC80SISO Ant1 5210 85.120 5167.920 5253.040 --- --- 5775 84.480 5733.080 5817.560 --- --- 3 Test Graphs 11A_Ant1_5180 11A_Ant1_5220 11A_Ant1_5240 4 11A_Ant1_5745 11A_Ant1_5785 5 11A_Ant1_5825 11N20SISO_Ant1_5180 11N20SISO_Ant1_5220 6 11N20SISO_Ant1_5240 11N20SISO_Ant1_5745 7 11N20SISO_Ant1_5785 11N20SISO_Ant1_5825 11N40SISO_Ant1_5190 8 11N40SISO_Ant1_5230 11N40SISO_Ant1_5755 9 11N40SISO_Ant1_5795 11AC20SISO_Ant1_5180 11AC20SISO_Ant1_5220 10 11AC20SISO_Ant1_5240 11AC20SISO_Ant1_5745 11 11AC20SISO_Ant1_5785 11AC20SISO_Ant1_5825 11AC40SISO_Ant1_5190 12 11AC40SISO_Ant1_5230 11AC40SISO_Ant1_5755 13 11AC40SISO_Ant1_5795 11AC80SISO_Ant1_5210 11AC80SISO_Ant1_5775 14 15 Appendix A2: Occupied channel bandwidth Test Result TestMode Antenna Freq(MHz) OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11A Ant1 5180 17.267 5171.4181 5188.6851 --- --- 5220 17.297 5211.4744 5228.7714 --- --- 5240 17.286 5231.4220 5248.7080 --- --- 5745 17.667 5736.2389 5753.9059 --- --- 5785 17.624 5776.2510 5793.8750 --- --- 5825 17.593 5816.2436 5833.8366 --- --- 11N20SISO Ant1 5180 18.230 5170.9275 5189.1575 --- --- 5220 18.279 5210.9055 5229.1845 --- --- 5240 18.222 5230.9616 5249.1836 --- --- 5745 18.693 5735.6781 5754.3711 --- --- 5785 18.647 5775.7371 5794.3841 --- --- 5825 18.669 5815.7126 5834.3816 --- --- 11N40SISO Ant1 5190 36.272 5171.9372 5208.2092 --- --- 5230 36.215 5211.9630 5248.1780 --- --- 5755 36.932 5736.6508 5773.5828 --- --- 5795 36.933 5776.6890 5813.6220 --- --- 11AC20SISO Ant1 5180 19.076 5170.5169 5189.5929 --- --- 5220 19.057 5210.5187 5229.5757 --- --- 5240 19.134 5230.4824 5249.6164 --- --- 5745 19.400 5735.3646 5754.7646 --- --- 5785 19.444 5775.3179 5794.7619 --- --- 5825 19.421 5815.3345 5834.7555 --- --- 11AC40SISO Ant1 5190 37.753 5171.2396 5208.9926 --- --- 5230 37.859 5211.1585 5249.0175 --- --- 5755 38.312 5735.9538 5774.2658 --- --- 5795 38.264 5776.0100 5814.2740 --- --- 11AC80SISO Ant1 5210 76.948 5171.6996 5248.6476 --- --- 5775 76.974 5736.8049 5813.7789 --- --- 16 Test Graphs 11A_Ant1_5180 11A_Ant1_5220 11A_Ant1_5240 17 11A_Ant1_5745 11A_Ant1_5785 18 11A_Ant1_5825 11N20SISO_Ant1_5180 11N20SISO_Ant1_5220 19 11N20SISO_Ant1_5240 11N20SISO_Ant1_5745 20 11N20SISO_Ant1_5785 11N20SISO_Ant1_5825 11N40SISO_Ant1_5190 21 11N40SISO_Ant1_5230 11N40SISO_Ant1_5755 22 11N40SISO_Ant1_5795 11AC20SISO_Ant1_5180 11AC20SISO_Ant1_5220 23 11AC20SISO_Ant1_5240 11AC20SISO_Ant1_5745 24 11AC20SISO_Ant1_5785 11AC20SISO_Ant1_5825 11AC40SISO_Ant1_5190 25 11AC40SISO_Ant1_5230 11AC40SISO_Ant1_5755 26 11AC40SISO_Ant1_5795 11AC80SISO_Ant1_5210 11AC80SISO_Ant1_5775 27 28 Appendix A3: Min emission…
Text truncated - open the document above for the full version.
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15E | 5.18 GHz - 5.24 GHz | 33.80 mW |
| 2 | 15E | 5.75 GHz - 5.83 GHz | 32.40 mW |
