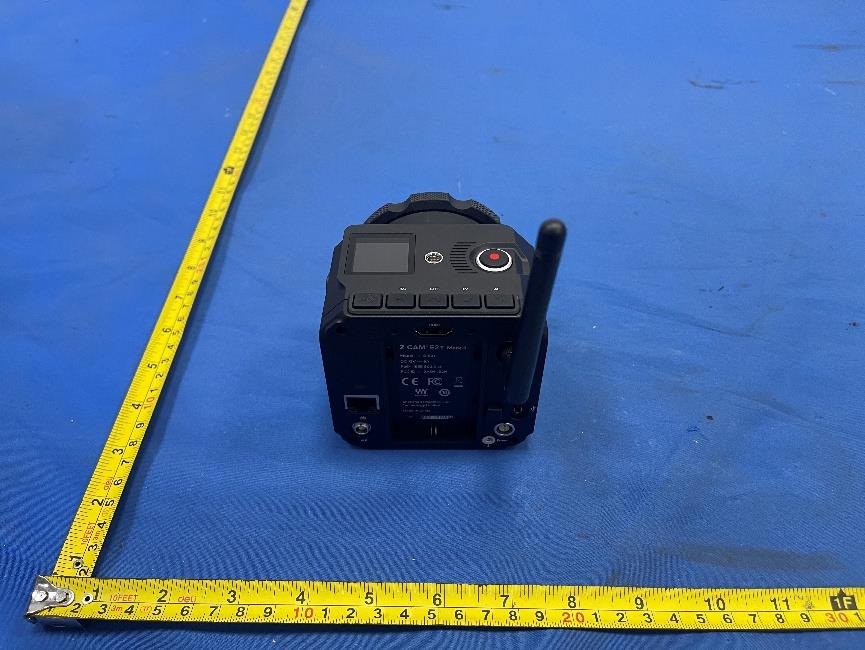

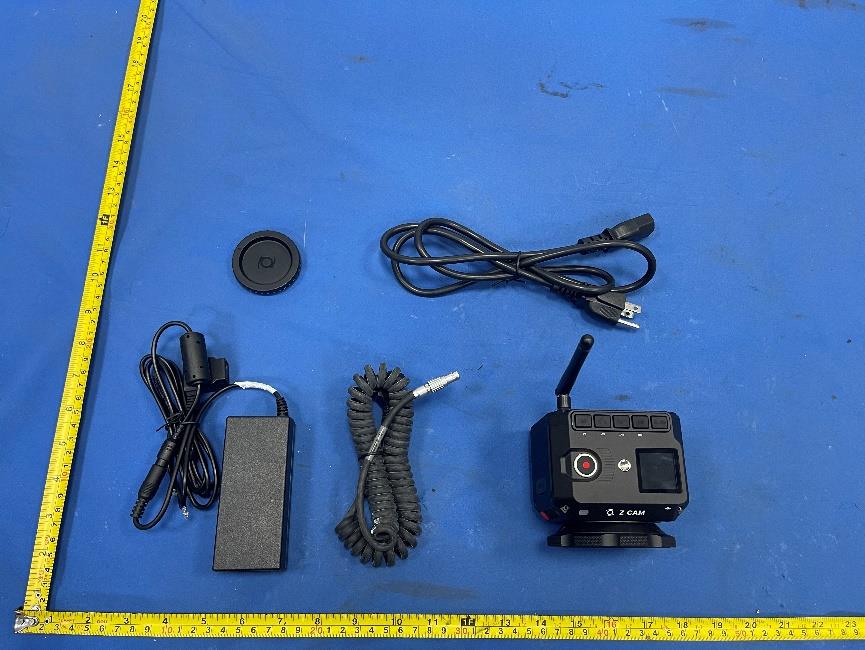

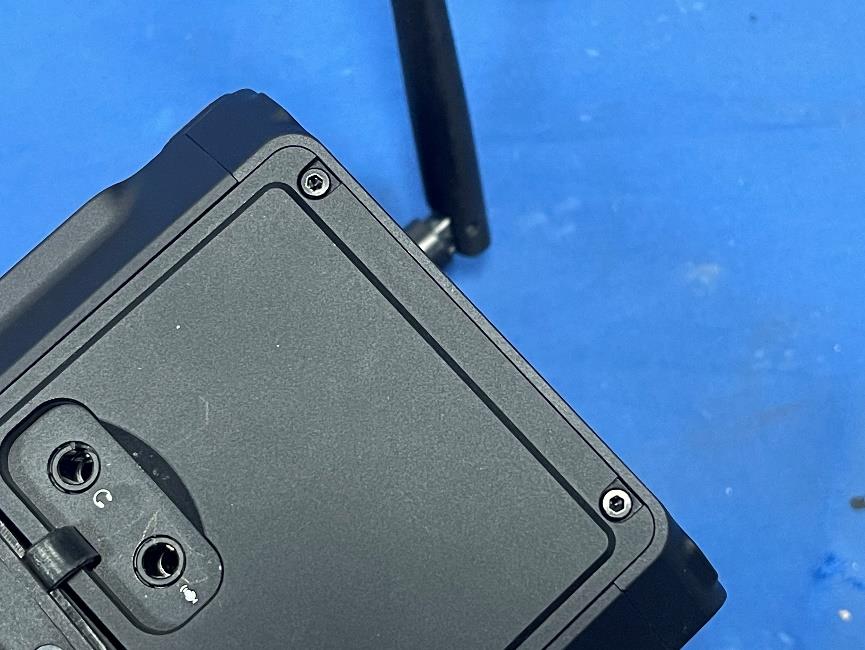

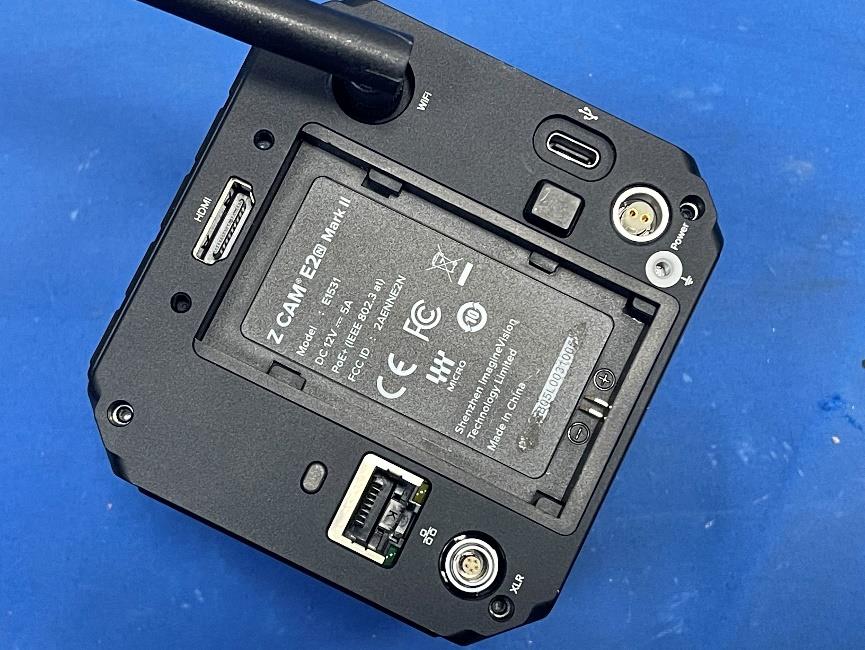

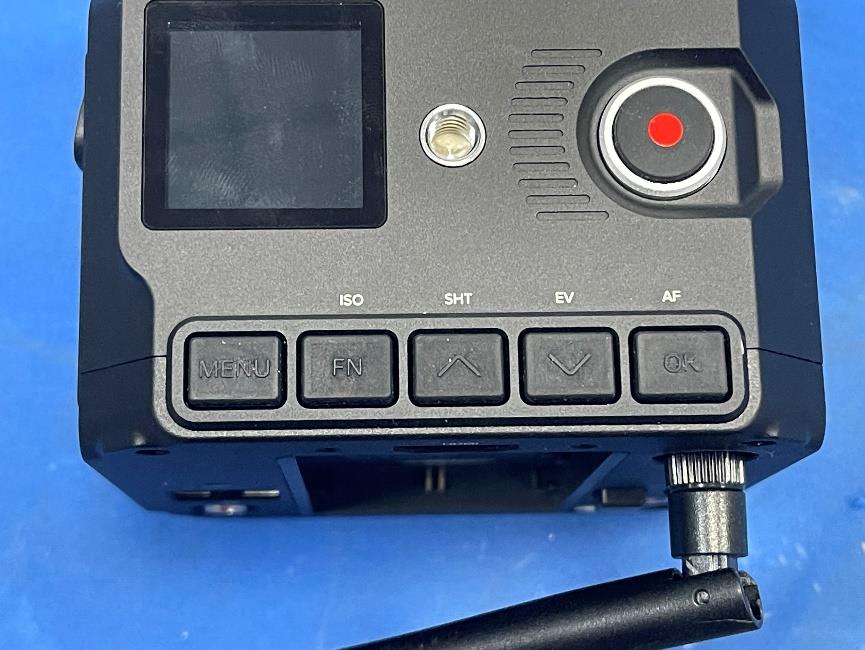

FCC ID: 2AENNE2N External Photos of the EUT FCC ID: 2AENNE2N FCC ID: 2AENNE2N Antenna FCC ID: 2AENNE2N

FCC ID: 2AENNE2N Internal Photos of the EUT FCC ID: 2AENNE2N FCC ID: 2AENNE2N FCC ID: 2AENNE2N FCC ID: 2AENNE2N FCC ID: 2AENNE2N FCC ID: 2AENNE2N FCC ID: 2AENNE2N FCC ID: 2AENNE2N FCC ID: 2AENNE2N

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn RF Exposure MPE Report Reference No. ..................... : FCC ID............................................. : CTA26040100804 2AENNE2N Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Apr. 26, 2025 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ............................ : Shenzhen ImagineVision Technology Limited Address............................................ : 101, Building F5, TCL Science Park, 1001 Zhongshanyuan Road, Shuguang Community, Xili Subdistrict, Nanshan District, Shenzhen, China Standard ........................................... : 47CFR §1.1310 47CFR §2.1091 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purpses as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Z CAM E2N Mark II Trade Mark ....................................... : Z CAM Manufacturer .................................... : Shenzhen ImagineVision Technology Limited Model/Type reference ...................... : E1531 Listed Models ................................... : N/A Rating ............................................... : Input: 12.0V5.0A Result ............................................... : PASS Report No.: CTA26040100804 Page 2 of 10 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Z CAM E2N Mark II Model /Type : E1531 Listed Models : N/A Applicant : Shenzhen ImagineVision Technology Limited Address : 101, Building F5, TCL Science Park, 1001 Zhongshanyuan Road, Shuguang Community, Xili Subdistrict, Nanshan District, Shenzhen, China Manufacturer : Shenzhen ImagineVision Technology Limited Address : 101, Building F5, TCL Science Park, 1001 Zhongshanyuan Road, Shuguang Community, Xili Subdistrict, Nanshan District, Shenzhen, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA26040100804 Page 3 of 10 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ............................................................................................................ 4 2 SUMMARY .......................................................................................................................... 5 2.1 General Remarks ..................................................................................................... 5 2.2 Product Description ................................................................................................. 5 2.3 Special Accessories ................................................................................................. 6 2.4 Modifications ............................................................................................................ 6 3 TEST ENVIRONMENT ....................................................................................................... 6 3.1 Address of the test laboratory .................................................................................. 6 3.2 Test Facility .............................................................................................................. 6 3.3 Statement of the measurement uncertainty ............................................................. 6 4 Test limit .............................................................................................................................. 8 4.1 Requirement ............................................................................................................ 8 4.2 MPE Calculation Method ......................................................................................... 8 4.3 Conducted Power Results ....................................................................................... 9 4.4 Manufacturing tolerance ........................................................................................ 10 4.5 Standalone MPE Result ......................................................................................... 10 4.6 Simultaneous Transmission for MPE Result ......................................................... 10 5 Conclusion ......................................................................................................................... 10 Report No.: CTA26040100804 Page 4 of 10 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai…

Text truncated - open the document above for the full version.

R & D, production and sales of professional wireless terminal antenna 承 认 书 SPECIFICATION FOR APPROVAL 客户名称Customer Name： 视觉 产品型号Product Model： 客户料号Customer P/N ： E05024A58A1 特高料号 TG P/N： W.02.00241002 产品规格SPECIFFCATIONS: 2.4G/5.8G 外置天线 SMA母针 制作日期Production date： 2025-08-01 封样版本Sample Version： V1.0 地址：深圳市龙华区大浪街道浪花路4号梵思诺数字产业园 1栋708 特高（TG） 编制（FICTION） 结构（SE） 研发（R&D） 夏逸 何亮 唐师荣 客户（Customer） 采 购（PUR） 品质（QC） 研发（R&D） Address: Room 708, Building 1, Vansino Digital Industrial Park, No. 4 Langhua Road, Dalang Street, Longhua District, Shenzhen R & D, production and sales of professional wireless terminal antenna Number Effective date Change record V1.0 2025.08.01 Initial release R & D, production and sales of professional wireless terminal antenna 一、基本参数 A. Electrical Characteristics Frequency 2400MHz-2500MHz 5150MHz-5850MHz VSWR < 2.5 Avg Efficiency >60% Impedance 50 ± 25 Ohm Polarization Linear Peak Gain 2400MHz-2500MHz：2.75dBi 5150MHz-5850MHz：4.96dBi B. Material & Mechanical Characteristics Material of Radiator 2.4G+5.8G双铜管胶棒天线 Black Cable Type RG1.13 Black Connector Type SMA Male 母针（内孔） 黑色上下固 黑色杆套 Dimension 108mm*7.8mm C. Environmental Operation Temperature - 20 ̊C ~ + 60 ̊C Storage Temperature - 20 ̊C ~ + 60 ̊C R & D, production and sales of professional wireless terminal antenna 二、电性规格 Those specifications were specially defined for model. 三、VSWR 1 测量方法 1. A 50Ωcoaxial cable is connected to the antenna. Then this cable is connected to a network analyzer to measure the VSWR 2. Coaxial cable length is 41.5CM 3. Keeping this jig away from metal at least 20cm 2 测量频率点和驻波比 R & D, production and sales of professional wireless terminal antenna 四、 暗室简介 Introduction: Microwave darkroom and no reflection chamber, absorbing short wave darkroom dark room. Microwave darkroom by electromagnetic shielding room, filtering and isolation, grounding device, the ventilation duct, indoor distribution system, monitoring system, ceiling wave material part. It is based on the wave absorbing material as the lining of the shield room, it can absorb the most of the electromagnetic energy into the six wall is a better simulation of the free space conditions. The main working principle of microwave anechoic chamber is according to the electromagnetic wave in the medium from the low magnetic guide magnetic direction of propagation rules, absorbing materials to guide the electromagnetic wave using high permeability, through resonance, a substantial absorption of electromagnetic wave radiation energy, by coupling the electromagnetic energy into heat energy. main performance ： Frequency range:400MHz ~ 6GHz ceiling reflected wave loss materials: 400MHz ~ 6GHz is equal to or more than 15dB (microwave absorbing material by composite wave absorbing materials, namely tapered containing carbon sponge suction wave material paste in ferrite) R & D, production and sales of professional wireless terminal antenna 五、天线性能 无源场型图-2400MHZ-2500MHZ R & D, production and sales of professional wireless terminal antenna 无源效率增益-2400MHZ-2500MHZ R & D, production and sales of professional wireless terminal antenna 无源场型图-5150MHZ-5850MHZ R & D, production and sales of professional wireless terminal antenna 无源效率增益-5150MHZ-5850MHZ R & D, production and sales of professional wireless terminal antenna 六、天线图片 R & D, production and sales of professional wireless terminal antenna 七、天线图纸尺寸 R & D, production and sales of professional wireless terminal antenna 八、ROHS Antenna W.02.00241002 meets RoHS requirements. 九、 产品包装说明 A. packing should meet the moistureproof, vibration, pressure and mildew proof, etc. B. the smallest packing unit logo must have the manufacturer trademarks, product model, name, code and quantity. C. in the attached packing list, certificate of approval, and the factory inspection report. ***************************END****************************

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. .................... : FCC ID. .......................................... : CTA26040100801 2AENNE2N Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Apr. 26, 2025 Testing Laboratory Name ............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ........................... : Shenzhen ImagineVision Technology Limited Address ............................................ : 101, Building F5, TCL Science Park, 1001 Zhongshanyuan Road, Shuguang Community, Xili Subdistrict, Nanshan District, Shenzhen, China Test specification.......................... : Standard .......................................... : FCC Part 15.247 TRF Originator ................................. : Shenzhen CTA Testing Technology Co., Ltd. Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................... : Z CAM E2N Mark II Trade Mark ....................................... : Z CAM Manufacturer .................................... : Shenzhen ImagineVision Technology Limited Model/Type reference ...................... : E1531 Listed Models ................................... : N/A Modulation Type .............................. : CCK/DSSS/OFDM Operation Frequency ....................... : From 2412 - 2462MHz Rating ............................................... : Input: 12.0V5.0A Result ............................................... : PASS Report No.: CTA26040100801 Page 2 of 44 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Z CAM E2N Mark II Model /Type : E1531 Listed Models : N/A Applicant : Shenzhen ImagineVision Technology Limited Address : 101, Building F5, TCL Science Park, 1001 Zhongshanyuan Road, Shuguang Community, Xili Subdistrict, Nanshan District, Shenzhen, China Manufacturer : Shenzhen ImagineVision Technology Limited Address : 101, Building F5, TCL Science Park, 1001 Zhongshanyuan Road, Shuguang Community, Xili Subdistrict, Nanshan District, Shenzhen, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA26040100801 Page 3 of 44 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ...................................................................................................................................... 4 2 SUMMARY .................................................................................................................................................... 5 2.1 General Remarks .............................................................................................................................. 5 2.2 Product Description ........................................................................................................................... 5 2.3 Equipment Under Test ....................................................................................................................... 5 2.4 Short description of the Equipment under Test (EUT) ...................................................................... 5 2.5 EUT configuration .............................................................................................................................. 6 2.6 EUT operation mode ......................................................................................................................... 6 2.7 Block Diagram of Test Setup ............................................................................................................. 6 2.8 Related Submittal(s) / Grant (s) ......................................................................................................... 6 2.9 Modifications ...................................................................................................................................... 6 3 TEST ENVIRONMENT ................................................................................................................................. 7 3.1 Address of the test laboratory ........................................................................................................... 7 3.2 Test Facility........................................................................................................................................ 7 3.3 Environmental conditi…

Text truncated - open the document above for the full version.

Report No.: CTA26040100801 Page 43 of 44 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Report No.: CTA26040100801 Page 44 of 44 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn ********************** End of Report **********************

1 FCC Appendix RF Test Data for 2.4GWIFI FCC ID : 2AENNE2N Company : Shenzhen ImagineVision Technology Limited EUT : Z CAM E2N Mark II Model Number : E1531 Report No. : CTA26040100801 Reviewed By : Eric Wang 2 Appendix A: DTS Bandwidth Test Result TestMode Antenna Frequency[MHz] DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 10.240 2406.920 2417.160 0.5 PASS 2437 10.200 2431.920 2442.120 0.5 PASS 2462 10.240 2456.920 2467.160 0.5 PASS 11G Ant1 2412 15.720 2404.040 2419.760 0.5 PASS 2437 15.720 2429.120 2444.840 0.5 PASS 2462 15.920 2454.120 2470.040 0.5 PASS 11N20SISO Ant1 2412 15.760 2404.080 2419.840 0.5 PASS 2437 16.800 2428.640 2445.440 0.5 PASS 2462 17.160 2453.480 2470.640 0.5 PASS 11N40SISO Ant1 2422 35.520 2404.560 2440.080 0.5 PASS 2437 34.960 2419.880 2454.840 0.5 PASS 2452 35.840 2434.160 2470.000 0.5 PASS 3 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 4 11G_Ant1_2412 11G_Ant1_2437 5 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 6 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 7 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 8 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Channel Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 13.388 2405.3334 2418.7214 --- --- 2437 13.401 2430.3178 2443.7188 --- --- 2462 13.415 2455.3047 2468.7197 --- --- 11G Ant1 2412 16.840 2403.6224 2420.4624 --- --- 2437 16.866 2428.6085 2445.4745 --- --- 2462 16.733 2453.6481 2470.3811 --- --- 11N20SISO Ant1 2412 17.923 2403.0483 2420.9713 --- --- 2437 17.885 2428.0870 2445.9720 --- --- 2462 17.955 2453.0097 2470.9647 --- --- 11N40SISO Ant1 2422 35.986 2404.1242 2440.1102 --- --- 2437 35.995 2419.1188 2455.1138 --- --- 2452 36.070 2434.1010 2470.1710 --- --- 9 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 10 11G_Ant1_2412 11G_Ant1_2437 11 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 12 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 13 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 14 Appendix C: Maximum conducted output power Test Result Test Mode Antenna Frequency[MH z] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 13.74 ≤30.00 PASS 2437 13.90 ≤30.00 PASS 2462 13.91 ≤30.00 PASS 11G Ant1 2412 14.60 ≤30.00 PASS 2437 14.79 ≤30.00 PASS 2462 14.98 ≤30.00 PASS 11N20SISO Ant1 2412 14.28 ≤30.00 PASS 2437 14.64 ≤30.00 PASS 2462 14.81 ≤30.00 PASS 11N40SISO Ant1 2422 14.91 ≤30.00 PASS 2437 15.14 ≤30.00 PASS 2452 15.07 ≤30.00 PASS 15 Appendix D: Maximum power spectral density Test Result TestMode Antenna Frequency[MHz] Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict 11B Ant1 2412 -11.63 ≤8.00 PASS 2437 -12.26 ≤8.00 PASS 2462 -11.67 ≤8.00 PASS 11G Ant1 2412 -17.20 ≤8.00 PASS 2437 -17.03 ≤8.00 PASS 2462 -17.28 ≤8.00 PASS 11N20SISO Ant1 2412 -17.55 ≤8.00 PASS 2437 -17.01 ≤8.00 PASS 2462 -16.74 ≤8.00 PASS 11N40SISO Ant1 2422 -19.49 ≤8.00 PASS 2437 -18.62 ≤8.00 PASS 2452 -19.79 ≤8.00 PASS 16 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 17 11G_Ant1_2412 11G_Ant1_2437 18 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 19 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 20 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 21 Appendix E: Band edge measurements Test Result TestMode Antenna ChName Frequency[MHz] RefLevel[dBm] Result[dBm] Limit[dBm] Verdict 11B Ant1 Low 2412 1.19 -47 ≤-18.81 PASS High 2462 1.78 -53.96 ≤-18.22 PASS 11G Ant1 Low 2412 -1.89 -33.85 ≤-21.89 PASS High 2462 -1.72 -57.72 ≤-21.72 PASS 11N20SISO Ant1 Low 2412 -1.98 -33.67 ≤-21.98 PASS High 2462 -1.54 -57.09 ≤-21.54 PASS 11N40SISO Ant1 Low 2422 -5.09 -33.18 ≤-25.09 PASS High 2452 -4.91 -54.19 ≤-24.91 PASS 22 Test Graphs 11B_Ant1_Low_2412 11B_Ant1_High_2462 11G_Ant1_Low_2412 23 11G_Ant1_High_2462 11N20SISO_Ant1_Low_2412 24 11N20SISO_Ant1_High_2462 11N40SISO_Ant1_Low_2422 11N40SISO_Ant1_High_2452 25 26 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [Mhz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 Reference 1.25 1.25 --- PASS 30~1000 1.25 -66.99 ≤-18.75 PASS 1000~26500 1.25 -54.17 ≤-18.75 PASS 2437 Reference 1.41 1.41 --- PASS 30~1000 1.41 -68.13 ≤-18.59 PASS 1000~26500 1.41 -55.31 ≤-18.59 PASS 2462 Reference 1.87 1.87 --- PASS 30~1000 1.87 -67.97 ≤-18.13 PASS 1000~26500 1.87 -55 ≤-18.13 PASS 11G Ant1 2412 Reference -1.87 -1.87 --- PASS 30~1000 -1.87 -67.77 ≤-21.87 PASS 1000~26500 -1.87 -54.73 ≤-21.87 PASS 2437 Reference -1.95 -1.95 --- PASS 30~1000 -1.95 -68.35 ≤-21.95 PASS 1000~26500 -1.95 -55.5 ≤-21.95 PASS 2462 Reference -2.83 -2.83 --- PASS 30~1000 -2.83 -67.7 ≤-22.83 PASS 1000~26500 -2.83 -54.79 ≤-22.83 PASS 11N20SISO Ant1 2412 Reference -2.25 -2.25 --- PASS 30~1000 -2.25 -68.02 ≤-22.25 PASS 1000~26500 -2.25 -55.23 ≤-22.25 PASS 2437 Reference -2.33 -2.33 --- PASS 30~1000 -2.33 -66.91 ≤-22.33 PASS 1000~26500 -2.33 -55.3 ≤-22.33 PASS 2462 Reference -1.66 -1.66 --- PASS 30~1000 -1.66 -67.43 ≤-21.66 PASS 1000~26500 -1.66 -55 ≤-21.66 PASS 11N40SISO Ant1 2422 Reference -6.12 -6.12 --- PASS 30~1000 -6.12 -67.67 ≤-26.12 PASS 1000~26500 -6.12 -55.64 ≤-26.12 PASS 2437 Reference -4.89 -4.89 --- PASS 30~1000 -4.89 -67.38 ≤-24.89 PASS 1000~26500 -4.89 -54.54 ≤-24.89 PASS 2452 Reference -5.65 -5.65 --- PASS 30~1000 -5.65 -67.91 ≤-25.65 PASS 1000~26500 -5.65 -55.78 ≤-25.65 PASS 27 Test Graphs 11B_Ant1_2412_0~Reference 11B_Ant1_2412_30~1000 11B_Ant1_2412_1000~26500 28 11B_Ant1_2437_0~Reference 11B_Ant1_2437_30~1000 29 11B_Ant1_2437_1000~26500 11B_Ant1_2462_0~Reference 11B_Ant1_2462_30~1000 30 11B_Ant1_2462_1000~26500 11G_Ant1_2412_0~Reference 31 11G_Ant1_2412_30~1000 11G_Ant1_2412_1000~26500 11G_Ant1_2437_0~Reference 32 11G_Ant1_2437_30~1000 11G_Ant1_2437_1000~26500 33 11G_Ant1_2462_0~Reference 11G_Ant1_2462_30~1000 11G_Ant1_2462_1000~26500 34 11N20SISO_Ant1_2412_0~Reference 11N20SISO_Ant1_2412_30~1000

35 11N20SISO_Ant1_2412_1000~26500 11N20SISO_Ant1_2437_0~Reference 11N20SISO_Ant1_2437_30~1000 36 11N20SISO_Ant1_2437_1000~26500 11N20SISO_Ant1_2462_0~Reference 37 11N20SISO_Ant1_2462_30~1000 11N20SISO_Ant1_2462_1000~26500 11N40SISO_Ant1_2422_0~Reference 38 11N40SISO_Ant1_2422_30~1000 11N40SISO_Ant1_2422_1000~26500 39 11N40SISO_Ant1_2437_0~Reference 11N40SISO_Ant1_2437_30~1000 11N40SISO_Ant1_2437_1000~26500 40 11N40SISO_Ant1_2452_0~Reference 11N40SISO_Ant1_2452_30~1000 41 11N40SISO_Ant1_2452_1000~26500 42 Appendix G: Duty Cycle Test Result TestMode Antenna Frequency[MHz] Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] DC Factor [dB] T Factor [dB] 11B Ant1 2412 8.35 8.40 99.40 0.03 0.12 2437 8.35 8.40 99.40 0.03 0.12 2462 8.35 8.39 99.52 0.02 0.12 11G Ant1 2412 0.14 0.19 73.68 1.33 7.14 2437 0.14 0.19 73.68 1.33 7.14 2462 0.15 0.19 78.95 1.03 6.67 11N20SISO Ant1 2412 0.18 0.23 78.26 1.06 5.56 2437 0.18 0.23 78.26 1.06 5.56 2462 0.18 0.22 81.82 0.87 5.56 11N40SISO Ant1 2422 0.18 0.22 81.82 0.87 5.56 2437 0.18 0.23 78.26 1.06 5.56 2452 0.18 0.23 78.26 1.06 5.56 43 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 44 11G_Ant1_2412 11G_Ant1_2437 45 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 46 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 47 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 48 Appendix H: Emissions in Restricted Bands Test Result TestMod e Antenn a ChNam e Frequen cy[MHz] Detector Freq [MHz] Result [dBm] Gain [dB] DC Factor [dB] Result [dBuV/m] Limit [dBuV/m] Verdict 11B Ant1 Low 2412 AV 2310.000 -59.5 2.75 0.03 38.48 ≤54 PASS AV 2385.800 -53.06 2.75 0.03 44.92 ≤54 PASS AV 2390.000 -56.71 2.75 0.03 41.27 ≤54 PASS Peak 2310.000 -51.09 2.75 0.00 46.86 ≤74 PASS Peak 2386.060 -45.87 2.75 0.00 52.08 ≤74 PASS Peak 2390.000 -48.82 2.75 0.00 49.13 ≤74 PASS High 2462 AV 2483.500 -54.11 2.75 0.02 43.86 ≤54 PASS AV 2484.330 -53.96 2.75 0.02 44.01 ≤54 PASS AV 2500.000 -57.93 2.75 0.02 40.04 ≤54 PASS Peak 2483.500 -48.28 2.75 0.00 49.67 ≤74 PASS Peak 2484.110 -45.76 2.75 0.00 52.19 ≤74 PASS Peak 2500.000 -49.67 2.75 0.00 48.28 ≤74 PASS 11G Ant1 Low 2412 AV 2310.000 -59.54 2.75 1.33 39.74 ≤54 PASS AV 2389.960 -58.42 2.75 1.33 40.86 ≤54 PASS AV 2390.000 -58.43 2.75 1.33 40.85 ≤54 PASS Peak 2310.000 -51.7 2.75 0.00 46.25 ≤74 PASS Peak 2360.450 -47.93 2.75 0.00 50.02 ≤74 PASS Peak 2390.000 -51.04 2.75 0.00 46.91 ≤74 PASS High 2462 AV 2483.500 -58.6 2.75 1.03 40.38 ≤54 PASS AV 2495.330 -58.16 2.75 1.03 40.82 ≤54 PASS AV 2500.000 -59.18 2.75 1.03 39.8 ≤54 PASS Peak 2483.500 -50.82 2.75 0.00 47.13 ≤74 PASS Peak 2489.170 -48.25 2.75 0.00 49.7 ≤74 PASS Peak 2500.000 -51.29 2.75 0.00 46.66 ≤74 PASS 11N20SI SO Ant1 Low 2412 AV 2310.000 -59.43 2.75 1.06 39.58 ≤54 PASS AV 2380.340 -58.38 2.75 1.06 40.63 ≤54 PASS AV 2390.000 -58.8 2.75 1.06 40.21 ≤54 PASS Peak 2310.000 -52.42 2.75 0.00 45.53 ≤74 PASS Peak 2389.570 -48.44 2.75 0.00 49.51 ≤74 PASS Peak 2390.000 -51.73 2.75 0.00 46.22 ≤74 PASS High 2462 AV 2483.500 -58.41 2.75 0.87 40.41 ≤54 PASS AV 2483.670 -58.05 2.75 0.87 40.77 ≤54 PASS AV 2500.000 -59.3 2.75 0.87 39.52 ≤54 PASS Peak 2483.500 -51.39 2.75 0.00 46.56 ≤74 PASS Peak 2490.710 -48.25 2.75 0.00 49.7 ≤74 PASS Peak 2500.000 -50.99 2.75 0.00 46.96 ≤74 PASS 49 11N40SI SO Ant1 Low 2422 AV 2310.000 -59.49 2.75 0.87 39.33 ≤54 PASS AV 2389.400 -57.03 2.75 0.87 41.79 ≤54 PASS AV 2390.000 -57.59 2.75 0.87 41.23 ≤54 PASS Peak 2310.000 -51.46 2.75 0.00 46.49 ≤74 PASS Peak 2386.250 -48.34 2.75 0.00 49.61 ≤74 PASS Peak 2390.000 -50.35 2.75 0.00 47.6 ≤74 PASS High 2452 AV 2483.500 -56.95 2.75 1.06 42.06 ≤54 PASS AV 2484.625 -56.54 2.75 1.06 42.47 ≤54 PASS AV 2500.000 -58.84 2.75 1.06 40.17 ≤54 PASS Peak 2483.500 -48.51 2.75 0.00 49.44 ≤74 PASS Peak 2497.250 …
