© ® Montblanc ® 06 / 2015 Ident. No. 1111093 Printed in Germany e-Strap Quick Start Guide 2 3 5 1 6 4 For more information, user manual and list of compatible devices visit www.montblanc.com / e-strap 1 Gehäuse · support · supporto · soporte · suporte · ホルダー · 外壳 · 外殼 · 홀더 · держатель 2 Armband · bracelet · cinturino · correa · correia · ストラップ · 腕带 · 腕帶 · 스트랩 · ремешок 3 Touchscreen · écran tactile · touchscreen · pantalla táctil · ecrã táctil · タッチディスプレイ · 触摸显示器 · 觸控式螢幕 · 터치 디스플레이 · сенсорный дисплей 6 Reset-Knopf · bouton de réinitialisation · pulsante reset · botón de reinicio · botão de reiniciar · リセットボタン · 重置按钮 · 重設按鈕 · 리셋 버튼 · кнопка перезагрузки системы 5 Abdeckung · couvercle · cover · cover · tapa · tampa · カバー · 密封盖 · 密封蓋 · 커버 · защитный элемент 4 Ladeanschluss · port de chargement · slot ricarica · puerto de carga · porta de carregamento · 充電ポート · 充电接口 · 充電接口 · 충전 단자 · разъем для зарядки e-Strap overview · e-Strap – Übersicht · Aperçu de l’e-Strap · panoramica e-Strap · Sinopsis del e-Strap · Descrição geral da e-Strap · e-スト の概要 · e-Strap概览 · e-Strap概覽 · e-Strap 개요 · Общая информация о e-Strap 1 holder 2 strap 3 touch display 4 charging port 5 cover 6 reset button Die App „Montblanc e-Strap“ herunterladen Téléchargez l’application « Montblanc e-Strap » Scaricate l’applicazione “Montblanc e-Strap” Descargue la aplicación «Montblanc e-Strap» Transferir a aplicação da “Montblanc e-Strap” 「モンブラン e-ストラップ」アプ リをダウンロードしてください 下载“Montblanc e-Strap” 应用程序 下載「Montblanc e-Strap」 應用程式 “Montblanc e-Strap” 어플리케 이션 내려받기 Загрузите приложение „Montblanc e-Strap“ 1. Download the “Montblanc e-Strap” application Montblanc e-Strap Setting up the e-Strap · Einrichten des e-Strap · Paramé- trage de l’e-Strap · Configurazione dell’e-Strap · Configura- ción del e-Strap · Configurar a e-Strap · e-ストラップの設定 · 设置e-Strap · 設置e-Strap · e-Strap 설정하기 · Настройка e-Strap 2. Remove device from holder Device aus dem Gehäuse nehmen Retirez l’appareil du support Togliete il dispositivo dal supporto Retire el dispositivo del soporte Remova o dispositivo do suporte デバイスをホルダーから取り外し てください 从外壳中取下设备 從外殼中取出設備 홀더에서 기기를 분리한다 Снимите устройство с держателя 2 3 5 1 6 4 Abdeckung entfernen und das Device mittels Mikro-USB-Kabel an das Ladegerät anschließen Retirez le couvercle et branchez l’appareil à votre chargeur via le câble micro-USB Rimuovete la cover e inserite il dispositivo nel caricabatteria tramite il cavo micro USB Retire la tapa y conecte el dispositivo a su cargador mediante el cable micro-USB Remova a tampa e ligue o dispositivo ao seu carregador através do cabo micro-USB カバーを外し、micro-USBケーブ ルを使ってデバイスをお持ちの充 電器に接続してください 取下密封盖，并通过微型USB电缆 将设备与充电器进行连接 取下密封蓋，並透過微型USB纜線 將設備與充電器進行連接 커버를 분리하고 마이크로 USB 케이블로 충전기에 연결한다 Снимите защитный элемент и подключите устройство к зарядному устройству при помощи микро-USB кабеля 3. Remove cover and plug device into your charger via micro-USB cable 2 3 5 1 6 4 2 3 5 1 6 4 Retirez le câble USB lorsque le chargement est complété et replacez le couvercle. Vérifiez que le couvercle soit bien enclenché. Una volta caricato completa- mente, rimuovete il cavo USB e rimettete la cover. Assicuratevi che sia ben fissa in posizione. Cuando esté completamente cargado, retire el cable USB y ponga la tapa de nuevo. Asegúrese de que la tapa está firmemente presionada. Quando estiver completamente carregado, remova o cabo USB e introduza a tampa. Certifique-se de que a tampa está firmemente inserida. 充電が完了したら、USBケーブル を外し、カバーを取り付けてくださ い。カバーがしっかりとはまってい るかを確認してください。 当充电完毕后，拔下USB电 缆，并插 入密封盖。确保密封盖牢固压紧。 當充電完畢後，拔下USB纜線，並插 入密封蓋。確保密封蓋牢固壓緊。 충전이 완료되면 USB케이블을 뽑 고 커버를 꽂는다. 커버가 단단히 닫 히도록 한다. После полной зарядки выньте USB кабель и наденьте защитный элемент. Убедитесь, что защитный элемент плотно прижат. 4. When fully charged remove the USB cable and insert cover. Ensure that the cover is firmly pressed in. Nach vollständiger Aufladung das USB-Kabel entfernen und die Ab deckung mit festem Druck aufsetzen. 2 3 5 1 6 4 click! 1. 2. Das Device in das Gehäuse einsetzen Insérez l’appareil dans le support Inserite il dispositivo nel supporto Inserte el dispositivo en el soporte Introduza o dispositivo no suporte デバイスをホルダーに挿入して ください 将设备插入外壳 將設備插入外殼 기기를 홀더에 삽입한다 Поставьте устройство на держатель 1. 2. 5. Insert device into holder 2 3 5 1 6 4 2 3 5 1 6 4 6. Turn device ON Device einschalten Allumez l’appareil (ON) Accendete il dispositivo Encienda el dispositivo LIGUE o dispositivo デバイスをONにしてください 开启设备 開啟設備 기기 전원을 켠다 Включите устройство 3 sec. 2 3 5 1 6 4 7. Open the e-Strap application and follow the instructions Die e-Strap-App öffnen und die Anweisungen befolgen Ouvrez l’application e-Strap et suivez les instructions Aprite l’applicazione e-Strap e seguite le istruzioni Abra la aplicación e-Strap y siga las instrucciones Abra a aplicação e-Strap e siga as instruções e-ストラップ・アプリを開いて、 説明にしたがって進んでく ださい 打开e-Strap应用程序，并按照 指示进行操作 打開e-Strap應用程式，並按照 指示進行操作 e-Strap 어플리케이션을 켜고 설명대로 조작한다 Откройте приложение e-Strap и следуйте инструкциям Features · Funktionen · Fonctionnalités · Caratteristiche · Caracterís- ticas · Características · 機能 · 产品功能 · 產品功能 · 기능 · Свойства 1. Notifications email · E-Mail · e-mail · correio eletrónico · Eメール · 电子邮件 · 電子郵件 · 이메일 · e-mail · электронная почта notifications · Mitteilungen · notifications · notifiche · notificaciones · notificações · 通知 · 提醒 · 通知 · 알림 · уведомления call · Anruf · appel · chiamata · llamada · chamada · 電話 · 呼叫 · 呼叫 · 호출 · звонок text · Text · message · messaggio · SMS · mensagem · テキストメッセージ · 消息 · 訊息 · 문자 · текст calendar · Kalender · calendrier · calendario · calendario · calendário · カレンダー · 日历 · 日曆 · 달력 · календарь 2. Options mute · Stumm · veille · muto · en silencio · silêncio · ミュート · 静音 · 静音 · 음소거 · отключение звука battery status · Batteriestatus · état de la pile · livello batteria · estado de la batería · estado da bateria · 電池の状態 · 电池状态 · 電池狀態 · 배터리 상태 · индикатор уровня заряда аккумулятора connection status · Verbindungsstatus · état de la connexion · stato connessione…

Text truncated - open the document above for the full version.

Montblanc-Simplo GmbH Hellgrundweg 100, 22525 Hamburg | Postfach 54 03 40, 22503 Hamburg | Phone +49 (0)40 84 001 0 | www.montblanc.com Sitz der Gesellschaft: Hamburg | Amtsgericht Hamburg: HRB 2905 | Vorsitzender des Aufsichtsrats: Thomas Lindemann Geschäftsführung: Jérôme Lambert, Burkard J. Kiesel (stellv.) To Whom It May Concern: Please be advised that Applicant Name: Felix Frank Obschonka Address: Hellgrundweg 100 D-22525 City: Hamburg Country: Germany authorizes, Mr. Benny Lau, Project Manager at TÜV Rheinland Hong Kong Ltd. to act on our behalf, until otherwise notified, for applications submitted to a Telecommunication Certification Body (TCB) recognized by the FCC. We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C.862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Montblanc-Simplo GmbH | Postfach 54 03 40 | 22503 Hamburg TUV Rheinland Hong Kong Ltd. 8-10/F, Goldin Financial Global Square 7 Wang Tai Road, Kowloon Bay, Kowloon, Hong Kong FCC Authorization Letter Montblanc-Simplo GmbH Hellgrundweg 100, 22525 Hamburg | Postfach 54 03 40, 22503 Hamburg | Phone +49 (0)40 84 001 0 | www.montblanc.com Sitz der Gesellschaft: Hamburg | Amtsgericht Hamburg: HRB 2905 | Vorsitzender des Aufsichtsrats: Thomas Lindemann Geschäftsführung: Jérôme Lambert, Burkard J. Kiesel (stellv.) Thank you for your attention to this matter. Signature: Name: Felix Frank Obschanka Title: New Business Scout - Engineering

www.tuv.com Test Report No.: 14039790 001 Appendix 3 Page 2 of 2 External View External View

www.tuv.com Test Report No.: 14039790 001 Appendix 5 Page 2 of 20 1.1 FCCID Label Artwork

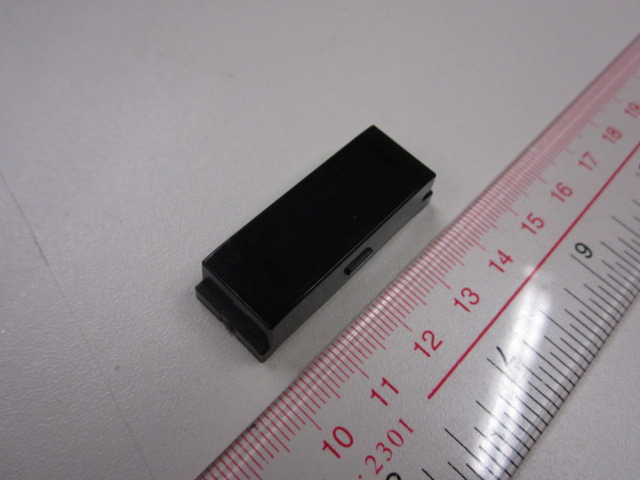

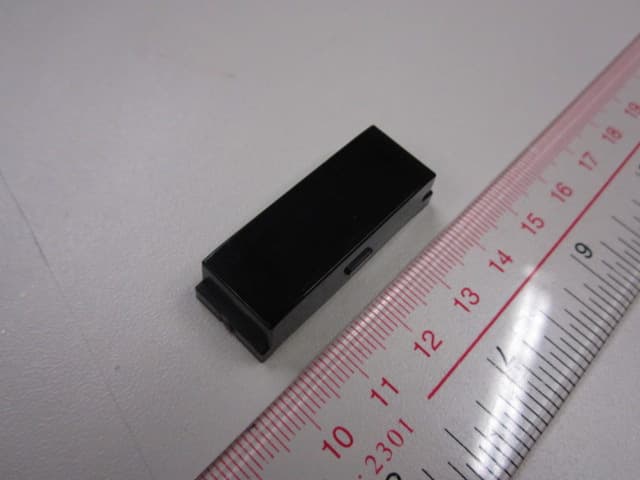

www.tuv.com Test Report No.: 14039790 001 Appendix 4 Page 2 of 4 Internal View Internal View www.tuv.com Test Report No.: 14039790 001 Appendix 4 Page 3 of 4 Internal View Internal View www.tuv.com Test Report No.: 14039790 001 Appendix 4 Page 4 of 4 Internal View Internal View

www.tuv.com Test Report No.: 14039790 001 Date:26.06.2015 Page 2 of 12 Table of Content Page Cover Page .............................................................................. 1 Table of Content ....................................................................... 2 Product information....................................................................................................... 4 Manufacturers declarations ....................................................................................................................... 4 Product function and intended use ........................................................................................................... 4 Submitted documents ................................................................................................................................. 4 Independent Operation Modes .................................................................................................................. 4 Related Submittal(s) Grants ....................................................................................................................... 4 Remark ......................................................................................................................................................... 4 Test Set-up and Operation Mode .................................................................................. 5 Principle of Configuration Selection ......................................................................................................... 5 Test Operation and Test Software ............................................................................................................. 5 Special Accessories and Auxiliary Equipment ......................................................................................... 5 Countermeasures to achieve EMC Compliance ....................................................................................... 5 Test Methodology .......................................................................................................... 6 Radiated Emission ...................................................................................................................................... 6 Field Strength Calculation .......................................................................................................................... 6 List of Test and Measurement Instruments ................................................................. 7 Results FCC Part 15 – Subpart C ................................................................................. 8 FCC 15.203 – Antenna Requirement 1 ............................................................................. Pass ................. 8 FCC 15.204 – Antenna Requirement 2 ............................................................................... N/A ................. 8 FCC 15.207 – Conducted Emission on AC Mains .......................................................... Pass ................. 8 FCC 15.247 (a)(2) – 6dB Bandwidth Measurement ........................................................ Pass ................. 9 FCC 15.247(b)(3) – Maximum Peak Couducted Output Power ..................................... Pass ................. 9 FCC 15.247(e) – Power Spectral Density......................................................................... Pass ............... 10 FCC 15.247(d) – Spurious Conducted Emissions .......................................................... Pass ............... 10 FCC 15.247(d) or 15.205 – Radiated Emissions in Restricted Frequency Bands ....... Pass ............... 11 Appendix 1 – Test protocols 14 pages Appendix 2 – Test setup 3 pages Appendix 3 – EUT External Photos 2 pages www.tuv.com Test Report No.: 14039790 001 Date:26.06.2015 Page 3 of 12 Appendix 4 – EUT Internal Photos 4 pages Appendix 5 – Label, Operational Descriptions, Block Diagram, Schematics, User Manual 21 pages Appendix 6 – RF exposure information 2 pages www.tuv.com Test Report No.: 14039790 001 Date:26.06.2015 Page 4 of 12 Product information Manufacturers declarations Transceiver Operating frequency range 2402 - 2480 MHz Type of modulation GFSK Number of channels 40 Channel separation 2 MHz Type of antenna Chip Antenna Antenna gain (dBi) 2 dBi Power level fix Type of equipment stand alone radio device Connection to public utility power line No Nominal voltage V nor : 3.7 VDC Independent Operation Modes Transmitting Product function and intended use The equipment under test (EUT) is a Bluetooth low energy device. FCC ID: 2AENP-GC183209 Models Product description e-Strap Bluetooth Low Energy Wristband Submitted documents Circuit Diagram Block Diagram Bill of material User manual Label Independent Operation Modes The basic operation modes are: - Transmitting mode. For further information refer to User Manual Related Submittal(s) Grants This is a single application for certification of the transmitter. Remark Nil www.tuv.com Test Report No.: 14039790 001 Date:26.06.2015 Page 5 of 12 Test Set-up and Operation Mode Principle of Configuration Selection Emission: The equipment under test (EUT) was configured to measure its highest possible radiation level. The test modes were adapted accordingly in reference to the instructions for use. Test Operation and Test Software Test operation should refer to test methodology. - There was no special software to exercise the device. Special Accessories and Auxiliary Equipment - none Countermeasures to achieve EMC Compliance - none www.tuv.com Test Report No.: 14039790 001 Date:26.06.2015 Page 6 of 12 Test Methodology Radiated Emission The radiated emission measurements were performed according to the procedures in ANSI C63.4-2009. The equipment under test (EUT) was placed at the middle of the 80 cm height turntable, and the turntable is 3 meters far from the measuring antenna. During the testing, the EUT was operated standalone and arranged for maximum emissions. …

Text truncated - open the document above for the full version.

www.tuv.com Test Report No.: 14039790 001 Appendix 1 Page 1 of 14 Appendix 1 Test Results www.tuv.com Test Report No.: 14039790 001 Appendix 1 Page 2 of 14 AC Mains Conducted Emission Mode: Charging; Line: L1 Mode: Charging; Line: N www.tuv.com Test Report No.: 14039790 001 Appendix 1 Page 3 of 14 6 dB Bandwidth Measurement TX frequency: 2402MHz A 2.40171 GHz * 2.40171 GHz RBW 100 kHz 2.40171 GHzVBW 300 kHz 2.40171 GHz SWT 2.5 ms 2.40171 GHz Ref 0 dBm 2.40171 GHz Att 30 dB 2.40171 GHz Center 2.402 GHz 2.40171 GHz Span 5 MHz 2.40171 GHz 500 kHz/ 2.40171 GHz 1 PK 2.40171 GHz MAXH 2.40171 GHz 2.40171 GHz 2.40171 GHz 2.40171 GHz 2.40171 GHz 2.40171 GHz 2.40171 GHz 2.40171 GHz 2.40171 GHz 2.40171 GHz -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 0 2.40171 GHz 1 Marker 1 [T1 ] -12.56 dB m 2.401710000 GHz 1 Delta 1 [T1 ] 0.35 dB 670.000000000 kHz MARKER 1 2.40171 GHz Date: 8.JUN.2015 14:22:38 TX frequency: 2440MHz A 2.43973 GHz Ref 0 dBm 2.43973 GHz Att 30 dB 2.43973 GHz 1 PK 2.43973 GHz MAXH 2.43973 GHz 2.43973 GHz 2.43973 GHz 2.43973 GHz 2.43973 GHz 2.43973 GHz 2.43973 GHz 2.43973 GHz 2.43973 GHz 2.43973 GHz 500 kHz/ 2.43973 GHz Center 2.44 GHz 2.43973 GHz Span 5 MHz 2.43973 GHz * 2.43973 GHz RBW 100 kHz 2.43973 GHzVBW 300 kHz 2.43973 GHz SWT 2.5 ms 2.43973 GHz -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 0 2.43973 GHz 1 Marker 1 [T1 ] -11.32 dBm 2.439730000 GHz 1 Delta 1 [T1 ] 0.14 dB 640.000000000 kHz MARKER 1 2.43973 GHz Date: 8.JUN.2015 14:23:48 www.tuv.com Test Report No.: 14039790 001 Appendix 1 Page 4 of 14 TX frequency: 2480MHz A 2.47971 GHz Ref 0 dBm 2.47971 GHz Att 30 dB 2.47971 GHz 1 PK 2.47971 GHz MAXH 2.47971 GHz 2.47971 GHz 2.47971 GHz 2.47971 GHz 2.47971 GHz 2.47971 GHz 2.47971 GHz 2.47971 GHz 2.47971 GHz 2.47971 GHz 500 kHz/ 2.47971 GHz Center 2.48 GHz 2.47971 GHz Span 5 MHz 2.47971 GHz * 2.47971 GHz RBW 100 kHz 2.47971 GHzVBW 300 kHz 2.47971 GHz SWT 2.5 ms 2.47971 GHz -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 0 2.47971 GHz 1 Marker 1 [T1 ] -12.18 dBm 2.479710000 GHz 1 Delta 1 [T1 ] 0.26 dB 660.000000000 kHz MARKER 1 2.47971 GHz Date: 8.JUN.2015 14:24:32 www.tuv.com Test Report No.: 14039790 001 Appendix 1 Page 5 of 14 Maximum Peak Conducted Output power TX frequency: 2402MHz A 2.40229 GHz Ref 0 dBm 2.40229 GHz Att 30 dB 2.40229 GHz 1 PK 2.40229 GHz MAXH 2.40229 GHz 2.40229 GHz 2.40229 GHz 2.40229 GHz 2.40229 GHz 2.40229 GHz 2.40229 GHz 2.40229 GHz 2.40229 GHz 2.40229 GHz 500 kHz/ 2.40229 GHz Center 2.402 GHz 2.40229 GHz Span 5 MHz 2.40229 GHz * 2.40229 GHz RBW 1 MHz 2.40229 GHzVBW 3 MHz 2.40229 GHz SWT 2.5 ms 2.40229 GHz -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 0 2.40229 GHz 1 Marker 1 [T1 ] -6.72 dBm 2.402290000 GHz MARKER 1 2.40229 GHz Date: 8.JUN.2015 14:26:51 TX frequency: 2440MHz A 2.43979 GHz Ref 0 dBm 2.43979 GHz Att 30 dB 2.43979 GHz 1 PK 2.43979 GHz MAXH 2.43979 GHz 2.43979 GHz 2.43979 GHz 2.43979 GHz 2.43979 GHz 2.43979 GHz 2.43979 GHz 2.43979 GHz 2.43979 GHz 2.43979 GHz 500 kHz/ 2.43979 GHz Center 2.44 GHz 2.43979 GHz Span 5 MHz 2.43979 GHz * 2.43979 GHz RBW 1 MHz 2.43979 GHzVBW 3 MHz 2.43979 GHz SWT 2.5 ms 2.43979 GHz -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 0 2.43979 GHz 1 Marker 1 [T1 ] -6.33 dBm 2.439790000 GHz MARKER 1 2.43979 GHz Date: 8.JUN.2015 14:26:24 www.tuv.com Test Report No.: 14039790 001 Appendix 1 Page 6 of 14 TX frequency: 2480MHz A 2.48023 GHz Ref 0 dBm 2.48023 GHz Att 30 dB 2.48023 GHz 1 PK 2.48023 GHz MAXH 2.48023 GHz 2.48023 GHz 2.48023 GHz 2.48023 GHz 2.48023 GHz 2.48023 GHz 2.48023 GHz 2.48023 GHz 2.48023 GHz 2.48023 GHz 500 kHz/ 2.48023 GHz Center 2.48 GHz 2.48023 GHz Span 5 MHz 2.48023 GHz * 2.48023 GHz RBW 1 MHz 2.48023 GHzVBW 3 MHz 2.48023 GHz SWT 2.5 ms 2.48023 GHz -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 0 2.48023 GHz 1 Marker 1 [T1 ] -5.85 dB m 2.480230000 GHz MARKER 1 2.48023 GHz Date: 8.JUN.2015 14:25:11 www.tuv.com Test Report No.: 14039790 001 Appendix 1 Page 7 of 14 Power Spectral Density TX frequency: 2402MHz A 2.402058 GHz Ref 0 dBm 2.402058 GHz Att 30 dB 2.402058 GHz 1 PK 2.402058 GHz MAXH 2.402058 GHz 2.402058 GHz 2.402058 GHz 2.402058 GHz 2.402058 GHz 2.402058 GHz 2.402058 GHz 2.402058 GHz 2.402058 GHz 2.402058 GHz 100 kHz/ 2.402058 GHz Center 2.402 GHz 2.402058 GHz Span 1 MHz 2.402058 GHz * 2.402058 GHz RBW 100 kHz 2.402058 GHzVBW 300 kHz 2.402058 GHz SWT 2.5 ms 2.402058 GHz -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 0 2.402058 GHz 1 Marker 1 [T1 ] -6.81 dBm 2.402058000 GHz MARKER 1 2.402058 GHz Date: 8.JUN.2015 14:28:56 TX frequency: 2440MHz A 2.44005 GHz Ref 0 dBm 2.44005 GHz Att 30 dB 2.44005 GHz 1 PK 2.44005 GHz MAXH 2.44005 GHz 2.44005 GHz 2.44005 GHz 2.44005 GHz 2.44005 GHz 2.44005 GHz 2.44005 GHz 2.44005 GHz 2.44005 GHz 2.44005 GHz 100 kHz/ 2.44005 GHz Center 2.44 GHz 2.44005 GHz Span 1 MHz 2.44005 GHz * 2.44005 GHz RBW 100 kHz 2.44005 GHzVBW 300 kHz 2.44005 GHz SWT 2.5 ms 2.44005 GHz -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 0 2.44005 GHz 1 Marker 1 [T1 ] -6.46 dBm 2.440050000 GHz MARKER 1 2.44005 GHz Date: 8.JUN.2015 14:29:19 www.tuv.com Test Report No.: 14039790 001 Appendix 1 Page 8 of 14 TX frequency: 2480MHz A 2.480292 GHz Ref 0 dBm 2.480292 GHz Att 30 dB 2.480292 GHz 1 PK 2.480292 GHz MAXH 2.480292 GHz 2.480292 GHz 2.480292 GHz 2.480292 GHz 2.480292 GHz 2.480292 GHz 2.480292 GHz 2.480292 GHz 2.480292 GHz 2.480292 GHz 100 kHz/ 2.480292 GHz Center 2.48 GHz 2.480292 GHz Span 1 MHz 2.480292 GHz * 2.480292 GHz RBW 100 kHz 2.480292 GHzVBW 300 kHz 2.480292 GHz SWT 2.5 ms 2.480292 GHz -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 0 2.480292 GHz 1 Marker 1 [T1 ] -5.98 dB m 2.480292000 GHz MARKER 1 2.480292 GHz Date: 8.JUN.2015 14:29:38 www.tuv.com Test Report No.: 14039790 001 Appendix 1 Page 9 of 14 Spurious Conducted Emissions TX frequency: 2402MHz Ref 0 dBm 98.902 MHz Att 30 dB 98.902 MHz 98.902 MHz 98.902 MHz 98.902 MHz 98.902 MHz 98.902 MHz 98.902 MHz 98.902 MHz 98.902 MHz 98.902 MHz 1 PK 98.902 MHz MAXH 98.902 MHz A 98.902 MHz 99.9 MHz/ 98.902 MHz Start 1 MHz 98.902 MHz Stop 1 GHz 98.902 MHz * 98.902 MHz RBW 100 kHz 98.902 MHzVBW 3…

Text truncated - open the document above for the full version.

www.tuv.com Test Report No.: 14039790 001 Appendix 6 Page 2 of 2 Maximum transmitter power: Frequency (MHz) Maximum peak output power (dBm) Output power(mW) 2402 -5.52 0.28 2440 -5.13 0.31 2480 -4.65 0.34 According to KDB 447498 D01: The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤3.0 for 1-g SAR and ≤7.5 for 10-g extremity SAR,24 where • f(GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation 25 • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below Result: (0.28/5)*√2.402 = 0.087 <3.0 (0.31/5)*√2.440 = 0.096 <3.0 (0.34/5)*√2.480 = 0.108 <3.0 Conclusion: No SAR is required.

www.tuv.com Test Report No.: 14039790 001 Appendix 2 Page 1 of 3 Appendix 2 Test Setup Photos www.tuv.com Test Report No.: 14039790 001 Appendix 2 Page 2 of 3 Set-up for Radiated Emission Set-up for Radiated Emission www.tuv.com Test Report No.: 14039790 001 Appendix 2 Page 3 of 3 Set-up for Radiated Emission Set-up for AC Mains Conducted Emission
