2AEOS-S360Bluetooth Speaker

BT Portable Speaker USER GUIDE For correctly operating, please read this manual carefully before using. Any content revise of the manual won’t declare again, and we are not responsible for consequence caused by fault or oversight of this manual. FEATURES: 1. 4.1CH New Portable Bluetooth Speaker, delivers clear sound with powerful bass 2. TWS function, Pair two speakers together wirelessly to experience True Stereo Sound 3. With A2DP Bluetooth, wireless stream music from any Bluetooth-enabled device such as your mobile phone, notebook, iPhone or iPad 4. Secure simple pairing for user-friendly operating 5. 10 meters operating range 6. With USB supporting; 7. With FM radio 8. With Line-in function, suitable for PC, MID, TV and other audio devices; 9. Built-in lithium rechargeable battery 7.4V, 4400mAh 10. With strong handle, easy to take out. Accessories: Charging cable, Audio cable, User Manual INSTRUNCTION FOR APPEARANCE AND KEY: 1. Backward/Volume down 2. Forward/Volume up 3. Play/Pause 4. Power On/Off 5. TWS button 6. Mode (Switch Bluetooth, USB disk, FM and AUX-IN state) 7. Light control 8. AUX In 9. USB Port 10. Wired Mic Port 11. Charging jack Bluetooth: 1.Turn the power button to “ON”, The LED light turn blue and twinkle quickly, then enter Bluetooth mode. 2.Activate Bluetooth of mobile phone and search for device name then connect it. The blue LED light will keep lighting and make a tone once connected. 3. Play the music from your mobile phone and enjoy. 4. Press Forward or Backward button on the device or on Mobile phones to select songs you like. 5. Press Play/Pause button on the device or on Mobile phones to play/pause the music. 6. Long press Forward or Backward button to adjust volume up and down. Or adjust the mobile phones’ volume. Playing music from USB disk: 1. Turn the Power button to “ON”. 2. Insert a USB flash disk into slot, the speaker will make a tone , and play the stored music automatically. 3. Under playing mode, short press Forward or Backward button to select songs you like, long press to adjust the volume up and down. 4. Press Play/Pause to play or pause. Remark: Under Bluetooth playing mode, insert USB flash disk will disconnect the Bluetooth and switch to play the USB. You can press the MODE button to switch to Bluetooth mode again. FM Radio: 1. Under FM radio mode, the audio cable provided treat as antenna. Please Insert the audio cable to get best FM signal before using. 2. Turn the power button to “ON”, press the “MODE” button to FM mode. 3. Under FM mode, short press “Play/Pause” button to auto search the FM Channel and store it automatically. 4. Short press Forward or Backward button to change the stored FM channel, long press to adjust the volume. TWS Function: 1. Turn on two identical speakers you want to pair, please noted they must be the same BT paring name, both under BT mode. Only need to set up one of the two units; 2. Press TWS button, speaker will make a tone to start pairing, and make a tone again once successfully paired; 3. Make Bluetooth connection with your mobile phone to play music by the two paired Speakers to create more powerful surround sound effect. 4. When you want to exit the TWS mode, press TWS button again to exit the TWS function. Note: 1.Users need to make TWS connection first, then make Bluetooth connection with the mobile phone. 2.Under TWS mode and Bluetooth connected, when user long press the TWS button, both the TWS connection and Bluetooth connection will be disconnected. AUX-IN: For other compatible music devices or your MP3/MP4 players, use the supplied audio line cable to connect from the device’s “Line Out” to the “Aux In” of this device to Enjoy playing music . Under any playing mode ,When you use the audio cable to connect the device, it will auto switch to the AUX mode . Under AUX mode, all functions can be controlled by external device. Remarks: 1. When Bluetooth connection with your mobile phone, there will be a battery icon indicating the speaker battery volume on your phone. 2. Press the MODE button to switch the different modes, the order is Bluetooth, USB disk, FM radio and AUX-IN. 3. When the speaker Bluetooth connected with one mobile device, user can long-press the TWS button to disconnect the previous device, then make Bluetooth connection with another mobile device; 4. Default volume is at 50% status of max volume; 5. Under Bluetooth connection status, user can long press Play/Pause button to activate voice assistant SIRI/GOOGLE ASSISTANT; 6. The unit will turn off if no use for 10 minutes. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, inc…

Text truncated - open the document above for the full version.

BRITELITE ENTERPRISES Sep.09, 2020 Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Subject: Explanation of differences between product types FCC ID : 2AEOS-S360 Model Number: S360, S720, Boom Blaster XXL, S100, S200, S300, iRS22 To Whom It May Concern: We, The BRITELITE ENTERPRISES hereby declare that the model : S720, Boom Blaster XXL, S100, S200, S300, iRS22 is identical with the model : S360, except the model name. Except for the different above, no other modification is performed. Sincerely, Signature: BRITELITE ENTERPRISES Contact person: ARASH SHAMOEIL

BRITELITE ENTERPRISES Agent Authorization Company: BRITELITE ENTERPRISES Address:11901 SANTA MONICA BLVD 3413, LOS ANGELES, California, United States, 90025 Product Name: Bluetooth Speaker Model Number(s): S360, S720, Boom Blaster XXL, S100, S200, S300, iRS22 Product Description: Bluetooth Speaker We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2020-09-09 Name: ARASH SHAMOEIL Company: BRITELITE ENTERPRISES

BRITELITE ENTERPRISES Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2020-09-03 Subject; Request for Confidentiality FCC ID: 2AEOS-S360 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely BRITELITE ENTERPRISES Contact person: ARASH SHAMOEIL

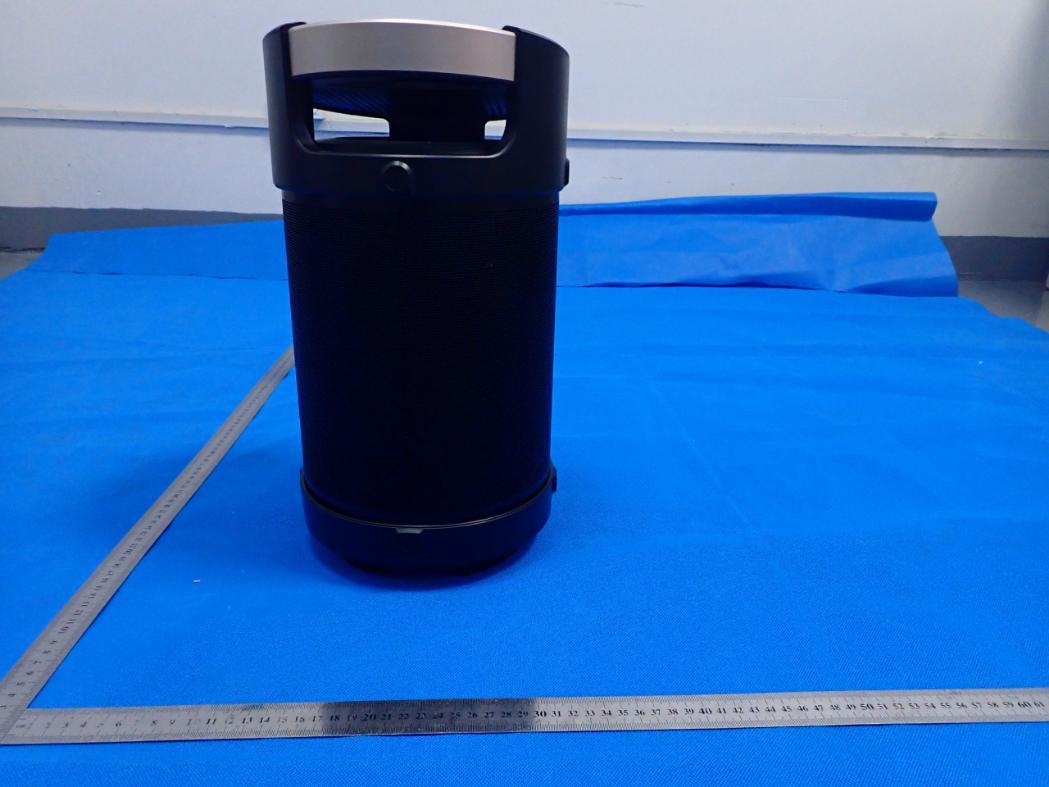

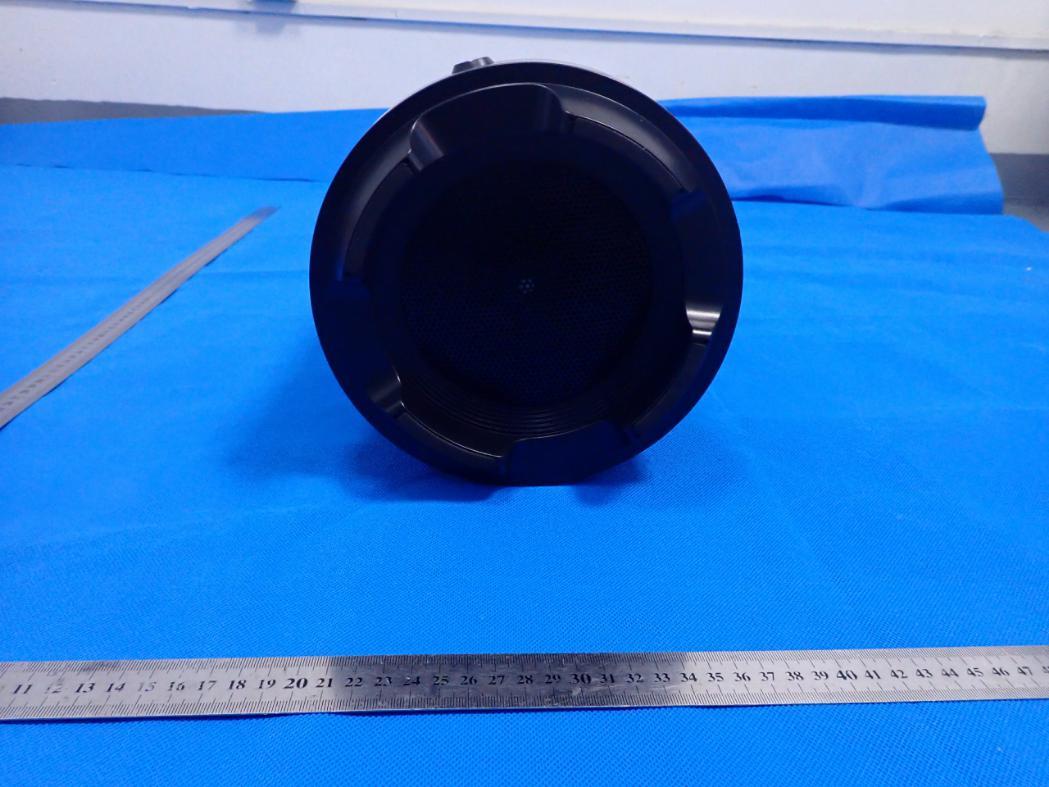

External Photos WHOLE VIEW OF EUT TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT VIEW OF EUT(PORT)

FCC ID Label Location FCC ID: 2AEOS-S360

Internal Photos OPEN VIEW OF EUT VIEW OF BATTERY INTERNAL VIEW OF EUT-1 NTERNAL VIEW OF EUT-2 BT Antenna FM Antenna INTERNAL VIEW OF EUT-3

RF EXPOSURE EVALUATION 1. PRODUCT INFORMATION Product Description Bluetooth Speaker Model Name S360, S720, Boom Blaster XXL, S100, S200, S300, iRS22 FCC ID 2AEOS-S360 2. EVALUATION METHOD According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. Where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation 3. CALCULATION BR/EDR: P t =2.379dBm=1.73mW The value of the Maximum output power P t is referred to the test report of the CFR47 §15.247. The result for RF exposure evaluation SAR=(1.73mW /5mm) .[√2.480GHz)]=0.54<3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. 4. CONCLUSION The SAR evaluation is not required.

Report No.: AGC05705200802FE03 Page 50 of 71 EUT Bluetooth Speaker Model Name S360 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 7 Antenna Vertical PK AV RESULT: PASS Report No.: AGC05705200802FE03 Page 51 of 71 EUT Bluetooth Speaker Model Name S360 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 9 Antenna Horizontal PK AV RESULT: PASS Report No.: AGC05705200802FE03 Page 52 of 71 EUT Bluetooth Speaker Model Name S360 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 9 Antenna Vertical PK AV RESULT: PASS Note: The factor had been edited in the “Input Correction” of the Spectrum Analyzer. The 8DPSK modulation is the worst case and recorded in the report. Report No.: AGC05705200802FE03 Page 53 of 71 11. NUMBER OF HOPPING FREQUENCY 11.1. MEASUREMENT PROCEDURE The EUT shall have its hopping function enabled. Use the following spectrum analyzer settings: 1. Span: The frequency band of operation. Depending on the number of channels the device supports, it may be necessary to divide the frequency range of operation across multiple spans, to allow the individual channels to be clearly seen. 2. RBW: To identify clearly the individual channels, set the RBW to less than 30% of the channel spacing or the 20 dB bandwidth, whichever is smaller. 3. VBW ≥ RBW. Sweep: Auto. Detector function: Peak. Trace: Max hold. 4. Allow the trace to stabilize. 11.2. TEST SETUP (BLOCK DIAGRAM OF CONFIGURATION) Same as described in section 8.2 11.3. MEASUREMENT EQUIPMENT USED The same as described in section 6 11.4. LIMITS AND MEASUREMENT RESULT TOTAL NO. OF HOPPING CHANNEL LIMIT (NO. OF CH) MEASUREMENT (NO. OF CH) RESULT >=15 79 PASS TEST PLOT FOR NO. OF TOTAL CHANNELS Note: The GFSK modulation is the worst case and recorded in the report. Report No.: AGC05705200802FE03 Page 54 of 71 12. TIME OF OCCUPANCY (DWELL TIME) 12.1. MEASUREMENT PROCEDURE The EUT shall have its hopping function enabled. Use the following spectrum analyzer settings: 1. Span: Zero span, centered on a hopping channel. 2. RBW shall be≤channel spacing and where possible RBW should be set >> 1 / T, where T is the expected dwell time per channel. 3. Sweep: As necessary to capture the entire dwell time per hopping channel; where possible use a video trigger and trigger delay so that the transmitted signal starts a little to the right of the start of the plot. The trigger level might need slight adjustment to prevent triggering when the system hops on an adjacent channel; a second plot might be needed with a longer sweep time to show two successive hops on a channel. 4. Detector function: Peak. Trace: Max hold. 5. Use the marker-delta function to determine the transmit time per hop. 6. Repeat the measurement using a longer sweep time to determine the number of hops over the period specified in the requirements. The sweep time shall be equal to, or less than, the period specified in the requirements. Determine the number of hops over the sweep time and calculate the total number of hops in the period specified in the requirements, using the following equation: (Number of hops in the period specified in the requirements) = (number of hops on spectrum analyzer) × (period specified in the requirements / analyzer sweep time) 7. The average time of occupancy is calculated from the transmit time per hop multiplied by the number of hops in the period specified in the requirements. 12.2. TEST SETUP (BLOCK DIAGRAM OF CONFIGURATION) Same as described in section 8.2 12.3. MEASUREMENT EQUIPMENT USED The same as described in section 6 12.4. LIMITS AND MEASUREMENT RESULT Channel Time of Pulse for DH5 (ms) Number of hops in the period specified in the requirements Sweep Time (ms) Limit (ms) Low 2.894 28*4 324.128 400 Middle 2.894 29*4 335.698 400 High 2.894 33*4 382.008 400 Note: The 8DPSKmodulation is the worst case and recorded in the report. Report No.: AGC05705200802FE03 Page 55 of 71 TEST PLOT OF LOW CHANNEL Report No.: AGC05705200802FE03 Page 56 of 71 TEST PLOT OF MIDDLE CHANNEL Report No.: AGC05705200802FE03 Page 57 of 71 TEST PLOT OF HIGH CHANNEL Report No.: AGC05705200802FE03 Page 58 of 71 13. FREQUENCY SEPARATION 13.1. MEASUREMENT PROCEDURE The EUT shall have its hopping function enabled. Use the following spectrum analyzer settings: 1. Span: Wide enough to capture the peaks of two adjacent channels. 2. RBW: Start with the RBW set to approximately 30% of the channel spacing; adjust as necessary to best identify the center of each individual channel. 3. Video (or average) bandwidth (VBW) ≥ RBW. 4. Sweep: Auto. e) Detector function: Peak. f) Trace: Max hold. g) Allow the trace to stabilize. Use the marker-delta function to determine the separation between the peaks of the adjacent channels. 13.2. TEST SETUP (BLOCK DIAGRAM OF CONFIGURATION) Same as described in section 6.2 13.3. MEASUREMENT EQUIPMENT USED The same as described in section 6.3 13.4. LIMITS AND MEASUREMENT RESULT CHANNEL CHANNEL SEPARATION LIMIT RESULT MHz Pass CH01-CH02 1.001 >= 2/3 20 dB BW TEST PLOT FOR FREQUENCY SEPARATION Note: The GFSK modulation is the worst case and recorded in the report. Report No.: AGC05705200802FE03 Page 59 of 71 14. FCC LINE CONDUCTED EMISSION TEST 14.1. LIMITS OF LINE CONDUCTED EMISSION TEST Frequency Maximum RF Line Voltage Q.P. (dBμV) Average (dBμV) 150kHz~500kHz 66-56 56-46 500kHz~5MHz 56 46 5MHz~30MHz 60 50 Note: 1. The lower limit shall apply at the transition frequency. 2. The limit decreases linearly with the logarithm of the frequency in the range 0.15 MHz to 0.50 MHz. 14.2. BLOCK DIAGRAM OF LINE CONDUCTED EMISSION TEST EUT & Support Units Report No.: AGC05705200802FE03 Page 60 of 71 14.3. PRELIMINARY PROCEDURE OF LINE CONDUCTED EMISSION TEST 1. The equipment was set up as per the test configuration to simulate typical actual usage per the user’s manual. When the EUT is a tabletop system, a wooden table with…
