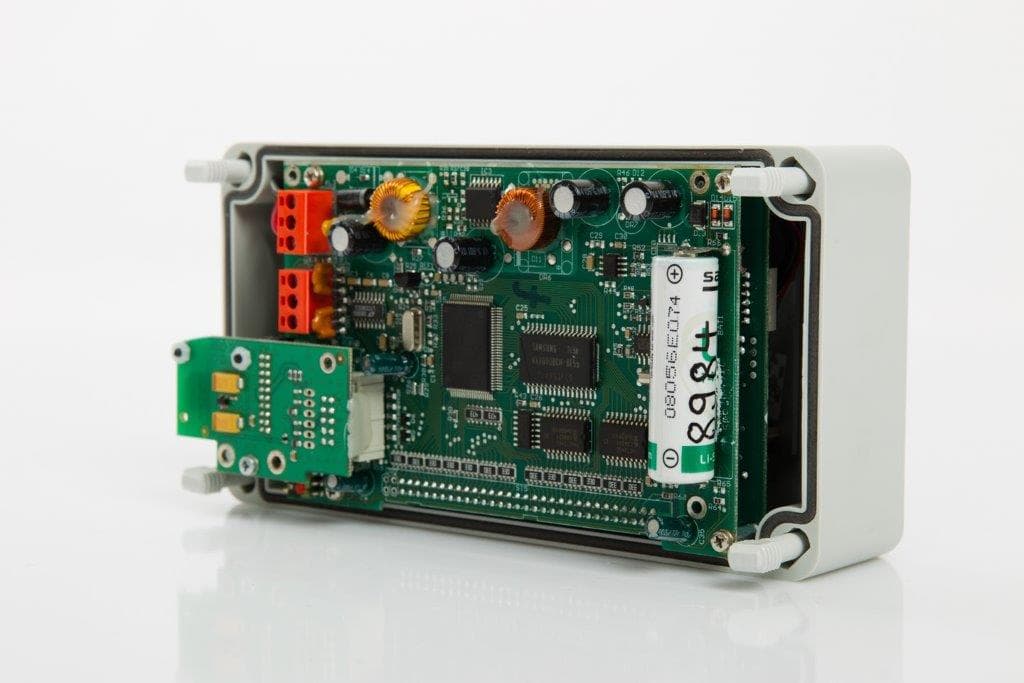

2AEOTSDRBSDR radar traffic classifier

User Manual for SDRtraffic / SDRtraffic + DataCollector Edition 8.2_1502 SDRtraffic / SDRtraffic + DataCollector _User Manual_Edition 8.2_1502_GB Copyright by DataCollect Traffic Systems GmbH ♦ www.DataCollect.com ♦ Technische Änderungen jederzeit vorbehalten DataCollect reserves the right to change any information contained within this technical note at its own discretion Table of Contents 1 CORRECT USE 1 2 SAFETY REGULATIONS 1 3 QUICK-START GUIDE 2 4 SCOPE OF SUPPLIED COMPONENTS 3 4.1 SDR MOBIL 3 4.2 SDR MAIN 3 4.3 SDR SOLAR 3 4.4 ACCESSORIES 4 4.4.1 DATACOLLECTOR 4 4.4.2 CARD READER 4 4.4.3 SMARTPHONE 4 4.4.4 TRIPOD 5 4.4.5 LASER45 5 5 OPTION VARIANTS 5 5.1 SDRTRAFFIC 6 5.1.1 APPS FOR SDRTRAFFIC 7 5.2 SDRTRAFFIC+ 8 5.2.1 APPS FOR SDRTRAFFIC+ 9 6 ASSEMBLY 10 6.1 ASSEMBLY OF THE SMARTBRACKET 10 6.2 ASSEMBLY OF THE SDRTRAFFIC / SDRTRAFFIC+ 10 6.3 BRIDGEMOUNTING 10 7 PLACE OF INSTALLATION 11 7.1 ROAD SIDE 11 7.2 SPECIAL INSTALLATION - BRIDGEMOUNTING 17 8 COMMISSIONING 18 8.1 POWER SUPPLY VIA AKKUPACK 18 8.2 POWER SUPPLY VIA POWERUNIT 18 8.3 POWER SUPPLY VIA SOLARSYSTEM + CASE 1450 SOLAR 19 8.4 PROTECTION AGAINST THEFT 19 8.5 BOOTUP OF THE SDRTRAFFIC / SDRTRAFFIC+ 20 9 ACTIVATION OF THE SDR VIA WWW.MYTRAFFICDATA.COM 21 9.1 ACTIVATION VIA DATACOLLECTOR 21 9.1.1 GENERATION OF THE ACTIVATION FILE 21 SDRtraffic / SDRtraffic + _User Manual_Edition 7.4_1410_GB Copyright by DataCollect Traffic Systems GmbH ♦ www.DataCollect.com ♦ Technische Änderungen jederzeit vorbehalten DataCollect reserves the right to change any information contained within this technical note at its own discretion 9.1.2 UPLOAD OF THE ACTIVATION FILE 24 10 PARAMETER SETTINGS 27 10.1 BASIC SETTINGS PANEL 28 10.2 PANEL APPS 29 10.3 PANEL CONFIGURATION 30 10.4 PANEL CONFIGURATION – BRIDGEMOUNTING 31 10.5 PSL 31 10.6 SITE NAME 31 11 DOWNLOAD AND TRANSMIT OF THE SETUP FILE 32 11.1 VIA DATACOLLECTOR 32 12 READ-OUT OF DATA FROM THE SDR 35 12.1 VIA DATACOLLECTOR 35 13 EVALUATION VIA WEBREPORT 37 13.1 TRANSFER OF THE MEASURED DATA 37 13.1.1 VIA DATACOLLECTOR 37 13.2 EVALUATION SETTINGS 39 13.3 DEFINITION V15, V50 UND V85 41 13.4 SITE 42 13.5 AUTHOR 43 13.6 SAMPLE EVALUATION SDRTRAFFIC / SDRTRAFFIC + 43 14 ACCOUNT MANAGEMENT ON MYTRAFFICDATA 49 14.1 PROFILE 49 14.2 CONFIGURATION 49 14.3 BINS 50 14.4 CHANGE PASSWORD 52 15 FLASH UPGRADE FUNCTION 53 16 TECHNICAL DATA DATACOLLECTOR 56 17 TECHNICAL DATA OF THE SDR 57 18 SYSTEM REQUIREMENTS FOR WWW.MYTRAFFICDATA.COM 58 19 FREQUENTLY ASKED QUESTIONS (FAQ) 59 3. QUESTION: MY DATA IS NOT SAVED ON THE SD CARD! 60 20 DISPOSAL 61 21 PROTECTIVE RIGHTS 61 22 CERTIFICATIONS 62 22.1 FCC AND IC 62 SDRtraffic / SDRtraffic + User Manual Edition 8.2_1502 SDRtraffic / SDRtraffic + DataCollector _User Manual_Edition 8.2_1502_GB Copyright by DataCollect Traffic Systems GmbH ♦ www.DataCollect.com ♦ Technische Änderungen jederzeit vorbehalten DataCollect reserves the right to change any information contained within this technical note at its own discretion 1 1 Correct Use The counting system SDRtraffic / SDRtraffic + is solely intended for the collection of data in road traffic. The Safety and operating instructions in this manual must be strictly observed. Therefore please read the entire operating instructions before using the product. This product fulfils the legal, national and European requirements. All company names and product designations are trademarks of the respective holder. All rights reserved. 2 Safety Regulations · In case of damage resulting from the non-observance of these operating instructions, the warranty/guarantee shall become null and void! We shall not assume liability for consequential damage! · We shall not assume liability for material or personal damage caused by improper handling or non-observance of the Safety instructions. In such cases the warranty/guarantee shall become null and void. · Unauthorised opening, conversion and/or modification of the product is not allowed for safety and approval reasons (CE). · Operating this product in environments with an explosive atmosphere (zone 0, zone 1, and zone 2 as well as zone 20, zone 21, and zone 22) as specified in the EU directives ATEX equipment and ATEX workplace (94/9/EC and 1999/92/EC) is strictly prohibited by the manufacturer! · Please handle the product with care; shocks, impact or falling, even from a low height, may cause damage. · Do not operate the product if the housing is damaged! · Only use original spare parts from the manufacturer for operation of the instrument. · In all other cases please contact: [email protected]
SDRtraffic / SDRtraffic + User Manual Edition 8.2_1502 SDRtraffic / SDRtraffic + DataCollector _User Manual_Edition 8.2_1502_GB Copyright by DataCollect Traffic Systems GmbH ♦ www.DataCollect.com ♦ Technische Änderungen jederzeit vorbehalten DataCollect reserves the right to change any information contained within this technical note at its own discretion 2 3 Quick-Start Guide Step Explanation Chapter Page Execution only once Check your shipment to make sure it is complete 4 3 Register at www.myTrafficData.com Afterwards you will receive a password from DataCollect. - - Set the DataCollector clock (if applicable) – see DataCollector manual - - Activate your SDR via DataCollector / Smartphone at www.myTrafficData.com 9.1 22-27 1 Create a setup file at www.myTrafficData.com 10 28-32 2 Mounting of the pole mount and the SDR carrying case 6 11 3 Connecting your SDR to the power supply 8 19-20 4 Processing of the Intro 8.5 21 5 Parameter settings of the SDR via DataCollector / Smartphone 11 33-36 After completing the settings your SDR is now ready for operation! 6 Readout of data via DataCollector / Smartphone 12 37-40 7 Uploading of data for creating report to www.myTrafficData.com 13 41-42 SDRtraffic / SDRtraffic + User Manual Edition 8.2_1502 SDRtraffic / SDRtraffic + DataCollector _User Manual_Edition 8.2_1502_GB Copyright by DataCollect Traffic Systems GmbH ♦ www.DataCollect.com ♦ Technische Ände…

Text truncated - open the document above for the full version.

FCC ID: 2AE0TSDRB IC: 20402-SDRB SDR_BT

FCC ID: 2AEOTSDRB IC: 20402-SDRB HVIN: SDR_BT PMN: SDR Techologies: Technologies: Max. Power: (AVG) Max. Gain: Min. Pathloss: BT 2G4 12 dBm ± 1 dB (cond.) 0.5 dBi -/- K - band 20 dBm (EIRP) -/- -/- Prediction of MPE limit at given distance - FCC Equation from page 18 of OET Bulletin 65, Edition 97-01 S = PG / 4π R 2 where: S = Power density P = Power input to the antenna G = Antenna gain R = Distance to the center of radiation of the antenna The table below is excerpted from Table 1B of 47 CFR 1.1310 titled “Limits for Maximum Permissible Exposure (MPE), Limits for General Population/Uncontrolled Exposure” Frequency Range (MHz) Power Density (mW/cm 2 ) Averaging Time (minutes) 300 -1500 f/1500 30 1500 - 100000 1.0 30 where f = Frequency (MHz) Prediction: worst case < 1500 MHz > 1500 MHz > 1500 MHz -/- BT K - band P Max power input to the antenna -/- 13 dBm 20 dBm (EIRP) R Distance -/- 20 cm 20 cm G Antenna gain -/- 0.5 dBi -/- dBi S MPE limit for uncontrolled exposure -/- 1 mW/cm 2 1 mW/cm 2 Calculated power density: -/- 0.00 mW/cm² 0.02 mW/cm² Colocation BT + K - band -/- 0.45 % 2 % -/- 2.45 % This prediction demonstrates the following: The power density levels for FCC at a distance of 20 cm are below the maximum levels allowed by regulations. Prediction of MPE limit at given distance - IC RSS-102, Issue 5, 2.5.2 RF exposure evaluation is required if the separation distance between the user and/or bystander and the device’s radiating element is greater than 20 cm, except when the device operates as follows: • below 20 MHz and the source-based, time-averaged maximum e.i.r.p. of the device is equal to or less than 1 W (adjusted for tune-up tolerance); • at or above 20 MHz and below 48 MHz and the source-based, time-averaged maximum e.i.r.p. of the device is equal to or less than 4.49/ƒ 0.5 W (adjusted for tune-up tolerance), where ƒ is in MHz; • at or above 48 MHz and below 300 MHz and the source-based, time-averaged maximum e.i.r.p. of the device is equal to or less than 0.6 W (adjusted for tune-up tolerance); • at or above 300 MHz and below 6 GHz and the source-based, time-averaged maximum e.i.r.p. of the device is equal to or less than 1.31 x 10 -2 ƒ 0.6834 W (adjusted for tune-up tolerance), where ƒ is in MHz; • at or above 6 GHz and the source-based, time-averaged maximum e.i.r.p. of the device is equal to or less than 5 W (adjusted for tune-up tolerance). Prediction: worst case BT K - band -/- -/- P Max power input to the antenna 13 dBm 20 dBm -/- -/- G Antenna gain 0.5 dBi -/- dBi -/- -/- S MPE limit for uncontrolled exposure 2676 mW 100 mW -/- -/- Calculated output power: 22.4 mW 19.1 mW -/- -/- Colocation BT + K - band 0.84 % 19.2 % -/- -/- 20.0 % -/- -/- Conclusion: for applications where minimum distance to radiating element is 20cm Annex C of RSS-102 should be filled out. Meheza Walla Cetecom ICT Services GmbH p.o.

Total number of pages : 110 TRaC Wireless Test Report : 9F2925WUS1 Applicant : Bluegiga Apparatus : WT11i Bluetooth Module Specification(s) : CFR47 Part 15.247 July 2008 FCCID : QOQWT11IA Purpose of Test : Certification Authorised by : : Radio Product Manager Issue Date :11 th March 2011 Authorised Copy Number : PDF Radio Test Report: 9F2925WUS1 Contents Section 1: Introduction 3 1.1 General 3 1.2 Tests Requested By 4 1.3 Manufacturer 4 1.4 Apparatus Assessed 4 1.5 Test Result Summary 5 1.6 Notes Relating To The Assessment 6 1.7 Deviations from Test Standards 6 Section 2: Measurement Uncertainty 7 2.1 Application of Measurement Uncertainty 7 2.2 Measurement Uncertainty Values 8 Section 3: Modifications 9 3.1 Modifications Performed During Assessment 9 Appendix A: Formal Emission Test Results 10 A1 Transmitter Peak Output Power 11 A2 RF Antenna Conducted Spurious Emissions 12 A3 Radiated Electric Field Emissions Within The Restricted Bands of 15.205 14 A4 20 dB Bandwidth 23 A5 Carrier Frequency Separation 24 A6 Hopping frequencies 25 A7 Channel Occupancy 26 A8 Antenna Gain 27 A9 Unintentional Radiated Electric Field Emissions - 15.109 28 A10 Power Line Conducted Emissions 29 Appendix B: Supporting Graphical Data 34 Appendix C: Additional Test and Sample Details 96 Appendix D: Additional Information 103 Appendix E: Calculation of the duty cycle correction factor 104 Appendix F: Photographs and Figures 105 2 Radio Test Report: 9F2925WUS1 Section 1: Introduction 1.1 General This report contains an assessment of an apparatus against Electromagnetic Compatibility Standards based upon tests carried out on samples submitted to the Laboratory. Test performed by: TRaC Telecoms & Radio [ X ] Unit E South Orbital Trading Park Hedon Road Hull, HU9 1NJ. United Kingdom. Telephone: +44 (0) 1482 801801 Fax: +44 (0) 1482 801806 TRaC Telecoms & Radio [ ] Moss View Nipe Lane Up Holland West Lancashire, WN8 9PY United Kingdom Telephone: +44 (0) 1695 556666 Fax: +44 (0) 1695 577077 Email: [email protected] Web site: http://www.tracglobal.com Tests performed by: Geoff Cruickshank Report author: Geoff Cruickshank This report must not be reproduced except in full without prior written permission from TRaC Telecoms & Radio. 3 Radio Test Report: 9F2925WUS1 1.2 Tests Requested By This testing in this report was requested by : Bluegiga Sinikalliontie 5A Espoo FIN-02630 Finland 1.3 Manufacturer as above 1.4 Apparatus Assessed The following apparatus was assessed between WT11i Bluetooth Module The above equipment was a FHSS transmitter operating in the 2400 MHz to 2483.5 MHz band and is a Bluetooth module, designed for use internal to a laptop and used to enable Bluetooth wireless communication within personal computers and laptops. 4 Radio Test Report: 9F2925WUS1 1.5 Test Result Summary Full details of test results are contained within Appendix A. The following table summarises the results of the assessment. The statements relating to compliance with the standards below apply ONLY as qualified in the notes and deviations stated in sections 1.6 to 1.7 of this test report. Full details of test results are contained within Appendix A. The following table summarises the results of the assessment. Test Type Regulation Measurement standard Result Radiated spurious emissions (Restricted bands) Title 47 of the CFR: Part 15 Subpart (c) 15.247 ANSI C63.10 PASS Conducted spurious emissions (Non-restricted bands) Title 47 of the CFR: Part 15 Subpart (c) 15.247 ANSI C63.10 PASS AC Power conducted emissions Title 47 of the CFR: Part 15 Subpart (c) 15.207 ANSI C63.10 PASS 20dB Bandwidth and Channel Spacing Title 47 of the CFR : Part 15 Subpart (c) 15.247(a)(1)(i) ANSI C63.10 PASS Conducted Carrier Power Title 47 of the CFR : Part 15 Subpart (c) 15.247(b)(2) ANSI C63.10 PASS Hopping Frequencies Title 47 of the CFR : Part 15 Subpart (c) 15.247(a)(1) ANSI C63.10 PASS Channel Occupancy Title 47 of the CFR : Part 15 Subpart (c) 15.247(a)(1)(i) ANSI C63.10 PASS Unintentional Radiated Spurious Emissions Title 47 of the CFR: Part 15 Subpart (b) 15.109 ANSI C63.10 PASS Abbreviations used in the above table: Mod : Modification CFR : Code of Federal Regulations ANSI : American National Standards Institution REFE : Radiated Electric Field Emissions PLCE : Power Line Conducted Emissions 5 Radio Test Report: 9F2925WUS1 1.6 Notes Relating To The Assessment With regard to this assessment, the following points should be noted: The results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. The apparatus was set up and exercised using the configurations, modes of operation and arrangements defined in this report only. Particular operating modes, apparatus monitoring methods and performance criteria required by the standards tested to have been performed except where identified in Section 1.7 of this test report (Deviations from Test Standards). For emissions testing, throughout this test report, “Pass” indicates that the results for the sample as tested were below the specified limit (refer also to Section 2, Measurement Uncertainty). Where relevant, the apparatus was only assessed using the monitoring methods and susceptibility criteria defined in this report. All testing with the exception of testing at the Open Area Test Site was performed under the following environmental conditions: Temperature : 17 to 23 °C Humidity : 45 to 75 % Barometric Pressure : 86 to 106 kPa All dates used in this report are in the format dd/mm/yy. This assessment has been performed in accordance with the requirements of ISO/IEC 17025. 1.7 Deviations from Test Standards There were no deviations from the standards tested to. 6 Radio Test Report: 9F2925WUS1 Section 2: Measurement Uncertainty 2.1 Application of Measurement Uncertainty The following table contains the measurement uncertainties for measurements • The measured value related to the correspo…

Text truncated - open the document above for the full version.

TEST REPORT Test report no.: 1-9859/15-01-02 Testing laboratory Applicant CETECOM ICT Services GmbH Untertuerkheimer Strasse 6 – 10 66117 Saarbruecken / Germany Phone: + 49 681 5 98 - 0 Fax: + 49 681 5 98 - 9075 Internet: http://www.cetecom.com e-mail: [email protected] Accredited Testing Laboratory: The testing laboratory (area of testing) is accredited according to DIN EN ISO/IEC 17025 (2005) by the Deutsche Akkreditierungsstelle GmbH (DAkkS) The accreditation is valid for the scope of testing procedures as stated in the accreditation certificate with the registration number: D-PL-12076-01-00 DataCollect Traffic Systems GmbH & Co. KG Heinrich-Hertz-Str. 1 50170 Kerpen / GERMANY Phone: +49 (0) 22 73 59 56 0 Fax: +49 (0) 22 73 59 56 23 Contact: Sarah Wittig e-mail: [email protected] Phone: +49 (0) 22 73 59 56 0 Manufacturer DataCollect Traffic Systems GmbH & Co. KG Heinrich-Hertz-Str. 1 50170 Kerpen / GERMANY Test standard/s 47 CFR Part 15 Title 47 of the Code of Federal Regulations; Chapter I; Part 15 - Radio frequency devices RSS - 247 Issue 1 American national standard of procedures for compliance testing of unlicensed wireless devices For further applied test standards please refer to section 3 of this test report. Test Item Kind of test item: SDR radar traffic classifier Model name: e-guard FCC ID: 2AEOTSDRB IC: 20402-SDRB Frequency: DTS band 2400 MHz to 2483.5 MHz Technology tested: Bluetooth®, +EDR Antenna: Integrated antenna Power supply: 12.5 V DC by battery Temperature range: -20°C to +55°C This test report is electronically signed and valid without handwriting signature. For verification of the electronic signatures, the public keys can be requested at the testing laboratory. Test report authorised: Test performed: p.o. p.o. Christophe Schneider Tobias Wittenmeier Testing Manager Testing Manager Radio Communications & EMC Radio Communications & EMC Test report no.: 1-9859/15-01-02 Page 2 of 40 1 Table of contents 1 Table of contents ............................................................................................................................................ 2 2 General information ....................................................................................................................................... 3 2.1 Notes and disclaimer .......................................................................................................................... 3 2.2 Application details ............................................................................................................................... 3 3 Test standard/s ............................................................................................................................................... 3 3.1 Measurement guidance ....................................................................................................................... 3 4 Test environment ............................................................................................................................................ 4 5 Test item .......................................................................................................................................................... 4 5.1 Additional information ........................................................................................................................ 4 6 Test laboratories sub-contracted ................................................................................................................. 4 7 Description of the test setup ......................................................................................................................... 5 7.1 Shielded semi anechoic chamber ...................................................................................................... 6 7.2 Shielded fully anechoic chamber ...................................................................................................... 7 7.3 Radiated measurements > 12.75 GHz................................................................................................ 8 8 Measurement uncertainty .............................................................................................................................. 9 9 Sequence of testing ..................................................................................................................................... 10 9.1 Sequence of testing 9 kHz to 30 MHz .............................................................................................. 10 9.2 Sequence of testing 30 MHz to 1 GHz ............................................................................................. 11 9.3 Sequence of testing 1 GHz to 12.75 GHz ........................................................................................ 12 9.4 Sequence of testing above 12.75 GHz ............................................................................................. 13 10 Summary of measurement results .......................................................................................................... 14 11 Additional comments ............................................................................................................................... 15 12 Measurement results ................................................................................................................................ 16 12.1 Antenna gain .................................................................................................................................. 16 12.2 Band edge compliance radiated ................................................................................................... 17 12.3 Spurious emissions radiated below 30 MHz ............................................................................... 21 12.4 Spurious emissions radiated 30 MHz to 1 GHz ........................................................................... 24 12.5 Spurious emissions radiated abo…

Text truncated - open the document above for the full version.

Test report no.: 1-9859/15-01-01_AnnexA Page 1 of 5 Annex A This test report annex is electronically signed and valid without handwriting signature. For verification of the electronic signatures, the public keys can be requested at the testing laboratory. Test report annex authorised: Christoph Schneider Testing Manager Radio Communications & EMC Test report no.: 1-9859/15-01-01_AnnexA Page 2 of 5 External ph ot os o f t he EU T Photo 1: Photo 2: Test report no.: 1-9859/15-01-01_AnnexA Page 3 of 5 Photo 3: Photo 4: Test report no.: 1-9859/15-01-01_AnnexA Page 4 of 5 Photo 5: Photo 6: Test report no.: 1-9859/15-01-01_AnnexA Page 5 of 5 Docu men t his to r y Version Applied changes Date of release Initial release 2015-07-31

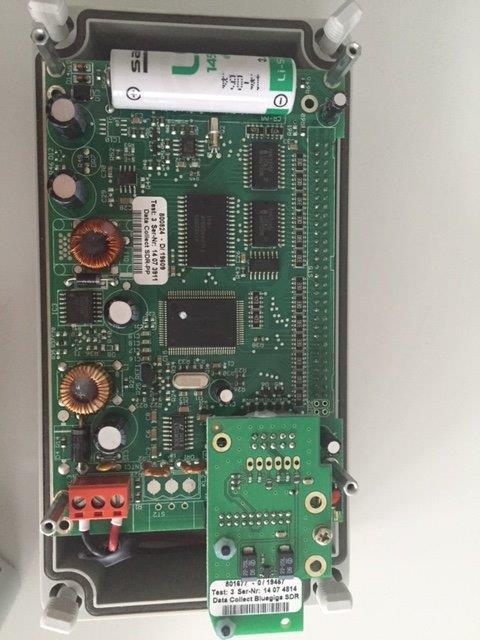

Test report no.: 1-9859/15-01-01_AnnexB Page 1 of 10 Annex B This test report annex is electronically signed and valid without handwriting signature. For verification of the electronic signatures, the public keys can be requested at the testing laboratory. Test report annex authorised: Christoph Schneider Testing Manager Radio Communications & EMC Test report no.: 1-9859/15-01-01_AnnexB Page 2 of 10 Inter nal p ho tos of the E UT Photo 1: Photo 2: Test report no.: 1-9859/15-01-01_AnnexB Page 3 of 10 Photo 3: Photo 4: Test report no.: 1-9859/15-01-01_AnnexB Page 4 of 10 Photo 5: Photo 6: Test report no.: 1-9859/15-01-01_AnnexB Page 5 of 10 Photo 7: Photo 8: Test report no.: 1-9859/15-01-01_AnnexB Page 6 of 10 Photo 9: Photo 10: Test report no.: 1-9859/15-01-01_AnnexB Page 7 of 10 Photo 11: Photo 12: Test report no.: 1-9859/15-01-01_AnnexB Page 8 of 10 Photo 13: Photo 14: Test report no.: 1-9859/15-01-01_AnnexB Page 9 of 10 Photo 15: Test report no.: 1-9859/15-01-01_AnnexB Page 10 of 10 Docu men t his to r y Version Applied changes Date of release Initial release 2015-07-31

Test report no.: 1-9859/15-01-01_AnnexD Page 1 of 5 Annex D This test report annex is electronically signed and valid without handwriting signature. For verification of the electronic signatures, the public keys can be requested at the testing laboratory. Test report annex authorised: Christoph Schneider Testing Manager Radio Communications & EMC Test report no.: 1-9859/15-01-01_AnnexD Page 2 of 5 EUT Test se tu p p h otos Photo 1: Photo 2: Test report no.: 1-9859/15-01-01_AnnexD Page 3 of 5 Photo 3: Photo 4: Test report no.: 1-9859/15-01-01_AnnexD Page 4 of 5 Photo 5: Photo 6: Test report no.: 1-9859/15-01-01_AnnexD Page 5 of 5 Docu men t his to r y Version Applied changes Date of release Initial release 2015-07-31
