Product: Model: ConnectScale 3 USER MANUAL Welcome to ConnectScale, we are excited that you want to be part of the revolutionary new way to log your catches. Below are the instructions to help you connect and use your new ConnectScale 3 Bluetooth Digital Fish Scale and ConnectScale Mobile App available on Apple iPhone or an Android Mobile devices. SET UP 1.Remove the protective outer casing and battery cover on the underside of the scale and insert the 2 new AAA batteries (Batteries not included). Make sure that the batteries are correctly inserted and replace the cover. 2.APP Download - Go to new.connectscale.com for links to the latest version of iOS and Android apps. BLUETOOTH 1.To pair the scale to your mobile device you must use the ConnectScale Fishing App and not your mobile phones bluetooth device settings page. 2.Sign in or create a new user account if you haven’t already and go to the more/ settings page in the app. 3.Under the Bluetooth section t ap to select and then scan for your ConnectScale unit. 4.Power on the Scale. 5. SCALE ON|OFF Button - Tap this button to turn the ConnectScale 3 power on and off. UNIT Button - Tap this button to cycle through the units of measure on the scale. TARE Button - Tap this button to tare the weight and zero it out after each weight. Press and hold the Tare button for 5 seconds to turn auto hold function on and off. Mobile App Bluetooth Set Up and Operation: 1.Go to your settings on iPhone or Android Mobile device and scroll down to Bluetooth tab. Make sure you have turned your Bluetooth is turned on, then back out of settings. 2.Go into the ConnectScale App, and click on the last tab “setting icon” which looks like a sprocket. Scroll down to the section labeled Bluetooth, and _ind “My Device.” Click on ConnectScale, and your mobile device will pair with the ConnectScale Bluetooth Digital Fish Scale. Look at the top right corner and you will see the Bluetooth symbol will be highlighted in white and you know you are paired. Fishing Scale ConnectScale 3 will show on screen tap to pair. 3.Now you can begin _ishing. Once you catch a _ish and hook it to the scale keep the _ish on the scale until it says, “HOLD.” The weight and air temperature will then be sent to your app. Once the data has been loaded to the app you can then add additional details: picture, species, length, bait/lure, _ishing technique, waterway, water temp, tournament code, assign to another user, etc... 4.If you wish to use a lip gripper, net, or sling you can tare the weight by attaching the tool when empty to the scale until a “HOLD” weight is captured. Then while the tool is on the scale simply hit the “TARE” button on the scale to tare out the weight of the tool. Now attach your catch to the tool of your choice and weigh the catch to capture an accurate reading. SAFETY MEASURES 1.Incorrect use of the scale may damage it. 2.Use only for its intended purpose. The manufacturer is not responsible for any injury or damage from incorrect use or handling. 3.Do not place or store near a powerful heat source or store in a damp environment. 4.Do not immerse in water. 5.Remove the batteries if the scale remains unused for a prolonged period. 6.Do not attempt to weigh objects which exceed the scales maximum capacity of 110 LBS (50KG). 7.Clean the scale by wiping with a clean and damp cloth. Congratulations on buying your Connectscale, we hope you enjoy the scale. As a company we want to continue to improve our product and your feedback is important to us. Please share any feedback at [email protected] FCC Statement • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. ISED Statement ‐ English: This device complies with Industry Canada license‐exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired operation of the device. The digital apparatus complies with Canadian CAN ICES‐3 (B)/NMB‐3(B). ‐ French: Le présentappareilestconforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitationestautorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareildoit accepter tout brouillageradioélec triquesubi, mêmesi le brouillageest susceptible d'encompromettre le fonction…

Text truncated - open the document above for the full version.

Connect Outdoors, Inc Agent Authorization Company: Connect Outdoors, Inc Address: 2109 West Market Street, Suite 100 G, Johnson City, TN 37604, United States Product Name: Fishing Scale Trade Mark: Connect Scale Model Number: ConnectScale 3 FCC ID: 2AEP3CS2020 We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2020-03-20 Name: Benjamin Arnold Title: CEO Company: Connect Outdoors, Inc

Connect Outdoors, Inc Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2020-03-20 Subject; Request for Confidentiality FCC ID: 2AEP3CS2020 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Benjamin Arnold Title: CEO

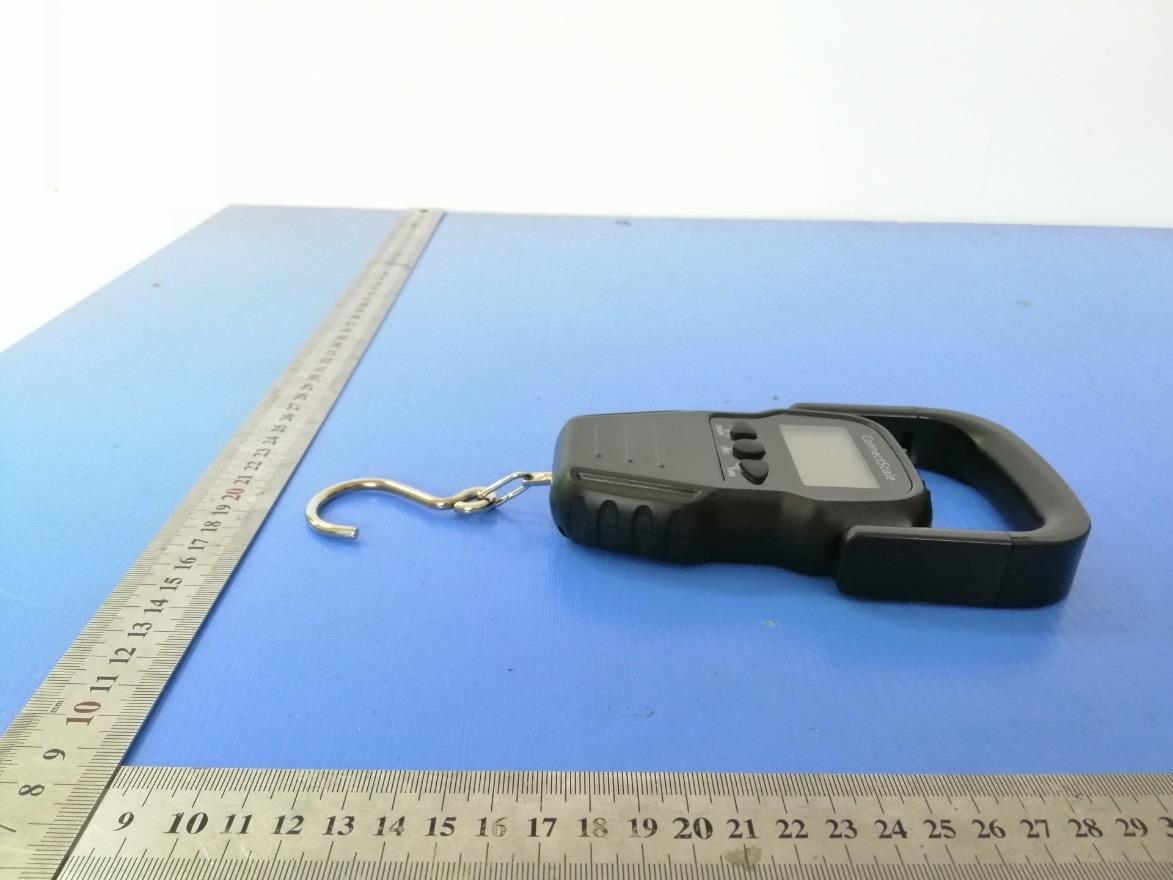

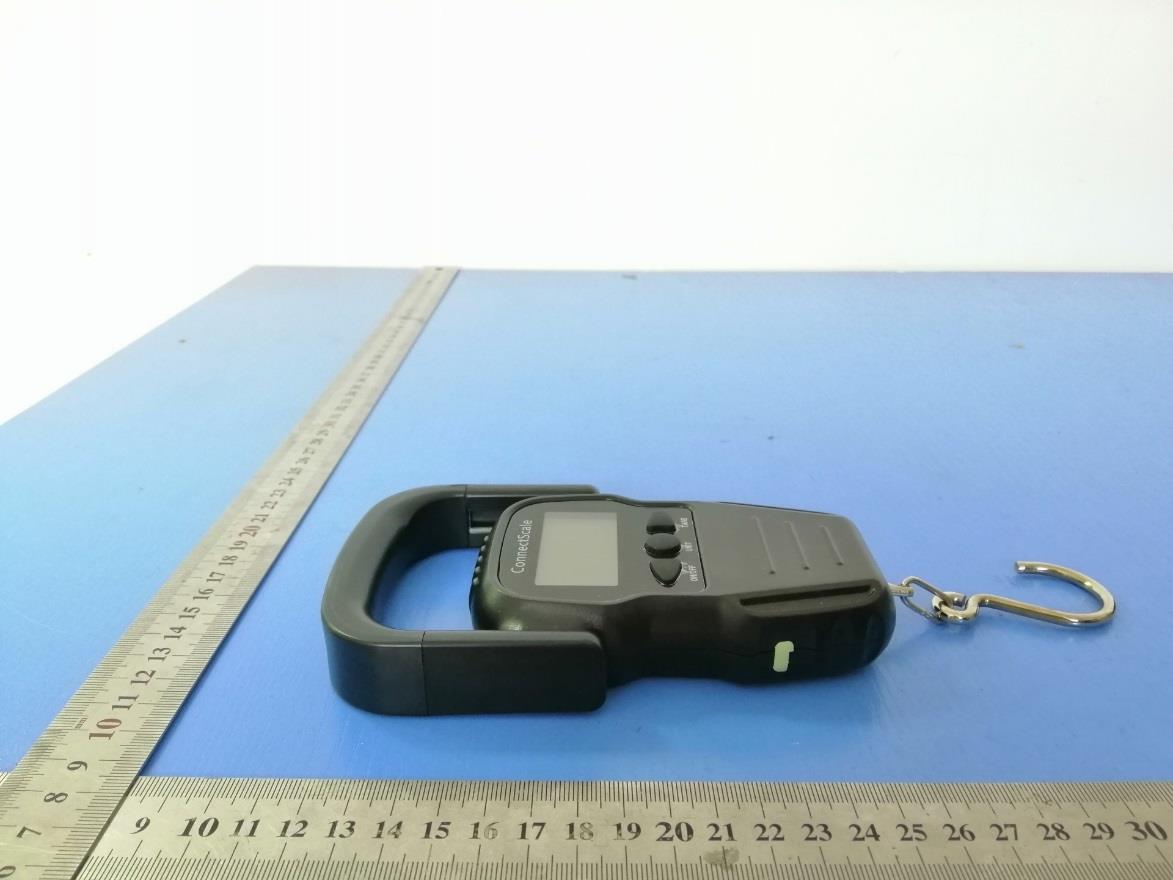

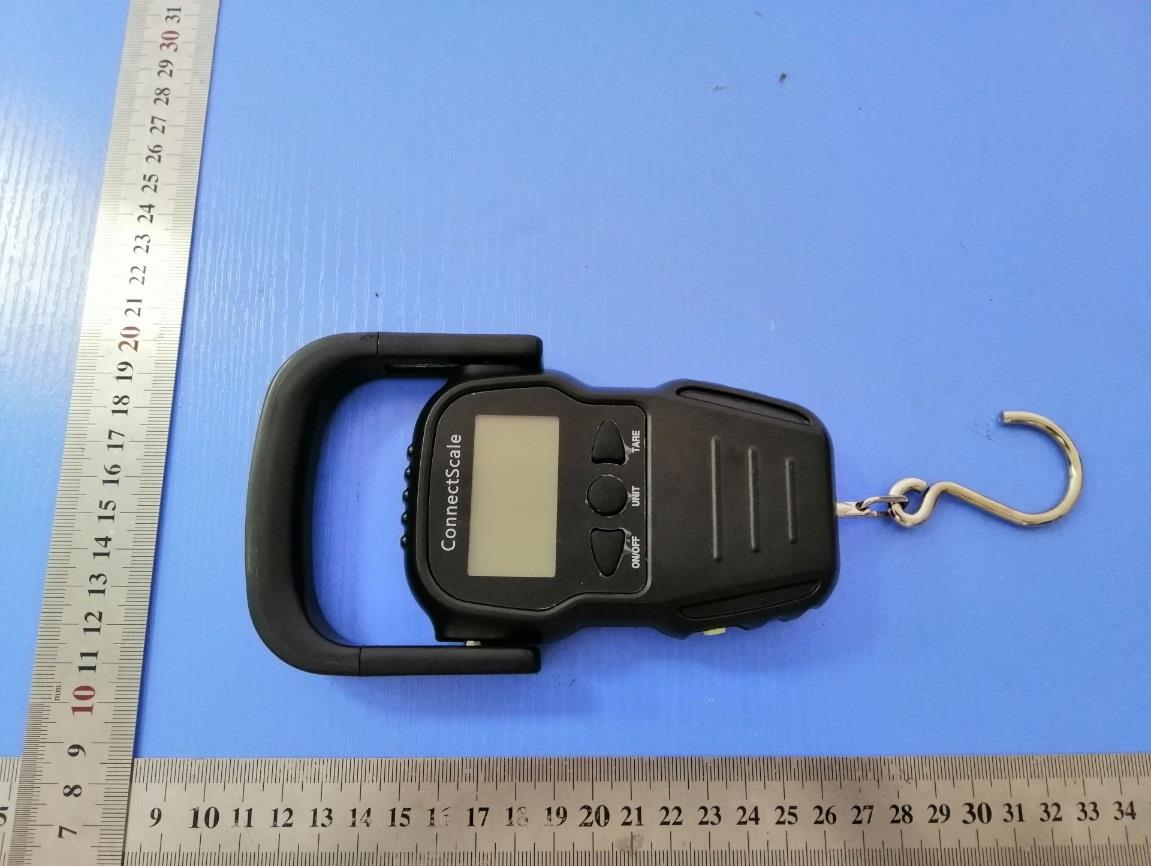

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEP3CS2020 IC: 20082-CS2020 Exterior Photographs Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEP3CS2020 IC: 20082-CS2020 Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEP3CS2020 IC: 20082-CS2020 Fig. 5 Fig. 6

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEP3CS2020 IC: 20082-CS2020 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 LABEL AND LOCATION Size: L2.0cm*W2.0cm Label Location Fishing Scale Model: ConnectScale 3 FCC ID: 2AEP3CS2020 IC : 20082-CS2020 HVIN : ConnectScale 3

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEP3CS2020 ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 3 FCC RF Exposure Evaluation 1. Product Information FCC ID : 2AEP3CS2020 Product name : Fishing Scale Test Model : ConnectScale 3 Power supply : DC 3.0V (2*AAA battery) Bluetooth : 2402-2480MHz Channel Number : 40 channels for BT LE V4.0(DTS) Channel Spacing : 2MHz for BT LE V4.0(DTS) Modulation Type : GFSK for BT LE V4.0(DTS) Bluetooth Version : V4.0 Antenna Type : PCB Antenna Antenna Gain : 0dBi (maximum) Hardware version : / Software version : / Exposure category : General population/uncontrolled environment EUT Type : Production Unit Device Type : Portable Device 2. Evaluation method and Limit According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.“ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)+ · *√f (GHz)+ ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to f) in section 4.1 is applied to determine SAR test exclusion. SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEP3CS2020 ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 3 When one of the following test exclusion conditions is satisfied for all combinations of simultaneous transmission configurations, further equipment approval is not required to incorporate transmitter modules in host devices that operate in the mixed mobile and portable host platform exposure conditions. The grantee is responsible for documenting this according to Class I permissive change requirements. Antennas that qualify for standalone SAR test exclusion must apply the estimated standalone SAR to determine simultaneous transmission test exclusion. a) The [∑ of (the highest measured or estimated SAR for each standalone antenna configuration, adjusted for maximum tune-up tolerance) / 1.6 W/kg] + [∑ of MPE ratios] is ≤ 1.0. b)The SAR to peak location separation ratios of all simultaneously transmitting antenna pairs operating in portable device exposure conditions are all ≤ 0.04, and the [∑ of MPE ratios] is ≤ 1.0. 3. Refer Evaluation Method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1093: Radiofrequency radiation exposure evaluation: portable devices 4. Conducted Power Results <BT LE> Mode Channel Frequency (MHz) Peak Conducted Output Power (dBm) GFSK 0 2402 -2.362 19 2440 0.128 39 2480 2.459 5. Manufacturing Tolerance <BT LE> GFSK (Peak) Channel Channel 0 Channel 19 Channel 39 Target (dBm) -2 0 2.0 Tolerance ±(dB) 1.0 1.0 1.0 6. Evaluation Results 6.1 Standalone Evaluation Band/Mode f (GHz) Antenna Distance (mm) RF output power SAR Test Exclusion Threshold SAR Test Exclusion dBm mW BT LE GFSK 2.480 5 3.0 2.0 0.6 < 3.0 Yes Remark: 1. Output power including tune up tolerance; 2. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to f) in section 4.1 is applied to determine SAR test exclusion. SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AEP3CS2020 ________________________________________________________________________ ___ This repo…
