2AEPEIVY-E-E21EPD tag (displaying price and flags)

Tenway ESL System User Manual Revision V0.9 Tenway (Shanghai) Co., Ltd 2015.5.5 ESL System Document User’s Installation Guide All rights Reserved. Subject to change without notice. 1 / 17 Table of Contents User Manual Guide ............................................................................................ 错误！未定义书签。 1 Hardware configuration ............................................................................................................... 2 1.1 System components .................................................................................................... 2 1.2 System installation ....................................................................................................... 3 2 Software installation .................................................................................................................... 4 2.1 Choose language .......................................................................................................... 4 2.2 Install database ............................................................................................................. 4 2.3 Install ESL server ......................................................................................................... 5 3 Software user’s guide ............................................................................................................... 8 3.1 AP management ........................................................................................................... 9 3.2 Goods management .................................................................................................... 10 3.3 Template Designer ..................................................................................................... 12 3.4 Labels Management ................................................................................................... 12 3.5 Updating monitor ..................................................................................................... 13 3.6 Users management ..................................................................................................... 13 4 Operate system using barcode scanner....................................................................................... 15 4.1 Wake up price tag ....................................................................................................... 15 4.2 Bind price tag to goods .............................................................................................. 15 4.3 Check stock of goods ................................................................................................. 16 4.4 Disable tag .................................................................................................................. 16 ESL System Document User’s Installation Guide All rights Reserved. Subject to change without notice. 2 / 17 Thank you for choosing Tenway (Shanghai) co.,ltd for theElectronic Shelf Label (ESL) System.Please refer to this User Manual forset up and properly use of the ESL System. 1 Hardware configuration 1.1 System components Part Number Description Option Picture IVY-E-L20 (Price Tag) Segment LCD tag which displays price and flags mandatory IVY-E-E21 (Price Tag) EPD tag which displays price and flags mandatory TC100 (Access Point) Access point which distributes price information to price tags. mandatory TG100 (Wireless Barcode Scanner) Wireless barcode scanner which is a handy tool that operates the ESL system. mandatory ESL System Document User’s Installation Guide All rights Reserved. Subject to change without notice. 3 / 17 TH100 (ESL Server) System and database server which interfaces to POS/ERP and manages the ESL system. Optional ESL system hardware components can be selected according to budget and needs. 1.2 System installation Tenway’s ESL hardware system is a plug & play system, plug in power cords and it is up and running already. Here are a few steps to setup the ESL system. Please see figure 1 for 1. Attach power cord to ESL server 2. Attach Ethernet cable between server and network switch 3. Attach Ethernet cable between AP and network switch 4. Attach power adapter to network switch 5. Attach antenna to the access point (AP) 6. Attach 5V DC power adapter to AP Figure 1 system setup ESL System Document User’s Installation Guide All rights Reserved. Subject to change without notice. 4 / 17 2 Software installation Open file folder where “ESLControlSystem_Setup.MSSQL.exe” located. Double click the filename to start installation. (Figure 2). Figure 2 Find the ESL Server software installation wizard 2.1 Choose language You can choose English, simplified Chinese and Traditional Chinese as program language when you see a pop up window as below. Choose your language in the drop-down list, click "ok" button to continue. Figure 3 Choose language 2.2 Install database Tenway ESL server uses Microsoft SQL Server 2005 Express SP4 as database server, click “install” when you see this: Figure 4 install database ESL System Document User’s Installation Guide All rights Reserved. Subject to change without notice. 5 / 17 Wait until this finish. Then click “next”... Figure 5 Installation of database 2.3 Install ESL server The installation wizard will start the installation of ESL SYSTEM software after finish installation of SQL server. Click “next” when you see figure 6. Figure 6 install ESL server Fill in your user information, then click “next” ESL System Document User’s Installation Guide All rights Reserved. Subject to change without notice. 6 / 17 Figure 7 user information Click "next" when you see figure 8. Figure 8 database server configuration Choose “complete”,then click “next” when you see figure 9 ESL System Document User’s Installation Guide All rights Reserved. Subject to change without notice. 7 / 17 Figure 9 Installation type Follow instructions on screen to finish installation. Figure 10 finish of installation of ESL server software ESL S…

Text truncated - open the document above for the full version.

FCC Authorization June 19, 2015 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We Tenway (Shanghai) Inc.,Ltd , the undersigned, Hereby authorizes Shanghai Morlab Communication Technology Co., Ltd Echo Mu ([email protected] ) to act on its behalf in all matters relating to application for Equipment authorization for FCC ID :_ 2AEPEIVY-E-L20 and 2AEPEIVY-E-E21_, including the signing of all documents relating to these matters. All acts carried out by Shanghai Morlab Communication Technology Co., Ltd on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). This authorization is expires on 12/31/2015. Sincerely Yours, Aison Tenway (Shanghai) Inc.,Ltd

FCC confidentiality letter June 19, 2015 PHOENIX TESTLAB GmbH Authorization and Evaluation Division D-32825 Blomberg, Germany Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we, Tenway (Shanghai) Inc.,Ltd, hereby request confidential treatment of information accompanying this Application (FCC ID: 2AEPEIVY-E-L20 and 2AEPEIVY-E-E21) as outlined below: Block Diagram, Schematics Operational Description Parts List Data telegram description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to us, Tenway (Shanghai) Inc.,Ltd, and provide unjustified benefits to its competitors. We, Tenway (Shanghai) Inc.,Ltd, understand that pursuant to Rule 0.457, disclosure of this Application (FCC ID: 2AEPEIVY-E-L20 and 2AEPEIVY-E-E21) and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely Yours, Gu Tingting Tenway (Shanghai) Inc., Ltd 2015-7-10

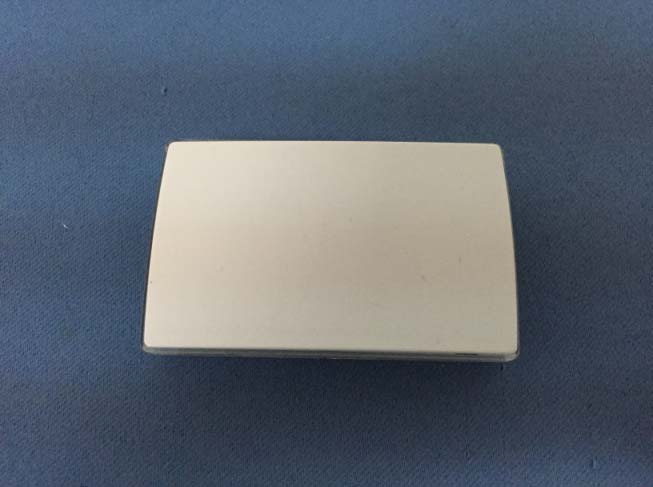

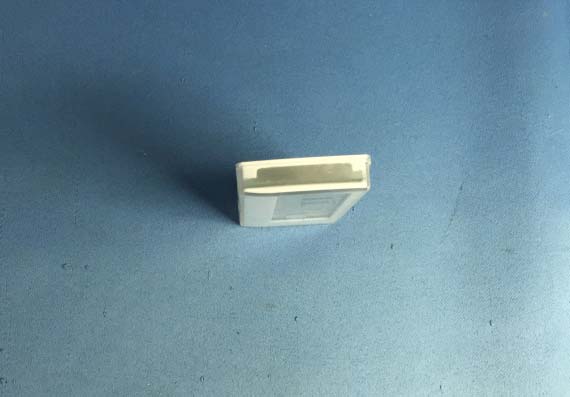

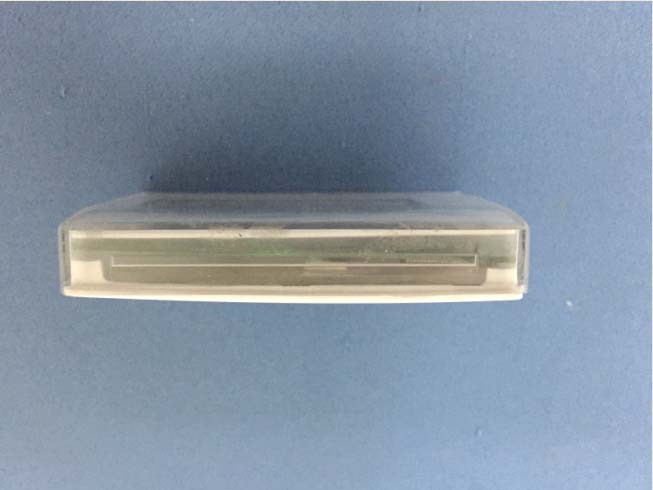

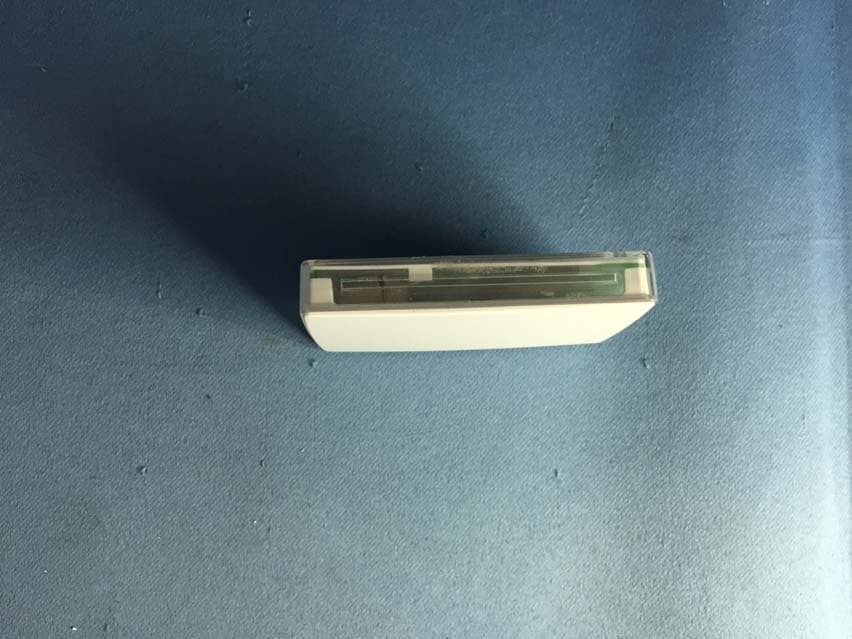

External Photos Face Back Front Bottom Left Right

FCC Label and location Label Label Location EUT Back EUT Face

Internal Photos

Antenna specification: Model: 433MHZ Frequency Range: 420MHZ-471MHZ Impendence: 50Ω Gain: -2dbi Antenna Dimensions: 2.5CM Mast Mount Diameter VSWR: 2.5:1 MaX Polarization: Horizontal Connector : onboard

Report No.SH15040048W02 Page 2 of 18 DIRECTORY 1. General Information ......................................................................................................... 4 1.1 Applicant ............................................................................................................................. 4 1.2 Description of EUT ............................................................................................................. 4 2. Facilities and Accreditations ............................................................................................ 5 2.1 Test Facility ......................................................................................................................... 5 2.2 Environmental Conditions .................................................................................................. 5 2.3 Measurement Uncertainty ................................................................................................... 5 2.4 List of Equipments Used ..................................................................................................... 5 3. Test Standards and Results .............................................................................................. 6 4. Test Result .......................................................................................................................... 7 4.1 Transmission Requirements ................................................................................................ 7 4.2 Radiated Emissions ............................................................................................................. 9 4.3 Occupied Bandwidth ......................................................................................................... 12 Annex A Photos of the EUT ........................................................................................................... 15 Annex B Photos of Setup ................................................................................................................ 17 Report No.SH15040048W02 Page 3 of 18 Change History Issue Date Reason for change 1.0 Jun.18,2015 First edition 2.0 Jul.3,2015 Second edition Report No.SH15040048W02 Page 4 of 18 1. General Information 1.1 Applicant Tenway (Shanghai) Inc.,Ltd 9th F, Xinwei Building B, 1455 Pingcheng Road, Jiading District, Shanghai, PR. China 1.2 Description of EUT EUT Name ........................... : EPD tag Model Name ......................... : IVY-E-E21 Brand Name ......................... : IVY Trade Name .......................... : ESL-EPD Hardware Version ................. : TW-ESL02-FW1.0 Software Version .................. : TW-ESL02-HW1.0 Modulation Type .................. : GFSK Frequency Range .................. : 420MHz~471MHz (at intervals of 200kHz) Number of Channels ............ : 256 Power Supply ....................... : Battery 3V (CR2450) NOTE : EPD tag is a price tag which displays price and flags. The EUT is working at the fixed channel, the channel was set in manufacture and can’t change anymore. At standby mode, the EPD tag listen several milliseconds every 8 seconds. While the AP is activated to update price, EPD tag will start to receive data package about 20ms, after this data was successful catch, EPD tag transmit several milliseconds confirmed signal to AP. Then the EPD tag go back to standby mode, until next update. 2. The lowest, middle, highest channel numbers of the EPD tag transmit channel used and tested in this report are separately 0 (420MHz),128 (445.6MHz) and 255 (471MHz). 3. For more detailed description, please refer to Specification or User’s Manual supplied by the applicant and/or manufacture. Report No.SH15040048W02 Page 5 of 18 2. Facilities and Accreditations 2.1 Test Facility Shanghai Morlab Communications Technology Co., Ltd. Morlab Laboratory is a third party testing organization accredited by China National Accreditation Service for Conformity Assessment (CNAS) according to ISO/IEC 17025. The accreditation certificate number is L6644. A 9*6*6(m) fully anechoic chamber was used for the radiated spurious emissions test. 2.2 Environmental Conditions Ambient temperature: 20~25°C Relative humidity: 40~60% Atmosphere pressure: 86-106kPa 2.3 Measurement Uncertainty The uncertainty is calculated using the methods suggested in the "Guide to the Expression of Uncertainty in Measurement" (GUM) published by ISO. Uncertainty of Conducted Emission: ±1.76dB Uncertainty of Radiated Emission: ±3.16dB 2.4 List of Equipments Used Description Manufacturer Model Serial No. Cal. Date Cal. Due Spectrum Analyzer R&S FSU26 200880 2015.2.25 1year Attenuator 1 Resnet 10dB (n.a.) (n.a.) (n.a.) Attenuator 2 Resnet 3dB (n.a.) (n.a.) (n.a.) Full-Anechoic Chamber Albatross 9m*6m*6m (n.a.) 2012.9.14 3year Test Antenna Schwarzbeck VULB 9163 9163-561 2014.7.25 1year Test Antenna Schwarzbeck BBHA9170 BBHA91970171 2014.9.22 1year Test Antenna Schwarzbeck FMZB 1519 1519-025 2014.7.25 1year Personal Computer HP (n.a.) (n.a.) (n.a.) (n.a.) EMI Test Receiver R&S ESCI7 100787 2015.02.24 1year Full Anechoic Chamber MTG 6m*4m*4m (n.a.) 2013.9.6 3year Test Antenna Schwarzbeck BBHA-9120LFABBHA-9120LFA 2014.10.15 1year CTIA’s OTA test system MTG (n.a.) (n.a.) (n.a.) (n.a.) NOTE: Equipments listed above have been calibrated and are in the period of validation. Report No.SH15040048W02 Page 6 of 18 3. Test Standards and Results According to the specifications of the manufacturer, the EUT must comply with the requirements of the following standards: FCC Part 15 Subpart C §15.231 FCC Part 15 Subpart C §15.209 ANSI C63.10-2013 NOTE: (1)All test items were verified and recorded according to the standards and without any deviation during the test. (2)This EUT has also been tested and complied with the requirements of FCC Part 15, Subpart C. Test items and the results are as bellow: No. Section Description Result 1 15.231(a) Transmission Requirements Pass 2 15.231(b)& 15.209 (a) Radiated Em…
