2AEPX71473Selfie Remote

Shenzhen E-Power Electronic Co., Ltd.
Selfie Remote - FCC ID 2AEPX71473 - Shenzhen E-Power Electronic Co., Ltd.
Click to zoom

Application Details

Equipment Class
DXX - Part 15 Low Power Communication Device Transmitter
Date of Grant
Jul 30, 2015
Application Purpose
Original Equipment
Date of Application
Jul 30, 2015
Equipment Note
Selfie Remote
Frequency Range
2402.00000000 - 2480.00000000
Company
Shenzhen E-Power Electronic Co., Ltd.
Country
China

Documents & Files

Select a file to view

Users Manual

↗

Block Diagram

↗

Cover Letter(s)

↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

Operational Description

↗

RF Exposure Info

↗

Schematics

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. 2AEPX71473FCC ID: Brand Name: Heineken Model No: 71473

Block Diagram

Block Diagram MCU(Bluetooth Module) Photo Button Battery (CR2025) Indicator Led Antenna 16M Crystal Oscillator BK3231 Datasheet July-2013 © 2013 Beken Corporation Proprietary and Confidential Page 3 of 23 1 General Description The BK3231 chip is a highly integrated single-chip Bluetooth 2.1 HID device. It integrates the high- performance transceiver, rich features baseband processor, and Bluetooth HID profile. The FLASH program memory makes it suitable for customized application, and it is also possible for other Bluetooth aplication such as SPP controller. 2 Features z Operation voltage from 2.0V to 3.6 V z Bluetooth 3.0 compliant z -86dBm sensitivity for 1 Mbps mode and 2 dBm transmit power z HID v1.0, and other light profile by request z 16 MHz crystal reference clock z 56-pin QFN 7mmx7mm package for keyboard z I2C, SPI and UART interface z 10-bit Battery monitor ADC z Three timers with PWM mode Figure 1 Block Diagram 3 Pin Information The next diagram shows QFN56 format for the full functions usage.It can be used as keyboard TX part and total 35 GPIO available. Other package type such as QFN40 or even QFN32 is also available by request with less GPIO.

External Photos

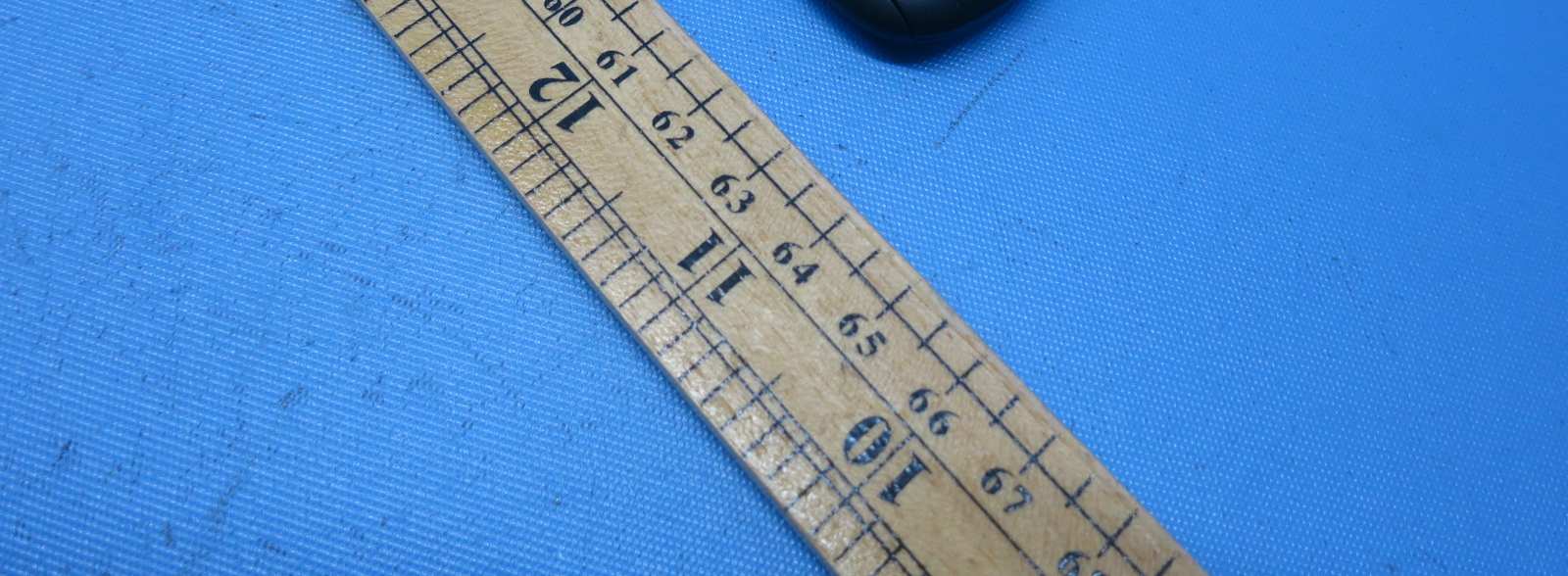

INTERTEK TESTING SERVICE Report No.: 15040657HKG-002 FCC ID: 2AEPX71473 Equipment Photographs Model: 71473 (External)

Internal Photos

INTERTEK TESTING SERVICE Report No.: 15040657HKG-002 FCC ID: 2AEPX71473 Equipment Photographs Model: 71473 (Internal) INTERTEK TESTING SERVICE Report No.: 15040657HKG-002 FCC ID: 2AEPX71473 Equipment Photographs Model: 71473 (Internal) INTERTEK TESTING SERVICE Report No.: 15040657HKG-002 FCC ID: 2AEPX71473 Equipment Photographs Model: 71473 (Internal)

Operational Description

Technical Description: The Equipment Under Test (EUT) is a 2.4GHz Bluetooth 3.0 transceiver (Camera Remote Shutter), which is operating at 2402MHz to 2480MHz (79 channels with 1MHz channel spacing). The EUT is powered by 3.0 VDC (1 X 3.0V “CR2025” batteries). The EUT has a power ON/OFF switch and a LED. When the EUT is switched ON, the blue LED will be on. The EUT will pair with the relating Smartphone via Bluetooth function and the blue LED will flash when they are successfully connected. Open the Camera application on the Smartphone, the photo will be taken when pressing the button on the EUT. Antenna Type: Internal integral antenna Antenna Gain: 0dBi Nominal rated field strength: 94.2dBμV/m at 3m Maximum allowed field strength of production tolerance: +3dB / - 3dB The functions of main ICs are mentioned below. 1. Bluetooth module BK3231: a. BK3231 acts as 2.4GHz radio core of Bluetooth module. b. The 16MHz crystal (X2) and 32.768KHz crystal (X1) provides system clock for CC2540 2. Power Management portion: a. J2, J3 act as power unit part. BK3231 Datasheet July-2013 © 2013 Beken Corporation Proprietary and Confidential Page 1 of 23 BK3231 Bluetooth HID SoC Datasheet Preliminary Specification Beken Corporation 3A, 1278 KeyuanRd, Zhangjiang High-Tech Park Pudong New Distrinct, Shanghai, 201203, China Tel: (86)21 51086811 Fax: (86)21 60871277 This document contains information that may be proprietary to, and/or secrets of, Beken Corporation. The contents of this document should not be disclosed outside the companies without specific written permission. Disclaimer: Descriptions of specific implementations are for illustrative purpose only, actual hardware implementation may differ. BK3231 Datasheet July-2013 © 2013 Beken Corporation Proprietary and Confidential Page 2 of 23 Table of Contens 1 General Description ............................................................................................................................ 3 2 Features................................................................................................................................................ 3 3 Pin Information ................................................................................................................................... 3 4 Memory Orgnization .......................................................................................................................... 6 5 Interrupt and Clock Unit ................................................................................................................... 6 6 MFC ..................................................................................................................................................... 9 7 GPIO .................................................................................................................................................. 10 8 ADC .................................................................................................................................................... 12 9 UART ................................................................................................................................................. 14 10 I2C-SMBus ........................................................................................................................................ 16 11 SPI ...................................................................................................................................................... 18 12 PWM Timer ....................................................................................................................................... 19 13 Watch dog .......................................................................................................................................... 20 14 Electrical Specifications .................................................................................................................... 21 15 Package Information ........................................................................................................................ 22 16 Application Schematic ...................................................................................................................... 23 17 Order Information ............................................................................................................................ 23 BK3231 Datasheet July-2013 © 2013 Beken Corporation Proprietary and Confidential Page 3 of 23 1 General Description The BK3231 chip is a highly integrated single-chip Bluetooth 2.1 HID device. It integrates the high- performance transceiver, rich features baseband processor, and Bluetooth HID profile. The FLASH program memory makes it suitable for customized application, and it is also possible for other Bluetooth aplication such as SPP controller. 2 Features z Operation voltage from 2.0V to 3.6 V z Bluetooth 3.0 compliant z -86dBm sensitivity for 1 Mbps mode and 2 dBm transmit power z HID v1.0, and other light profile by request z 16 MHz crystal reference clock z 56-pin QFN 7mmx7mm package for keyboard z I2C, SPI and UART interface z 10-bit Battery monitor ADC z Three timers with PWM mode Figure 1 Block Diagram 3 Pin Information The next diagram shows QFN56 format for the full functions usage.It can be used as keyboard TX part and total 35 GPIO available. Other package type such as QFN40 or even QFN32 is also available by request with less GPIO. BK3231 Datasheet July-2013 © 2013 Beken Corporation Proprietary and Confidential Page 4 of 23 Figure 2 BK3231 QFN56 Pin Assignment Table 1 BK3231 QFN56 Pin Description PIN Name Pin Function Description 1 P44 Digital I/O General I/O 2 NC NC Not connected 3 PPROG Digital I/O FLASH programming selection 4 MBISTEN Digital I/O Test enable 5 P47 Digital I/O General I/O 6 P04 Digital I/O General I/O, or MOSI for SPI 7 P11 Digital I/O General I/O, or input for external active low interrupt 8 XTALN Analog output Oscillator outpu…

Text truncated - open the document above for the full version.

RF Exposure Info

Analysis Report Report No.: 15040657HKG-002 The Equipment Under Test (EUT) is a 2.4GHz Bluetooth 3.0 transceiver (Camera Remote Shutter), which is operating at 2402MHz to 2480MHz (79 channels with 1MHz channel spacing). The EUT is powered by 3.0 VDC (1 X 3.0V “CR2025” batteries). The EUT has a power ON/OFF switch and a LED. When the EUT is switched ON, the blue LED will be on. The EUT will pair with the relating Smartphone via Bluetooth function and the blue LED will flash when they are successfully connected. Open the Camera application on the Smartphone, the photo will be taken when pressing the button on the EUT. Antenna Type: Internal integral antenna Antenna Gain: 0dBi Nominal rated field strength: 94.2dBμV/m at 3m Maximum allowed field strength of production tolerance: +3dB / - 3dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 97.2dBμV/m at 3m in frequency 2.4GHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 1.574mW Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power = 1.574mW The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.480) mW = 9.53 mW Since the above conducted output power is well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

Schematics

123456 A B C D 6 54321 D C B A 低电检测 1 1 2 2 R11 1K 1 1 2 2 C18 100nF 1 1 2 2 C20 4.7UF P44 1 VCCD IG 2 PPR OG 3 MBISTEN 4 P47 5 P04 6 P11 7 XTALN 8 XTALP 9 VCCXYAL 10 VCCRF 11 RFP 12 VDDPA 13 NC 14 TDI 42 TMS 41 PRSTN 40 P03 39 P37 38 P36 37 P14 36 P10 35 P02 34 P41 33 P27 32 VDDDSP 31 VDDSPI 30 VDDDIG 29 RST 43 TDO 44 P12 45 P13 46 P05 47 P06 48 P07 49 P20 50 P21 51 P22 52 P23 53 P24 54 P25 55 P26 56 TCK 28 CLK32K 27 P46 26 P45 25 P35 24 P34 23 P33 22 P32 21 P31 20 P30 19 P40 18 P01 17 P00 16 VCCI F 15 VSS 57 U3 BK3231BTQFN56 1 1 2 2 C22 22PF 1 1 2 2 C23 22PF 1 1 2 2 C4 1uf 1 1 2 2 C1 1uf 1 1 2 2 C2 0.8p 1 1 2 2 C8 NL 1 1 2 2 C9 1uf 1 1 2 2 C6 1uf 1 1 2 2 X1 1 1 2 2 C7 1uf 1 1 2 2 C1 0 1uf 1 1 2 2 C1 1 1uf 1 1 2 2 C1 2 1uf 1 1 2 2 R1 200K 1 1 2 2 R2 100K 2 2 1 1 K2 1 1 2 2 3 3 K1 P44 P03 +3V +3V +3V P44 PPR OG P47 P04 P11 P00 P01 P40P30P31P32P33P34P35 P45P46 P27 P41 P02 P10 P14 P36 P37 P03 P26 P25 P24P23P22P21P20P07 P06P05 P13P12 +3V +3V +3V P37 P12 1 J2 VCC 1 J3 GND 1 1 ANT 1 2.4G_PIFA_1 IN 3 GND 4 GND 2 OUT 1 X2 16M D2 LED 32.768 1 1 2 2 C28 2.2p L1 4.3nh Print to PDF without this message by purchasing novaPDF (http://www.novapdf.com/)

Test Report

- Intertek's standard Terms and Conditions can be obtained at our website http://www.intertek.com/terms/. - The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report No.: 15040657HKG-002 Shenzhen E-Power Electronic Co., Ltd. Application For Certification (Original Grant) (FCC ID: 2AEPX71473) Transceiver Prepared and Checked by: Approved by: Signed On File Josie Yao Engineer Wong Kwok Yeung, Kenneth Lead Engineer Date: July 17, 2015 INTERTEK TESTING SERVICES Report No.: 15040657HKG-002 i FCC ID: 2AEPX71473 GENERAL INFORMATION Grantee: Shenzhen E-Power Electronic Co., Ltd. Grantee Address: No 4/F, Bldg 21, No 3, Liu Xian Rd, District 71, Bao’an, Shenzhen, China. Contact Person: Donica Zhou Tel: 0755-89395235 Fax: 0755-33877181 e-mail: N/A Manufacturer: Shenzhen E-Power Electronic Co., Ltd. Manufacturer Address: No 4/F, Bldg 21, No 3, Liu Xian Rd, District 71, Bao’an, Shenzhen, China. Brand Name: HEINEKEN 007 Model: 71473 Type of EUT: Transceiver Description of EUT: Selfie Remote Serial Number: N/A FCC ID: 2AEPX71473 Date of Sample Submitted: April 13, 2015 Date of Test: April 13, 2015 to July 10, 2015 Report No.: 15040657HKG-002 Report Date: July 17, 2015 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: 15040657HKG-002 ii FCC ID: 2AEPX71473 SUMMARY OF TEST RESULT TEST SPECIFICATION REFERENCE RESULTS Radiated Emission Radiated Emission on the Bandedge 15.249, 15.209 Pass Radiated Emission in Restricted Bands 15.205 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2014 Edition Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: 15040657HKG-002 iii FCC ID: 2AEPX71473 Table of Contents 1.0 General Description.........................................................................................1 1.1 Product Description ........................................................................................1 1.2 Related Submittal(s) Grants............................................................................1 1.3 Test Methodology ...........................................................................................1 1.4 Test Facility ....................................................................................................1 2.0 System Test Configuration ..............................................................................2 2.1 Justification.....................................................................................................2 2.2 EUT Exercising Software................................................................................2 2.3 Special Accessories .......................................................................................2 2.4 Measurement Uncertainty...............................................................................2 2.5 Support Equipment List and Description.........................................................2 3.0 Emission Results .............................................................................................3 3.1 Field Strength Calculation...............................................................................3 3.2 Radiated Emission Configuration Photograph ................................................4 3.3 Radiated Emission Data .................................................................................4 4.0 Equipment Photographs ..................................................................................9 5.0 Product Labelling .............................................................................................9 6.0 Technical Specifications .................................................................................9 7.0 Instruction Manual ...........................................................................................9 8.0 Miscellaneous Information ............................................................................10 8.1 Radiated Emission on the Bandedge............................................................10 8.2 Discussion of Pulse Desensitization .............................................................13 8.3 Calculation of Average Factor.......................................................................13 8.4 Emissions Test Procedur…

Text truncated - open the document above for the full version.

Test Setup Photos

INTERTEK TESTING SERVICE Report No: 15040657HKG-002 FCC ID: 2AEPX71473 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model: 71473 INTERTEK TESTING SERVICE Report No: 15040657HKG-002 FCC ID: 2AEPX71473 Configuration Photographs Worst-Case Radiated Emissions (Rear View) Model: 71473

Contact Information

Applicant

Donica Zhou
[email protected]13715287746Fax: 755-33877100

Technical Contact

Intertek Testing Services Hong Kong Ltd.Terry Chan
[email protected](852) 2173 8888

2/F., Garment Centre, · Kowloon · Hong Kong

Non-Technical Contact

Intertek Testing Services Hong Kong Ltd.Terry Chan
[email protected](852) 2173 8888

Test Firm

Intertek Testing Services Hong Kong Ltd.Billy Chow
[email protected]85221738528Fax: 85227410521

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.40 GHz - 2.48 GHz-
