Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
GPRS GPRS GPRS Without China Aerospace Telecommunications LTD., the written permission of the cases, the ban on any form of reproduction, transfer, distribute, or store the file content in part or in full. China Aerospace Telecommunications LTD., to implement sustainable development policy. Our company reserves All rights reserved pirated the right to change and improvement of the above products, and will not make any notice in advance. In any case, China Aerospace Telecommunications LTD aren’t liable for any loss of data or income. Or any special, sudden, accidental and indirect damage Content of the file are subject to the “present status”, according to the related laws, no matter listed in the form of explicit or implied,including(but not limited)the evidence of implied form lists the possibility of selling and individual purposes,all no relationship with the accuracy and reliability of the file. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation.
DATE : May 06, 2015 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AEPZ-PT-690 Product Name: Tracker Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...) Schematics Block diagram Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this Agency agreement expiration date: May 06, 2015 to May 05, 2016 By: Didi Tan Signature Printed Title: Manager On behalf of : China Aerospace Telecommunications (ShenZhen) Limited Telephone: 0755-8601872 2
Label information: Label location
Tune Up Procedure During manufacturing each device is individually calibrated. Measurement is performed in a fully calibrated setup using a base station simulator (system tester). Measurement procedure is outlined below: Measurement Procedure: 1. Set the device to operational voltage and on a predefined channel in a special test mode. 2. The actual output power is measured at several power levels. 3. The gain factors of each individual device are adjusted until the target value is met. The appropriate gain control settings for each output power level are stored in each device individually (for each power level). The user has no possibility to change these settings later on. 4. The maximum gains of each individual device are adjusted and measured until the target value is met. The production target power with tolerance compiles with the maximum power in test report. Maximum output power GRRS850: 32dBm+/-1dB GPRS1900: 29dBm +/-1dB Then these appropriate gain settings are stored in each device individually. The user has no possibility to change these settings later on, and during manufacturing each device will be individual calibrated in this range. The measurement is done in a fully calibrated setup, which is based on the base station simulator. Furthermore, the highest power level is verified afterwards in a call measurement on three channels (low, middle and high).
1 / 2 RF Exposures Evaluation According to FCC 1.1310 : The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b). LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) CALCULATIONS Given Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 2 / 2 LIMIT Power Density Limit, S=1.0mW/cm 2 TEST RESULTS Pass Mode Minimum separation distance (cm) Output Power (dBm) Antenna Gain (dBi) Power Density Limit (mW/cm 2 ) Power Density at 20cm (mW/cm 2 ) GPRS 850 20 31.77 0 1.0 0.306093 GPRS 1900 20 28.96 0 1.0 0.156622 “This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body.” 0.4 33 30 0.2
Report No. : EED32H000249-1 Page 1 of 48 1 COVER PAGE TEST REPORT Product : Tracker Trade mark : Model/Type reference : PT-690 Serial Number : N/A FCC ID : 2AEPZ-PT-690 Report Number : EED32H000249-1 Date of Issue: : May 07, 2015 Test Standards : 47 CFR Part 2(2014) 47 CFR Part 22 subpart H(2014) 47 CFR Part 24 subpart E(2014) Test result : PASS Prepared for: China Aerospace Telecommunications (ShenZhen) Limited 9th Floor, East Wing, Building A2, Longma Tech Industry City, Shixin Community, Shiyan Street, Baoan, Shenzhen, China Prepared by: Centre Testing International (Shenzhen) Corporation Hongwei Industrial Zone, 70 Area, Bao’an District, Shenzhen, Guangdong, China TEL: +86-755-3368 3668 FAX: +86-755-3368 3385 Tested by:Reviewed by: Approved by:Date:May 07, 2015 Jimmy Li Lab manager Check No.: 1727856131 Report No. : EED32H000249-1 Page 2 of 48 2 Version Version No.Date Description 00 2015-03-01 Original Report No. : EED32H000249-1 Page 3 of 48 3 Test Summary Test Item Test Requirement Test method Result GPRS 850 Conducted output power Part 2.1046(a)/Part 22.913(a) ITA-603-C-2004 & KDB 971168 D01v02r02 PASS Effective Radiated Power of Transmitter(ERP) Part 2.1046(a)/Part 22.913(a) ITA-603-C-2004 & KDB 971168 D01v02r02 PASS 99%&26dB Occupied Bandwidth Part 2.1049(h) Part 22.917(b) & KDB 971168 D01v02r02 PASS Band Edge at antenna terminals Part 2.1051/Part 22.917(a) Part 22.917(b) & KDB 971168 D01v02r02 PASS Spurious emissions at antenna terminals Part 2.1051/ Part 2.1057/ Part 22.917(a)(b᧥ ITA-603-C-2004 & KDB 971168 D01v02r02 PASS Field strength of spurious radiation Part 2.1053/ Part 2.1057/ Part 22.917(a)(b᧥ ITA-603-C-2004 & KDB 971168 D01v02r02 PASS Frequency stability Part 2.1055/ Part 22.355 ITA-603-C-2004 & KDB 971168 D01v02r02 PASS GPRS 1900 Conducted output power Part 2.1046(a) /Part 24.232(c) ITA-603-C-2004& KDB 971168 D01v02r02 PASS Effective Radiated Power of Transmitter(EIRP) Part 2.1046(a) / Part 24.232(c) ITA-603-C-2004 & KDB 971168 D01v02r02 PASS peak-to-averageratio Part 24.232(d) KDB 971168 D01v02r02 PASS 99% &26dBOccupied Bandwidth Part 2.1049(h) Part 24.238(b) & KDB 971168 D01v02r02 PASS Band Edge at antenna terminals Part 2.1051/ Part 24.238(a) Part 24.238(b) & KDB 971168 D01v02r02 PASS Spurious emissions at antenna terminals Part 2.1051/ Part 2.1057/ Part 24.238(a)(b) ITA-603-C-2004 & KDB 971168 D01v02r02 PASS Field strength of spurious radiation Part 2.1053 /Part 2.1057 / Part 24.238(a)(b) ITA-603-C-2004 & KDB 971168 D01v02r02 PASS Frequency stability Part 2.1055/Part 24.235 ITA-603-C-2004 & KDB 971168 D01v02r02 PASS Remark: Tx: In this whole report Tx (or tx) means transmitter. Rx: In this whole report Rx (or rx) means receiver. LCH: In this whole report LCH means low channel. MCH: In this whole report LCH means middle channel. HCH: In this whole report LCH means high channel. VL: In this whole report Volt means low voltage. (DC 3.2V) VN: In this whole report Volt means normal voltage. (DC 3.7V) VH:In this whole report Volt means high voltage. (DC 4.2V) TN: In this whole report Temp means normal temperature. (25đ) Humid: In this whole report Humid means humidity. N/A: In this whole report not application. Report No. : EED32H000249-1 Page 4 of 48 4 Content 1COVER PAGE ............................................................................................................................................................. 1 2VERSION ...................................................................................................................................................................... 2 3TEST SUMMARY ........................................................................................................................................................ 3 4CONTENT ..................................................................................................................................................................... 4 5TEST REQUIREMENT ............................................................................................................................................... 5 5.1TEST SETUP .......................................................................................................................................................... 5 5.1.1For Conducted test setup ............................................................................................................................. 5 5.1.2For Radiated Emissions test setup ............................................................................................................. 5 5.2TESTENVIRONMENT ............................................................................................................................................. 6 5.3TESTCONDITION ................................................................................................................................................... 6 6GENERAL INFORMATION ....................................................................................................................................... 7 6.1CLIENTINFORMATION ........................................................................................................................................... 7 6.2GENERAL DESCRIPTION OF EUT ......................................................................................................................... 7 6.3PRODUCT SPECIFICATION SUBJECTIVE TO THIS STANDARD ............................................................................... 7 6.4DESCRIPTION OF SUPPORT UNITS ....................................................................................................................... 7 6.5TESTLOCATION .................................................................................................................................................... 7 6.6TESTFACILITY ...........................................................................................................…
Text truncated - open the document above for the full version.
| # | Rule Parts | Frequency Range | Power Output | Emission | Tolerance |
|---|---|---|---|---|---|
| 2 | 24E | 1.85 GHz - 1.91 GHz | 869.00 mW | 254KGXW | 0.03 ppm |

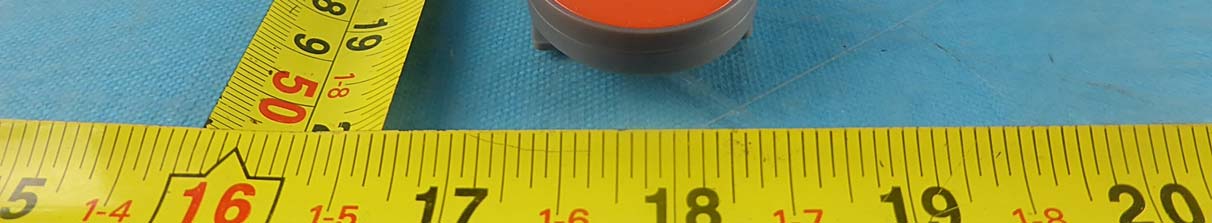

Tracker
Equipment Class
PCB - PCS Licensed Transmitter
