2AEQ2SDY019bluetooth speaker

1 Bluetooth Speaker User Manual Thank you for purchasing our bluetooth speaker. Please read this manual carefully and keep it for future reference. Hope our product could bring you more happiness in your life. Selling point: 1. With LCD display, display time and alarm clock 2. Support Bluetooth and hands-free when answering calls 3. Support phone call back the last incoming phone 4. With phone no reporting function 5. Support Micro SD card and USB 6. Support line in 7. High quality FM radio 8. With alarm clock function, you could set the alarm ring music via USB, TF card 9. Alarm clock function can be work in ON/ OFF state 10. Speaker: 3W*2 2 Button illustration schematic diagram: Preparing before using Make sure battery has full power before use, or insert DC5V power as an external power supply equipment (minimum supply current >1A). Input Charging Under OFF mode, connect the USB charging cable to the speaker DC5V input connector and plug the USB cable to USB charger. 3 Operating Instructions: Note: please exit the previously mode before you go into the next mode 1. bluetooth Press button, LCD screen will display “bt”, then you could open the equipment which with bluetooth function (such as mobile phone, laptop, PDA etc), when equipment search the device SDY-019, paired and then enter bluetooth connection. When connected successfully, machine will remind you” Your device is connected”. When phone connected with bluetooth, if there is phone coming, press “ ” button to answer calling. If want to end the phone, press “ ” button to end When listening music or talking phone, short time press “ / / ”button could adjust the music song, long time press could adjust the volume If want to call back the one who just called you, please double press this button “ ” quickly Note: in order to ensure the quality of the call, please speak aligned speaker MIC position when talking 2. FM radio Short time press “” button to enter FM mode, and then long time press “ ” button to auto search and keeping channels. If the auto searching function can not find the channels which you want, you could short time press “ / ”button to choose the channels you want. Long time press could adjust the volume. Short time press button can move to next channels (the ones already keeping) 3. USB / Micro SD Card Simply plug in your USB Flash Drive or Micro SD Card into the speaker USB port or Card slot then speaker will play music according. 4. Time setting: In time mode, long time press button and then short time press / button to adjust the time accordingly 4 Press the button to switch between the hour and minute. 5. Alarm clock: 1) In time mode /alarm mode, press alarm button to turn on / off alarm 2) Alarm time settling: long time press alarm button and then press / adjust the time accordingly. Press the alarm button to switch between the hour and minute. 3) Alarm music setting: In USB / TF card mode, choose the song you would like to set as alarm music and then press alarm clock button, the screen shall display” -AL-”, then alarm music setting finished. If not set alarm music song, the alarm sound shall be “didi”. Note: Machine may work unnormally due to wrong operation, you could long time press button for 5 seconds to reset the machine then can rework well. Technical Data Built-in high capacity Li battery External USB 5V supply Power Power input: 1000mA Frequency 80HZ-20KHZ 5 FM radio RX 87.5-108MHz SNR ≥90db (line out) Sensitivity Rate 80db Technical THD 0.3% (line out) Output power 5W*2 Speaker Φ45mm 3Ω 3w *2 Music format MP3、WMA、WAV,、APE、FLAC Impedance 3 Ohm Speaker size 240 x55x 61.5mm FAQ: 1. If can not turn on: Please check if the battery is in low power. Please recharge and then try to open again 2. If can not charge Please check if the power supply is working for input charging Please check if the usb cable could work well 3. If mini speaker no sound: Please check if speaker already paired with other machine, if yes, please disconnect from that machine first. Please check if insert USB / TF card and the music format also 4. If no FM radio Please see if there is any electronic equipment to interfere the signal Please adjust the machine direction or position 6 Warning: 1. Do not use the product in high temperature,. Always keep the product away from fire. For the sake of your safety. Never throw the product into fire which may cause explosion and personal injury. 2. It is not allowed to use the product at places close to high-voltage wire or electronic apparatus. Please take proper safety measures when using the product in terrible weathers like thunderstorm 3. It is not allowed to throw the product into water or use it in any high-humidity environment, which may cause destructive damage to the product 4. The product is not designed for use in or near any strong magnetic field which may cause destructive damage to the product

TUNG TAI ENTERPRISE(CHINA) LIMITED 6th floor,A Bldg,NanKeng second industrial zone,Bantian,BuJi town,Longgang District,Shenzhen,China Confidentiality Request Letter Page 1 of 1 Rev 2.0 May 12, 2015 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Permanent Confidentiality Request Confidentiality Request regarding application for certification of FCC ID:2AEQ2SDY019 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Operational Description - Schematic The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature: Client’s name / title: Lisa Huang / Manager Contact information / address: 6th floor,A Bldg,NanKeng second industrial zone,Bantian,BuJi town,Longgang District,Shenzhen,China TEL: 755-83209231 FAX: 755-83223247 E-mail: [email protected]

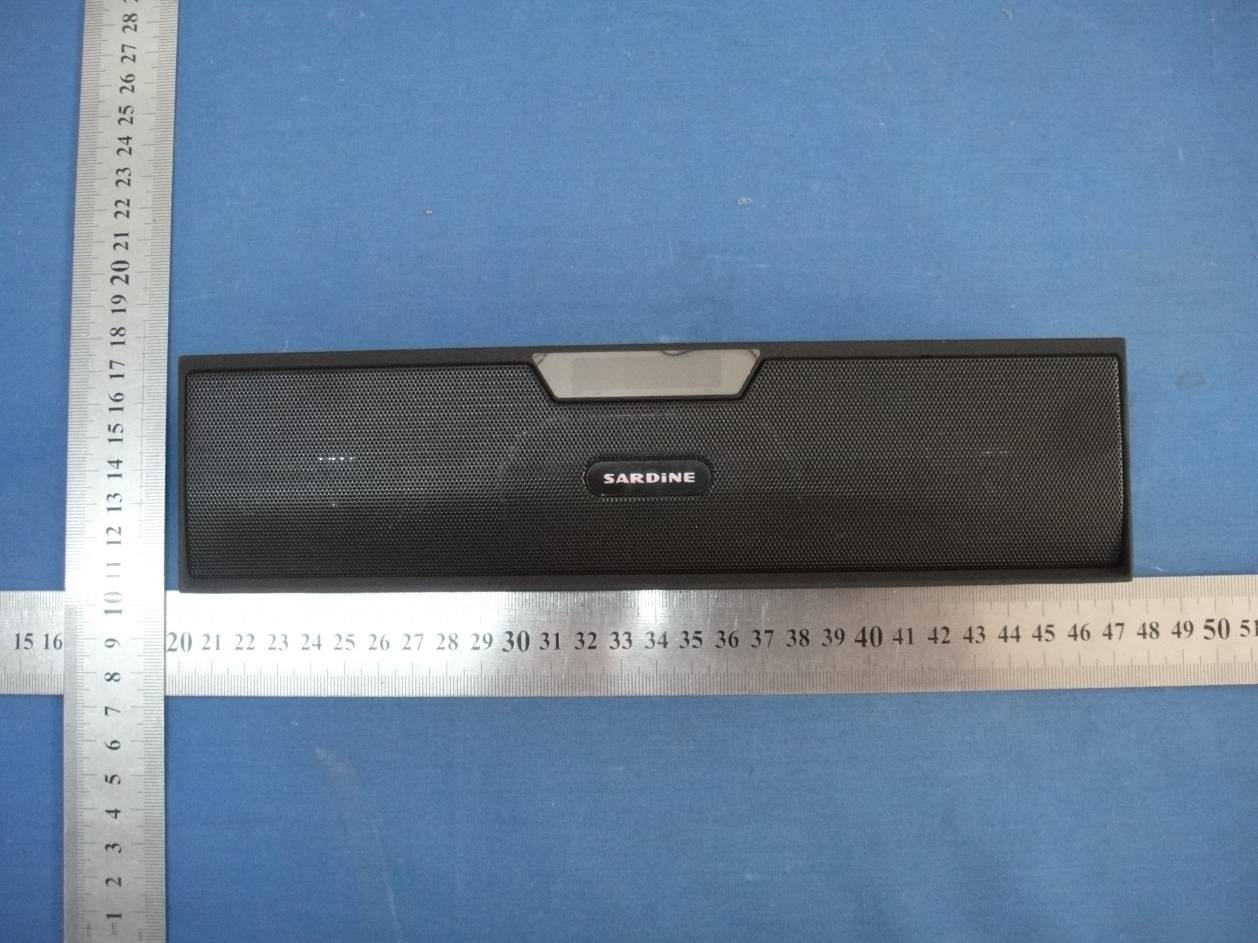

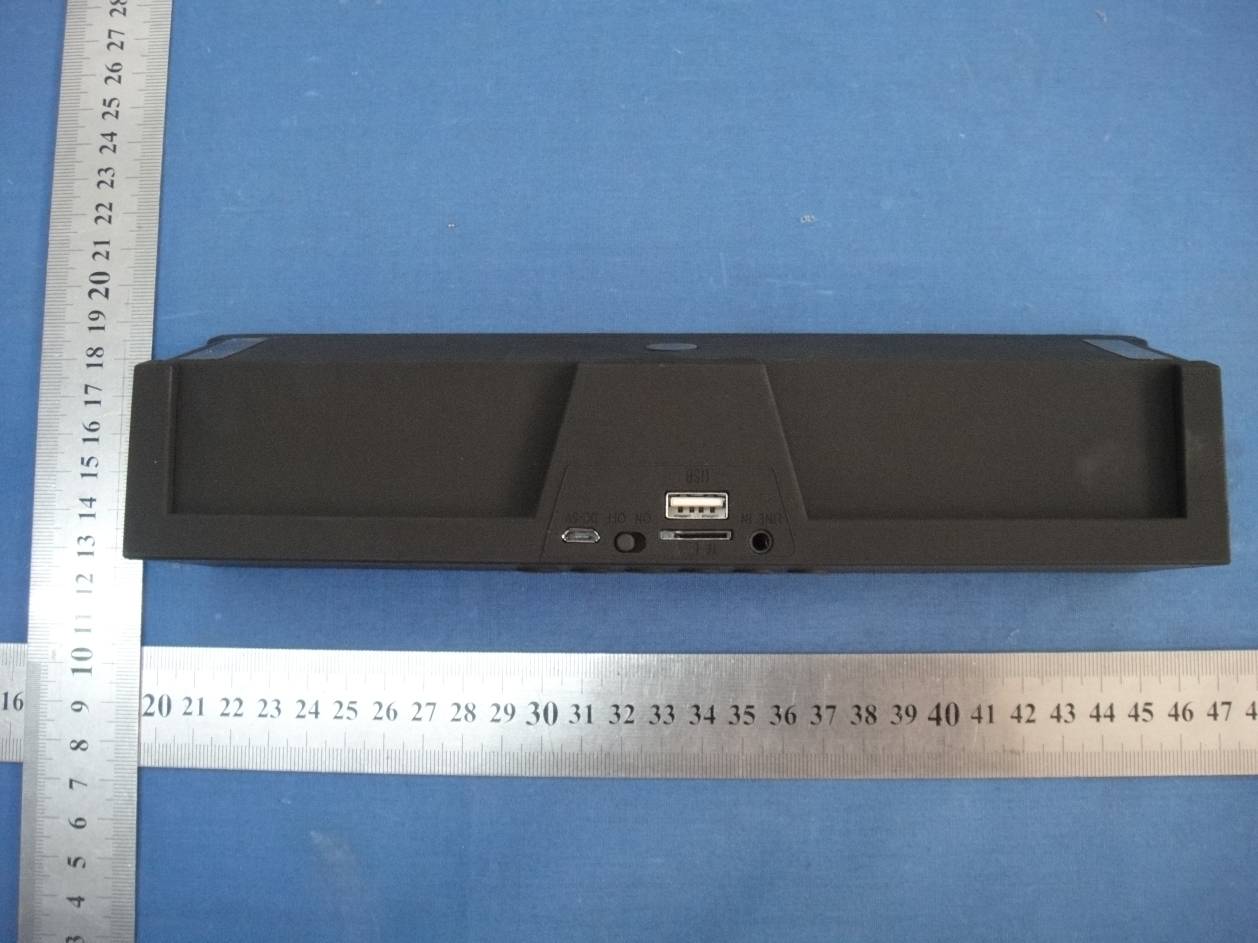

External Photo

FCC Certification Label FCC ID:2AEQ2SDY019 Label Location on EUT label size:high 1cm, Wide:4cm EUT View/ FCC ID Label Location

Internal Photo Antenna

FCC PART 15.249 EMI MEASUREMENT AND TEST REPORT For TUNG TAI ENTERPRISE(CHINA) LIMITED 6th floor,A Bldg,NanKeng second industrial zone,Bantian,BuJi town,Longgang District,Shenzhen,China FCC ID:2AEQ2SDY019 SDY019,SDY021,SDY033,B1,B2,A3 This Report Concerns: Original Report Equipment Type: bluetooth speaker Test Engineer: Lisa Chen Report No.: BSL20150512-1 Receive EUT Date/Test Date: April 30, 2015/ April 30 – May 12, 2015 Reviewed By: Mike moo Prepared By: BSL Testing Co.,LTD. NO. 24, ZH Park, Nantou, Shenzhen, 518000 China Tel: 86- 755-26508703 Fax: 86- 755-26508703 FCC ID: 2AEQ2SDY019 Page 2/25 TABLE OF CONTENTS 1. GENERAL INFORMATION ....................................................................................................3 1.1. Report information ............................................................................................................3 1.2. Measurement Uncertainty .................................................................................................3 2. PRODUCT DESCRIPTION ......................................................................................................4 2.1. EUT Description ...............................................................................................................4 2.2. Block Diagram of EUT Configuration..............................................................................5 2.3. Support Equipment List ....................................................................................................5 2.4. Test Conditions .................................................................................................................5 3. TEST RESULTS SUMMARY ...................................................................................................6 Modifications ................................................................................................................................6 4. TEST EQUIPMENT USED .......................................................................................................7 5. ANTENNA REQUIREMENT ...................................................................................................8 5.1. Standard Applicable..........................................................................................................8 5.2. Antenna Connected Construction .....................................................................................8 5.3. Result ................................................................................................................................8 6. CONDUCTED POWER LINE TEST .......................................................................................9 6.1. Test Equipment .................................................................................................................9 6.2. Test Procedure ..................................................................................................................9 6.3. Test Setup..........................................................................................................................9 6.4. Conducted Power line Emission Limits............................................................................9 6.5. Conducted Power Line Test Result.................................................................................10 7. RADIATED EMISSION TEST ...............................................................................................12 7.1. Test Equipment ...............................................................................................................12 7.2. Test Procedure ................................................................................................................12 7.3. Radiated Test Setup ........................................................................................................12 7.4. Radiated Emission Limit.................................................................................................14 7.5. Radiated Emission Test Result .......................................................................................15 8. BAND EDGE .............................................................................................................................20 8.1. Test Equipment ...............................................................................................................20 8.2. Test Procedure ................................................................................................................20 8.3. Band Edge FCC 15.249(d) Limit ....................................................................................20 8.4. Band Edge Test Result ....................................................................................................21 9. 20-DB BANDWIDTH ...............................................................................................................22 9.1. Test Equipment ...............................................................................................................22 9.2. Test Procedure ................................................................................................................22 9.3. Limit................................................................................................................................22 9.4. Test Result /Plots ............................................................................................................22 FCC ID: 2AEQ2SDY019 Page 3/25 1. GENERAL INFORMATION 1.1. Report information 1.1.1.This report is not a certificate of quality; it only applies to the sample of the specific product/equipment given at the time of its testing. The results are not used to indicate or imply that they are application to the similar items. In addition, such results must not be used to indicate or imply that BSL approves recommends or endorses the manufacture, supplier or use of such product/equipment, or that BSL in any way guarantees the later performance …

Text truncated - open the document above for the full version.

Conducted emissions test Radiated emissions test
