2AEQ6ZA-407Smart Speaker Tablet, SoundTab

User Manual Smart Speaker ZA-407 Smart Speaker Tablet, SoundTab Zettaly I To Our Valued Customers Thank you for cho read the user manual coming with the package to avoid any damage. osing Our Smart Speaker. Before using any of our products, please 1 Read these instructions. 2 Keep these instru Protect the power cord from being walked on or pinched. ctions. 3 Pay attention to all warnings. 4 Follow all instructions. 5 Do not modify the polarized or grounding-type plug. A polarizedplug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong.The wide blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 6 7 Only use accessories specified by the manufacturer. Important Safety Instructions The lightning flash with arrow head symbol, within an equilateral triangle is intended to alert the user that parts inside the product constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user that important operating and servicing instructions are in the papers with the appliance. WARNING:TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT R EMOVE COVER OR DISASSEMBLE THE PRODUCT. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. 8 Refer all servicing to qualified service personnel. Servicing is required when the unit has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled on or objects have fallen into the unit, the unit has been exposed to rain or moisture, does not operate normally, or has been dropped. II 9 Do not install t h e p r o d u c t near any heat sources such as radiators, stoves, or other appliances that produce heat. 10 Unplug this product during lightning storms or when unused for long periods of time. Warning All packing materials such as internal bags, plastic collars, plastic films, and carton inserts are not part of this product and should be discarded. Do not try to disassemble the product. Only charge the product using the power adapter that came with the device. Do not expose the product to moisture or water. To prevent hearing damage, never use the product at excessive volume levels. Listening t o loud sound for an extended period may cause temporary or permanent hearing loss. Never use the product while operating a motor vehicle or bicycle. If you feel discomfort in your hands or any pain using the product, please stop immediately. In case of long period of use, take frequent breaks. . . If any small part is loosening, do not try to remove it. Keep it away from small children. Never force a connector into a port of the product. If a connector and a port do not join with reasonable force, make sure that the connector matches the port and that you have positioned the connector in the correct direction To clean the screen, simply use a soft damp cloth. Do not use alcohol, solvent, aerosol spray or abrasive cleaners to clean the product The product and the adapter should be periodically examined for conditions that may result in the risk of fire, electric shock, or injury to persons and that, in an event of such conditions, the product or adapter should not be used until properly repaired. Operate the product in temperature between 0º and 35ºC (32º to 95ºF).Low or high temperature might temporarily shorten battery life or cause the product to temporarily stop working properly. Avoid dramatic changes in temperature or humidity, as condensation may form on or within the product Store the product in temperature between -20º and 45ºC (-4º to 113ºF).Don't leave the product in a parked vehicle where temperatures can exceed this range. It is normal for the product to get mildly warm when it is in use or charging. The rechargeable battery in the product should be replaced only by the manufacture or its authorized agents. Do not expose installed batteries to excessive heat such as sunshine or fire. If you do not use the product frequently, we recommend keeping the battery level at around 50 percent and fully charge and discharge the battery every three months in order to maximize the battery lifespan. This device is restricted to indoor use when operating in the 2.4 to 2.483 GHz frequency band. Never remove or insert a microSD ca rd while the the product is powered on. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this product. Such modifications could void the user’s authority to operate the product. 1 Content Package Contents ..............................................................................2 Product Specifications ....................................................................3 Remote Control...................................................................................4 Illustration ..................................................................................................................................... 4 Installing Battery in the Remote Control ................................................................... 4 Understanding Your Smart Speaker ..............................................5 Connections and Expansion .........................................................................7 Connecting Power Adapter ...............................................................................................7 Connecting HDMI ................................................................................................................... 7 MicroSD card .............................................................................................................................. 8 Connecting USB ....................................................................................................................... 8 LINE OUT....................................................................…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (current) 4.0 5.0 Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 5.0 Zettaly Inc. 2015-05-19 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, ____ Zettaly Inc.__ hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): Product： Smart Speaker Tablet, SoundTab Trade Name： Zettaly Model Name： ZA-407 Serial Model： MA-407,MA-417,MA-427,MA-447,MA-457, MA-467,NA-407,NA-417,NA-427,NA-447, NA- 457,TelePad 7,TechniSound PAD, HMT 400,HMT400 Plus,ZA-407S-W, ZA-407S-B,ZA-407S-R,ZA-407P-W, ZA-407P-B,ZA-407P-R FCC ID： 2AEQ6ZA-407 Sincerely, Signature Client’s name / title : Harry wang / Engineer Contact information / address : PO Box 5121,Westport, CT 06881, USA

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 4.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (obsolete) 2.0 3.0 Jan-31-2012 Added IC confidentiality letter form (current) 3.0 4.0 March-26-2015 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 4.0 Zettaly Inc. 2015-05-19 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: 2AEQ6ZA-407 We hereby request confidential treatment of information accompanying this application as outlined below: - . Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Signature Client’s name / title :Harry wang / Engineer Contact information / address : PO Box 5121,Westport, CT 06881, USA

Zettaly Inc. Model Difference FCC ID: 2AEQ6ZA-407 Model : ZA-407, MA-407,MA-417,MA-427,MA-447,MA-457,MA-467, NA-407,NA-417,NA-427,NA-447, NA-457,TelePad 7,TechniSound PAD, HMT 400,HMT400 Plus,ZA-407S-W,ZA-407S-B,ZA-407S-R,ZA-407P-W, ZA-407P-B,ZA-407P-R All the model are the same circuit and RF module, except the model name. Regards, Client’s signature Signature Client’s name / title : Harry wang / Engineer Contact information / address : PO Box 5121,Westport, CT 06881, USA

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6

FCC ID LABELING AND LOCATION FCC ID Label Smart Speaker Tablet, SoundTab Model NO.: ZA-407 Zettaly Input Rating: DC 12V/ 1.5A FCC ID: 2AEQ6ZA-407 FCC ID Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

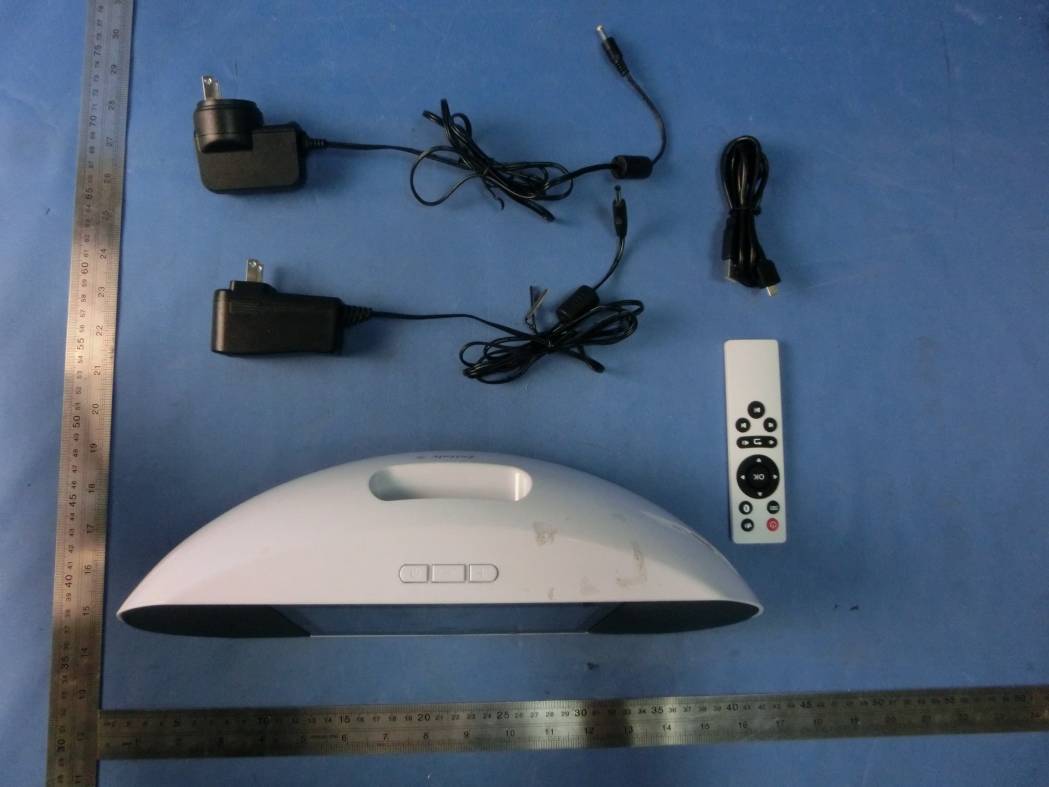

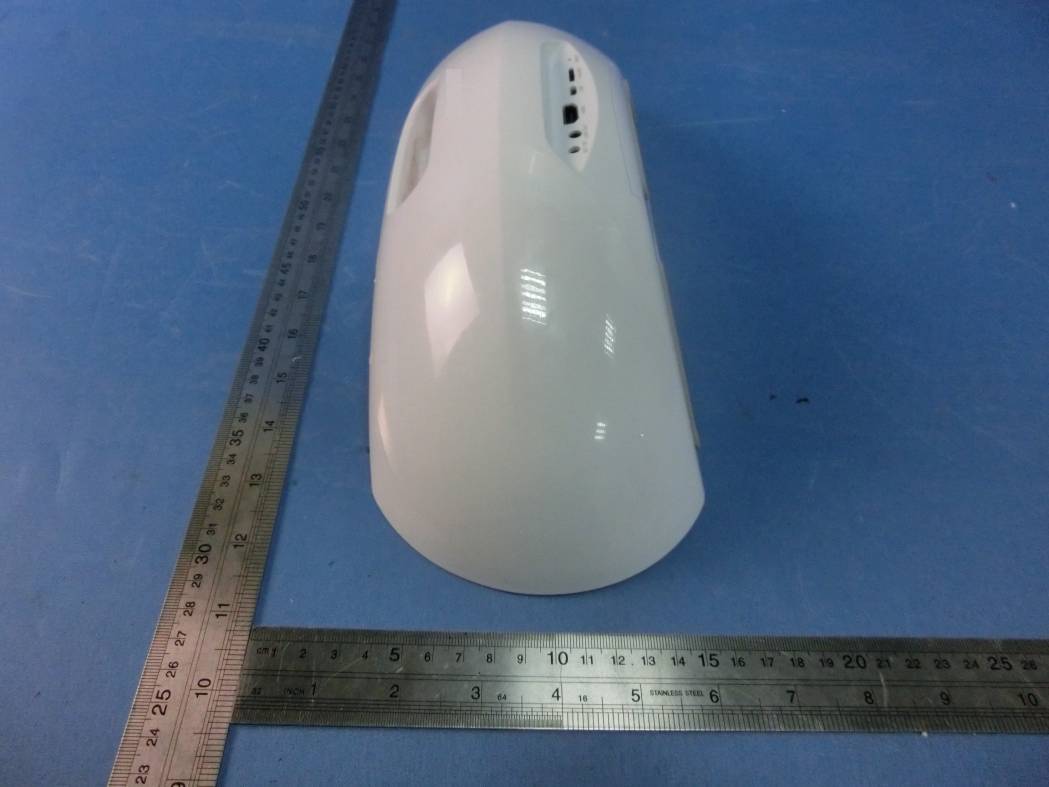

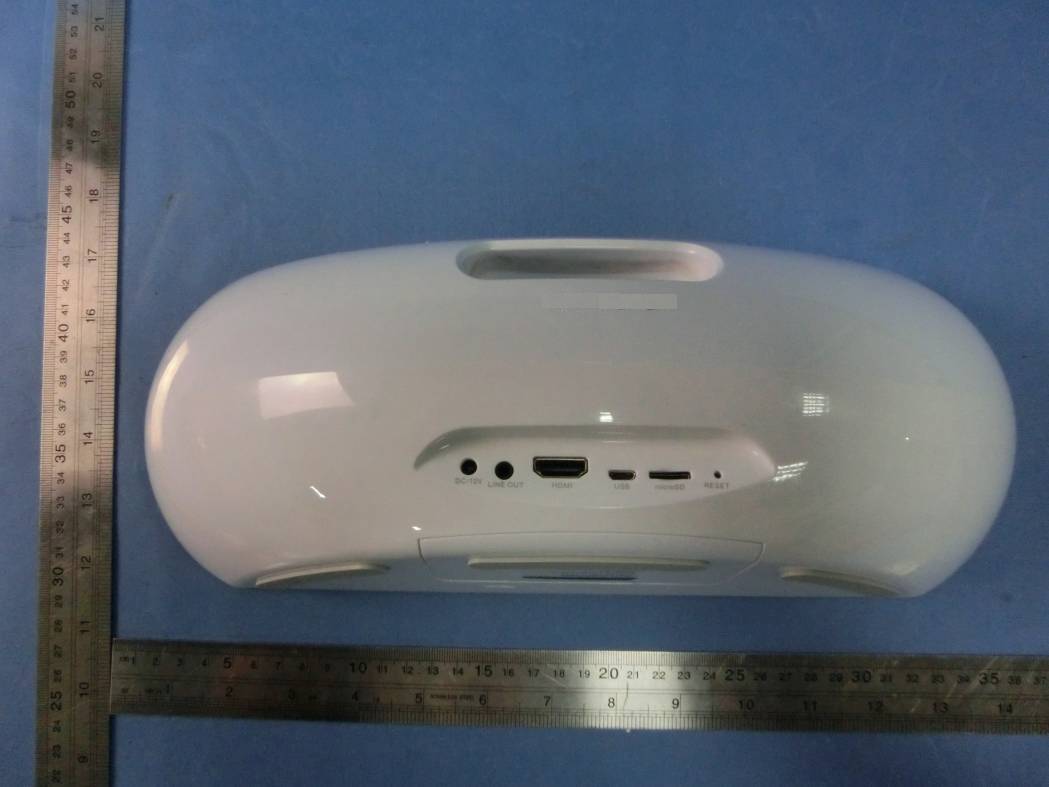

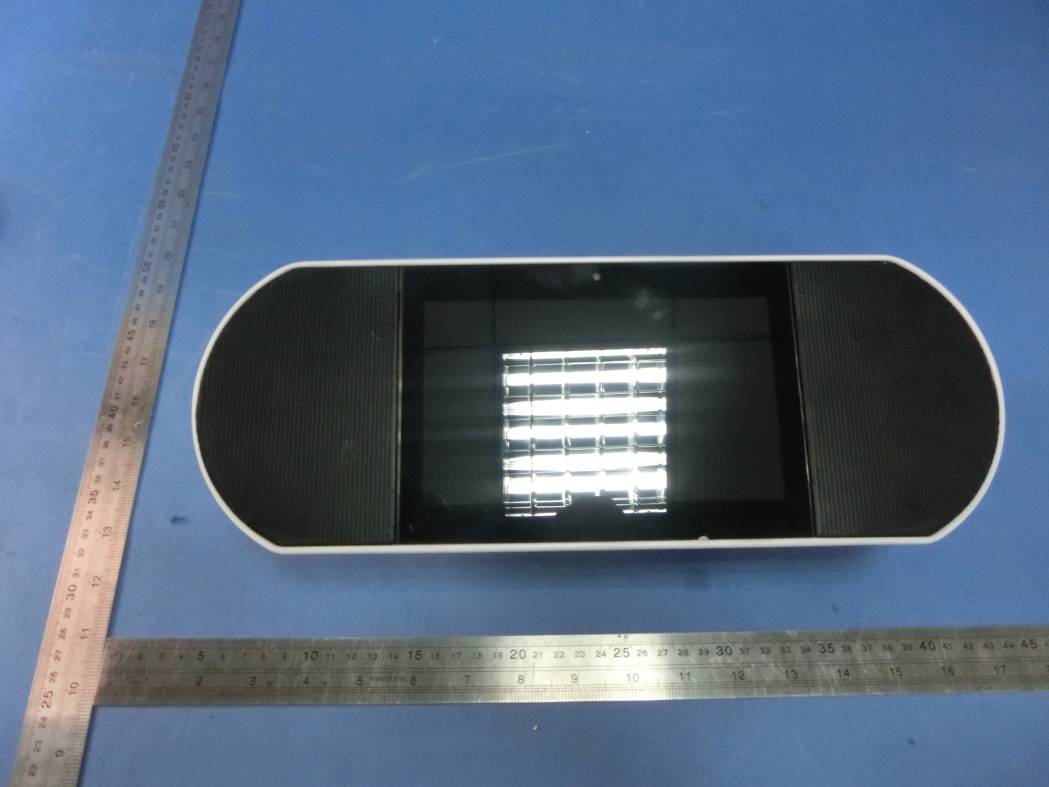

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Photo 3 Photo 4 WiFi Antenna Photo 5 Photo 6 BT Antenna Photo 7 (adapter 1) Photo 8 (adapter 2)

FCC ID : 2AEQ6ZA-407 RF EXPOSURE EVALUATION METHOD FCC ID: 2AEQ6ZA-407 SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Maximum measured transmitter power. WIFI: Te s t Channe Frequency Maximum Conducted Output Power(PK) Average Power(dBm) Average Power(dBm) (MHz) (dBm) (dBm) (mW) TX 802.11b Mode CH01 2412 12.95 9.58 9.078 CH06 2437 12.91 9.54 8.995 CH11 2462 12.89 9.52 8.954 TX 802.11g Mode CH01 2412 12.35 9.22 8.356 CH06 2437 12.39 9.26 8.433 CH11 2462 12.31 9.18 8.279 TX 802.11n-HT20 Mode CH01 2412 12.05 9.22 8.356 CH06 2437 12.07 9.24 8.395 CH11 2462 12.05 9.22 8.356 TX 802.11n-HT40 Mode CH03 2422 11.88 9.46 8.831 CH06 2437 11.94 9.52 8.954 CH09 2452 11.95 9.53 8.974 FCC ID : 2AEQ6ZA-407 BT 1Mbps Test Channel Frequency (MHz) Peak Output Power (dBm) Peak Output Power (mW) CH00 2402 5.85 3.846 CH39 2441 5.94 3.926 CH78 2480 5.85 3.846 2Mbps CH00 2402 3.99 2.506 CH39 2441 3.97 2.495 CH78 2480 3.92 2.466 3Mbps CH00 2402 3.23 2.104 CH39 2441 3.63 2.307 CH78 2480 3.61 2.296 BLE Te s t Channe Frequency Maximum Conducted Output Power(PK) Maximum Conducted Output Power(PK) (MHz) (dBm) mW CH00 2402 5.25 3.350 CH19 2440 5.14 3.266 CH39 2480 5.18 3.296 Remark: The best case gain of the antenna is 1.0dBi. 1.0 dBi logarithmic terms convert to numeric result is nearly 1.26 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)] FCC ID : 2AEQ6ZA-407 WIFI: Te s t Channel Range tune up max power (dBm) [(max. power of channel, including tune-up tolerance, mW) (min. test separation distance,mm)] [f(GHz)] Result Limit TX 802.11b Mode CH01 7.6~9.6 9.6 9.120 5 2.412 2.83 3 CH06 7.6~9.6 9.6 9.120 5 2.437 2.85 3 CH11 7.6~9.6 9.6 9.120 5 2.462 2.86 3 TX 802.11g Mode CH01 7.6~9.6 9.6 9.120 5 2.412 2.83 3 CH06 7.6~9.6 9.6 9.120 5 2.437 2.85 3 CH11 7.6~9.6 9.6 9.120 5 2.462 2.86 3 TX 802.11n-HT20 Mode CH01 7.6~9.6 9.6 9.120 5 2.412 2.83 3 CH06 7.6~9.6 9.6 9.120 5 2.437 2.85 3 CH11 7.6~9.6 9.6 9.120 5 2.462 2.86 3 TX 802.11n-HT40 Mode CH03 7.6~9.6 9.6 9.120 5 2.422 2.83 3 CH06 7.6~9.6 9.6 9.120 5 2.437 2.85 3 CH09 7.6~9.6 9.6 9.120 5 2.452 2.86 3 BT Te s t Channel Range tune up max power (dBm) [(max. power of channel, including tune-up tolerance, mW) (min. test separation distance,mm)] [f(GHz)] Result Limit 1Mbps CH00 4~6 6 3.981 5 2.402 1.234 3 CH39 4~6 6 3.981 5 2.441 1.244 3 CH78 4~6 6 3.981 5 2.480 1.254 3 2Mbps CH00 3~5 5 3.162 5 2.402 0.980 3 CH39 3~5 5 3.162 5 2.441 0.988 3 CH78 3~5 5 3.162 5 2.480 0.996 3 3Mbps CH00 3~5 5 3.162 5 2.402 0.980 3 CH39 3~5 5 3.162 5 2.441 0.988 3 CH78 3~5 5 3.162 5 2.480 0.996 3 FCC ID : 2AEQ6ZA-407 BLE Te s t Channel Range tune up max power (dBm) [(max. power of channel, including tune-up tolerance, mW) (min. test separation distance,mm)] [f(GHz)] Result Limit CH00 4~6 6 3.981 5 2.402 1.234 3 CH39 4~6 6 3.981 5 2.441 1.244 3 CH78 4~6 6 3.981 5 2.480 1.254 3 The test Result is less than 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. Conclusion: No SAR is required.

FCC RADIO TEST REPORT-BLE FCC ID:2AEQ6ZA-407 Product： Smart Speaker Tablet, SoundTab Trade Name： Zettaly Model Name： ZA-407 Serial Model： MA-407,MA-417,MA-427,MA-447,MA-457, MA-467,NA-407,NA-417,NA-427,NA-447, NA-457,TelePad 7,TechniSound PAD, HMT 400,HMT400 Plus,ZA-407S-W, ZA-407S-B,ZA-407S-R,ZA-407P-W, ZA-407P-B,ZA-407P-R Report No.： NTEK-2015NT04291596F3 Prepared for Zettaly Inc. PO Box 5121,Westport, CT 06881, USA Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen P.R. China Tel.: +86-0755-61156588 Fax.: +86-0755-61156599 Website:www.ntek.org.cn Page 2 of 40 Report No.: NTEK-2015NT04291596F3 TEST RESULT CERTIFICATION Applicant’s name ........ Zettaly Inc. Address ........................ PO Box 5121,Westport, CT 06881, USA Manufacture's Name ... Pan Ocean (HK) Technology Limited Address ........................ UNIT 2209 22/F WU CHUNG HOUSE 213 QUEEN'S ROAD EAST WANCHAI HONG KONG Product description Product name .................Smart Speaker Tablet, SoundTab Model and/or type reference ..................... ZA-407 Serial Model .................... MA-407,MA-417,MA-427,MA-447,MA-457,MA-467, NA-407,NA-417,NA-427,NA-447, NA-457,TelePad 7, TechniSound PAD,HMT 400,HMT400 Plus,ZA-407S-W, ZA-407S-B,ZA-407S-R,ZA-407P-W,ZA-407P-B,ZA-407P-R Standards .................... FCC Part15.247: 01 Oct. 2014 Test procedure ................ ANSI C63.10-2013 and KDB 558074: June 5, 2014 This device described above has been tested by NTEK, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of NTEK, this document may be altered or revised by NTEK, personal only, and shall be noted in the revision of the document. Date of Test ............................................ : Date (s) of performance of tests ............. : 29 Apr. 2015~12 May 2015 Date of Issue ........................................... : 12 May 2015 Test Result ............................................... : Pass Testing Engineer : Denny Huang Technical Manager : (Brown Lu) Authorized Signatory : (Bill Yao) Page 3 of 40 Report No.: NTEK-2015NT04291596F3 Table of Contents Page 1 . SUMMARY OF TEST RESULTS 5 1.1 TEST FACILITY 6 1.2 MEASUREMENT UNCERTAINTY 6 2 . GENERAL INFORMATION 7 2.1 GENERAL DESCRIPTION OF EUT 7 2.2 DESCRIPTION OF TEST MODES 9 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 10 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 11 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 12 3 . EMC EMISSION TEST 13 3.1 CONDUCTED EMISSION MEASUREMENT 13 3.1.1 POWER LINE CONDUCTED EMISSION LIMITS 13 3.1.2 TEST PROCEDURE 14 3.1.3 DEVIATION FROM TEST STANDARD 14 3.1.4 TEST SETUP 14 3.1.5 EUT OPERATING CONDITIONS 14 3.1.6 TEST RESULTS 15 3.2 RADIATED EMISSION MEASUREMENT 19 3.2.1 RADIATED EMISSION LIMITS 19 3.2.2 TEST PROCEDURE 20 3.2.3 DEVIATION FROM TEST STANDARD 20 3.2.4 TEST SETUP 21 3.2.5 EUT OPERATING CONDITIONS 22 3.2.6 TEST RESULTS (BETWEEN 9KHZ – 30 MHZ) 23 3.2.7 TEST RESULTS (BETWEEN 30MHZ – 1GHZ) 24 3.2.8 TEST RESULTS (ABOVE 1000 MHZ) 26 4 . POWER SPECTRAL DENSITY TEST 27 4.1 APPLIED PROCEDURES / LIMIT 27 4.1.1 TEST PROCEDURE 27 4.1.2 DEVIATION FROM STANDARD 27 4.1.3 TEST SETUP 27 4.1.4 EUT OPERATION CONDITIONS 27 4.1.5 TEST RESULTS 28 5 . BANDWIDTH TEST 30 5.1 APPLIED PROCEDURES / LIMIT 30 5.1.1 TEST PROCEDURE 30 Page 4 of 40 Report No.: NTEK-2015NT04291596F3 Table of Contents Page TEST SETUP 30 5.1.2 EUT OPERATION CONDITIONS 30 5.1.3 TEST RESULTS 31 6 . PEAK OUTPUT POWER TEST 33 6.1 APPLIED PROCEDURES / LIMIT 33 6.1.1 TEST PROCEDURE 33 6.1.2 DEVIATION FROM STANDARD 33 6.1.3 TEST SETUP 33 6.1.4 EUT OPERATION CONDITIONS 33 6.1.5 TEST RESULTS 34 7 . 100 KHZ BANDWIDTH OF FREQUENCY BAND EDGE 35 7.1 DEVIATION FROM STANDARD 35 7.2 TEST SETUP 35 7.3 EUT OPERATION CONDITIONS 35 7.4 TEST RESULTS 36 8 . ANTENNA REQUIREMENT 38 8.1 STANDARD REQUIREMENT 38 8.2 EUT ANTENNA 38 9 . EUT TEST PHOTO 39 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Page 5 of 40 Report No.: NTEK-2015NT04291596F3 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247 (a)(2) 6dB Bandwidth PASS 15.247 (b) Peak Output Power PASS 15.247 (c) Radiated Spurious Emission PASS 15.247 (d) Power Spectral Density PASS 15.205 Band Edge Emission PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Page 6 of 40 Report No.: NTEK-2015NT04291596F3 1.1 TEST FACILITY NTEK Testing Technology Co., Ltd Add.:1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen P.R. China. FCC Registration No.:238937; IC Registration No.:9270A-1 CNAS Registration No.:L5516 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±1.38dB 2 RF power,conducted ±0.16dB 3 Spurious emissions,conducted ±0.21dB 4 All emissions,radiated(<1G) ±4.68dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% Page 7 of 40 Report No.: NTEK-2015NT04291596F3 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment Smart Speaker Tablet, SoundTab Trade Name Zettaly Model Name ZA-407 Serial Model MA-407,MA-417,MA-427,MA-447,MA-457,MA-467, NA-407,NA-417,NA-427,NA-447, NA-457,TelePad 7, TechniSound PAD,HMT 400,HMT400 Plus,ZA-407S-W, ZA-407S-B,ZA-407S-R,ZA-407P-W,ZA-407P-B,ZA-407P-R Model Difference All the model are the same circuit and RF module, except the model name. Product Description The EUT is a Smart Speaker Tablet, SoundTab Operation Fr…

Text truncated - open the document above for the full version.

FCC RADIO TEST REPORT FCC ID:2AEQ6ZA-407 Product： Smart Speaker Tablet, SoundTab Trade Name： Zettaly Model Name： ZA-407 Serial Model： MA-407,MA-417,MA-427,MA-447,MA-457, MA-467,NA-407,NA-417,NA-427,NA-447, NA-457,TelePad 7,TechniSound PAD, HMT 400,HMT400 Plus,ZA-407S-W, ZA-407S-B,ZA-407S-R,ZA-407P-W, ZA-407P-B,ZA-407P-R Report No.： NTEK-2015NT04291596F4 Prepared for Zettaly Inc. PO Box 5121,Westport, CT 06881, USA Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen P.R. China Tel.: +86-0755-61156588 Fax.: +86-0755-61156599 Website:www.ntek.org.cn Page 2 of 56 Report No.: NTEK-2015NT04291596F4 TEST RESULT CERTIFICATION Applicant’s name ........ Zettaly Inc. Address ........................ PO Box 5121,Westport, CT 06881, USA Manufacture's Name ... Pan Ocean (HK) Technology Limited Address ........................ UNIT 2209 22/F WU CHUNG HOUSE 213 QUEEN'S ROAD EAST WANCHAI HONG KONG Product description Product name .................Smart Speaker Tablet, SoundTab Model and/or type reference ..................... ZA-407 Serial Model .................... MA-407,MA-417,MA-427,MA-447,MA-457,MA-467, NA-407,NA-417,NA-427,NA-447, NA-457,TelePad 7, TechniSound PAD,HMT 400,HMT400 Plus,ZA-407S-W, ZA-407S-B,ZA-407S-R,ZA-407P-W,ZA-407P-B,ZA-407P-R Standards .................... FCC Part15.247 01 Oct. 2014 Test procedure ................ ANSI C63.10-2013 and KDB 558074: June 5, 2014 This device described above has been tested by NTEK, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of NTEK, this document may be altered or revised by NTEK, personal only, and shall be noted in the revision of the document. Date of Test ...................................... Date (s) of performance of tests ....... 29 Apr. 2015~12 May 2015 Date of Issue ..................................... 12 May 2015 Test Result ......................................... Pass Testing Engineer : Denny Huang Technical Manager : (Brown Lu) Authorized Signatory : (Bill Yao) Page 3 of 56 Report No.: NTEK-2015NT04291596F4 Table of Contents Page 1 . SUMMARY OF TEST RESULTS 5 1.1 TEST FACILITY 6 1.2 MEASUREMENT UNCERTAINTY 6 2 . GENERAL INFORMATION 7 2.1 GENERAL DESCRIPTION OF EUT 7 2.2 DESCRIPTION OF TEST MODES 9 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 10 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 11 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 12 3 . EMC EMISSION TEST 13 3.1 CONDUCTED EMISSION MEASUREMENT 13 3.1.1 POWER LINE CONDUCTED EMISSION LIMITS 13 3.1.2 TEST PROCEDURE 14 3.1.3 DEVIATION FROM TEST STANDARD 14 3.1.4 TEST SETUP 14 3.1.5 EUT OPERATING CONDITIONS 14 3.1.6 TEST RESULTS 15 3.2 RADIATED EMISSION MEASUREMENT 19 3.2.1 RADIATED EMISSION LIMITS 19 3.2.2 TEST PROCEDURE 20 3.2.3 DEVIATION FROM TEST STANDARD 20 3.2.4 TEST SETUP 21 3.2.5 EUT OPERATING CONDITIONS 22 3.2.6 TEST RESULTS (BETWEEN 9KHZ – 30 MHZ) 23 3.2.7 TEST RESULTS (BETWEEN 30MHZ – 1GHZ) 24 3.2.8 TEST RESULTS (ABOVE 1000 MHZ) 26 4 . POWER SPECTRAL DENSITY TEST 27 4.1 APPLIED PROCEDURES / LIMIT 27 4.1.1 TEST PROCEDURE 27 4.1.2 DEVIATION FROM STANDARD 27 4.1.3 TEST SETUP 27 4.1.4 EUT OPERATION CONDITIONS 27 4.1.5 TEST RESULTS 28 5 . BANDWIDTH TEST 36 5.1 APPLIED PROCEDURES / LIMIT 36 5.1.1 TEST PROCEDURE 36 Page 4 of 56 Report No.: NTEK-2015NT04291596F4 Table of Contents Page TEST SETUP 36 5.1.2 EUT OPERATION CONDITIONS 36 5.1.3 TEST RESULTS 37 6 . PEAK OUTPUT POWER TEST 45 6.1 APPLIED PROCEDURES / LIMIT 45 6.1.1 TEST PROCEDURE 45 6.1.2 DEVIATION FROM STANDARD 45 6.1.3 TEST SETUP 45 6.1.4 EUT OPERATION CONDITIONS 45 6.1.5 TEST RESULTS 46 7 . 100 KHZ BANDWIDTH OF FREQUENCY BAND EDGE 47 7.1 DEVIATION FROM STANDARD 47 7.2 TEST SETUP 47 7.3 EUT OPERATION CONDITIONS 47 7.4 TEST RESULTS 48 8 . ANTENNA REQUIREMENT 54 8.1 STANDARD REQUIREMENT 54 8.2 EUT ANTENNA 54 9 . EUT TEST PHOTO 55 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Page 5 of 56 Report No.: NTEK-2015NT04291596F4 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247 (a)(2) 6dB Bandwidth PASS 15.247 (b) Peak Output Power PASS 15.247 (c) Radiated Spurious Emission PASS 15.247 (d) Power Spectral Density PASS 15.205 Band Edge Emission PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Page 6 of 56 Report No.: NTEK-2015NT04291596F4 1.1 TEST FACILITY NTEK Testing Technology Co., Ltd Add.:1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen P.R. China. FCC Registration No.:238937; IC Registration No.:9270A-1 CNAS Registration No.:L5516 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±1.38dB 2 RF power,conducted ±0.16dB 3 Spurious emissions,conducted ±0.21dB 4 All emissions,radiated(<1G) ±4.68dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% Page 7 of 56 Report No.: NTEK-2015NT04291596F4 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment Smart Speaker Tablet, SoundTab Trade Name Zettaly Model Name ZA-407 Serial Model MA-407,MA-417,MA-427,MA-447,MA-457,MA-467, NA-407,NA-417,NA-427,NA-447, NA-457,TelePad 7, TechniSound PAD,HMT 400,HMT400 Plus,ZA-407S-W, ZA-407S-B,ZA-407S-R,ZA-407P-W,ZA-407P-B,ZA-407P-R Model Difference All the model are the same circuit and RF module, except the model name. Product Description Operation Frequency: 802.11b/g/n(20MHz): 2412~2462MHz 802.11n(40MHz):2422~2452MHz Modulation …

Text truncated - open the document above for the full version.

Radiated Measurement Photos (Adapter 1) (Adapter 2)
