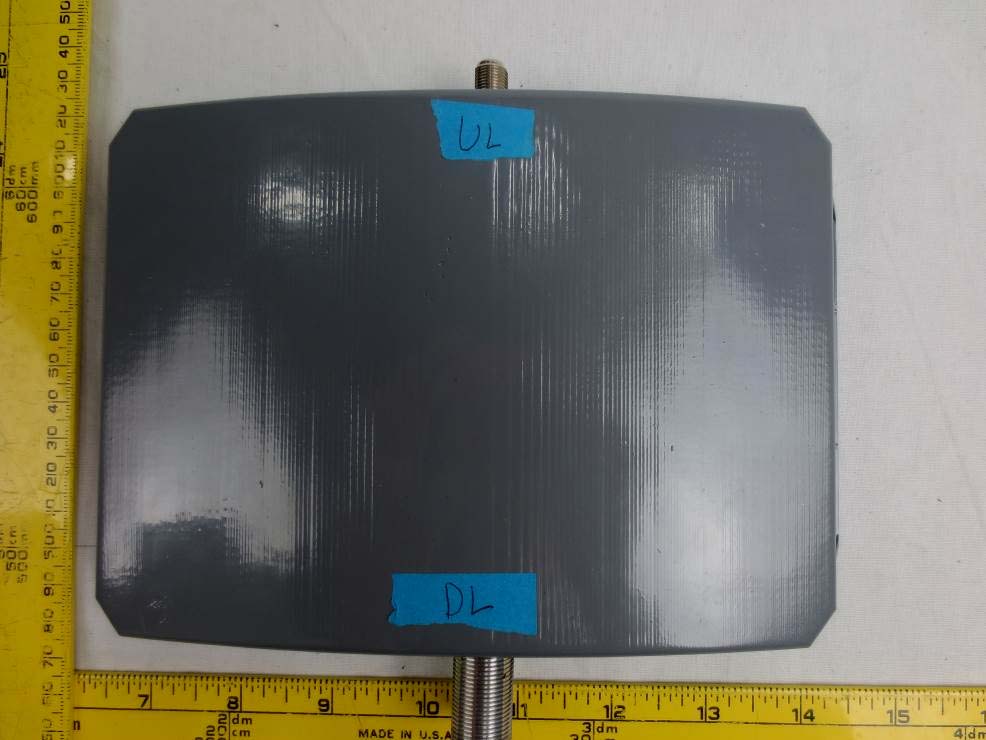

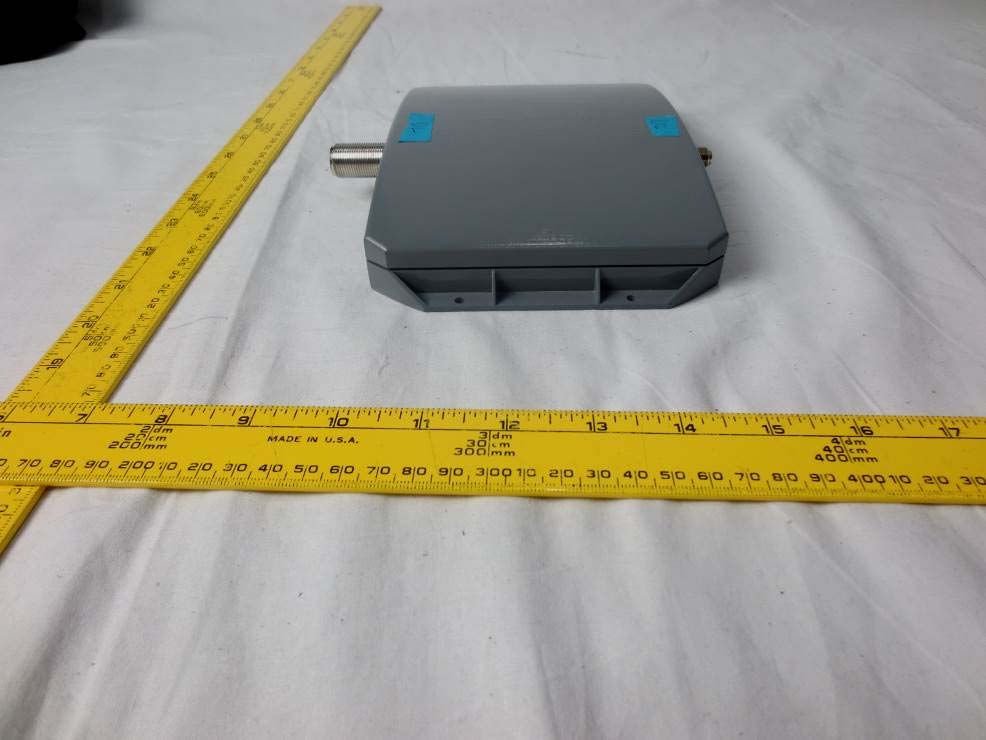

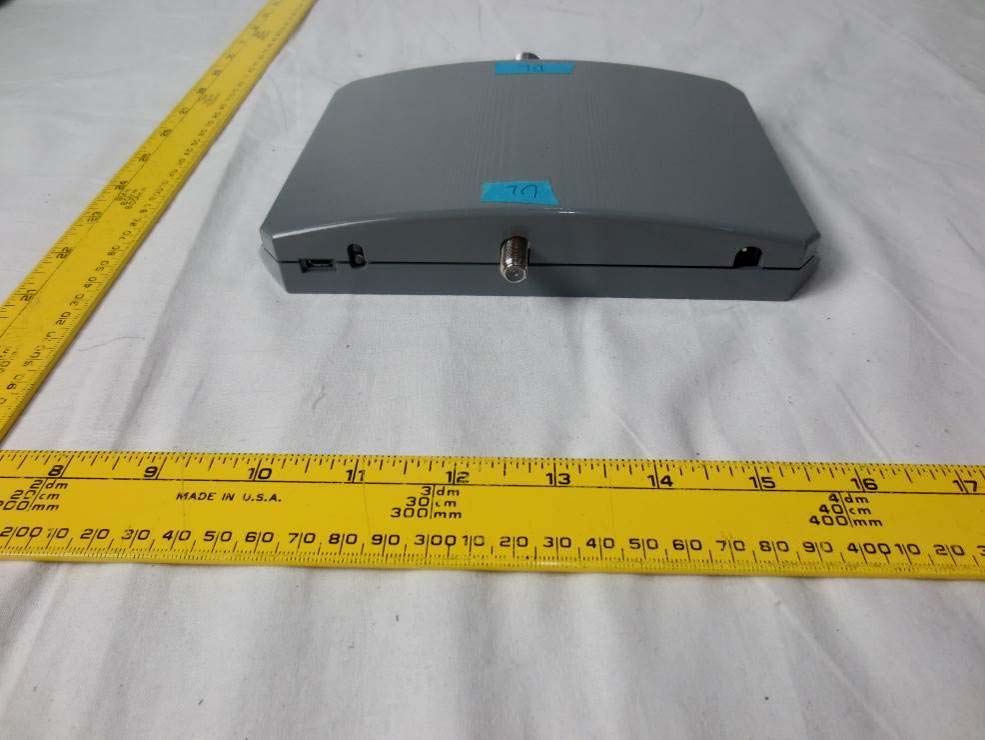

Whoop Wireless Inc. FCC ID: 2AEQJ-CP4-001 Report Number: R1506022-22 Rev B Page 201 of 205 FCC Part 22H Test Report 12 Exhibit C – EUT Photographs 12.1 EUT – Front View 12.2 EUT – Rear View Whoop Wireless Inc. FCC ID: 2AEQJ-CP4-001 Report Number: R1506022-22 Rev B Page 202 of 205 FCC Part 22H Test Report 12.3 EUT – Right Side View 12.4 EUT – Left Side View Whoop Wireless Inc. FCC ID: 2AEQJ-CP4-001 Report Number: R1506022-22 Rev B Page 203 of 205 FCC Part 22H Test Report 12.5 EUT – Top View 12.6 EUT – Bottom View

Whoop Wireless Inc. FCC ID: 2AEQJ-CP4-001 Report Number: R1506022-22 Rev B Page 204 of 205 FCC Part 22H Test Report 12.7 EUT – Open Case View 12.8 EUT - PCB Board Bottom Whoop Wireless Inc. FCC ID: 2AEQJ-CP4-001 Report Number: R1506022-22 Rev B Page 205 of 205 FCC Part 22H Test Report 12.9 EUT Adapter --- END OF REPORT ---

1 FCC §2.1091 - RF Exposure 1.1 Applicable Standards According to §2.1091 (Mobile Devices) RF exposure is calculated. Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minute) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 Note: f = frequency in MHz * = Plane-wave equivalent power density 1.2 MPE Prediction Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 S = PG/4R² Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Whoop Wireless Inc. FCC ID: 2AEQJ-CP4-001 1.3 Test Results Cellular Band Downlink (Directional Antenna) Maximum peak output power at antenna input terminal (dBm): 15.98 Maximum peak output power at antenna input terminal (mW): 39.627 Prediction distance (cm): 30 Prediction frequency (MHz): 881.5 Antenna Gain, typical (dBi): 8.5 Maximum Antenna Gain (numeric): 7.0795 Power density at predication frequency and distance (mW/cm 2 ): 0.025 MPE limit for uncontrolled exposure at predication frequency (mW/cm 2 ): 0.588 Downlink (Omni Directional Antenna) Maximum peak output power at antenna input terminal (dBm): 15.98 Maximum peak output power at antenna input terminal (mW): 39.627 Prediction distance (cm): 30 Prediction frequency (MHz): 881.5 Antenna Gain, typical (dBi): 3.5 Maximum Antenna Gain (numeric): 2.239 Power density at predication frequency and distance (mW/cm 2 ): 0.0079 MPE limit for uncontrolled exposure at predication frequency (mW/cm 2 ): 0.588 Uplink Maximum peak output power at antenna input terminal (dBm): 15.88 Maximum peak output power at antenna input terminal (mW): 38.726 Prediction distance (cm): 30 Prediction frequency (MHz): 836.5 Antenna Gain, typical (dBi): 8.5 Maximum Antenna Gain (numeric): 7.0795 Power density at predication frequency and distance (mW/cm 2 ): 0.0243 MPE limit for uncontrolled exposure at predication frequency (mW/cm 2 ): 0.558 Whoop Wireless Inc. FCC ID: 2AEQJ-CP4-001 PCS Band Downlink (Directional Antenna) Maximum peak output power at antenna input terminal (dBm): 16.04 Maximum peak output power at antenna input terminal (mW): 40.180 Prediction distance (cm): 30 Prediction frequency (MHz): 1960 Antenna Gain, typical (dBi): 10 Maximum Antenna Gain (numeric): 10 Power density at predication frequency and distance (mW/cm 2 ): 0.036 MPE limit for uncontrolled exposure at predication frequency (mW/cm 2 ): 1.0 Downlink (Omni Directional Antenna) Maximum peak output power at antenna input terminal (dBm): 16.04 Maximum peak output power at antenna input terminal (mW): 40.180 Prediction distance (cm): 30 Prediction frequency (MHz): 1960 Antenna Gain, typical (dBi): 5 Maximum Antenna Gain (numeric): 3.1622 Power density at predication frequency and distance (mW/cm 2 ): 0.0113 MPE limit for uncontrolled exposure at predication frequency (mW/cm 2 ): 1.0 Uplink Maximum peak output power at antenna input terminal (dBm): 15.86 Maximum peak output power at antenna input terminal (mW): 38.548 Prediction distance (cm): 30 Prediction frequency (MHz): 1852.5 Antenna Gain, typical (dBi): 10 Maximum Antenna Gain (numeric): 10 Power density at predication frequency and distance (mW/cm 2 ): 0.0341 MPE limit for uncontrolled exposure at predication frequency (mW/cm 2 ): 1.0 Whoop Wireless Inc. FCC ID: 2AEQJ-CP4-001 Band 4 Downlink (Bidirectional) Maximum peak output power at antenna input terminal (dBm): 15.80 Maximum peak output power at antenna input terminal (mW): 38.460 Prediction distance (cm): 30 Prediction frequency (MHz): 2150 Antenna Gain, typical (dBi): 10 Maximum Antenna Gain (numeric): 10 Power density at predication frequency and distance (mW/cm 2 ): 0.014 MPE limit for uncontrolled exposure at predication frequency (mW/cm 2 ): 1.0 Downlink (Omnidirectional) Maximum peak output power at antenna input terminal (dBm): 15.80 Maximum peak output power at antenna input terminal (mW): 38.460 Prediction distance (cm): 30 Prediction frequency (MHz): 2150 Antenna Gain, typical (dBi): 5 Maximum Antenna Gain (numeric): 3.163 Power density at predication frequency and distance (mW/cm2): 0.0044 MPE limit for uncontrolled exposure at predication frequency (mW/cm2): 1.0 Uplink Maximum peak output power at antenna input terminal (dBm): 16 Maximum peak output power at antenna input terminal (mW): 39.811 Prediction distance (cm): 30 Prediction frequency (MHz): 1710.8 Antenna Gain, typical (dBi): 10 Maximum Antenna Gain (numeric): 10 Power density at predication frequency and distance (mW/cm 2 ): 0.036 MPE limit for uncontrolled exposure at predication frequency (mW/cm 2 ): 1.0 Whoop Wireless Inc. FCC ID: 2AEQJ-CP4-001 Band 13 & Band 17 Downlink (Bidirectional) Maximum peak output power at antenna input terminal (dBm): 15.78 Maximum peak output power at antenna input terminal (mW): 37.845 Prediction distance (cm): 30 Prediction frequency (MHz): 751 Antenna Gain, typical (dBi): 8.5 Maximum Antenna Gain (numeric): 7.080 Power density at predication frequency and distance (mW/cm 2 ): 0.0238 MPE limit for uncontrolled exposure at predication frequency (mW/cm 2 ): 0.500 Downlink (Omnidirectional) Maximum peak output power at antenna input terminal (dBm): 15.78 Maximum peak output power at antenna input terminal (mW): 37.845 Prediction distance (cm): 30 Prediction frequency (MHz): 751 Antenna Gain, typical (dBi): 3.5 Maximum Antenna Gain (numeric): 2.239 Power density at predication frequency and distance (mW/cm2): 0.0075 MPE limit for uncontrolled exposure at predication frequency (mW/cm2): 0.500 Uplink Maximum peak output power at antenna input terminal (dBm): 15.98 Maximum peak output power at antenna input terminal (m…

Text truncated - open the document above for the full version.

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by A2LA* or any agency of the Federal Government. * This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “*” (Rev.3) FCC PART 22H TEST AND MEASUREMENT REPORT For Whoop Wireless, Inc. 5913 NW 31 st Ave., Fort Lauderdale, Germantown, FL 33309, USA Report Type: Original Report Product Type: Industrial Booster Prepared By: Ronak Patel Test Engineer Report Number: R1506022-22 Rev B Report Date: 2015-07-30 Reviewed By: Simon Ma RF Lead Bay Area Compliance Laboratories Corp. 1274 Anvilwood Avenue, Sunnyvale, CA 94089, USA Tel: (408) 732-9162 Fax: (408) 732 9164 FCC ID: 2AEQJ-CP4-001 Whoop Wireless Inc. FCC ID: 2AEQJ-CP4-001 Report Number: R1506022-22 Rev B Page 2 of 205 FCC Part 22H Test Report TABLE OF CONTENTS 1 GENERAL INFORMATION ............................................................................................................................... 5 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ........................................................................... 5 1.2 MECHANICAL DESCRIPTION .............................................................................................................................. 5 1.3 OBJECTIVE ......................................................................................................................................................... 5 1.4 RELATED SUBMITTAL(S)/GRANT(S) ................................................................................................................... 5 1.5 TEST METHODOLOGY ........................................................................................................................................ 5 1.6 MEASUREMENT UNCERTAINTY .......................................................................................................................... 6 1.7 TEST FACILITY ................................................................................................................................................... 6 2 SYSTEM TEST CONFIGURATION .................................................................................................................. 8 2.1 JUSTIFICATION ................................................................................................................................................... 8 2.2 EUT EXERCISE SOFTWARE ................................................................................................................................ 8 2.3 EQUIPMENT MODIFICATIONS ............................................................................................................................. 8 2.4 EUT INTERNAL CONFIGURATION ...................................................................................................................... 8 2.5 LOCAL SUPPORT EQUIPMENT LIST AND DETAILS .............................................................................................. 8 2.6 POWER SUPPLY AND LINE FILTERS .................................................................................................................... 8 2.7 INTERFACE PORTS AND CABLING ...................................................................................................................... 8 3 SUMMARY OF TEST RESULTS ........................................................................................................................ 9 4 FCC §2.1046 & §22.913(A) – RF OUTPUT POWER ....................................................................................... 10 4.1 APPLICABLE STANDARDS ................................................................................................................................ 10 4.2 TEST PROCEDURE ............................................................................................................................................ 10 4.3 TEST EQUIPMENT LIST AND DETAILS .............................................................................................................. 10 4.4 TEST ENVIRONMENTAL CONDITIONS ............................................................................................................... 10 4.5 TEST RESULTS ................................................................................................................................................. 11 5 FCC §2.1049 & §22.917 - OCCUPIED BANDWIDTH .................................................................................... 17 5.1 APPLICABLE STANDARDS ................................................................................................................................ 17 5.2 TEST PROCEDURE ............................................................................................................................................ 17 5.3 TEST EQUIPMENT LIST AND DETAILS .............................................................................................................. 17 5.4 TEST ENVIRONMENTAL CONDITIONS ............................................................................................................... 17 5.5 TEST RESULTS ................................................................................................................................................. 17 6 FCC §2.1053 & §22.917- SPURIOUS RADIATED EMISSIONS .................................................................. 118 6.1 APPLICABLE STANDARDS .............................................................................................................................. 118 6.2 TEST PROCEDURE .......................................................................................................................................... 118 6.3 TEST EQU…

Text truncated - open the document above for the full version.

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by A2LA* or any agency of the Federal Government. * This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “*” (Rev.3) FCC PART 24E TEST AND MEASUREMENT REPORT For Whoop Wireless, Inc. 5913 NW 31 st Ave., Fort Lauderdale, Germantown, FL 33309, USA Report Type: Original Report Product Type: Industrial Booster Prepared By: Ronak Patel Test Engineer Report Number: R1506022-24 Rev B Report Date: 2015-07-29 Reviewed By: Simon Ma RF Lead Bay Area Compliance Laboratories Corp. 1274 Anvilwood Avenue, Sunnyvale, CA 94089, USA Tel: (408) 732-9162 Fax: (408) 732 9164 FCC ID: 2AEQJ-CP4-001 Whoop Wireless Inc. FCC ID: 2AEQJ-CP4-001 Report Number: R1506022-24 Rev B Page 2 of 300 FCC Part 24E Test Report TABLE OF CONTENTS 1 GENERAL INFORMATION ............................................................................................................................... 5 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ........................................................................... 5 1.2 MECHANICAL DESCRIPTION .............................................................................................................................. 5 1.3 OBJECTIVE ......................................................................................................................................................... 5 1.4 RELATED SUBMITTAL(S)/GRANT(S) ................................................................................................................... 5 1.5 TEST METHODOLOGY ........................................................................................................................................ 5 1.6 MEASUREMENT UNCERTAINTY .......................................................................................................................... 6 1.7 TEST FACILITY ................................................................................................................................................... 6 2 SYSTEM TEST CONFIGURATION .................................................................................................................. 8 2.1 JUSTIFICATION ................................................................................................................................................... 8 2.2 EUT EXERCISE SOFTWARE ................................................................................................................................ 8 2.3 EQUIPMENT MODIFICATIONS ............................................................................................................................. 8 2.4 EUT INTERNAL CONFIGURATION ...................................................................................................................... 8 2.5 LOCAL SUPPORT EQUIPMENT LIST AND DETAILS .............................................................................................. 8 2.6 POWER SUPPLY AND LINE FILTERS .................................................................................................................... 8 2.7 INTERFACE PORTS AND CABLING ...................................................................................................................... 8 3 SUMMARY OF TEST RESULTS ........................................................................................................................ 9 4 FCC §2.1046 & §24.232(C) – RF OUTPUT POWER ....................................................................................... 10 4.1 APPLICABLE STANDARDS ................................................................................................................................ 10 4.2 TEST PROCEDURE ............................................................................................................................................ 10 4.3 TEST EQUIPMENT LIST AND DETAILS .............................................................................................................. 10 4.4 TEST ENVIRONMENTAL CONDITIONS ............................................................................................................... 10 4.5 TEST RESULTS ................................................................................................................................................. 11 5 FCC §2.1049 & §24.238(B) - OCCUPIED BANDWIDTH ............................................................................... 21 5.1 APPLICABLE STANDARDS ................................................................................................................................ 21 5.2 TEST PROCEDURE ............................................................................................................................................ 21 5.3 TEST EQUIPMENT LIST AND DETAILS .............................................................................................................. 21 5.4 TEST ENVIRONMENTAL CONDITIONS ............................................................................................................... 21 5.5 TEST RESULTS ................................................................................................................................................. 21 6 FCC §2.1053 & §24.238(A) - SPURIOUS RADIATED EMISSIONS ........................................................... 155 6.1 APPLICABLE STANDARDS .............................................................................................................................. 155 6.2 TEST PROCEDURE .......................................................................................................................................... 155 6.3 TEST EQUIPMEN…

Text truncated - open the document above for the full version.

Whoop Wireless Inc. FCC ID: 2AEQJ-CP4-001 Report Number: R1506022-24 Rev B Page 155 of 300 FCC Part 24E Test Report 6 FCC §2.1053 & §24.238(a) - Spurious Radiated Emissions 6.1 Applicable Standards According to FCC §24.238(a) the power of any emissions outside of the authorized operating frequency ranges must be attenuated below the transmitting power (P) by a factor of at least 43 + 10 log(P) dB. 6.2 Test Procedure The transmitter was placed on the turntable, and it was transmitting into a non-radiating load which was also placed on the turntable. The measurement antenna was placed at a distance of 3 meters from the EUT. During the tests, the antenna height and polarization as well as EUT azimuth were varied in order to identify the maximum level of emissions from the EUT. The test was performed by placing the EUT on 3-orthogonal axis. The frequency range up to tenth harmonic of the fundamental frequency was investigated. Remove the EUT and replace it with substitution antenna. A signal generator was connected to the substitution antenna by a non-radiating cable. The absolute levels of the spurious emissions were measured by the substitution. Spurious emissions in dB = 10 log (TX Power in Watts/0.001) – the absolute level Spurious attenuation limit in dB = 43 + 10 Log 10 (power out in Watts) 6.3 Test Equipment List and Details Manufacturer Description Model No. Serial No. Calibration Date Calibration Interval Sunol Science Corp System Controller SC99V 122303-1 N/A N/A Sunol Sciences Antenna, Biconi-Log JB3 A020106-2 2014-09-17 1 year COM-POWER Antenna, Dipole AD-100 721033DB1, 2 721033DB3, 4 2014-11-03 2 year Hewlett Packard Pre-amplifier 1GHz-26.5GHz 8447D 2944A06639 2015-05-08 1 year HP/ Agilant Pre Amplifier 8449B OPT HO2 3008A0113 2015-05-19 1 year Agilent Analyzer, Spectrum E4440A MY44303352 2014-11-13 1 year Eaton Antenna, Horn 96001 2617 2014-11-18 1 year EMCO Antenna, Horn 3115 9511-4627 2015-01-15 1 year Statement of Traceability: BACL Corp. attests that all calibrations have been performed per the A2LA requirements, traceable to the NIST. Whoop Wireless Inc. FCC ID: 2AEQJ-CP4-001 Report Number: R1506022-24 Rev B Page 156 of 300 FCC Part 24E Test Report 6.4 Test Setup Block Diagram Radiated Emissions Testing 6.5 Test Environmental Conditions Temperature: 20-21C Relative Humidity: 47-49  ATM Pressure: 101.4-101.6 kPa The testing was performed by Bo Li on 2014-04-18 in 5 Meter Chamber 3. Non-conducting table 80 cm above ground plane EUT AC Mains Signal Generator Styrofoam 70 cm above table 50ohm Terminator Whoop Wireless Inc. FCC ID: 2AEQJ-CP4-001 Report Number: R1506022-24 Rev B Page 157 of 300 FCC Part 24E Test Report 6.6 Test Results Carrier Wave Signal Downlink (Channel frequency = 1940 MHz) Indicated Azimuth (degree) Test Antenna Substituted Limit (dBm) Margin (dB) Frequency (MHz) S.A. Amp. (dBuV) Height (cm) Polarity (H/V) Frequency (MHz) Level (dBm) Ant. Gain Correction (dB) Cable Loss (dB) Absolute Level (dBm) 67.45 50.89 76 162 V 67.45 -45.850 0.2 -46.05 -13 -33.05 66.869 43.42 311 235 H 66.869 -53.6 0 0.2 -53.8 -13 -40.8 46.35 48.02 360 100 V 46.35 -48.720 0.2 -48.92 -13 -35.92 106.156 43.54 275 258 H 106.156 -54.120 0.26 -54.38 -13 -41.38 1000 49.35 260 100 V 1000 -54.376.845 0.64 -48.165 -13 -35.165 3862 52.73 89 100 H 3862 -40.689.251 1.47 -32.899 -13 -19.899 3862 54.63 290 100 V 3862 -39.668.653 1.47 -32.477 -13 -19.477 1990 46.41 307 100 H 1990 -53.818.983 0.92 -45.747 -13 -32.747 Downlink (Channel frequency = 1960 MHz) Indicated Azimuth (degree) Test Antenna Substituted Limit (dBm) Margin (dB) Frequency (MHz) S.A. Amp. (dBuV) Height (cm) Polarity (H/V) Frequency (MHz) Level (dBm) Ant. Gain Correction (dB) Cable Loss (dB) Absolute Level (dBm) 67.45 50.89 76 162 V 67.45 -45.850 0.2 -46.05 -13 -33.05 66.869 43.42 311 235 H 66.869 -53.6 0 0.2 -53.8 -13 -40.8 46.35 48.02 360 100 V 46.35 -48.720 0.2 -48.92 -13 -35.92 106.156 43.54 275 258 H 106.156 -54.120 0.26 -54.38 -13 -41.38 3918 65 52 100 V 3918 -29.298.653 1.47 -22.107 -13 -9.107 3918 61.02 21 100 H 3918 -32.399.251 1.47 -24.609 -13 -11.609 9640 45.42 163 100 V 9640 -34.2211.235 2.3 -25.285 -13 -12.285 9658 45.94 227 100 H 9658 -40.5212.074 2.3 -30.746 -13 -17.746 Whoop Wireless Inc. FCC ID: 2AEQJ-CP4-001 Report Number: R1506022-24 Rev B Page 158 of 300 FCC Part 24E Test Report Downlink (Channel frequency = 1980 MHz) Indicated Azimuth (degree) Test Antenna Substituted Limit (dBm) Margin (dB) Frequency (MHz) S.A. Amp. (dBuV) Height (cm) Polarity (H/V) Frequency (MHz) Level (dBm) Ant. Gain Correction (dB) Cable Loss (dB) Absolute Level (dBm) 67.45 50.89 76 162 V 67.45 -45.850 0.2 -46.05 -13 -33.05 66.869 43.42 311 235 H 66.869 -53.6 0 0.2 -53.8 -13 -40.8 46.35 48.02 360 100 V 46.35 -48.720 0.2 -48.92 -13 -35.92 106.156 43.54 275 258 H 106.156 -54.120 0.26 -54.38 -13 -41.38 4457 45.76 126 100 V 4457 -47.0310.398 1.39 -38.022 -13 -25.022 3975 62.83 165 100 H 3975 -31.069.283 1.52 -23.297 -13 -10.297 3975 65.81 93 100 V 3975 -27.178.817 1.52 -19.873 -13 -6.873 9613 45.52 181 100 H 9613 -40.9412.074 2.3 -31.166 -13 -18.166 Uplink (Channel frequency = 1860 MHz) Indicated Azimuth (degree) Test A…
