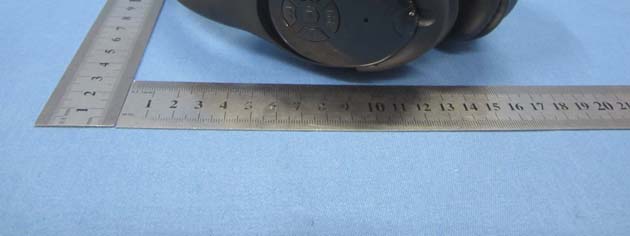

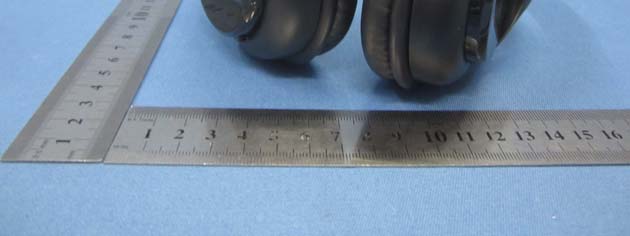

User Manual Product: Bluetooth Headphone Model no.:BT-5800 Please read this manual before using the product. Electronic Equipment. In order to avoid electromagnetic interference effects, please close this equipment where prohibited. Civil Aviation In accordance with the law. It is strictly prohibited to use this equipment while flying. Medical Equipment Please do not use in a hospital or around the hospital. If you use other personal medical devices, such as pacemakers, please ask equipment manufacturers before use, to determine whether the device can shield electromagnetic radiation. Maintenance The user is not allowed to change any equipment or components, if the user makes any changes or modifications they will void the warranty. Packing 1. Instruction manual 2. Bluetooth headset 3. USB charging cable Function Introduction 1 The next song 2 Previous song 3 Volume ‐ 4 Volume + 5 Pause / play 6 Power on/off 7 Led Light 8 USB socket 9 Microphone 10 Audio input socket Specifications § Product name ：Bluetooth Headphone § Bluetooth protocol version：V3.0+EDR § Transmission Distance: Line of sight approx..10m(30ft) § Wireless carrier frequency ：2.402~2.480 GHz § Speaker: Φ40mm § DC Resistance: 32Ω § Sensitivity: 105db+/‐3db § Frequency response：20 Hz‐20KHZ § USB Interface: USB charging cable § Battery:3.7V 300mA § Charging time:2‐3 hours § Music playing time：about 9‐10 hours To use: Charge via the USB cable (included) via Slot 8. Power on the headphone (Button 6). Your Device will automatically discover headphone in your Bluetooth Menu. Select BT‐5800 in your device Bluetooth menu to pair the two devices. You can now listen to music or use your mobile device for phone calls. Short Press Button 5 to Play or Pause Song or Answer or Cancel Phone Call. Long Press + Button 4 to increase Volume. Long Press ‐ Button 4 to increase Volume. Short Press Button 1 for next song. Short Press Button 1 for previous song or twice for Begin Song Again. FM conversion: In Bluetooth mode, long press Play Pause converted into FM mode, in the FM mode, short press the automatic station search, it will automatically play the last c hannel after channel search is complete, press the last song, the next song. switch on a last channel, next channel LED instructions Operation/status Led instruction status Operation method and practical effect on Blue light on Switch to the ON, red / blue light flash alternately 4 times off Blue light off Switch to “OFF” Pairing mode blue light flash fast Boot automatically after 30 seconds into pairing mode, blue lights flashes fast The pairing success Flash 5 seconds After pairing success, blue light flashes slow Answer a call / hang up a call Blue light flashes press the " play" button to answer the call, after the call press the " play " button again to hang up the phone Charging indication Red light Red light on while charging Charging completion Red light off Finish charging, red light turns off Call Operation 1. To answer a call If you receive the call while playing the music, you will hear the prompt tone. Press the " pause / play " button to answer the call. 2. To end a call Method 1. press play button once more , to end call. Method 2: end from the mobile phone keyboard. If you are listening to music when a call comes in, the headset will switch from the music player to the mobile phone connection mode, the music will be suspended. When you end a call, music will continue. FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Label Location:

Product Name:Bluetooth headset Model Name:BT-5800 FCC ID:2AEQQBT-5800 Shenzhen yesong Electronic Technology Co., Ltd.

FCC ID: 2AEQQBT-5800 According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances  50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[f(GHz)]  3.0 for 1-g SAR and  7.5 for 10-g extremity SAR, where --f(GHz) is the RF channel transmit frequency in GHz --Power and distance are rounded to the nearest mW and mm before calculation --The result is rounded to one decimal place for comparison eirp = pt x gt = (EXd) 2 /30 where: pt = transmitter output power in watts, gt = numeric gain of the transmitting antenna (unitless), E = electric field strength in V/m, --- 10 ((dBuV/m)/20) /10 6 d = measurement distance in meters (m) ---3m So pt = (EXd) 2 /30 x gt Field strength = 95.53dBuV/m @3m Ant gain =1dBi; so Ant numeric gain=1.26 So pt={[10 (95.53/20) /10 6 x3] 2 /(30x1.26)}x1000 mW = 0.581mW So (0.581 mW /5mm)x 2.402 = 0.180<3 Then SAR evaluation is not required 0.851mW So (0.851 mW /5mm)x 2.402 = 0.264<3

Global United Technology Services Co., Ltd. Report No.: GTSE15050074301 Authorized Signature: Robinson Lo Laboratory Manager This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product and does not permit the use of the GTS product certification mark. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of GTS or testing done by GTS in connection with, distribution or use of the product described in this report must be approved by GTS in writing. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. FCC REPORT Applicant: Shenzhen yesong Electronic Technology Co., Ltd. Address of Applicant: 133 Building, Hongxing Haoyong Village, Songgang Town Bao'an District, Shenzhen China Equipment Under Test (EUT) Product Name: Bluetooth headset Model No.: BT-5800, BT-06, BT-25, BT-27, BT-28, BT-550, BT-9901, BT-9902, BT-9910, BT-9905, BT-9906, BT-9908, BT-9909, BT-9912, BT-9913, BT-9915, BT-9916, BT-9917, BT-9918, BT-9919 FCC ID: 2AEQQBT-5800 Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.249:2014 Date of sample receipt: May 07, 2015 Date of Test: May 07-14, 2015 Date of report issued: May 14, 2015 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. Report No.: GTSE15050074301 Global United Technology Services Co., Ltd. Project No.: GTSE150500743RF Room 301-309, 3th Floor, Block A, Huafeng Jinyuan Business Building, No. 300 Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, China Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 2 of 30 2 Version Version No. Date Description 00 May 14, 2015 Original Prepared By: Date: May 14, 2015 Project Engineer Check By: Date: May 14, 2015 Reviewer Report No.: GTSE15050074301 Global United Technology Services Co., Ltd. Project No.: GTSE150500743RF Room 301-309, 3th Floor, Block A, Huafeng Jinyuan Business Building, No. 300 Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, China Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 3 of 30 3 Contents Page 1 COVER PAGE............................................................................................................................................ 1 2 VERSION .................................................................................................................................................. 2 3 CONTENTS .............................................................................................................................................. 3 4 TEST SUMMARY ..................................................................................................................................... 4 4.1 MEASUREMENT UNCERTAINTY............................................................................................................ 4 5 GENERAL INFORMATION ...................................................................................................................... 5 5.1 CLIENT INFORMATION......................................................................................................................... 5 5.2 GENERAL DESCRIPTION OF EUT ......................................................................................................... 5 5.3 TEST MODE........................................................................................................................................ 7 5.4 DESCRIPTION OF SUPPORT UNITS....................................................................................................... 7 5.5 TEST FACILITY.................................................................................................................................... 7 5.6 TEST LOCATION................................................................................................................................. 7 5.7 OTHER INFORMATION REQUESTED BY THE CUSTOMER......................................................................... 7 6 TEST INSTRUMENTS LIST ..................................................................................................................... 8 7 TEST RESULTS AND MEASUREMENT DATA...................................................................................... 9 7.1 ANTENNA REQUIREMENT..................................................................................................................... 9 7.2 CONDUCTED EMISSIONS................................................................................................................... 10 7.3 RADIATED EMISSION METHOD........................................................................................................... 13 7.3.1 Field Strength of The Fundamental Signal ................................................................................ 15 7.3.2 Spurious emissions.................................................................................................................... 16 7.3.3 Bandedge emissions.................................................................................................................. 20 7.4 20DB OCCUPY BANDWIDTH.............................................................................................................. 2…

Text truncated - open the document above for the full version.

Radiated Emission Conducted Emission
