Confidential Car Audio Quick Instruction Model: M3GL06L Confidential CONTENT Part 1 Function Block Diagram Part 2 Statement & Notice Part 3 User’s Interface Overview Confidential Part 1: Function Block Diagra NO. Name Position Function 1 10P+6P Power/Speaker Connector DA Connect the DC power supply to the load 2 28P STSW/VTR Connector Connect the SWRCS 3 2P GPS Antenna Connect GPS antenna 4 1P DAB+ Antenna Connect DAB+ antenna 5 5P Radio Antenna Connect the radio antenna 6 24P Rear Camera Connector Connect the reverse camera controller 7 19P HDMI Connector HDMI transmission port 8 4P USB Adapter USB adapter interface Confidential 1. 10P+6P Power/Speaker Connector 2. 28P STSW/VTR Connector 3. 2P GPS Antenna 4、1P DAB+ Antenna Confidential 5、5P Radio Antenna 6、24P Rear Camera Connector 7、19P HDMI Connector Confidential 8、4P USB Adapter Part 2 Statement Category Temperature Voltage Guaranteed storage －40°C～85°C NA Guaranteed operation －30°C～40°C ① （8.5~10.5）±0.5V ON-OFF ② （9.0~10.5）±0.5V OFF-ON Guaranteed performance －20°C～65°C （10.5V~16V）±0.5V Nominal NA 12V±0.5V Non-destructive voltage range NA （6V~24V）±0.5V Memory hold voltage NA +B <4.5V: ≥ 50ms +B >4.5V: ≥ 5s Confidential Part 3 User’s Interface Overview Confidential FCC statement： changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. FCC Supplier’s Declaration of Conformity Product Name：CAR MULTIMEDIA Model number：M3GL06L; M3GL06R Suppliers Name: DESAY SV AUTOMOTIVE USA Suppliers Address (USA) ：840 W LONG LAKE RD STE 150, TROY MI 48098-6356 Suppliers internet contact :[email protected] FCC Compliance Statement: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

DESAY SV AUTOMOTIVE USA CFR 47 §2.911 (d)(7) FCC US Agent Letter of Attestation Date: Mar-9-2023 Grantee code: 2AEQT To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA FCC US Agent Agent Company Name: DESAY SV AUTOMOTIVE USA FRN: 0033522871 Agent Contact Name: Da XU Agent US Address: 840 W LONG LAKE RD STE 150, TROY MI 48098-6356 Agent Email Address: [email protected] This letter is to confirm that we have accepted the responsibility to act as US Agent on behalf of Huizhou Desay SV Automotive Co., Ltd. (“the applicant”) . We are aware of the requirements and responsibilities of the applicant’s agent for service of process as outlined in the FCC section 2.911(d)(7) and Report and Order FCC 22-84 paragraph 63. This agreement is valid until 03/09/2028 Sincerely yours, Authorized Agent Contact Person Name: Da XU Agent contact Job Title: Manager Agent Company name: DESAY SV AUTOMOTIVE USA

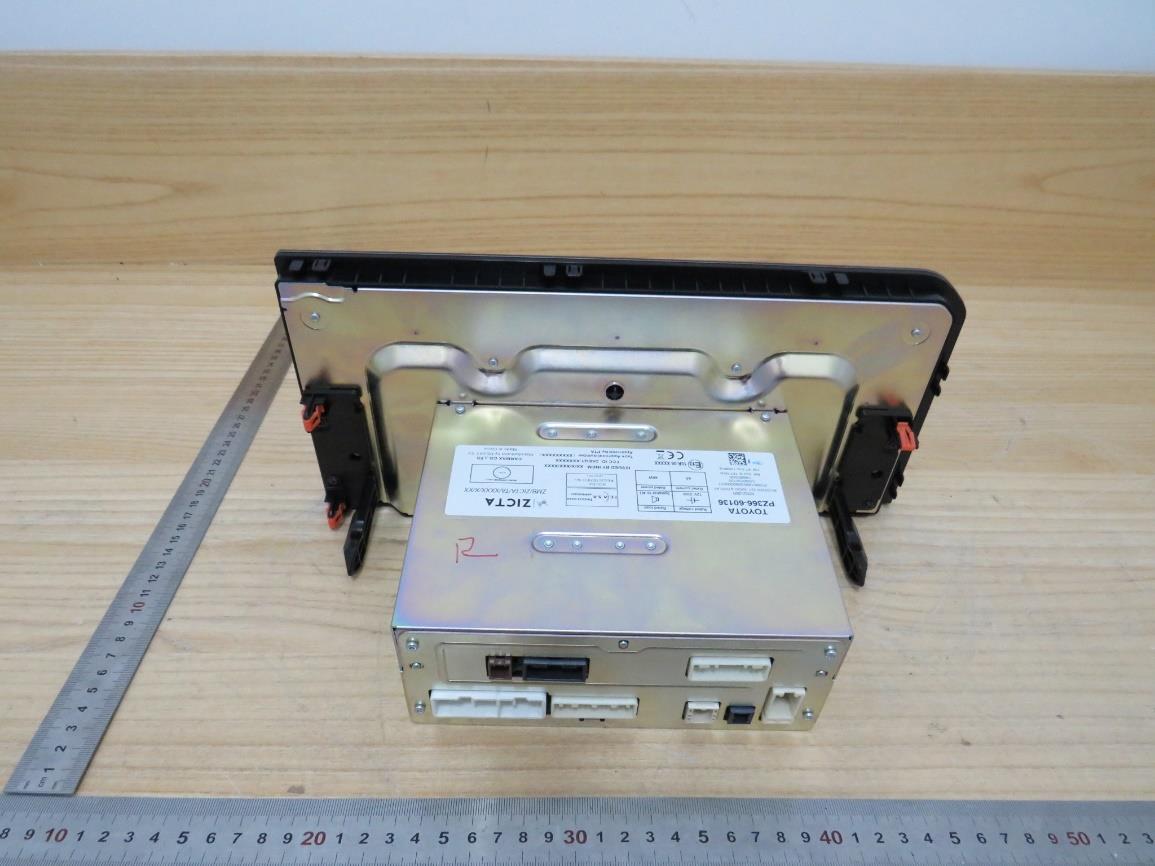

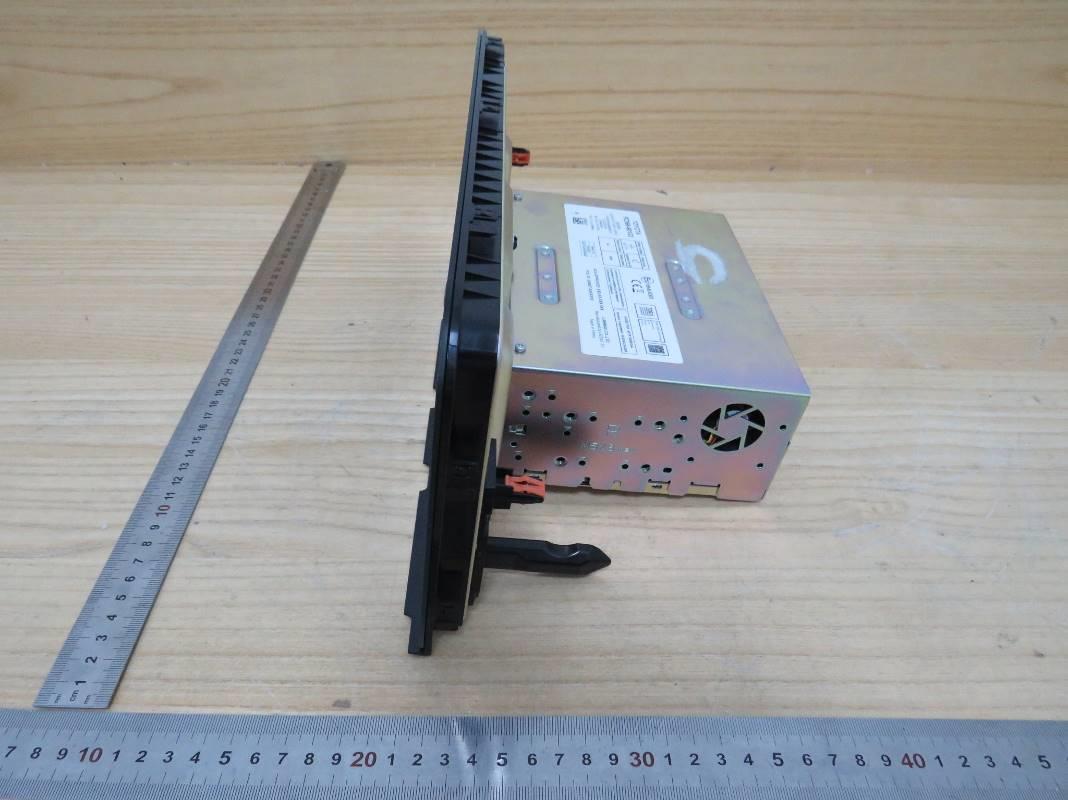

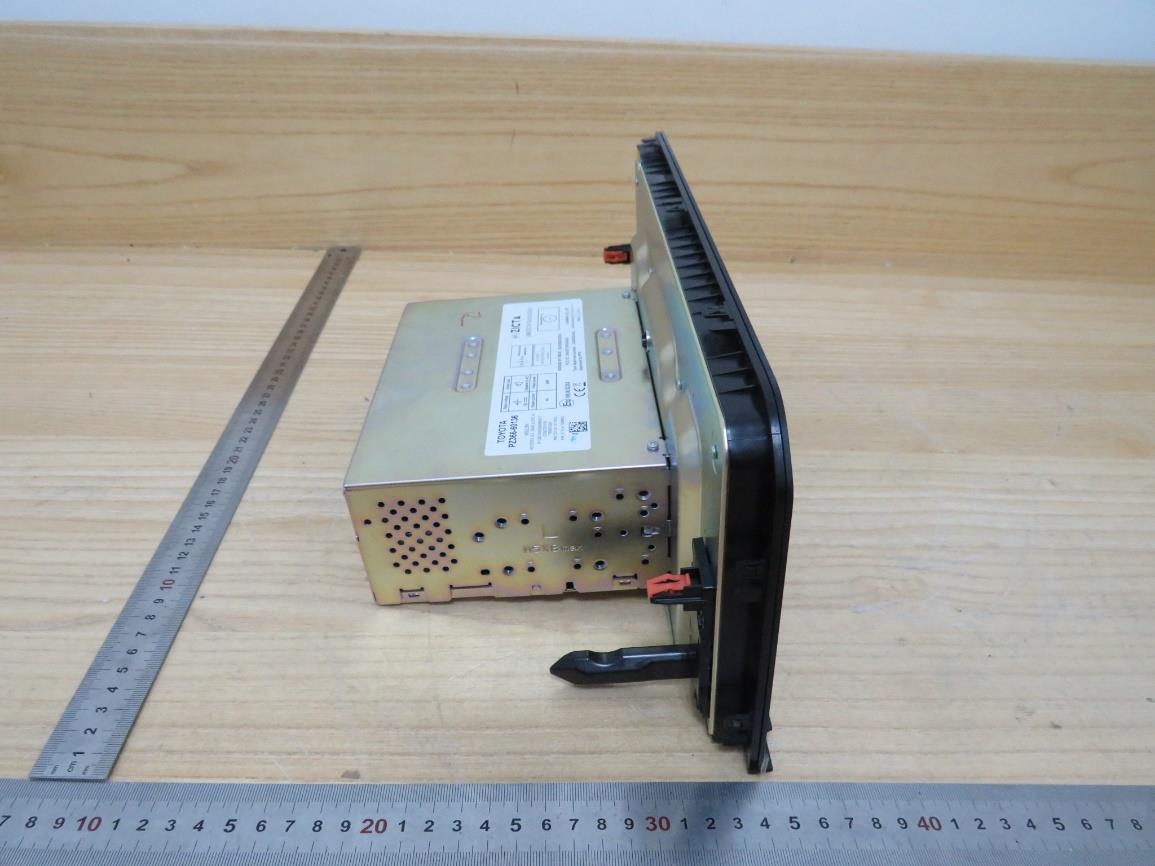

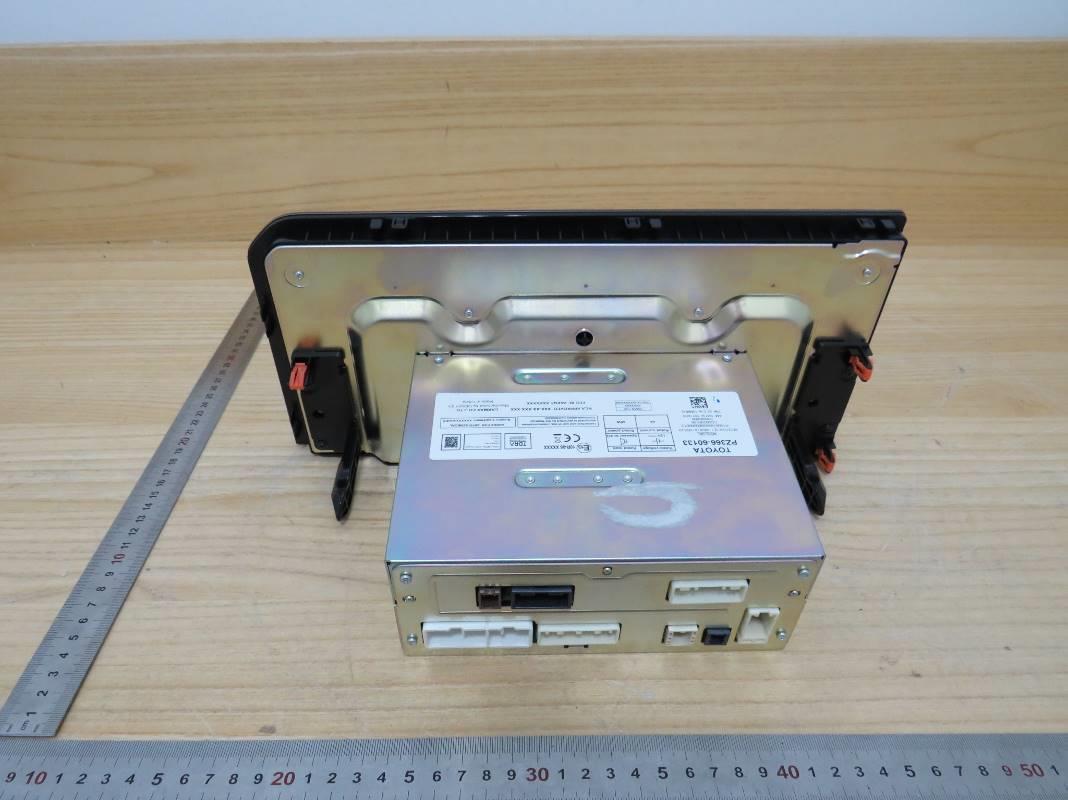

Appendix I External Photographs Page 2 of 5 M3GL06L View of EUT-1 M3GL06L View of EUT-2 Page 3 of 5 M3GL06L View of EUT-3 M3GL06L View of EUT-4 Page 4 of 5 M3GL06R View of EUT-1 M3GL06R View of EUT-2 Page 5 of 5 M3GL06R View of EUT-3 M3GL06R View of EUT-4
