2AEQYYLT-36TTransmitter

BATTERY INFORMATION AND REPLACEMENT: 1. On the bottom of the remote use your finger to slide out the battery holder. 2. Remove the used battery and insert a new 23A 12-volt battery with the proper“+” “-” polarity . 3. Slide the battery holder back inside so that it sets in place. 4. Dispose of old battery properly. EASY INSTALLATION: 1. One transmitter operates one receiver. 2. Plug the receiver/switch into a 3-wire indoor outlet, make sure that there is power to the outlet that the receiver/switch is plugged into. 3. The device must be mounted in a vertical position with the receptacles facing downward. 4. Pairing receiver and transmitter must completed within 15 seconds when plug receiver into outlet, press “P” button on the transmitter for 5 seconds, then the indicator of “ON” and “OFF” in the transmitter and receiver will flicker in turn. This shows that the pairing is successful. WARNING: Keep batteries away from children and pets. Follow the battery manufacturer’s safety and usage instructions. • Remove battery if product is to be left unused for a long time. • Clean the battery contacts prior to battery installation. • Do not dispose of batteries in fire. Batteries may explode or leak. Remote Control 1.Use the device in the first time，the indicator of "OFF" will turn on. 2, Set ON---Press “P” on the transmitter, the “ON” in the transmitter will flicker, then press “OK” on the transmitter, the indicator of "ON" of the receiver will turn on. 3, Set dusk-dawn---Press “P” on the transmitter, the “” in the transmitter will flicker, then press “OK” on the transmitter, the indicator of " " of the receiver will turn on. 4, Set 2 hours---Press “P” on the transmitter, the “2HR” in the transmitter will flicker, then press “OK” on the transmitter, the indicator of "2Hrs" will flicker 3 times than off when you set in the daytime and "2Hrs" will turn on when getting dark. When you set in the dark, "2Hrs" will flicker 3 times than turn on immediately. It will automatically repeat daily. 5, Set 4,6,8 hours-----Same as 2 hours. CAUTION • Risk of Fire. • DO NOT PLUG IN MORE THAN THE RATED LOAD. • This is a Radio Frequency (RF) Device. Therefore the range of the transmitter is affected by obstructions, walls and other electronic devices. ATTENTION: INSTRUCTIONS FOR PROPER USE • USE WITHIN THE ELECTRICAL RATING MARKED ON THE PRODUCT • RATED 125 VOLTS • Inspect periodically WARNING: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the manufacturer could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Notice: Functional Range may be adversely affected by one or more of the following factors: Orientation of the transmitter or receiver, weather, radio frequency interference, low transmitter battery and obstructions between the transmitter and receiver.

DATE : May 11, 2015 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: _2AEQYYLT-36T ___________ Product Name: __Transmitter_________ Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...)  Schematics  Block diagram  Operational Description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this May 11, 2015 Agency agreement expiration date: Usually Give 8 - 12 Months By: Zhou Pei Zhou Signature Printed Title: Manager On behalf of : NINGBO BAI-JIA ELECTRIC APPLIANCE CO.,LTD Telephone: 0086-574-63753656 Zhong Pei Zhou 2AEQYYLT-36T Transmitter

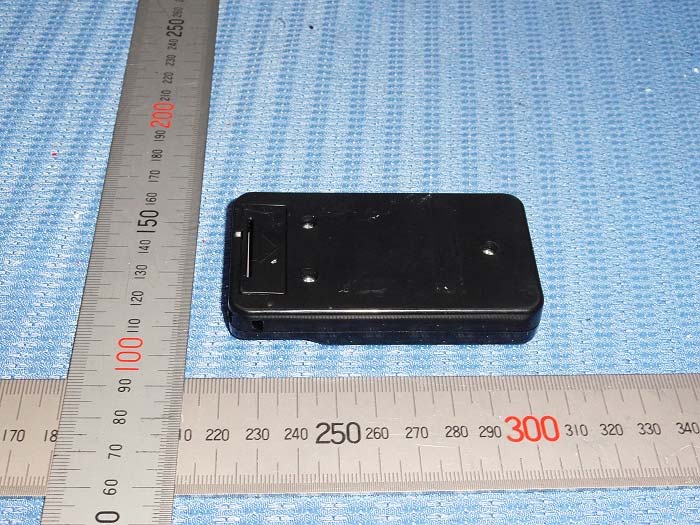

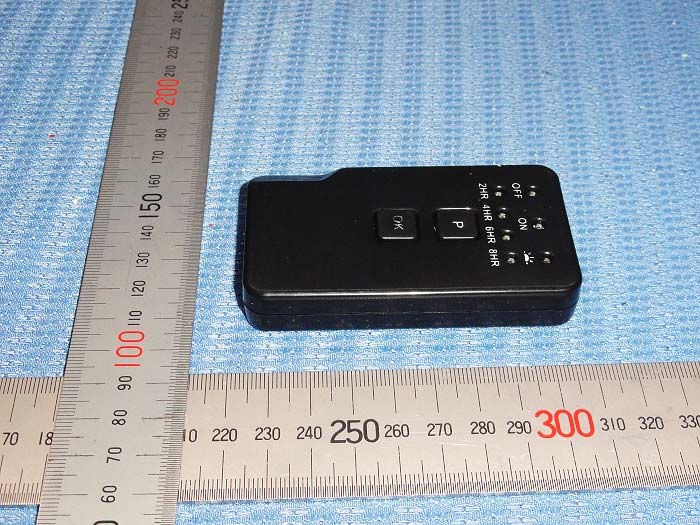

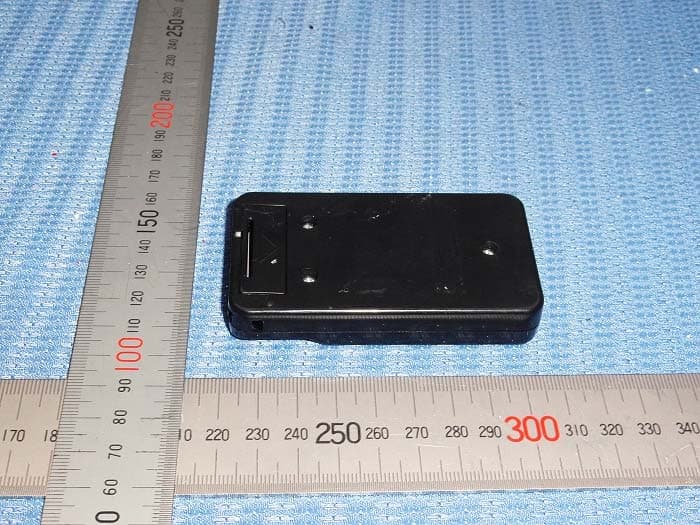

Photo for the EUT Outside view Photo for the EUT Outside view

Model: YLT-36T FCC ID: 2AEQYYLT-36T Battery: One 23A 12V battery. Made in China

Mark Location: Label Location

Photo for the EUT Inside view Photo for the EUT Inside view

ISO/IEC17025 Accredited Lab. Report No: FCC1504212 File reference No: 2015-05-05 Applicant: NINGBO BAI-JIA ELECTRIC APPLIANCE CO.,LTD Product: Transmitter Model No: YLT-36T Trademark: N/A Test Standards: FCC Part 15 Subpart C, Paragraph 15.231 Test result: It is herewith confirmed and found to comply with the requirements set up by ANSI C63.4&FCC Part 15 Subpart C, Paragraph 15.231 regulations for the evaluation of electromagnetic compatibility Approved By Jack Chung Manager Dated: May 05, 2015 Results appearing herein relate only to the sample tested The technical reports is issued errors and omissions exempt and is subject to withdrawal at SHENZHEN TIMEWAY TESTING LABORATORIES. Room 512-519, 5/F., East Tower,Building 4, Anhua Industrial Zone, Futian District, Shenzhen, Guangdong China Tel (755) 83448688 Fax (755) 83442996 Email: [email protected] Report No:FCC1504212Page 2 of 31 Date: 2015-05-05 The report refers only to the sample tested and does not apply to the bulk. This report is issued in confidence to the client and it will be strictly treated as such by the SHENZHEN TIMEWAY TESTING LABORATORIES. It may not be reproduced rather in its entirety or in part and it may not be used for adverting. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the SHENZHEN TIMEWAY TESTING LABORATORIES. to his customer. Supplier or others persons directly concerned. SHENZHEN TIMEWAY TESTING LABORATORIES. will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. The SHENZHEN TIMEWAY TESTING LABORATORIES. reserves the rights to withdraw it and to adopt any other remedies which may be appropriate. Special Statement˖ The testing quality ability of our laboratory meet with "Quality Law of People's Republic of China" Clause 19. The testing quality system of our laboratory meets with ISO/IEC-17025 requirements, which is approved by CNAS. This approval result is accepted by MRA of APLAC. Our test facility is recognized, certified, or accredited by the following organizations: CNAS-LAB Code: L2292 The EMC Laboratory has been assessed and in compliance with CNAS-CL01 accreditation criteria for testing Laboratories (identical to ISO/IEC 17025:1999 General Requirements) for the Competence of testing Laboratories. FCC-Registration No.: 899988 The EMC Laboratory has been registered and fully described in a report filed with the (FCC) Federal Communications commission. The acceptance letter from the FCC is maintained in our files. Registration No.:899988. IC-Registration No.: IC5205A-02 The EMC Laboratory has been registered and fully described in a report filed with the (IC) Industry Canada. The acceptance letter from the IC is maintained in our files. Registration No.: IC 5205A-02. Report No:FCC1504212Page 3 of 31 Date: 2015-05-05 The report refers only to the sample tested and does not apply to the bulk. This report is issued in confidence to the client and it will be strictly treated as such by the SHENZHEN TIMEWAY TESTING LABORATORIES. It may not be reproduced rather in its entirety or in part and it may not be used for adverting. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the SHENZHEN TIMEWAY TESTING LABORATORIES. to his customer. Supplier or others persons directly concerned. SHENZHEN TIMEWAY TESTING LABORATORIES. will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. The SHENZHEN TIMEWAY TESTING LABORATORIES. reserves the rights to withdraw it and to adopt any other remedies which may be appropriate. Test Report Conclusion Content 1.0 General Details ................................................................................................ 4 1.1 Test Lab Details................................................................................................ 4 1.2 Applicant Details.............................................................................................. 4 1.3 Description of EUT .......................................................................................... 4 1.4 Submitted Sample............................................................................................. 4 1.5 Test Duration.................................................................................................... 5 1.6 Test Uncertainty.................................................................................................5 1.7 Test By.......................................................................................................... 5 2.0 List of Measurement Equipment......................................................................... 5 3.0 Technical Details............................................................................................. 6 3.1 Summary of Test Results..................................................................................... 6 3.2 Test Standards.................................................................................................. 6 4.0 EUT Modification............................................................................................. 6 5.0 Power Line Conducted Emission Test...................................................................... 7 5.1 Schematics of the Test........................................................................................ 7 5.2 Test Method and Test Procedure............................................................................ 7 5.3 Configuration of the EUT.................................................................................... 7 5.4 EUT Operating Condition....................................................................................8 5.5 Conducted Emi…
