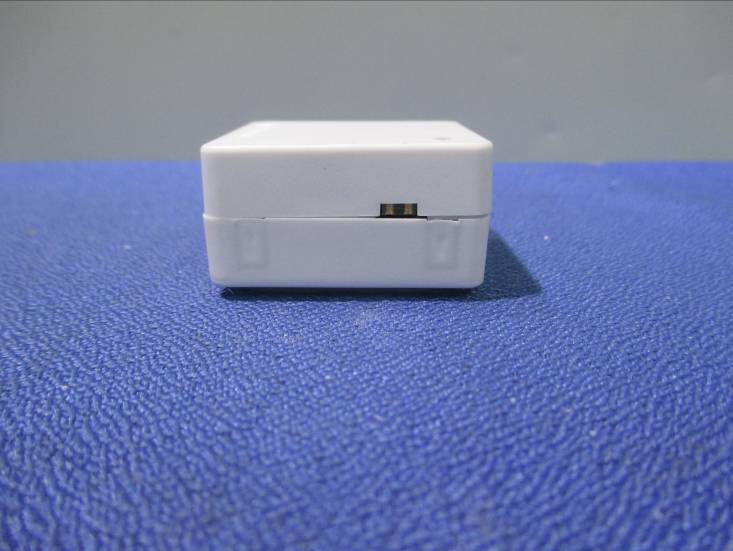

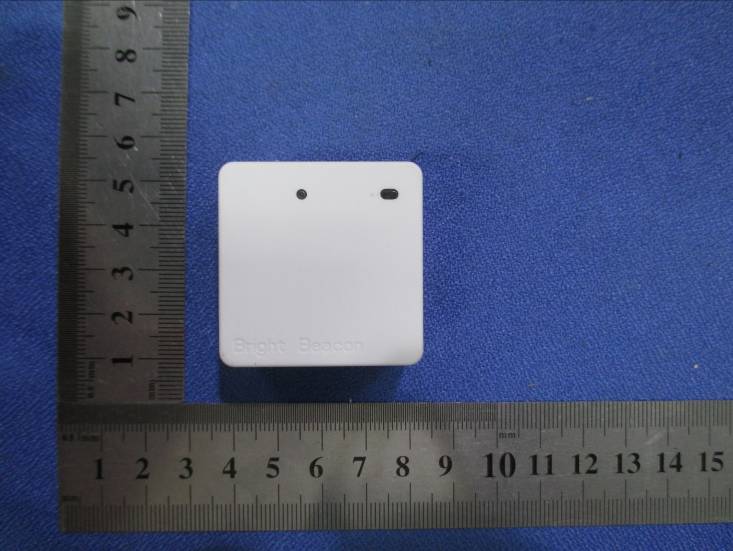

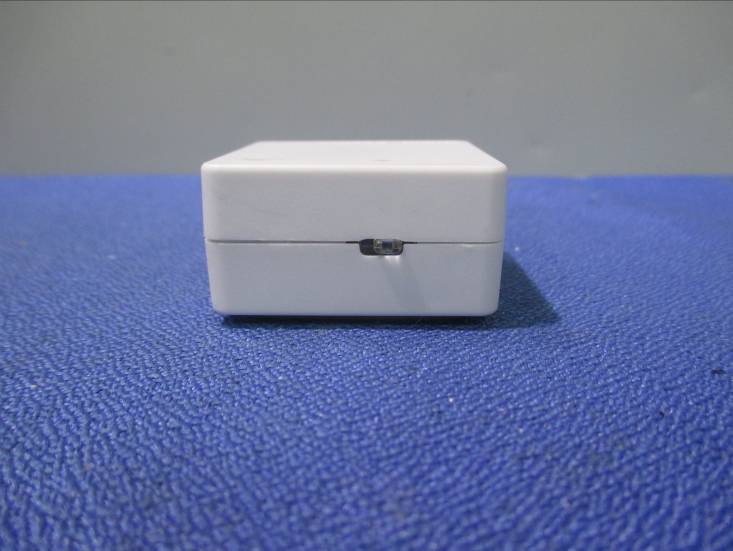

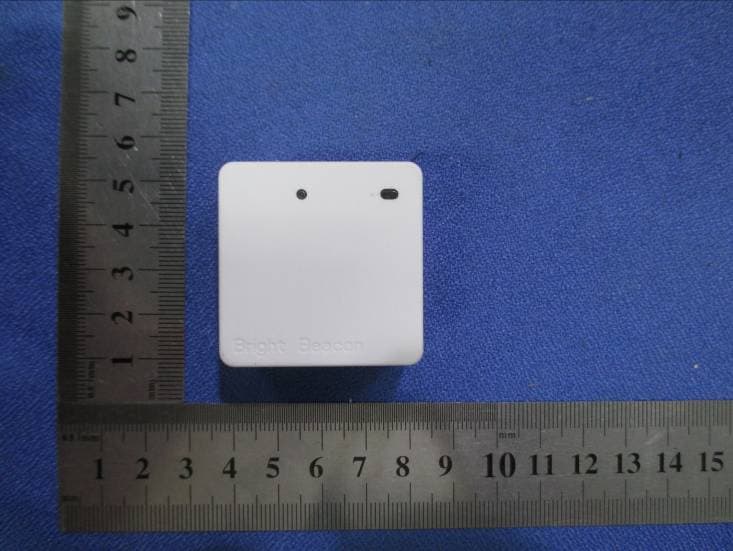

2AERL-PLUSBright Beacon plus

Owner’s manual 1 Bright Beacon OWNER’S MANUAL Bluetooth Device with iBeacon protocol Please read this manual before operating your brightbeacon, and keep it for future reference. www.brtbeacon.com Owner’s manual 2 Table of Contents 1. At a Glance..........................................................................................................................................3 1‐1. Included in Package..........................................................................................................3 1‐2. Optional Accessories.......................................................................................................3 2. Main Features of the BrightBeacon.........................................................................................4 3. Overview............................................................................................................................................5 4. Understanding your BrightBeacon..........................................................................................6 4‐1. How to turn on/off the brightbeacon......................................................................6 4‐2. How to deploy.....................................................................................................................6 5. Using the Config APP to config the BrightBeacon............................................................6 5‐1. Finding the right TX power..........................................................................................6 5‐2. Adjusting the distance accuracy for different Rf environment......................7 5‐3. Checking the status using LED indicator................................................................7 6. Maintenance.....................................................................................................................................7 6‐1. Storage maintenance.......................................................................................................7 6‐2. Troubleshooting................................................................................................................7 7. Troubleshooting Guide..................................................................................................................8 8. WARRANTY AND REPAIR INFORMATION...........................................................................8 Owner’s manual 3 1. At a Glance 1‐1. Included in Package BrightBeacon Owner’s manual 1‐2. Optional Accessories To purchase optional accessories, please visit BrightBeacon online store (www.brtbeacon.com) or call our customer service at 86-400-023-3883. Owner’s manual 4 2. Main Features of the BrightBeacon Bluetooth4.0 BLE IBeacon certification Sprayproof Dustproof Detachable OTA upgrade Encrypted connection Indoor and outdoor support ‘ Owner’s manual 5 3. Overview BrightBeacon LED indicator light On/Off Button Light Sensation Micro USB Owner’s manual 6 4. Understanding your BrightBeacon 4‐1. How to turn on/off the brightbeacon To activate the brightbeacon, Turn on the On/Off Button for a moment until the LED light flashing. To deactivate the unit, repeat the same procedure. 4‐2. How to deploy To deploy the brightbeacon, Tear off the back of viscose, Sticking to the wall or ceiling 5. Using the Config APP to config the BrightBeacon The Config APP is available on AppStore （https://itunes.apple.com/cn/app/brightbeacon-pei-zhi-ruan/id917081028?mt=8）, The APP can control these properties： TX power, TX interval, uuid, major, minor, measuredpower, batterycheck interval, temperature check interval, light check interval, name , mode, light_sleep 5‐1. Finding the right TX power TX power: (-40dBm) being the lowest level and (+4dBm) being the highest level , Setting adjustment depends on different demand. -40dBm is about 3m away, and +4dBm can be about 100m away, When the environment is more obstructions, you may need to adjust the intensity level upwards. Owner’s manual 7 5‐2. Adjusting the distance accuracy for different Rf environment TX interval and measuredpower affect the calculation of the distance, The lower TX interval, the more stable signal, but power consumption is higher, all you have to weigh the pros and cons; The measuredpower is the benchmark calculation, it is the RSSI value 1 meter away from the BrightBeacon, So you can be in a real or regarded as 1 m away to calibrate the value. 5‐3. Checking the status using LED indicator When the BrightBeacon is turn on the LED flashes few seconds. The LED will flash when use the Config APP to connect. The LED also indicates battery life level. Two flashes at a time = needs replace the battery down. 6. Maintenance 6‐1. Storage maintenance Your brightbeacon should be turned off before extended storage. Do not transport the brightbeacon exposed in extreme climates. 6‐2. Troubleshooting If you suspect your brightbeacon is malfunctioning please refer to the “Troubleshooting Guide” before sending your unit in for service. If you have any questions or concerns, you may direct your inquiries to [email protected] or call 86-400- 023-3883. Owner’s manual 8 7. Troubleshooting Guide (1) My brightbeacon cannot be connected. - Make sure the brightbeacon is turned on and the LED flashs. - Be sure use the Config App with iPhone 4S/IOS6+ or Android4.3+. (2) The brightbeacon has no range, or the rssi is weak when the brightbeacon is closer. - Check to see if your TX power or measuredpower setting is right 8. WARRANTY AND REPAIR INFORMATION BrightBeacon company provides the original purchaser with a LIMITED WARRANTY. Limited Warranty begins from the date of purchase. For the first two months coverage is for both parts and labor, on all our products purchased new. Accessories have a one- year warranty from the date of purchase. Send repair brightbeacon to : BrightBeacon Company / Repairs B340, Ming You Industrious Purchasing Center, Xixiang Baoyuan Rd.,Bao'an Dis.,Shenzhen,Guangdong,PRC Owner’s manual 9 F…

Text truncated - open the document above for the full version.

Bright Beacon (Beijing) Technology Co., LTD B340, Ming You Industrious Purchasing Center, Xixiang Baoyuan Rd.,Bao'an Dis.,Shenzhen,Gua ngdong, PRC TEL: +86-23-63006701 FAX: +86-23-63006701 DATE 05-22-2015 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2A ERL-PLUS Product Name: Bright Beacon plus Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...) • Schematics • Block diagram • Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 05-22-2015 By: Li Yuxia Signature Printed Title: Manager On behalf of : Bright Beacon (Beijing) Technology Co ., LTD Telephone: +86-23-63006701

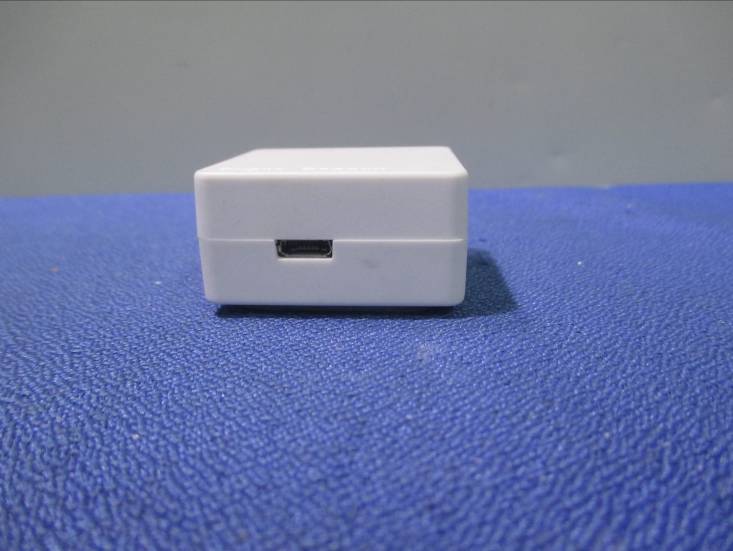

Bright Beacon (Beijing) Technology Co., LTD B340, Ming You Industrious Purchasing Center, Xixiang Baoyuan Rd.,Bao'an Dis.,Shenzhen, Guangdong, PRC TEL: +86-23-63006701 FAX: +86-23-63006701 USB Port Statement FCC ID: 2AERL-PLUS Date: May 22, 2015 To whom it may concern: We, the undersigned, state that the device's (Model: plus) USB port only used for charge, no any data transfer to PC. Sincerely, Li Yuxia /Manager

FCC ID Label Information 1. Label location: 2. FCC ID Label: Model: plus FCC ID: 2AERL- PLUS FCCID Label Location

RF Exposure evaluation According to KDB 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison eirp = pt x gt = (EXd) 2 /30 where: pt = transmitter output power in watts, gt = numeric gain of the transmitting antenna (unitless), E = electric field strength in V/m, --- 10 ((dBuV/m)/20) /10 6 d = measurement distance in meters (m)---3m So pt = (EXd) 2 /30 x gt Field strength =89.16 dBuV/m @3m Ant gain 0dBi; so Ant numeric gain=1 So pt={[10 (89.16/20) /10 6 x3] 2 /(30x1)}x1000mW = 0.247 mW So (0.247mW/5mm)x √2.402GHz = 0.07<3 Then SAR evaluation is not required

- Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 Fax: +86-755-26636041 FCC PART 15 SUBPART C TEST REPORT Report Reference No......................: CTL1504030779-WF Compiled by ( position+printed name+signature)..: File administrators Happy Guo Name of the organization performing the tests ( position+printed name+signature)..: Test Engineer Nice Nong Approved by ( position+printed name+signature)..: Manager Tracy Qi Date of issue.....................................: May 13, 2015 Test Firm..........................................: Shenzhen CTL Testing Technology Co., Ltd. Address.............................................: Floor 1-A, Baisha Technology Park, No. 3011, Shahexi Road, Nanshan, Shenzhen 518055 China. Applicant’s name............................: Bright Beacon (Beijing) Technology Co., LTD Address.............................................: B340, Ming You Industrious Purchasing Center, Xixiang Baoyuan Rd., Bao'an Dis., Shenzhen, Guangdong, PRC Test specification: Standard ...........................................: FCC Part 15.249: Operation within the bands 920-928 MHz, 2400- 2483.5 MHz, 5725-5850 MHz and 24.0 - 24.25 GHz. TRF Originator ..................................: Shenzhen CTL Testing Technology Co., Ltd. Master TRF.......................................: Dated 2011-01 Shenzhen CTL Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTL Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTL Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................... : Bright Beacon plus Trade Mark .......................................: Bright Beacon Models/Type reference.....................: plus Modulation .......................................: GFSK Work Frequency...........................: 2402 MHz~2480 MHz Antenna Type..............................: internal FCC ID .............................................: 2AERL-PLUS Result................................................: Positive V1.0 Page 2 of 48 Report No.: CTL1504030779-WF T E S T R E P O R T Test Report No. :CTL1504030779-WF May 13, 2015 ______________________________________________________________________________________________ Date of issue Equipment under Test : Bright Beacon plus Model /Type : plus Applicant : Bright Beacon (Beijing) Technology Co., LTD Address : B340, Ming You Industrious Purchasing Center, Xixiang Baoyuan Rd., Bao'an Dis., Shenzhen, Guangdong, PRC Manufacturer Bright Beacon (Beijing) Technology Co., LTD Address B340, Ming You Industrious Purchasing Center, Xixiang Baoyuan Rd., Bao'an Dis., Shenzhen, Guangdong, PRC Test Result according to the standards on page 4: Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. V1.0 Page 3 of 48 Report No.: CTL1504030779-WF Contents 1.TEST STANDARDS .................................................................. 4 2.SUMMARY............................................................................. 5 2.1.General Remarks 5 2.2.Equipment Under Test 5 2.3.Short description of the Equipment under Test (EUT) 5 2.4.EUT operation mode 6 2.5.EUT configuration 6 2.6.Related Submittal(s) / Grant (s) 6 2.7.Modifications 6 3. TEST ENVIRONMENT............................................................... 7 3.1.Address of the test laboratory 7 3.2.Test Facility 7 3.3.Environmental conditions 7 3.4.Configuration of Tested System 7 3.5.Statement of the measurement uncertainty 8 3.6.Equipments Used during the Test 9 4. TEST CONDITIONS AND RESULTS ............................................ 10 4.1.Conducted Emissions Test 10 4.2.Fundamental Emissions 14 4.3.Transmitter Radiated Unwanted Emissions 15 4.4.Band Edge Measurement 31 4.5.Occupied Bandwidth Measurement 40 5. ANTENNA REQUIREMENT ....................................................... 42 6.TEST SETUP PHOTOS OF THE EUT .......................................... 43 7.EXTERNAL AND INTERNAL PHOTOS OF THE EUT ....................... 45 V1.0 Page 4 of 48 Report No.: CTL1504030779-WF 1. TEST STANDARDS The tests were performed according to following standards: FCC Rules Part 15.249: Operation within the bands 902 - 928 MHz, 2400 - 2483.5 MHz, 5725 - 5875 MHz, and 24.0 - 24.25 GHz. ANSI C63.4-2009 V1.0 Page 5 of 48 Report No.: CTL1504030779-WF 2. SUMMARY 2.1. General Remarks Date of receipt of test sample : Apr. 30, 2015 Testing commenced on : Apr. 30, 2015 Testing concluded on : May 13, 2015 2.2.Equipment Under Test Power supply system utilised Power supply voltage : o 120V / 60 Hz o 115V / 60Hz o 12 V DC o 24 V DC ƽ Other (specified in blank below) DC 3.0V from battery (CR2477) 2.3. Short description of the Equipment under Test (EUT) The EUT is a Bright Beacon plus work at 2402~2480 MHz support Bluetooth 4.0LE. Channel List: Channel Frequency (MHz) Channel Frequency (MHz) 00 2402 20 2442 01 2404 21 2444 02 2406 22 2446 03 2408 23 2448 04 2410 24 2450 05 2412 25 2452 06 2414 26 2454 07 2416 27 2456 08 2418 28 2458 09 2420 29 2460 10 2422 30 2462 11 2424 31 2464 12 2426 32 2466 13 2428 33 2468 14 2430 34 2470 15 2432 35 2472 16 2434 36 2474 17 2436 37 2476 18 2438 38 2478 19 2440 39 2480 Modulation: GFSK For more details, refer to the user’s manual of the EUT. Serial number: Prototype V1.0 Page 6 of 48 Report No.: CTL1504030779-WF 2.4. EUT operation mode Test Mode(TM) Description Remark TM1 Bottom Channel Transmitting / TM2 Middle Channel Transmitting / TM3 Top Channel Transmitting / The field strength of radiation emission was measured in the following position: EUT stand-up position (Y axis), lie-down position (X, Z axis). The followin…

Text truncated - open the document above for the full version.
